*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

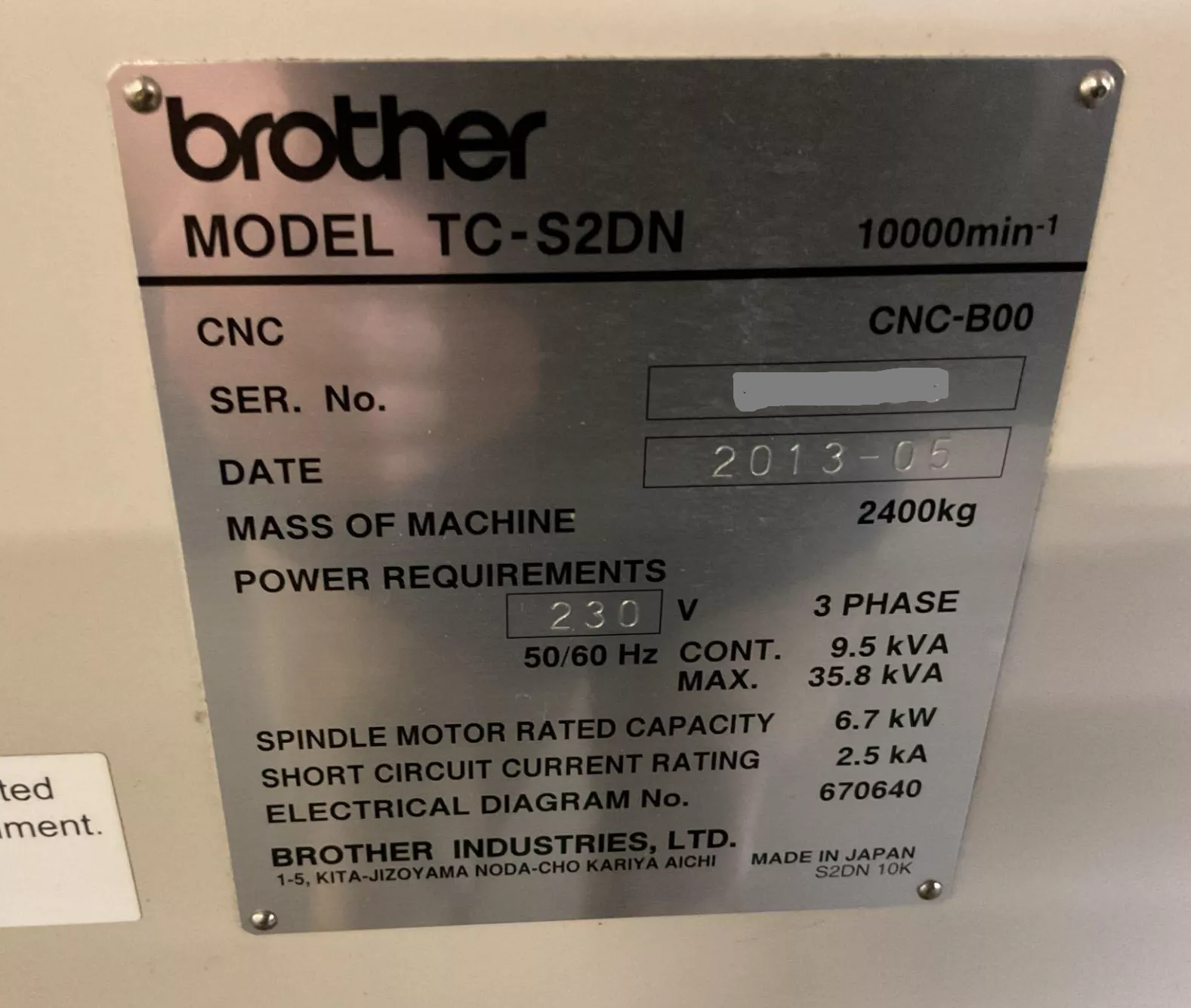

| Make: | Brother |
| Model No.: | TC-S2DN |
| Year of Manufacture: | 2013 |
| Condition: | Used – Good |

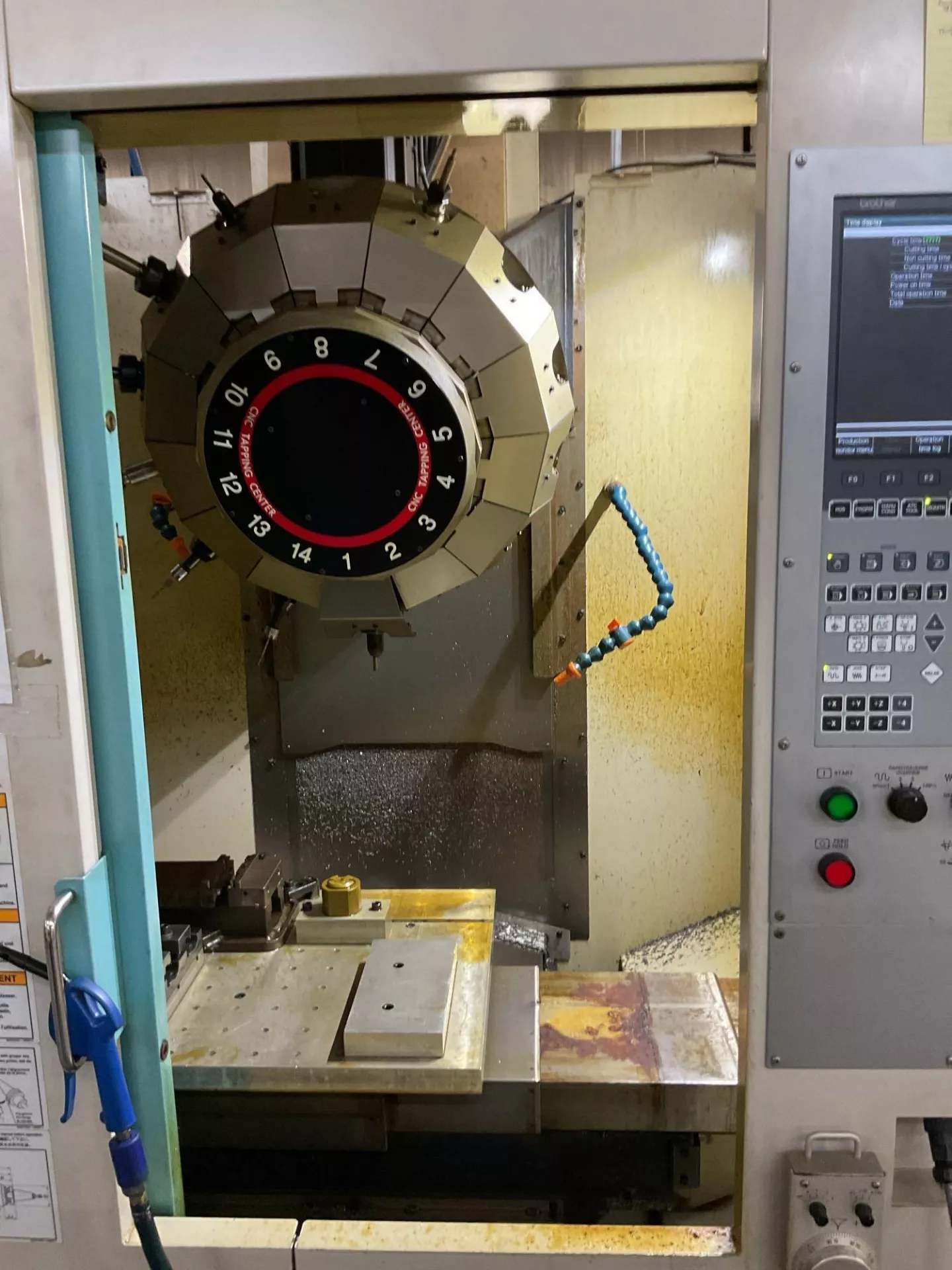

| Machine Type: | CNC Vertical Machining Center |
| CNC Control: | Brother CNC Control |
| Equipped With: |
|---|
| Brother CNC Control |
| 21-Tool Automatic Tool Changer |
| High-Speed Spindle |
| Rigid Tapping |
| Coolant System |
| Chip Conveyor |
| Automatic Lubrication System |
| Work Light |
| Fully Enclosed Splash Guard |

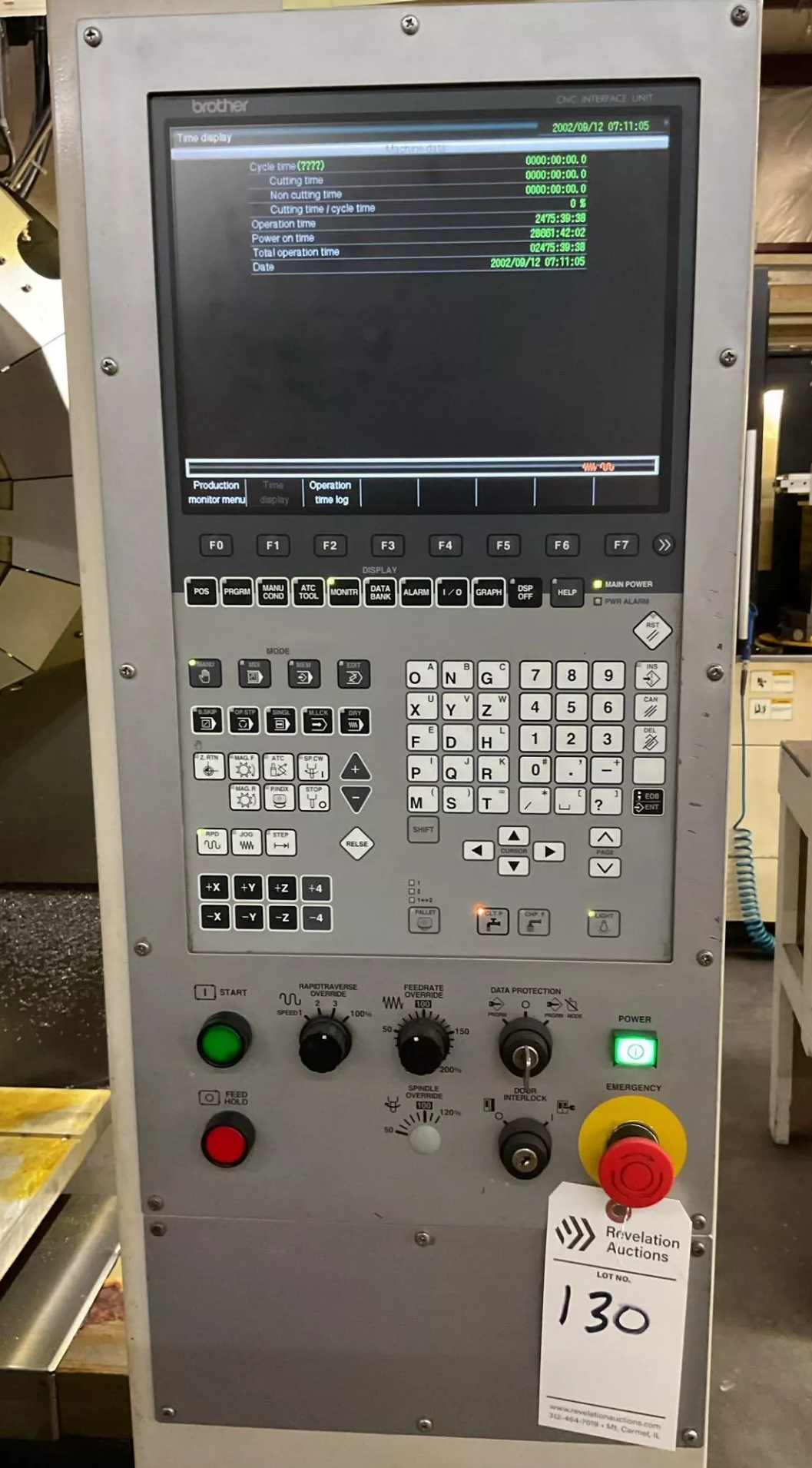

| Operator Pendant |
| Capacity: |
|---|
| Table Size: 23.6″ × 15.7″ (600 × 400 mm) |
| Maximum Table Load: 441 lbs (200 kg) |
| T-Slots: 3 |
| Travel: |
|---|
| X-Axis Travel: 19.7″ (500 mm) |
| Y-Axis Travel: 15.7″ (400 mm) |
| Z-Axis Travel: 11.8″ (300 mm) |
| Spindle Nose to Table: 5.9″ – 17.7″ (150 – 450 mm) |
| Spindle: |
|---|
| Spindle Speed: Up to 16,000 RPM |
| Spindle Motor Power: Approx. 7.0 kW (9.4 HP) |
| Spindle Taper: BT30 |
| Tool Changer: |
|---|
| Tool Capacity: 21 Tools |
| Tool Change Type: Drum / Carousel Type |
| Tool-to-Tool Change Time: Approx. 0.8 sec |
| Maximum Tool Diameter: 2.36″ (60 mm) |
| Maximum Tool Length: 7.9″ (200 mm) |
| Maximum Tool Weight: 6.6 lbs (3 kg) |
| Feedrates: |
|---|
| Rapid Traverse (X / Y / Z): 50 m/min (1,969 IPM) |
| Cutting Feed Rate: Up to 10 m/min |
| Electrical: |
|---|
| Power Requirement: Approx. 20 kVA |
| Voltage: 220 / 380 / 440 V |
| Phase: 3-Phase |
| General: |
|---|
| Machine Dimensions: Approx. 74.8″ × 90.6″ × 94.5″ (1900 × 2300 × 2400 mm) |
| Machine Weight: Approx. 4,850 lbs (2,200 kg) |
| Features: |
|---|
| High-speed drill/tap machining center for production machining |
| Ultra-fast tool change (sub-second) |
| 16,000 RPM spindle for aluminum and small precision parts |
| BT30 spindle ideal for high-speed machining |
| Compact footprint with high productivity |
| Rigid tapping for fast threading operations |
| Ideal for electronics, automotive parts, aluminum machining, and high-volume production |
