*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Cincinnati |
| Model: | 135 CBx10 |
| Year: | 1988 |
| Condition: | Used – Good |

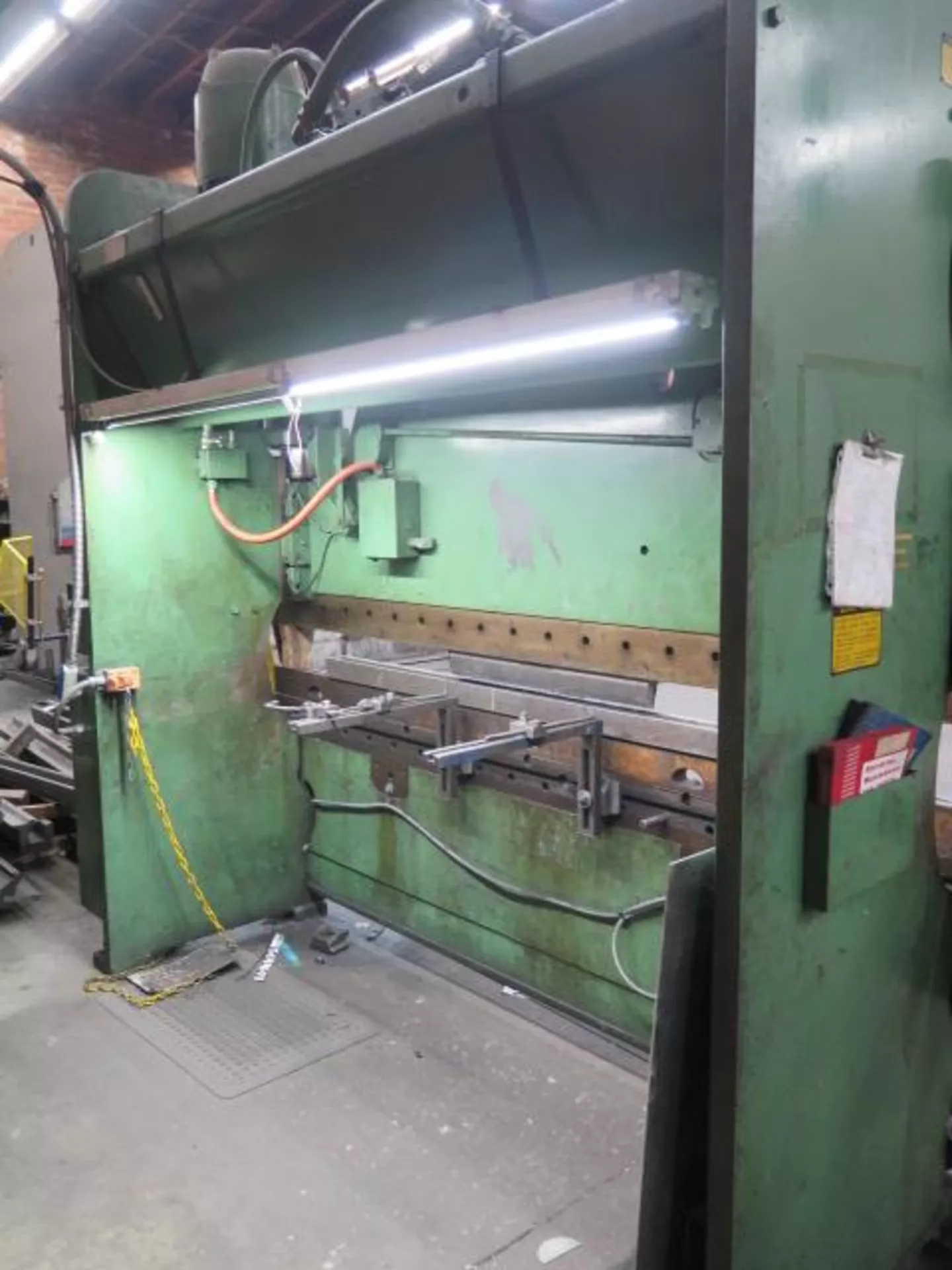

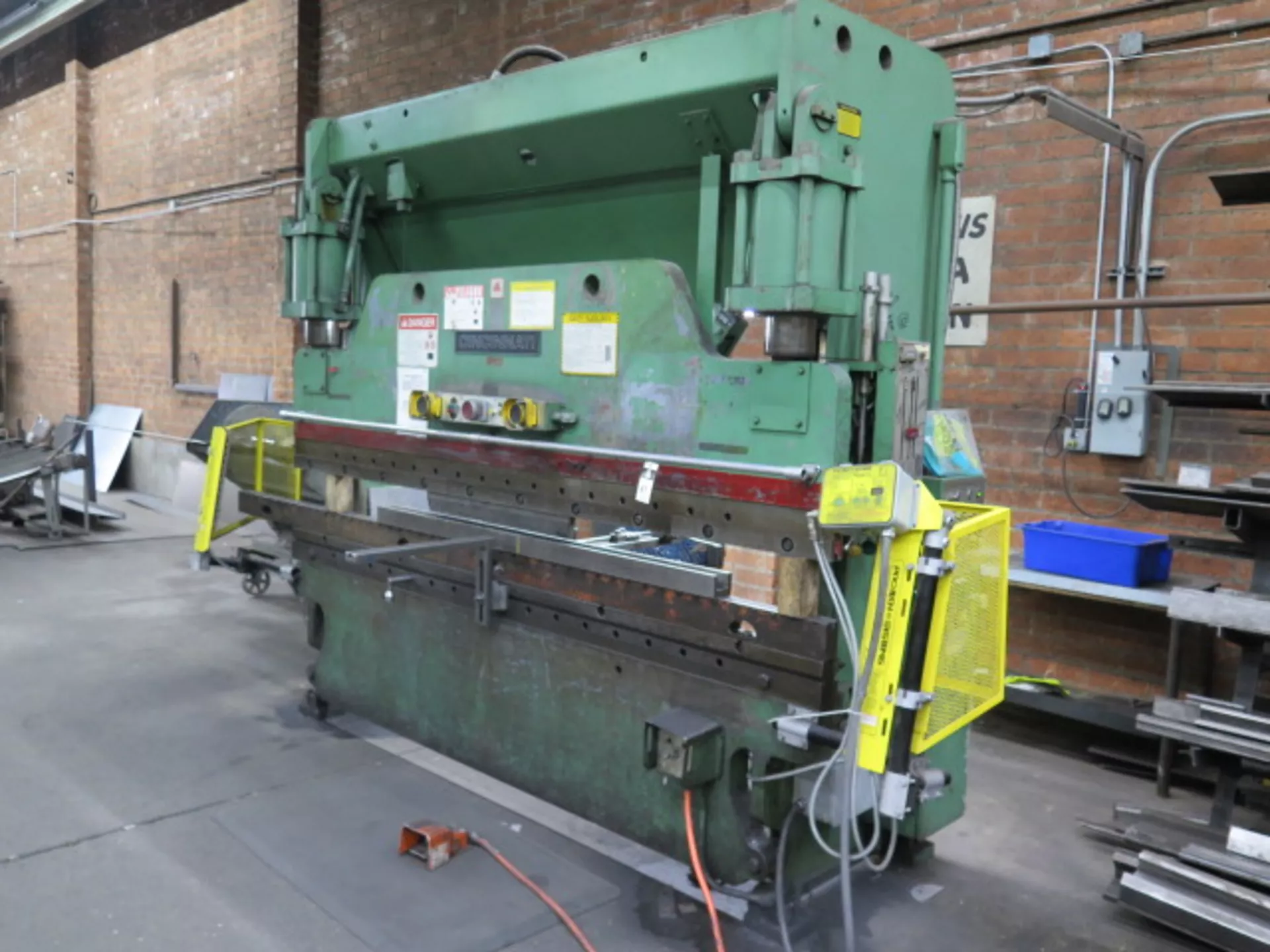

| Machine Type: | Hydraulic Press Brake |
| Control: | Cincinnati Mechanical Stroke Control Panel |
| Features: |
|---|

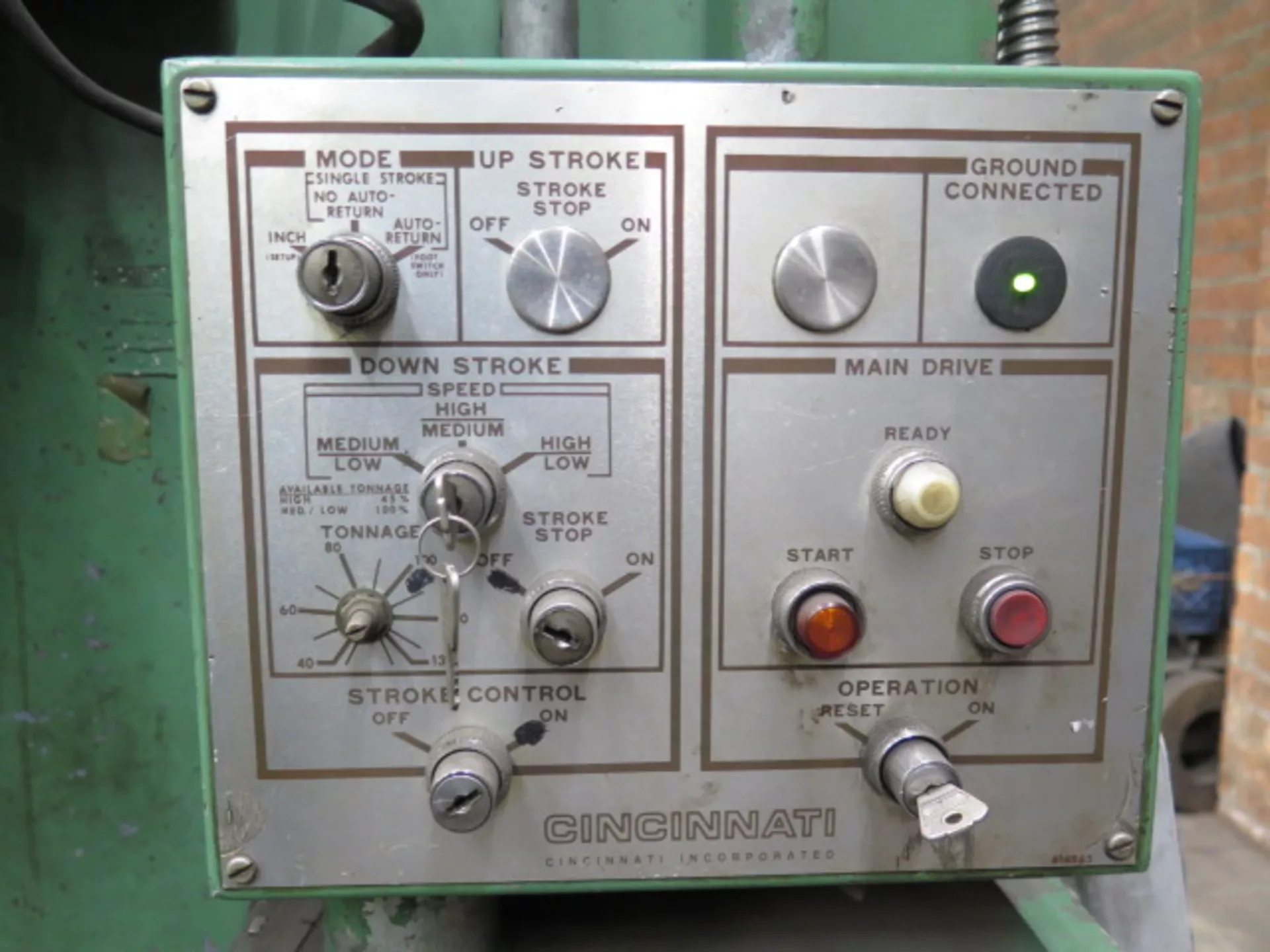

| Cincinnati Mechanical Stroke Control Panel |
| Pro-Tech Systems Guarding & Automation Light Curtains |

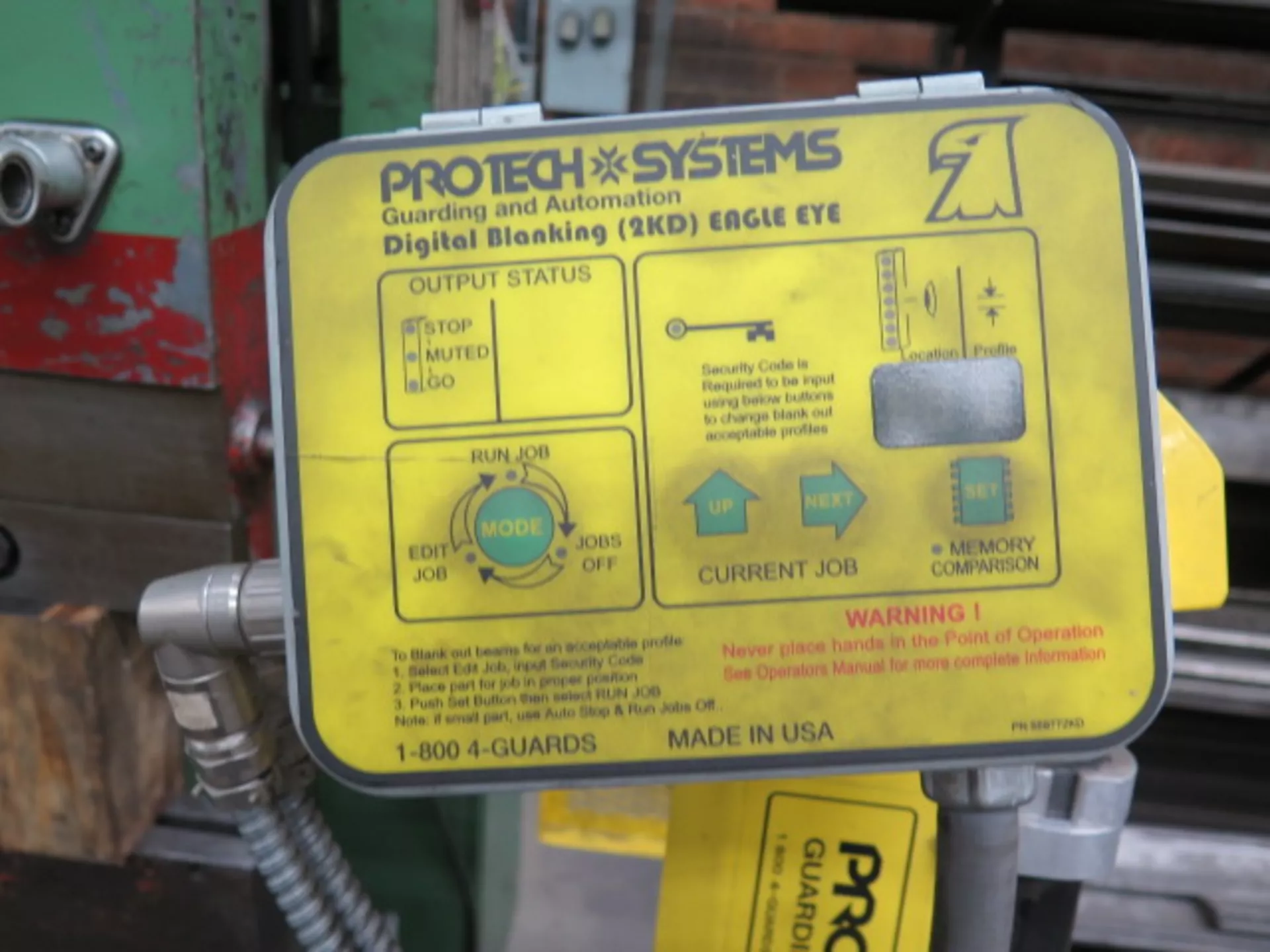

| Pro-Tech Digital Blanking (2KD) Eagle Eye Integration System |
| Manual Back Gauge System |
| Dual Palm Operator Station Controls with E-Stop Button |
| Adjustable Speed Change & Stroke Stop Limit Settings |
| Electric Foot Switch Control Assembly |
| Waveguard Ground Connected Detection Safety Monitors |
| Tonnage Selection Adjustment Indicator Panel |
| Rigid Interlocking Steel Frame Construction |
| Capacity: |
|---|
| Bending Capacity: 135 Tons |
| Overall Length of Bed & Ram: 10′ (120″) |
| Distance Between Housings: 8’6″ (102″) |
| Throat Depth: 7.375″ |
| Stroke & Open Height: |
|---|
| Ram Stroke: 8″ |
| Open Height: 15″ |
| Closed Height: 7″ |
| Speeds: |
|---|
| Approach Speed: 140 IPM |
| Forming Speed: 6 to 50 IPM |
| Return Speed: 145 IPM |
| General: |
|---|
| Air Required: 85 psi |
| Power: 230v/460v / 60 Hz / 3-Phase |
| Overall Dimensions: 132″ L x 64″ W x 114″ High Approx. |
| Weight: 21,500 lbs Approx. |
