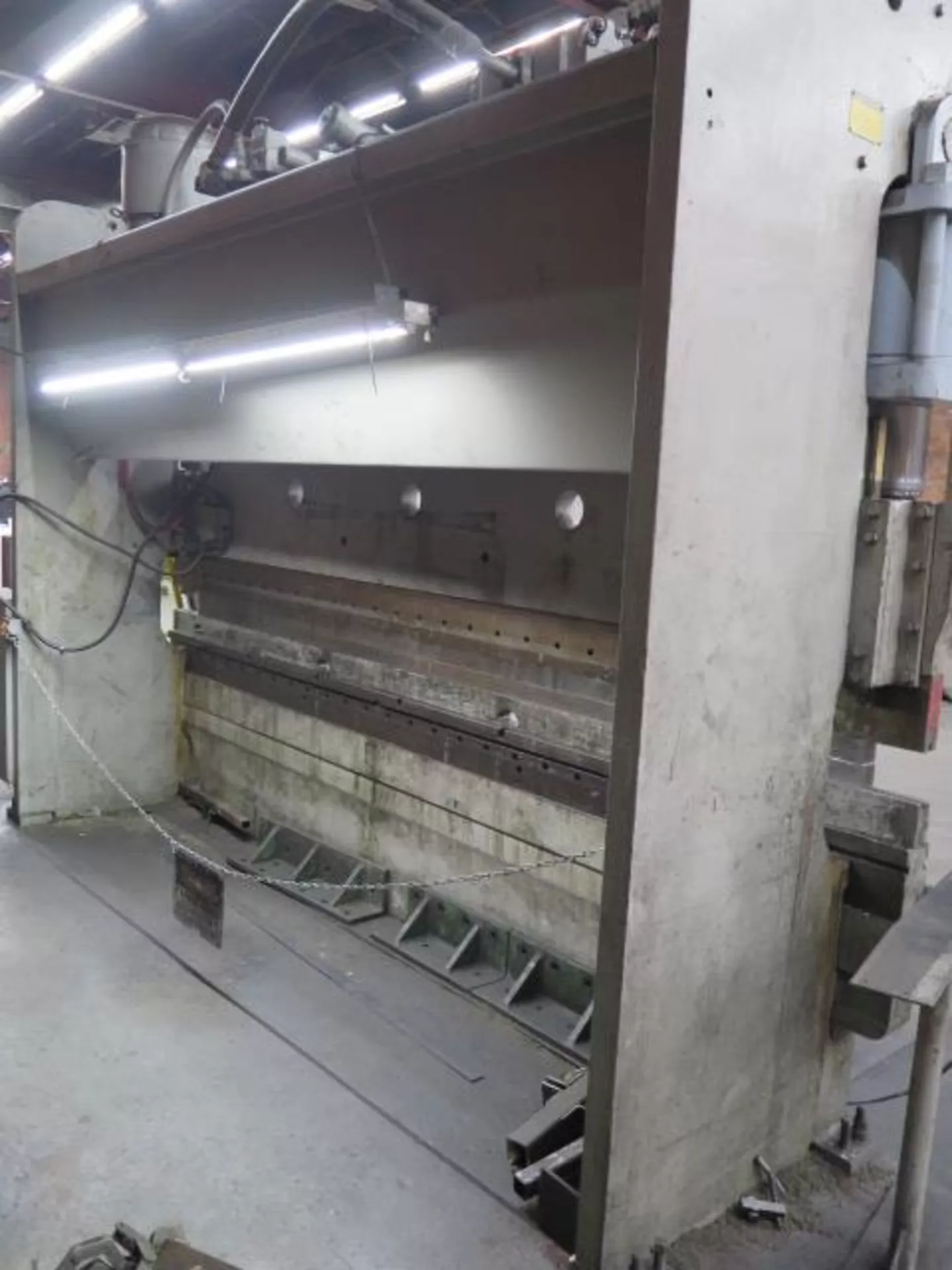

Cincinnati 175 (3)

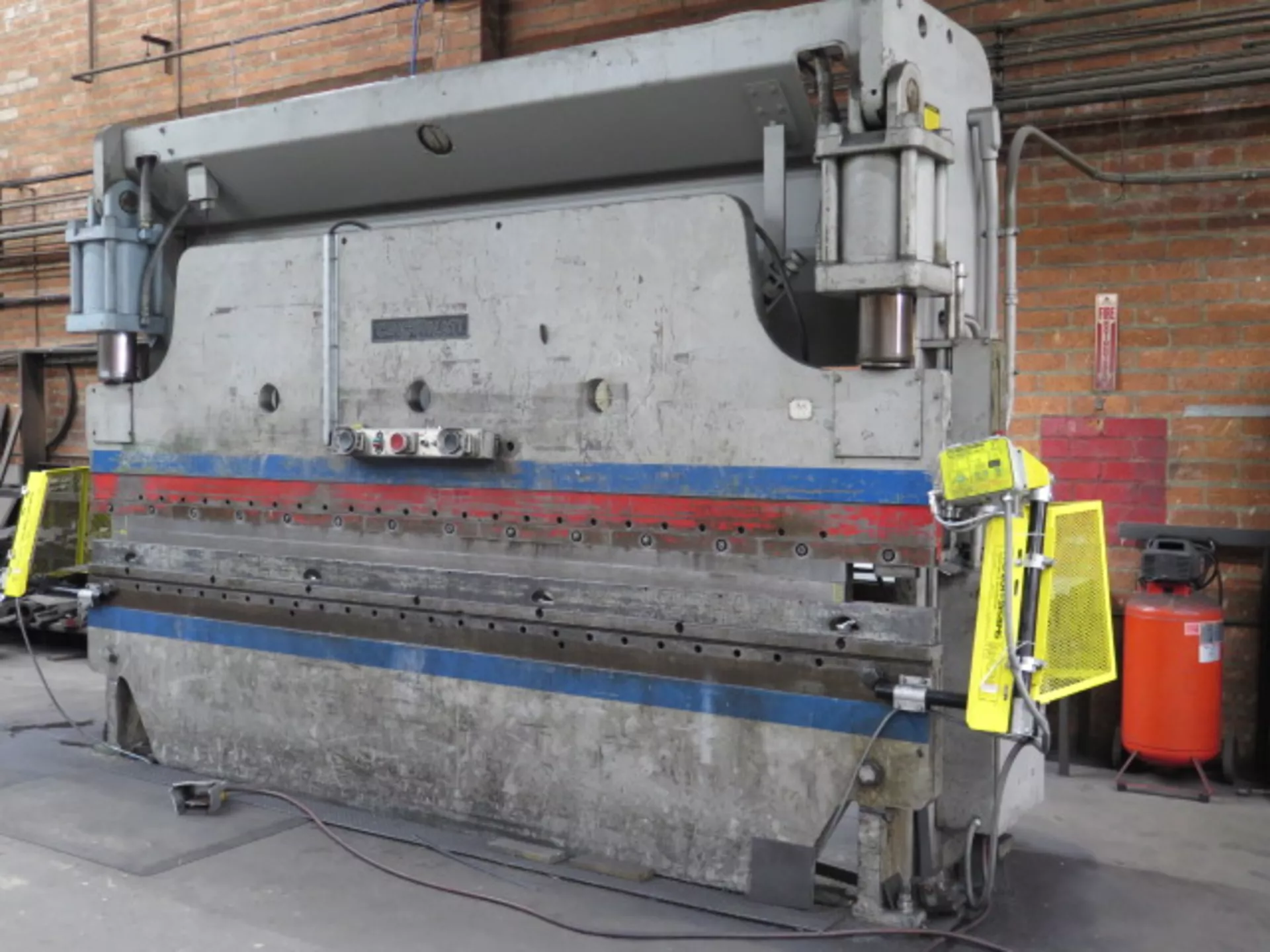

Cincinnati 175 (4)

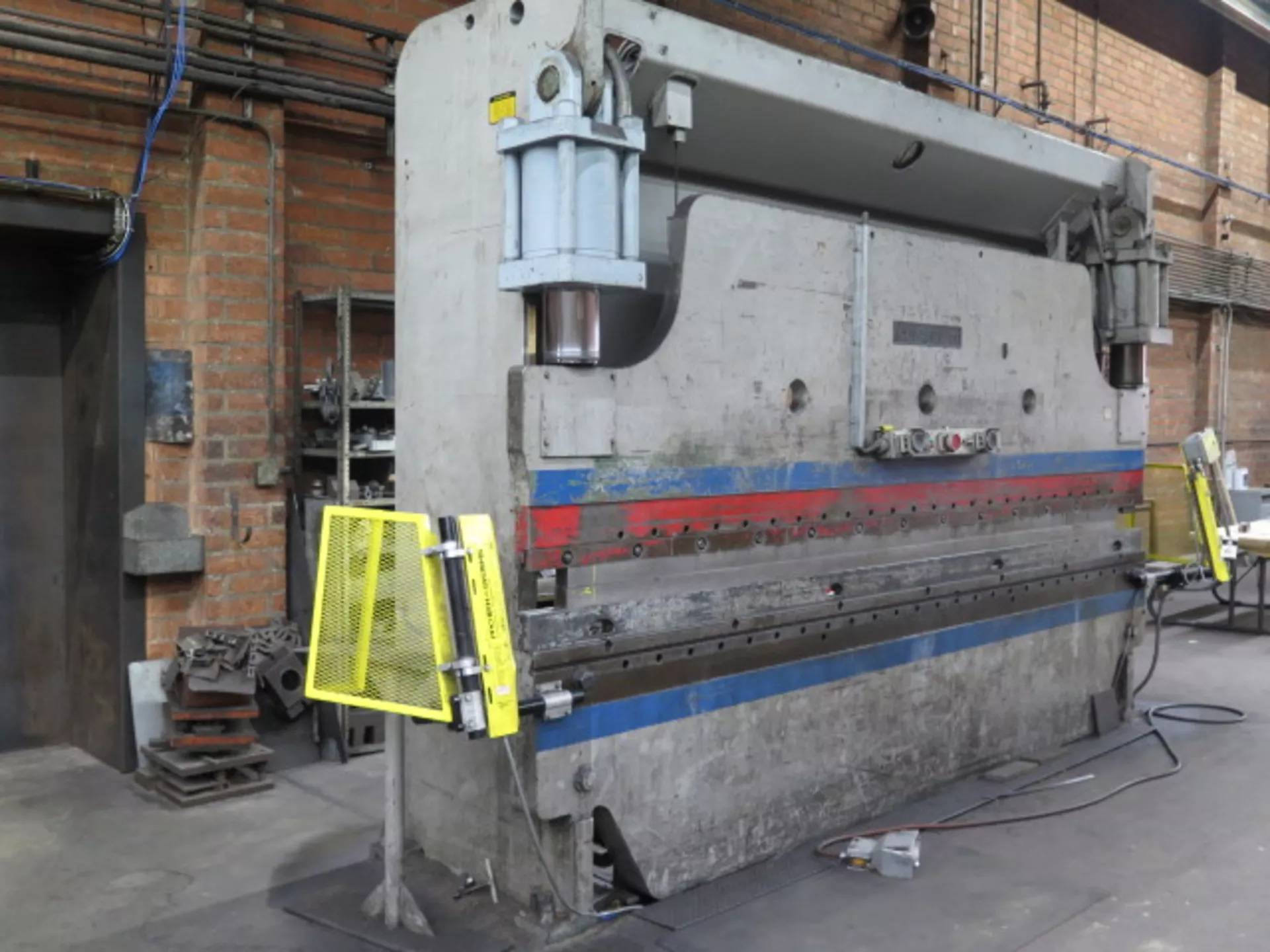

Cincinnati 175 (5)
Cincinnati 175 (6)

Cincinnati 175 CBx12 Hydraulic Press Brake

SKU 11564
Make/Model Cincinnati 175 CBx12
Year 1977
Video On Request
Out of stock
SKU: 11564
Make/Model: Cincinnati 175 CBx12
Year: 1977
Video: On Request
SKU: 11564

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Cincinnati
Model: 175 CBx12
Year: 1977
Machine Type: Hydraulic Press Brake

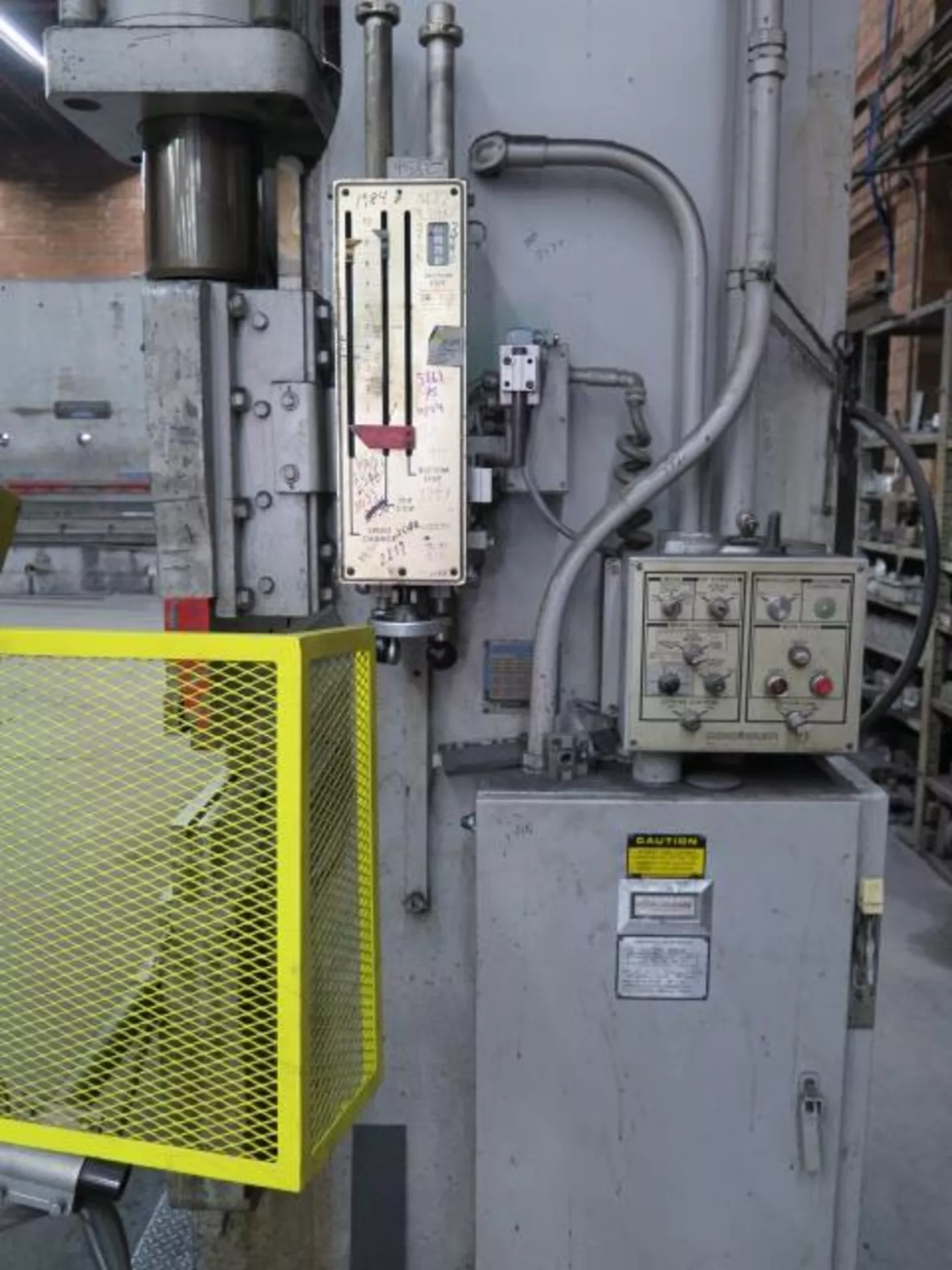

Control: Cincinnati Mechanical Stroke Control Panel
Features:
Cincinnati Mechanical Stroke Control Panel
Pro-Tech Systems Guarding & Automation Light Curtains
Pro-Tech Digital Blanking (2KD) Eagle Eye Integration System
Manual Back Gauge Assembly
Dual Palm Station Controls with Palm Buttons & E-Stop
Adjustable Speed Change & Stroke Stop Limit Settings
Electric Foot Switch Control Mechanism
Waveguard Ground Connected Detection Monitors
Tonnage Selection Adjustment Indicator Gauge
Heavy Rigid Welded Steel Frame Construction
Capacity:
Bending Capacity: 175 Tons
Overall Length of Bed & Ram: 14′ (168″)
Distance Between Housings: 12’6″ (150″)
Throat Depth: 8.125″
Stroke & Open Height:
Ram Stroke: 8″
Open Height: 15″
Closed Height: 7″
Speeds:
Approach Speed: 130 IPM
Forming Speed: 5 to 45 IPM
Return Speed: 135 IPM
General:
Air Required: 85 psi
Power: 230v/460v / 60 Hz / 3-Phase
Overall Dimensions: 178″ L x 68″ W x 118″ High Approx.
Weight: 28,500 lbs. Approx.
Capacity:
Bending Capacity: 175 Tons
Overall Length of Bed & Ram: 14' (4,267 mm)
Distance Between Housings: 12'152 mm (3,810 mm)
Throat Depth: 206 mm
Stroke & Open Height:
Ram Stroke: 203 mm
Open Height: 381 mm
Closed Height: 178 mm
Speeds:
Approach Speed: 130 IPM
Forming Speed: 5 to 45 IPM
Return Speed: 135 IPM
General:
Air Required: 85 psi
Power: 230v/460v / 60 Hz / 3-Phase
Overall Dimensions: 4,521 mm L x 1,727 mm W x 2,997 mm High Approx.
Weight: 28,500 lbs. Approx.
CategoriesPress Brakes
MakeCincinnati
Model175 CBx12
  • Cincinnati Mechanical Stroke Control Panel
  • Pro-Tech Systems Guarding & Automation Light Curtains
  • Pro-Tech Digital Blanking (2KD) Eagle Eye Integration System
  • Manual Back Gauge Assembly
  • Dual Palm Station Controls with Palm Buttons & E-Stop
  • Adjustable Speed Change & Stroke Stop Limit Settings
  • Electric Foot Switch Control Mechanism
  • Waveguard Ground Connected Detection Monitors
  • Tonnage Selection Adjustment Indicator Gauge
  • Heavy Rigid Welded Steel Frame Construction
Cincinnati 175 (2)Cincinnati 175 (3)Cincinnati 175 (4)Cincinnati 175 (5)Cincinnati 175 (6)
