*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Cincinnati Milacron |
| Model: | Talon 208 |
| Machine Type: | CNC Turning Center |
| CNC Control: | Cincinnati Milacron ACRAMATIC 850 SX CNC Control |
| Equipped With: |
|---|
| Cincinnati Milacron ACRAMATIC 850 SX CNC Control |
| 8″ 3-Jaw Chuck |
| 12-Station Turret |
| Programmable Tailstock |
| Hydraulic Swing-Down Tool Setter |
| Chip Conveyor |
| Parts Catcher |
| Fully Enclosed Work Area |
| Turning Capacity: |
|---|
| Swing Over Bed: 20.86″ |
| Maximum Machining Diameter: 11.8″ |
| Maximum Machining Length: 21.6″ |
| Bar Capacity: 2.0″ |
| Spindle: |
|---|
| Spindle Speed: 45 – 4,500 RPM |
| Spindle Motor: 20 HP |
| Through Spindle / Bore: 2.0″ |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 7 seconds |
| Tailstock: |
|---|
| Tailstock Type: Programmable |
| Tailstock Quill Taper: MT-4 |
| Tailstock Quill Stroke: 3.94″ |

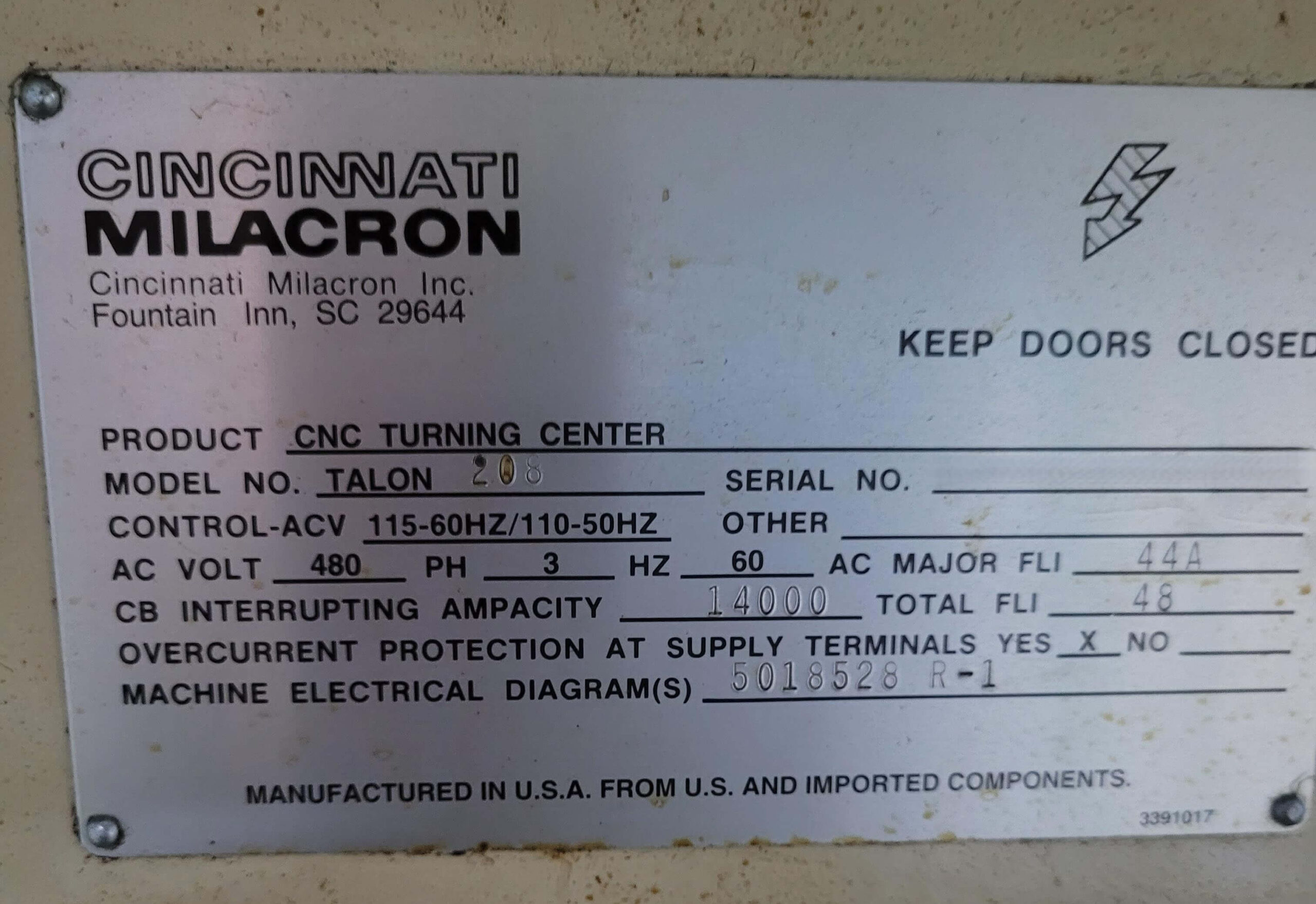

| Electrical: |
|---|
| Input Voltage: 480 VAC |
| Phase: 3-Phase |
| Frequency: 60 Hz |
