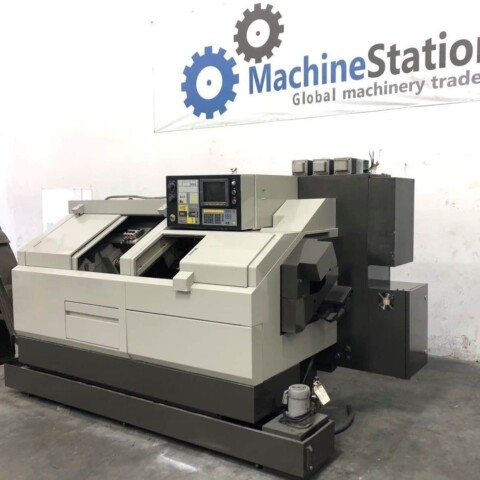

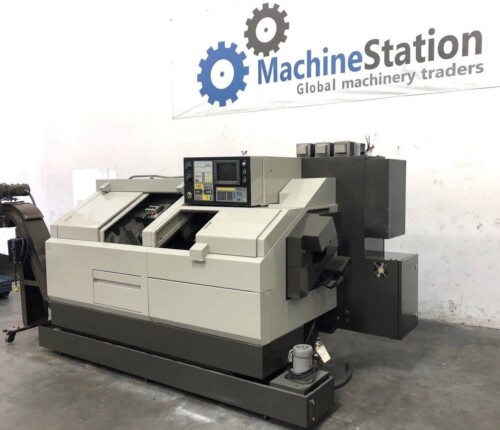

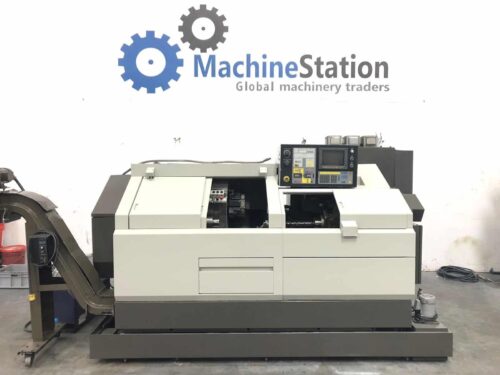

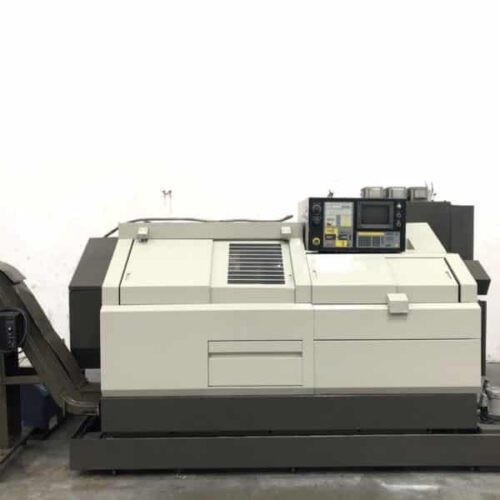

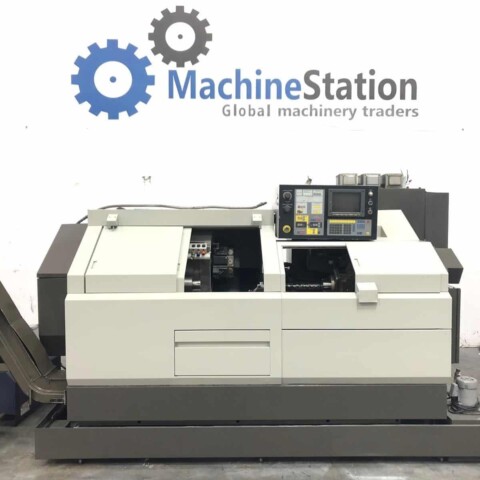

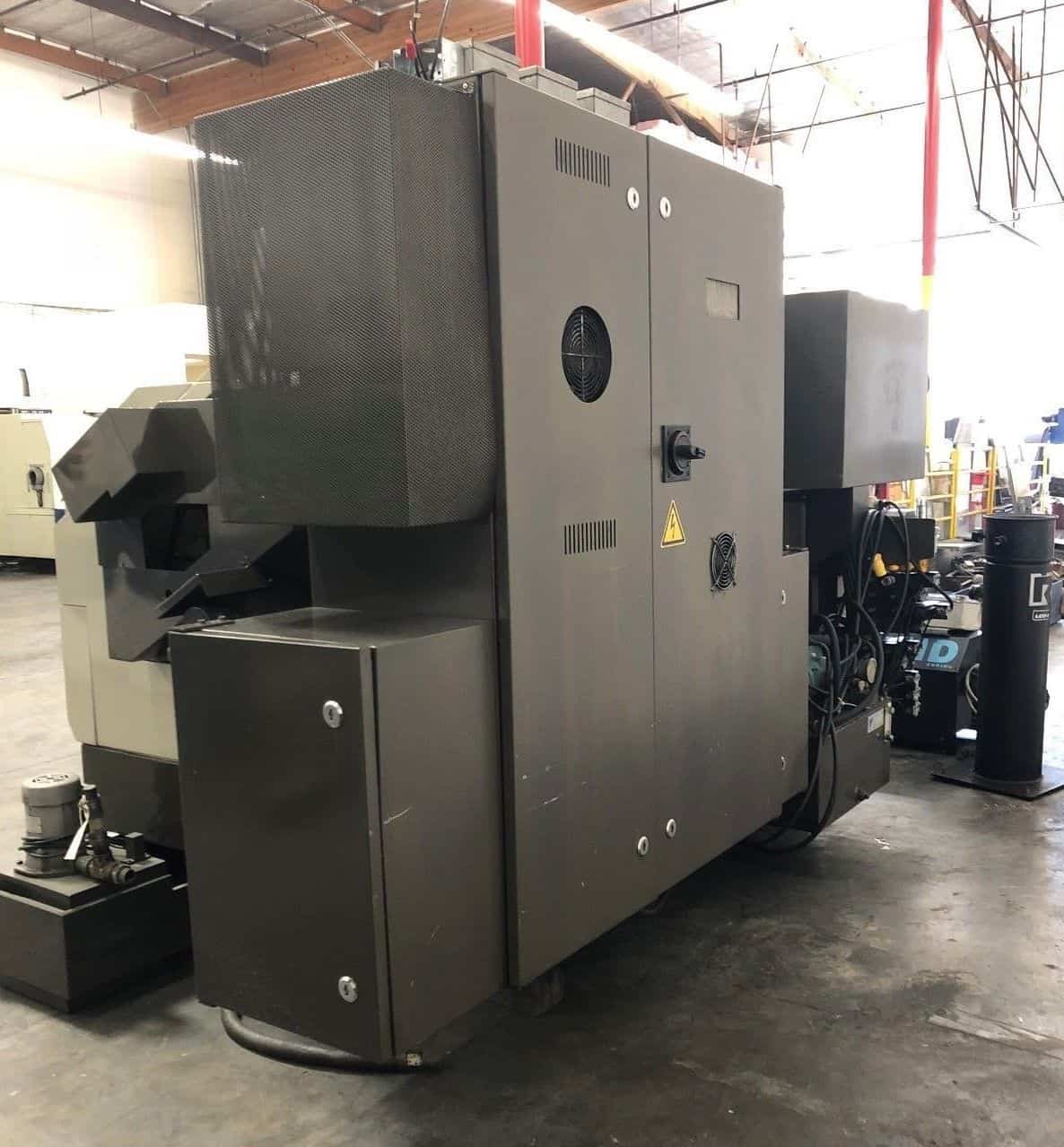

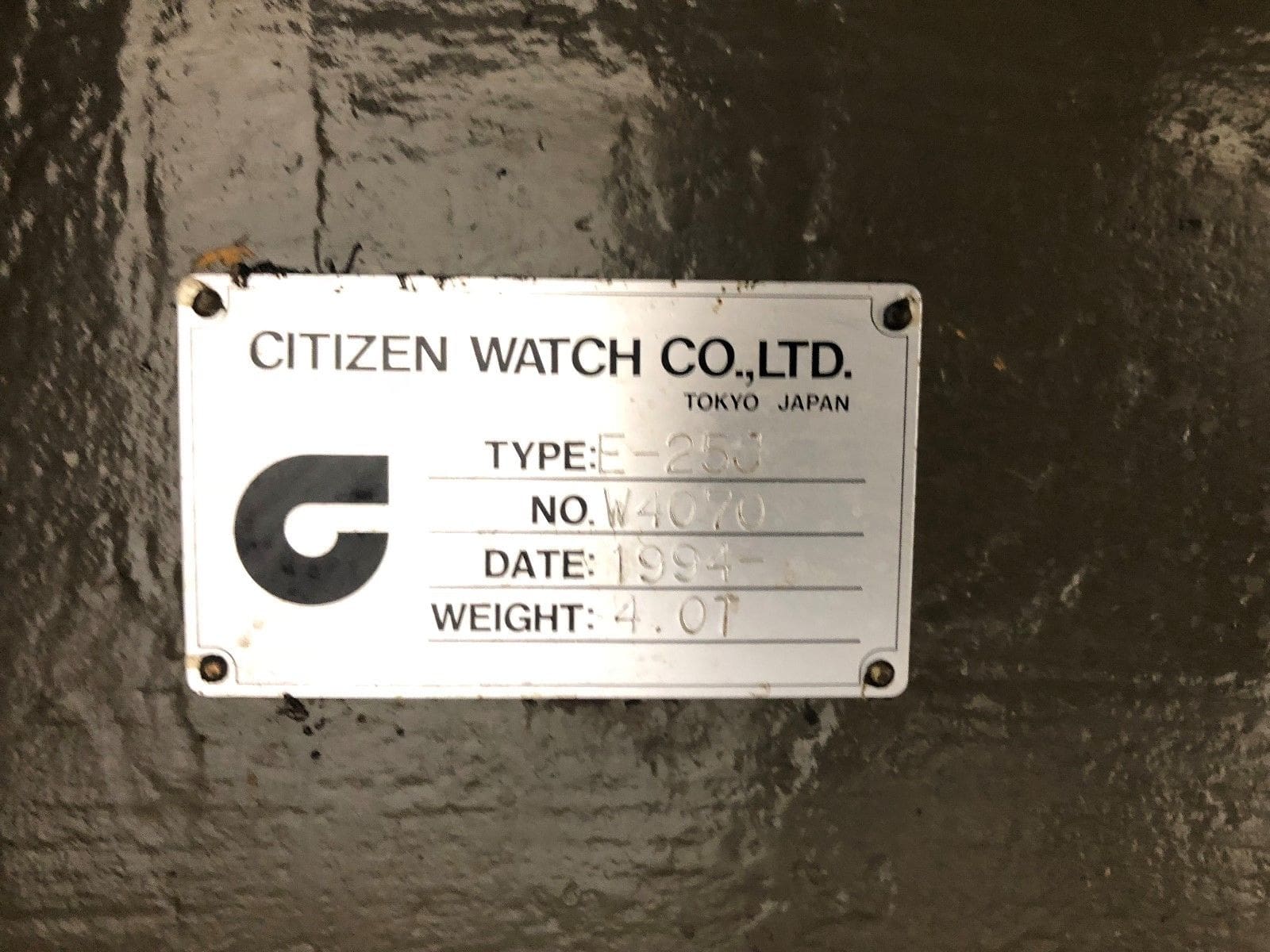

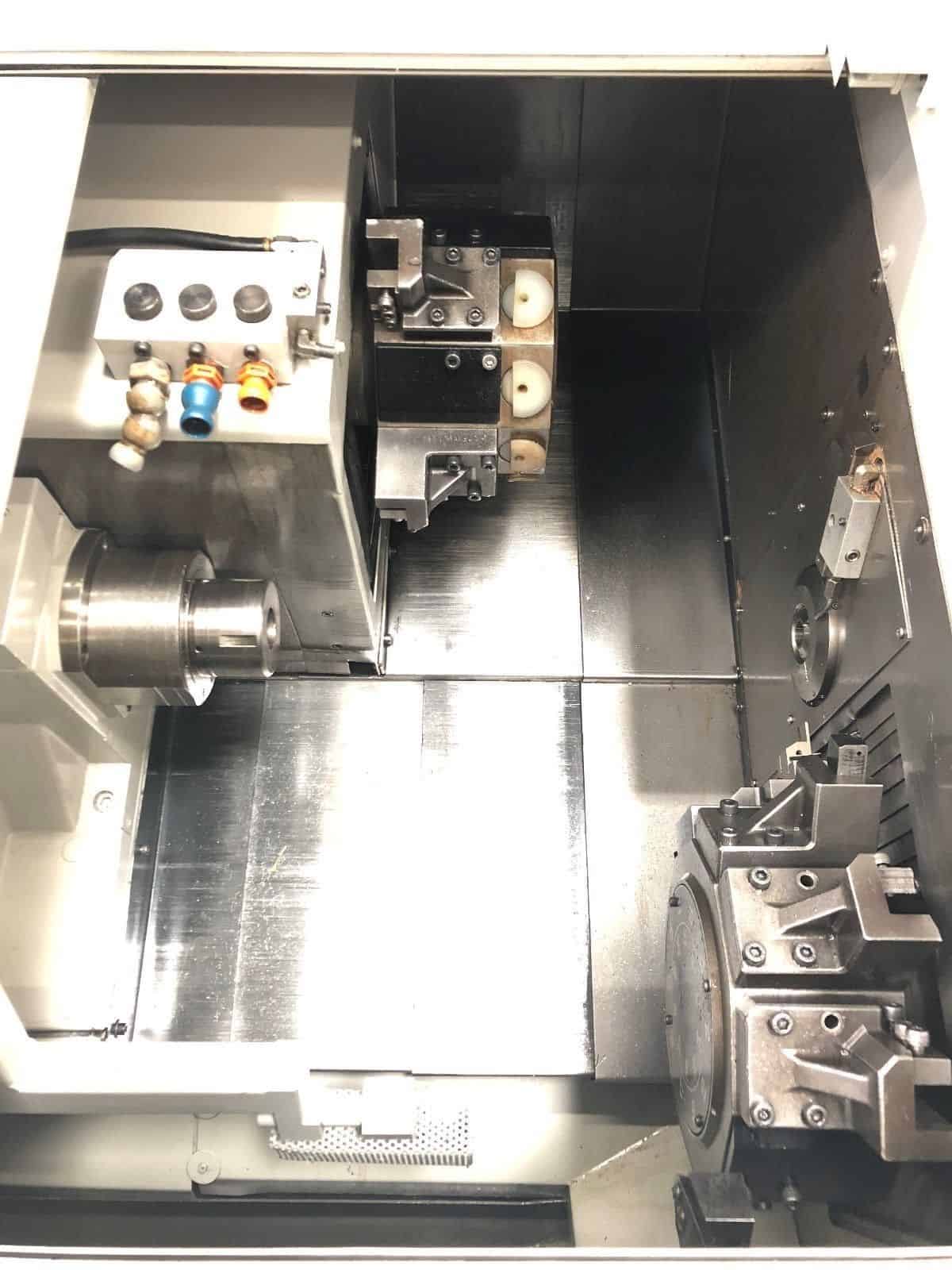

CITIZEN E-25J CNC Swiss Screw Lathe Sub-Spindle Machine

“Fully loaded Machine, Comes with Cincom TP-1000 Tool Presetter, Live tools, tool holders and accessories.”

• CITIZEN E-25J Equipped With:

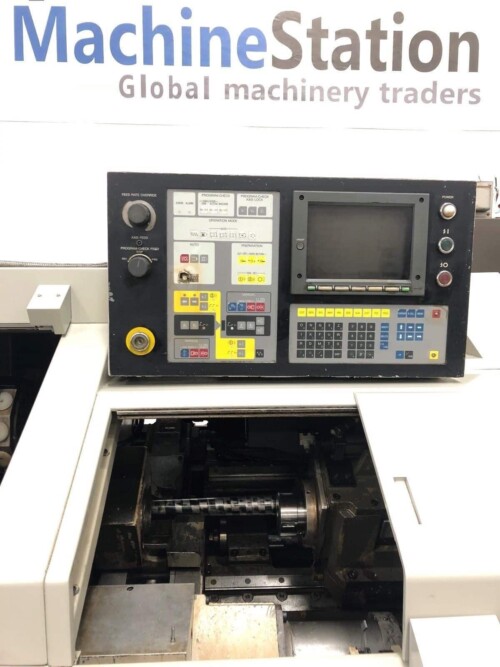

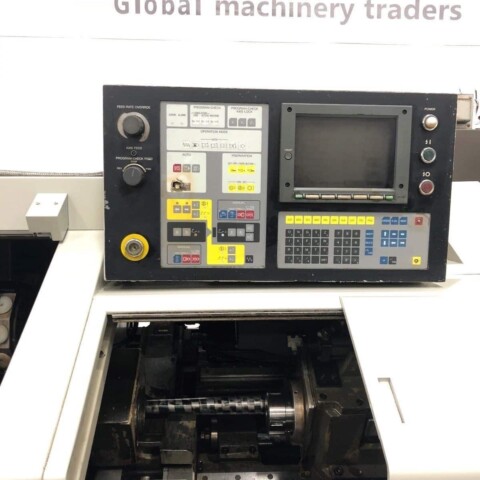

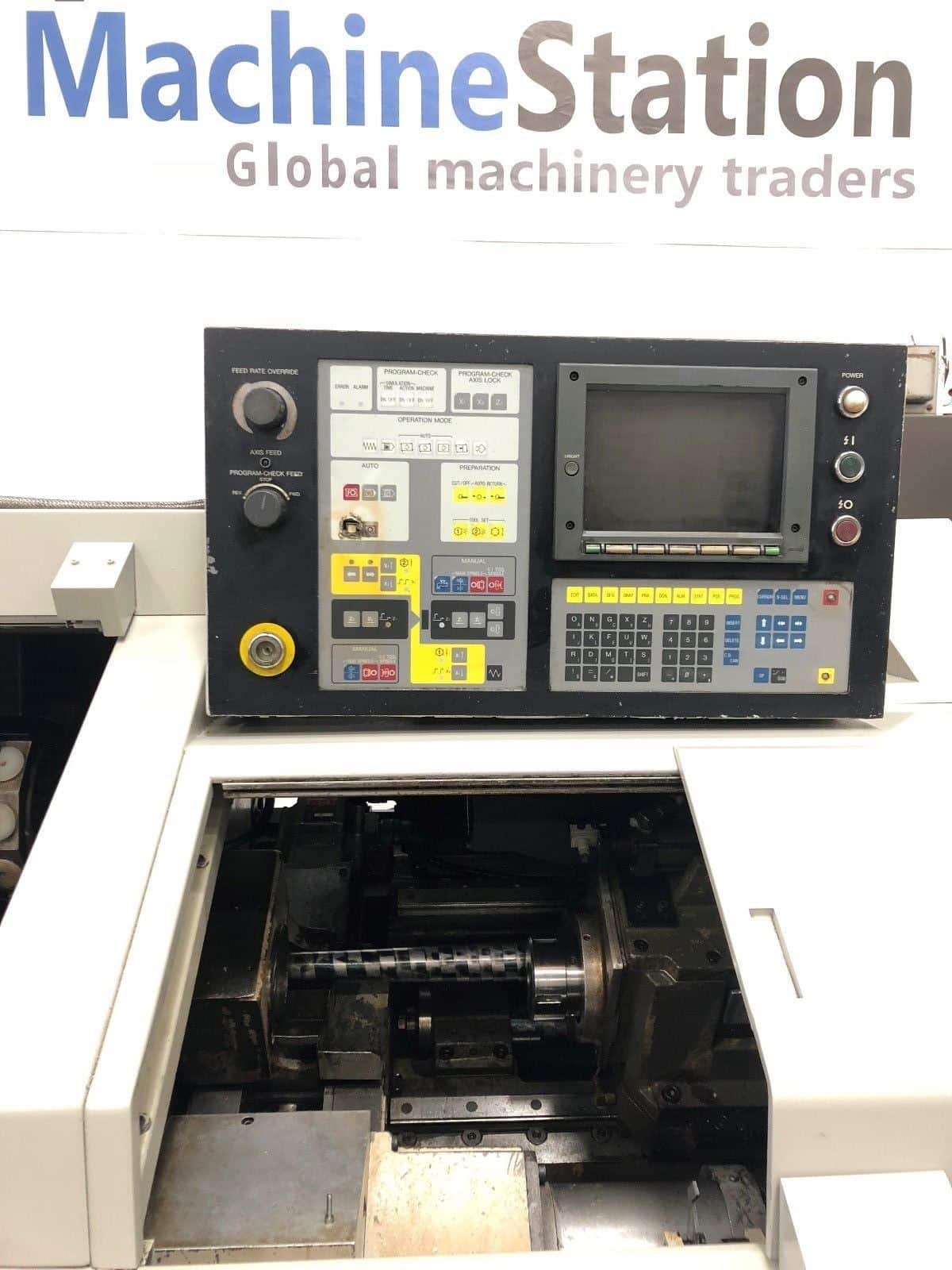

• Mitsubishi Meldas Control

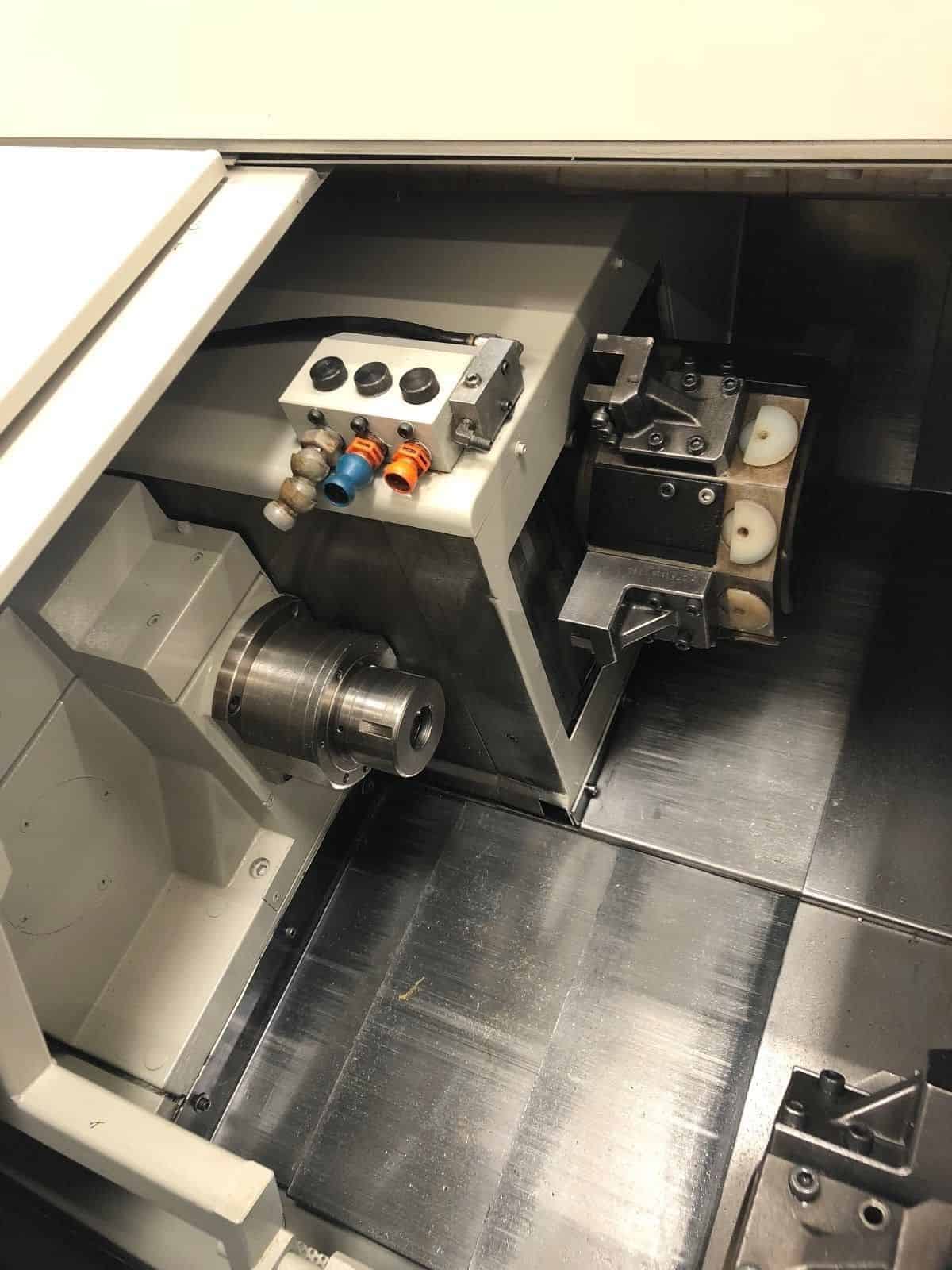

• Servo Controlled Full C-Axis on Main Spindle

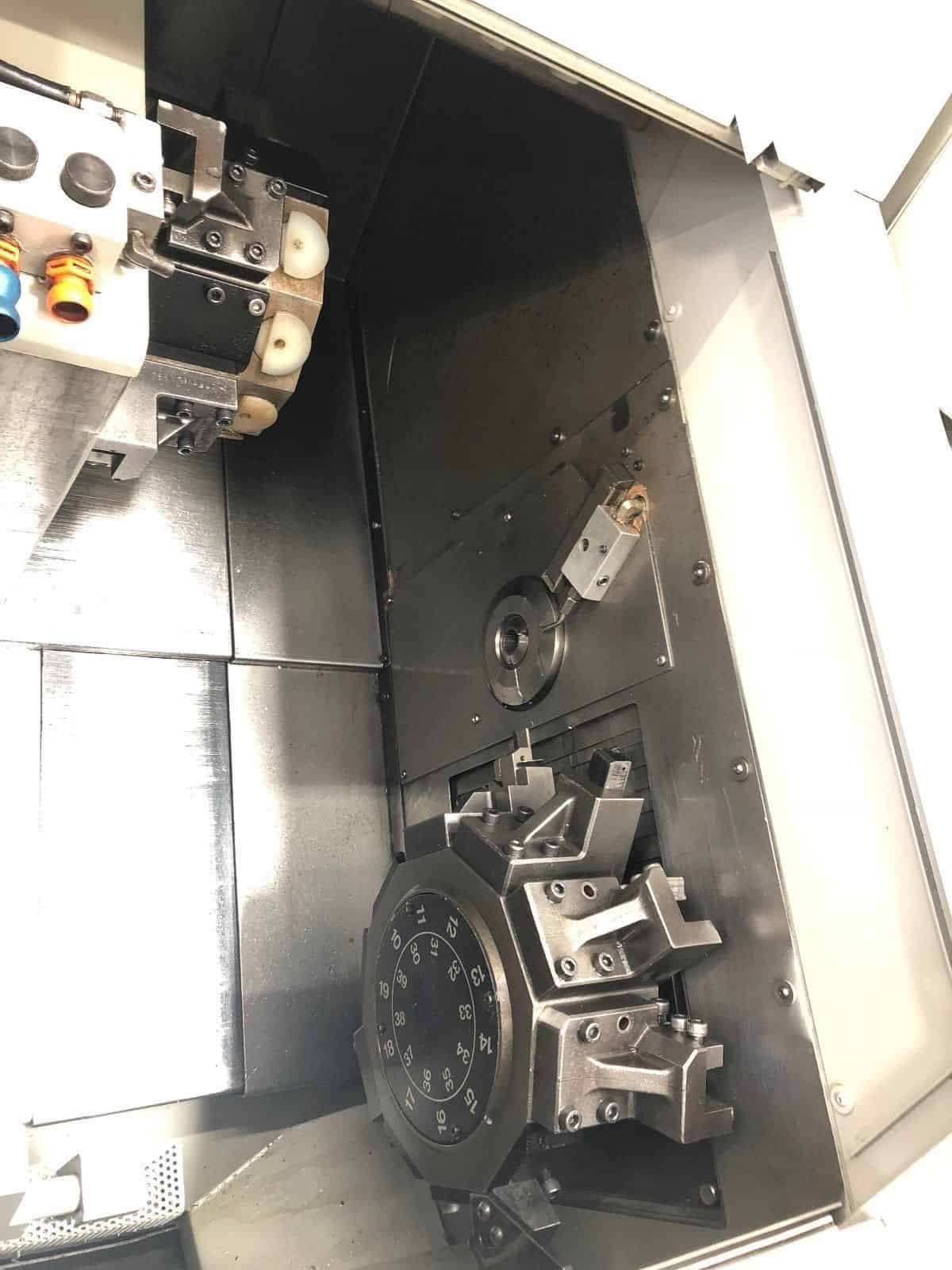

• 15 Degree indexing on sub-spindle
• Tool Presetter
• High Pressure Coolant System

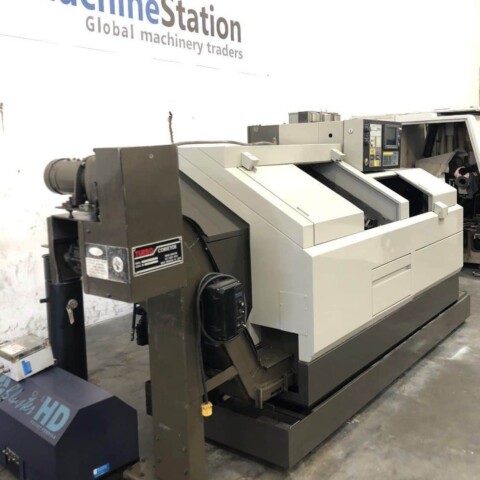

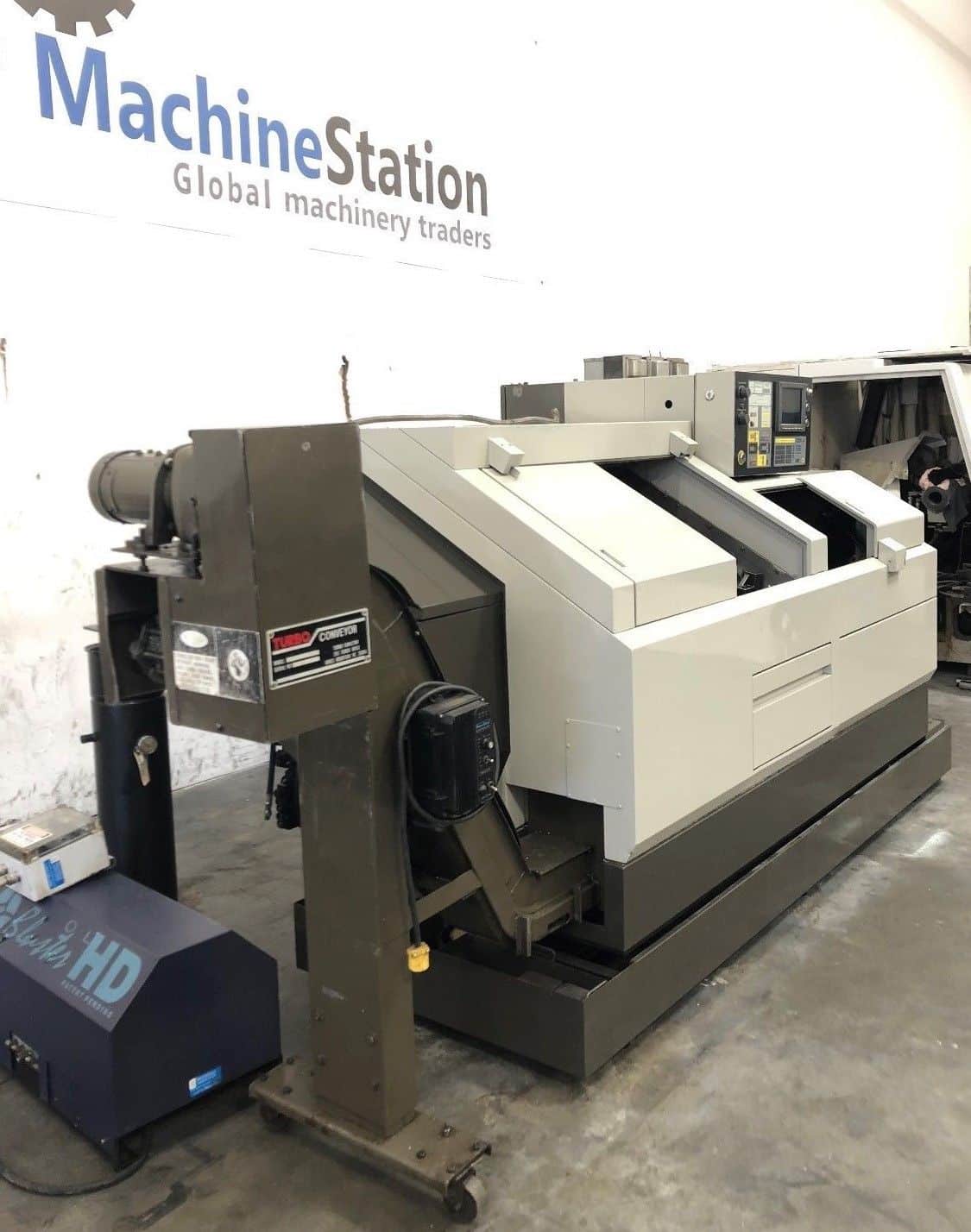

• Chip Conveyor

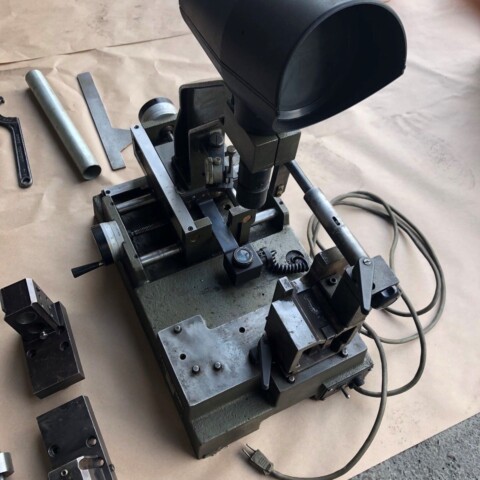

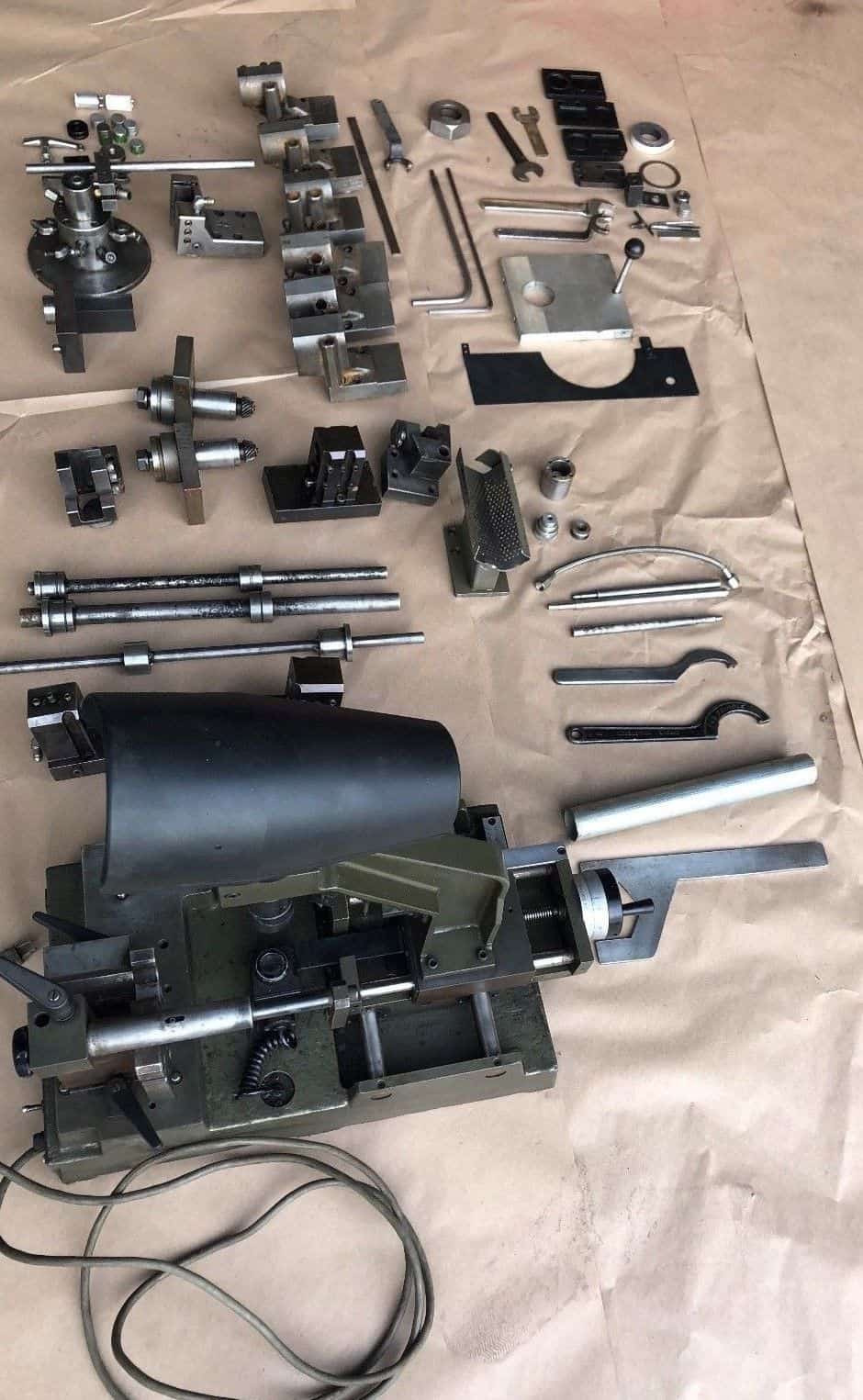

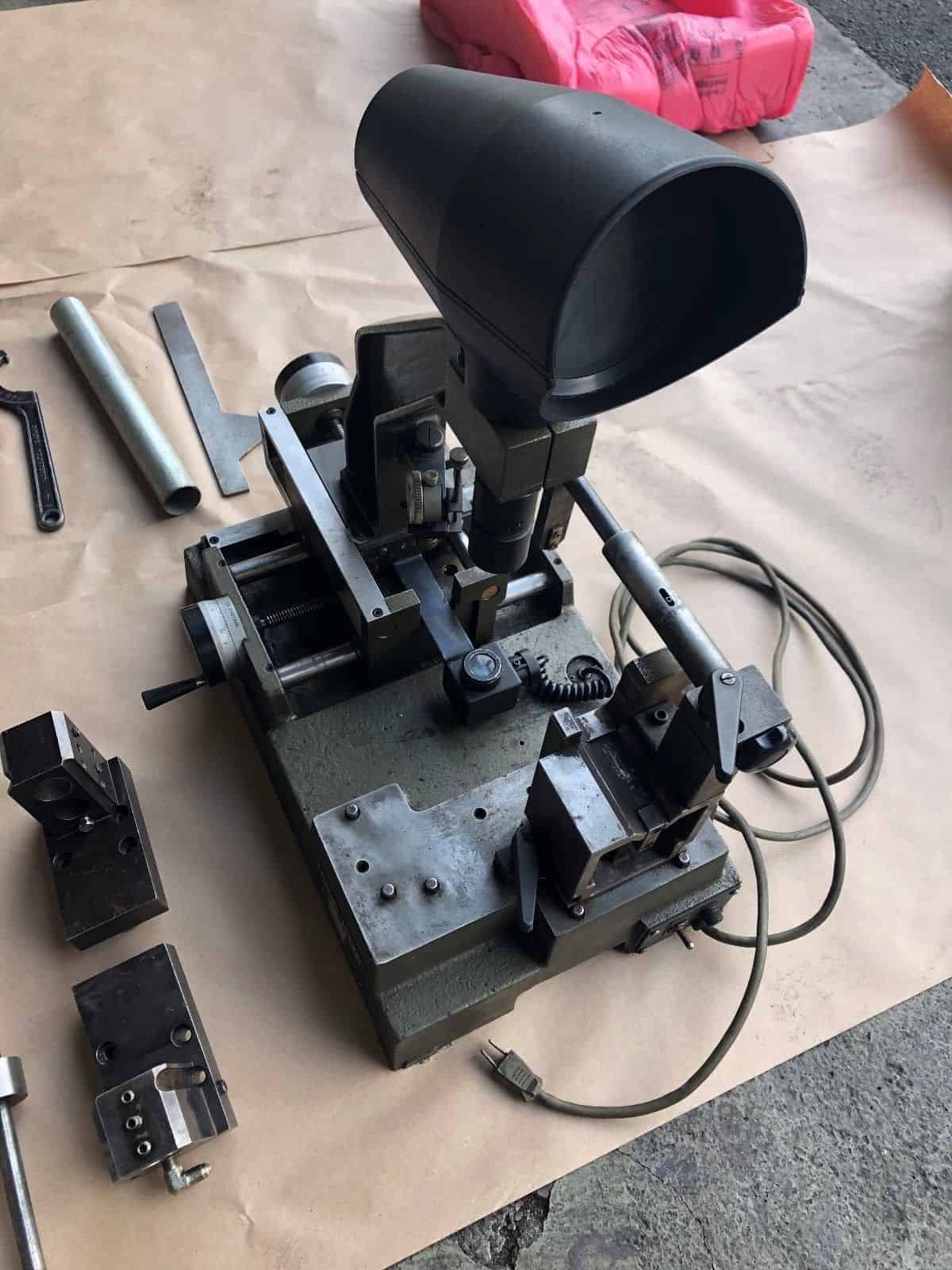

• Comes with Cincom TP-1000 Tool Presetter ( $4000 Value )

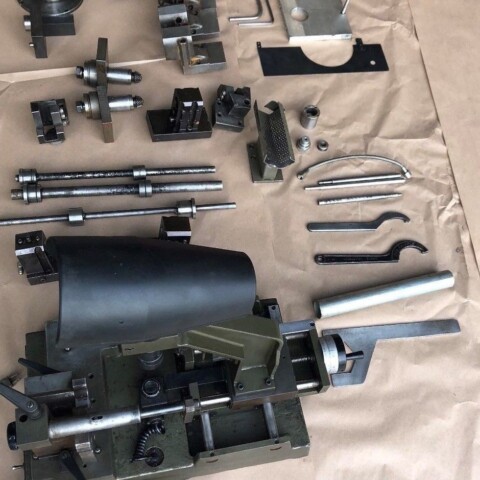

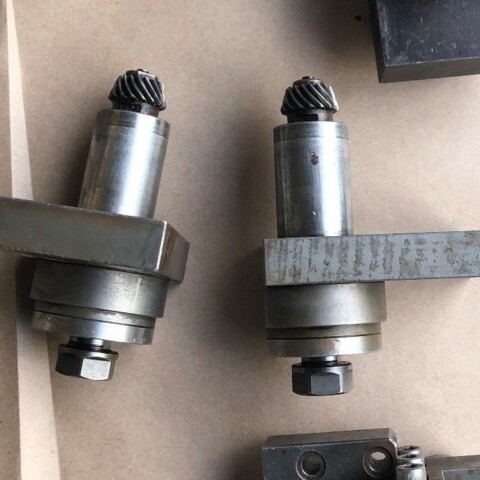

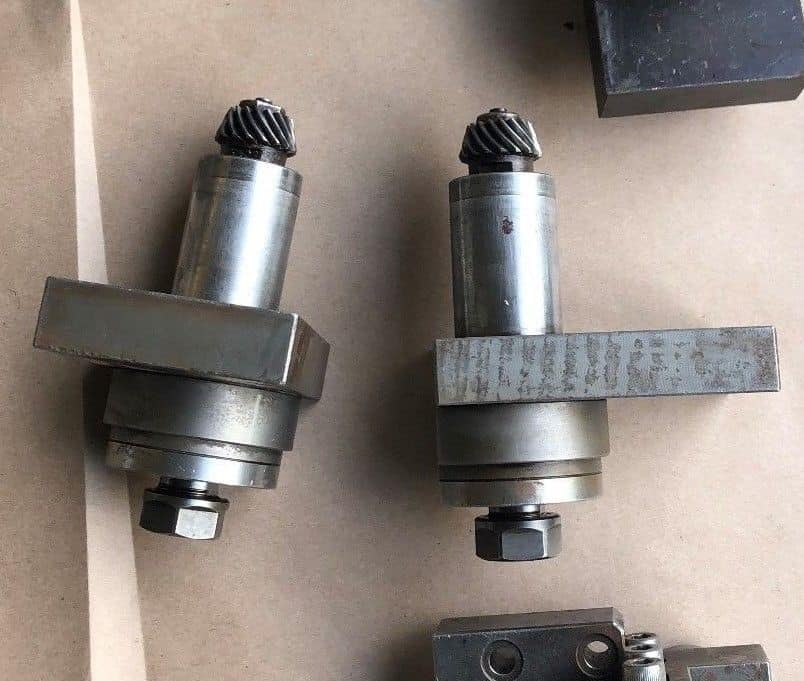

• Comes with Live Tools & some Static Tool Holders
• Books and Manuals

• General:
• Power: 35 kva, 220v / 3-Phase
• Overall Dimensions: 130″ x 67″ x 72″ High
• Overall Dimensions: 146″ x 62″ x 72″ High with Chip Conveyor
• Weight: 9500 lbs

• CITIZEN E-25J Specifications:
• Capacity:
• Max Turning Diameter: 1.0″
• Max Turning Length: 9.84″
• Distance Between Spindles: 16.5″
• X Axis Travel: 8.07″
• Z Axis Travel: 22.83″
• C Axis: 360° (0.001°) Main Spindle
• 15° Indexing on Sub-Spindle
• Rapid Traverse X Axis: 472 IPM
• Rapid Traverse Z Axis: 630 IPM
• Main Spindle Speed: 150-7200 RPM
• Sub Spindle Speed: 150-5,000 RPM
• Live Tool Speed: 224-4460 RPM
• Main Spindle Power: 7.5HP
• Sub Spindle Power: 3HP

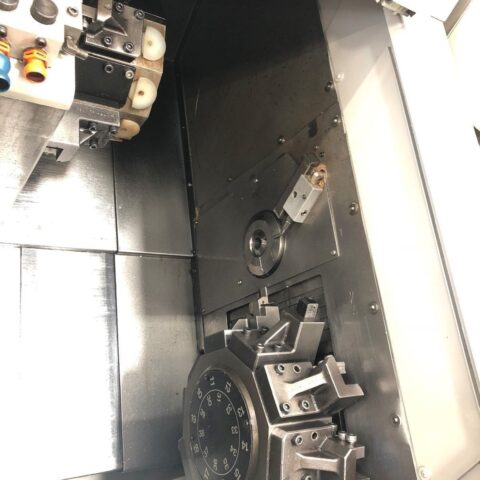

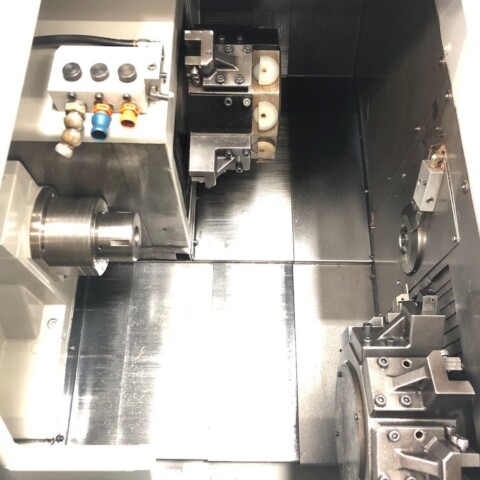

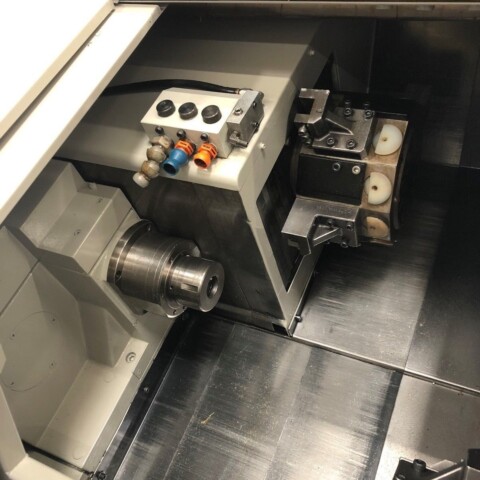

• Turret Capacity: 10 Live Stations
• Turret Index Time: 0.2 Second
