Description

DAEWOO DOOSAN DMV-500S CNC VERTICAL MACHINING CENTER
MakeDaewoo
Model No.DMV-500S
Year2000.12

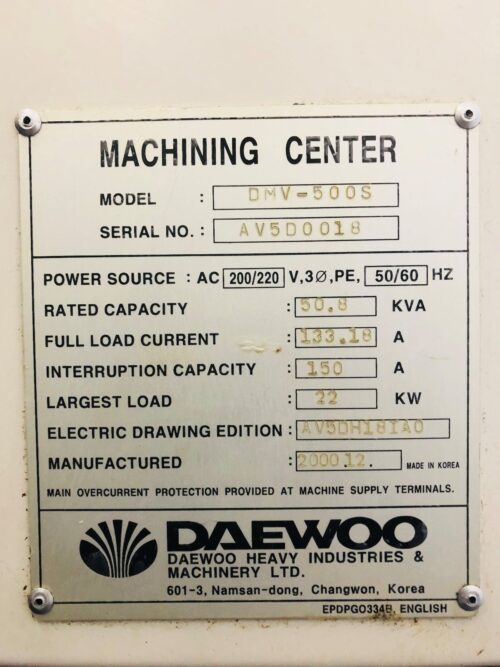

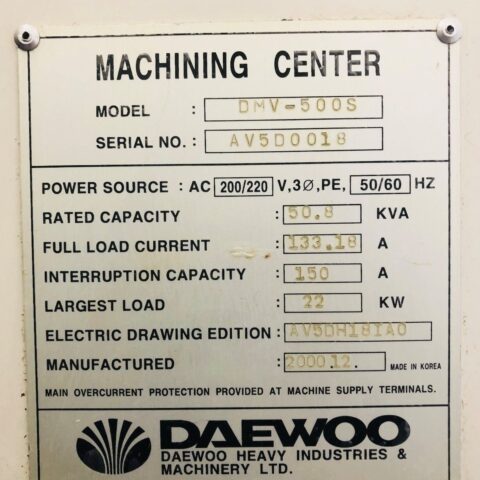

Serial #AV5D0018
ConditionVery Good
  • Daewoo Doosan DMV-500S Features:

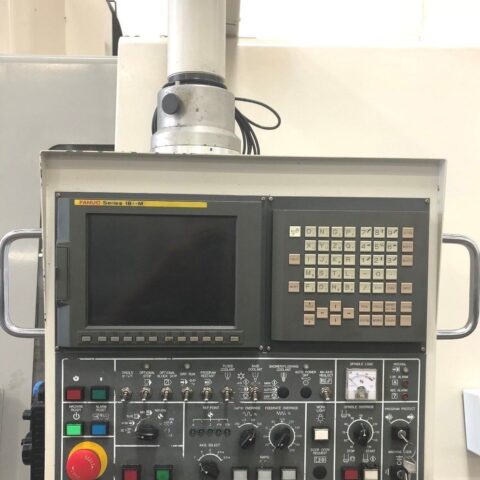

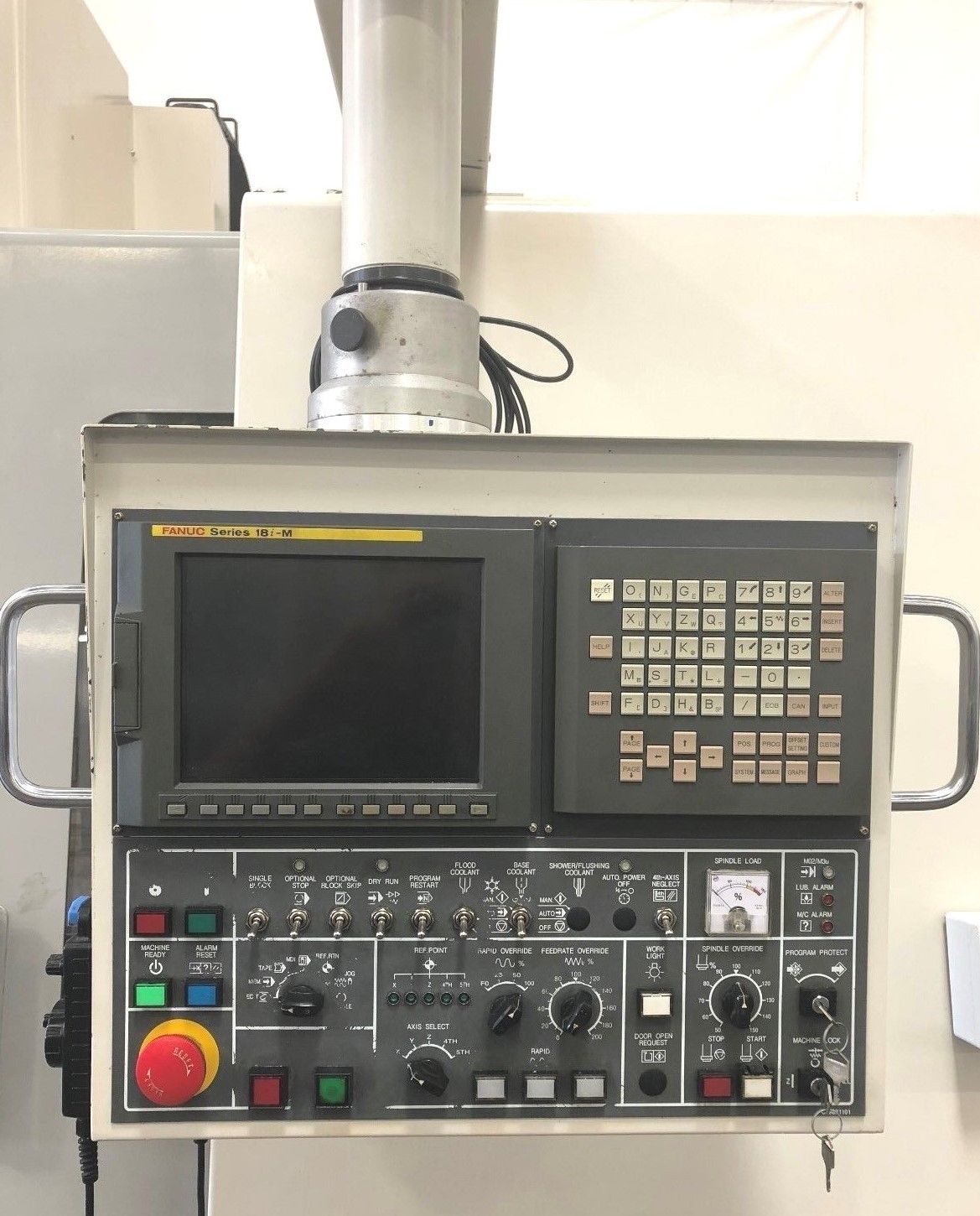

  • Fanuc 18i-MB CNC Control
  • Through Spindle Coolant
  • 40 Taper Geared Head Spindle
  • 30 Tools Side Mount Bidirectional Tool Changer
  • PCMCIA Card Slot
  • Box Way Construction All Axis
  • Powerful 20 hp high torque spindle motor
  • Spindle Orientation
  • Rigid Tapping
  • Fast Rapid Traverse Rate

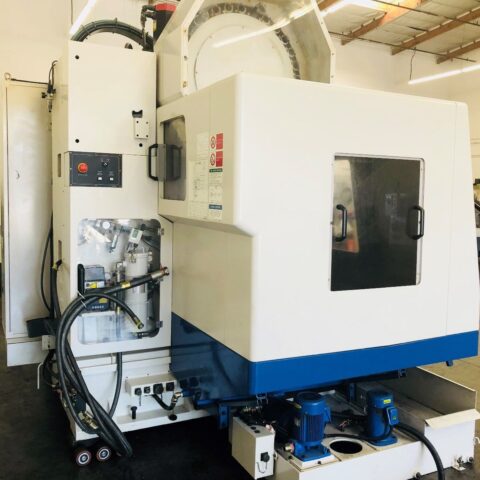

  • Flood coolant with large separate coolant tank
  • Work light
  • Books and Manuals
  • Daewoo Doosan DMV-500S Specifications:
  • Travels:
  • X-Axis: 40.2″
  • Y-Axis: 20.5″
  • Z-Axis: 20.2″
  • Spindle Nose to Table (Min.- Max.): 5.87″ – 26.3″
  • Spindle Nose to Column: ”

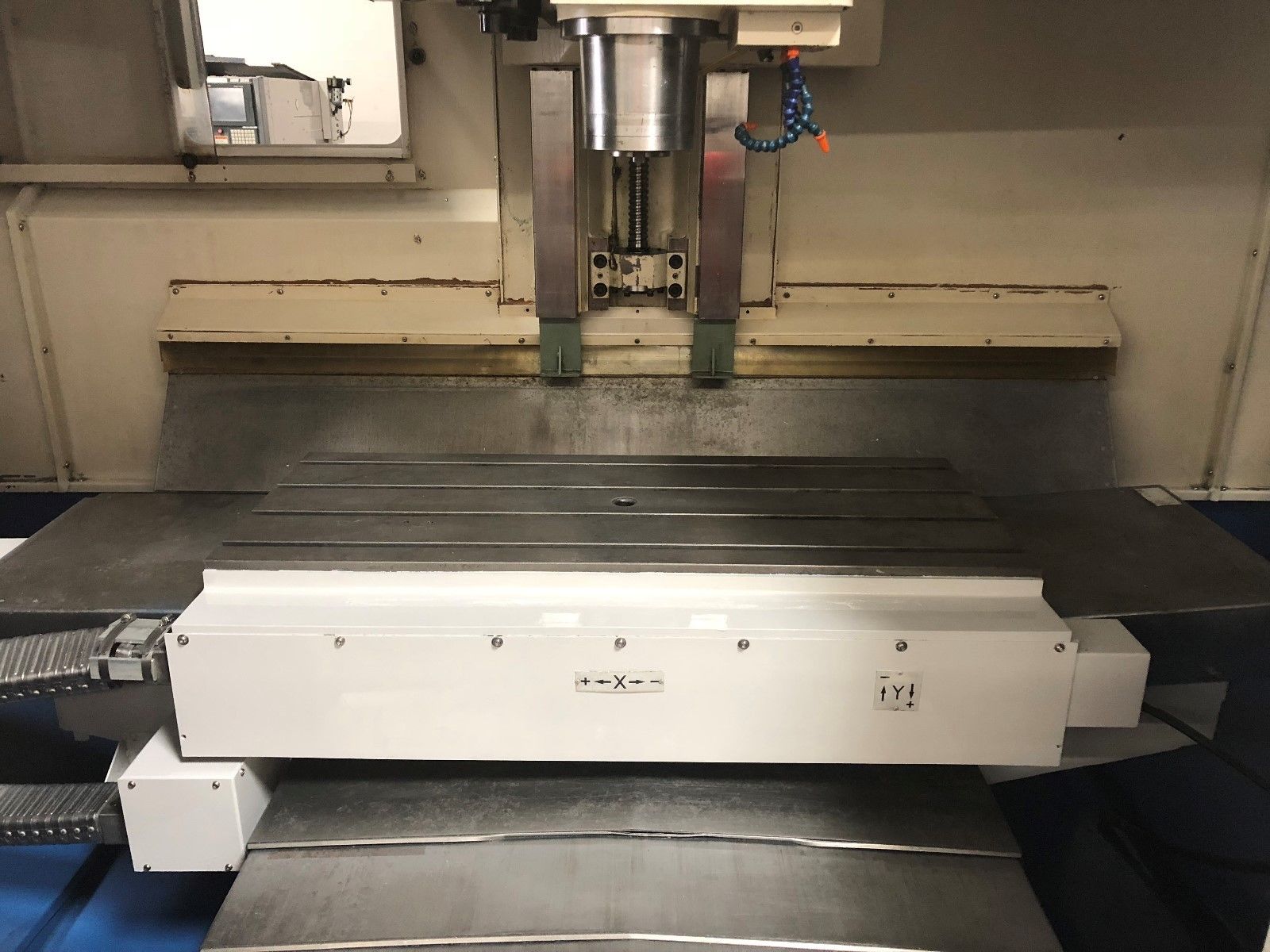

  • Table:
  • Length: 47.2″
  • Width: 19.7″
  • Max Weight on Table: 1800 lbs
  • T-Slot no. & Width: 4 X 0.7″

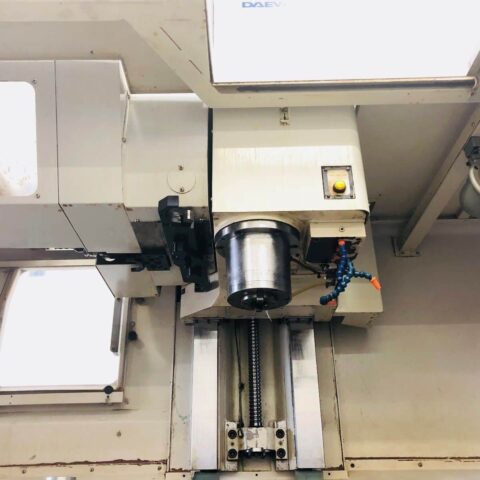

  • Gear Head Spindle:
  • Taper Size: 40
  • Speed Range: 60 – 10,000 RPM
  • Spindle Power: 20 HP
  • Feed rates:
  • Rapid X,Y & Z: 1181 inch/Per Minute
  • Cutting Feedrate: 787″ inch/ Per Minute
  • Automatic Tool Changer:
  • 40 Taper
  • Capacity: 30
  • Max Tool Weight: 17.6 lbs
  • Max Tool Length: 11.8″
  • Max Tool Dia.: 5.9″
  • Tool Change Time: 1.5 second
  • General:
  • Air Required: 90 psi, 4 scfm
  • Power: 205-220v / 50kva / 3-Phase
  • Overall Dimensions: 132″ x 116″ x 110″ High
  • Weight: 16500 lbs

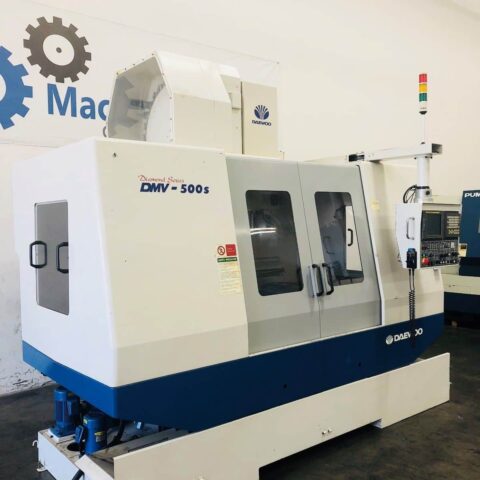

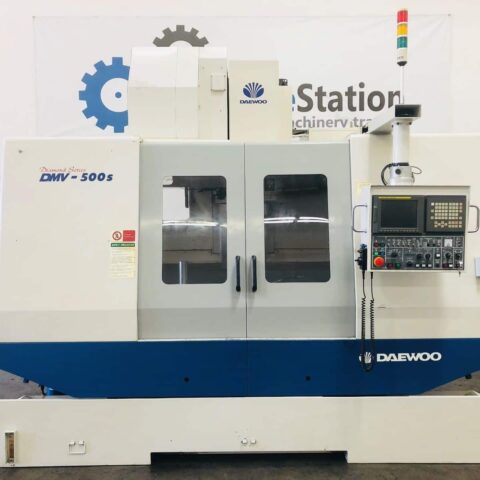

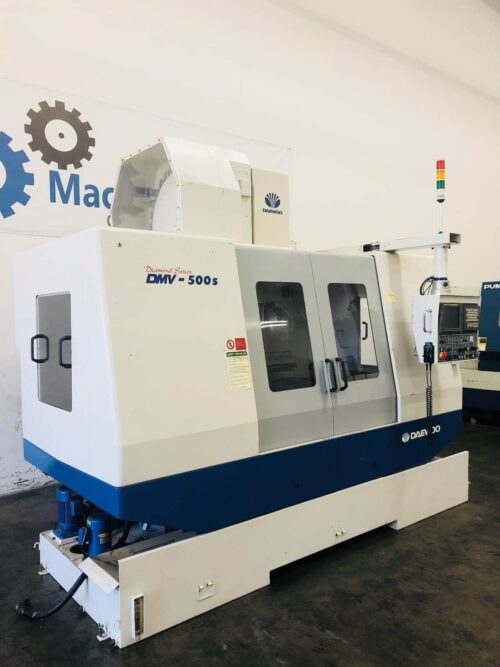

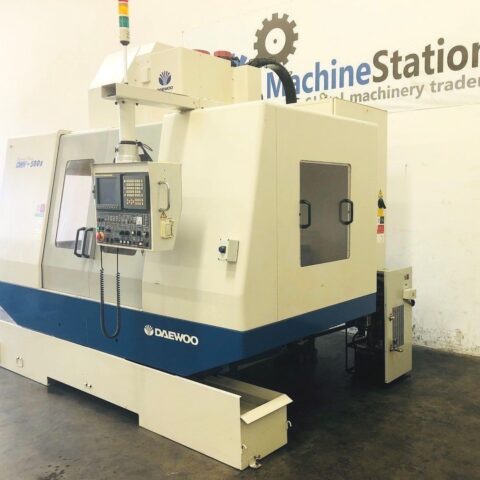

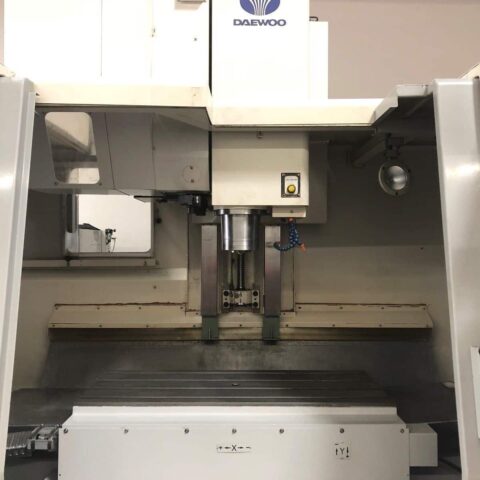

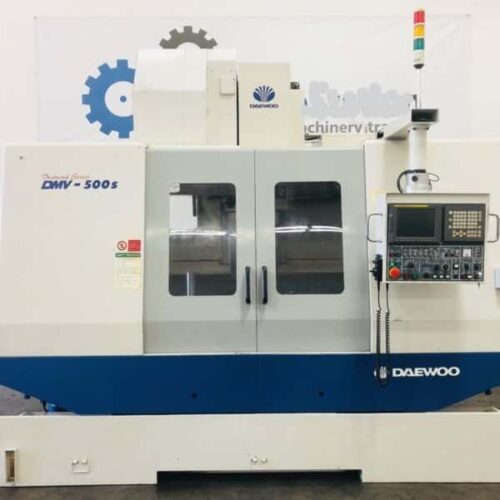

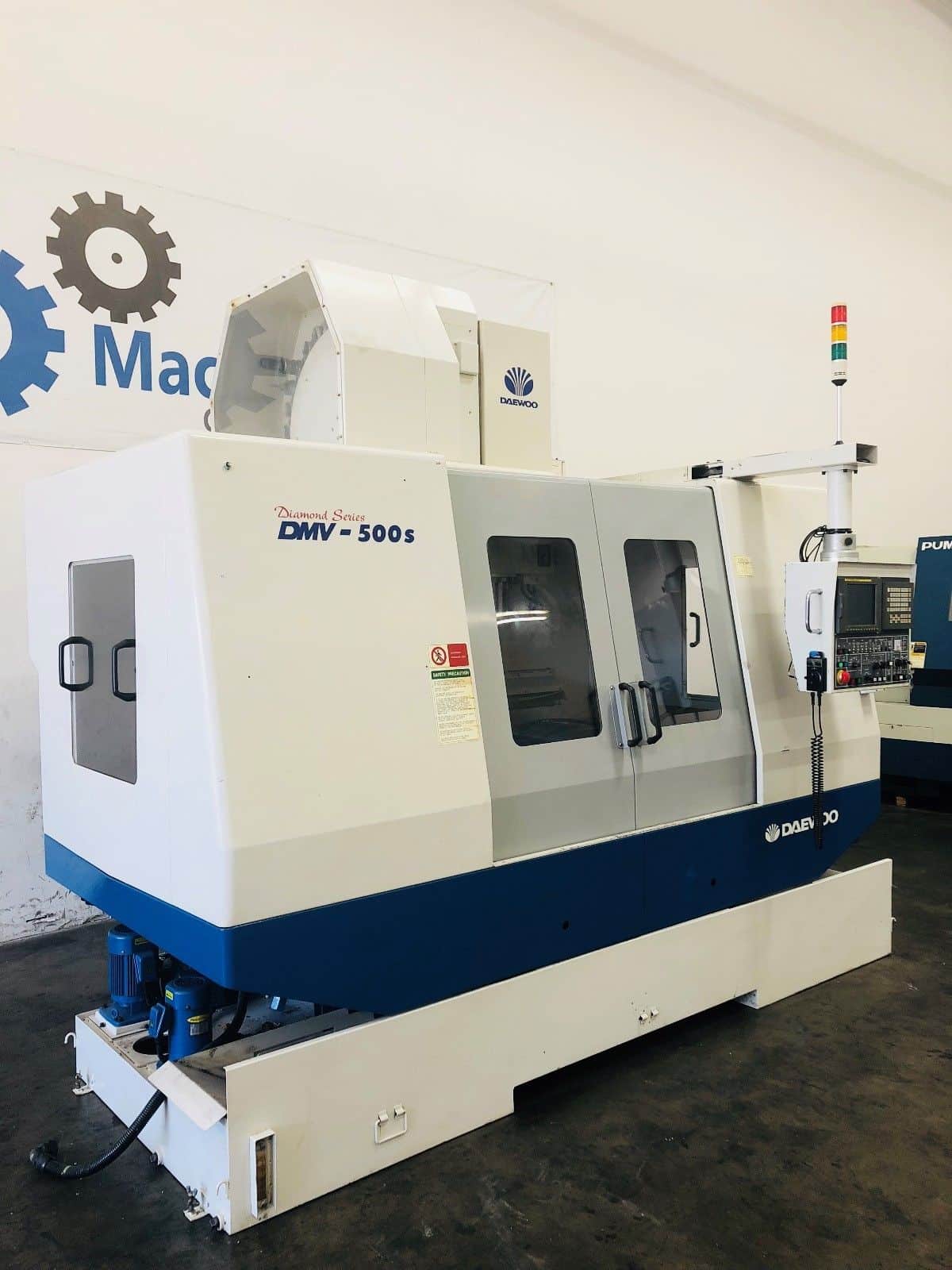

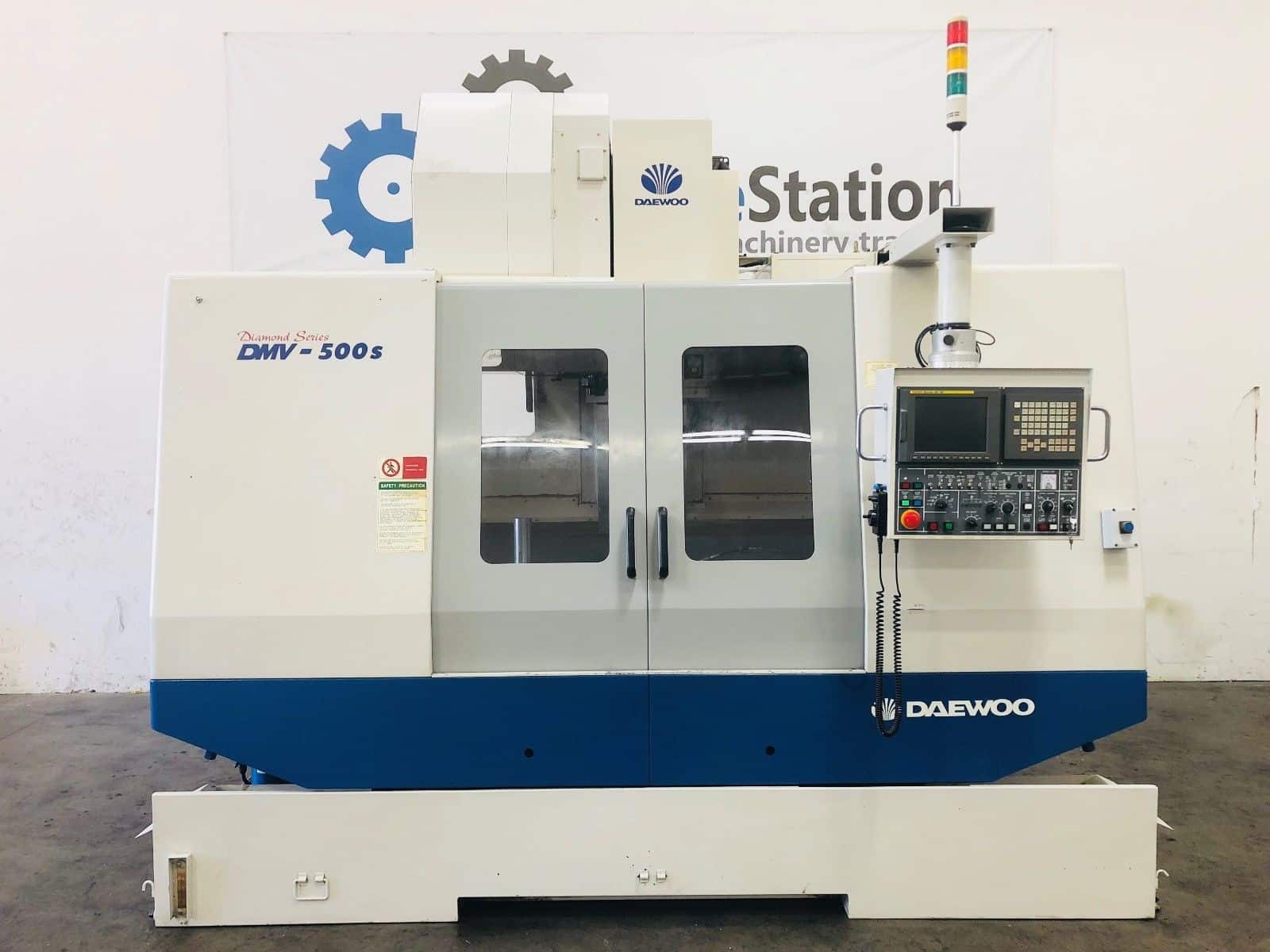

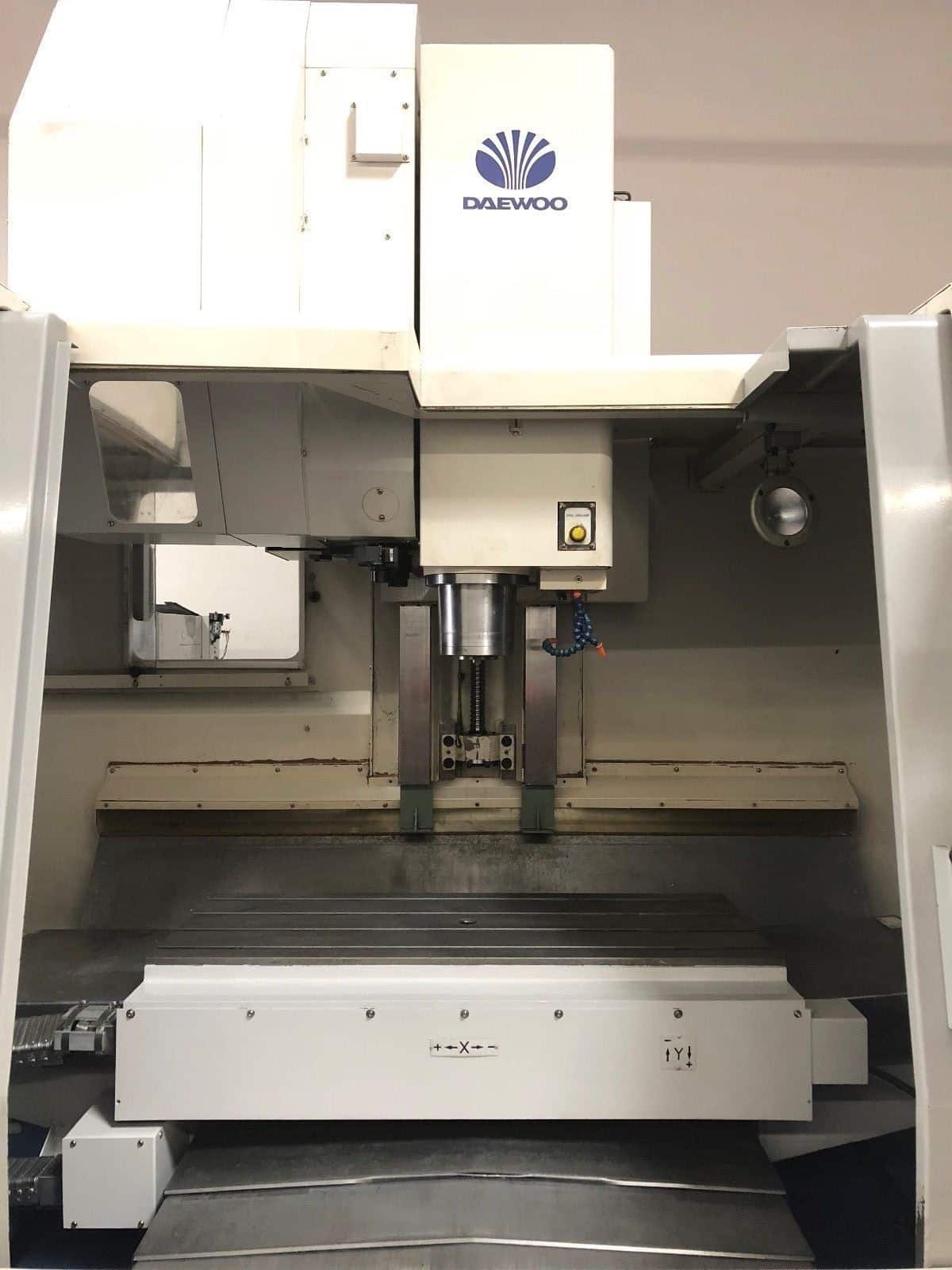

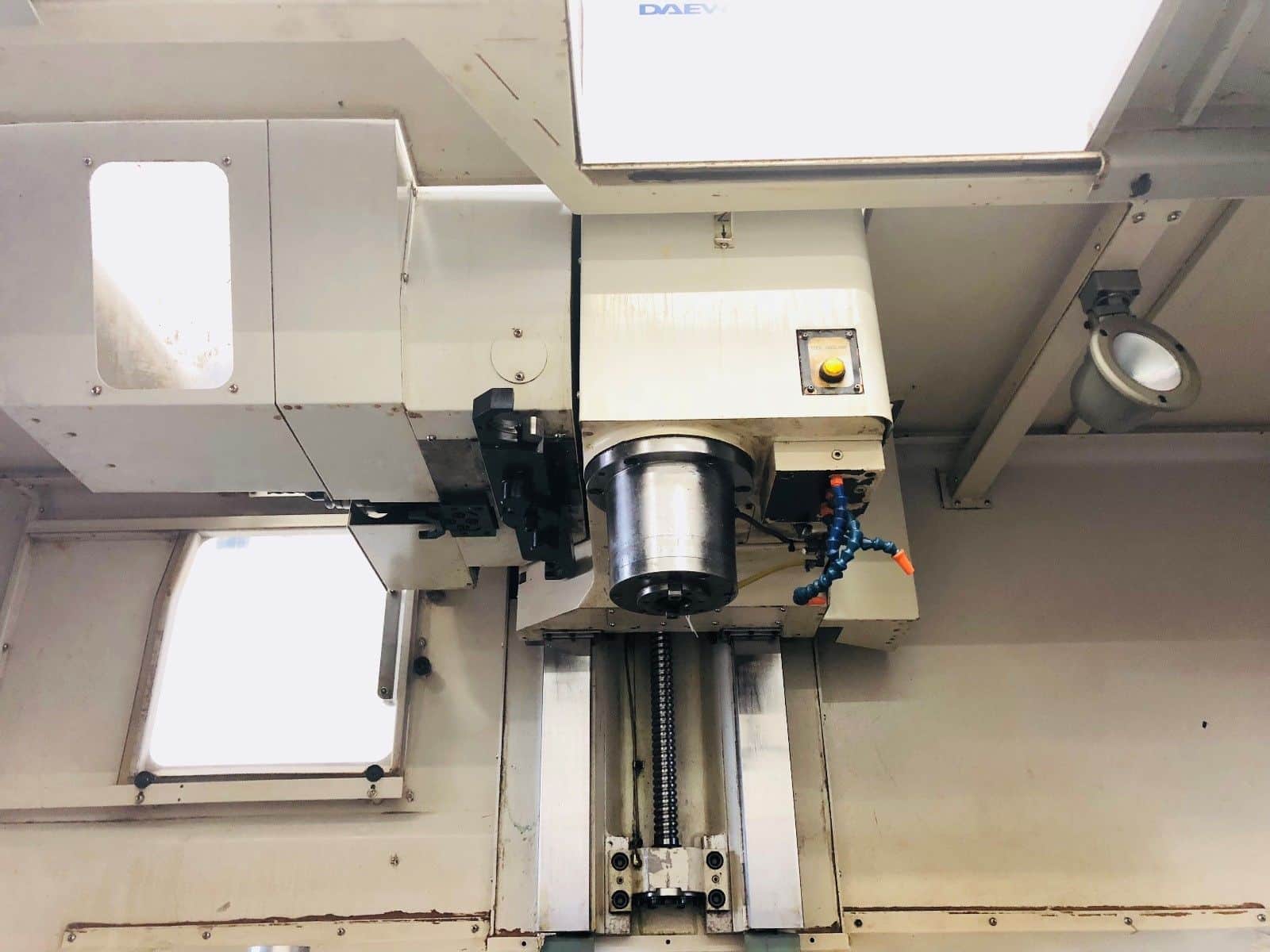

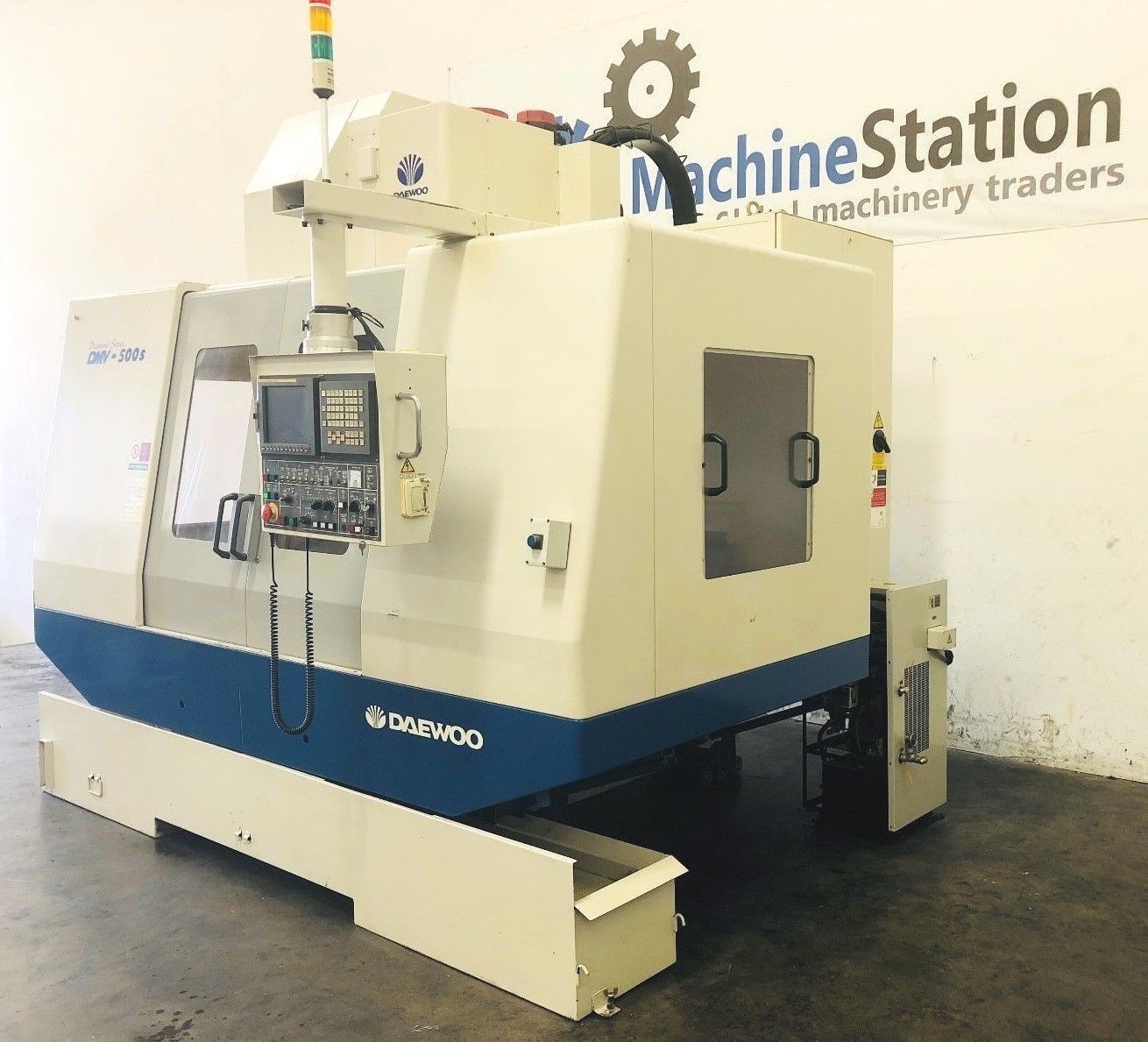

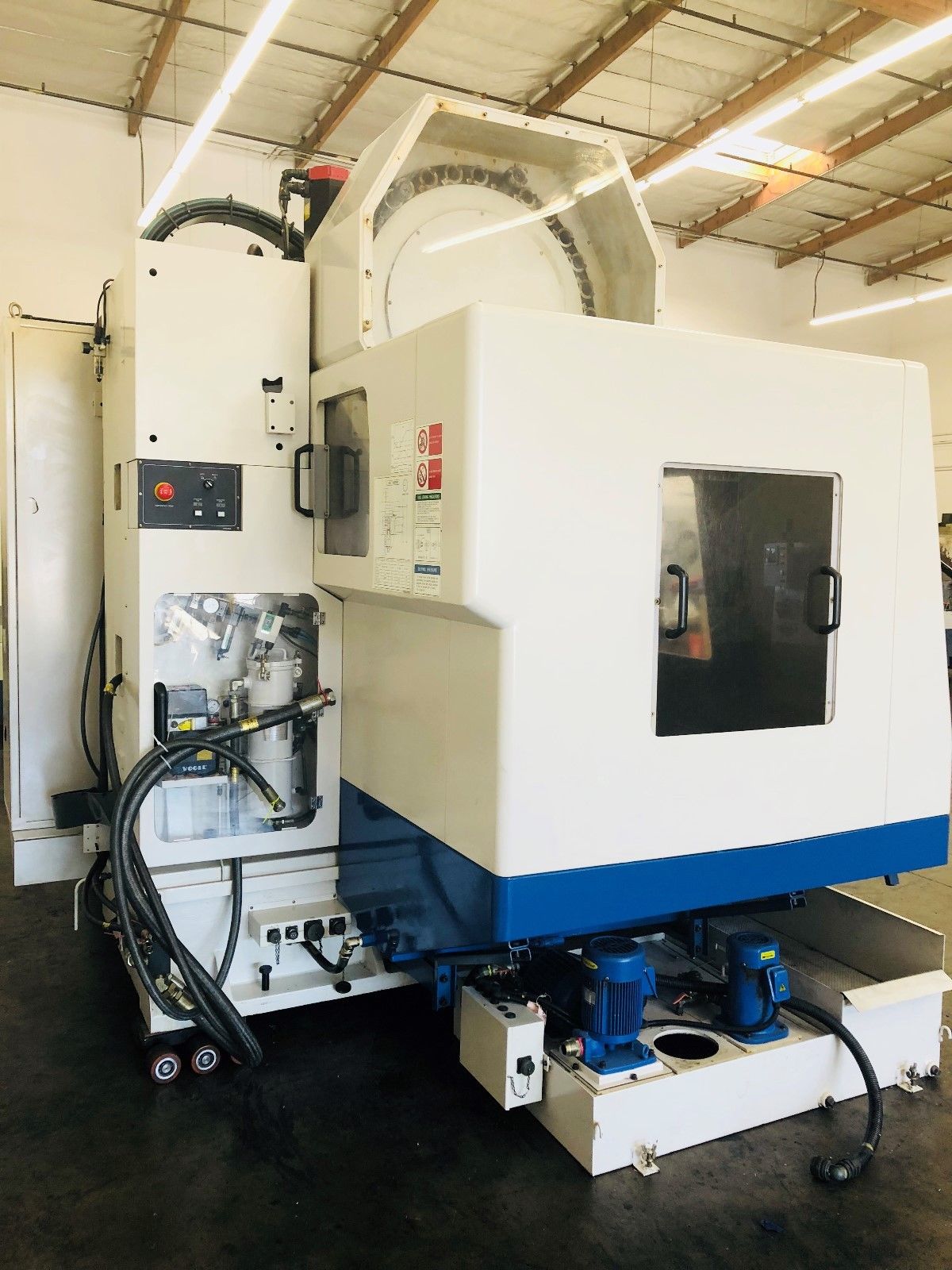

Daewoo Doosan DMV-500S Comes as shown in pictures.
