*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan Daewoo |
| Model: | DHP 5000 |
| Year: | 2006 |
| Condition: | Used – Good |
| Machine Type: | CNC Horizontal Machining Center |

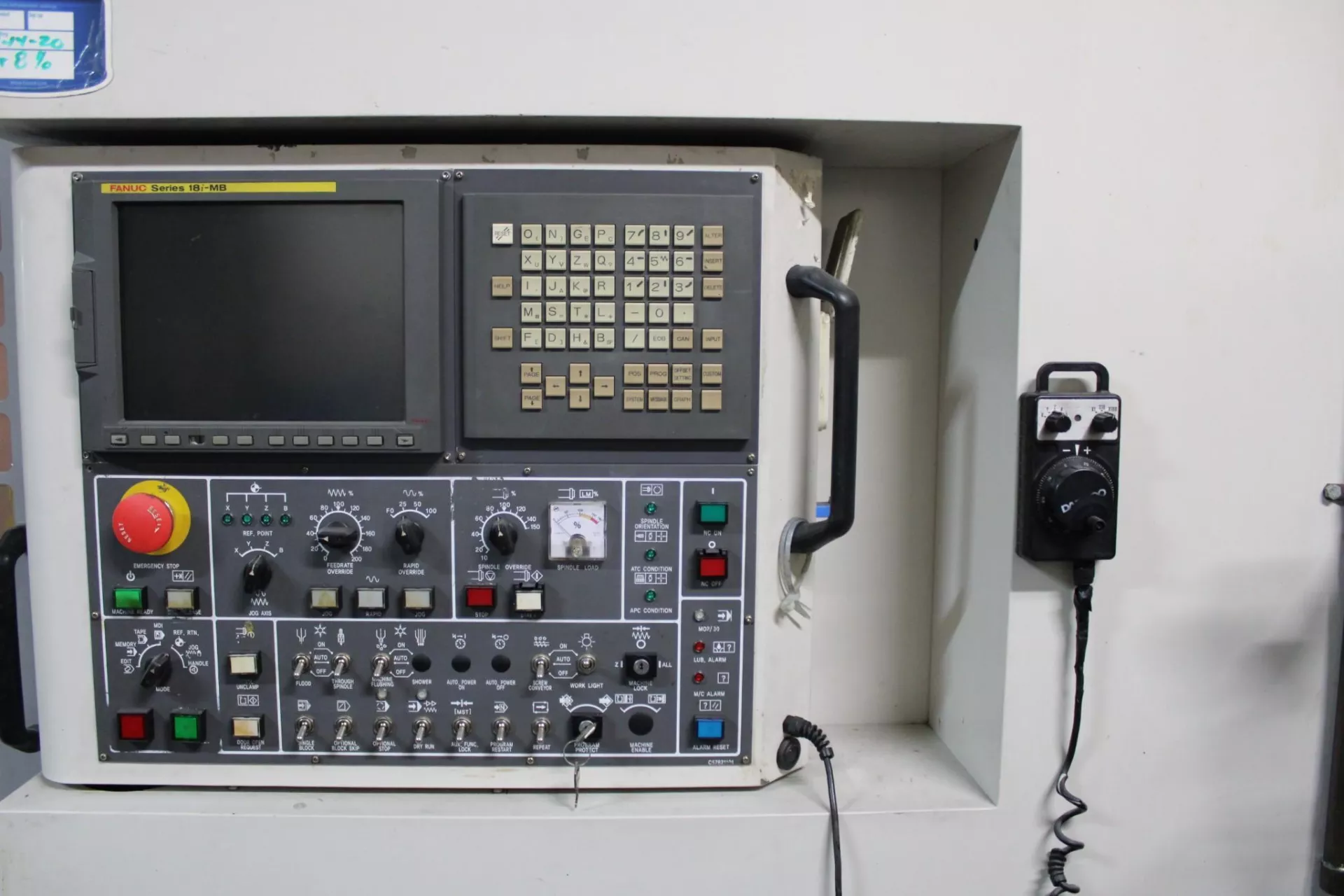

| Control: | FANUC Series 18i-MB CNC Control |
| Equipped With: |
|---|
| FANUC Series 18i-MB CNC Control |
| Automatic Pallet Changer (2-Pallet System) |
| 60-Station Automatic Tool Changer |
| CAT 40 Spindle |
| 14,000 RPM High-Speed Spindle |
| Through Spindle Coolant (CTS) |
| Chip Conveyor |
| Coolant System |
| Handheld MPG |
| Full Machine Enclosure |
| Work Light |
| Pallet: |
|---|
| Pallet Size: 19.7″ × 19.7″ |
| Pallet Capacity: 1,102 lbs. |
| Pallet Indexing (B-Axis): 1° |
| Travels: |
|---|
| X-Axis Travel: 33.4″ |
| Y-Axis Travel: 27.5″ |
| Z-Axis Travel: 29.5″ |

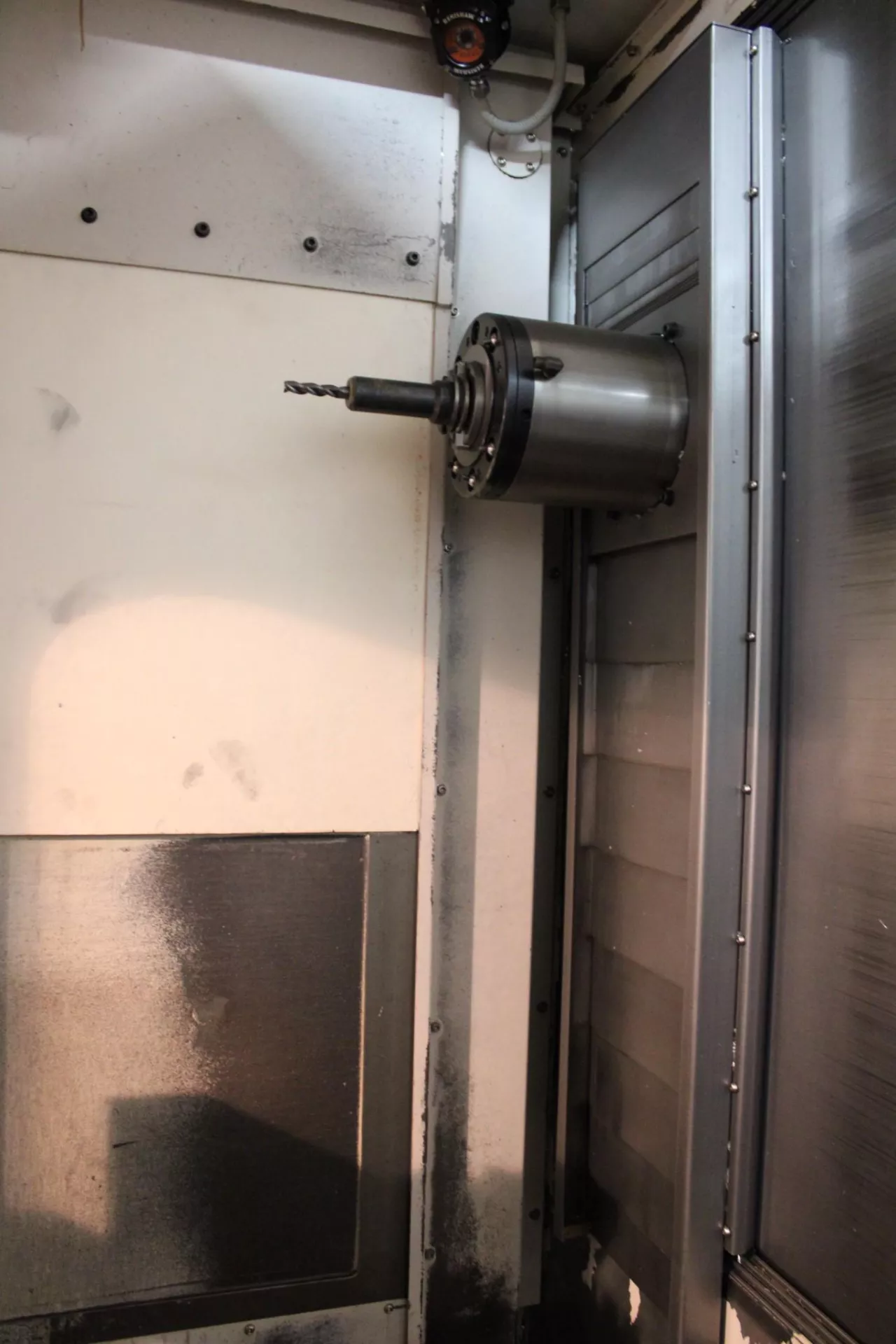

| Spindle: |
|---|
| Spindle Taper: CAT 40 |
| Spindle Speed: 14,000 RPM |
| Spindle Motor: 30 HP |
| Feed Rates: |
|---|
| Rapid Traverse Rate (X/Y/Z): 1,889 IPM |

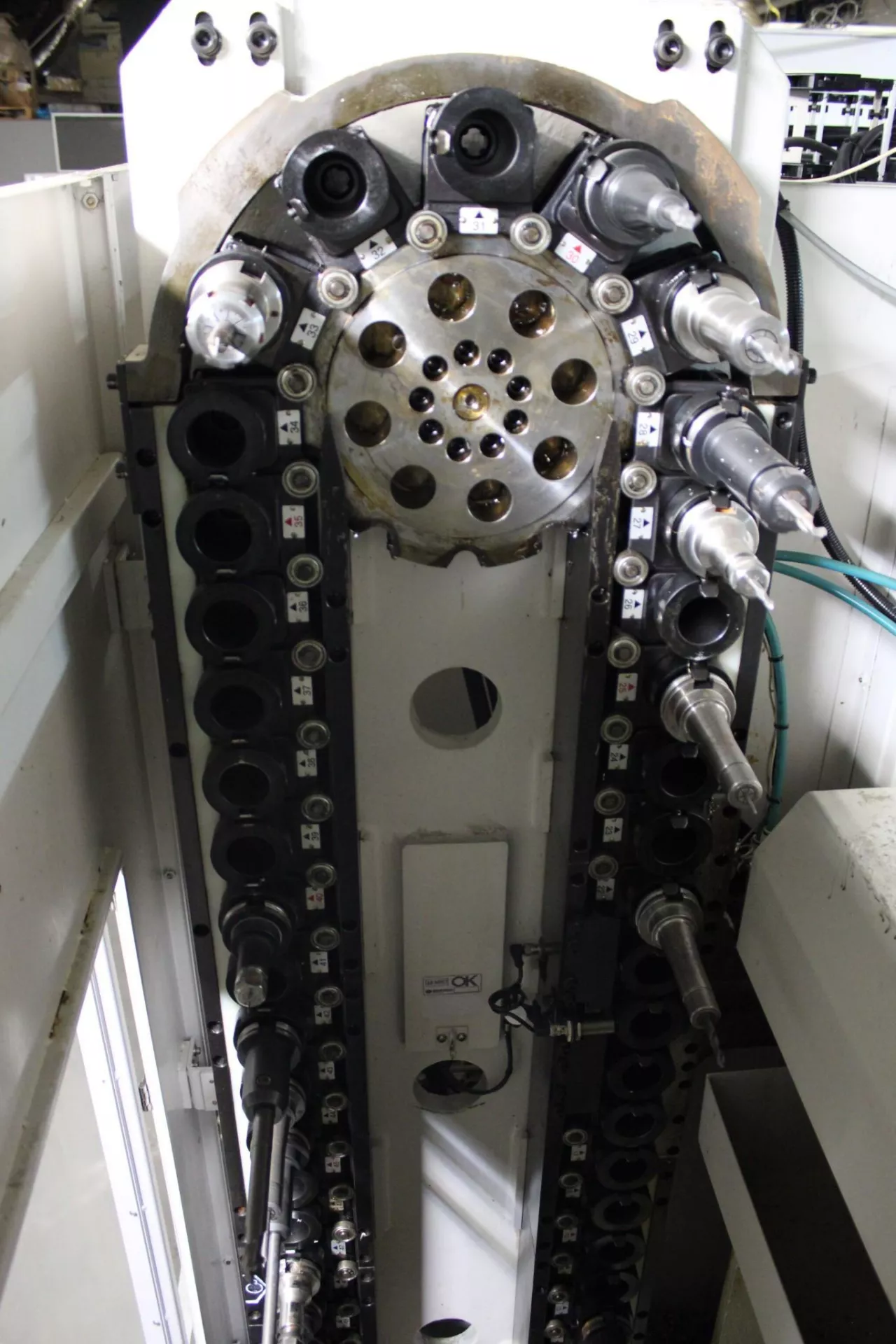

| Automatic Tool Changer: |
|---|
| Tool Capacity: 60 Stations |
| Tool Changer Type: Automatic Chain Type |
| General: |
|---|
| Machine Dimensions (L × W × H): 208″ × 137″ × 118″ |
| Machine Weight: 28,000 lbs. |
