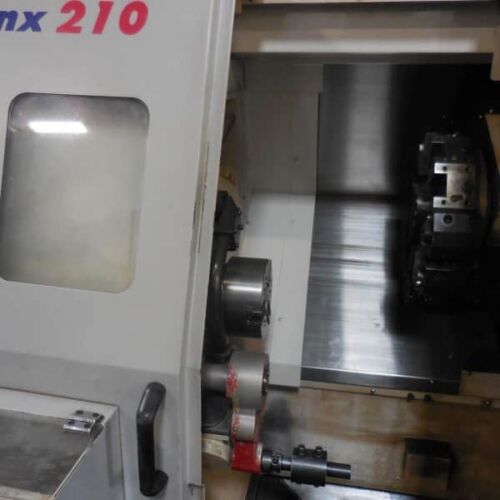

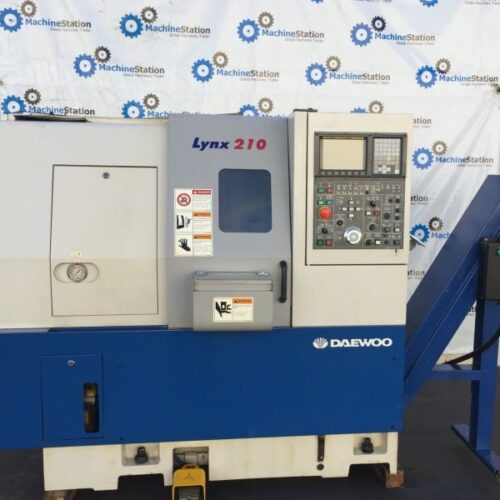

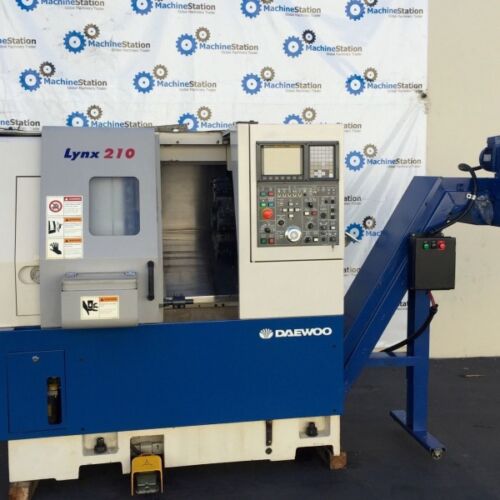

Used Daewoo Lynx 210 A CNC Turning Center

Daewoo Lynx 210 A CNC Turning Center

SKU 1216

Make/Model Daewoo Lynx 210 A

Year 2002

Condition Very Good

Out of stock

SKU:	1216
Make/Model:	Daewoo Lynx 210 A
Year	2002
Condition	Very Good

SKU: 1216

Daewoo Lynx 210A Features:

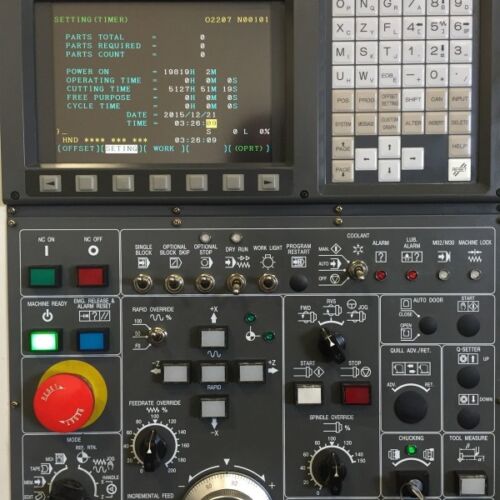

Fanuc I series cnc control.

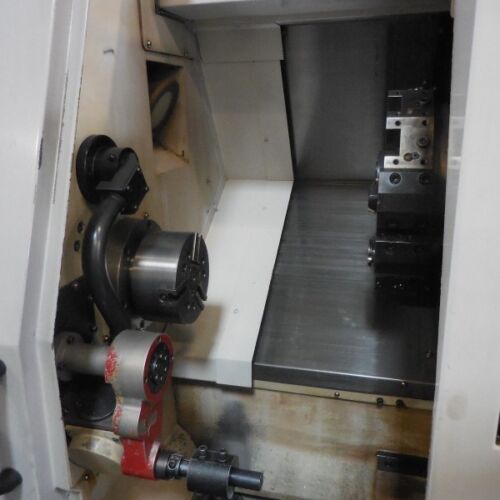

Kitagawa 6″ 3-Jaw Chuck.
Tool Presetter.

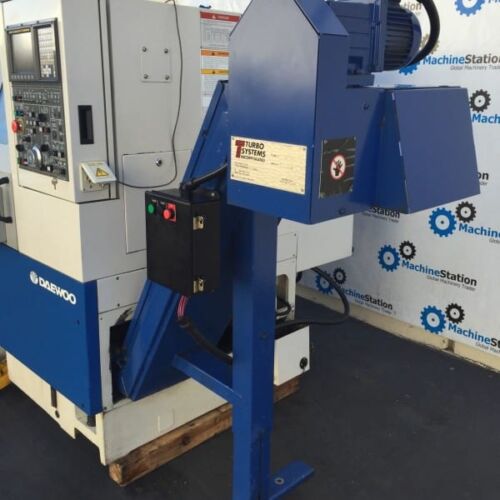

Turbo Chip Conveyor.
RS-232 Port.
High Pressure Coolant Pump.
Parts Catcher.
Coolant System.

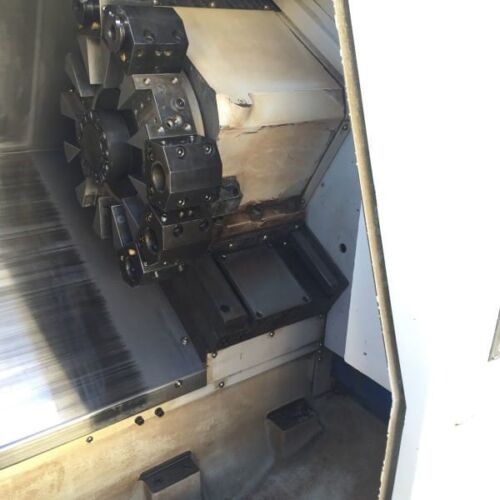

12-Station ID/OD Turret.

Daewoo Lynx 210A Specifications:
Turning Diameter: 11″
Swing Over Bed: 18″
Turning Length: 11.8″
X-Axis Travel: 6.3″
Z-Axis Travel: 13.00″
Spindle Bore: 2.00″
Spindle Nose: A2-5
Bar Working Diameter: 1.75″
Spindle Speeds: 5000 RPM

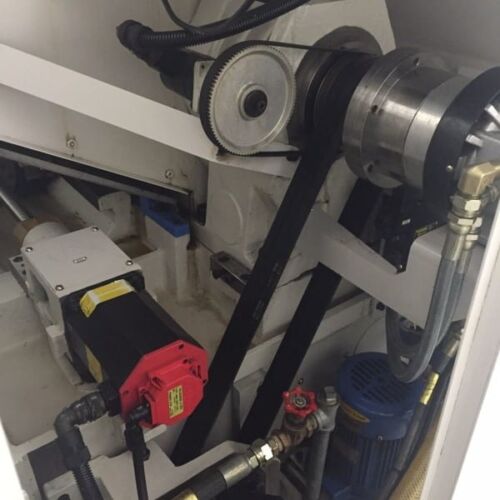

Spindle Motor: 10HP
Power Source: AC 200/220 V, Three Phase, 50/60 Hz
Weight :6500 lbs Approx
Overall Dimensions: 76″ x 63″ x 63″ tall

No detailed specifications listed for this machine yet — call us for full specs.
