Description
| DAEWOO PUMA 12L CNC TURNING CENTER | |
|---|---|
| Make | Daewoo |
| Model No. | Puma 12L-B |
| Serial # | 440392 |
| Condition | Very Good |
All specifications are approximations and are subject to verification.
- Daewoo Puma 12L Equipped With:
- Fanuc 0T CNC Control
- 12″ 3 Jaw Kitagawa Hydraulic Chuck
- A2-8 Spindle
- 12 Station Bi-directional Turret
- Hydraulic Programmable Tailstock Quill
- Coolant System
- Barfeed Interface
- RS-232 ports
- Foot Switch
- Comes Tool Holders
- Coolant Tank and Chip Conveyor
- General:
- Power: 21 kva, 220v / 3-Phase
- Overall Dimensions: 125″ X 82″ X 79″ High
- Weight: 15500 lbs
- Daewoo Puma 12L Specifications:
- Capacity:
- Max Turning Diameter: 18.89″
- Max Turning Length: 40.2″
- Max Bar Capacity: 3.54″
- Swing Over Bed: 22.4″
- Distance Between Centers: 42.0″
- X Axis Travel: 10.2″
- Z Axis Travel: 41.3″
- Rapid Traverse X Axis: 480 IPM
- Rapid Traverse Z Axis: 630 IPM
- Spindle Nose: A2-8
- Spindle Bore: 4.13″
- Spindle Speed: 12 – 2500 RPM
- Spindle Motor: 30 HP
- Turret Capacity: 12 Stations
- Turret Index Time: 1 Second
- Tailstock Taper: MT-5
- Tailstock Quill Dia.: 4.33″
- Tailstock Quill Travel: 4.0″

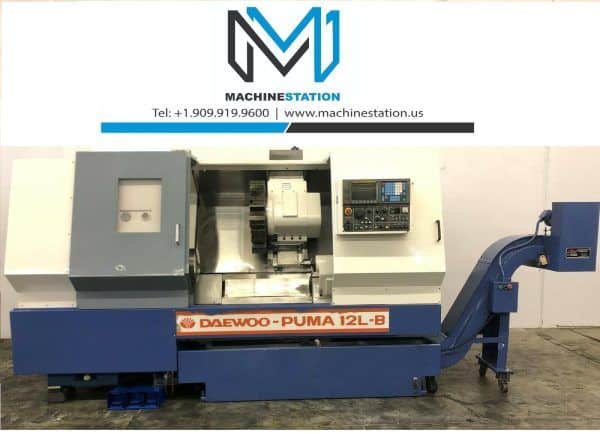

Daewoo Puma 12L Comes as shown in pictures..
