Comes with 5c Collet Chuck, Tailstock , Tooling & Chip Tank
All specifications are approximations and are subject to verification.
“This machine is in very Good running condition. It is equipped with Chuck, Tool Presetter, Tailstock ,Chip Pan and Manuals. cutting hours around 9000 hours only. On Our Floor fully powered / tested & is in Great working condition.”

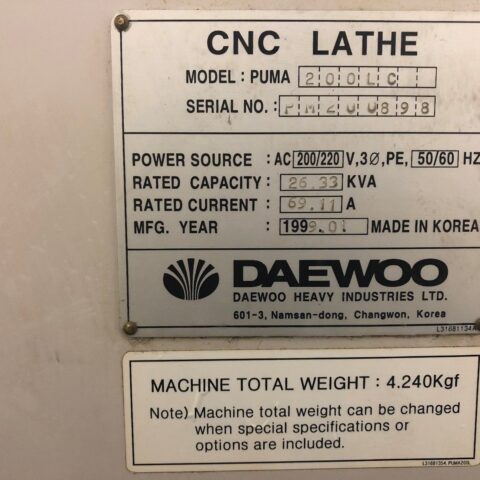

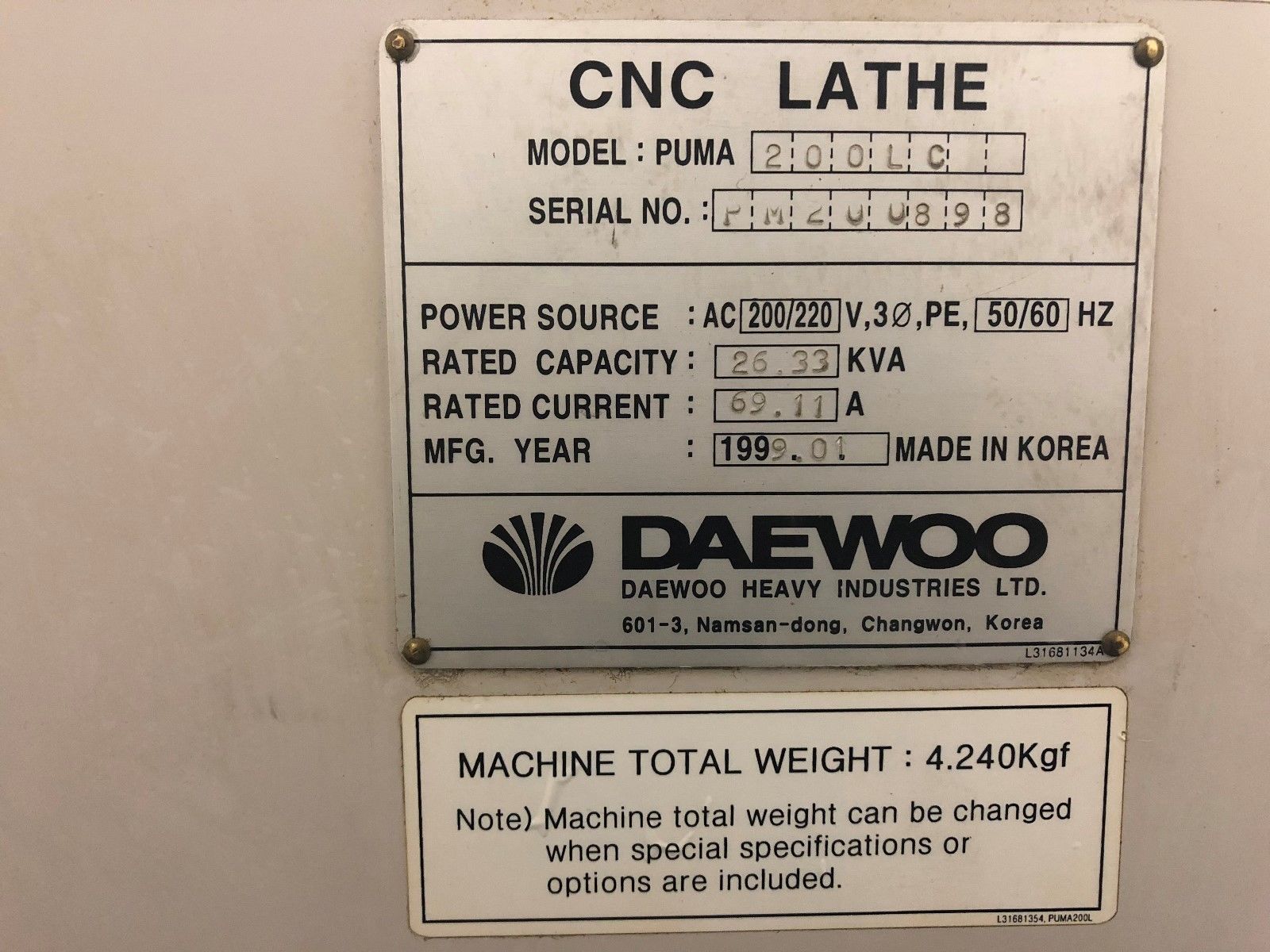

| Make | Daewoo |
| Model No. | Puma 200LC |
| Year Installed: | 2000 |
| Serial # | PM200898 |
| Condition | Very Good |
-
DAEWOO PUMA 200LC Equipped With:

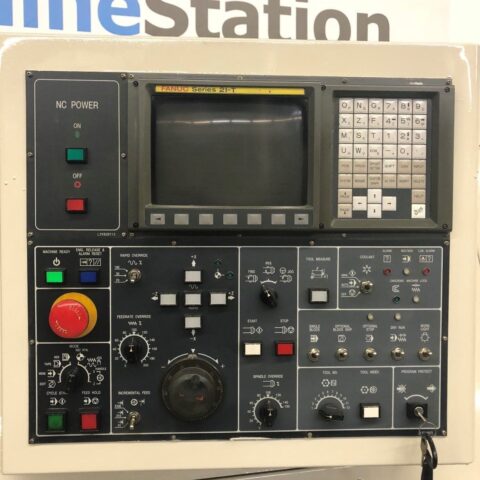

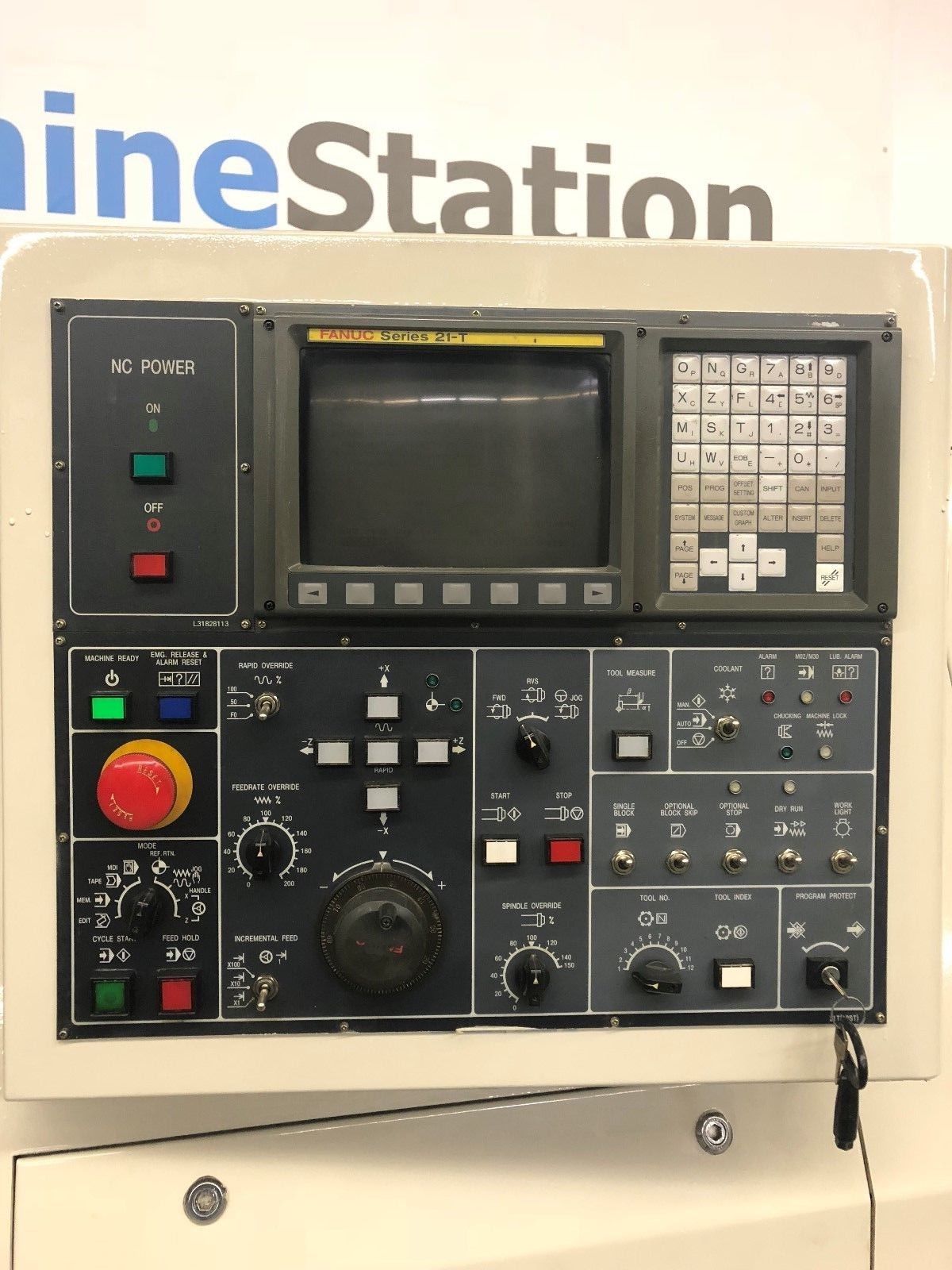

- Fanuc 21-T series CNC Control
- Box way construction
- Rigid Tapping

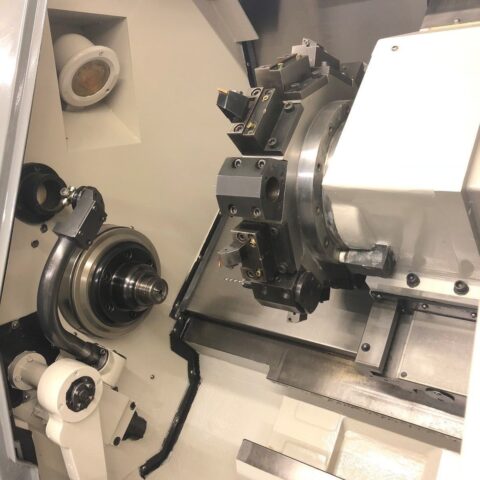

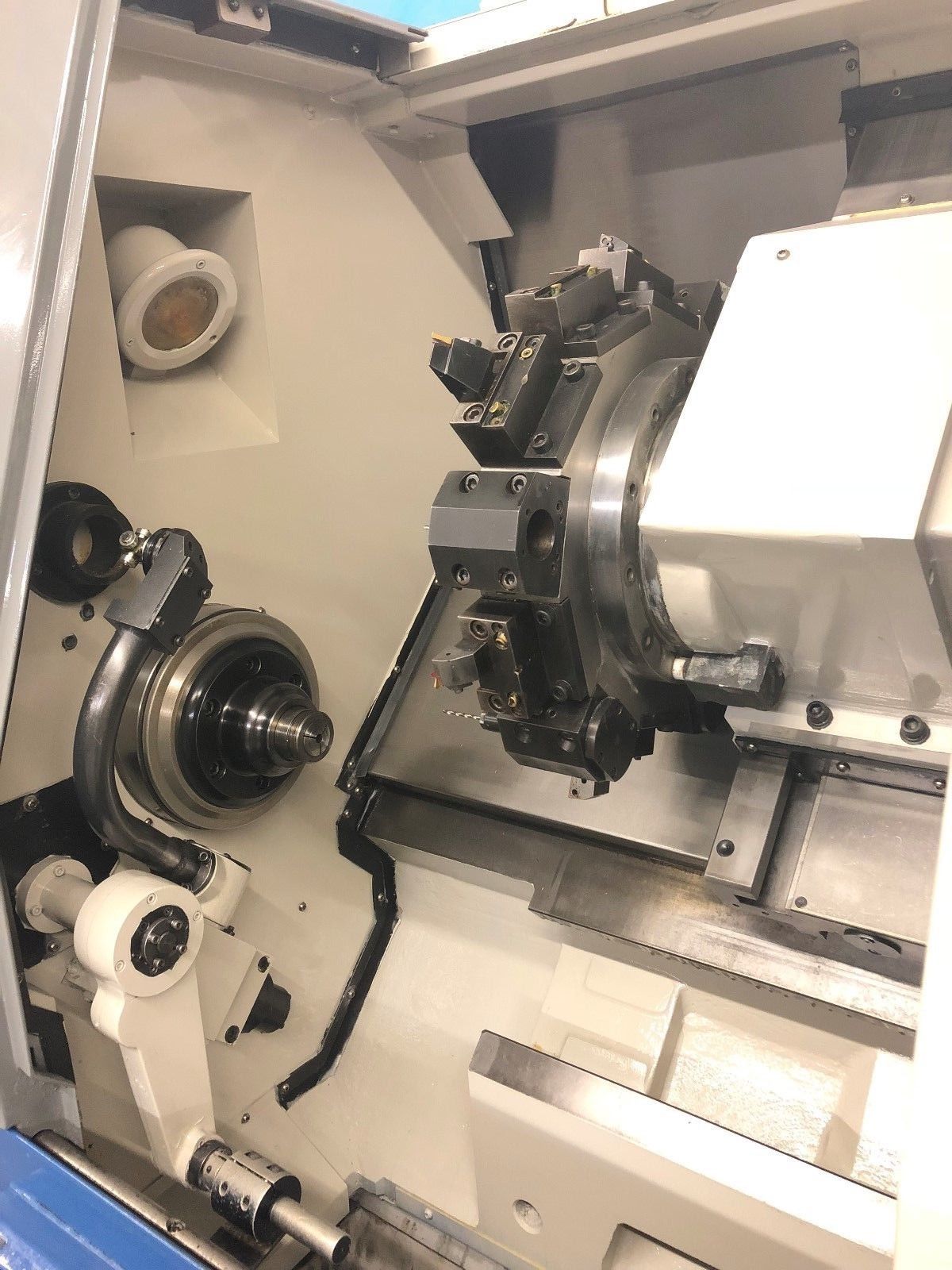

- 5C Hydraulic Collet Chuck (10″ Chuck Capable )
- A2-6 Spindle
- Auto Tool Presetter

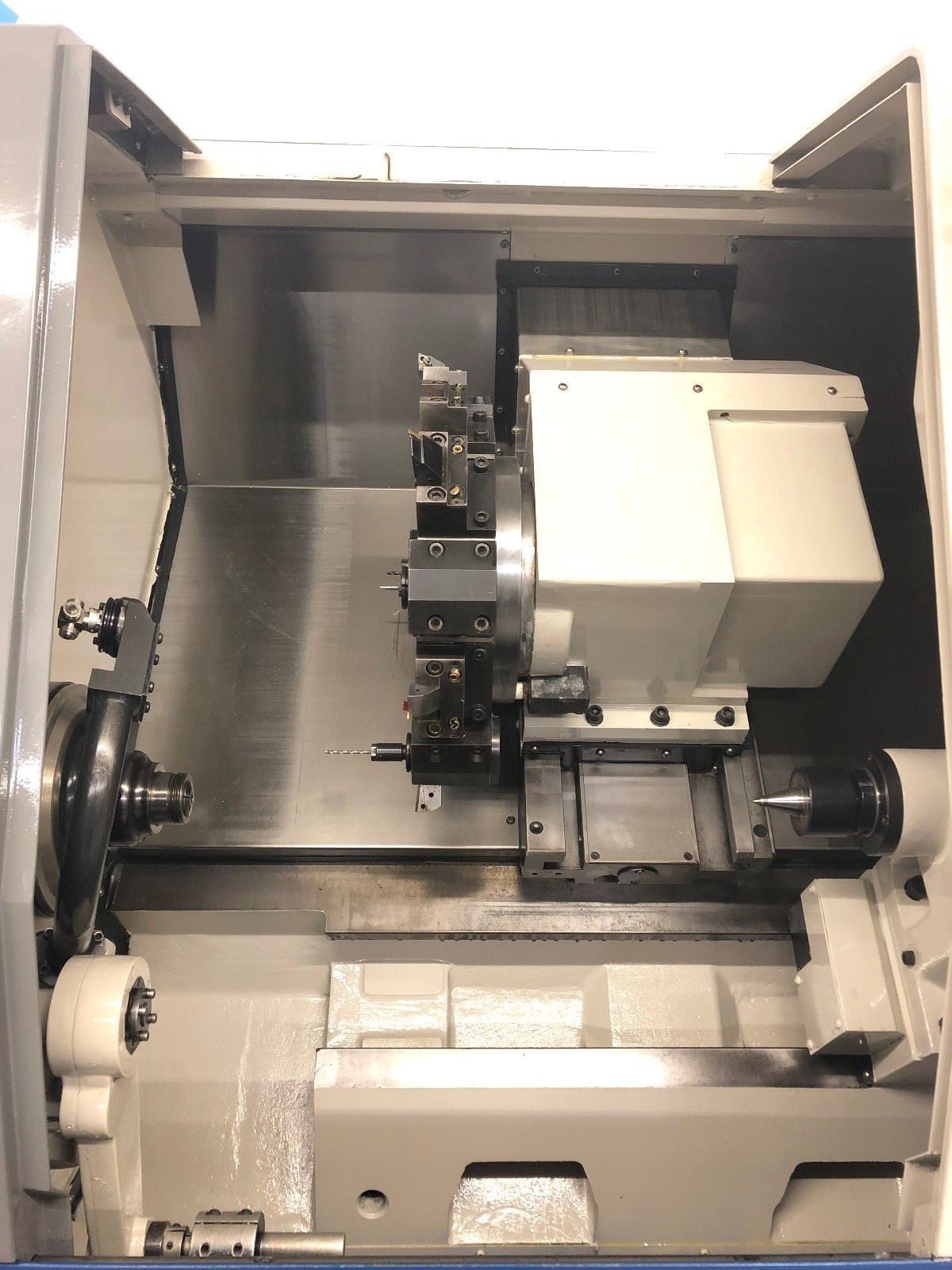

- Hydraulic Programmable Tailstock and Quill
- Coolant System
- Barfeed Interface

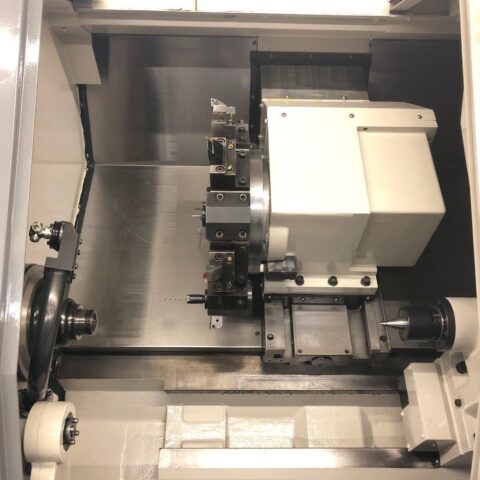

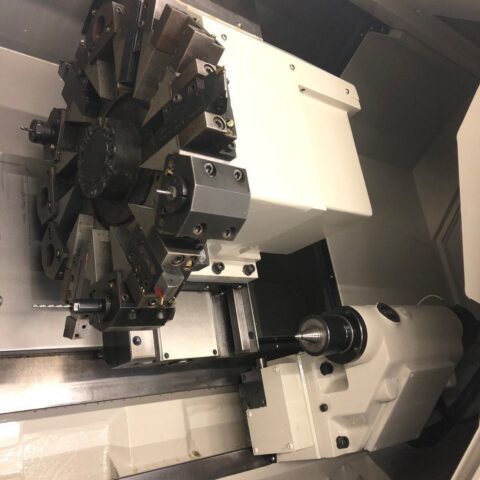

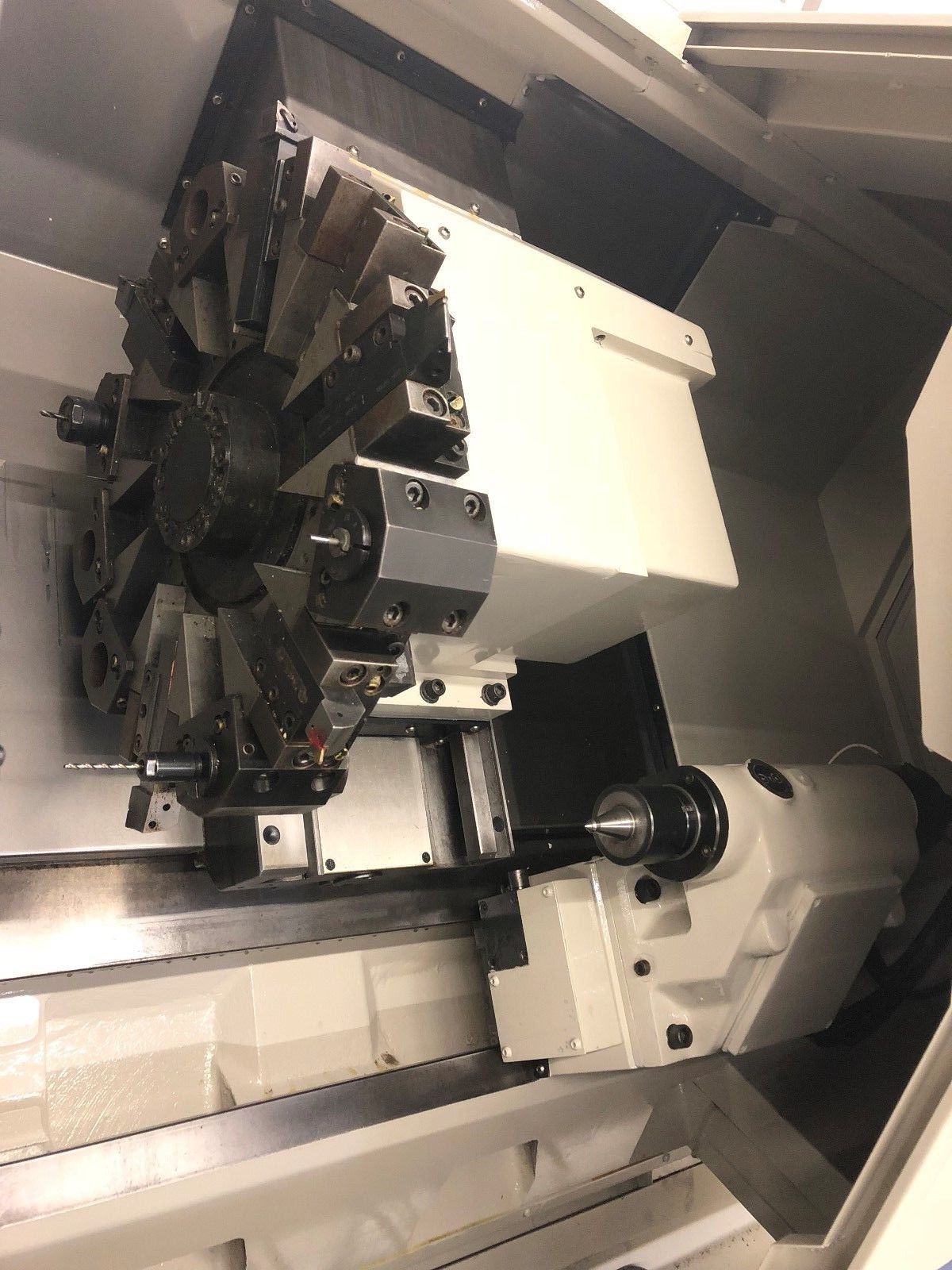

- 12 Station Automatic Turret
- Foot Switch
- Chip Tank
- Original Manuals and floppy disk
-
DAEWOO PUMA 200LC Specifications:
- Capacity:
- Max Turning Diameter: 13.8″
- Max Turning Length: 21.65″
- Max Bar Capacity: 2.69″
- Swing Over Bed: 20.1″
- Distance Between Centers: ”
- X Axis Travel: 9.53″
- Z Axis Travel: 22.83″
- Rapid Traverse X Axis: 787 IPM
- Rapid Traverse Z Axis: 945 IPM
- Spindle Nose: A2-6
- Spindle Bore: 2.99″
- Spindle Speed: 45 – 4500 RPM
- Spindle Motor: 15kw
- Turret Capacity: 12 Stations
- Turret Index Time: 0.15 Second
- Tailstock Taper: MT-4
- Tailstock Quill Dia.: 2.97″
- Tailstock Quill Travel: 3.15″
-
General:
- Power: 35kw, 220v / 3-Phase
- Overall Dimensions: 110″ x 70″ x 70″ High
- Weight: 8800 lbs
