Disclaimer: All specifications and hours are approximate and for reference only, often based on manufacturer literature. Buyer must verify all details prior to purchase. Accessories shown are included only if listed on the invoice.

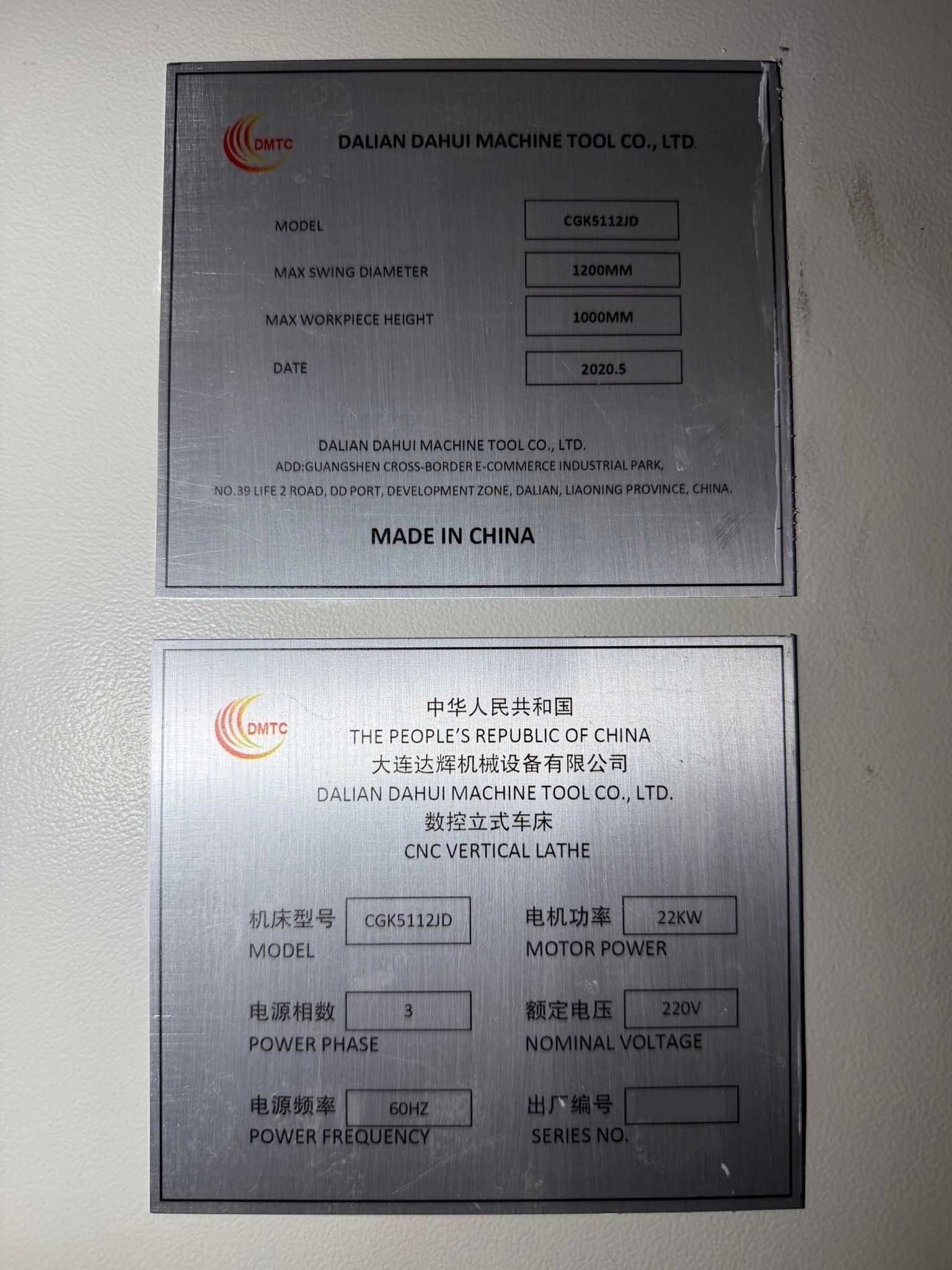

| Make: | DMTC |

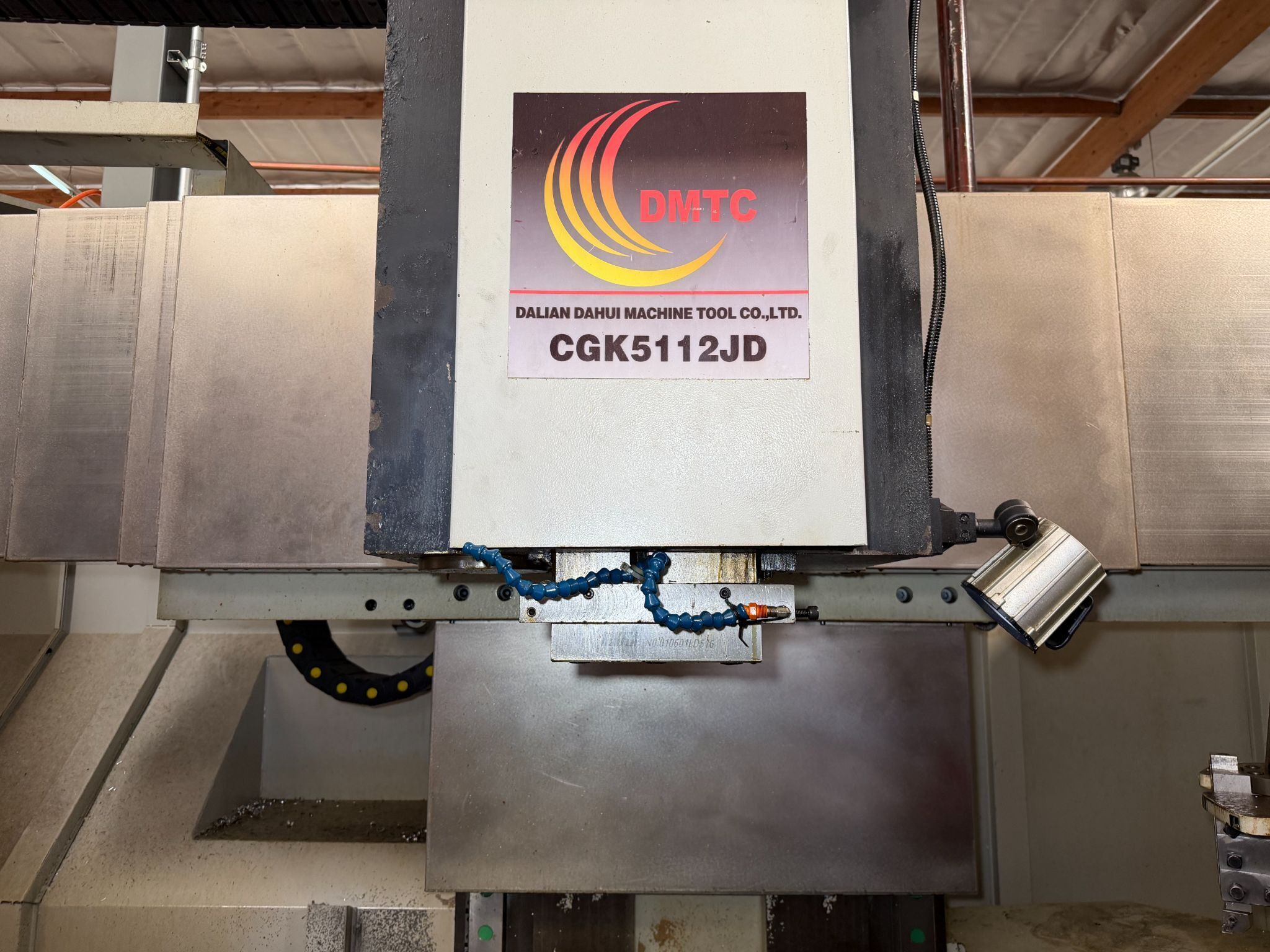

| Model: | CGK5112JD |
| Year: | 2020 |
| Features: |
|---|

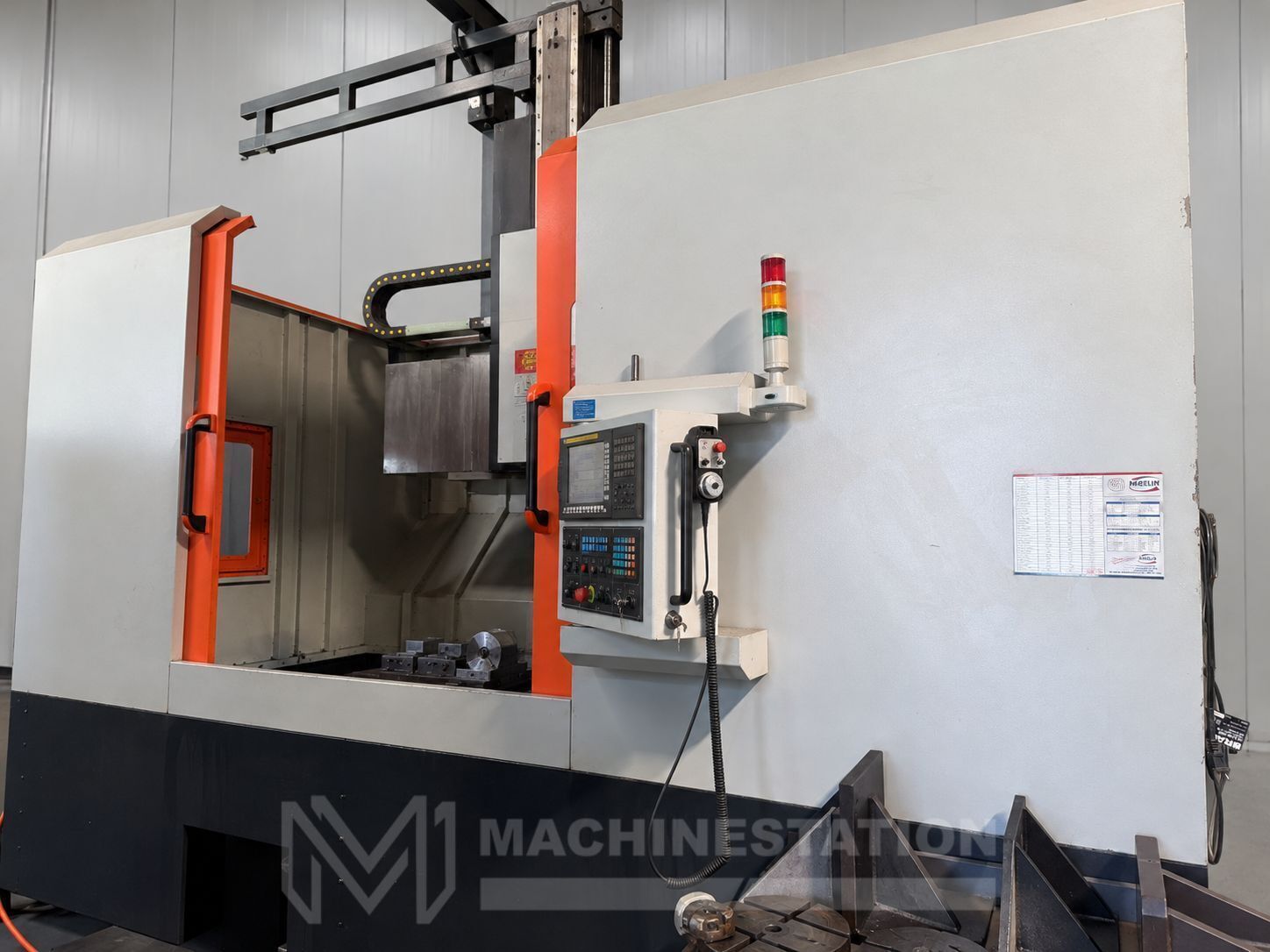

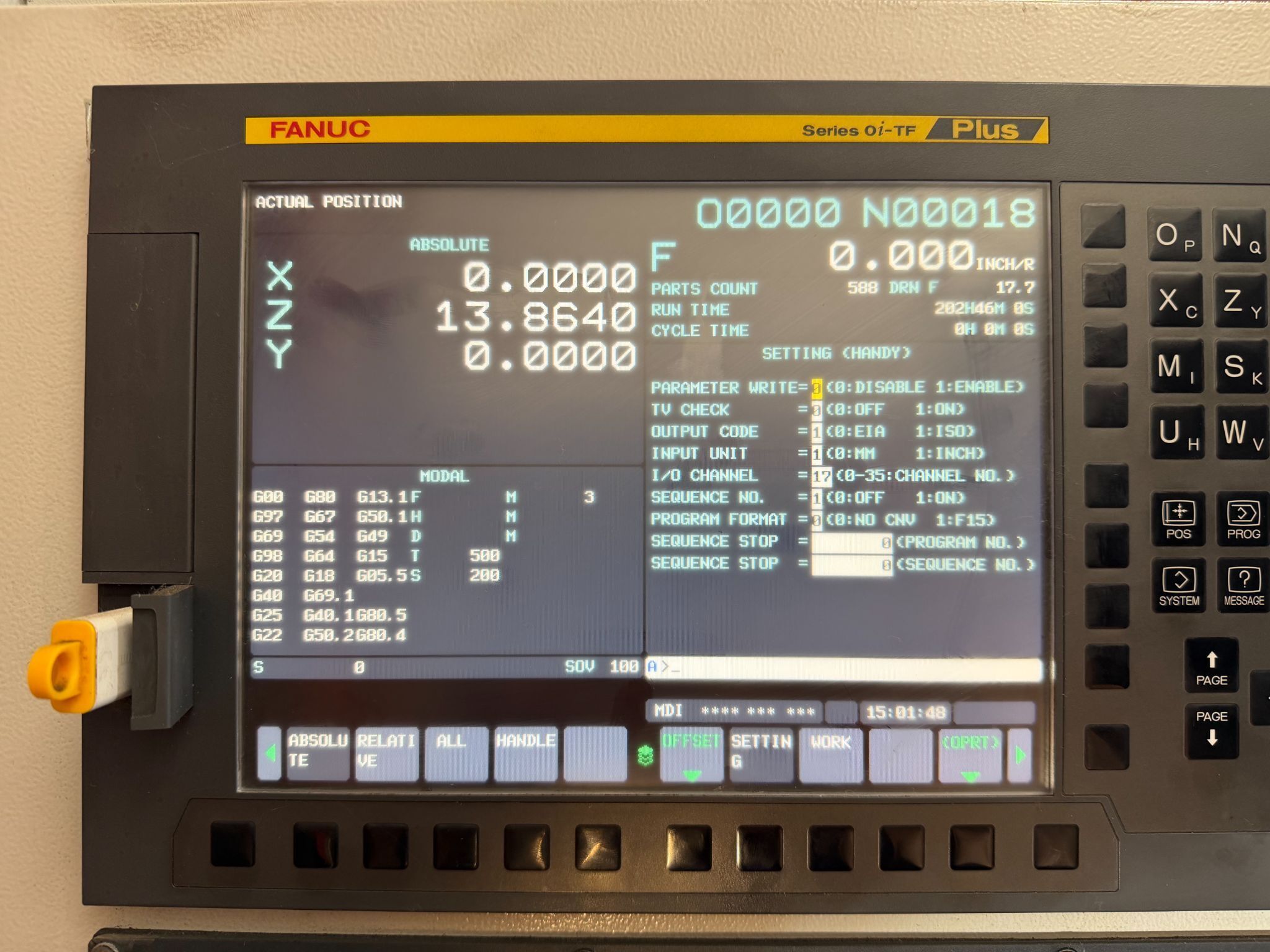

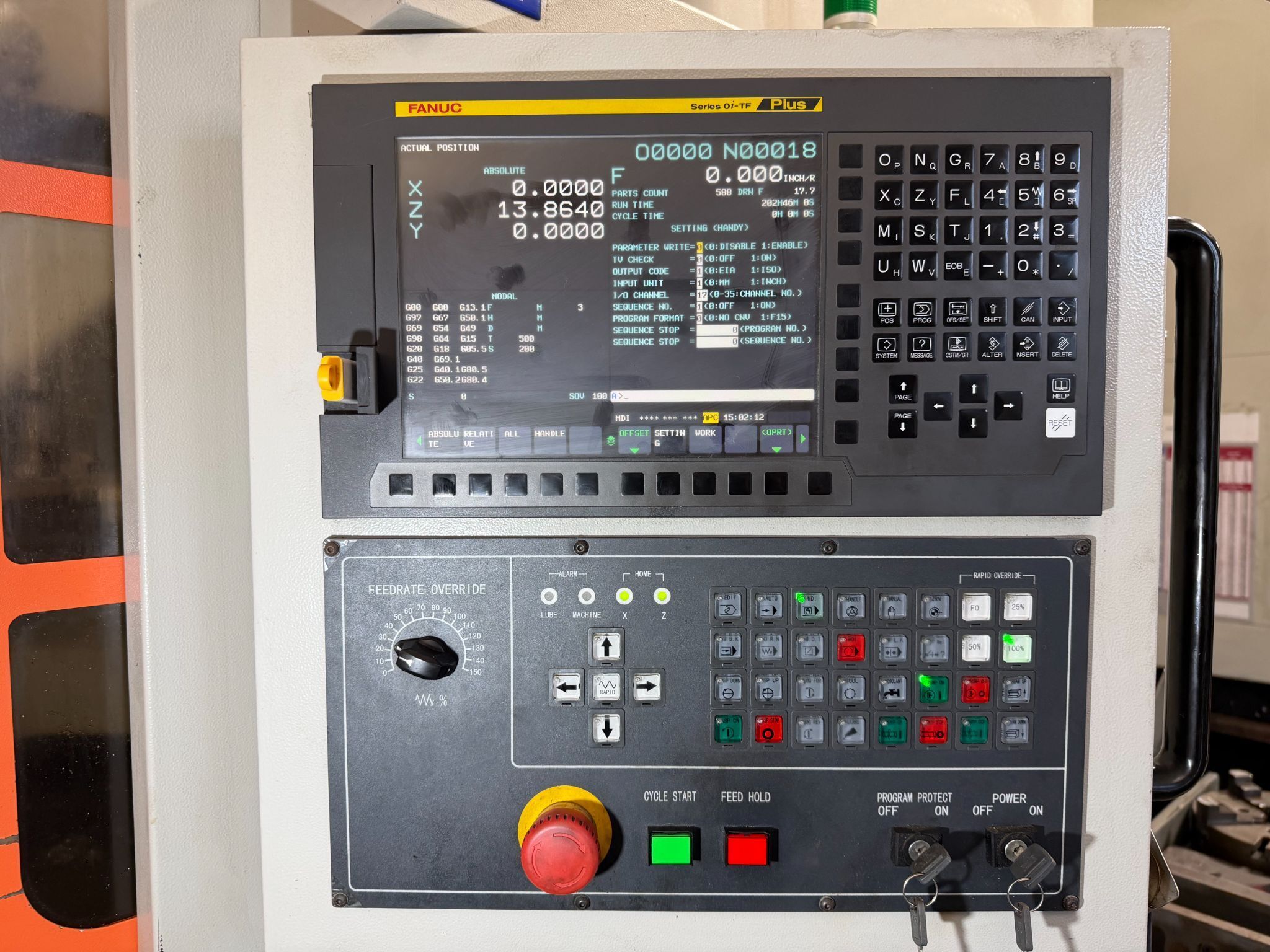

| Fanuc Series 0i-TF Plus CNC Control |

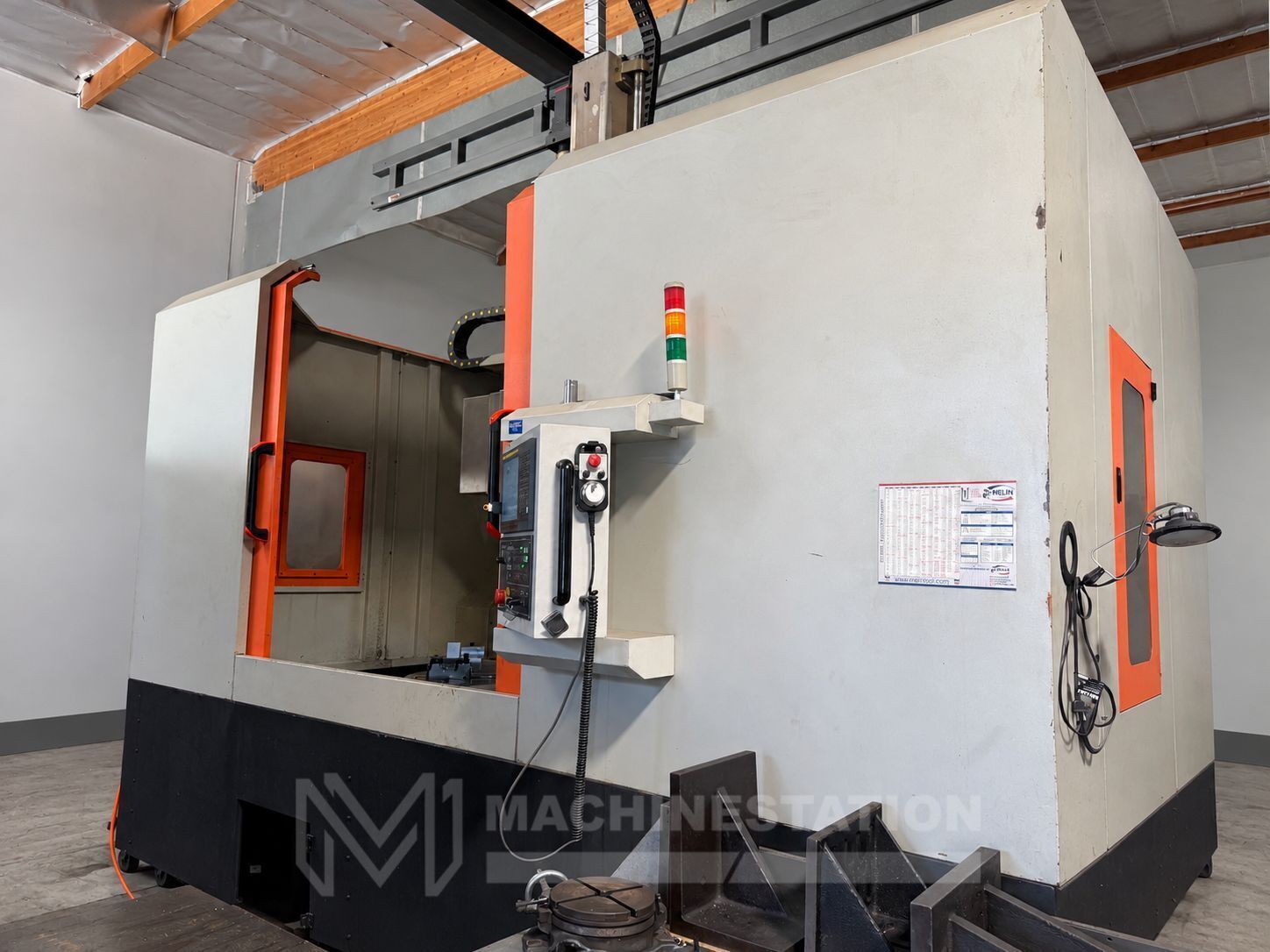

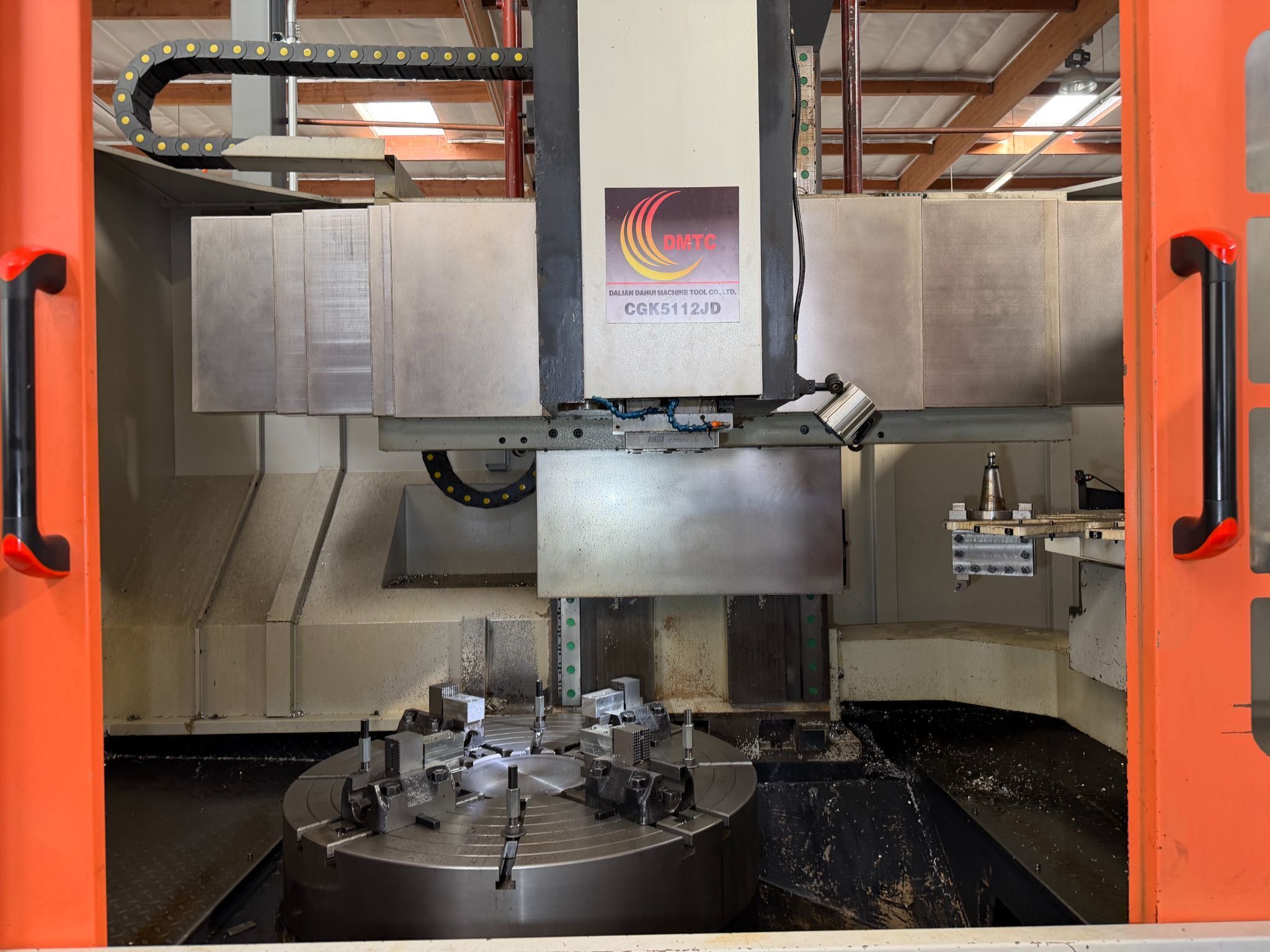

| Heavy-Duty Vertical Turning Lathe Design |

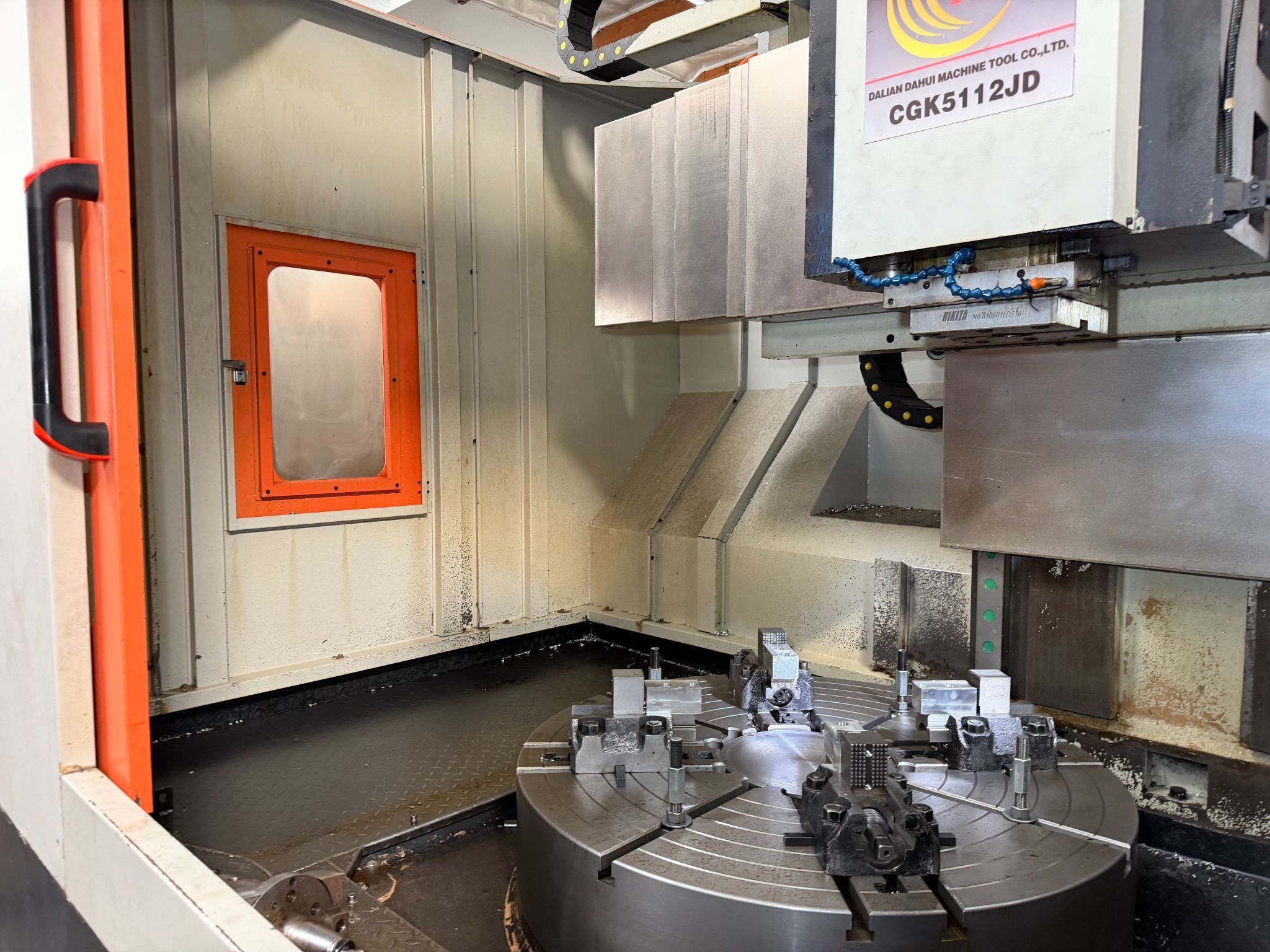

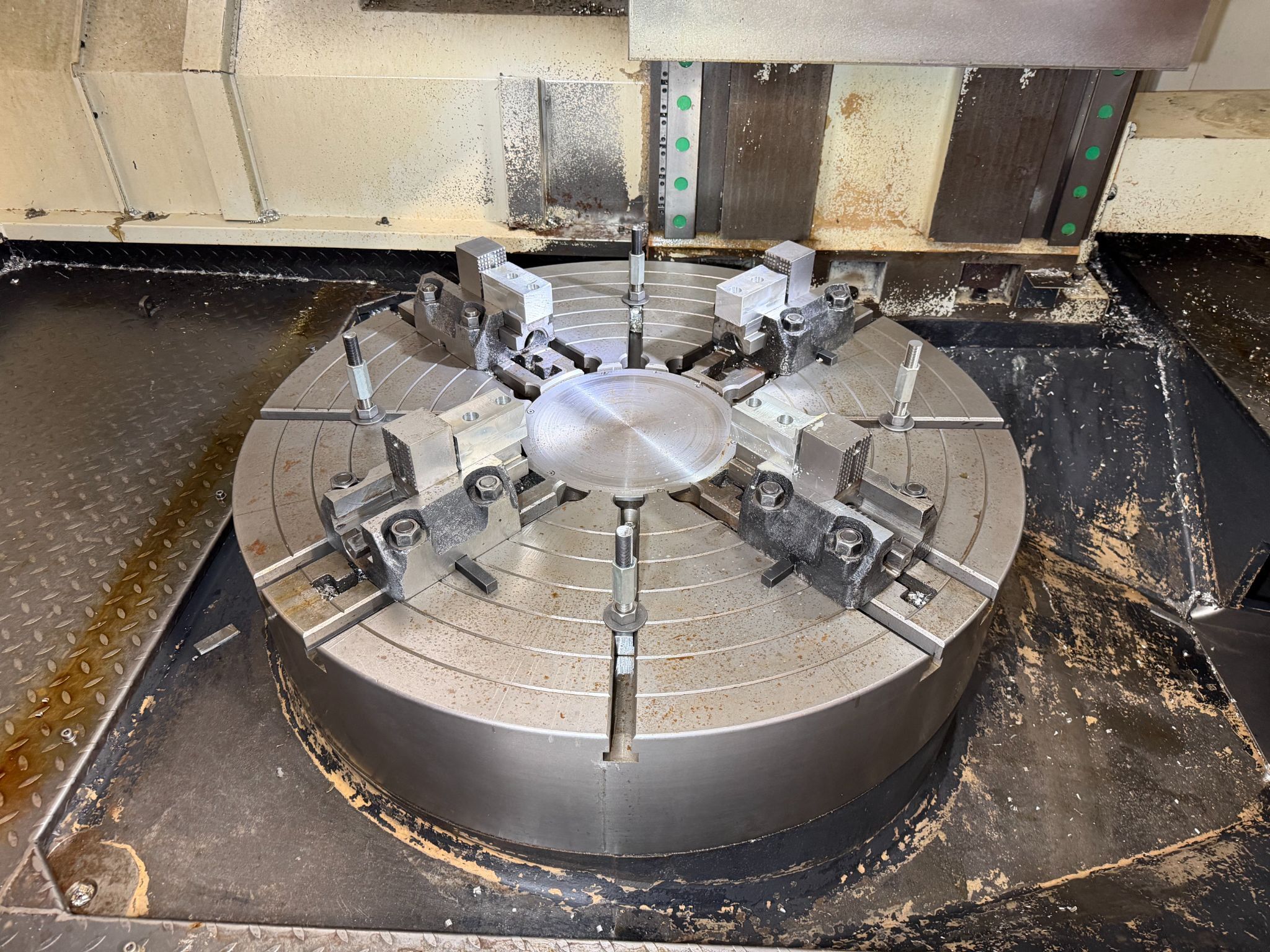

| 39.37 inch 4-Jaw Manual Chuck |

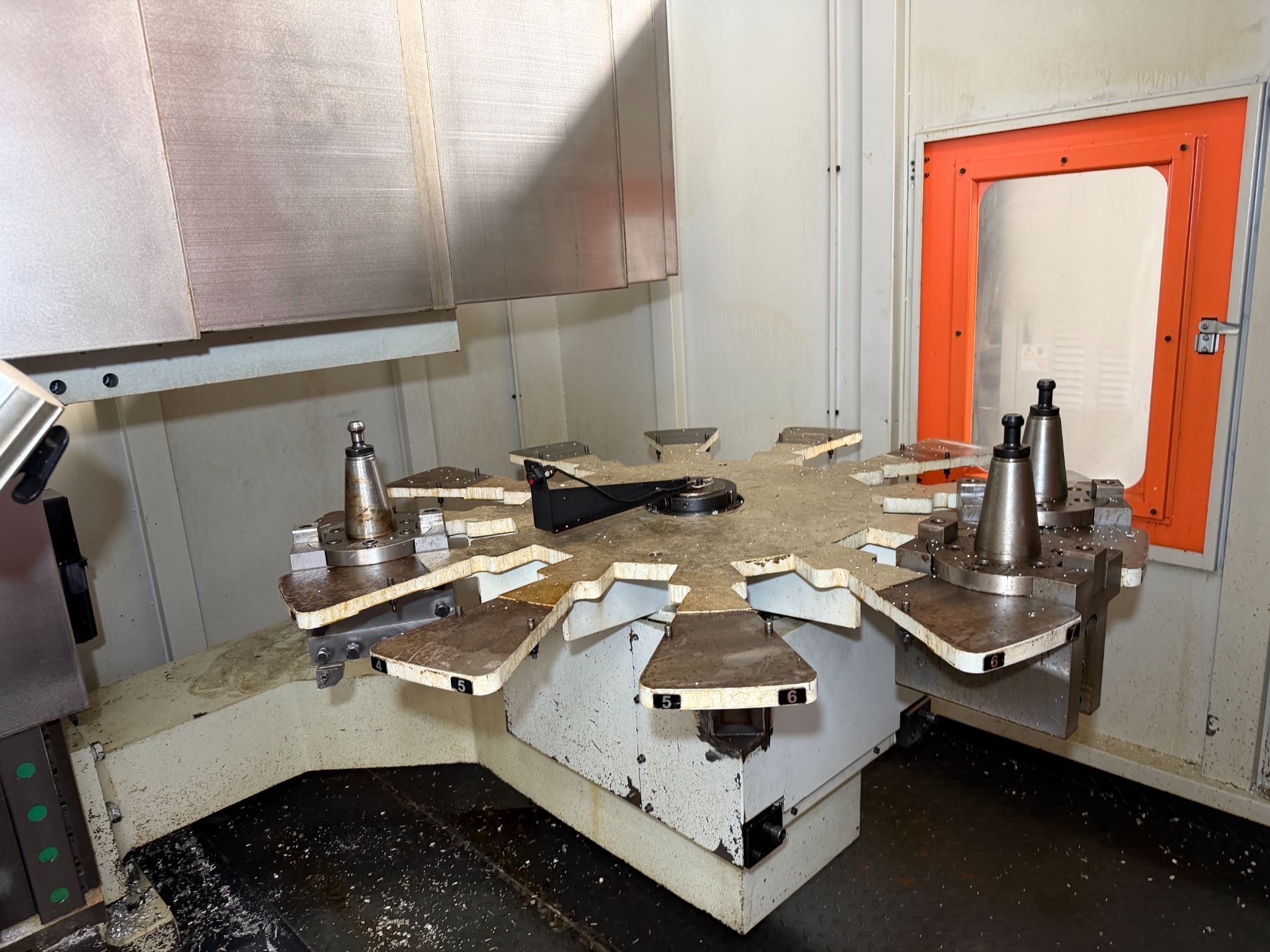

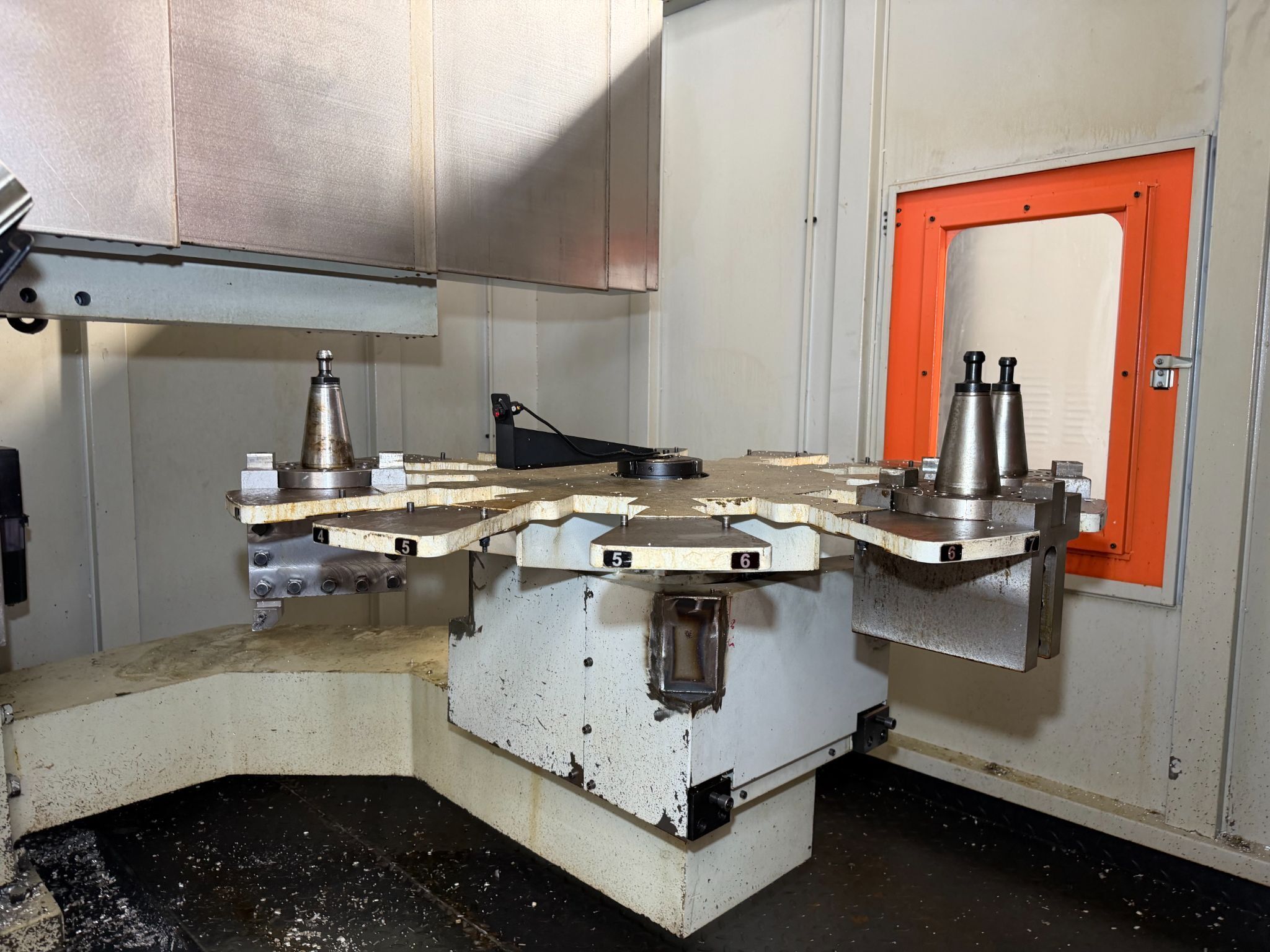

| 8-Station Automatic Tool Changer |
| Manual Pulse Generator (Handwheel) |

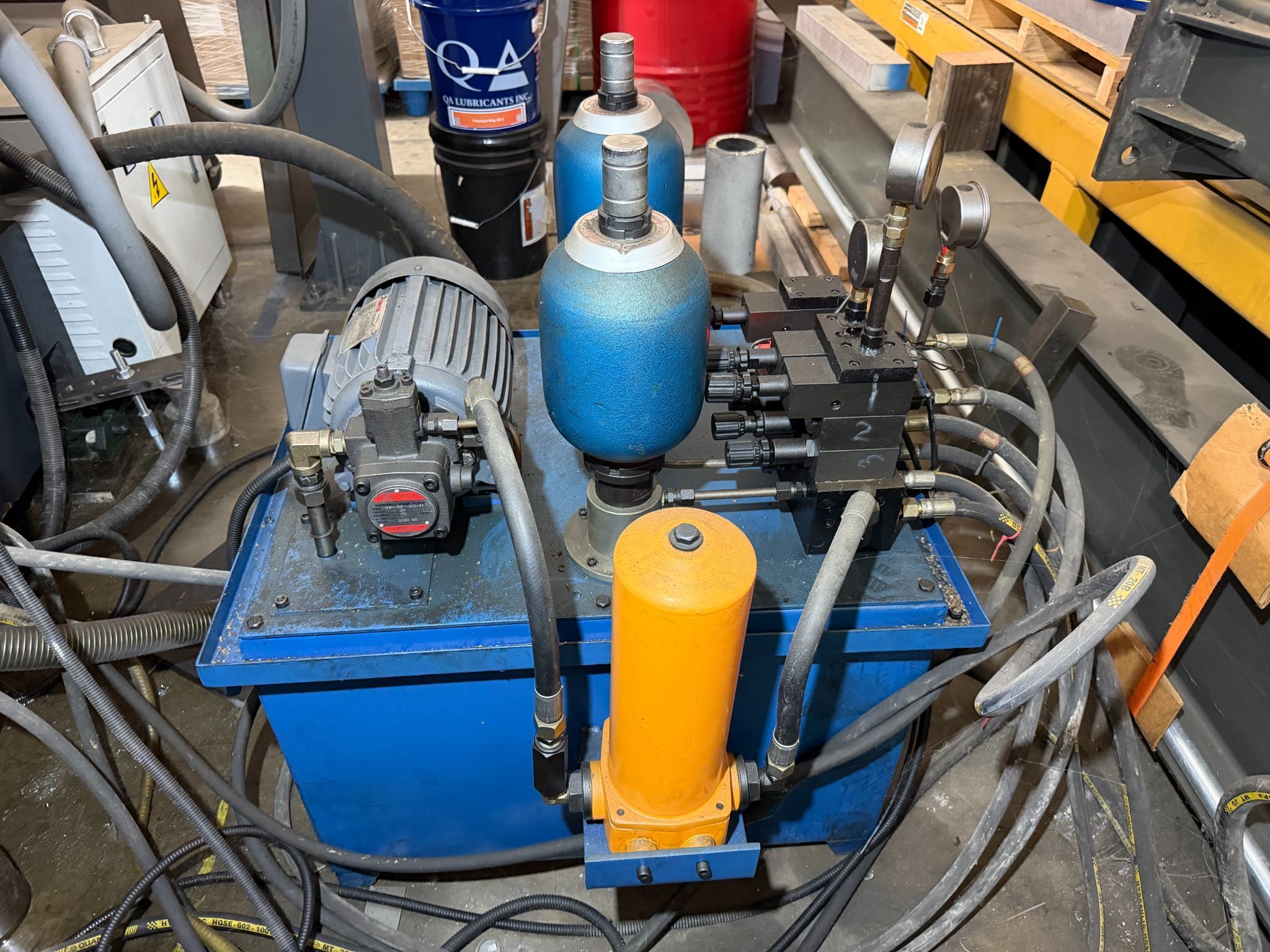

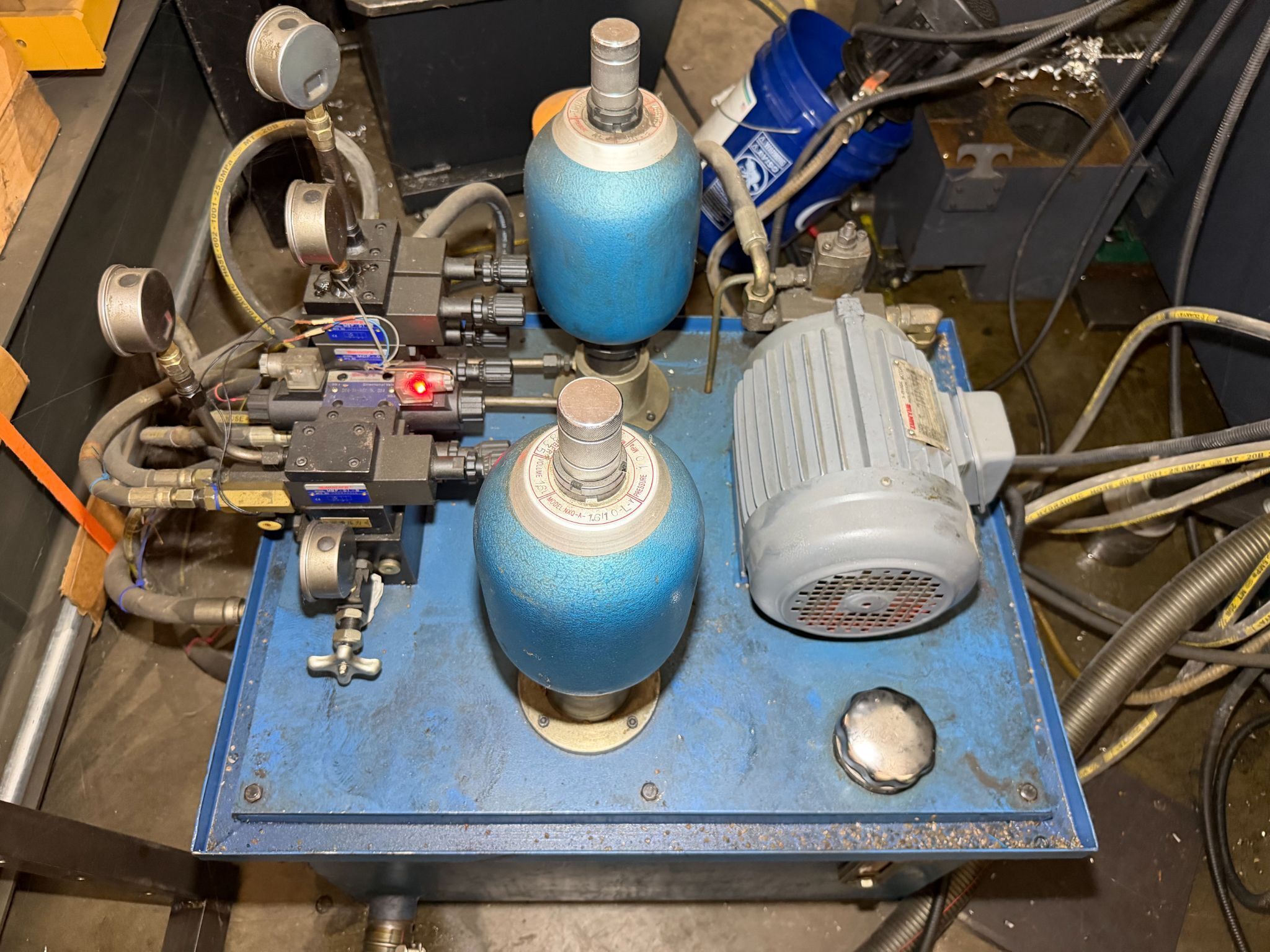

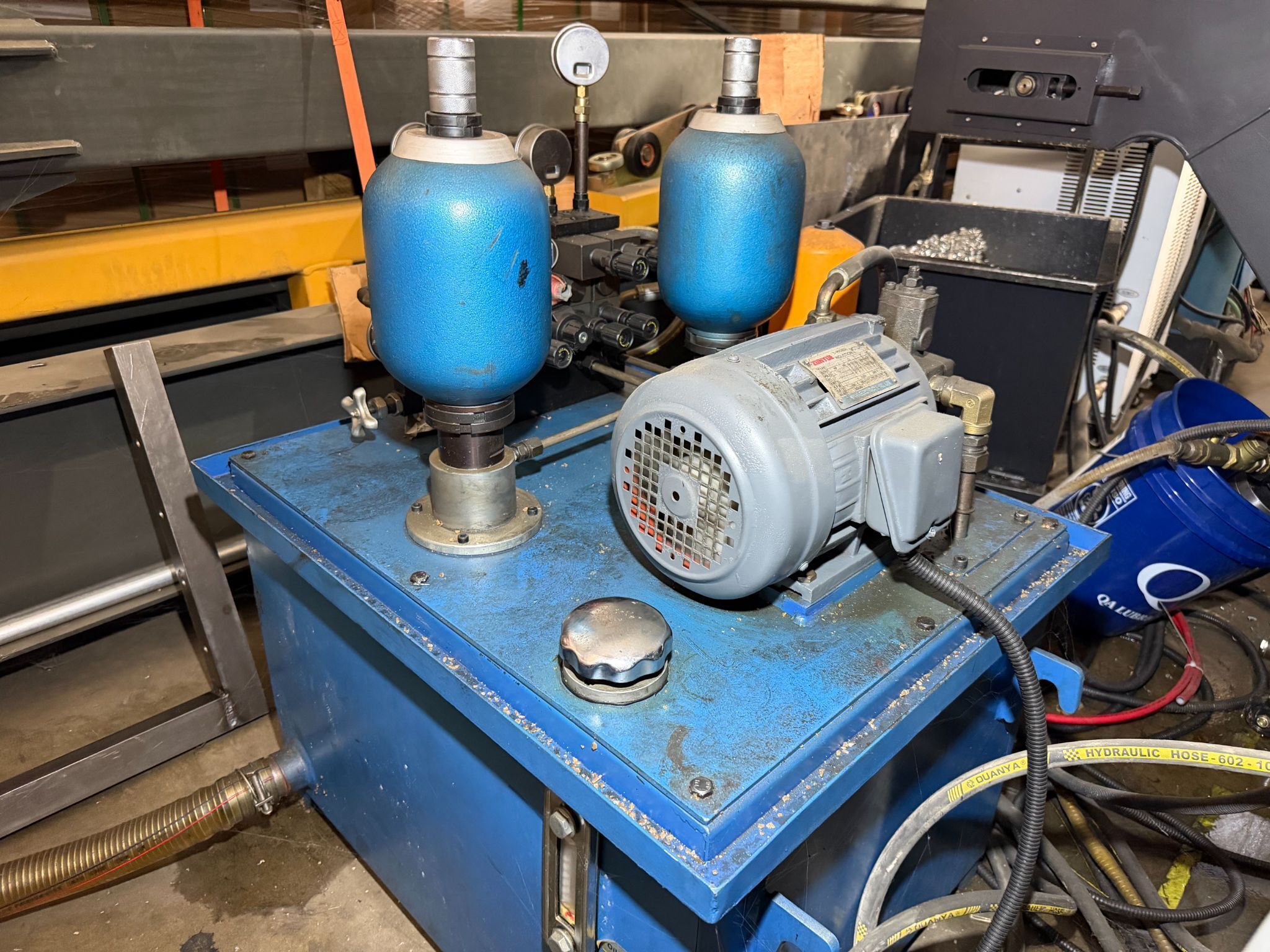

| Hydraulic System / Power Unit |
| Enclosed Guarding |
| Automatic Lubrication Unit |
| Coolant Tank |

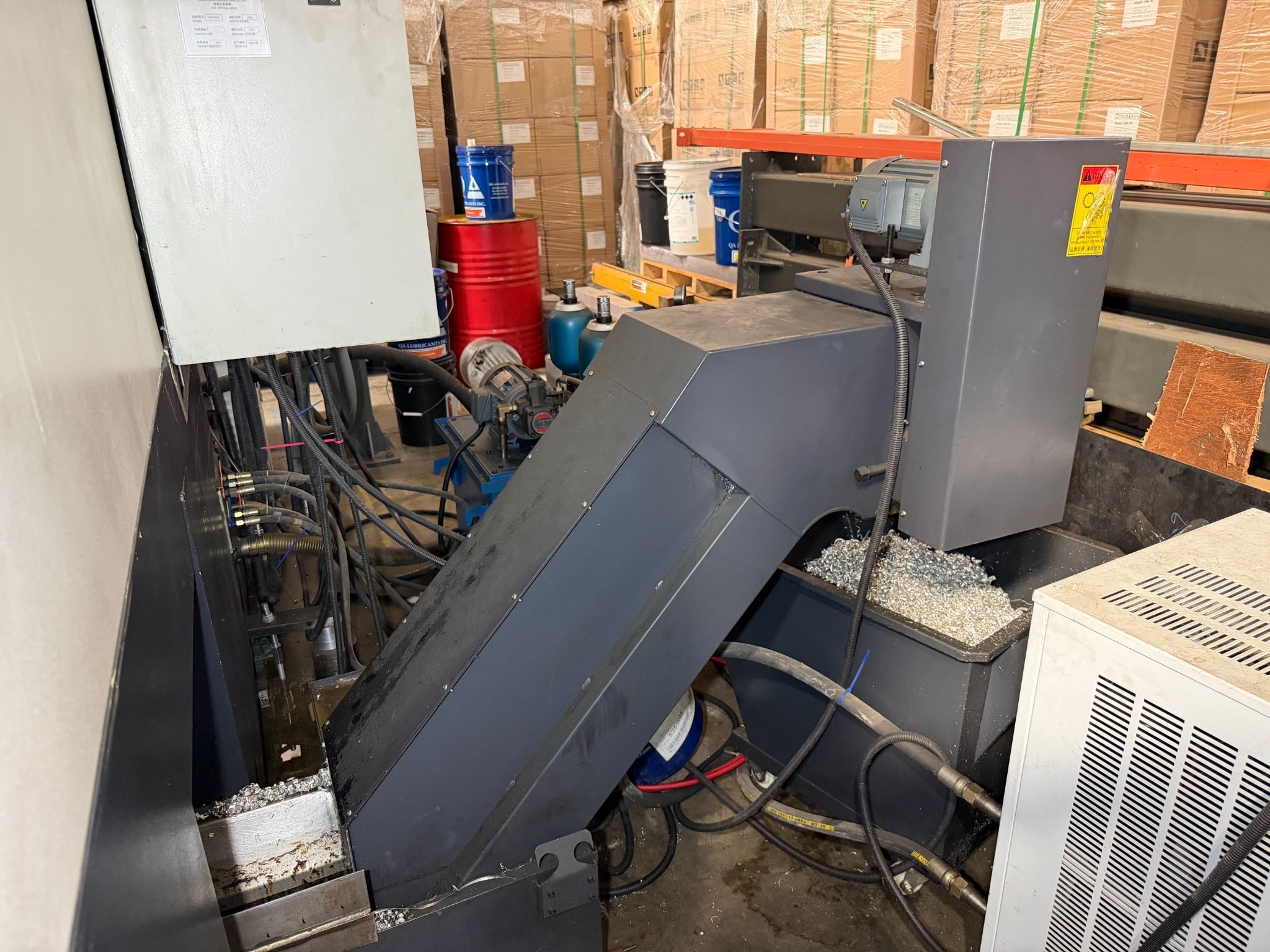

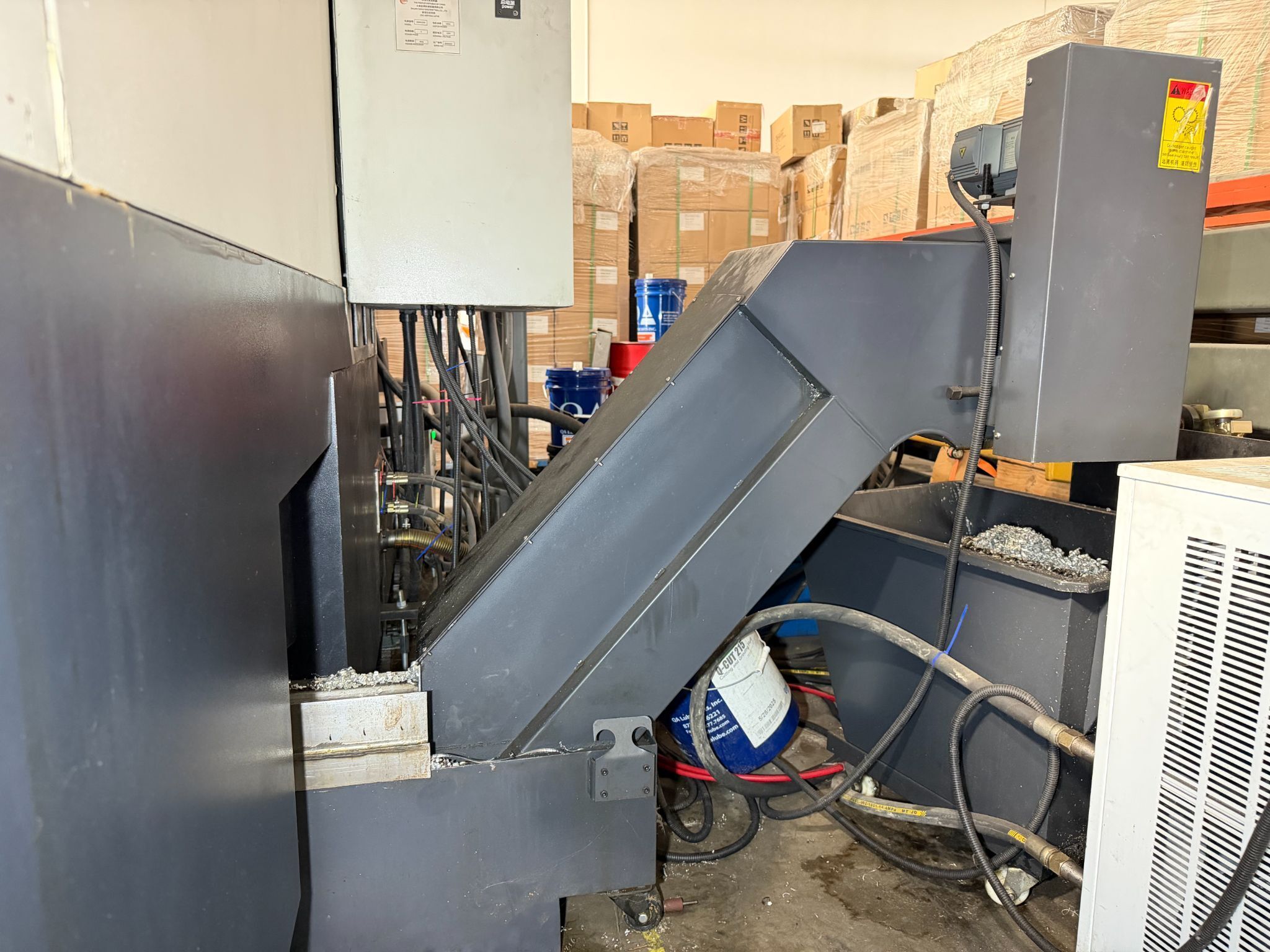

| Chip Conveyor |
| Capacity: |
|---|
| Maximum Machining Diameter: 47.24 inch |
| Maximum Machining Height: 39.37 inch |
| Maximum Swing Diameter: 47.24 inch |
| Maximum Workpiece Weight: 11,023 lbs |
| Travels: |
|---|
| X-Axis Travel: 27.55 inch |
| Z-Axis Travel: 31.49 inch |
| Rapid Traverse (X/Z): 196.85 IPM Approx. |
| Cutting Feedrate: 0.0039 – 78.74 IPM |
| Table: |
|---|
| Chuck Diameter: 39.37 inch |
| Max Torque: 30,000 N.m |
| Max Weight on Table: 11,023 lbs |
| Spindle: |
|---|
| Spindle Speed: 400 RPM |
| Spindle Motor: 29.5 HP |
| Spindle Type: Gear Driven (Two Gears, Stepless) |
| Automatic Tool Changer: |
|---|
| Capacity: 8 Stations |
| General: |
|---|
| Power: 220V / 3-Phase / 60 Hz |
| Overall Dimensions: 122.05 inch x 106.30 inch x 110.24 inch High Approx. |
| Weight: 24,251 lbs Approx. |
