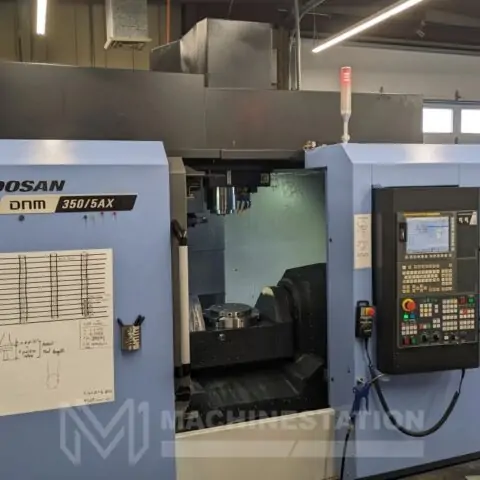

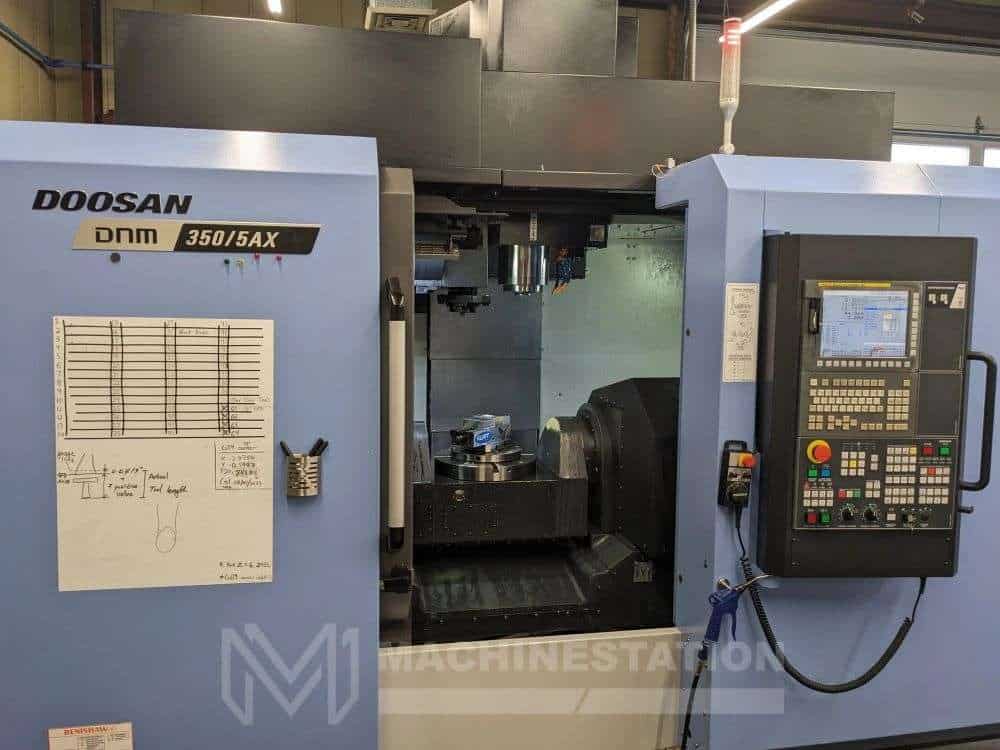

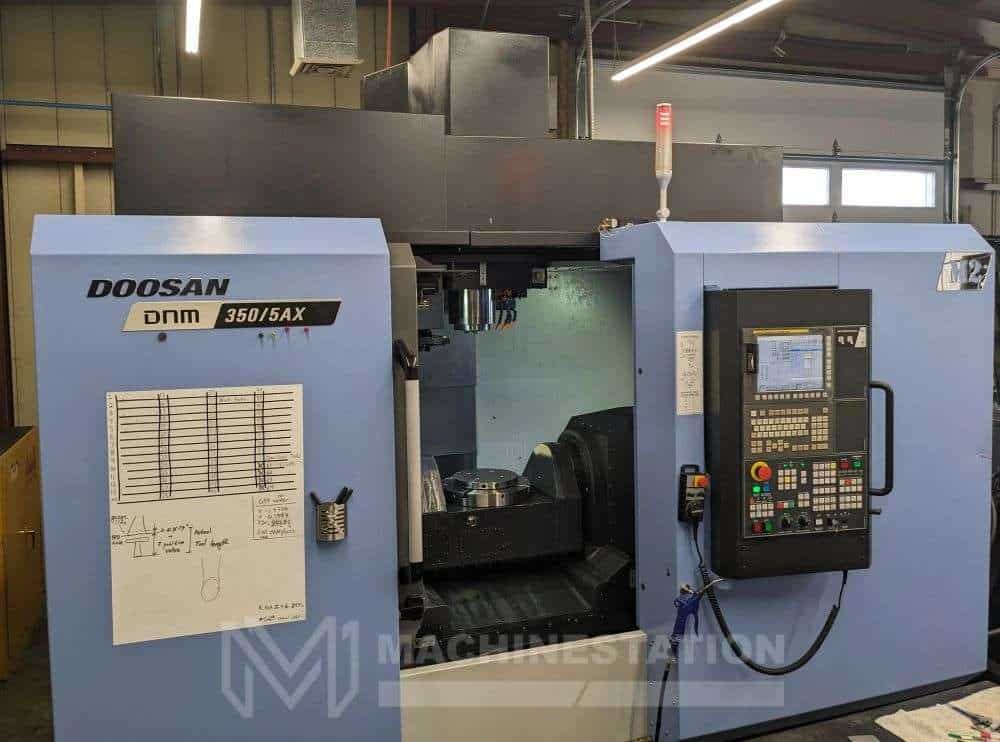

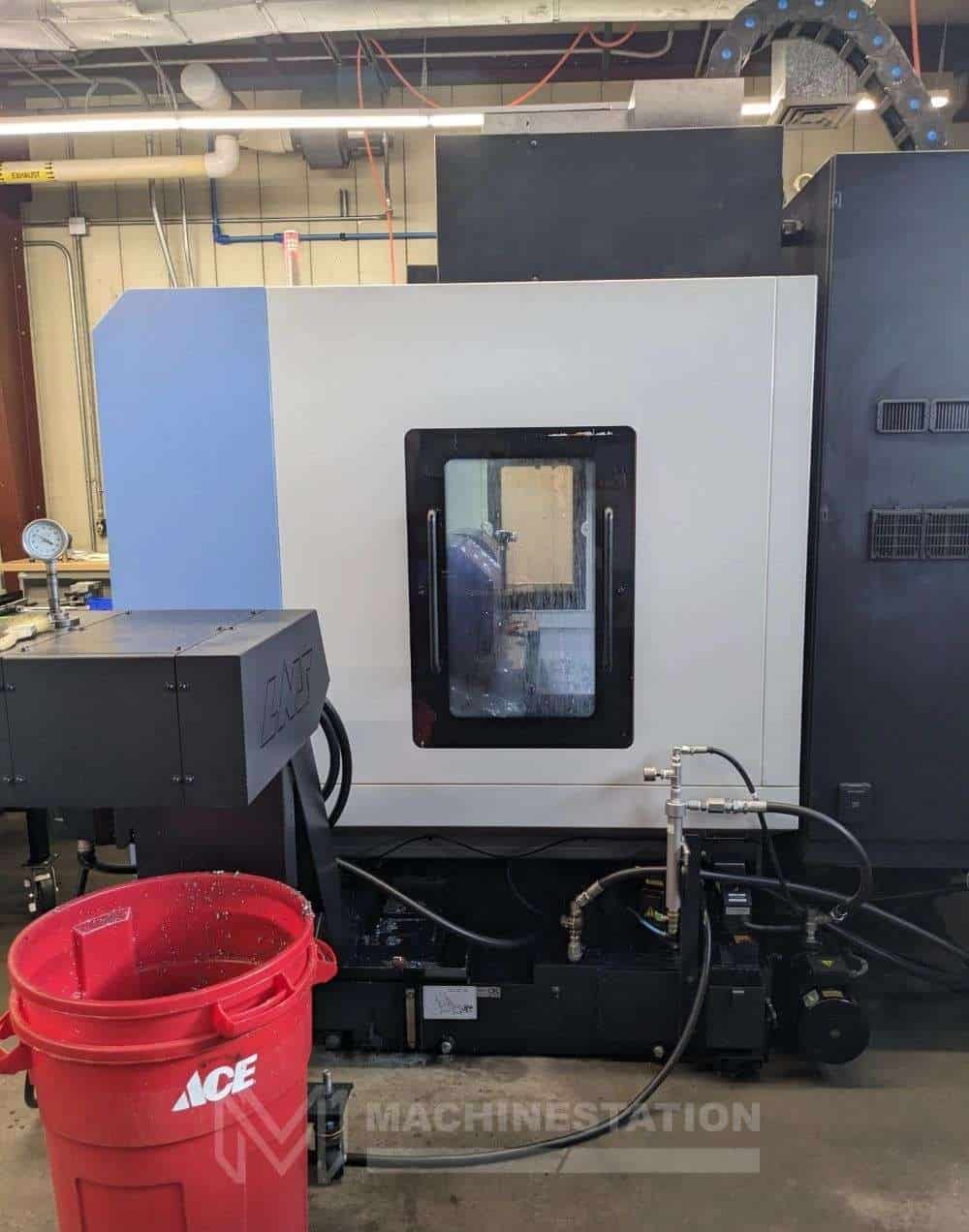

Doosan DNM 350/5AX 5 Axis CNC Vertical Machining Center

SKU 112602

Make/Model Doosan DNM 350/5AX

Year 2017

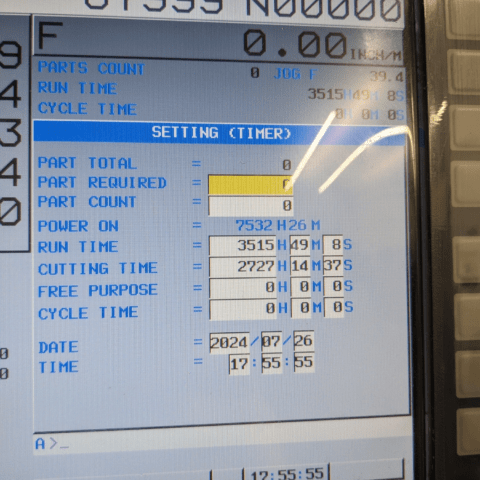

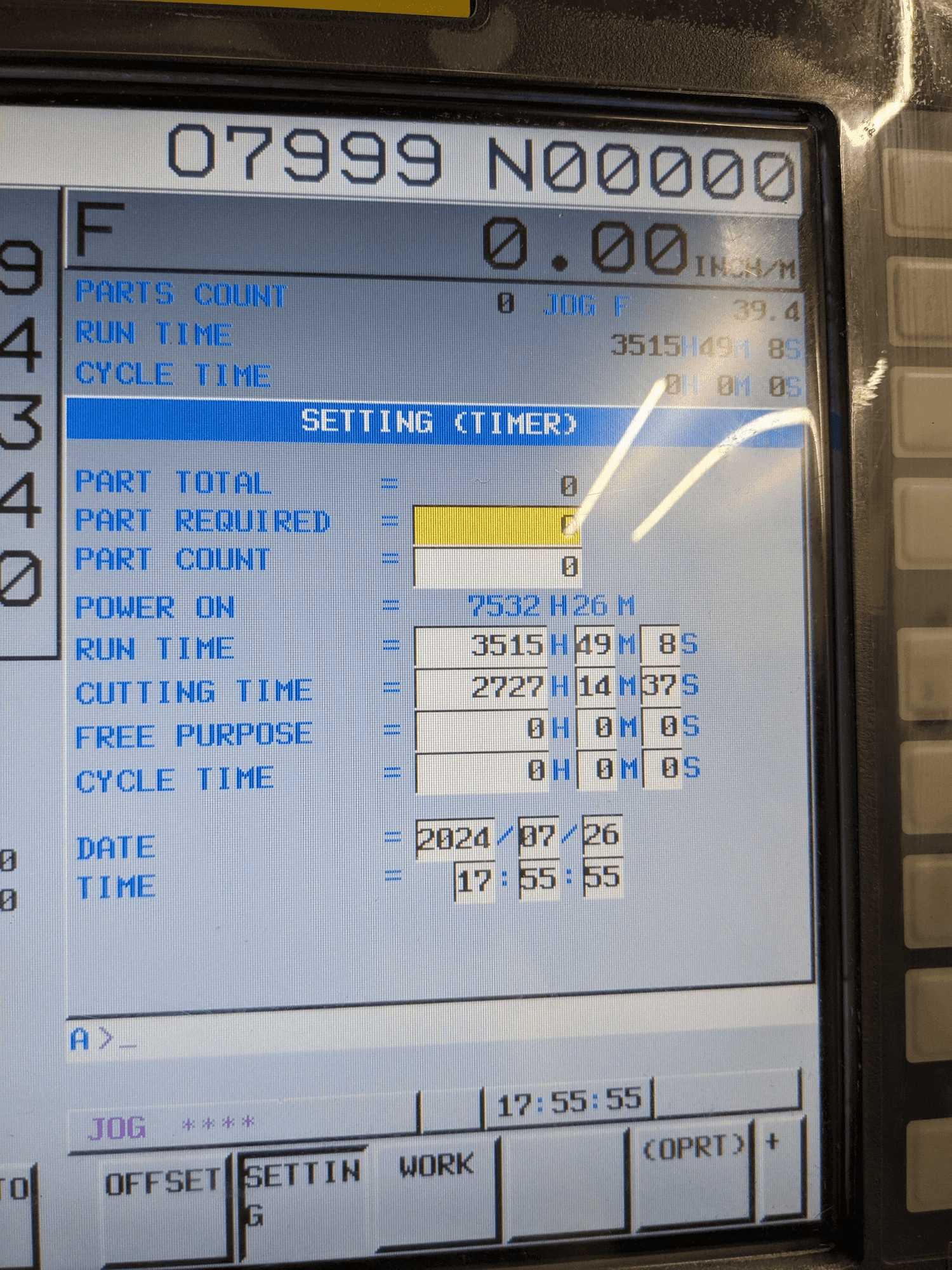

Cutting Time 2727 Hours

Video No Video

Out of stock

SKU:	112602
Make/Model:	Doosan DNM 350/5AX
Year:	2017
Cutting Time:	2727 Hours
Video:	No Video

SKU: 112602

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Doosan
Model:	DNM 350/5AX
Year:	2017

Features:

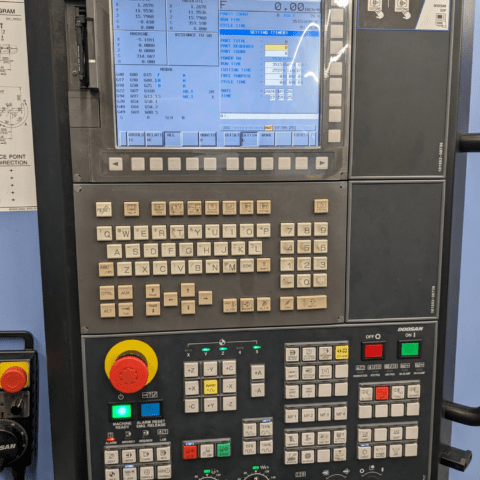

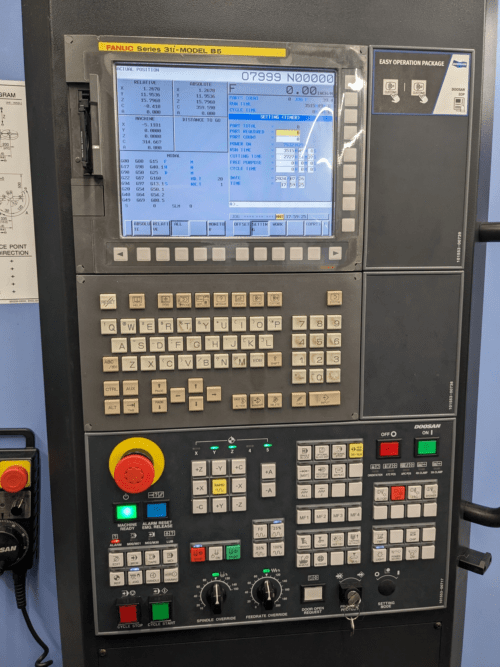

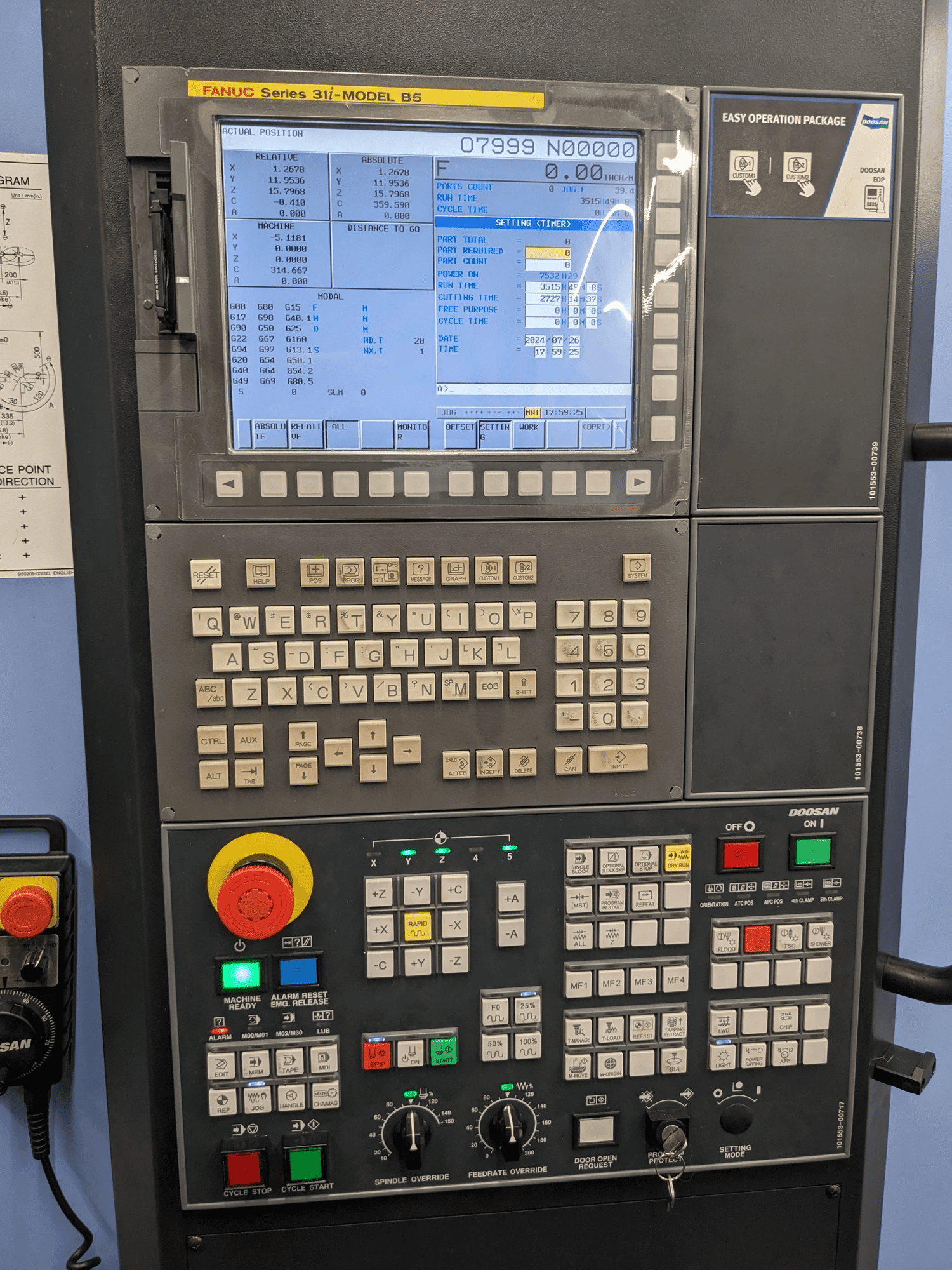

Fanuc 31i-Model B5 Series CNC Control
5 Axis Simultaneous Machining

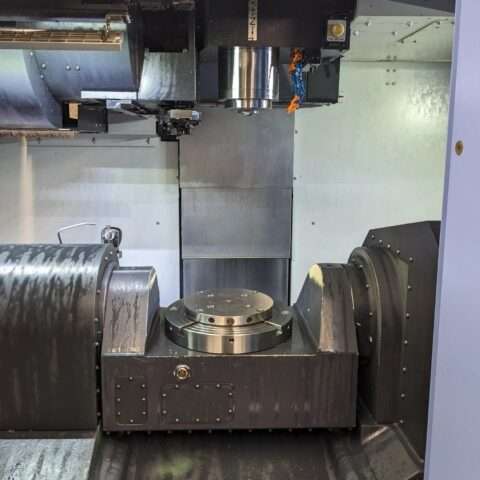

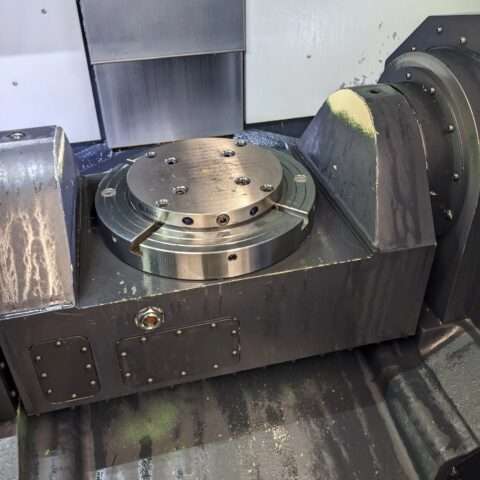

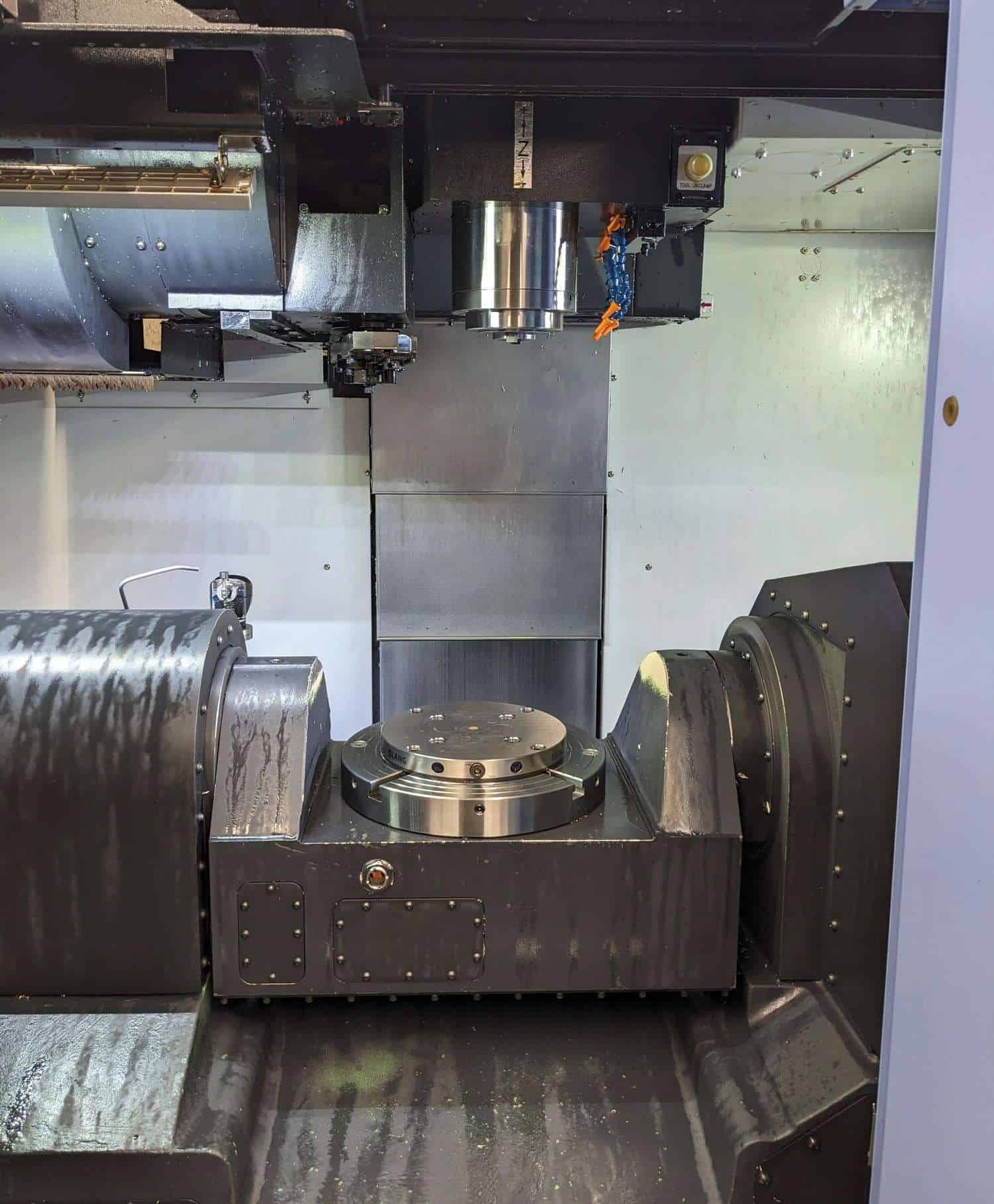

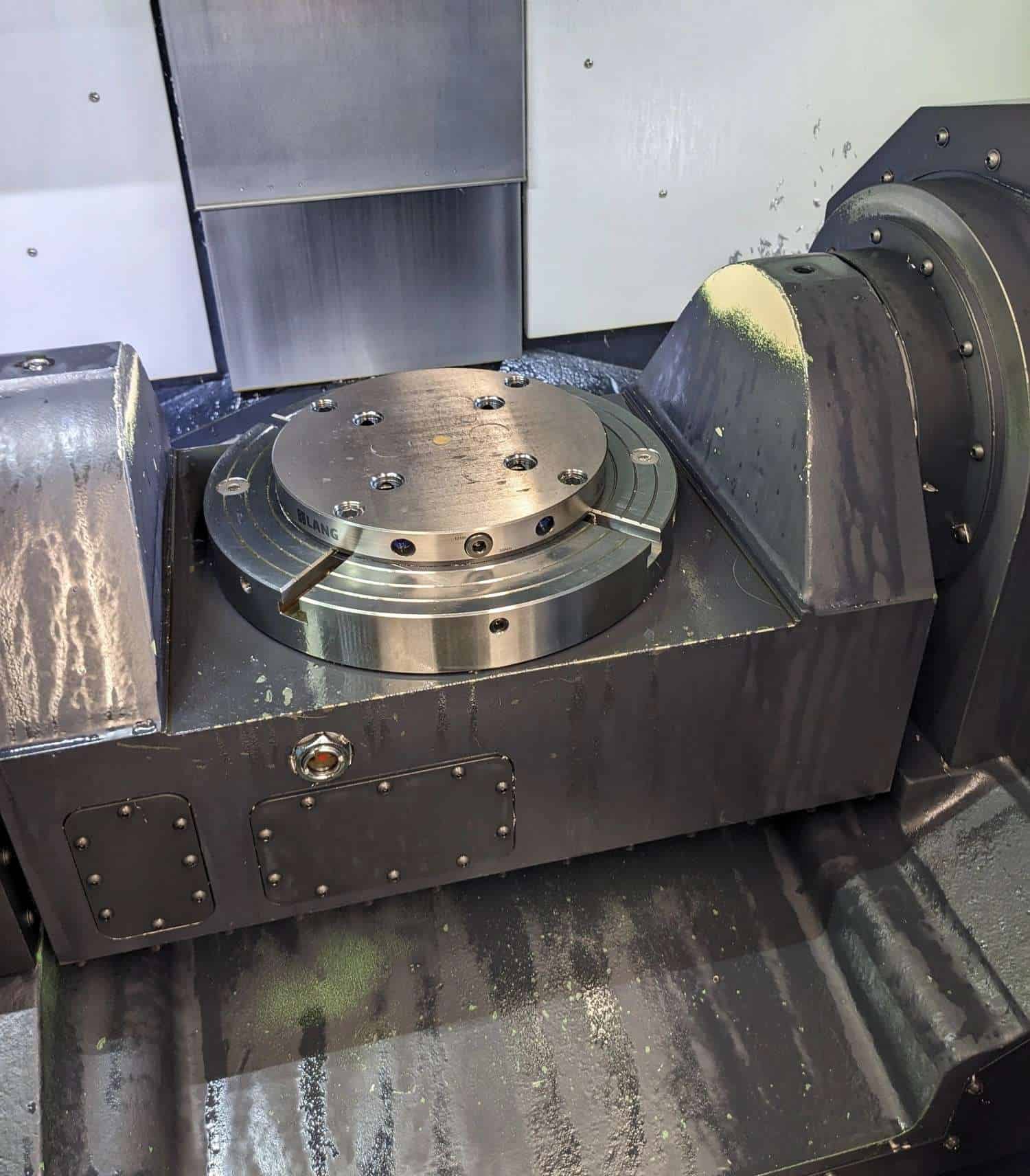

ø 13.8″ Trunnion Table

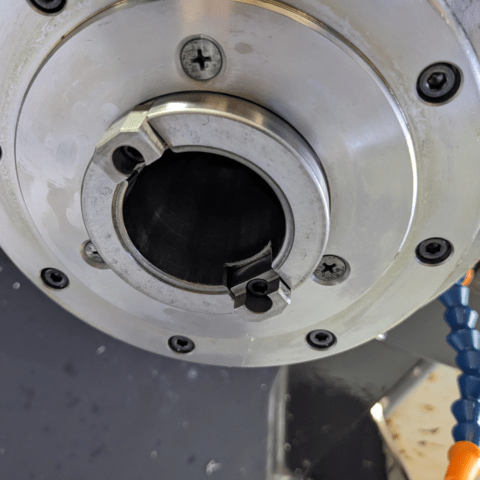

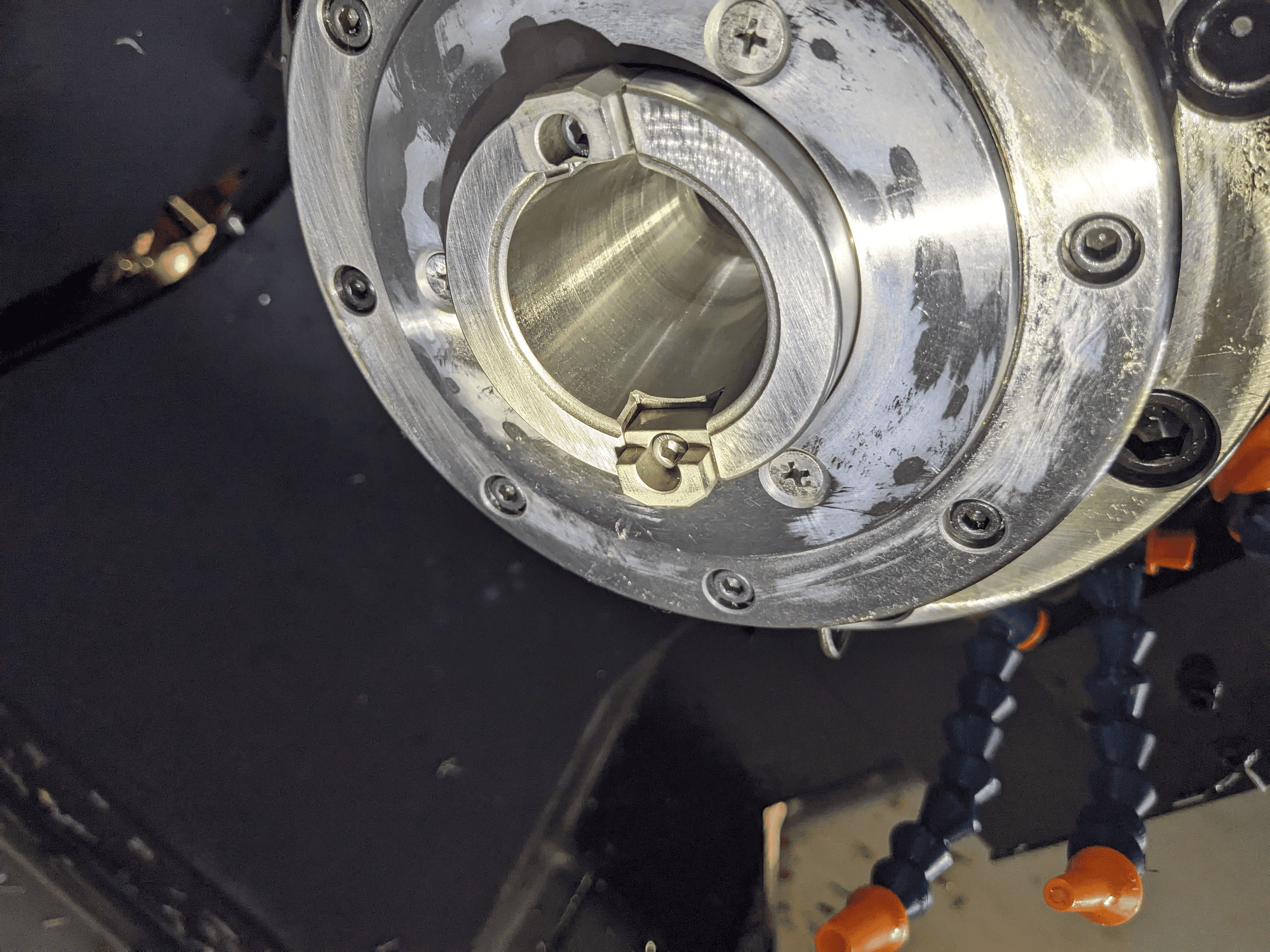

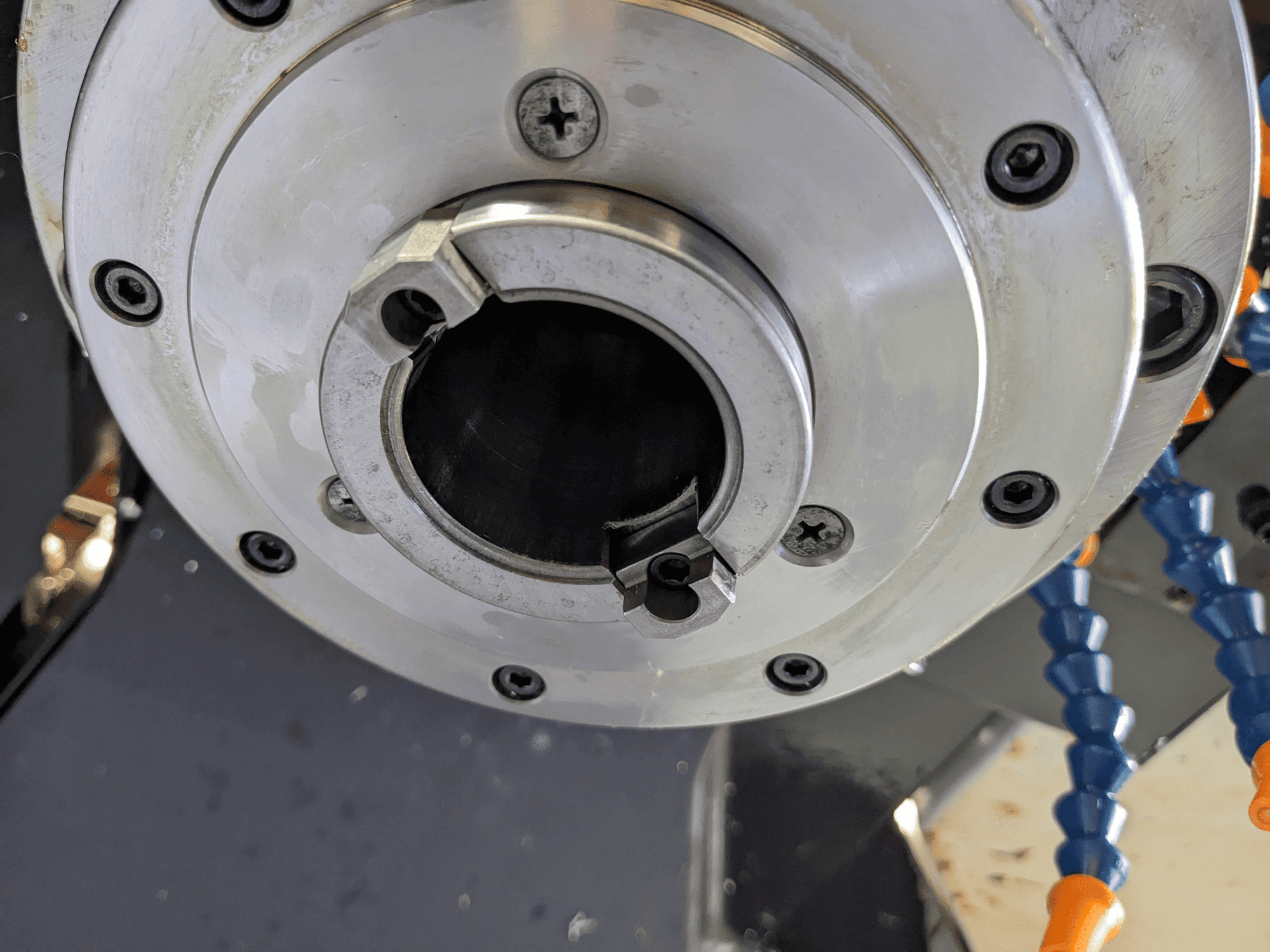

12,000 RPM High Precision Spindle
Doosan Intelligent Kinematic Compensation (IKC) Software
Flood Coolant & TSC (Used QualiChem Xtreme Cut 250C Since New)
60 Station Automatic Tool Changer
Renishaw RMP600-40 High Precision Probe System
Renishaw AxiSet Calibration Routine w/ Cal Artifact & Mag Base

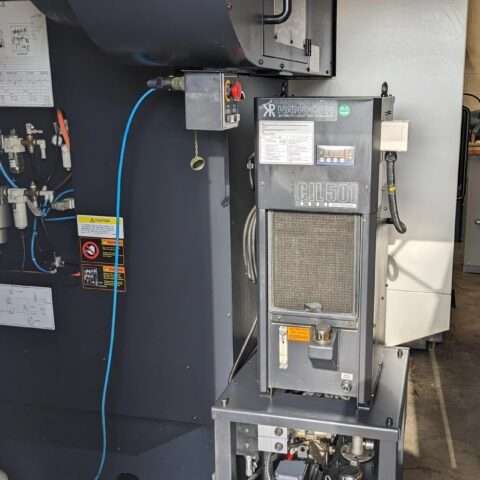

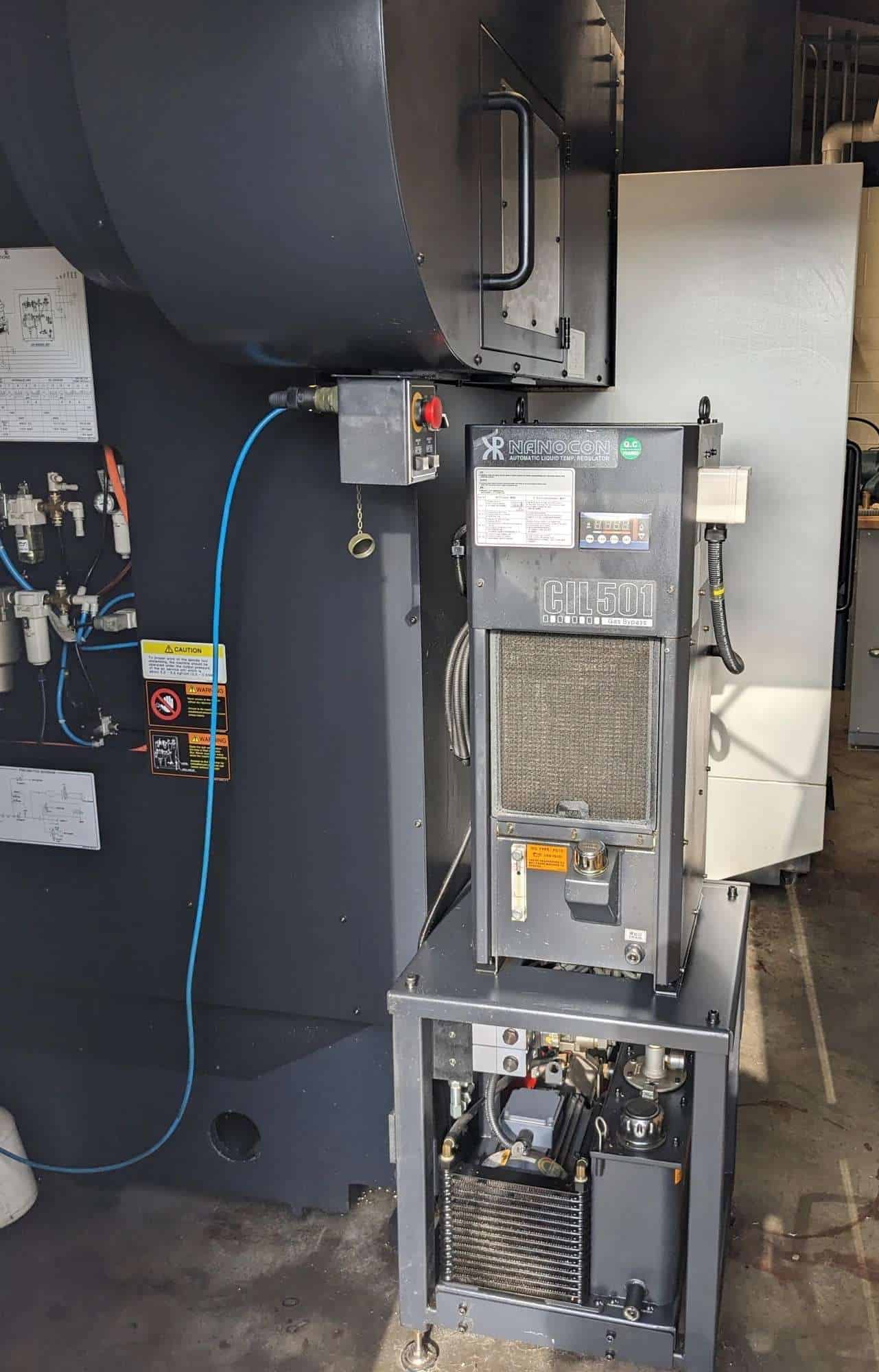

Spindle Chiller Unit
MPG Handwheel Control
PCMCIA Card Slot
Synchro Tapping/Re-Tapping
Spindle Orientation
Helical Interpolation
Coolant System

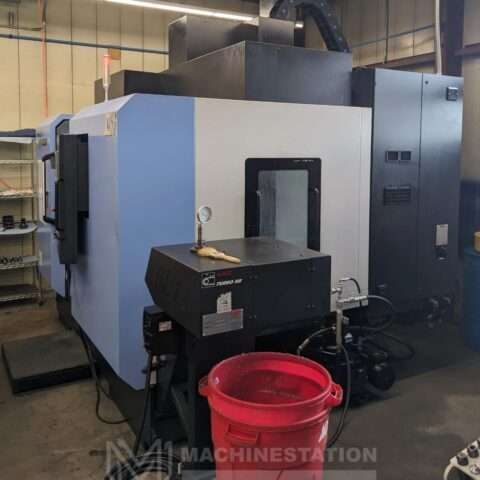

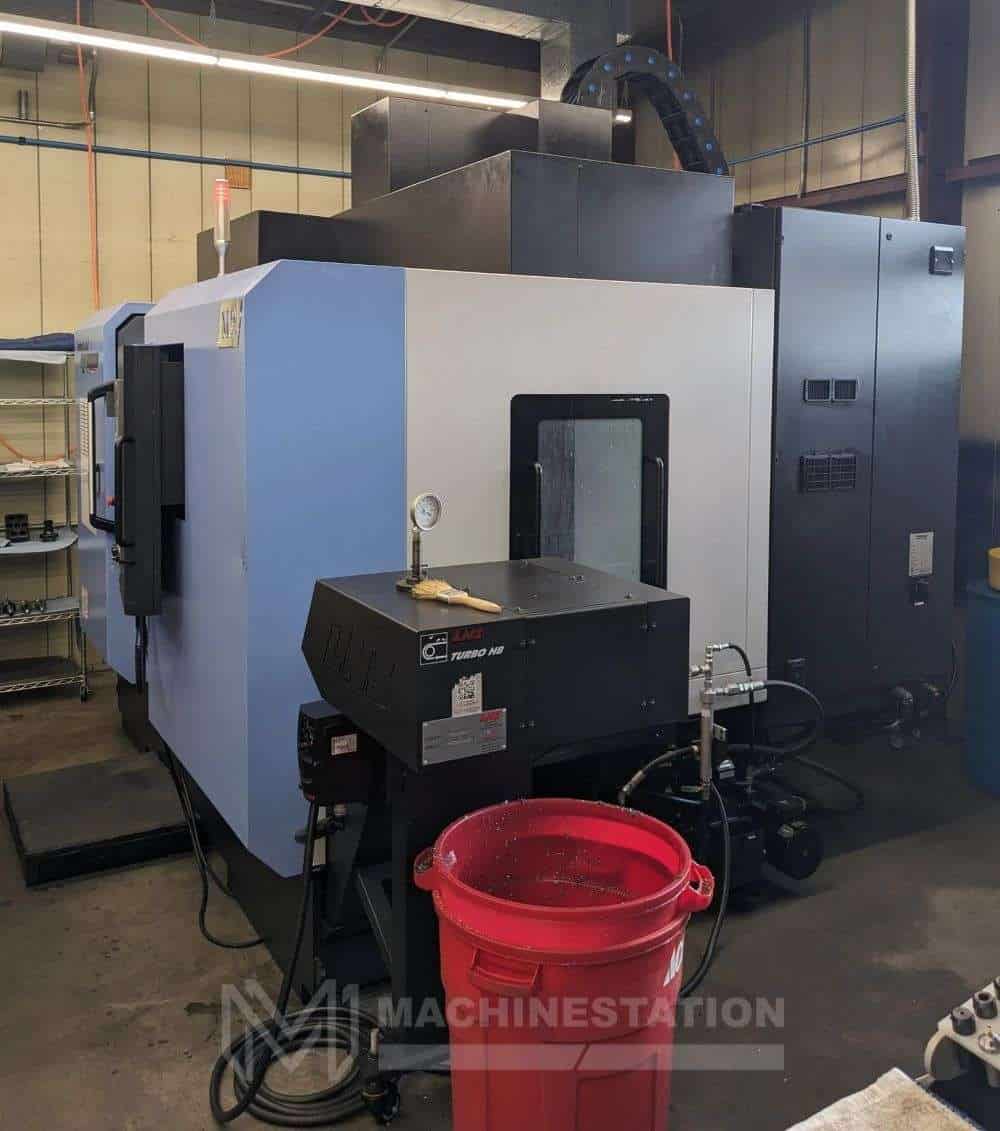

LNS Turbo RH Chip Conveyor

Table:
Table size: ø 13.8″
Max Part Diameter: 15.7″
Max Part Height: 13.2″
Max Weight on Table: 551.1 lbs

Travel:
X Axis: 23.6″
Y Axis: 25.8″
Z Axis: 19.7″
B Axis: +30° -120° ( Table Tilt )
C Axis: 360° ( Table Rotate )

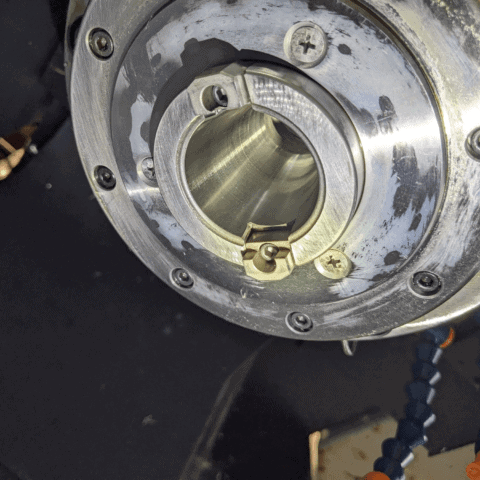

Spindle:

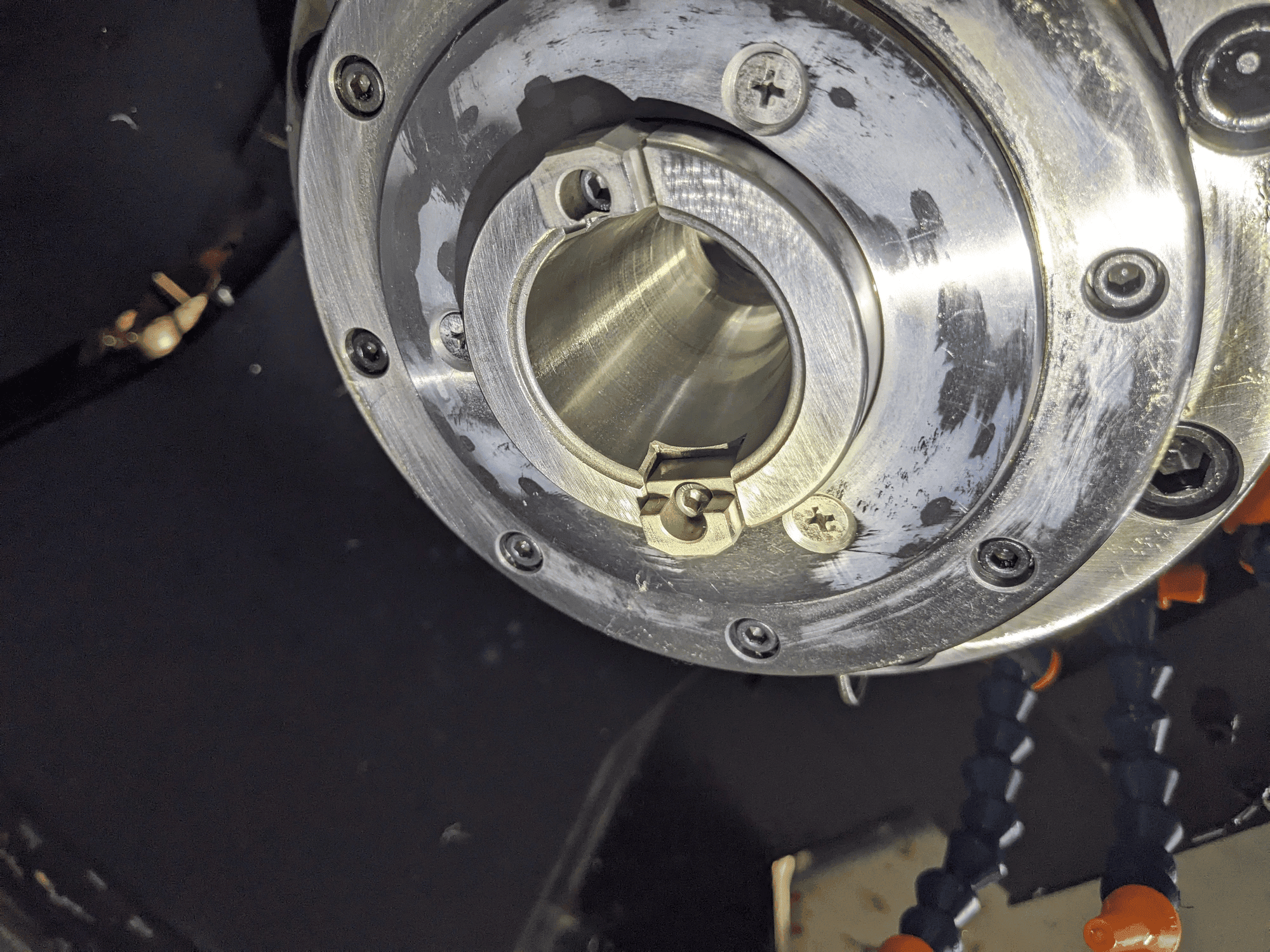

Taper Size: CAT-40 Big Plus
Speed Range: 12,000 RPM
Spindle Power: 25 HP

Feed Rates:
Rapid X & Y: 1417 Inch Per Minute
Rapid Z : 1181 Inch Per Minute

Tool Changer:
Capacity: 60 Tools
Taper: CAT-40 Big Plus
Max Tool Diameter: 4.9″
Max Tool Height: 10.6″

General:
Air Required: 80 psi, 4 scfm
Power: 40.60 kva / 220v / 3-Phase
Overall Dimensions: 126″ x 124″ x 125″ High
Weight: 18,740 lbs

Table:
Table size: ø 351 mm
Max Part Diameter: 399 mm
Max Part Height: 335 mm
Max Weight on Table: 551.1 lbs

Travel:
X Axis: 599 mm
Y Axis: 655 mm
Z Axis: 500 mm
B Axis: +30° -120° ( Table Tilt )
C Axis: 360° ( Table Rotate )

Spindle:
Taper Size: CAT-40 Big Plus
Speed Range: 12,000 RPM
Spindle Power: 25 HP

Feed Rates:
Rapid X & Y: 1417 Inch Per Minute
Rapid Z : 1181 Inch Per Minute

Tool Changer:
Capacity: 60 Tools
Taper: CAT-40 Big Plus
Max Tool Diameter: 124 mm
Max Tool Height: 269 mm

General:
Air Required: 80 psi, 4 scfm
Power: 40.60 kva / 220v / 3-Phase
Overall Dimensions: 3,200 mm x 3,150 mm x 3,175 mm High
Weight: 18,740 lbs

Make	Doosan
Model	DNM 350/5AX
Categories	Vertical Machining Center

Fanuc 31i-Model B5 Series CNC Control
5 Axis Simultaneous Machining
ø 351 mm Trunnion Table
12,000 RPM High Precision Spindle
Doosan Intelligent Kinematic Compensation (IKC) Software
Flood Coolant & TSC (Used QualiChem Xtreme Cut 250C *Since New*)
60 Station Automatic Tool Changer
Renishaw RMP600-40 High Precision Probe System
Renishaw AxiSet Calibration Routine w/ Cal Artifact & Mag Base
Spindle Chiller Unit
MPG Handwheel Control
PCMCIA Card Slot
Synchro Tapping/Re-Tapping
Spindle Orientation
Helical Interpolation
Coolant System
LNS Turbo RH Chip Conveyor
