*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

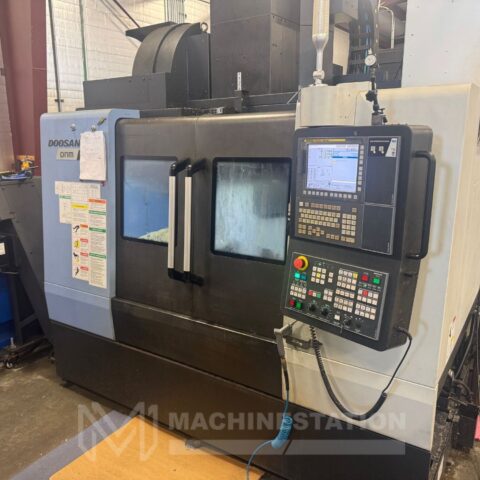

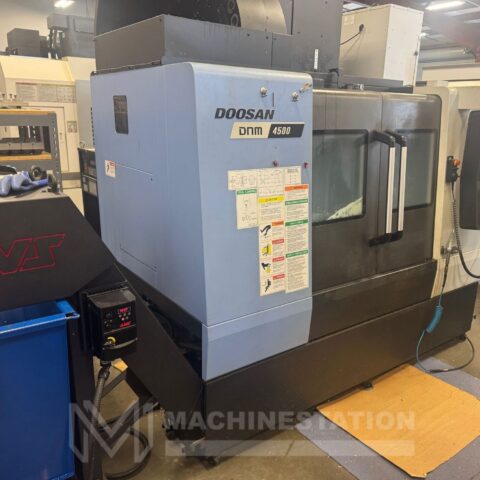

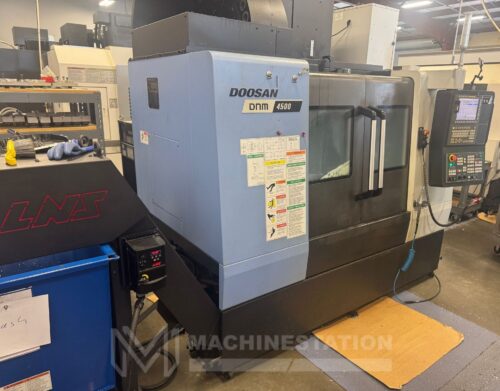

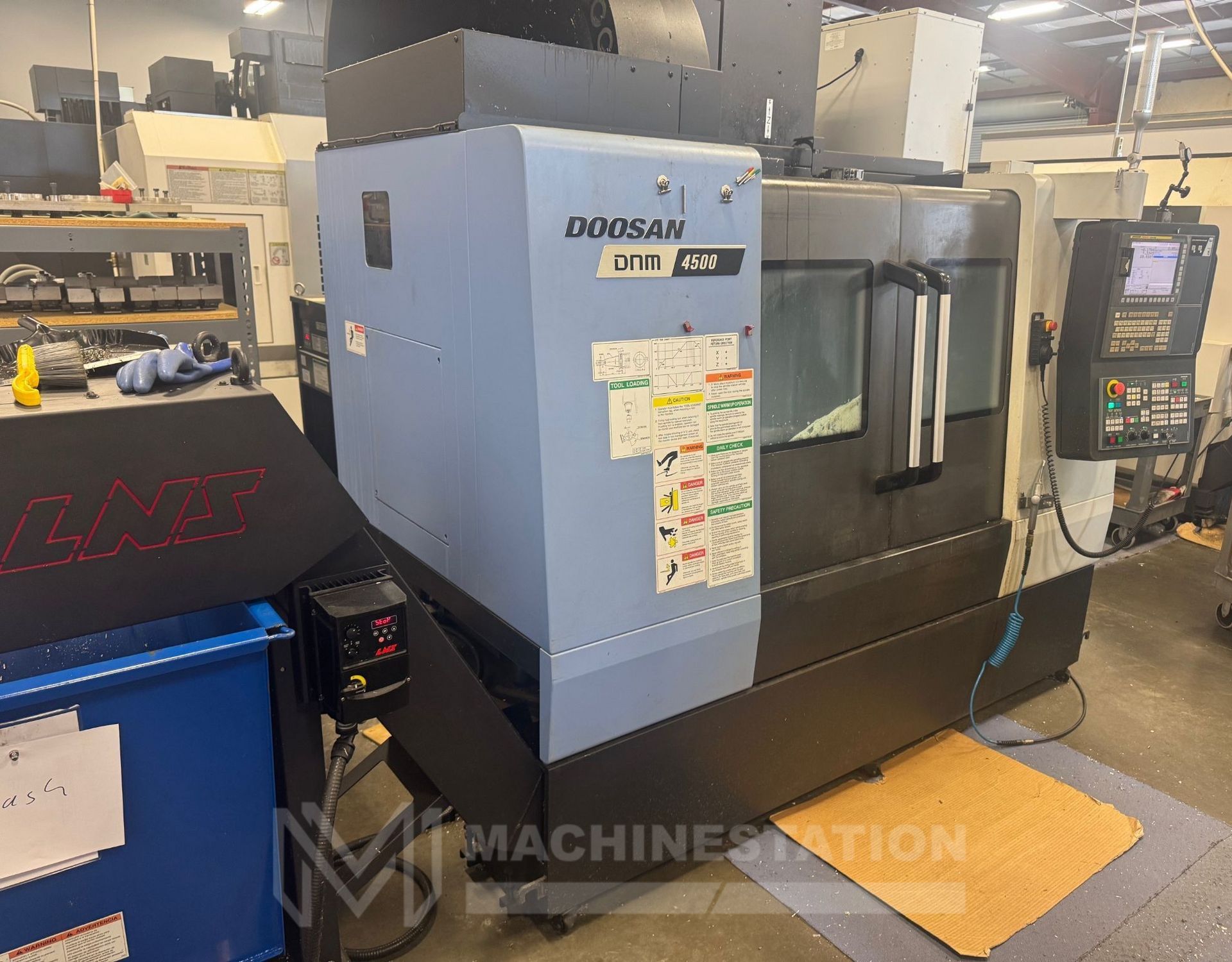

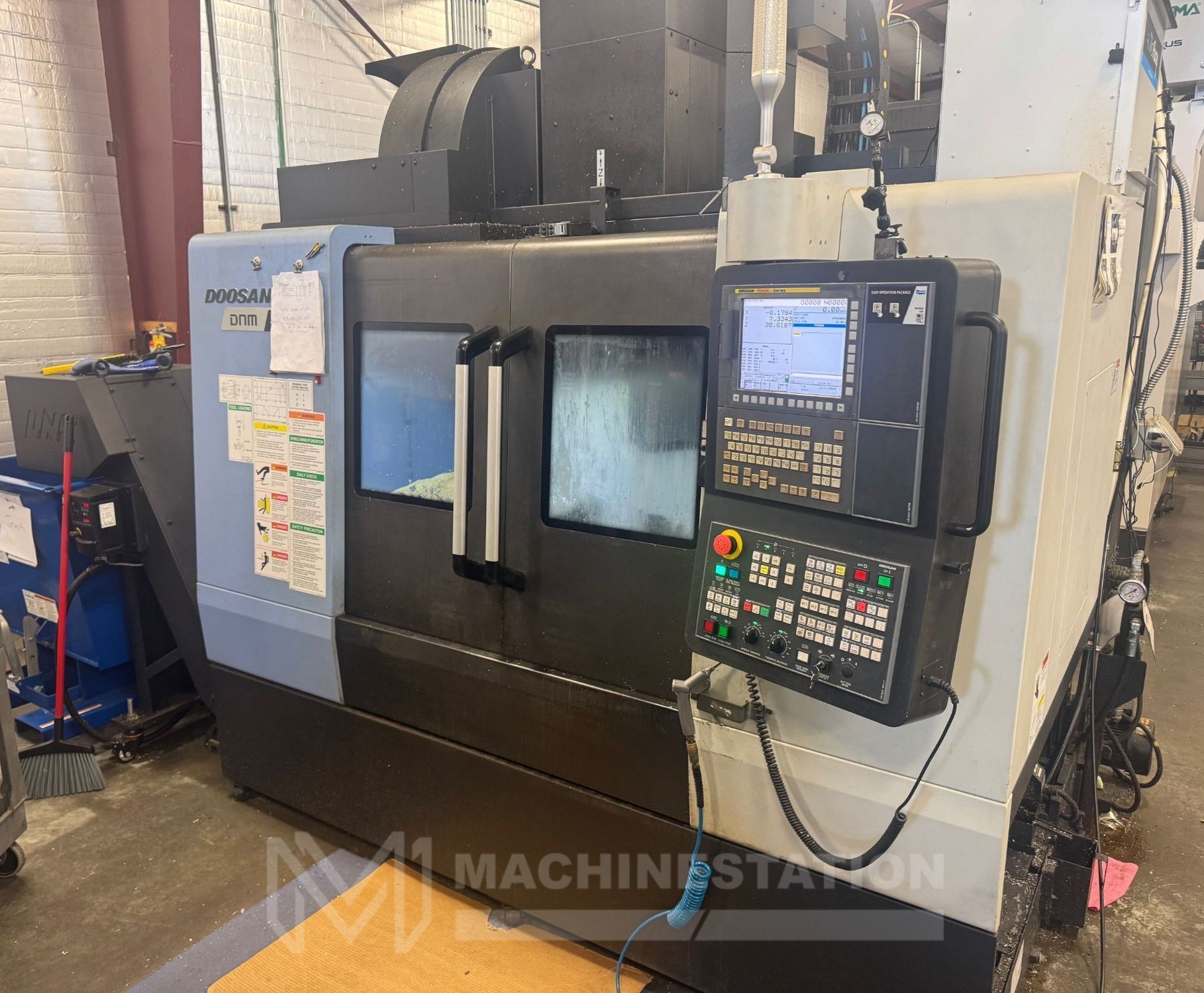

| Make: | Doosan |
| Model: | DNM-4500 |
| Year: | 2019 |
| Equipped With: |
|---|

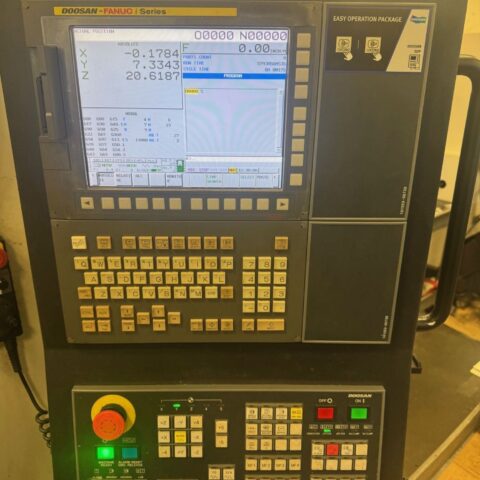

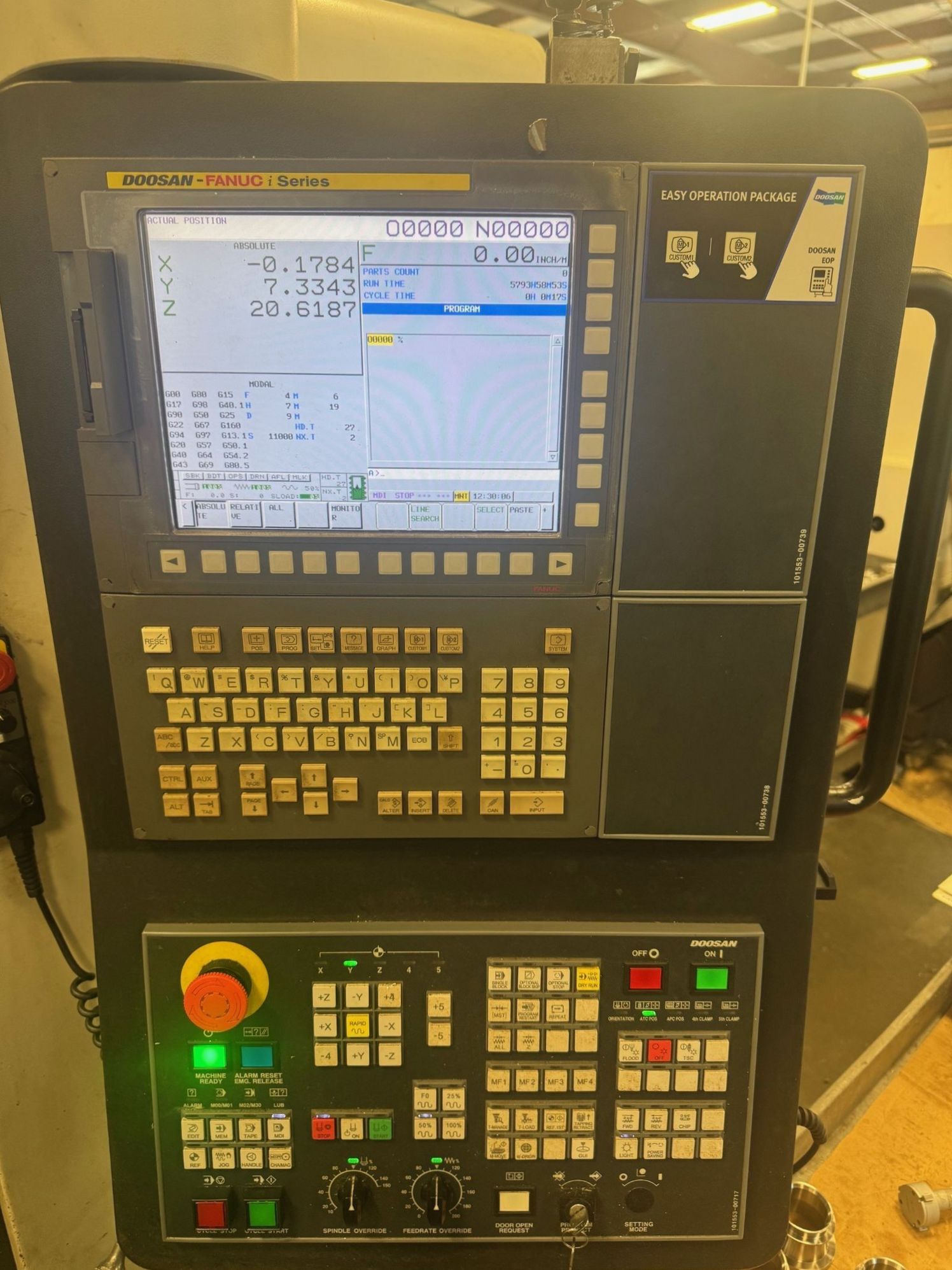

| Doosan-Fanuc i Series CNC Control |
| 8,000 RPM Precision Spindle |
| 1417 IPM Fast Rapids Traverse Rate |

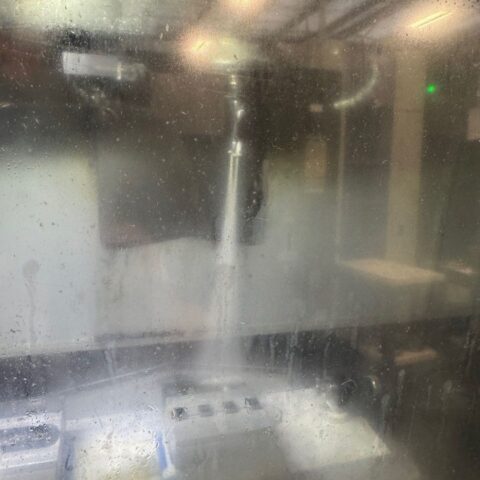

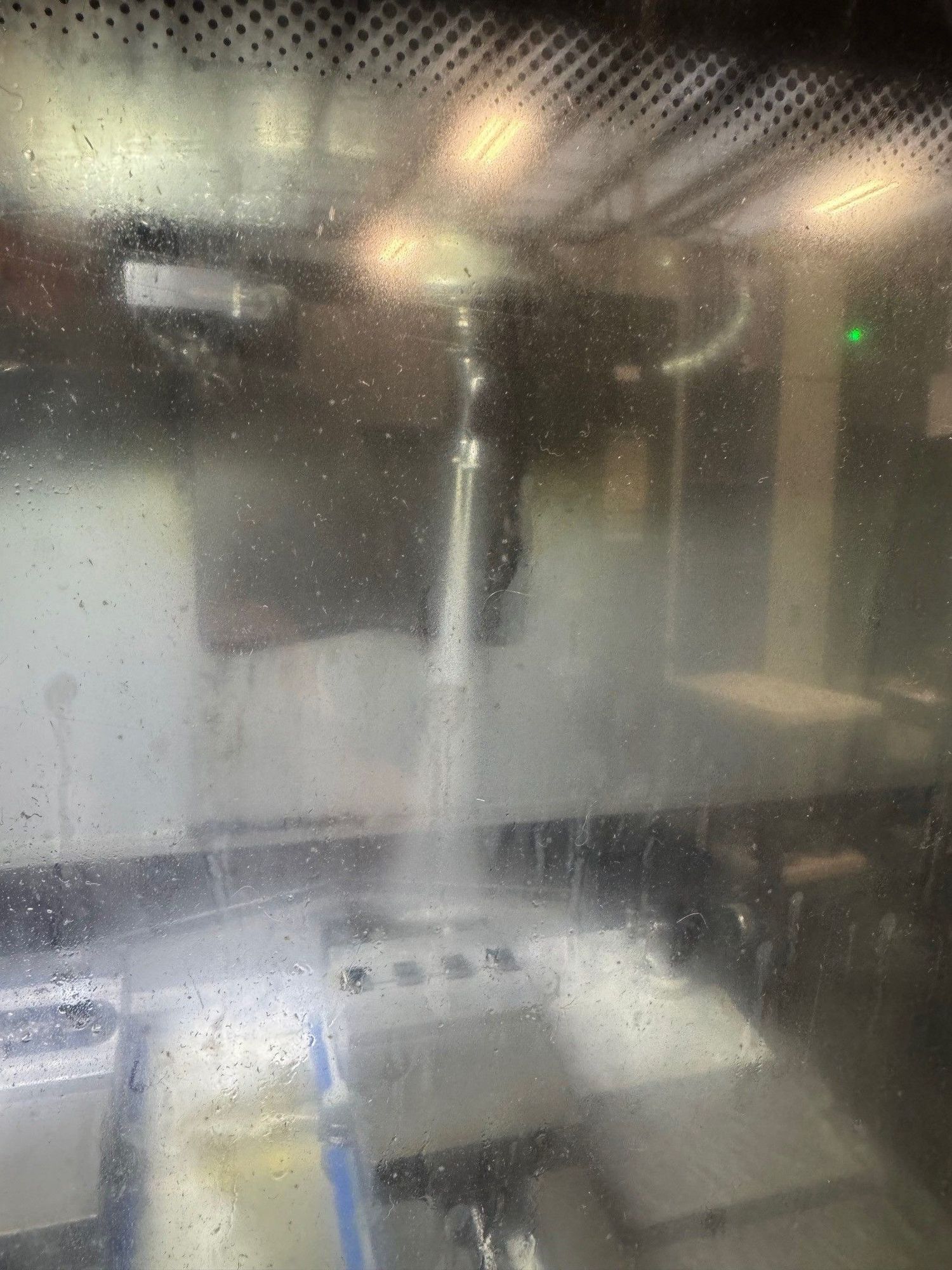

| Through Spindle Coolant |
| 30 Station High Speed Automatic Tool Changer |

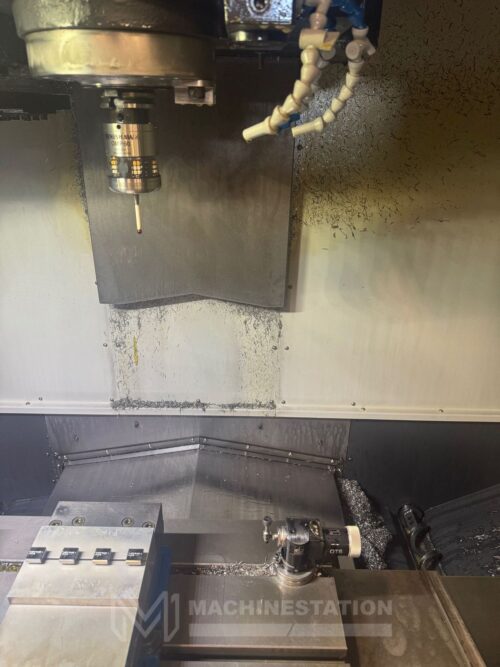

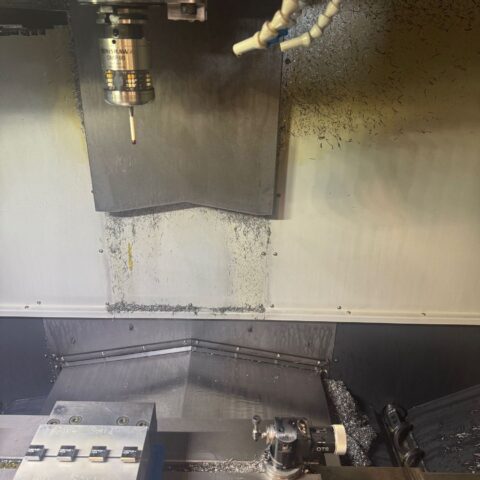

| Renishaw Probing System (Probe Included) |
| Tool Presetter |
| CAT-40 Taper Spindle |

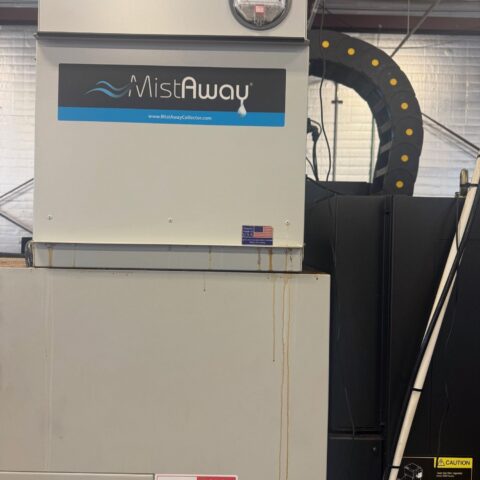

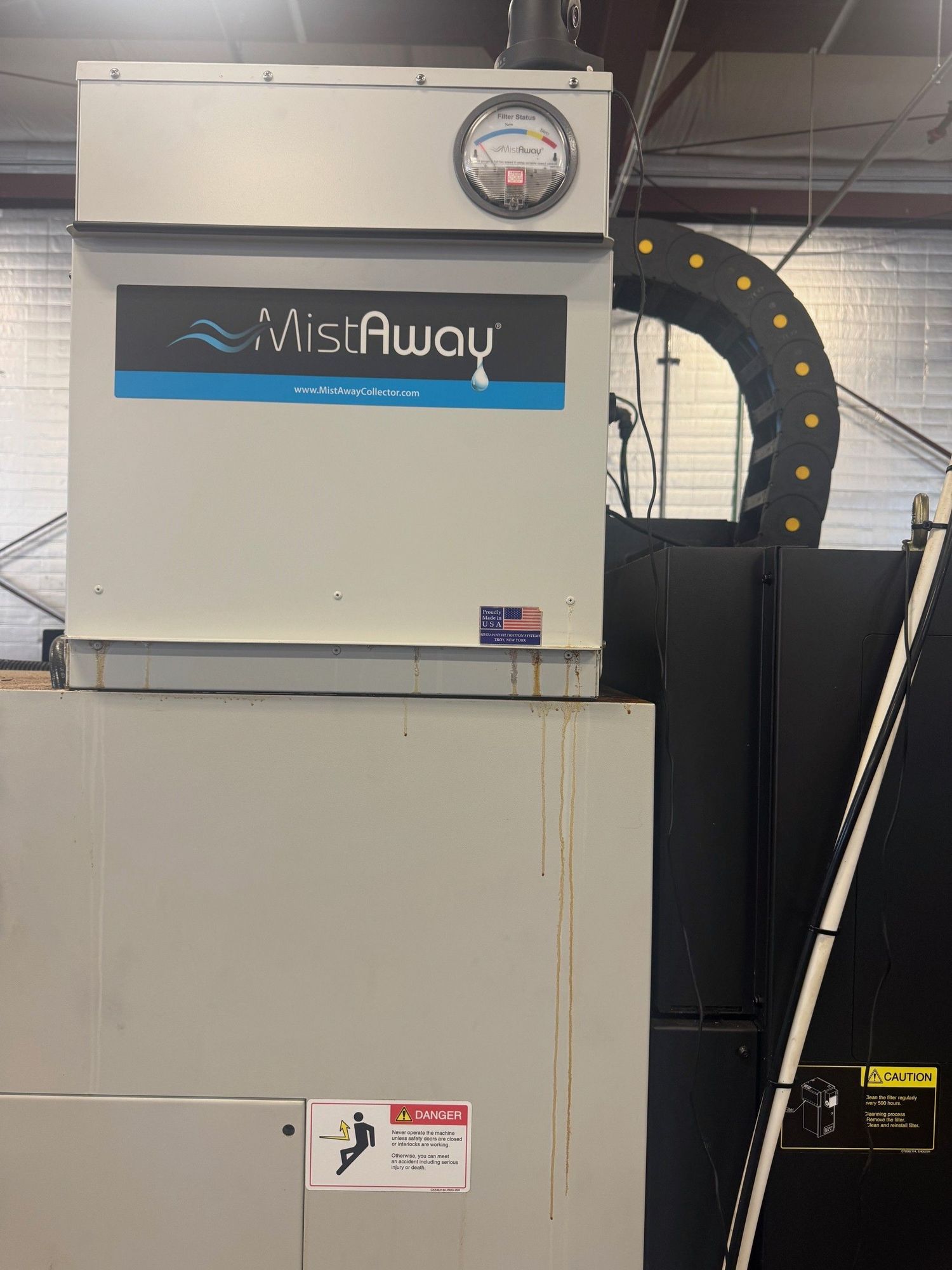

| Mist Collector |
| USB Drive |
| PCMCIA Card Slot |
| MPG Handwheel Control |
| Rigid Tapping |
| Spindle Orientation |
| Coolant System |
| LNS Chip Conveyor |
| Travels: |
|---|
| X-Axis: 31.5″ |
| Y-Axis: 17.7″ |
| Z-Axis: 20.1″ |
| Rapid Traverse Rates X & Y Axis: 1417 IPM |
| Rapid Traverse Rates Z Axis: 1181 IPM |
| Spindle Nose to Table (Min.- Max.): 5.9″ – 26″ |

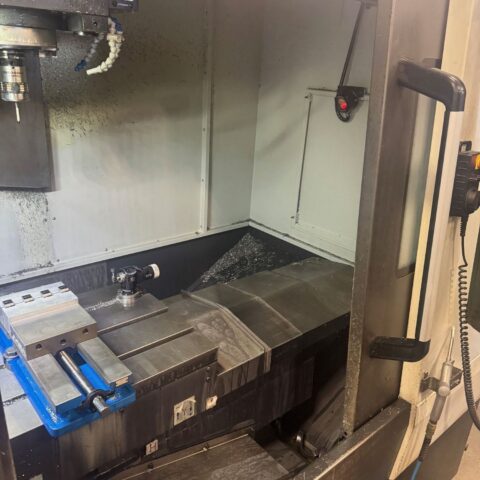

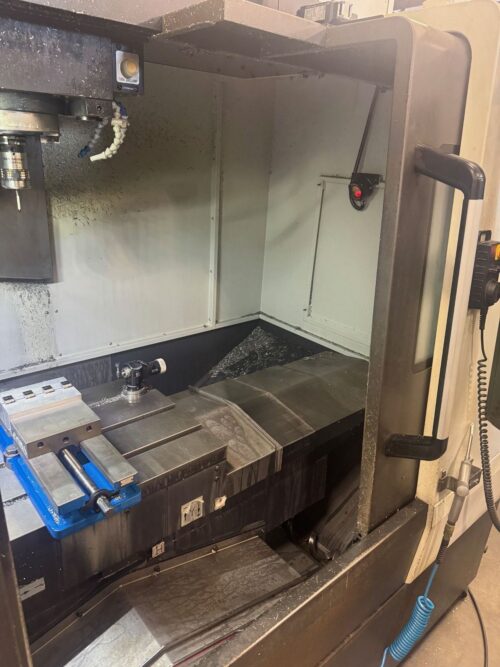

| Table: |
|---|
| Length: 39.4″ |
| Width: 17.7″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 4.9″ x 0.7″ |
| Max Weight on Table: 1322 lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8000 RPM |
| Spindle Power: 25 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 17.6 lbs |
| Max Tool Dia: 3.1″ -4.9″ |
| Max Tool Length: 11.81″ |
| Tool Changing Time : 1.2 Seconds |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 220v / 29.5 kva / 3-Phase |
| Overall Dimensions: 103″ x 85″ x 117.5″ High |
| Weight: 11,023 lbs |
