*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Doosan |
| Model: | DNM 4500 |
| Year: | 2016 |
| Machine Type: | CNC Vertical Machining Center |

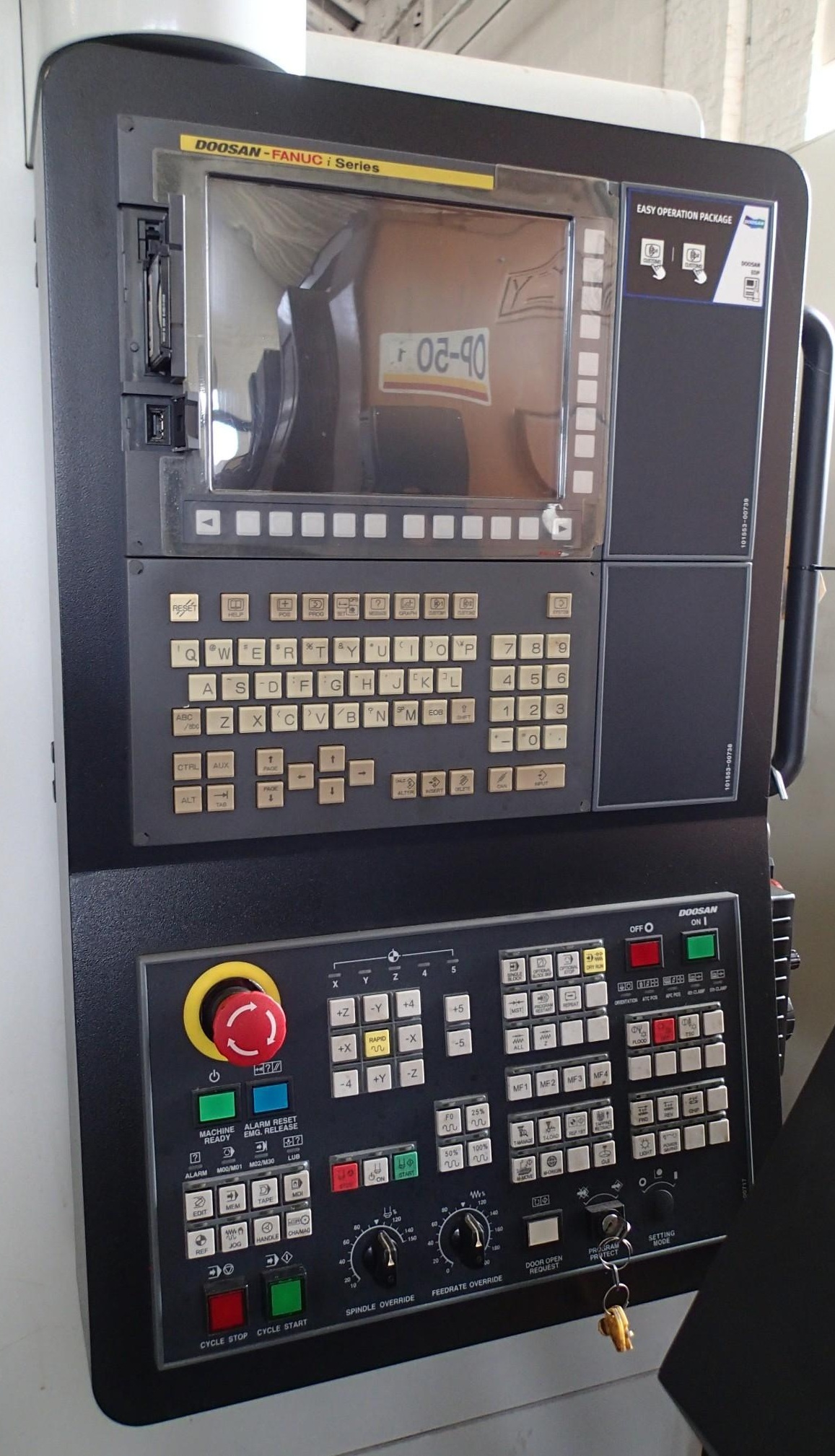

| CNC Control: | FANUC i-Series CNC Control |
| Features: |
|---|
| FANUC i-Series CNC Control |
| 12,000 RPM Spindle |
| CAT 40 / ISO #40 Spindle |
| 30-Station Automatic Tool Changer |
| Full Enclosure with Sliding Safety Doors |
| Chip Conveyor |
| Coolant System with Coolant Tank and Pumps |
| Portable Machine Control Interface |
| Rigid Machine Construction |
| Built-In Safety Interlocks |
| Doosan DNM 4500 Platform |
| Table: |
|---|
| Table Size: 39.37″ × 17.72″ |
| Maximum Table Load: 1,320 lbs. |
| T-Slots: 3 × 18 mm |
| Travels: |
|---|
| X-Axis Travel: 31.50″ |
| Y-Axis Travel: 17.72″ |
| Z-Axis Travel: 20.08″ |
| Spindle: |
|---|
| Spindle Speed: 12,000 RPM |
| Spindle Taper: CAT 40 |
| Spindle Motor: 15 HP / 25 HP |
| Maximum Spindle Torque: 87 ft-lbs |
| Spindle Nose to Table: 5.9″–26.0″ |
| Automatic Tool Changer: |
|---|
| Tool Changer Capacity: 30 Stations |
| Tool Change Type: Arm Type |
| Maximum Tool Diameter: 3.15″ |
| Maximum Tool Length: 11.81″ |
| Maximum Tool Weight: 17.6 lbs. |
| Feedrates: |
|---|
| X-Axis Rapid Traverse: 1,417 IPM |
| Y-Axis Rapid Traverse: 1,417 IPM |
| Z-Axis Rapid Traverse: 1,181 IPM |
| General: |
|---|

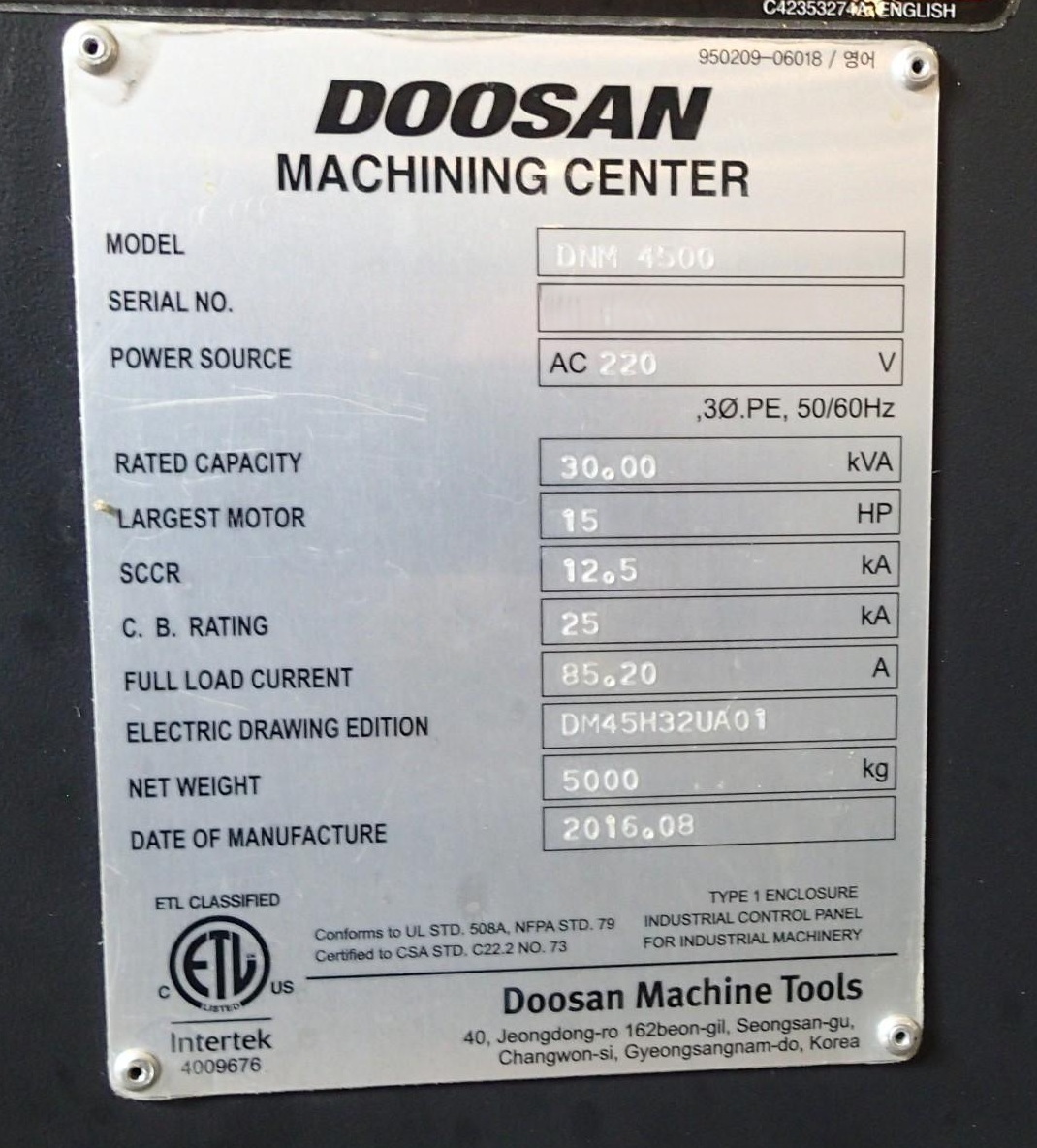

| Power Source: 220V / 3-Phase / 50–60 Hz |
| Machine Weight (Approx.): 11,023 lbs. |
| Machine Dimensions (Approx.): 143.5″ L × 103.0″ W × 117.5″ H |
