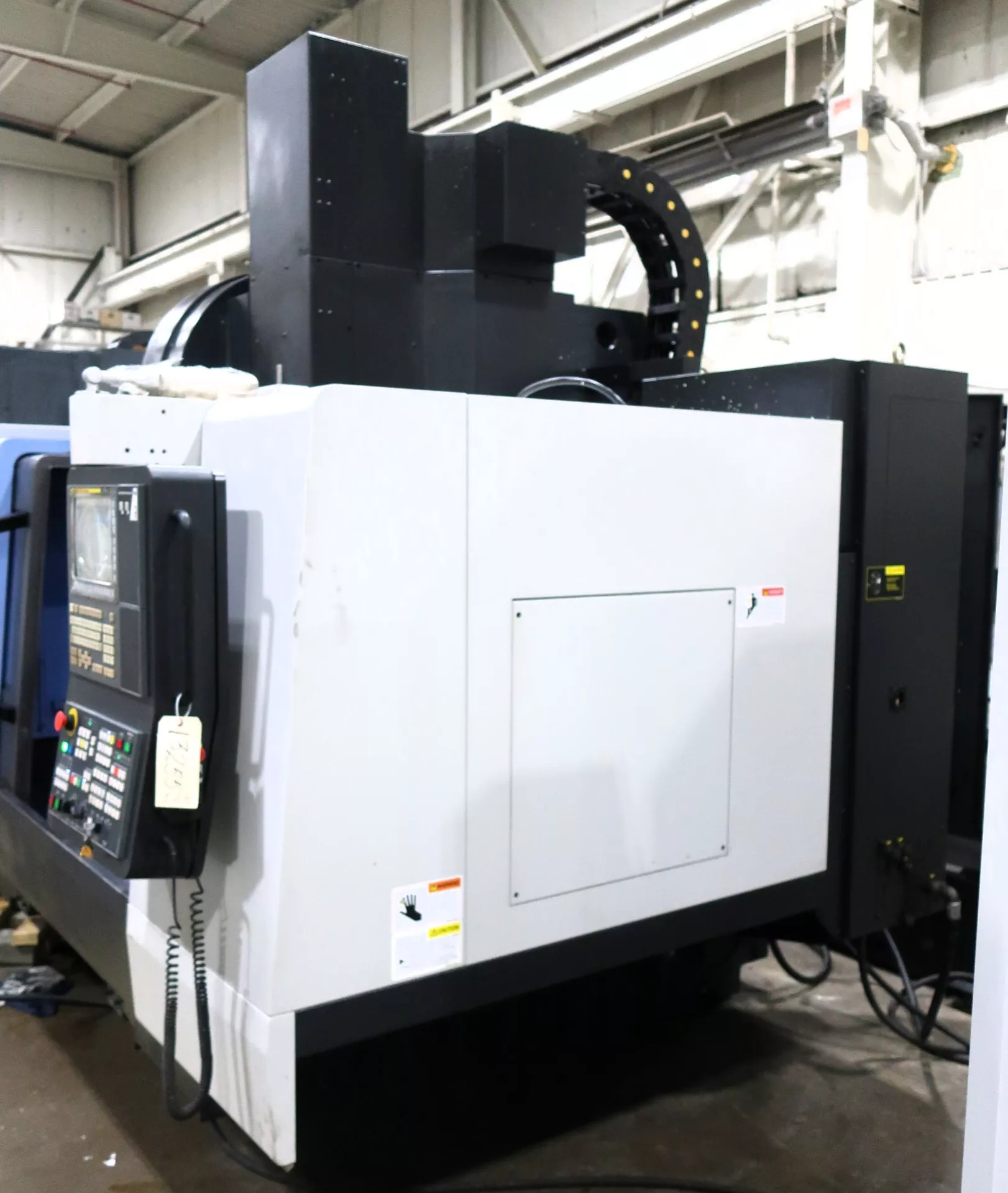

Doosan DNM 5700 3-Axis CNC Vertical Machining Center

SKU 12614

Make/Model Doosan DNM 5700

Year 2016

Condition Used - Good

Video On Request

Out of stock

SKU:	12614
Make/Model:	Doosan DNM 5700
Year:	2016
Condition:	Used – Good
Video:	On Request

SKU: 12614

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Doosan
Model:	DNM 5700
Year:	2016

Features:
Doosan-Fanuc i-Series CNC Control
12,000 RPM BIG PLUS CAT40 Spindle
30 Position Side-Mounted Automatic Tool Changer
LNS Chip Conveyor
Remote Electronic Handwheel
Rigid Tapping
USB Port
Embedded Ethernet
Spindle Chiller
Through Spindle Coolant
Flood Coolant System
Coolant Gun
Air Blow System
Oil Skimmer
Renishaw Receiver
Spindle Head Cooling System
Telescopic Way Covers
Full Enclosure

TRAVELS:
X-Axis: 41.3″
Y-Axis: 22.4″
Z-Axis: 20.1″
Spindle Nose to Table (Min.-Max.): 5.9″ – 26″
Rapid Traverse Rates: X/Y 1,417 IPM / Z 1,181 IPM
Cutting Feed Rate: 590 IPM

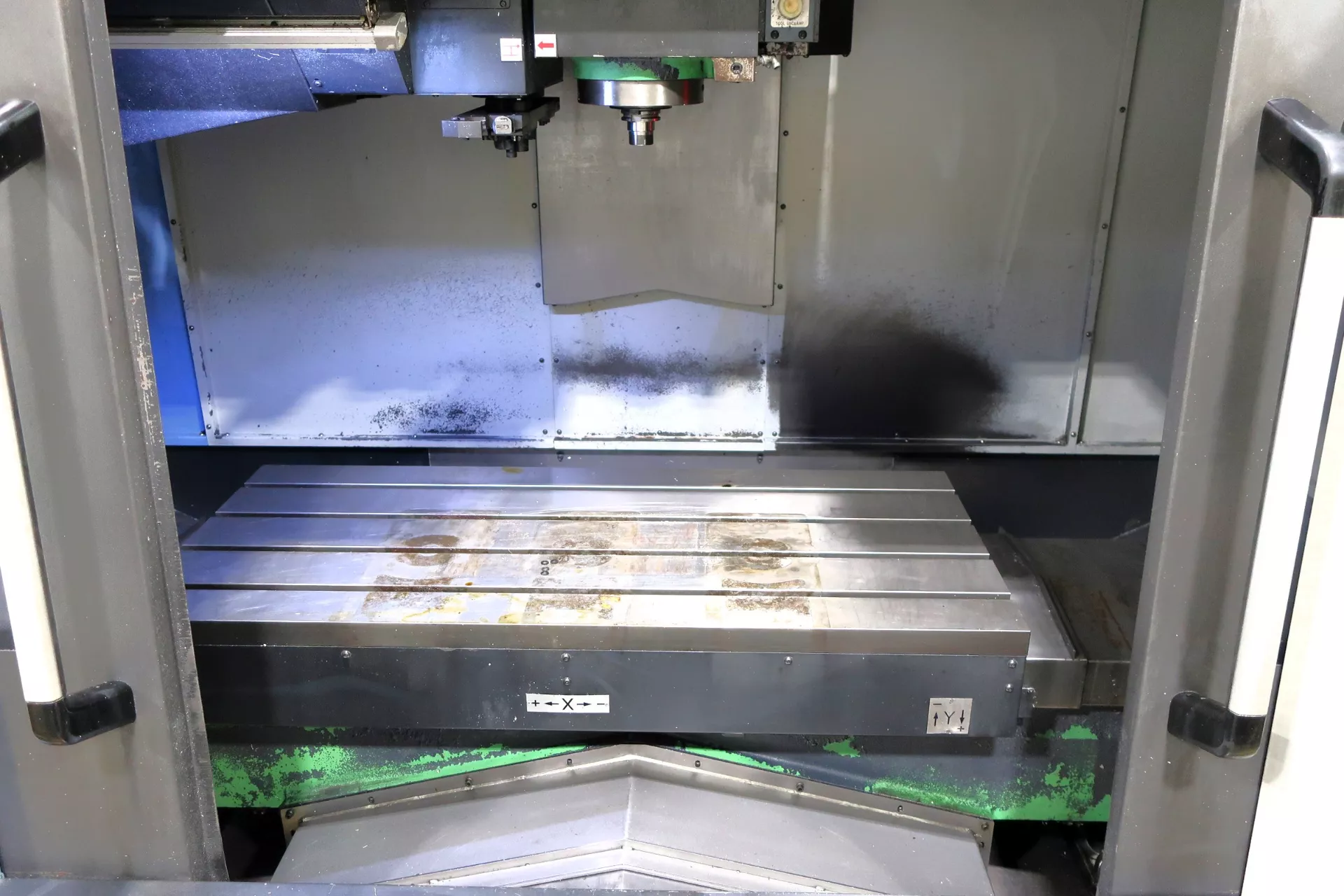

TABLE:
Length: 51.2″
Width: 22.4″
T-Slots: 4
T-Slot Width: 0.7″
Max Weight on Table: 2,204 lbs.

SPINDLE:
Taper Size: BIG PLUS CAT40
Speed Range: 12,000 RPM
Spindle Motor: 15 HP

AUTOMATIC TOOL CHANGER:
Capacity: 30 Tools
ATC Type: Side Mounted
Maximum Tool Weight: 17.6 lbs.
Maximum Tool Diameter: 3.1″
Maximum Tool Length: 11.81″
Tool Change Time: 1.2 Seconds

GENERAL:

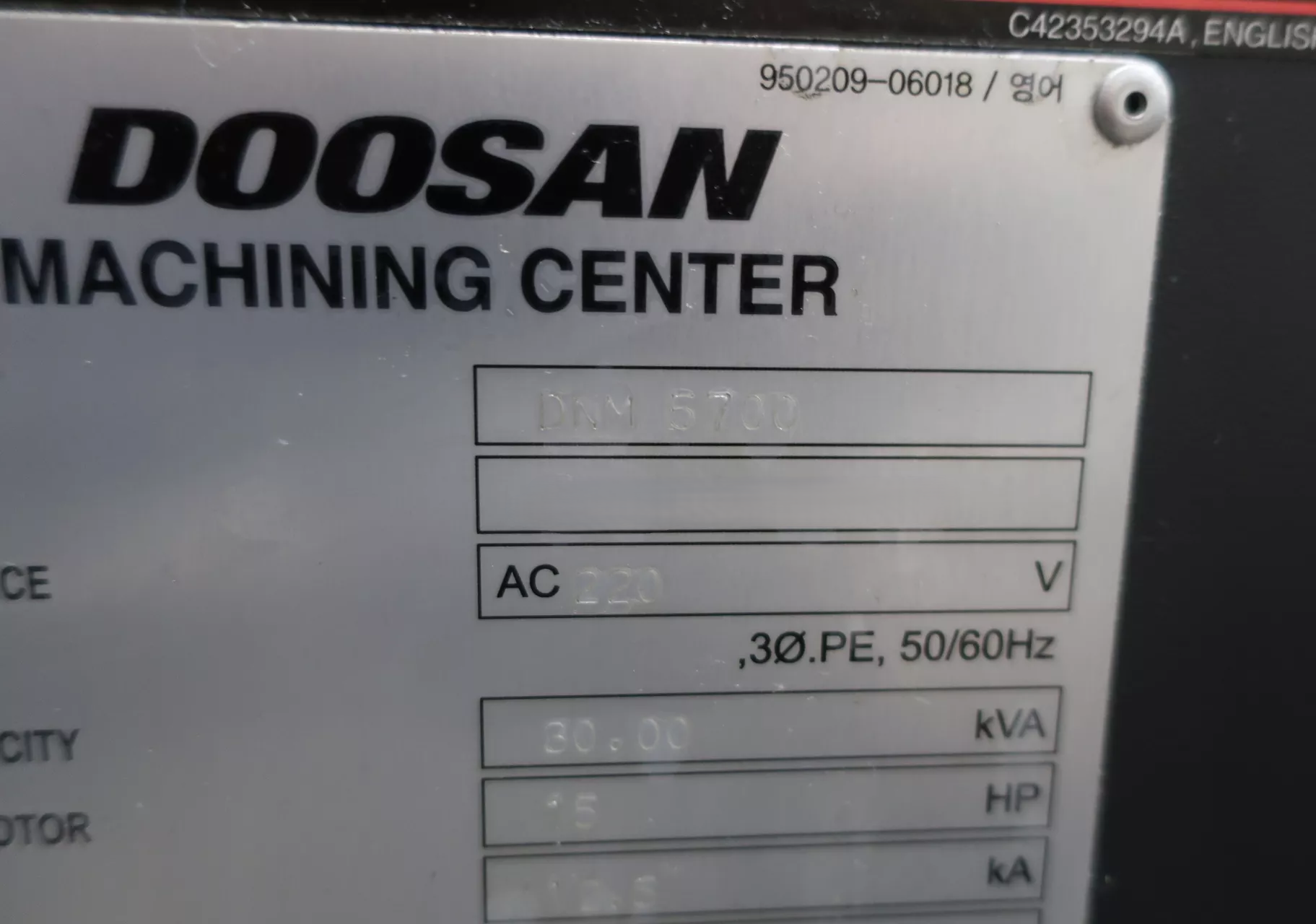

Power: 220V / 30 kVA / 3-Phase
Air Requirement: 80 PSI / 4 SCFM
Overall Dimensions: 131″ x 95″ x 117″ High
Weight: 15,430 lbs.
