*All specifications are approximations and are subject to verification. Comes as shown in the images. Please call us if you have any questions before making a purchase. All sales are final.*

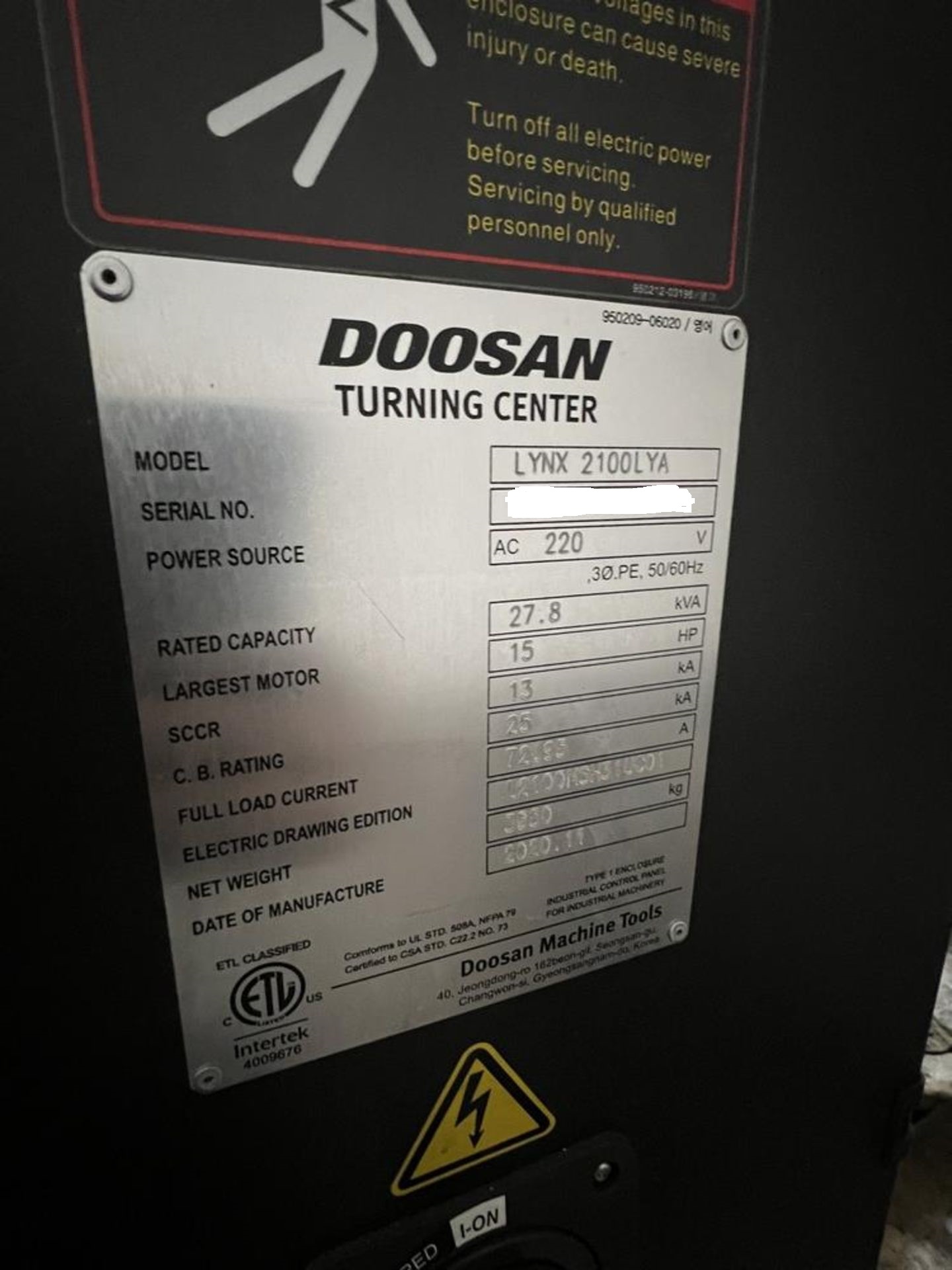

| Make: | Doosan |
| Model: | Lynx 2100LYA |
| Condition: | Used |
| Equipped With: |
|---|

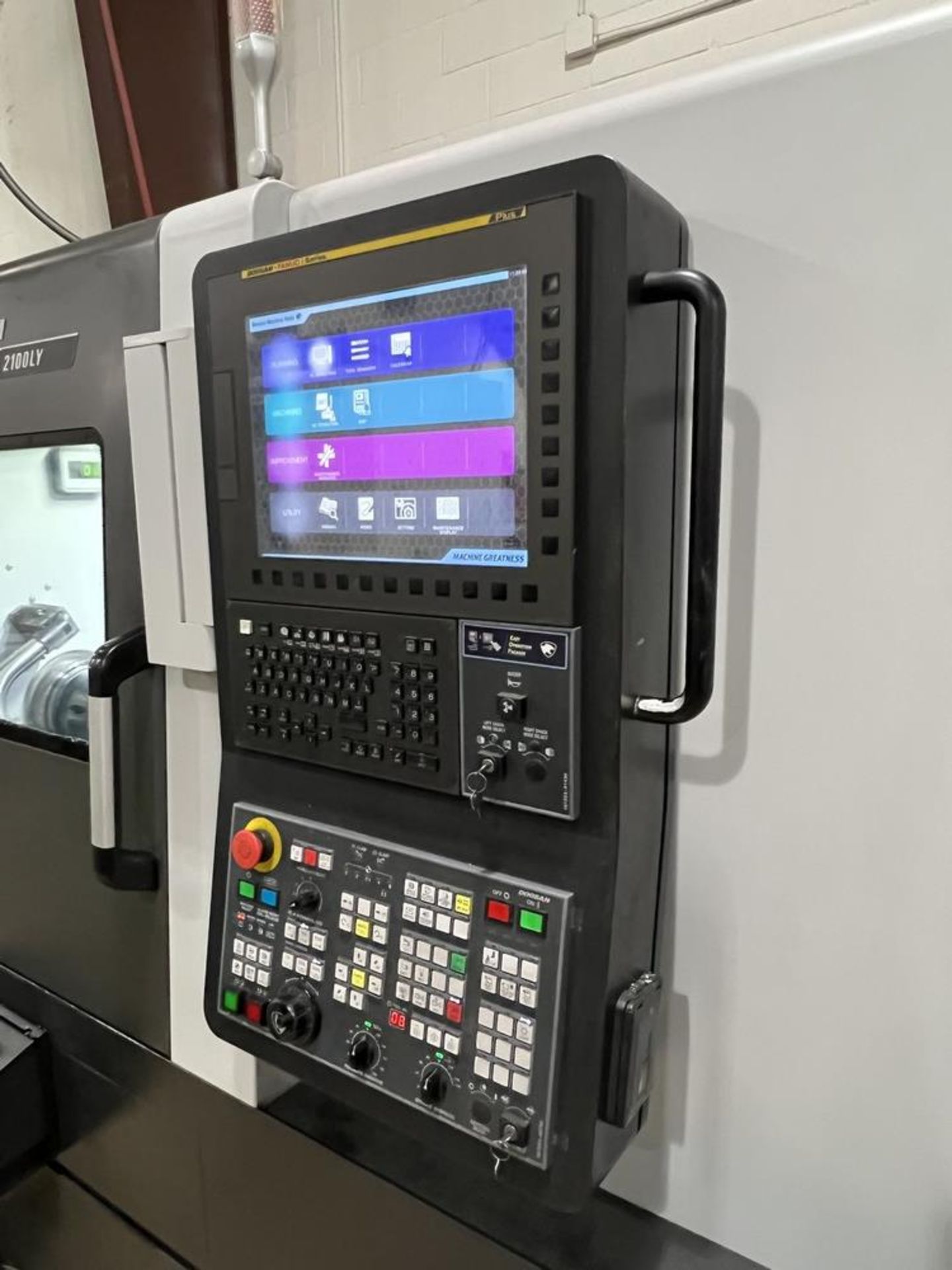

| Fanuc i-Series CNC Control |
| Y-Axis Milling Capability |
| C-Axis Control |
| Live Tooling |
| 12-Station Servo Turret |
| Programmable Tailstock |
| Automatic Tool Presetter |
| Coolant System |
| Chip Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Max Turning Diameter: 13.8″ |
| Max Turning Length: 20.1″ |
| Swing Over Bed: 23.6″ |
| Swing Over Saddle: 15.7″ |
| Bar Capacity: 2.0″ |
| Travels: |
|---|
| X-Axis Travel: 8.1″ |
| Y-Axis Travel: ±2.0″ |
| Z-Axis Travel: 20.9″ |
| Spindle: |
|---|
| Spindle Nose: A2-5 |
| Spindle Speed: 6,000 RPM |
| Spindle Motor: 15 HP |
| Spindle Bore: 2.4″ |
| Milling: |
|---|
| Live Tool Speed: 5,000 RPM |
| Live Tool Motor: 7.5 HP |
| Feedrates: |
|---|
| Rapid Traverse X/Z: 1,181 IPM |
| Rapid Traverse Y: 630 IPM |
| Cutting Feedrate: 0 – 472 IPM |

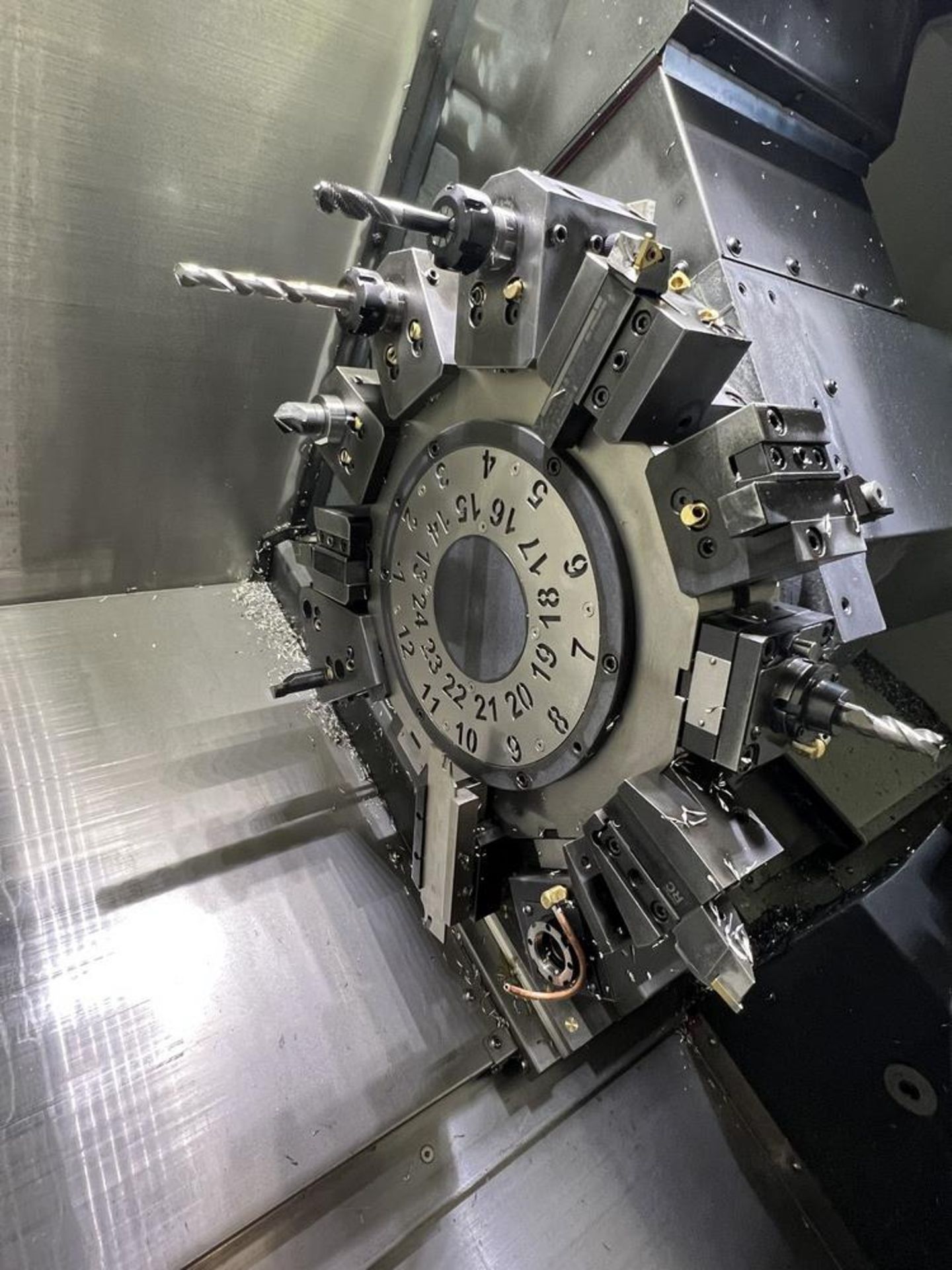

| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Tool Size (OD): 1.0″ × 1.0″ |
| Boring Bar Capacity: 1.57″ |
| General: |
|---|
| Power Requirement: 220V / 3-Phase |
| Machine Dimensions (Approx.): 91″ × 63″ × 67″ |
| Machine Weight (Approx.): 7,000 lbs |
