*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

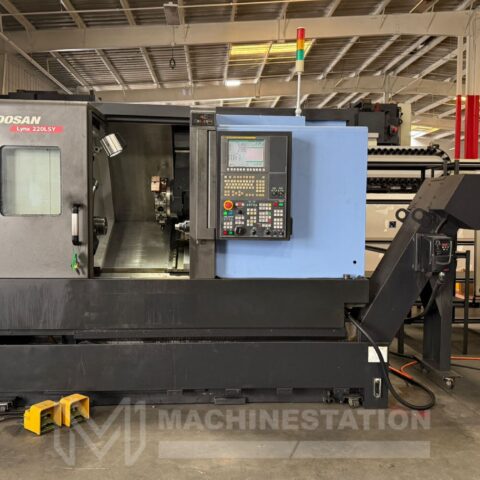

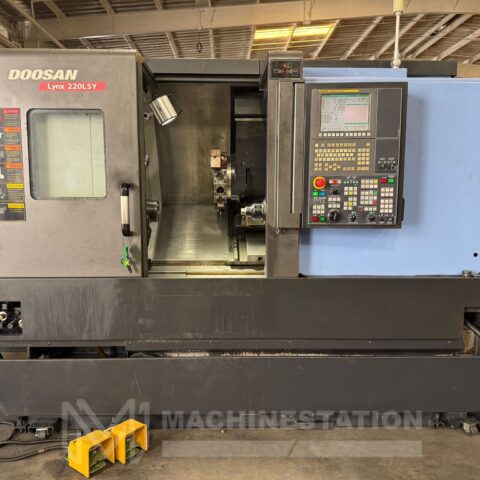

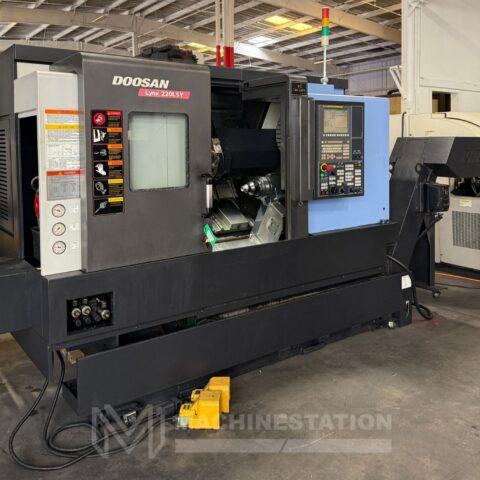

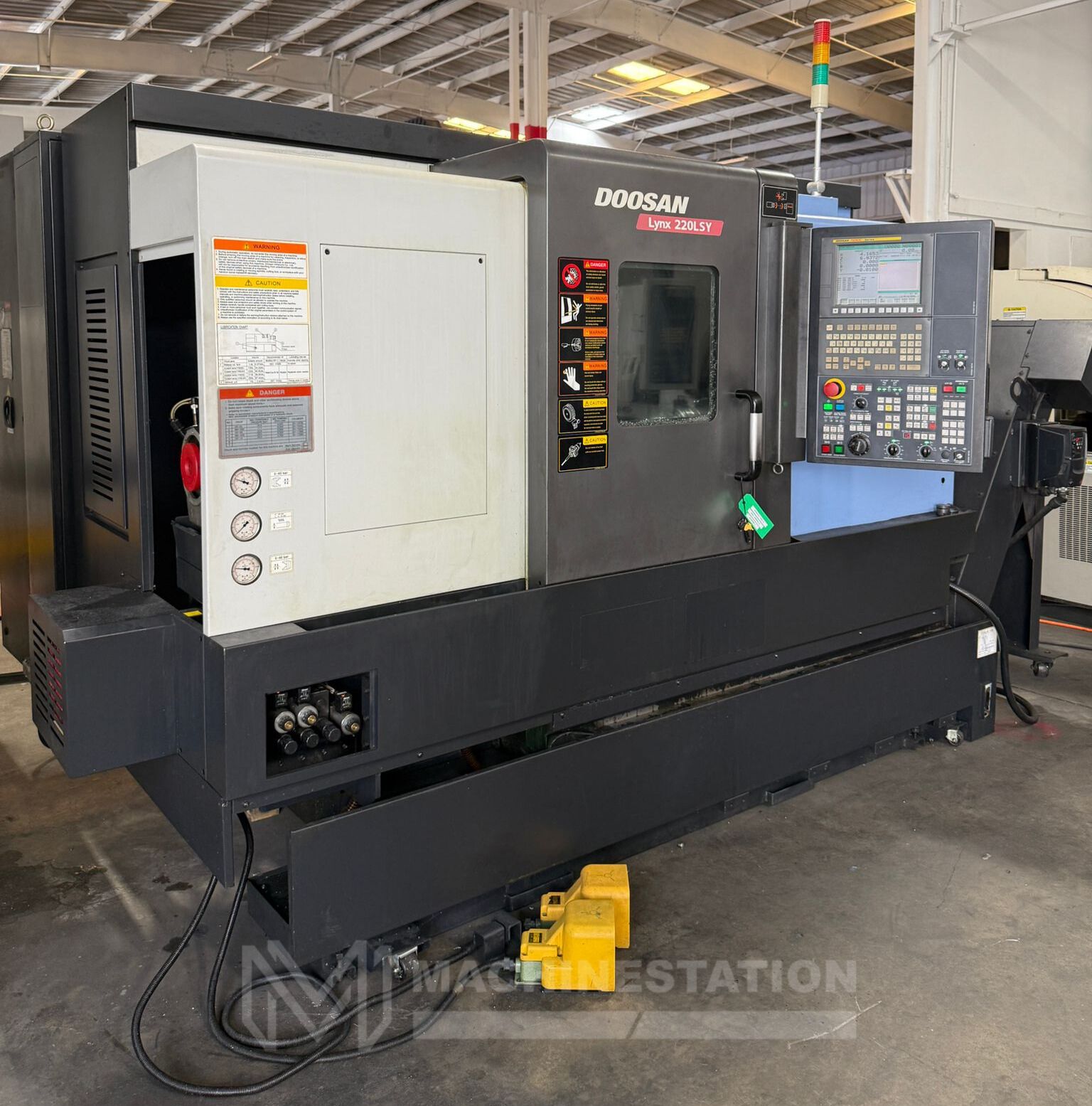

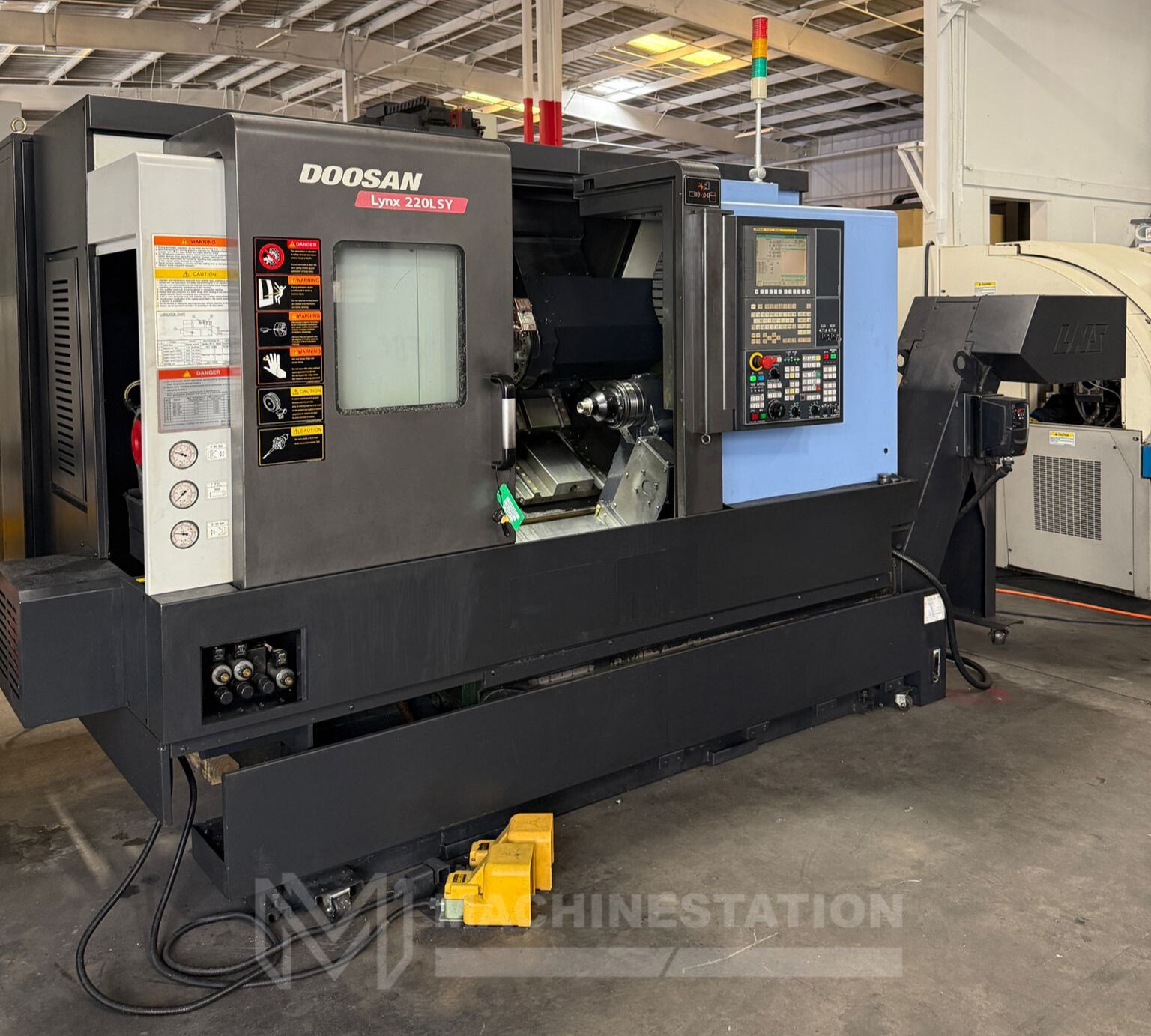

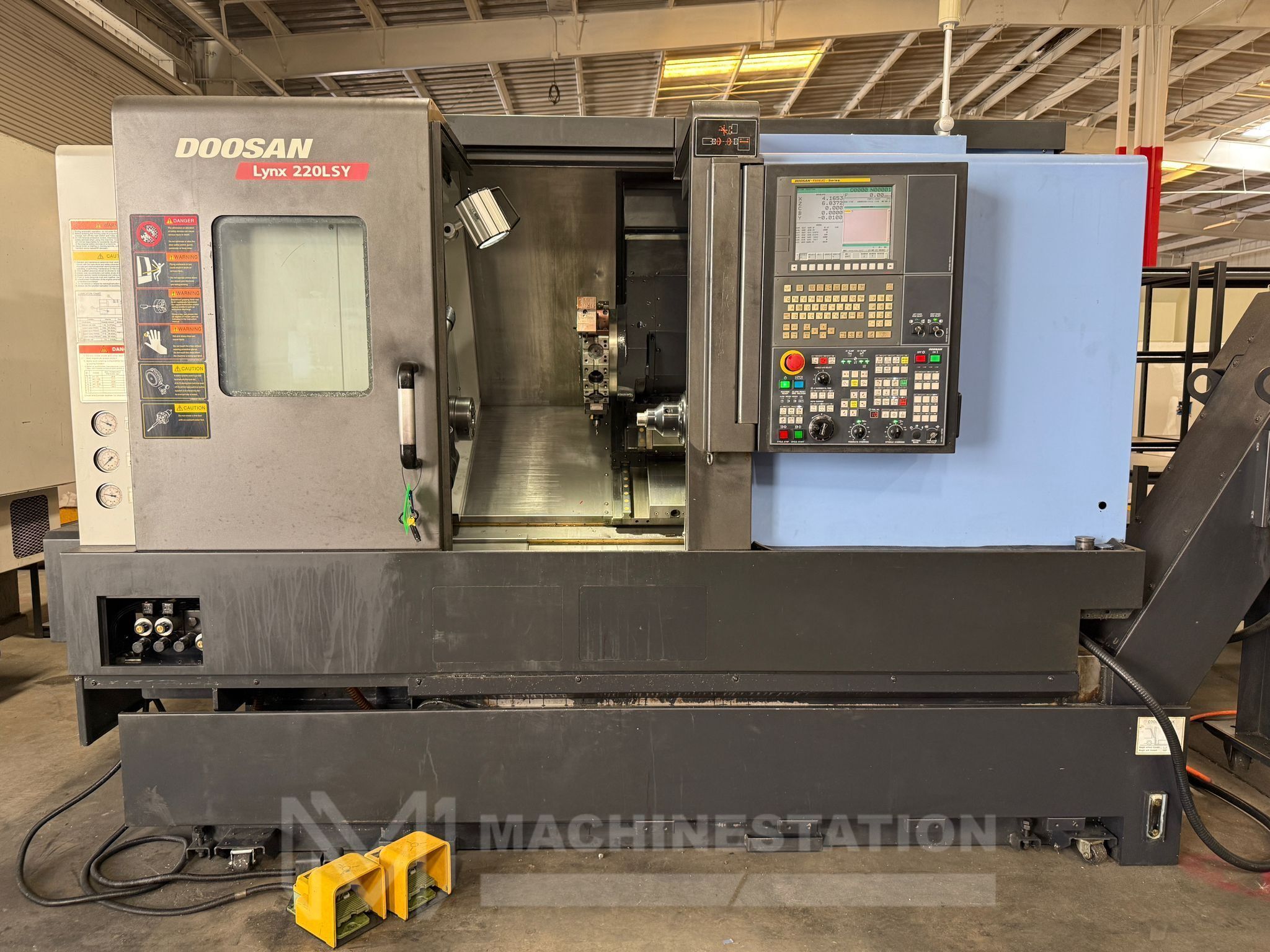

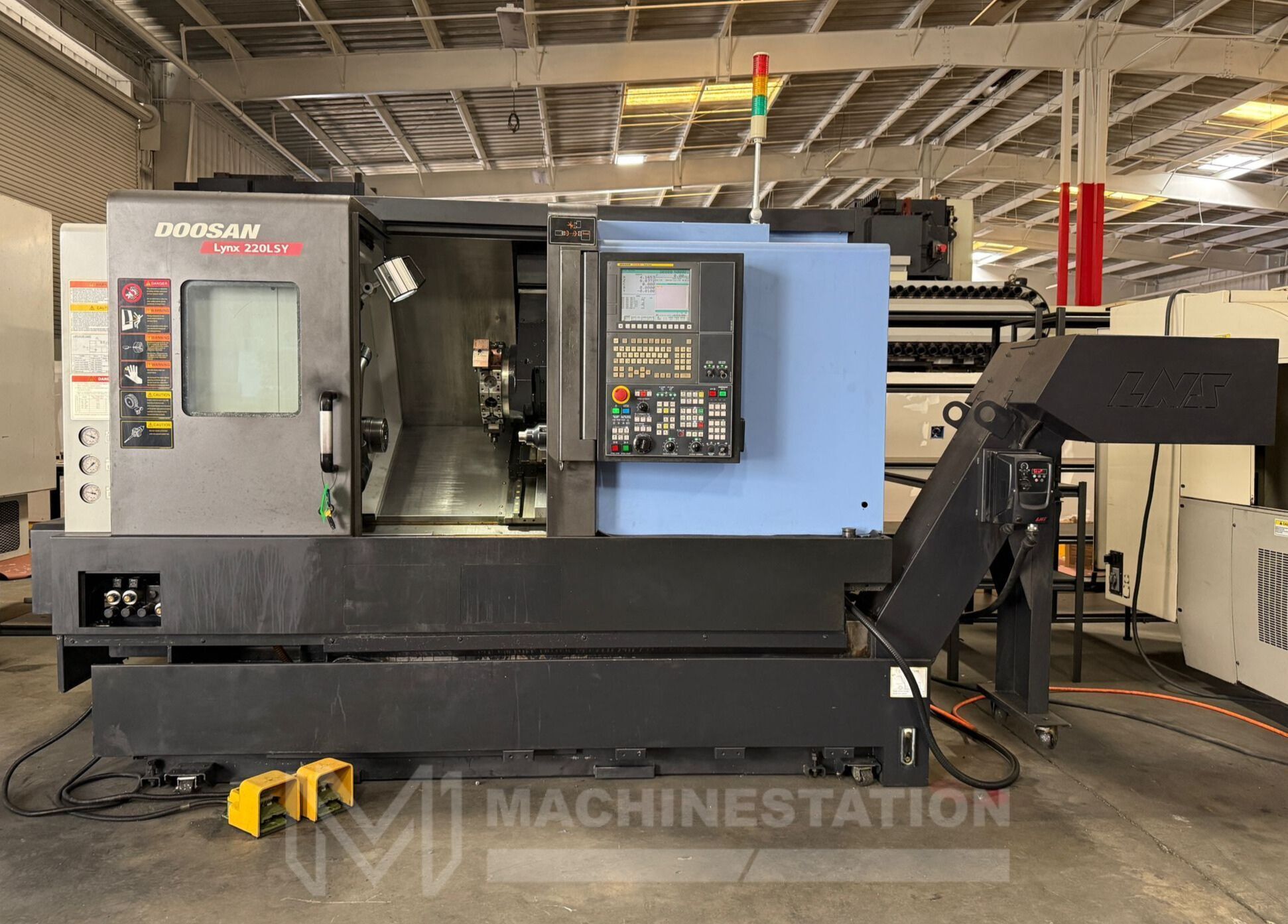

| Make: | Doosan |
| Model: | Lynx 220LSYC |
| Year: | 2015 |
| Equipped With: |
|---|

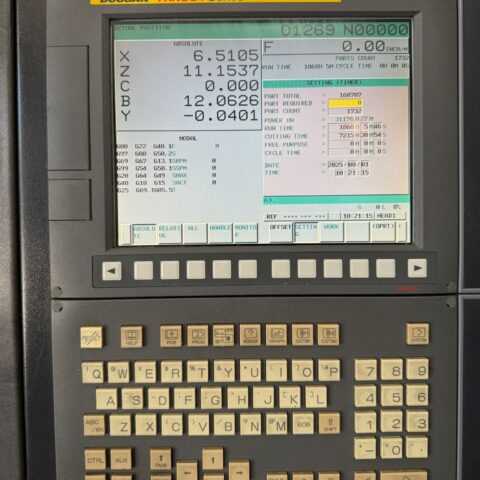

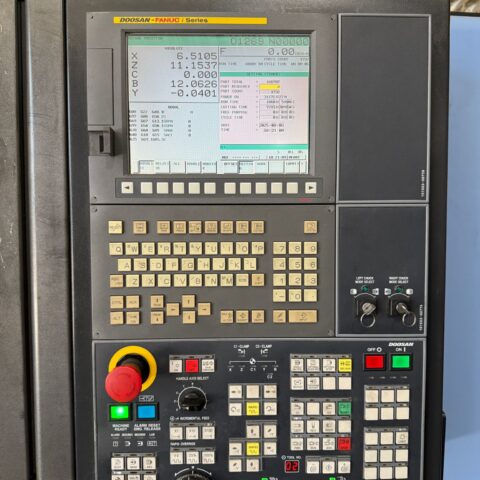

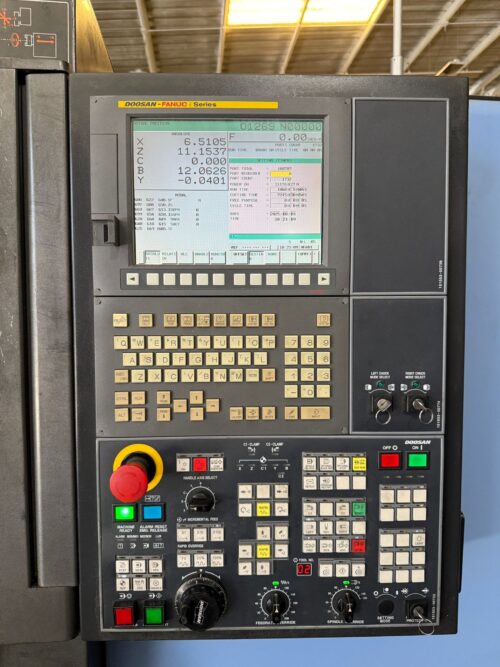

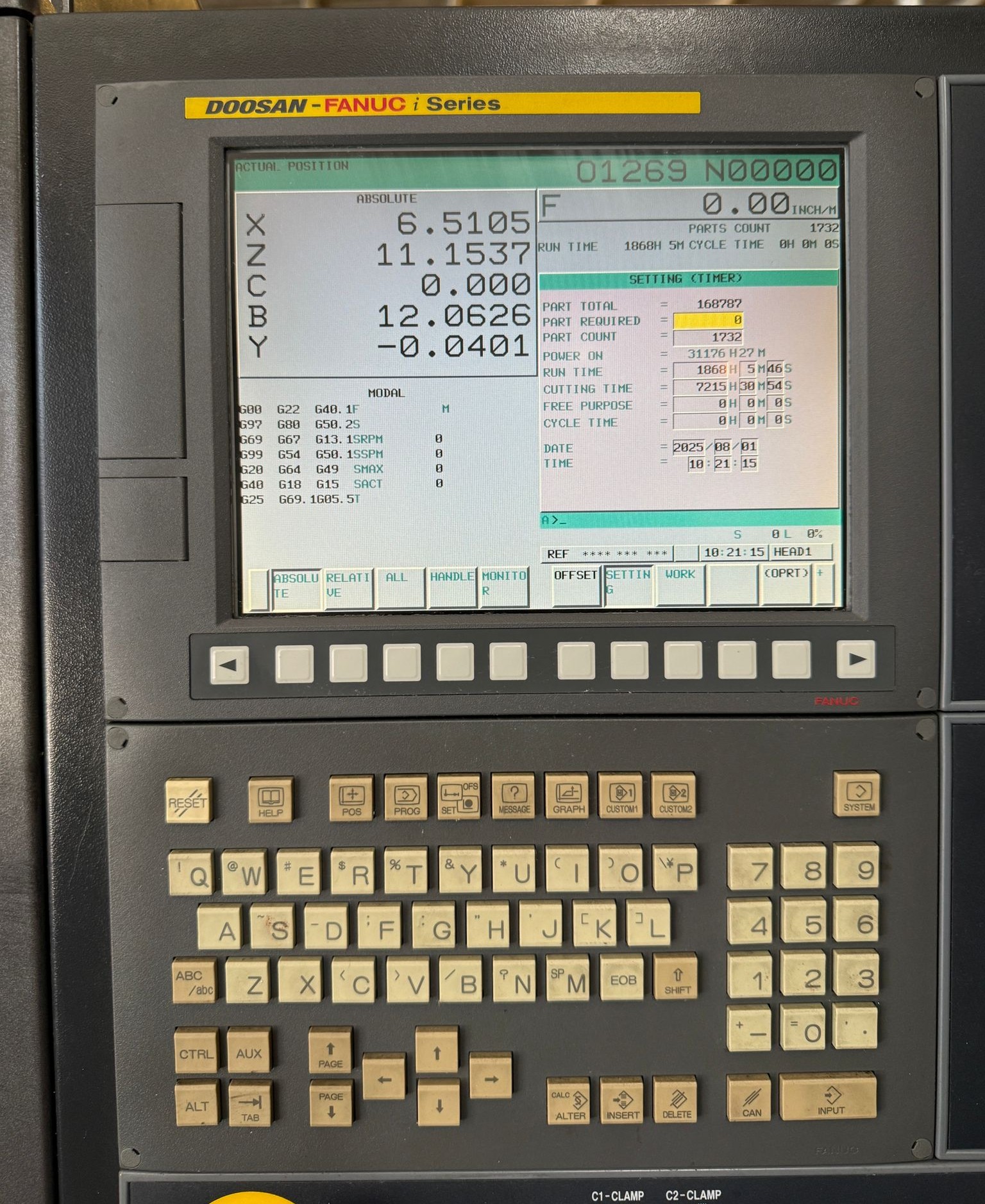

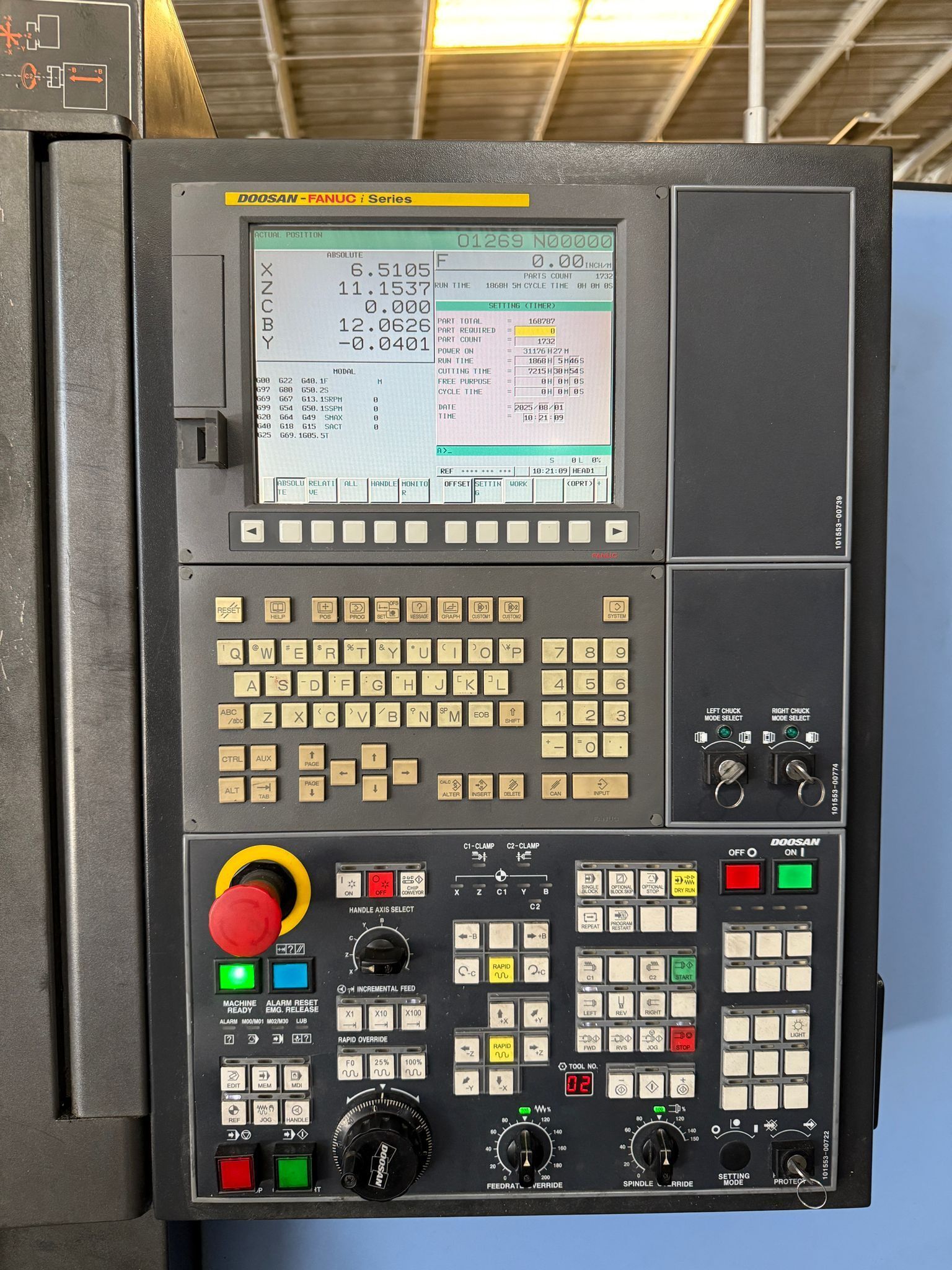

| Doosan-Fanuc i Series CNC Control |

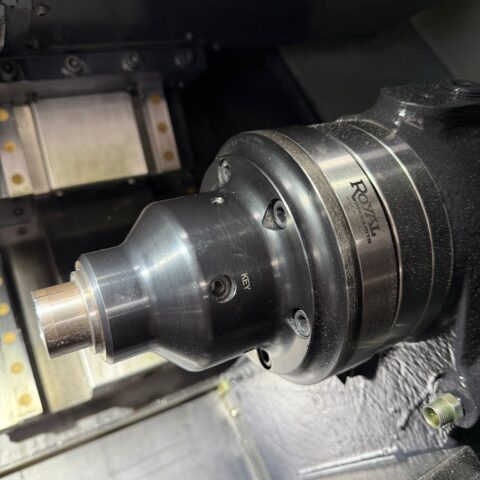

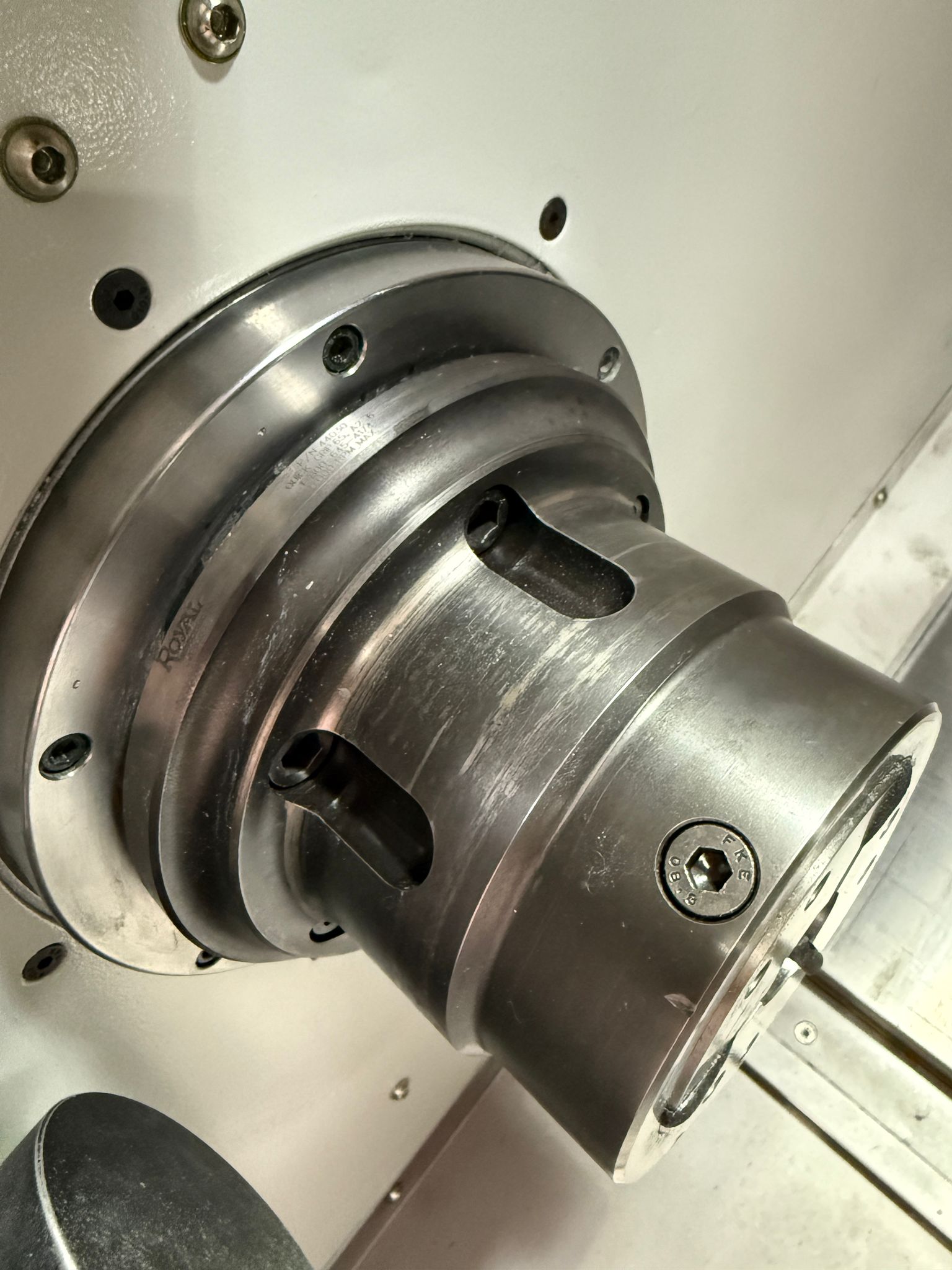

| Royal Quick Grip 65 Collet Chuck on Main Spindle (Capable 8″ Chuck) |

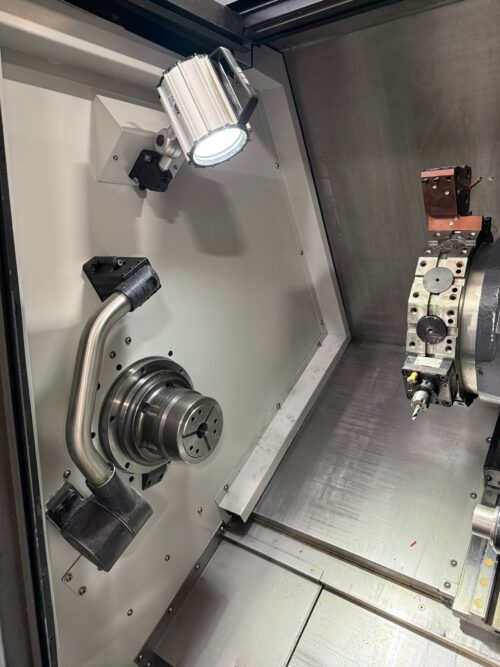

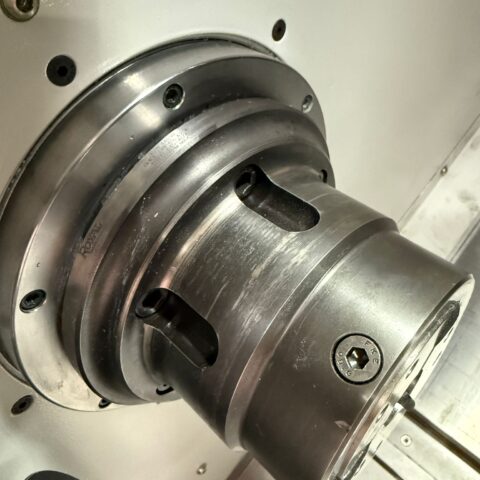

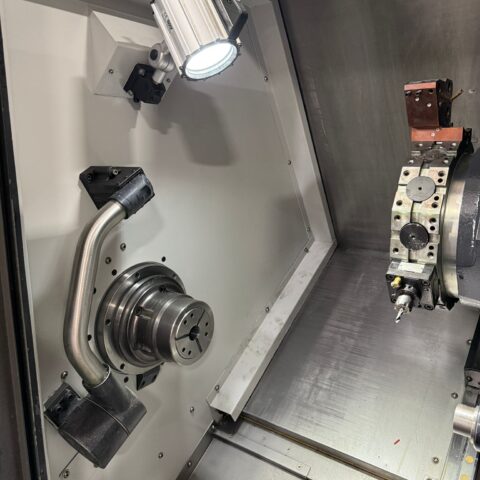

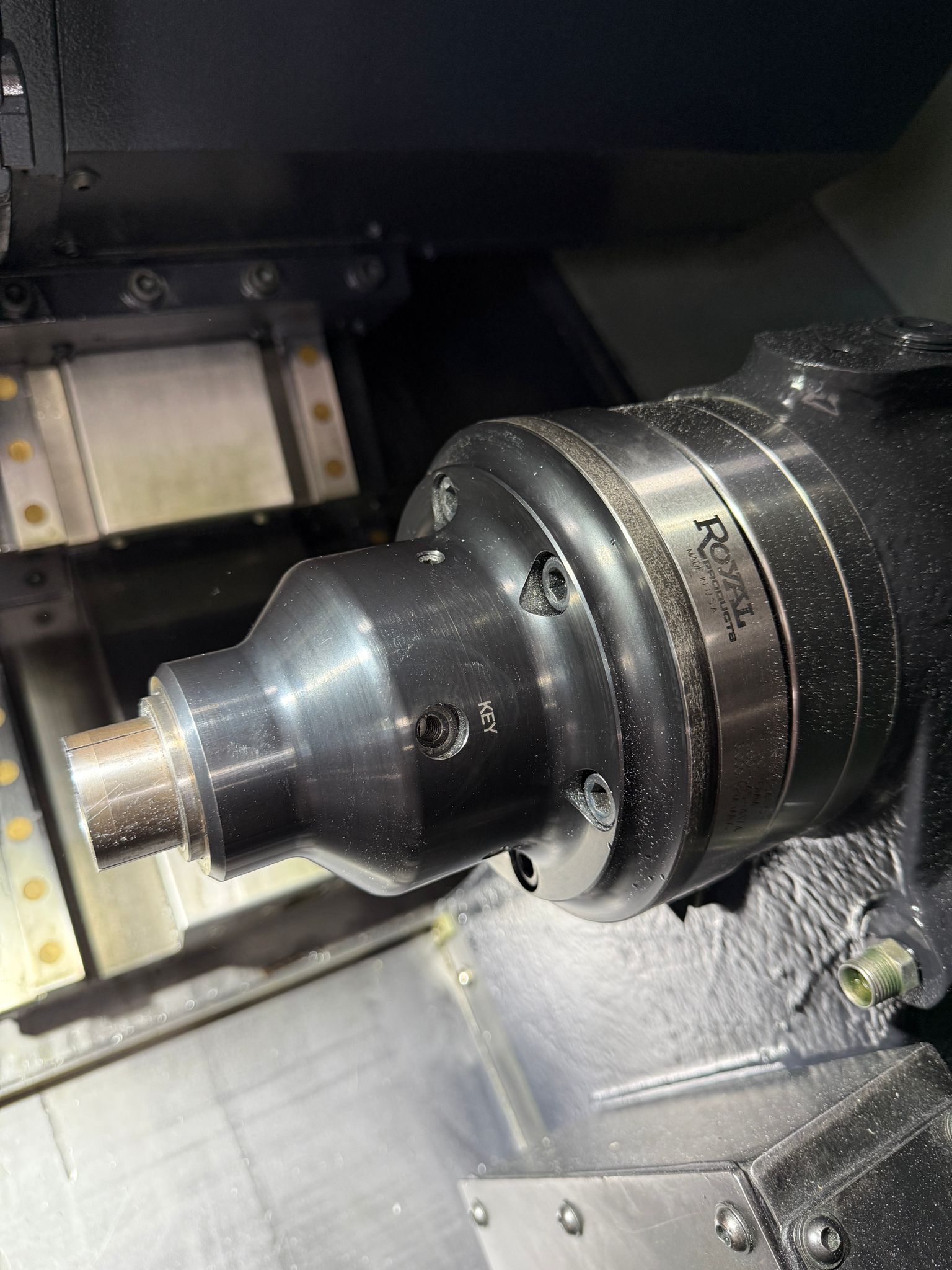

| Royal Collet Chuck on Sub Spindle |
| Servo Controlled Full C Axis on Both Spindles |

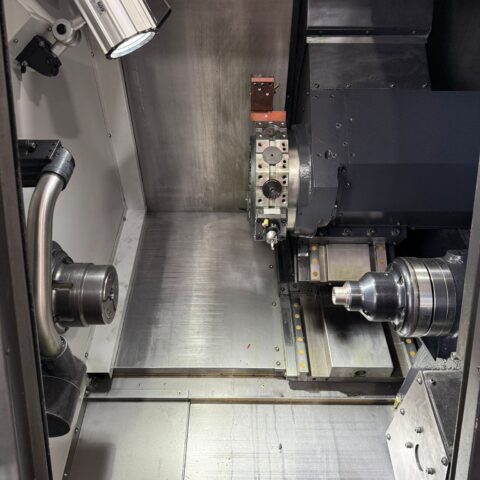

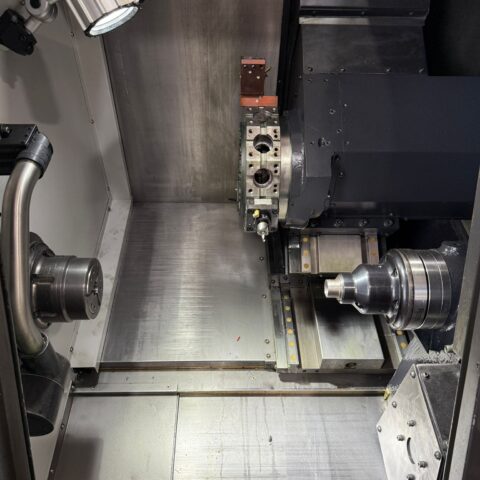

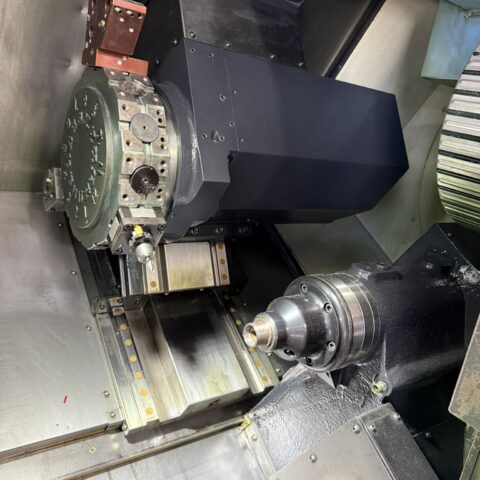

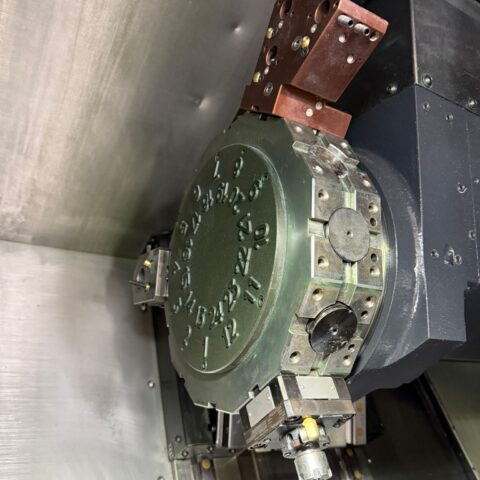

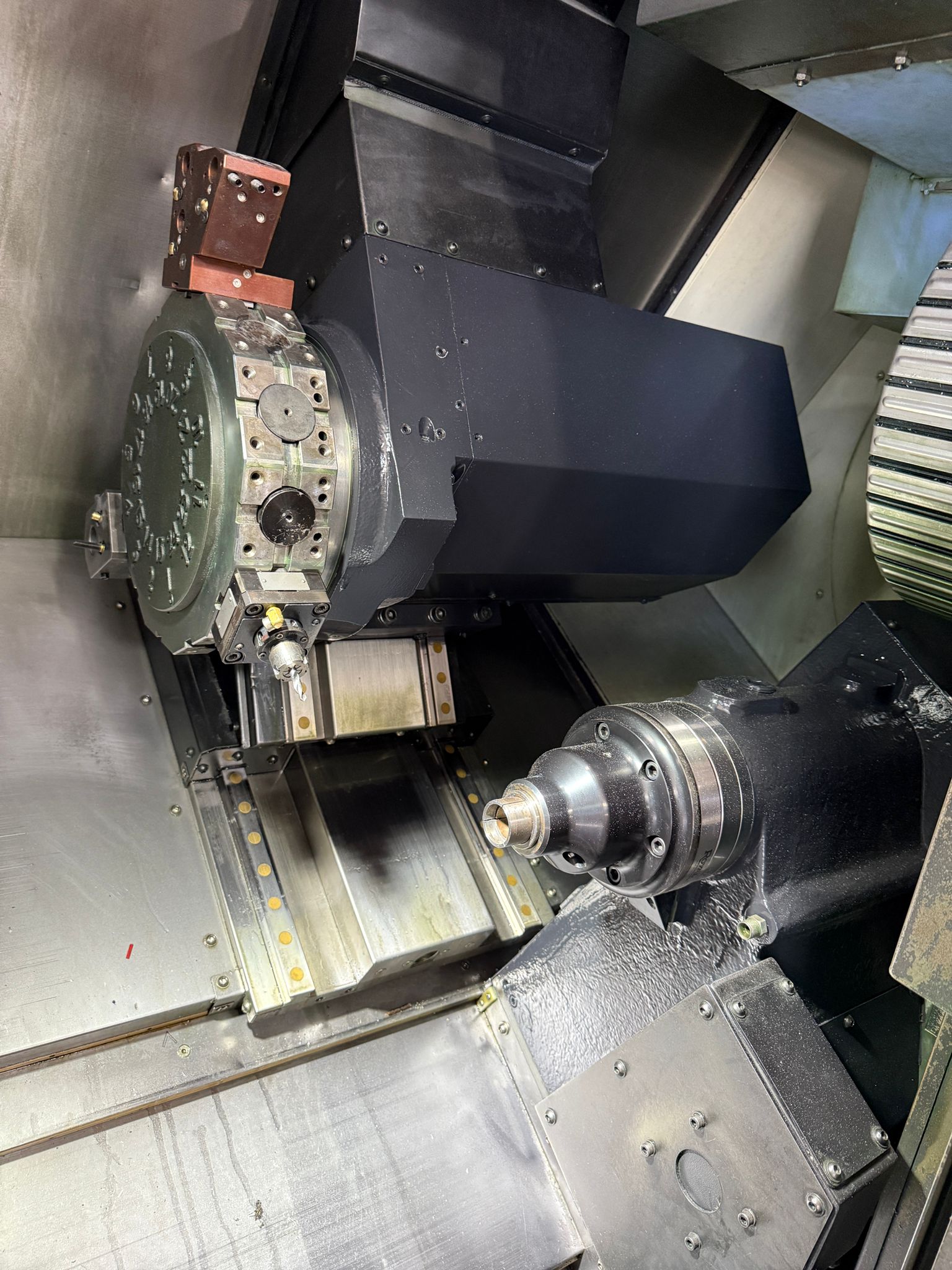

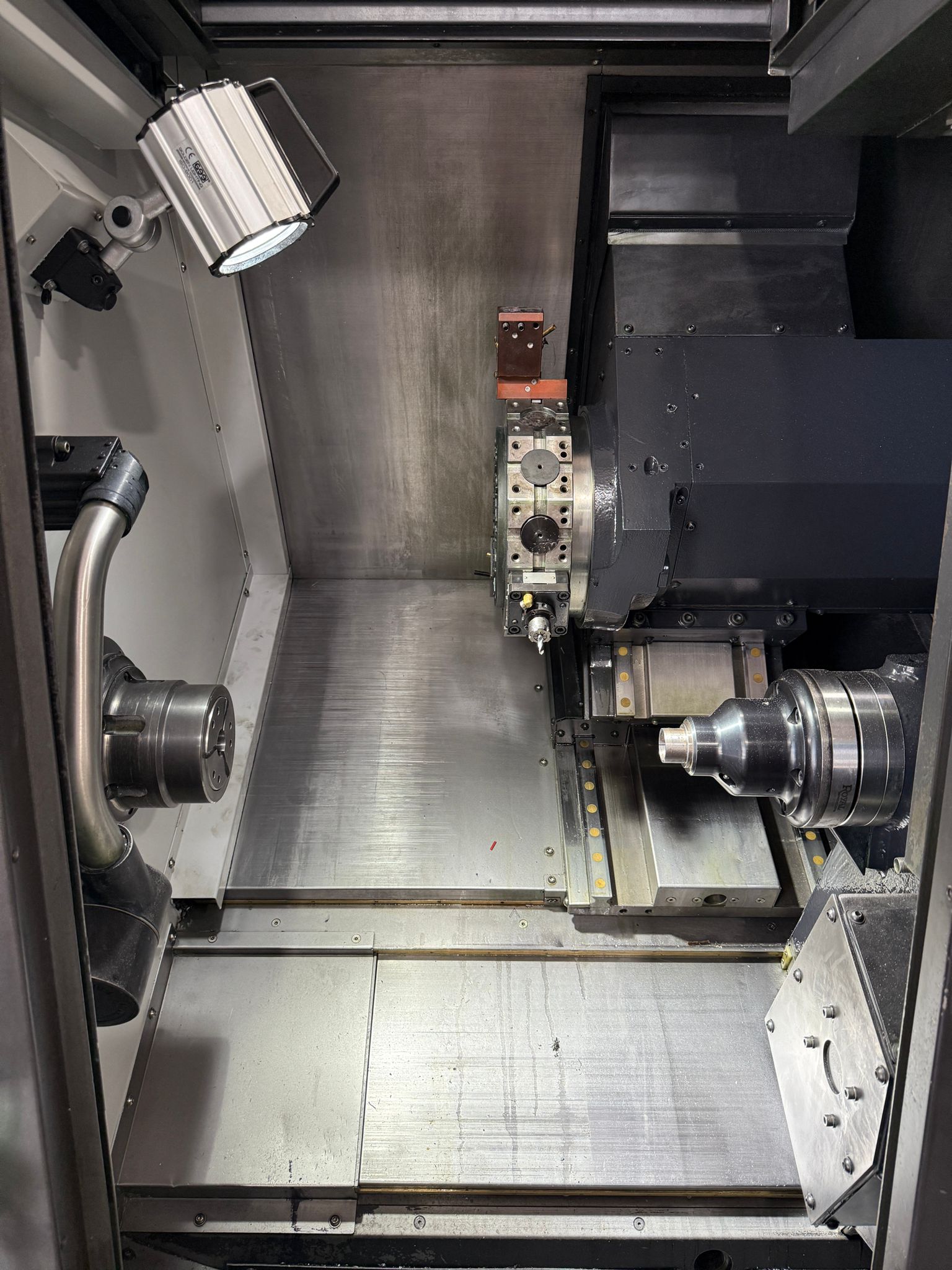

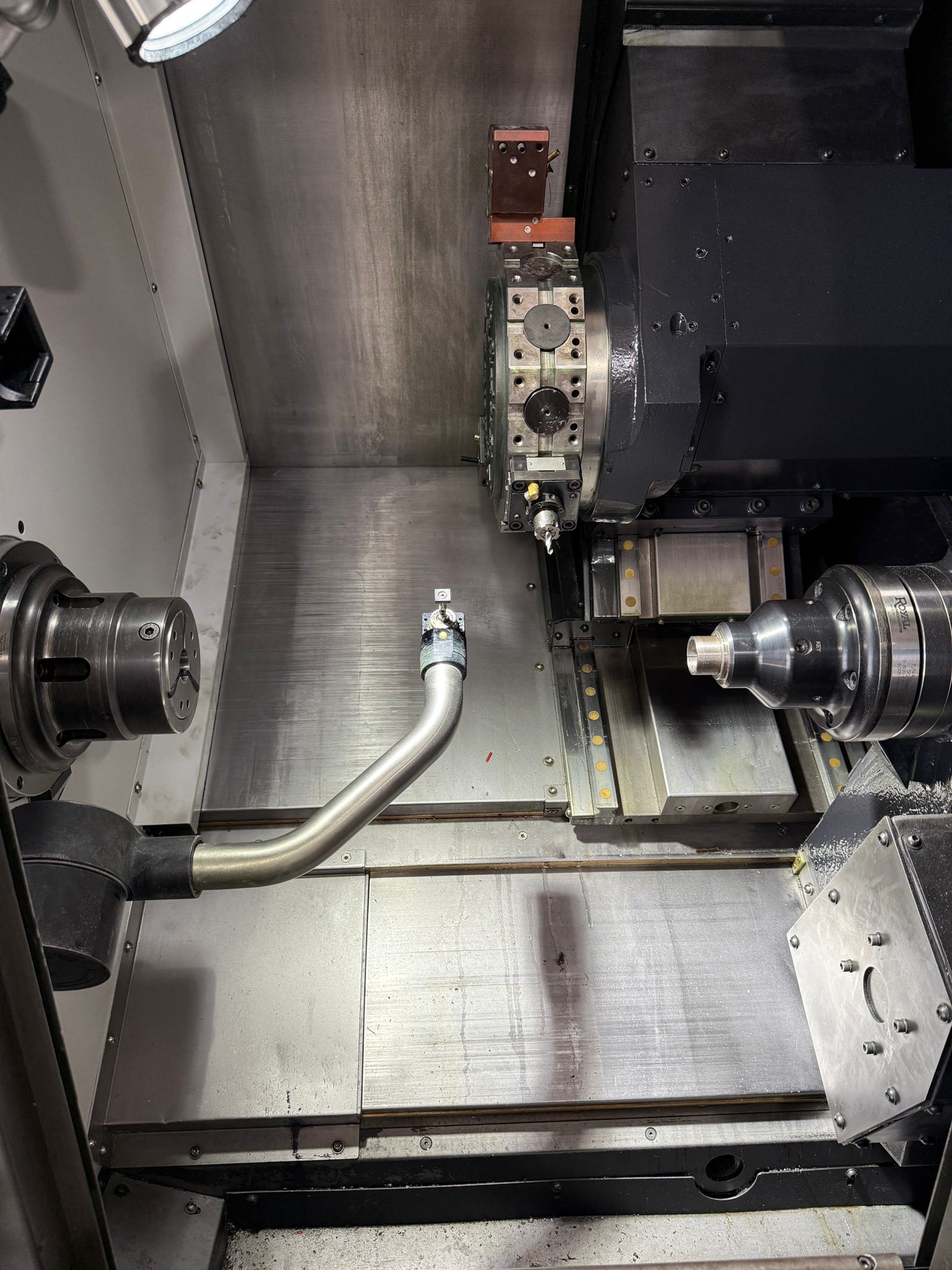

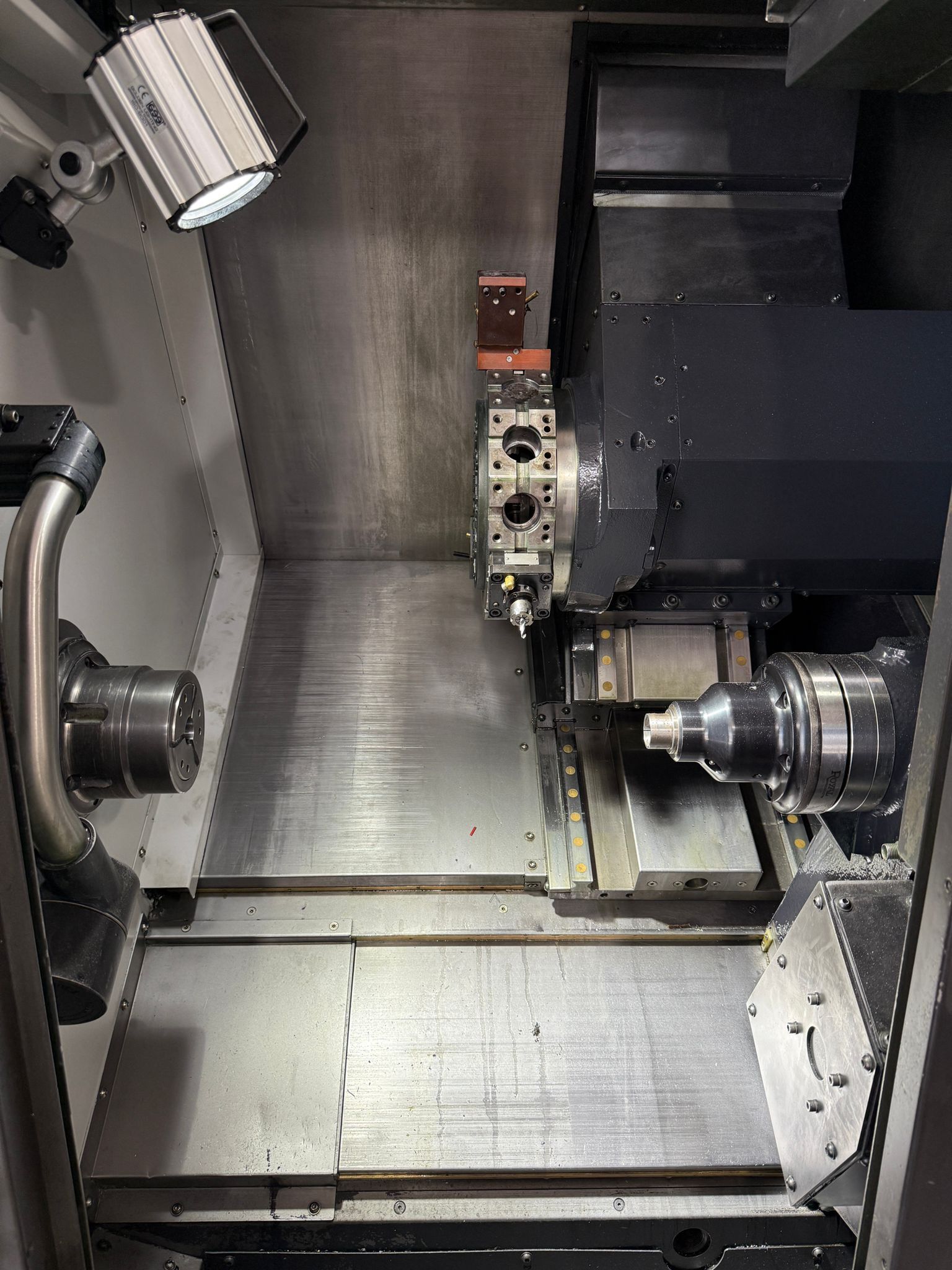

| 12 Station (24 Positions) Live Tool Turret |
| Y Axis on Turret |

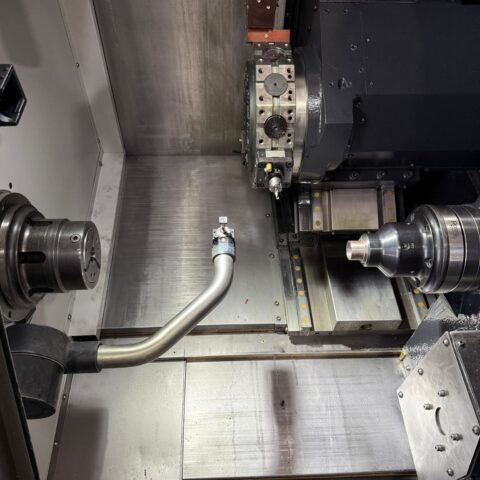

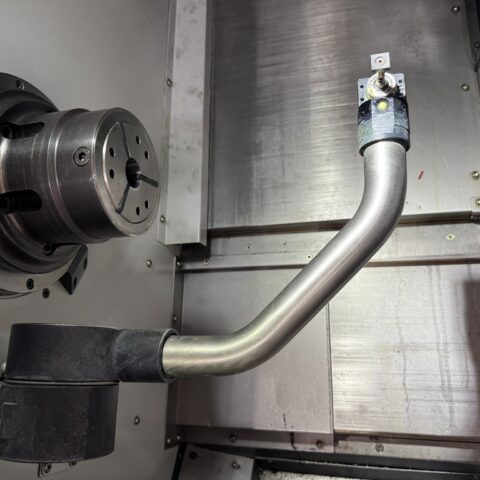

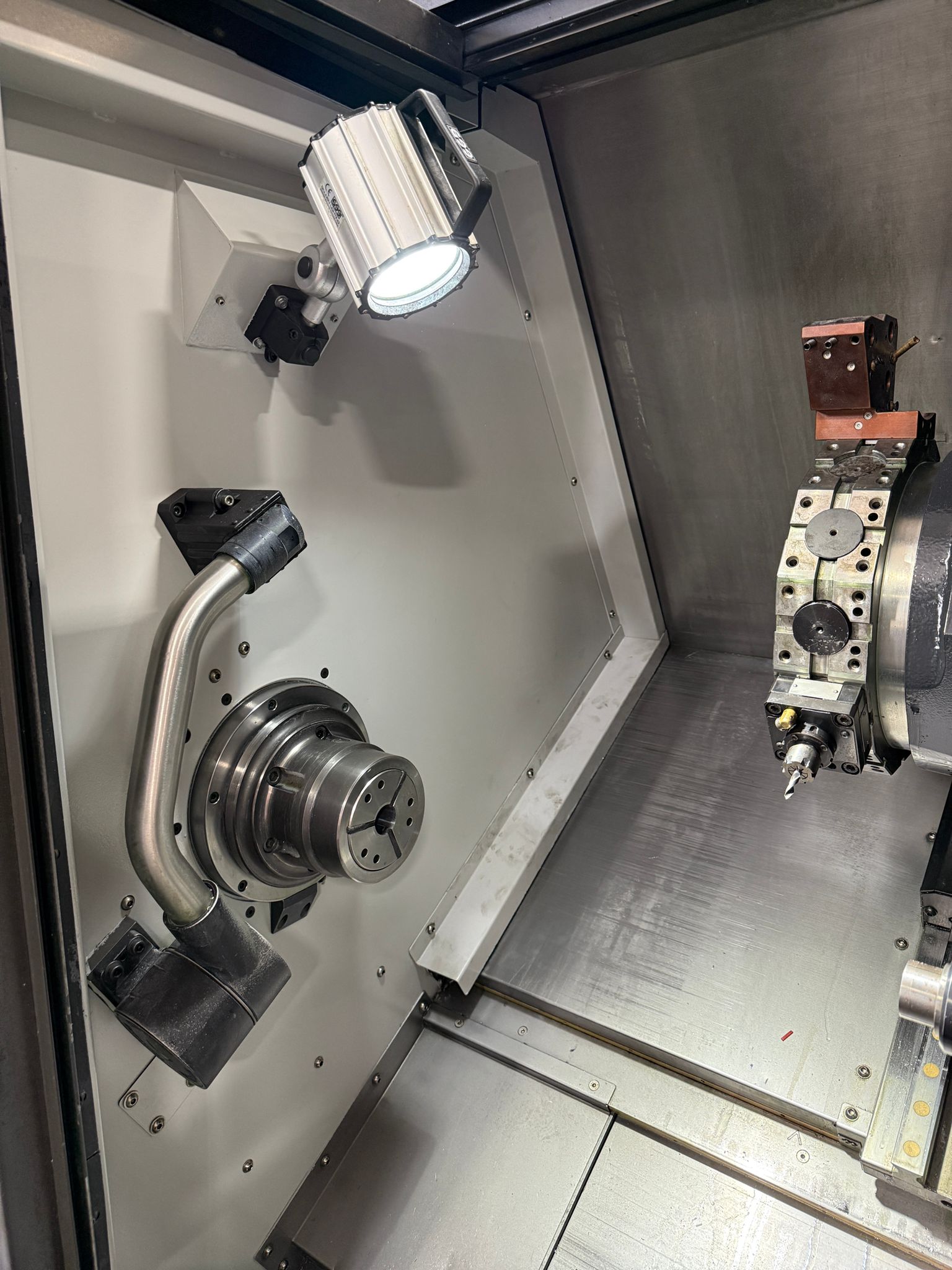

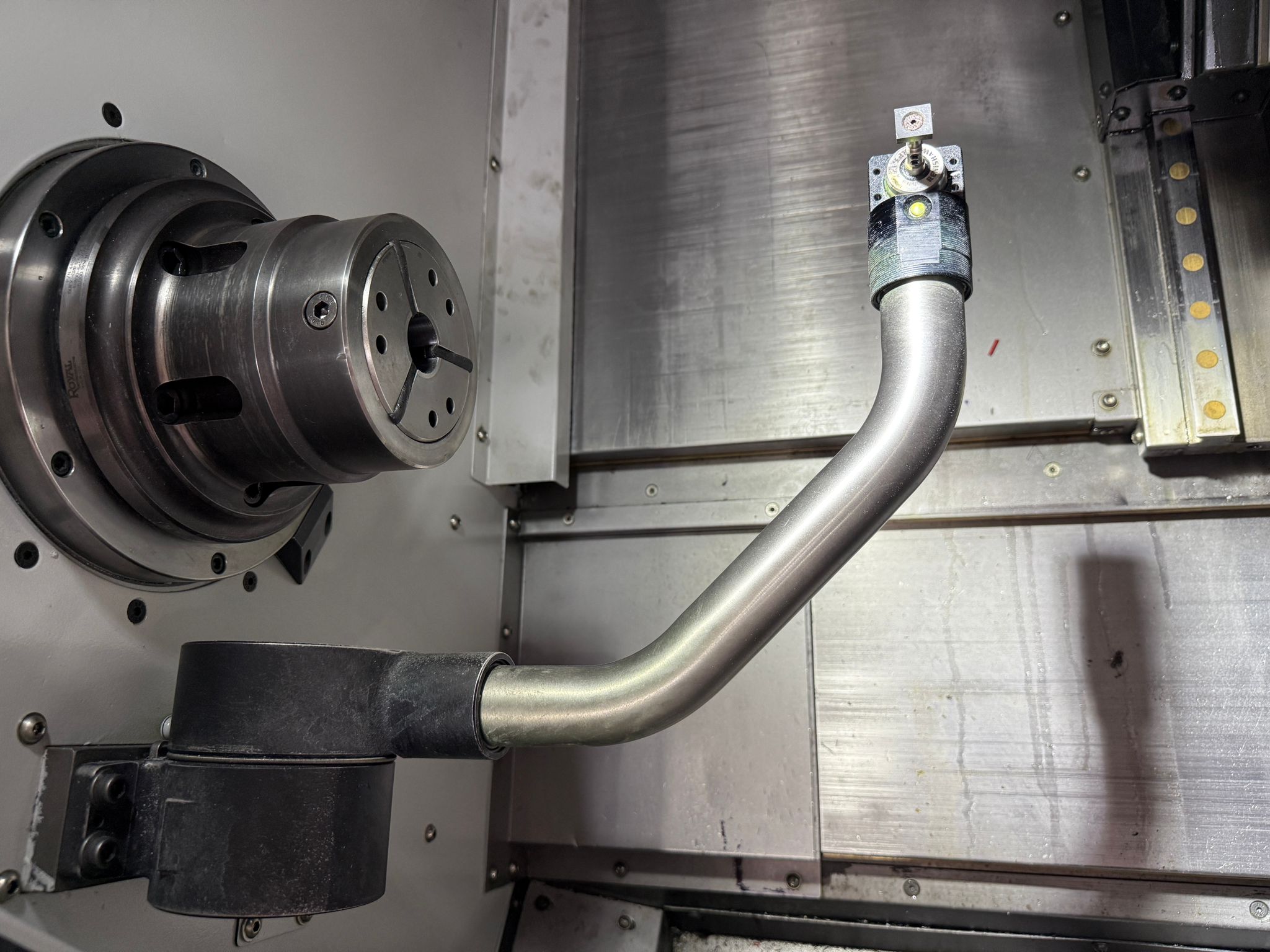

| Tool Presetter |
| Part Catcher |
| Bar Feeder Interface |
| PCMCIA Card Slot |
| Coolant System |

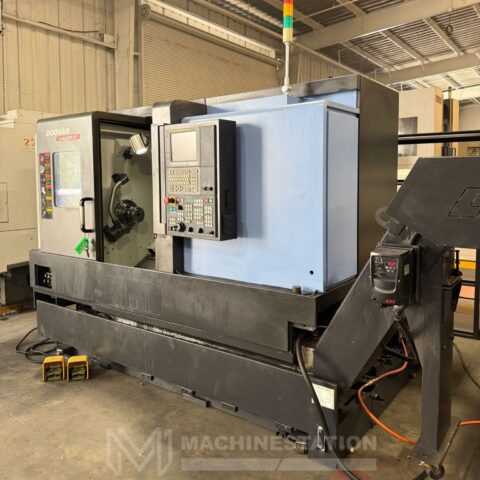

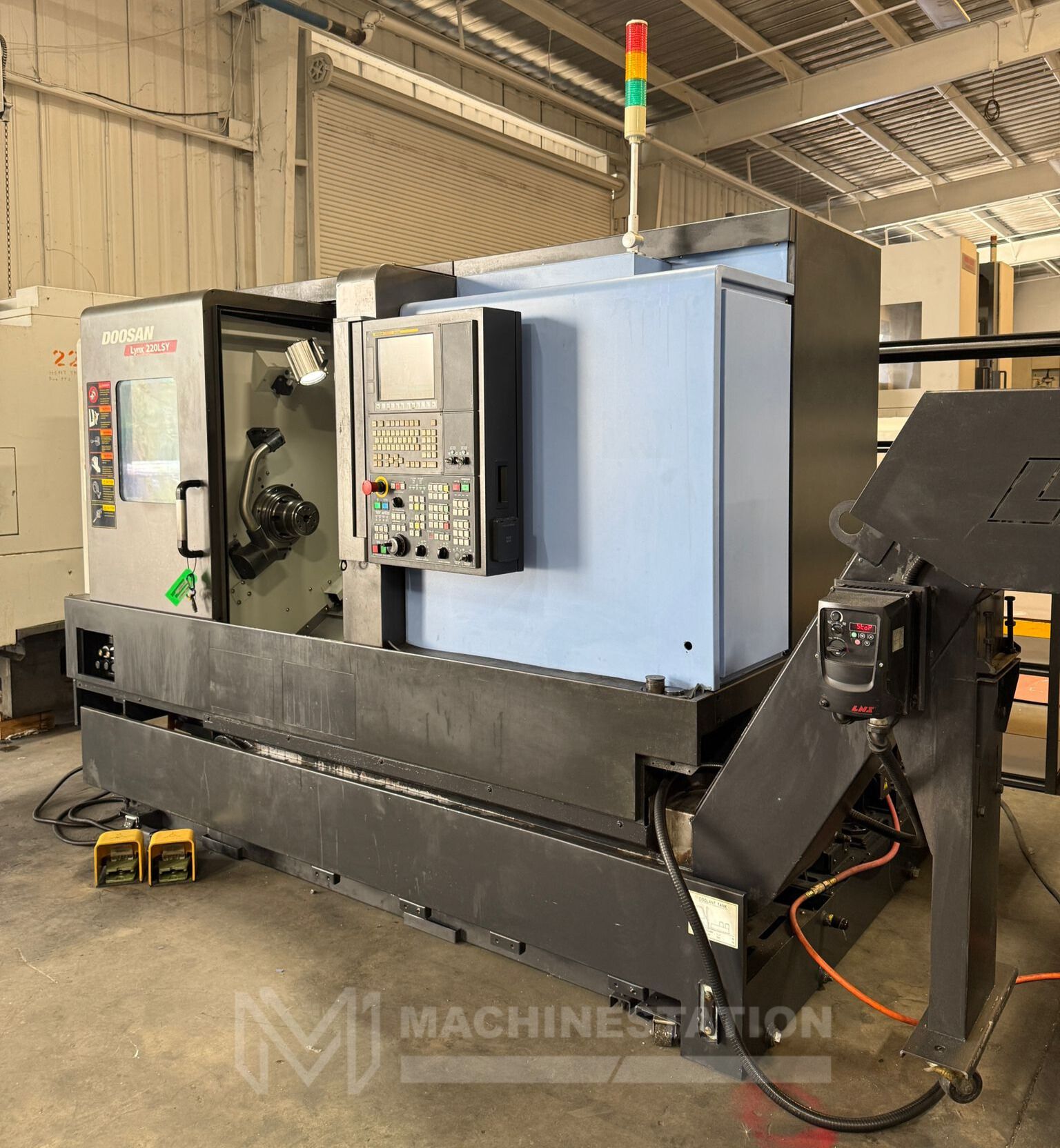

| LNS Chip Conveyor |

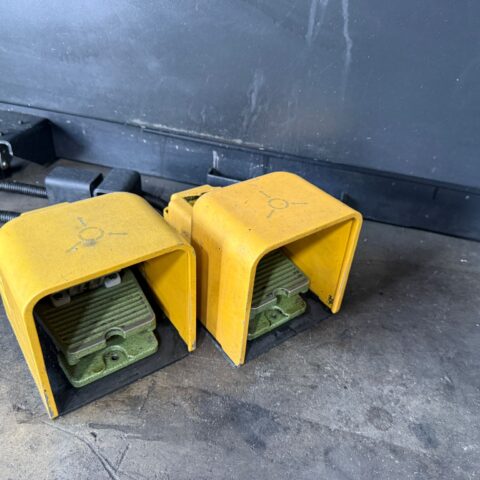

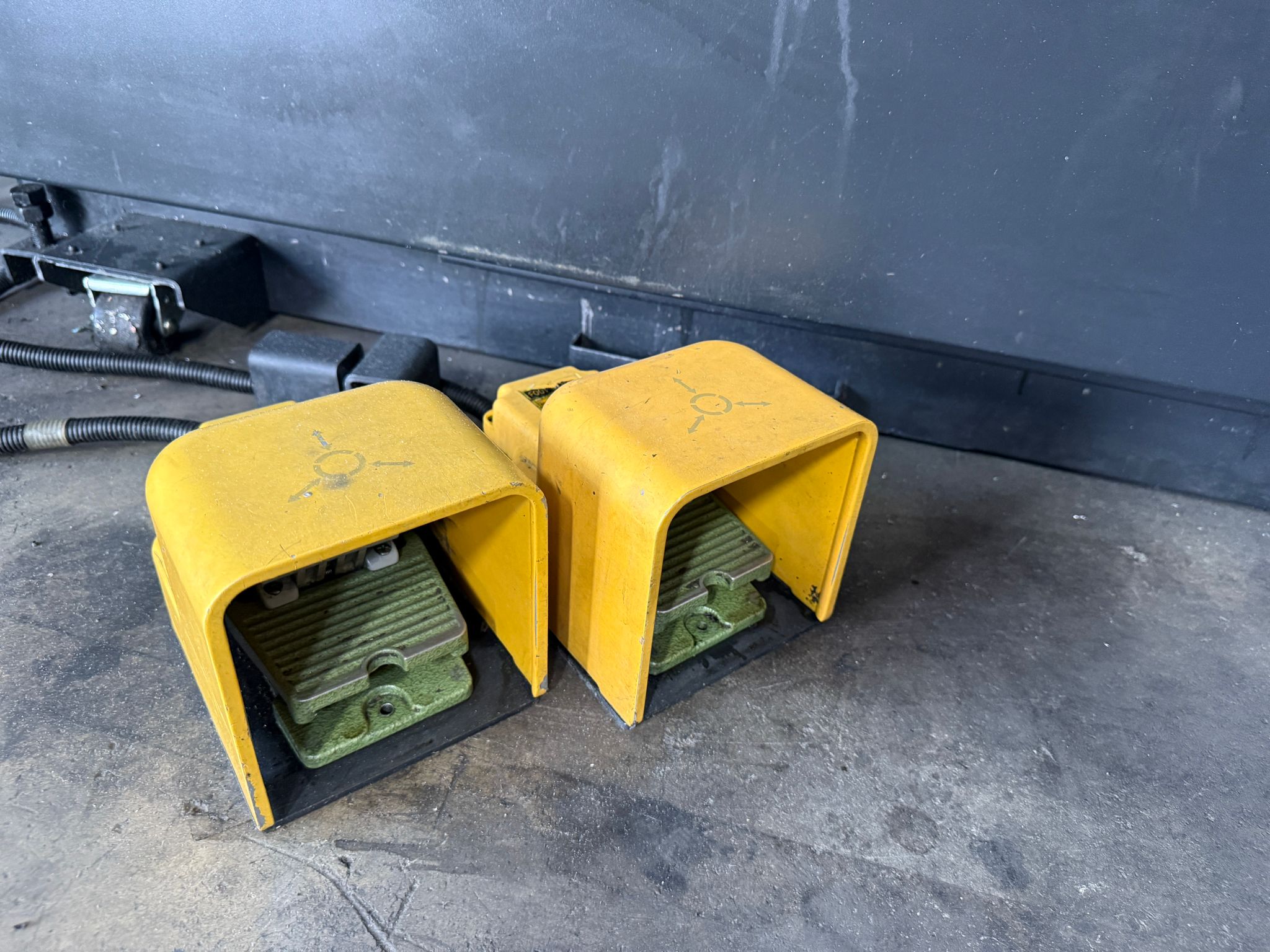

| Foot Switch |

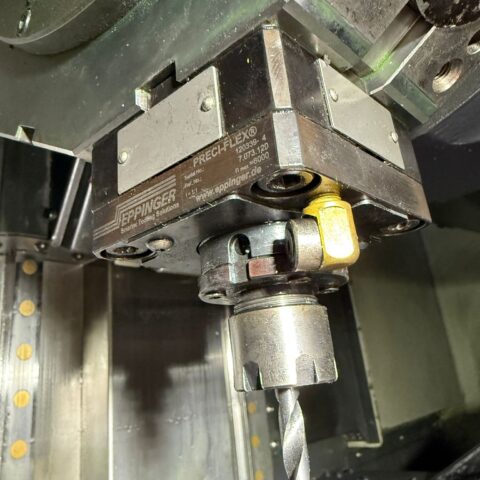

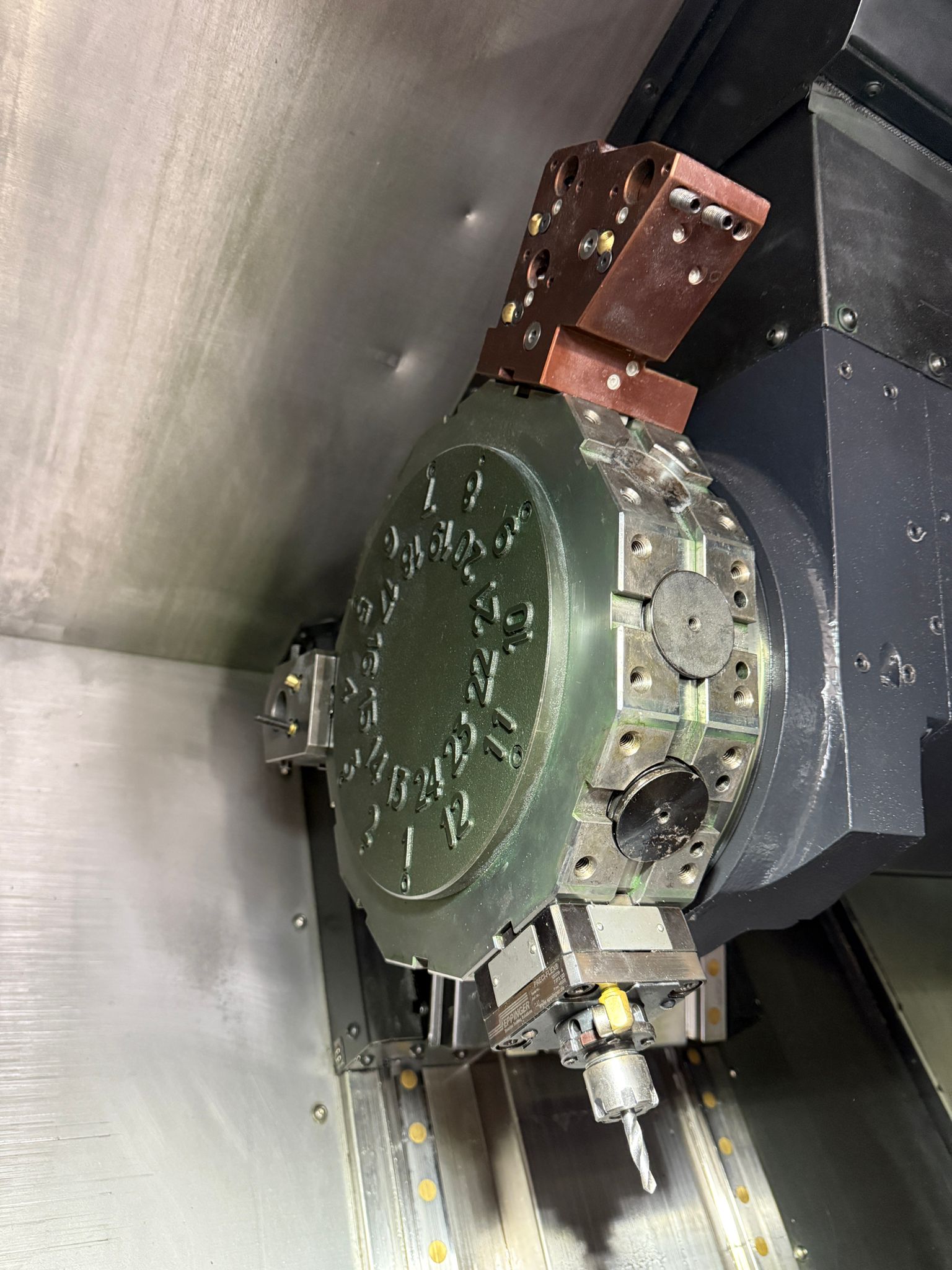

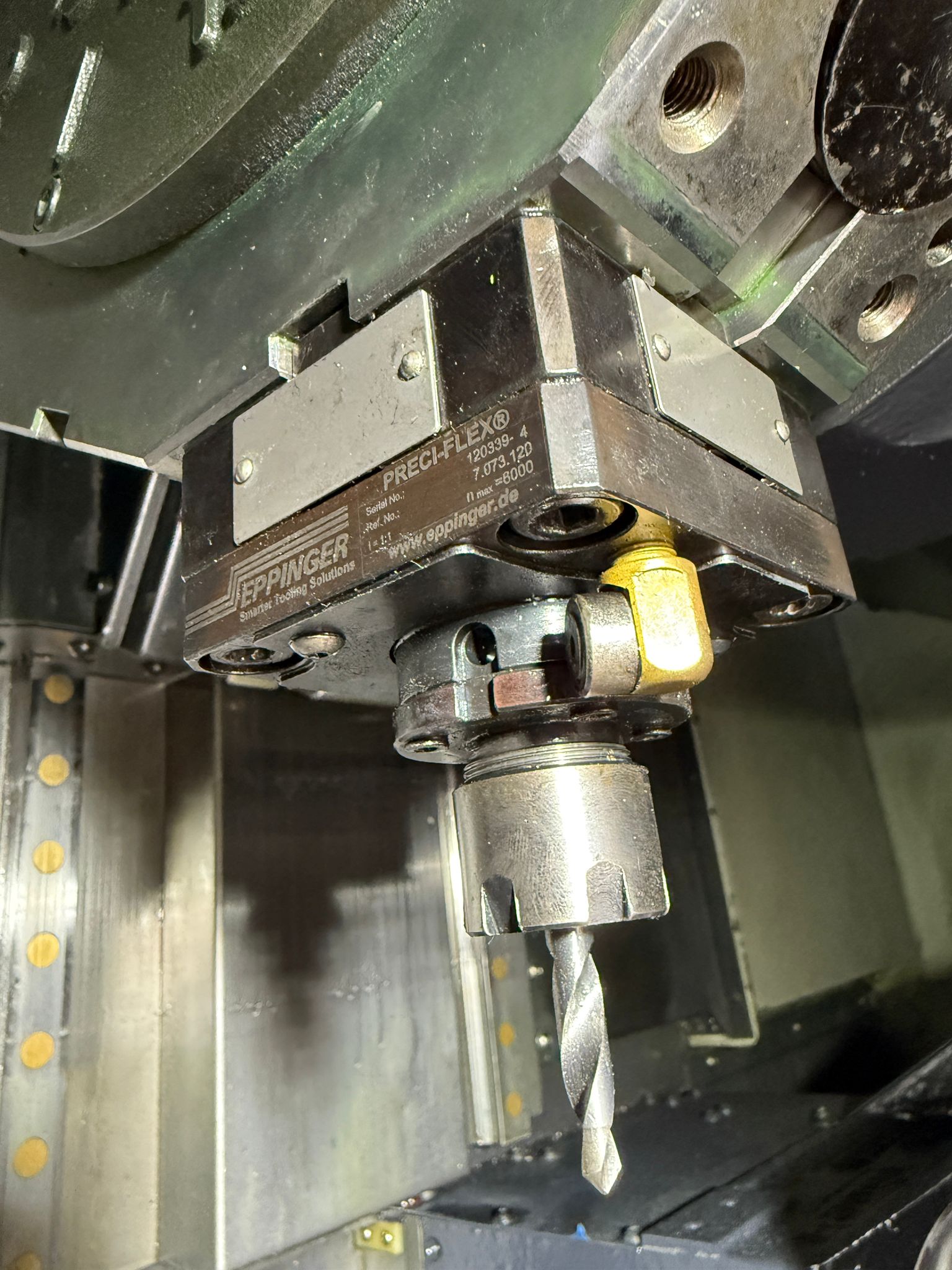

| (1) Live Tool Holder (2) Boring Tools are Mounted on Turret (As shown in the images) |
| Capacity: |
|---|
| Max Turning Diameter : 11.8″ |
| Max Swing Over Bed : 23.6″ |
| Max Swing Over Saddle : 15.7″ |
| Max Turning Length: 20.1″ |
| Max Bar Capacity : 2.6″ |
| Travels: |
|---|
| X Axis Travel : 8.1″ |
| Y Axis Travel : 4.13″ |
| Z Axis Travel : 22.0″ |
| B Axis Travel (Sub Spindle) : 22.0″ |
| C Axis (Both Spindles) : 0.001 Degree |
| Rapid Traverse X Axis: 1181 IPM |
| Rapid Traverse Y Axis: 394 IPM |
| Rapid Traverse Z Axis: 1417 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-6 |
| Spindle Bore: 3.0″ |
| Spindle Speed: 4500 RPM |
| Spindle Motor: 20 HP |
| Sub Spindle: |
|---|
| Spindle Nose: FLAT |
| Spindle Bore: 1.7″ |
| Spindle Speed: 6000 RPM |
| Spindle Motor: 7.5 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations (24 Positions) |
| Turret Index Time: 0.11 Second |
| Turret Type: BMT-45 |
| General: |
|---|

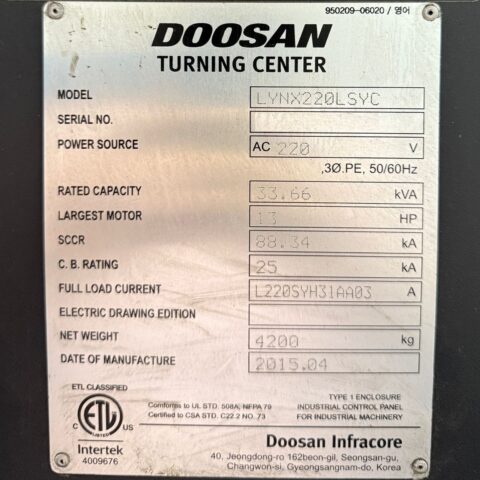

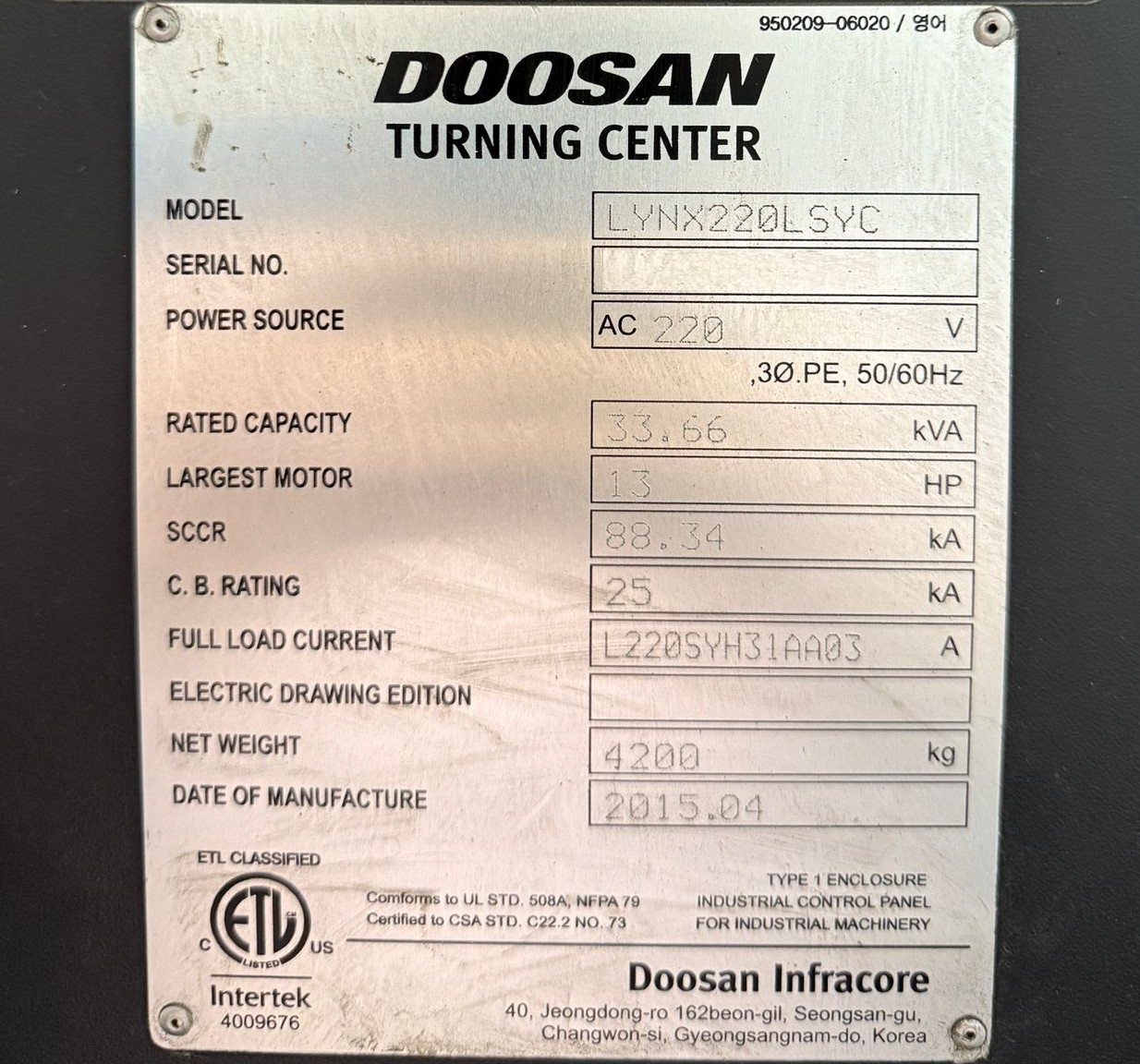

| Power Source: AC 220v / 3-Phase / 60 Hz |
| Power Requirement: 33.66 kva |
| Machine Dimensions: 113.4″ x 67.3″ x 75.6″ High |
| Machine Weight: 9,260 lbs Approx. |
