Product Description

GANESH CYCLONE 32-NCY CNC SWISS SCREW TURNING LATHE
Make: GANESH
Model No.: CYCLONE 32-NCY
Serial No.: CY011006
Year: 2012/2013
Condition: Excellent
Replacement cost for the Same Machine with Options is over $120,000

All specifications are approximations, and are subject to verification.

Ganesh Cyclone 32-NCY CNC Swiss Screw Turning Lathe Equipped With:

C & True Y Axis Capability
Edge Patriot 338 12′ Barfeeder
18 Tool Stations with 7 Live Tools
MP Systems 1000 PSI High Pressure Coolant
Mist Buster Filteration System
PCMCIA, RS-232 and LAN Conectivity
Uses ER-20 or Solid 25mm solid bushings
Rigid Tapping
Automatic Lubrication system
Coolant Tank

Ganesh Cyclone 32-NCY CNC Swiss Screw Turning Lathe Specifications:

Max Turning Diameter: 1.25″ (32 mm)
Max Turning Length:5.31″/2.24″ ( 135 mm)
Max Bar Capacity: 0.79″ (20 mm)
X Axis Travels: 7.5″
Y Axis Travels: 19.3″
Z Axis Travels: 6.5″
C Axis: 0.001 degrees
Rapid Travel Rate: 1181 inch per minute

Spindle:
Main Spindle Bore: 1.456″
Main Spindle Speed: 100 – 6,000 RPM
Spindle Power: 10 HP
Spindle Center Height: 38″

Tool Capacity: 18
Turning Tools: 6
ID Tools: 5
Cross Live Tools: 4
Axial Live Tools: 3
Live Tool Speed: 0-4000 RPM

General:
Power: 16 kva, AC 220 V, Three Phase, 60 Hz Overall
Air: 85 psi
Dimensions: 86″ x 80″ x 79″ High without Barfeeder
Weight : 6200 lbs Approx.

“No Charges for loading at list Price”

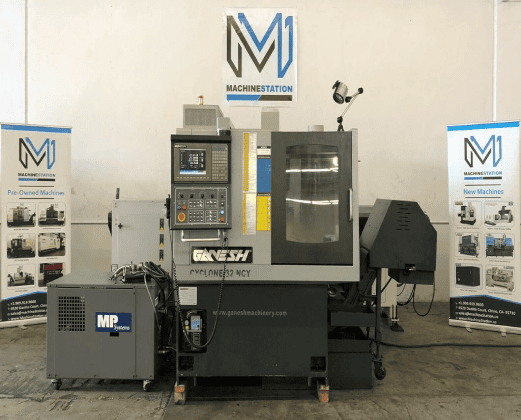

Ganesh Cyclone 32-NCY CNC Swiss Screw Turning Lathe comes as shown in Pictures…
