*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

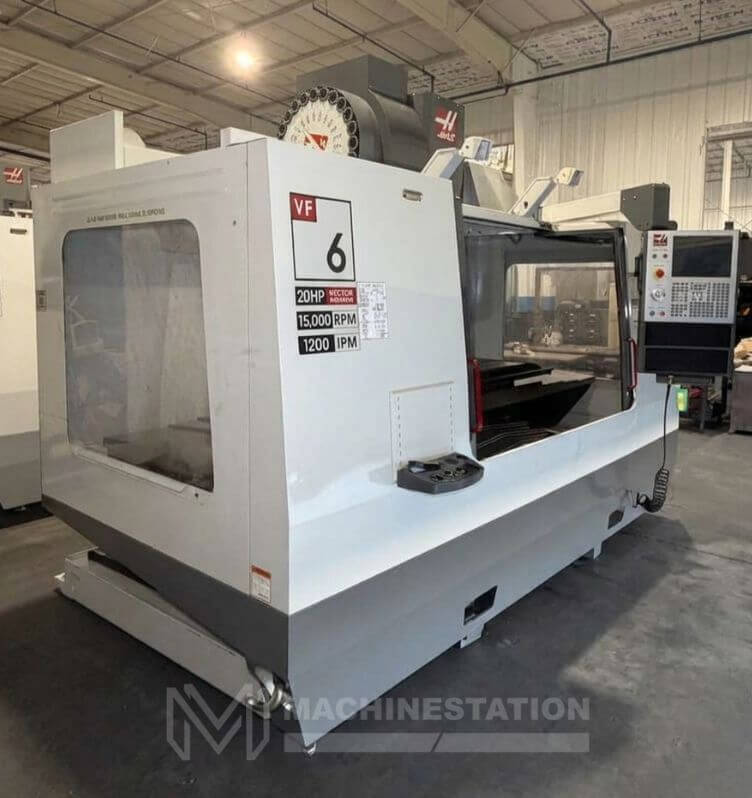

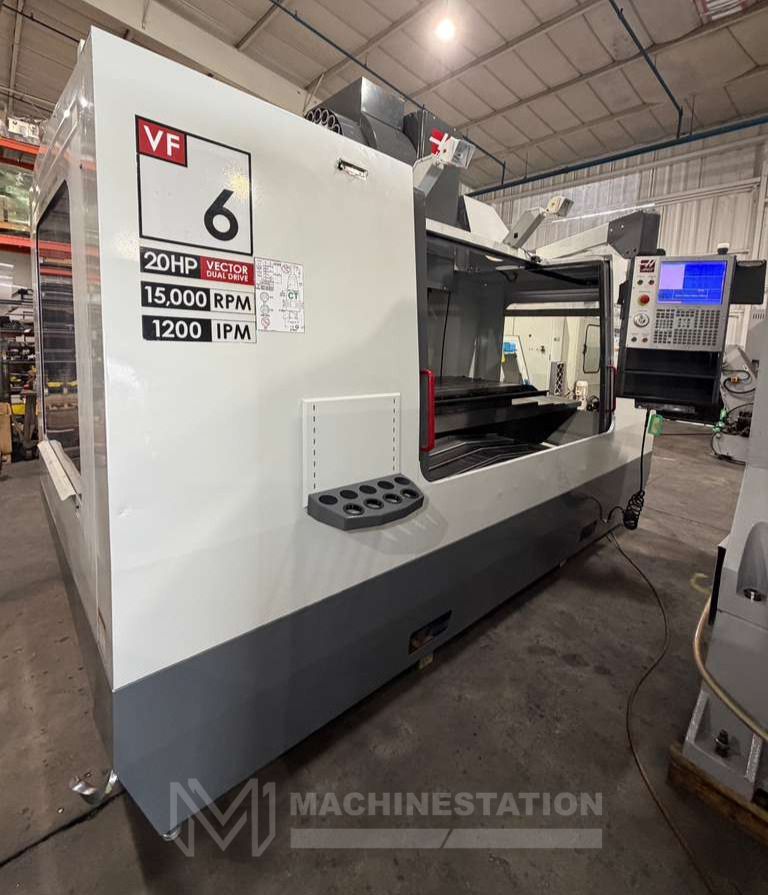

| Make: | Haas |
| Model: | VF6D/40 |
| Year: | 2004 |
| Features: |
|---|

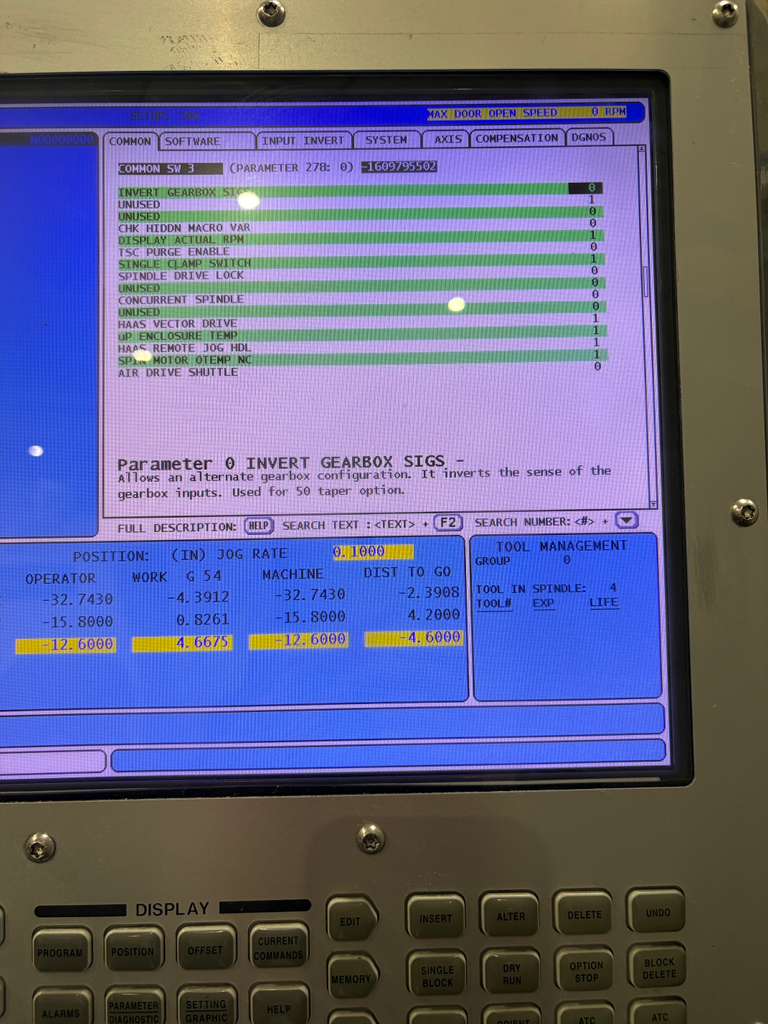

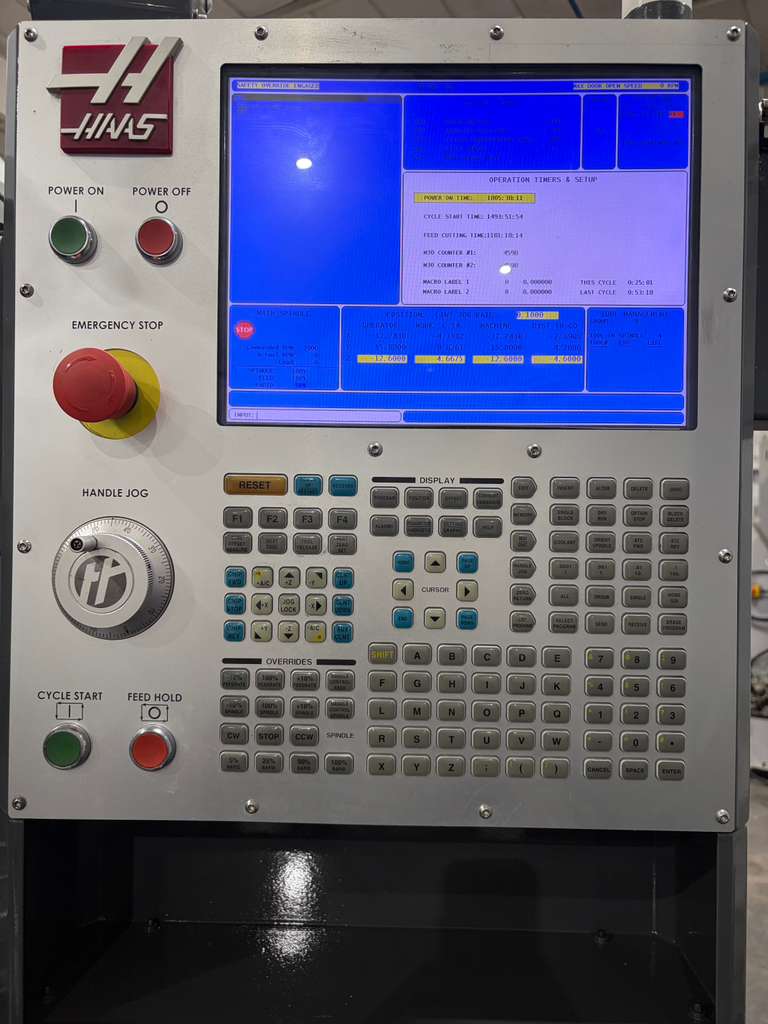

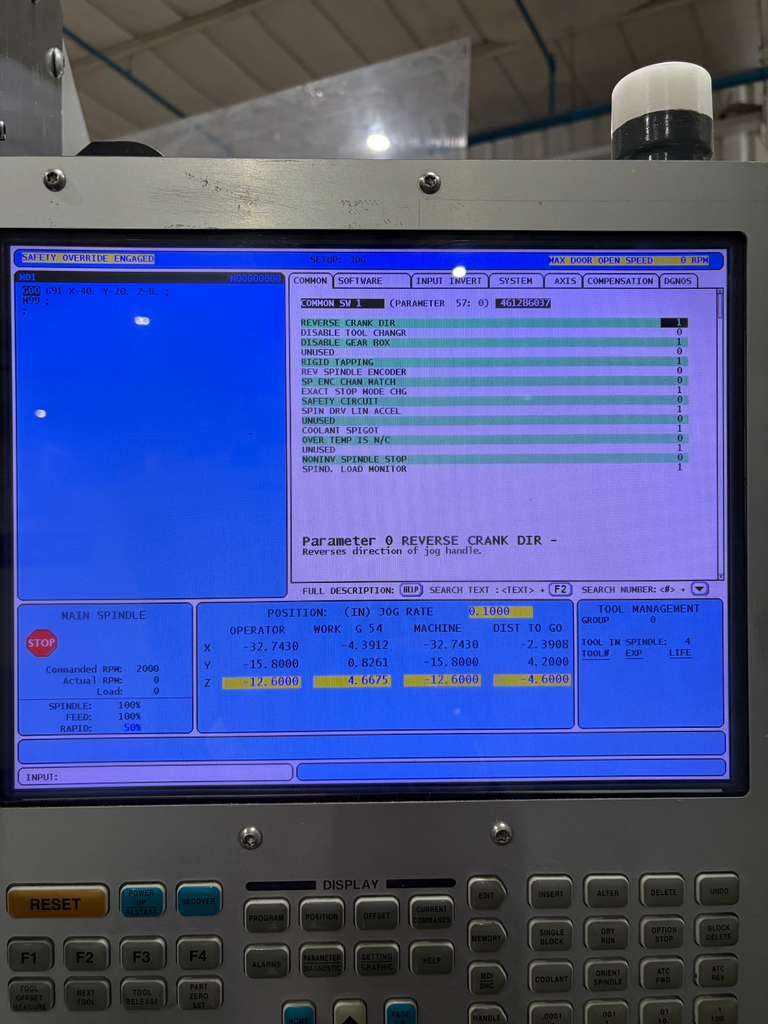

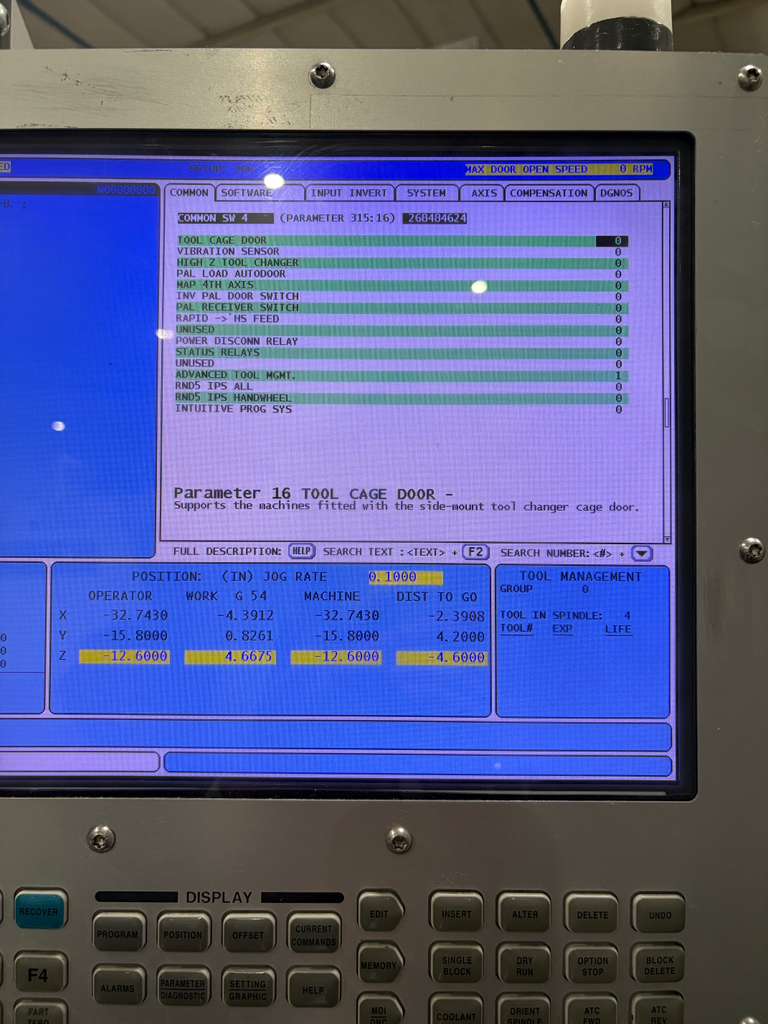

| Haas CNC Control (Upgraded Haas Next Generation Control) |
| 15,000 RPM High Speed Spindle |

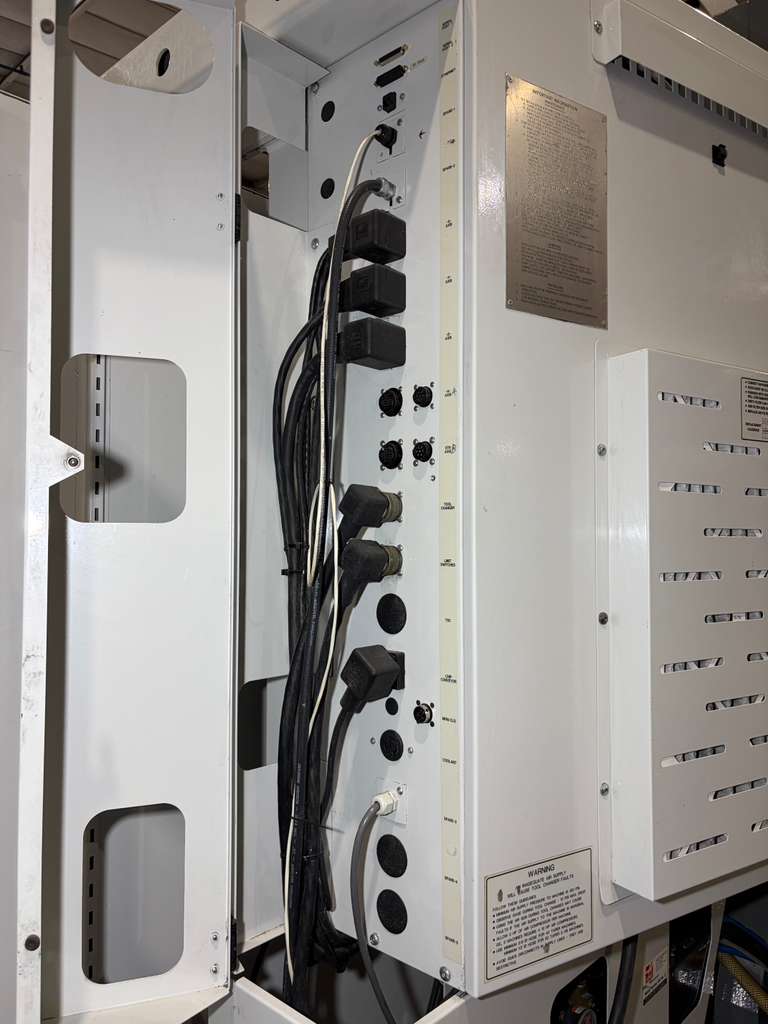

| 4th Axis Drive and Wiring |
| 5th Axis Drive and Wiring |
| 1200 IPM Rapid Traverse Rate |
| High Speed Machining |
| Renishaw Receiver Installed |
| Tool Presetter |
| 24 Station Automatic Tool Changer |

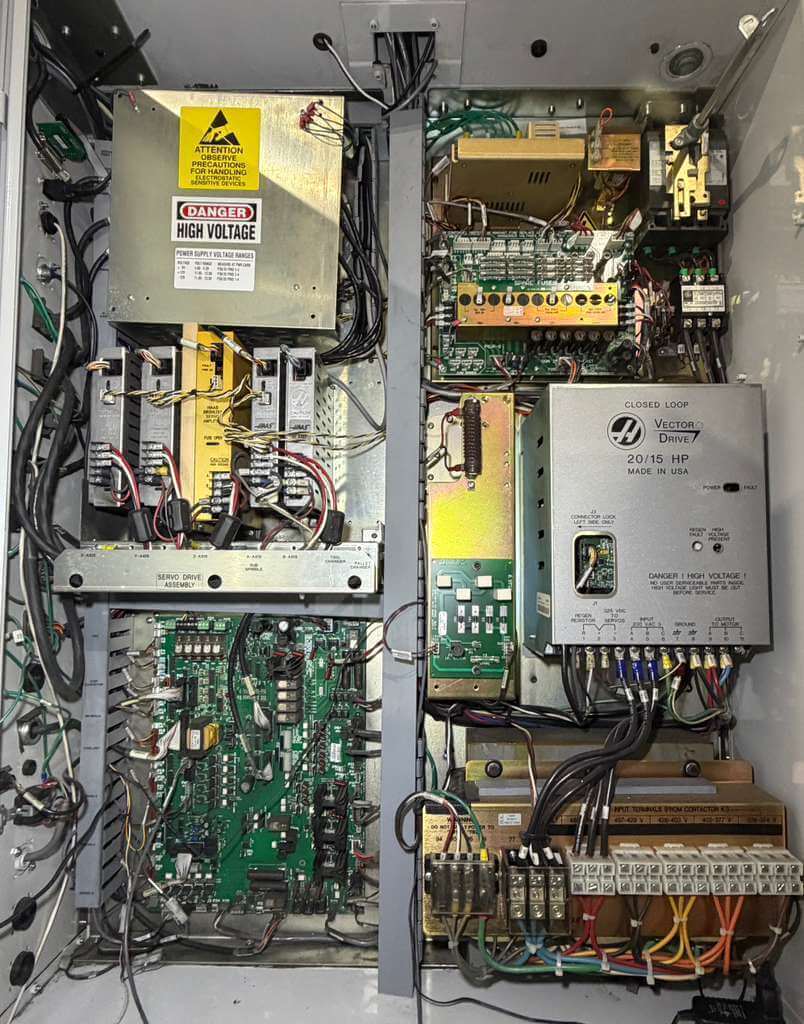

| 20 HP Vector Dual Drive |
| Rigid Tapping |
| 16MB Extended Memory |
| Floppy Drive |

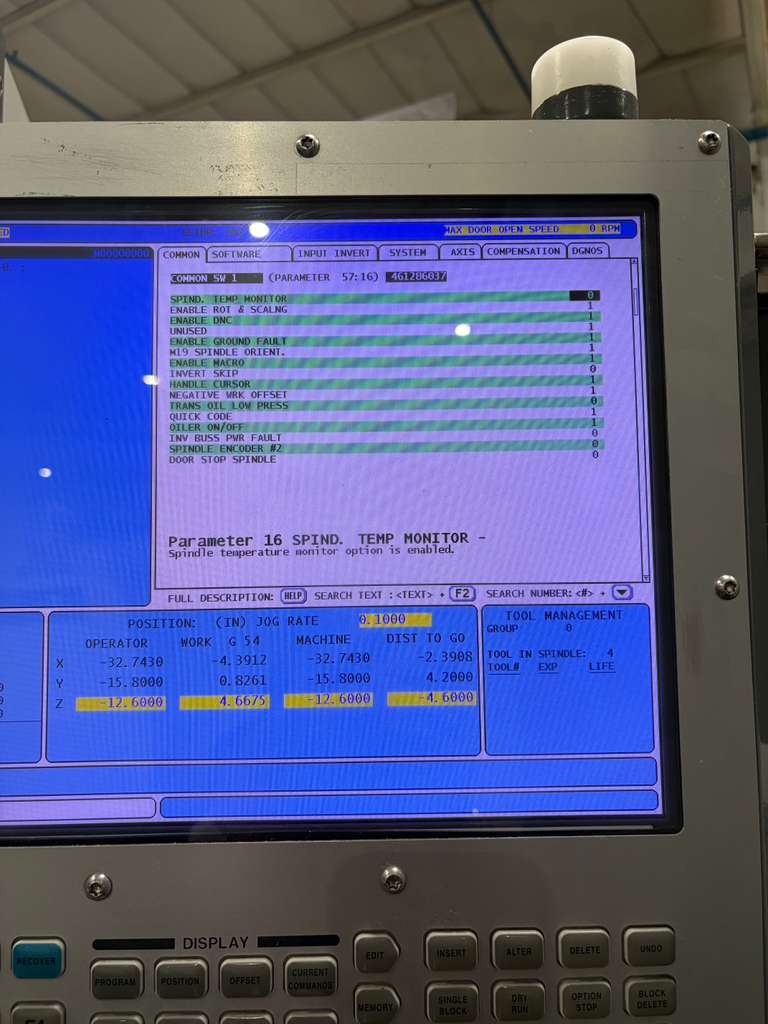

| Enable Rotation & Scaling |
| Enable DNC |
| M19 Spindle Orientation |
| Enable Macro |
| Quick Code |
| Advance Tool Management |
| Enable Hard Drive |
| Enable Networking |
| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X Axis: 64″ |
| Y Axis: 32″ |
| Z Axis: 30″ |
| Rapid Traverse Rates: 1200 IPM |
| Spindle Nose to Table (Min.–Max.): 4″ – 34″ |

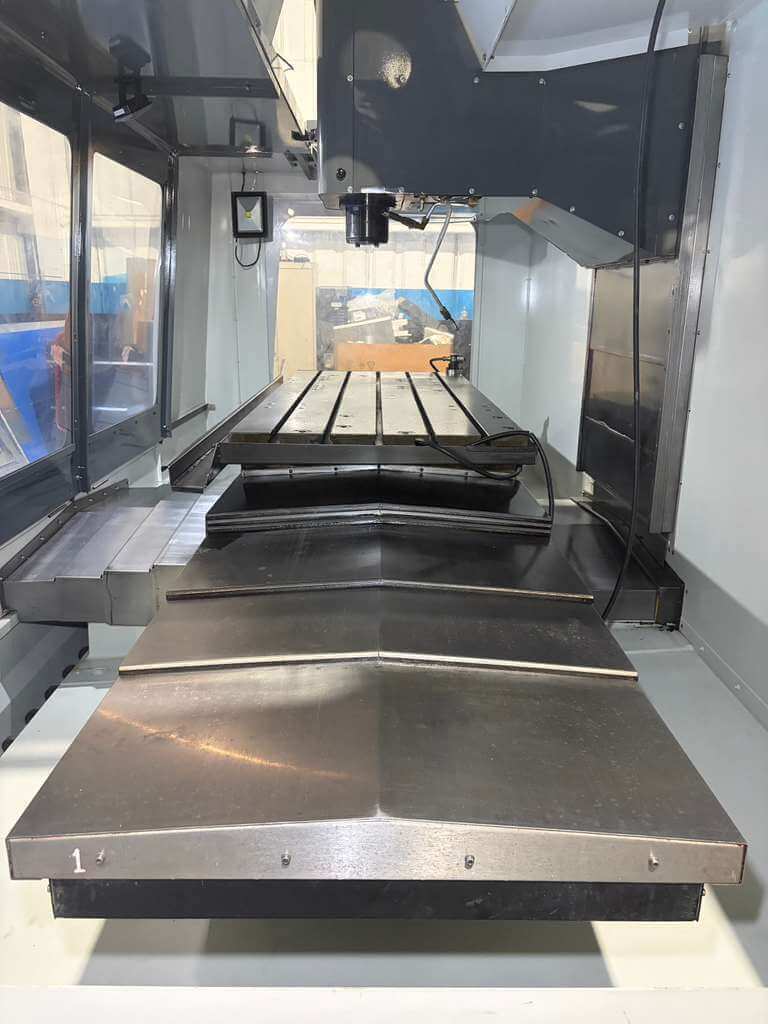

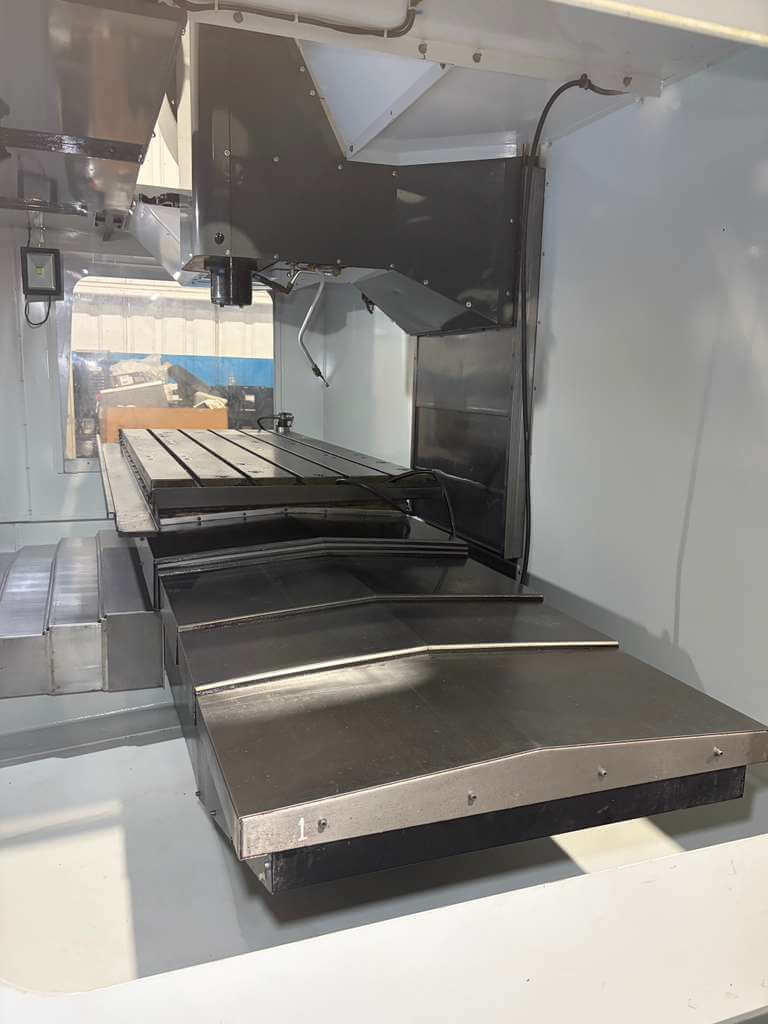

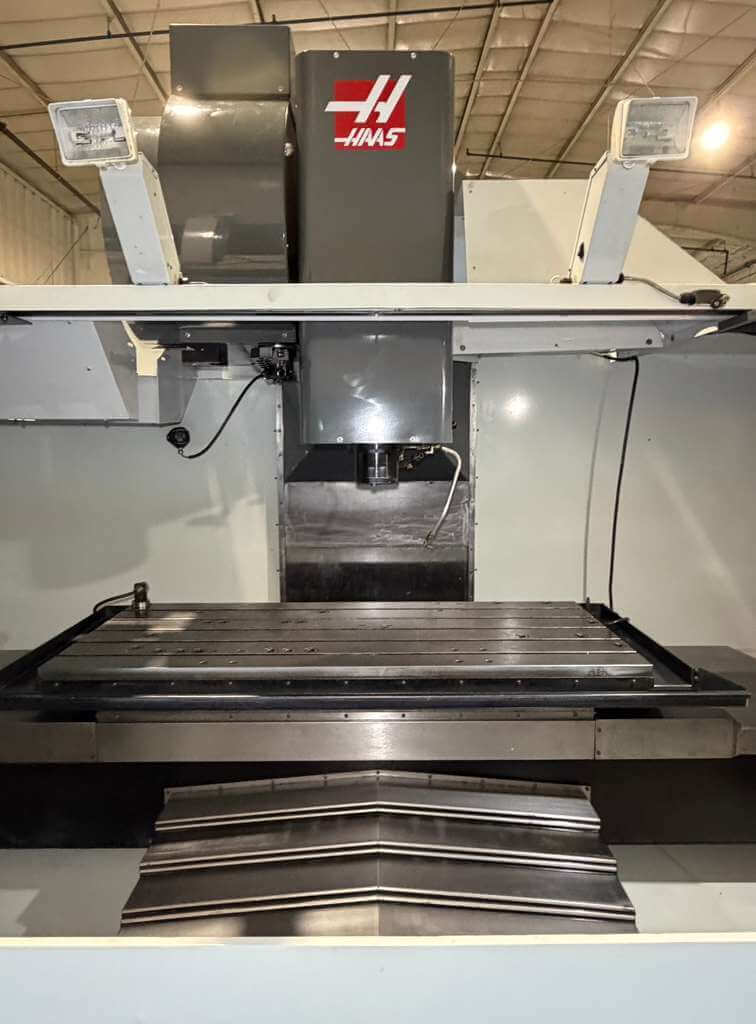

| Table: |
|---|
| Length: 64″ |
| Width: 28″ |
| Number of Standard T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4,000 lbs |

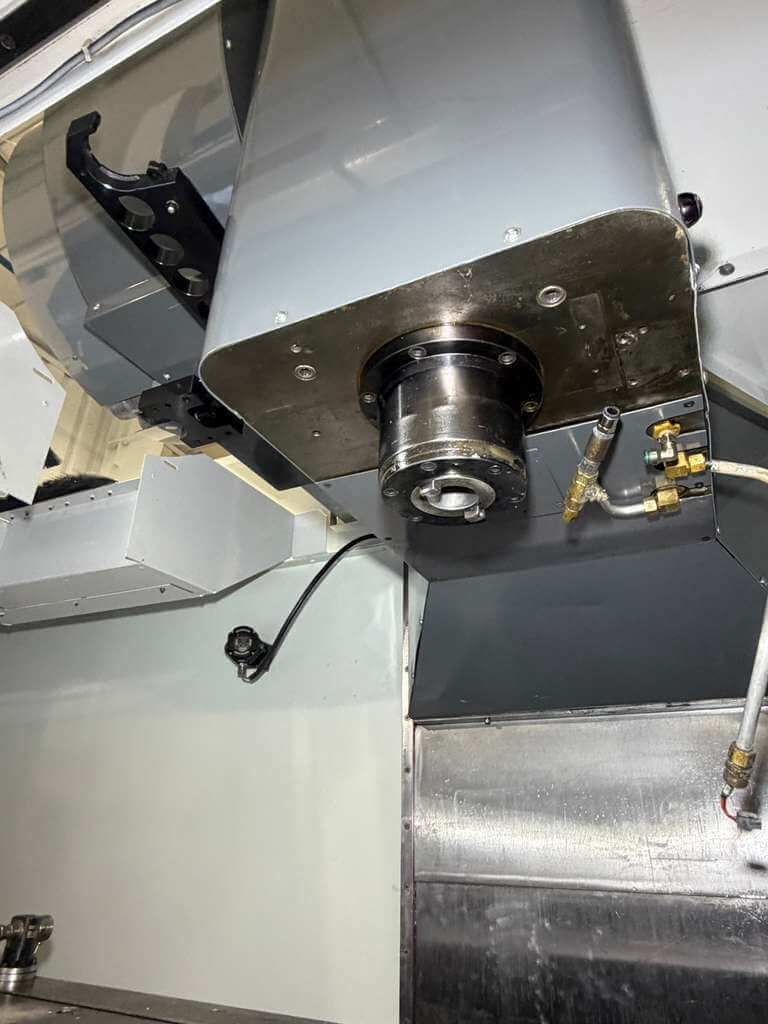

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 15,000 RPM |
| Spindle Power: 20 HP |
| Vector Drive Max Torque: 90 ft-lb @ 2000 RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (Adjacent Empty): 5″ |
| Max Tool Length: 16″ |
| Tool Change Time: 3.6 Seconds |
| General: |
|---|
| Air Required: 100 PSI, 4 scfm |

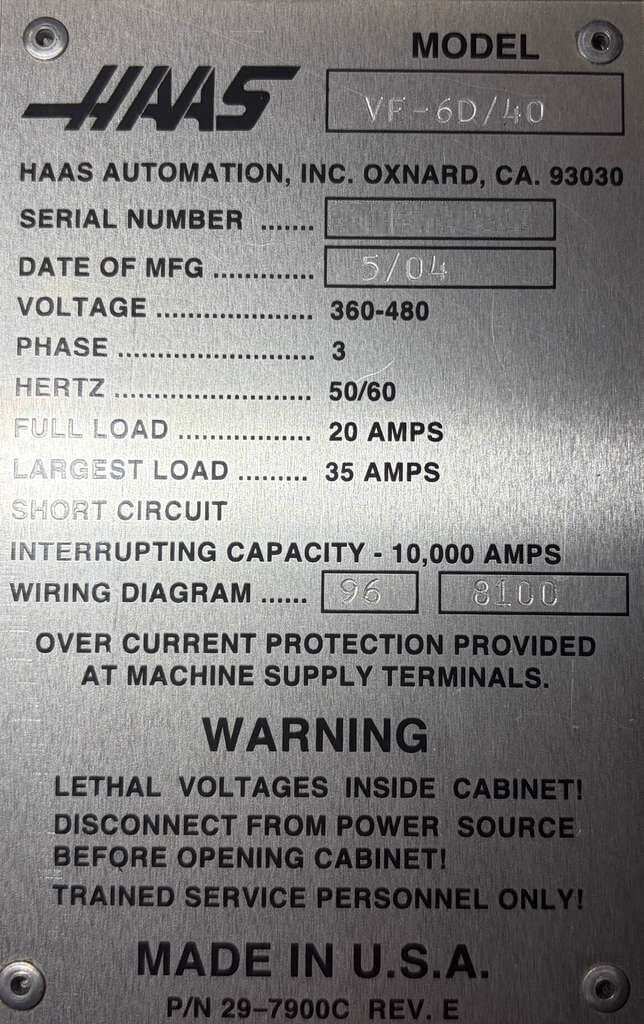

| Power: 360V – 480V / 50–60 Hz / 3-Phase |
| Overall Dimensions: 195″ x 102″ x 129″ High |
| Weight: 22,300 lbs Approx. |
