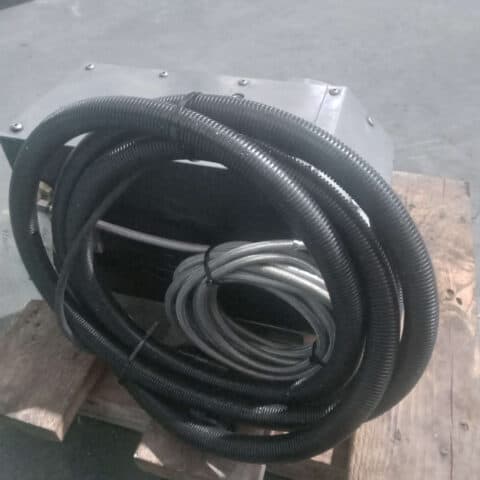

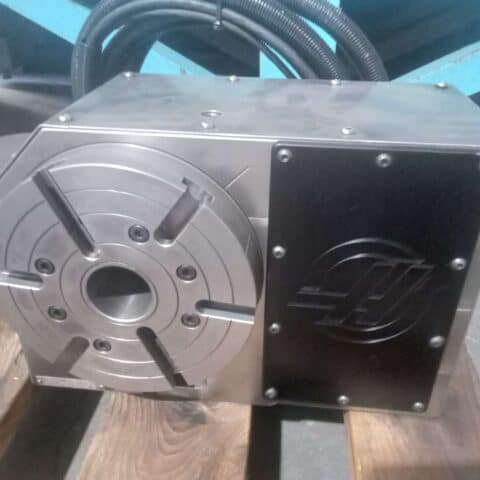

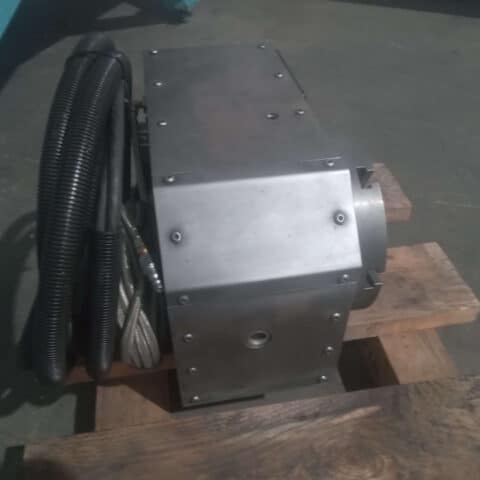

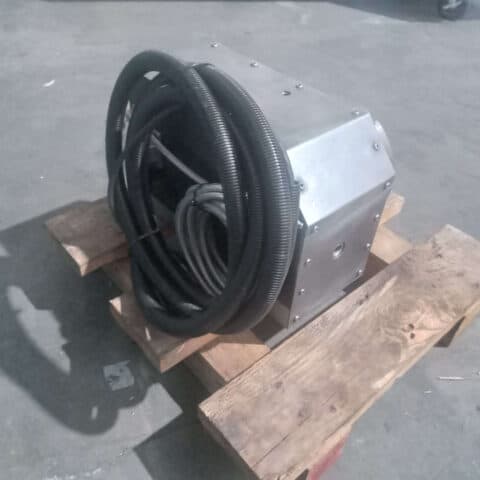

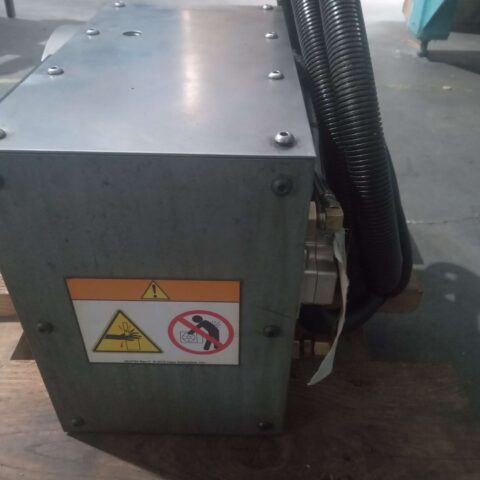

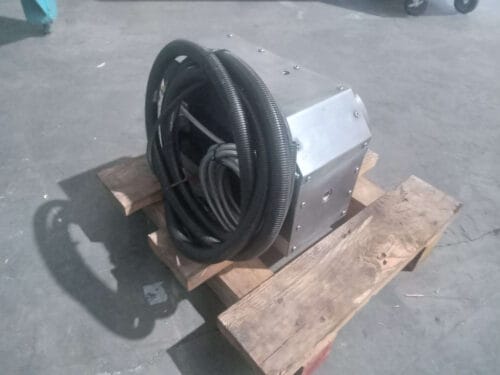

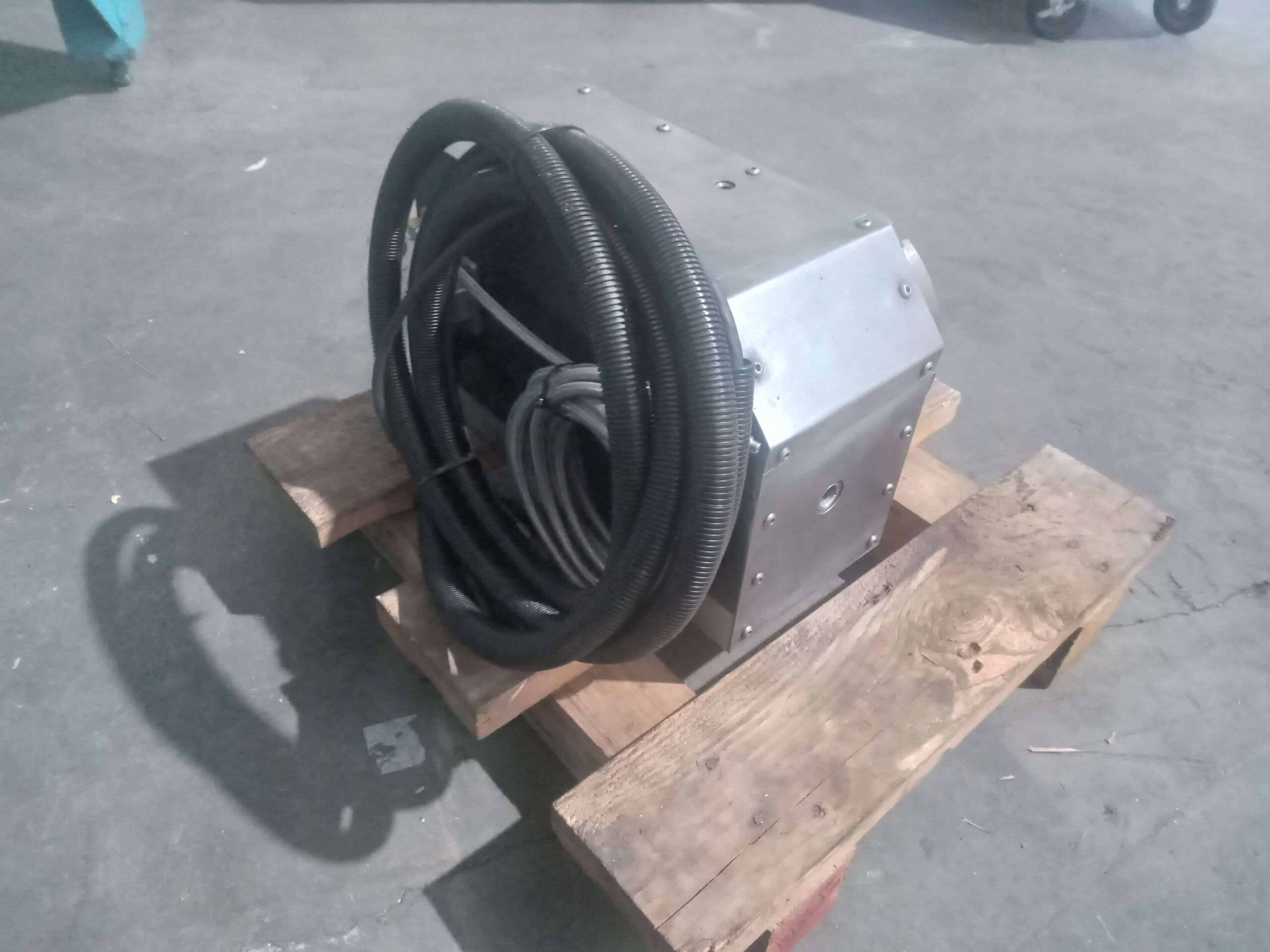

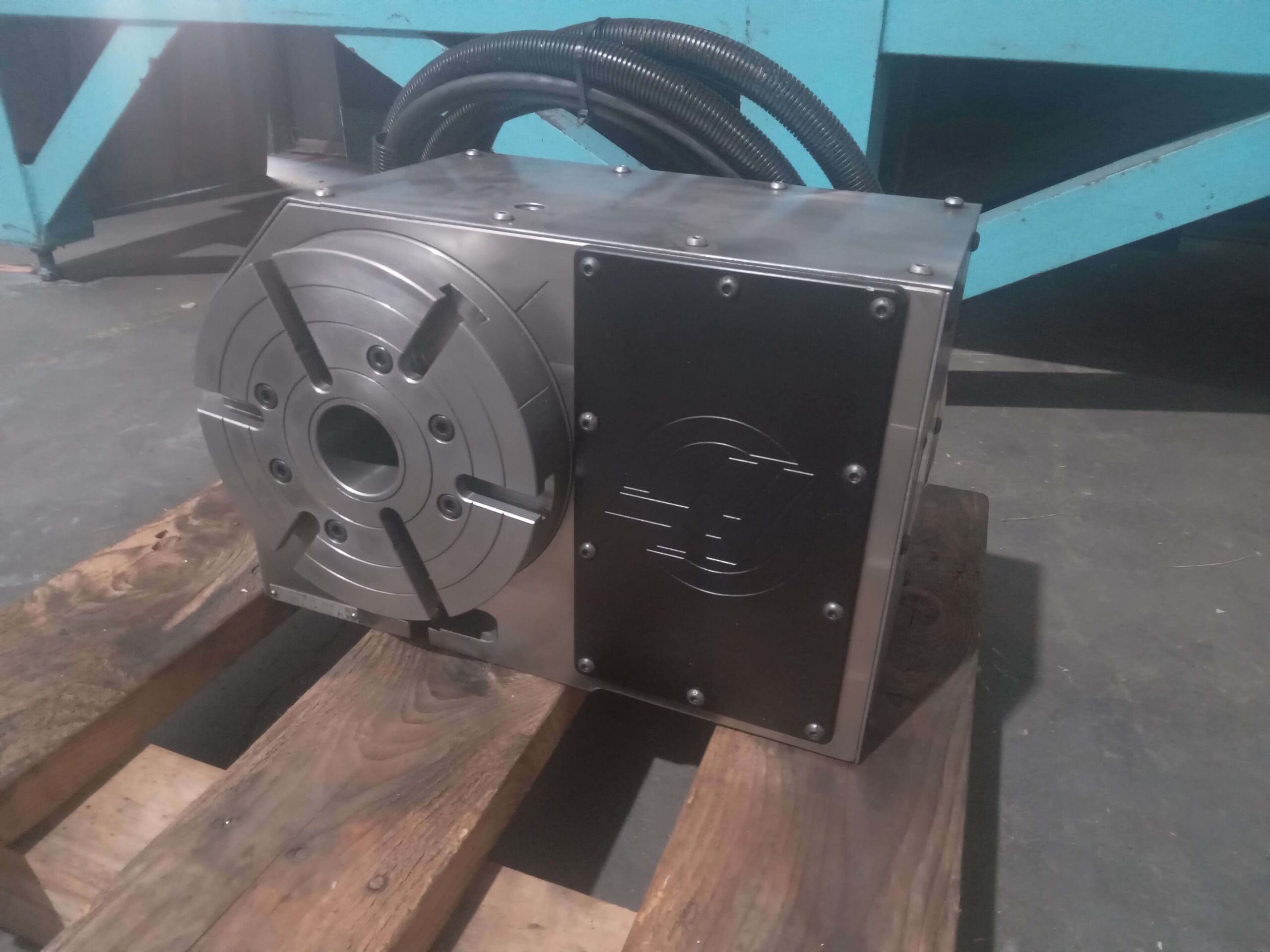

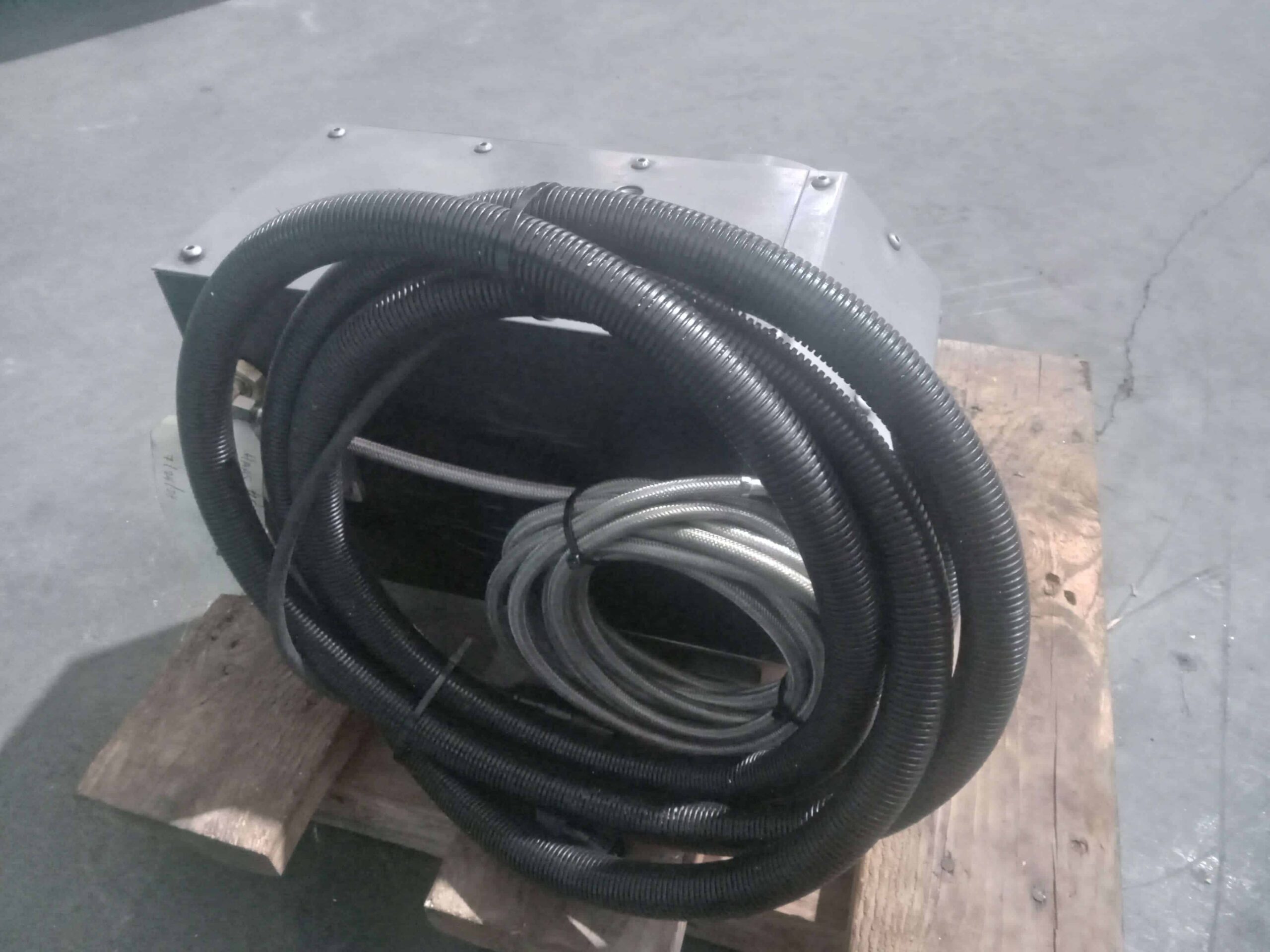

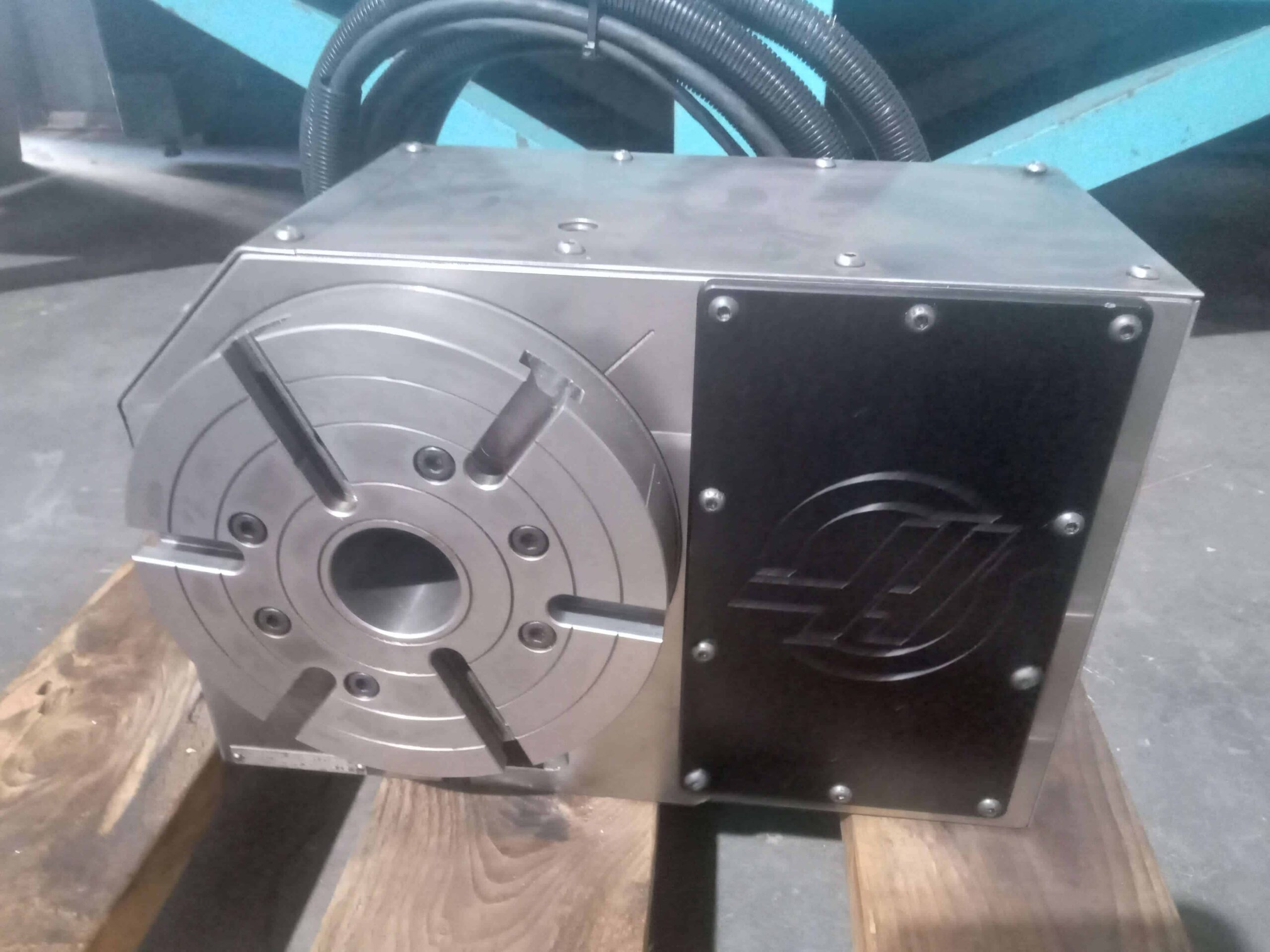

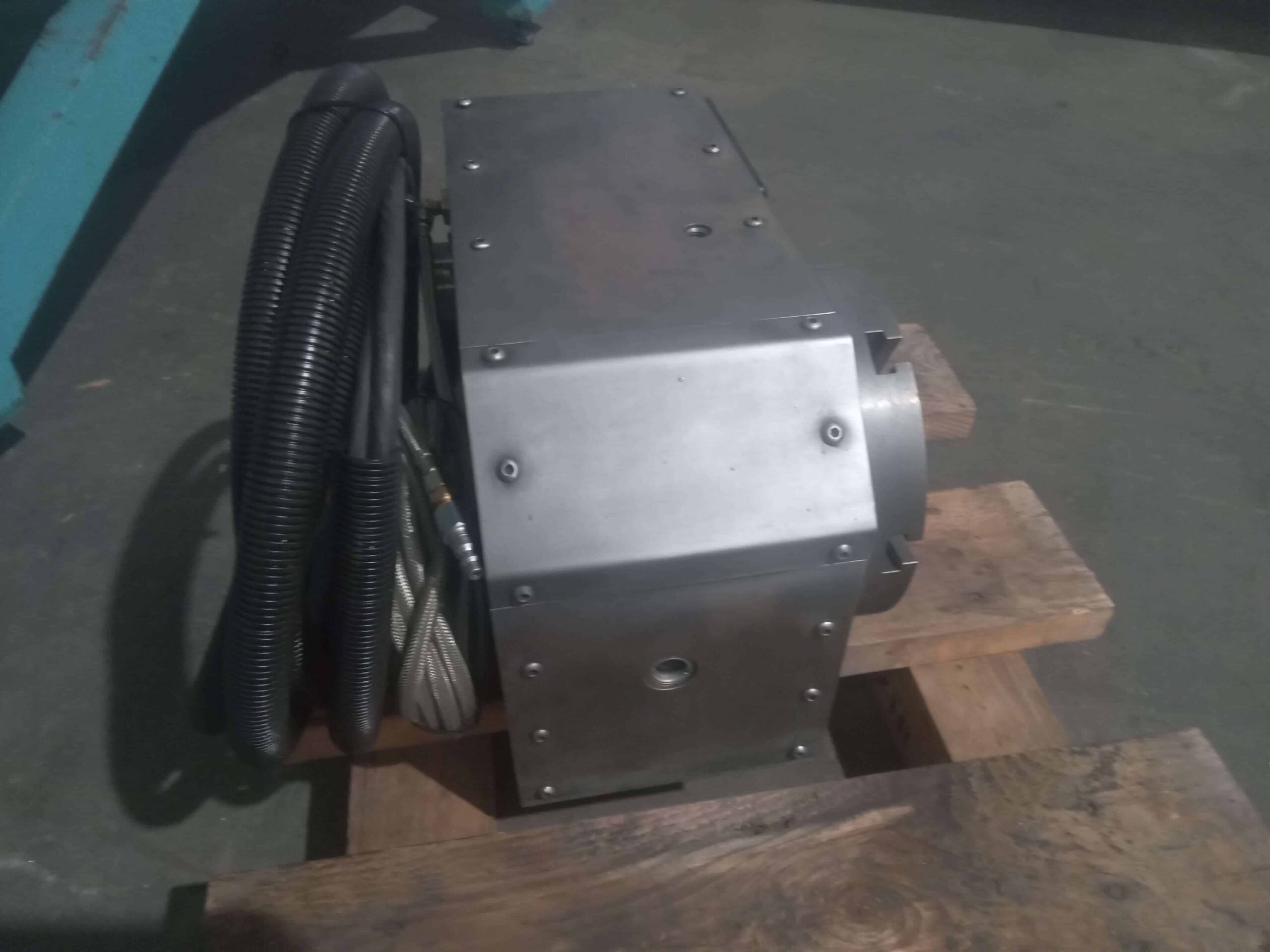

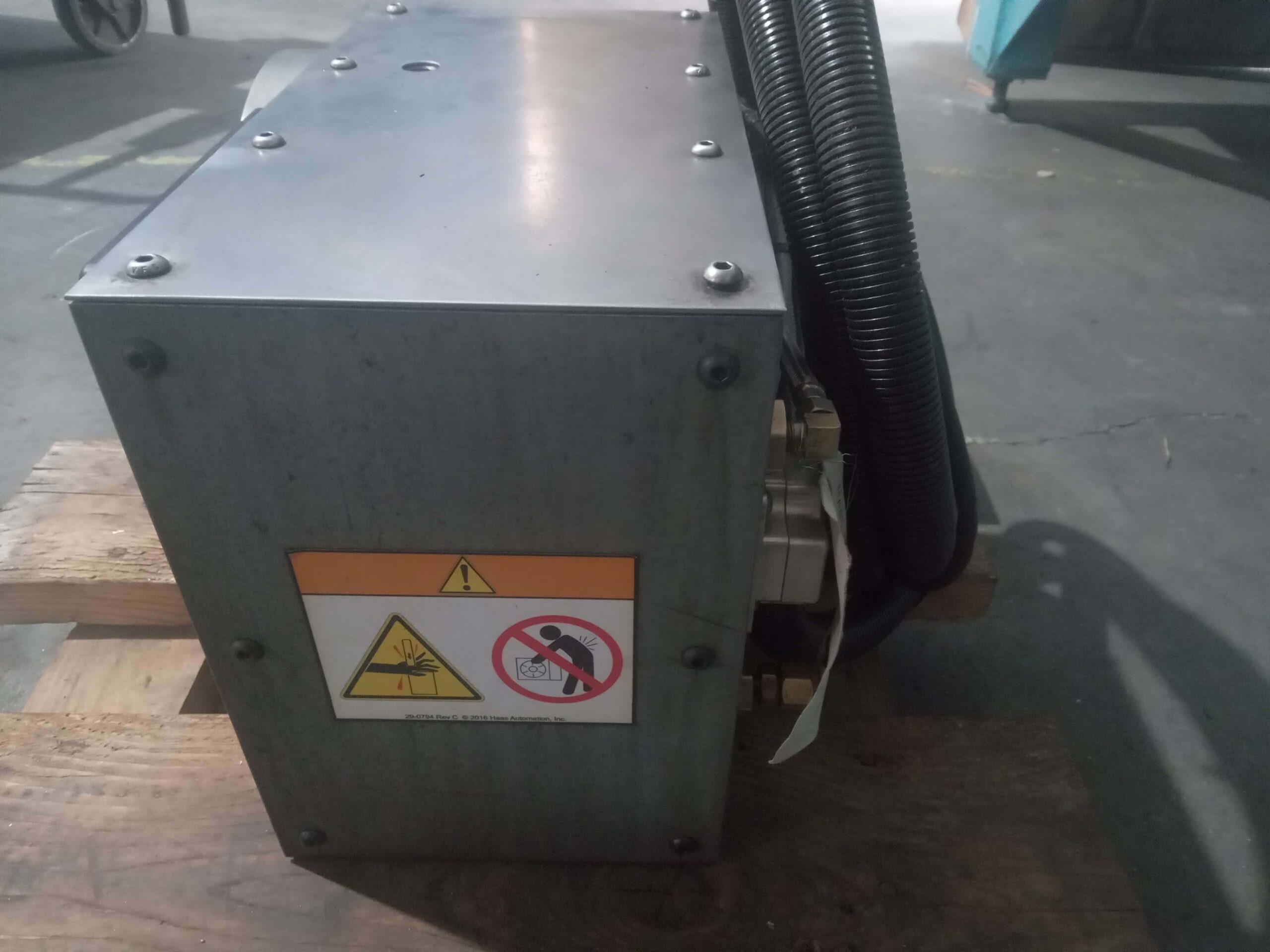

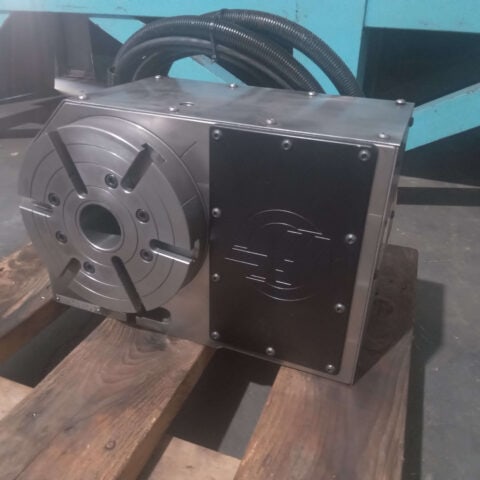

HAAS HRT210SS High Speed Rotary Table 4th Axis Indexer
210 mm 8.3″ Super-Speed Rotary Table
210 mm Super-Speed Rotary Table 8.3″ Rotary Table
Haas MSRP Starting at US US$15,895
HAAS HRT-210SS High Speed Rotary Table 4th Axis Indexer
210 mm 8.3″ Super-Speed Rotary Table
210 mm Super-Speed Rotary Table 8.3″ Rotary Table
Haas MSRP Starting at US US$15,895
| Specifications: | |
|---|---|
| Table Size-X: | 6.3 |
| Table Size-Y: | 6.3 |
| Spec Sheet: | Platter S.A.E METRIC

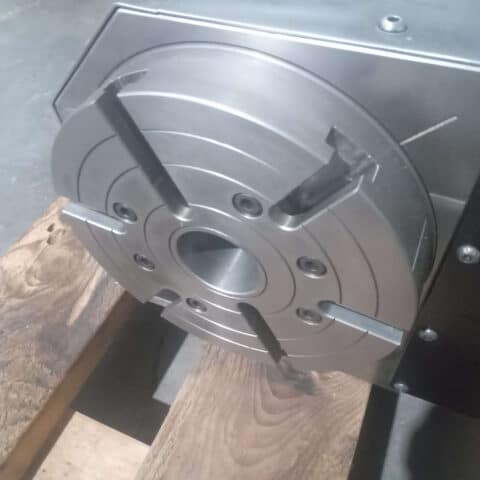

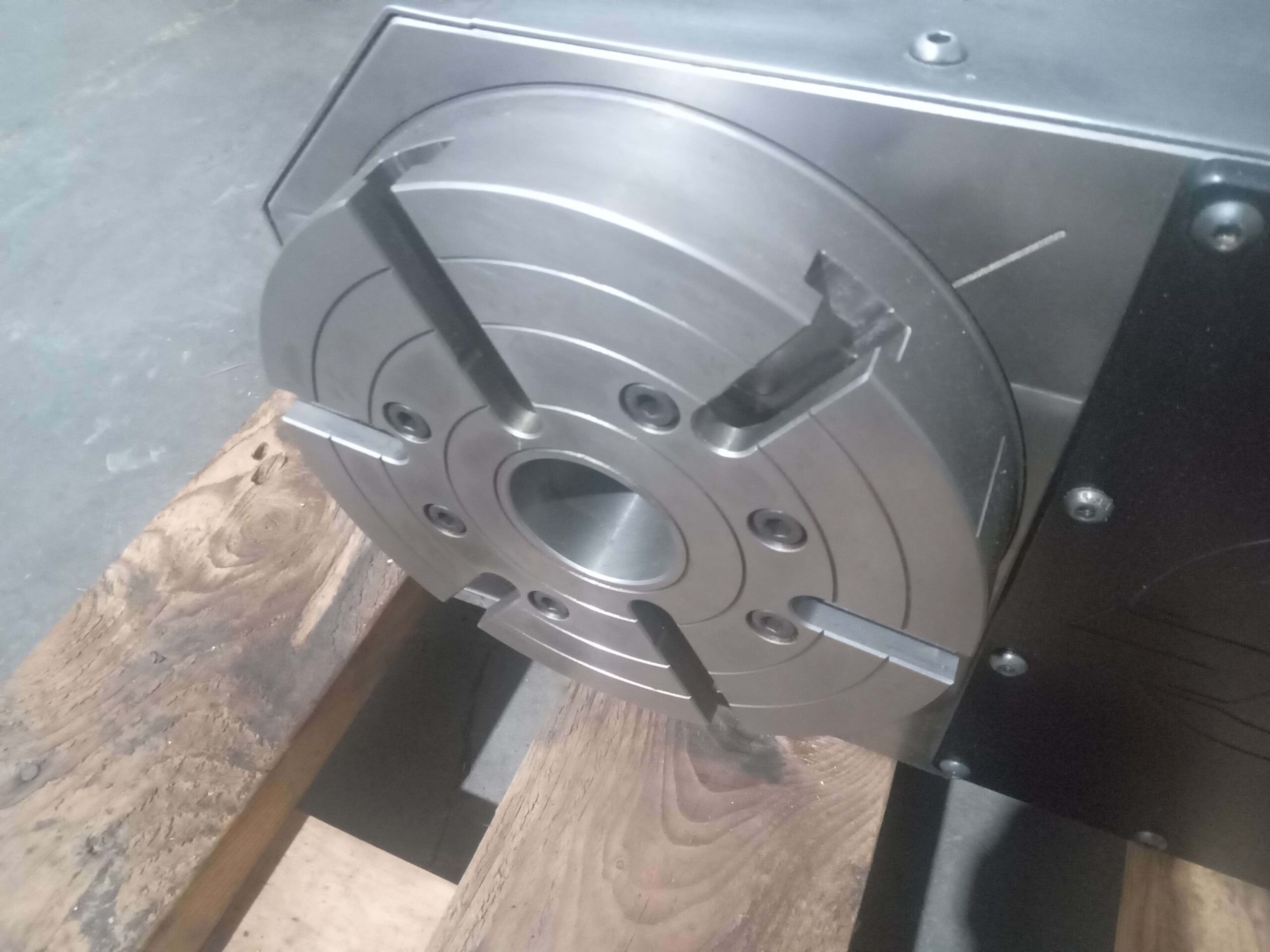

Platter Diameter 8.30 in 210 mm Max Weight on Platter (w/support) 150 lb 68.0 kg Max Weight on Platter (unsupported) 75 lb 34.0 kg Number of Std T-Slots 6 @ 60° 6 @ 60° Spindle S.A.E METRIC Max Speed 490 °/sec 490 °/sec Torque (Continuous) 110 ft-lbf 149 Nm Runout Max 0.0010 in 0.025 mm Center Height 6.000 in 152.40 mm Pilot Bore Diameter 2.0000 in 50.800 mm Through-Bore Diameter 1.4500 in 36.830 mm Backlash 30 arc-sec 30 arc-sec Brake Torque @ 100 psi/6.9 bar 350 ft-lbf 475 Nm Gear Ratio 36.578:1 36.578:1 Timing 1.5:1 1.5:1 Indexing S.A.E METRIC Accuracy (±) ± 30 arc-sec ± 30 arc-sec Repeatability 10 arc-sec 10 arc-sec Resolution 0.001 ° 0.001 ° Worm Gear Dia 6.3 in 160 mm Max Rotation/Step (with rotary control) 999.999 ° 999.999 ° General S.A.E METRIC Power Requirement 115 VAC ±10% @ 15 A 115 VAC ±10% @ 15 A Operating Temp (max ambient) 100 °F 38 °C Air Requirements S.A.E METRIC Air Pressure Max 150 psi 10.3 bar Dimensions – Shipping S.A.E METRIC Export Crate 27.0 in x 21.0 in x 21.0 in 69 cm x 54 cm x 54 cm Weight 205 lb 93.0 kg |
