*All specifications are approximations and are subject to verification. Comes as shown in the images. Additionally, please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112653 |
| Make: | Haas |
| Model: | Super Mini Mill |
| Year of Manufacture: | 2015 |
| Equipped With: |
|---|

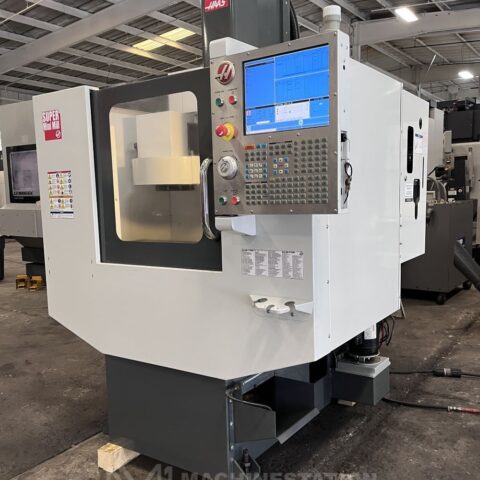

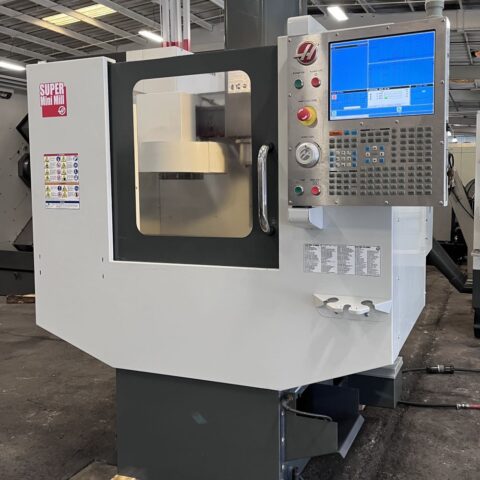

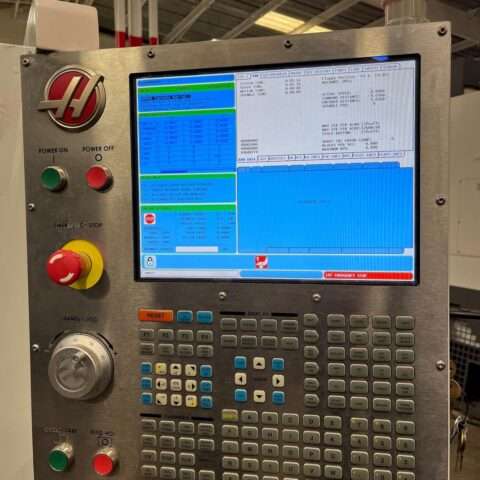

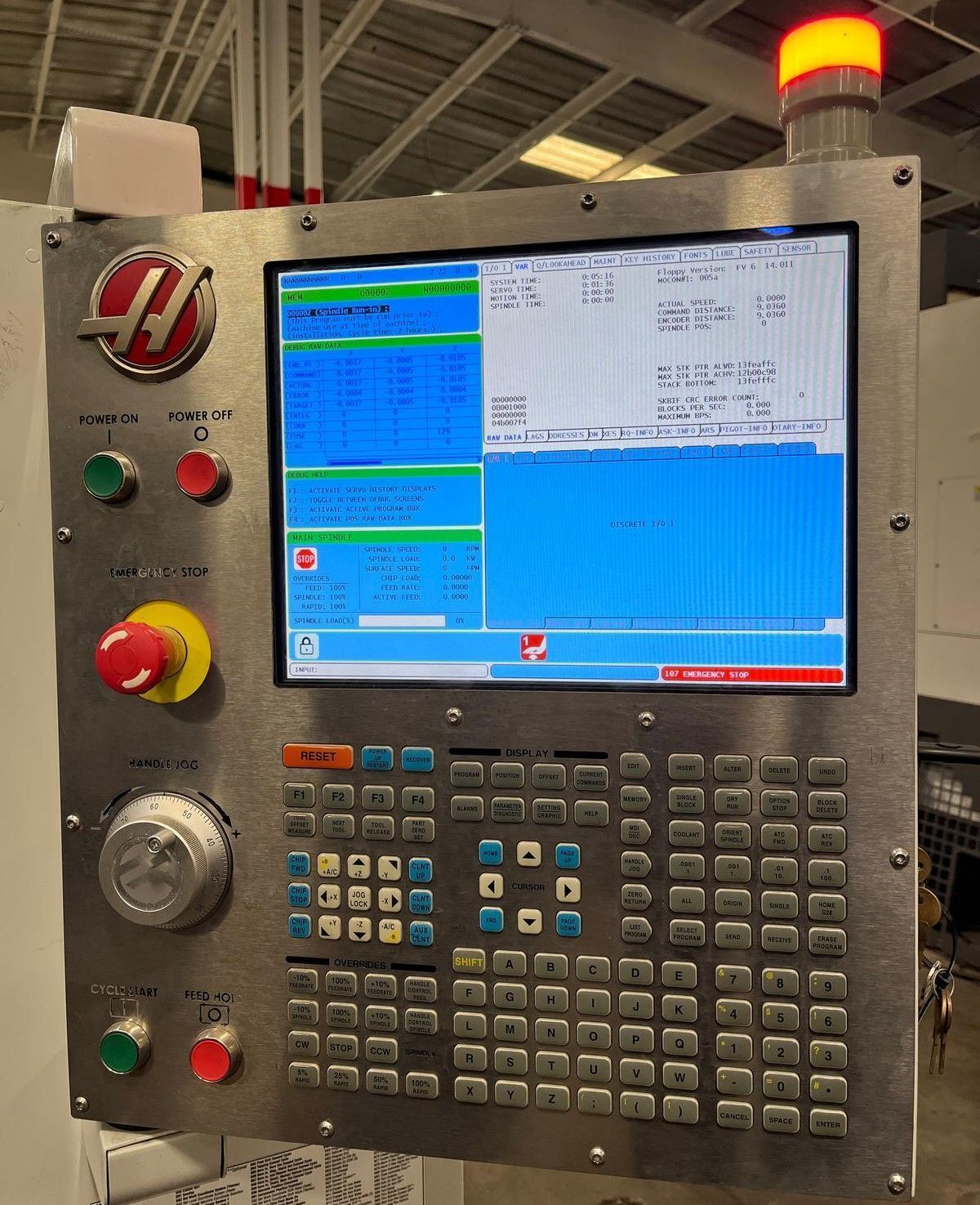

| Haas CNC Control |
| 10000 RPM Spindle |
| 10 Station Automatic Tool Changer |
| Through Spindle Coolant (Upgraded $6695 value Included) |
| High Speed Machining (Upgraded $3495 value Included) |
| Programmable Coolant Nozzle (Upgraded $2095 value Included) |
| Macros Coordinate Rotation and Scaling |
| Expanded Memory |
| Rigid Tapping |
| Spindle Orientation |
| Telescopic way covers |
| Coolant System |

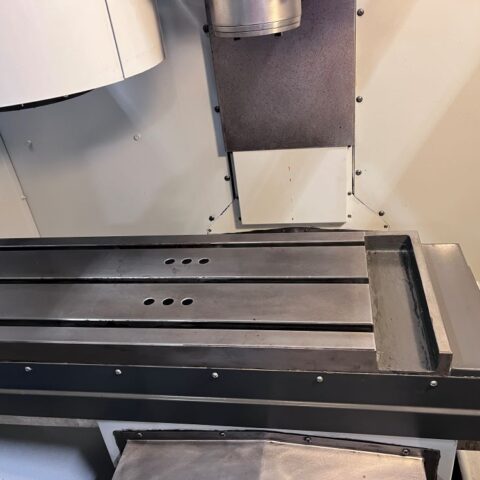

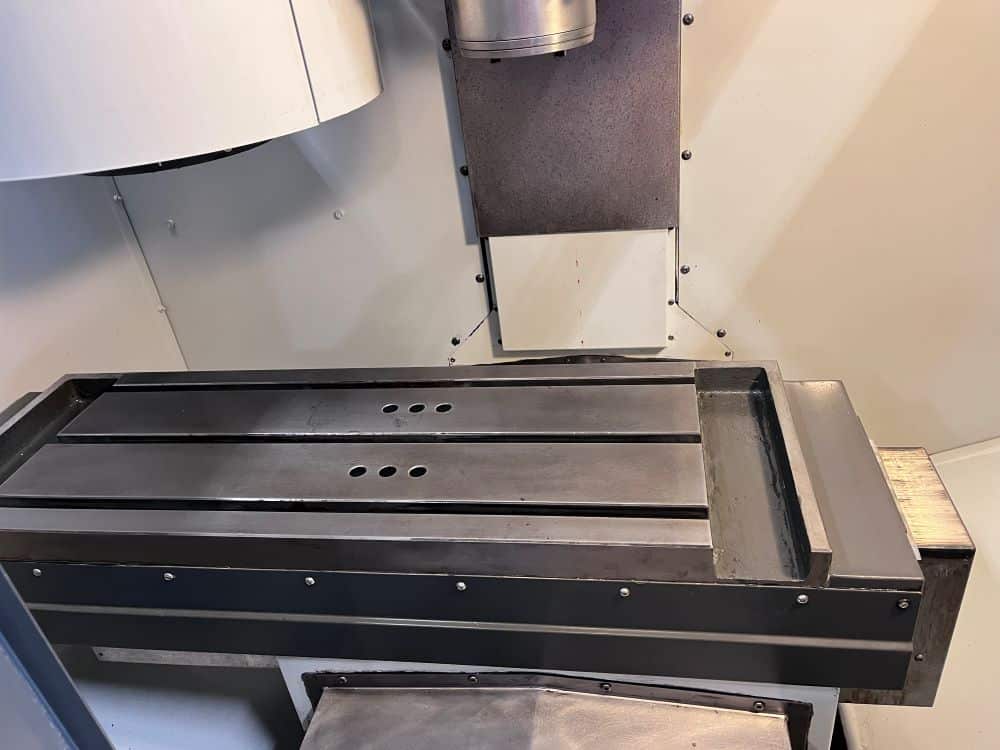

| Table: |
|---|
| Length: 36.0″ |
| Width: 12″ |
| Number of Std T-Slots: 3 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 500 lbs |
| Travel: |
|---|
| X-Axis: 16″ |
| Y-Axis: 14″ |
| Z-Axis: 15″ |
| Rapid Traverse Rates: 1200 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 19″ |

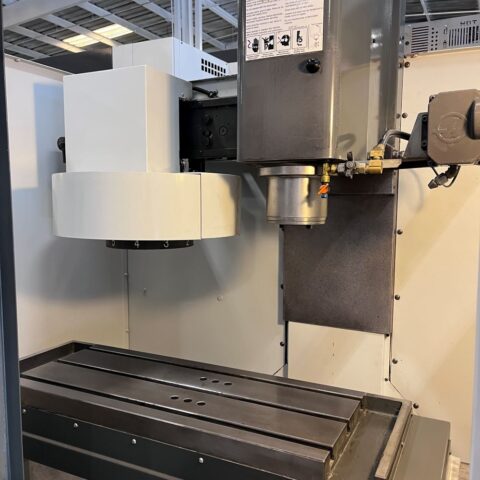

| Automatic Tool Changer: |
|---|
| Capacity: 10 Station Umbrella Type |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 3.5″ |
| Max Tool Length: 11″ |
| Tool Changing Time: 3.6 Seconds |

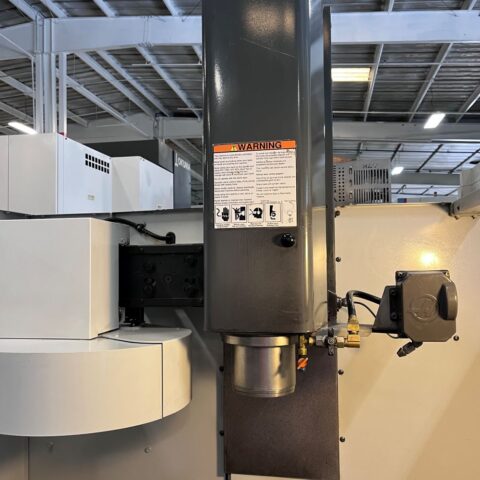

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 10000 RPM |
| Spindle Power: 15 HP |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 90″ x 64″ x 100″ High |
| Weight: 4000 lbs |
