*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | TL-25B |
| Year: | 2007 |
| Features: |
|---|

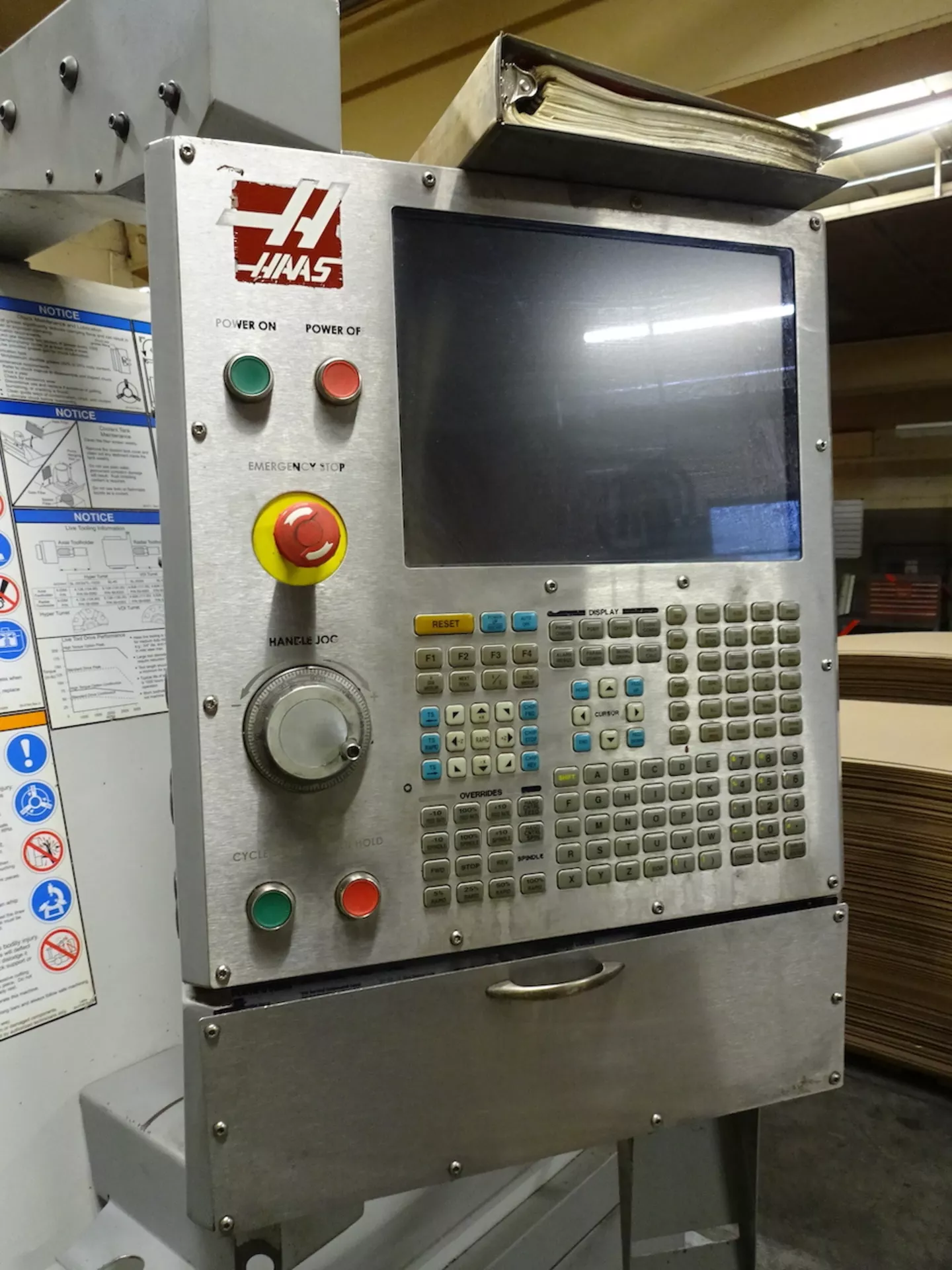

| Haas CNC Control |
| Sub-Spindle |
| Live Tooling |

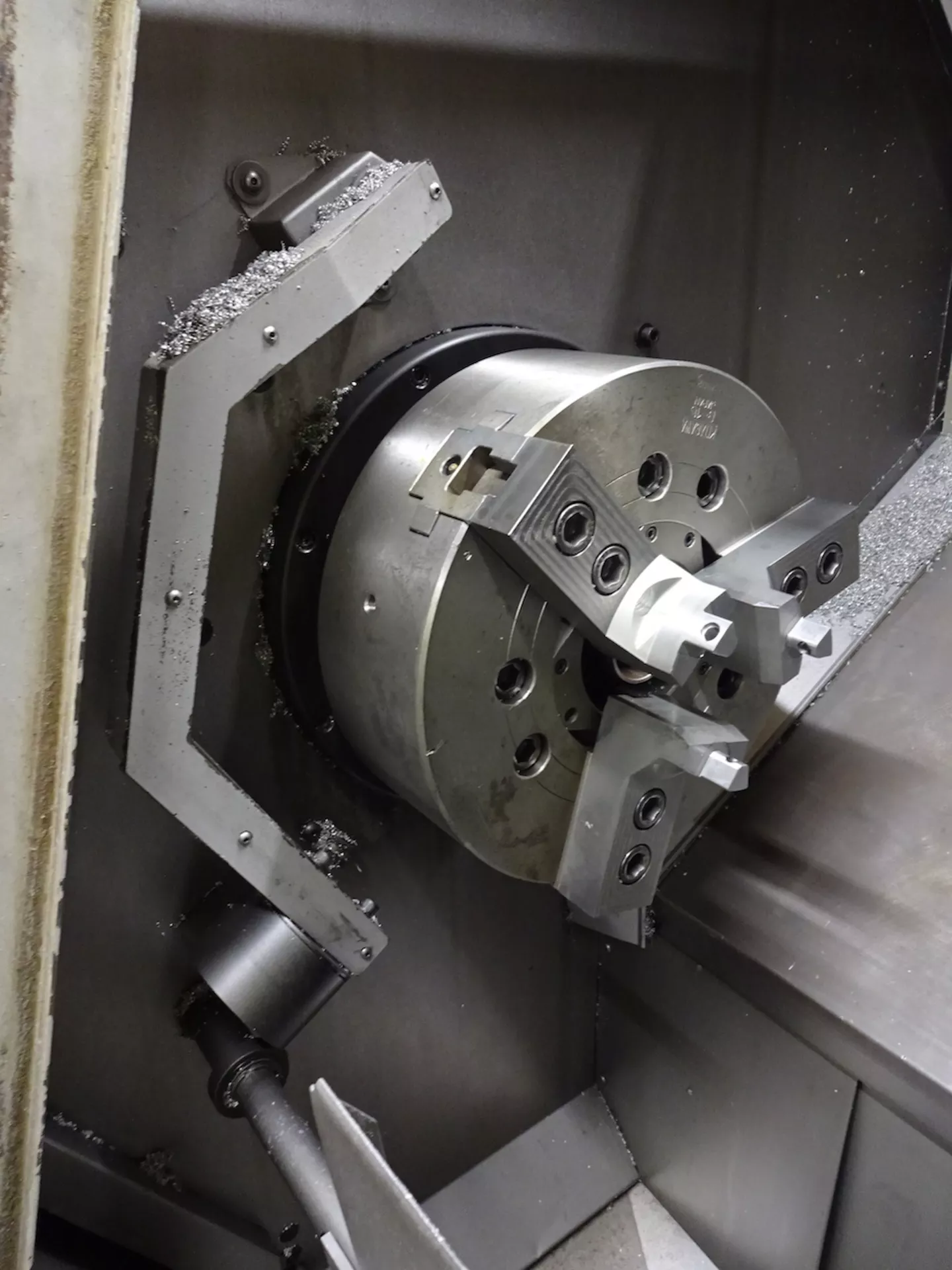

| 15″ 3-Jaw Main Chuck |
| Sub-Spindle Chuck |
| 12-Station Turret |
| Tool Presetter |
| Chip Conveyor |
| Coolant System |
| Parts Catcher |
| C-Axis |
| Big Bore Spindle |
| Hydraulic Chuck System |
| Foot Pedals |
| Work Light |

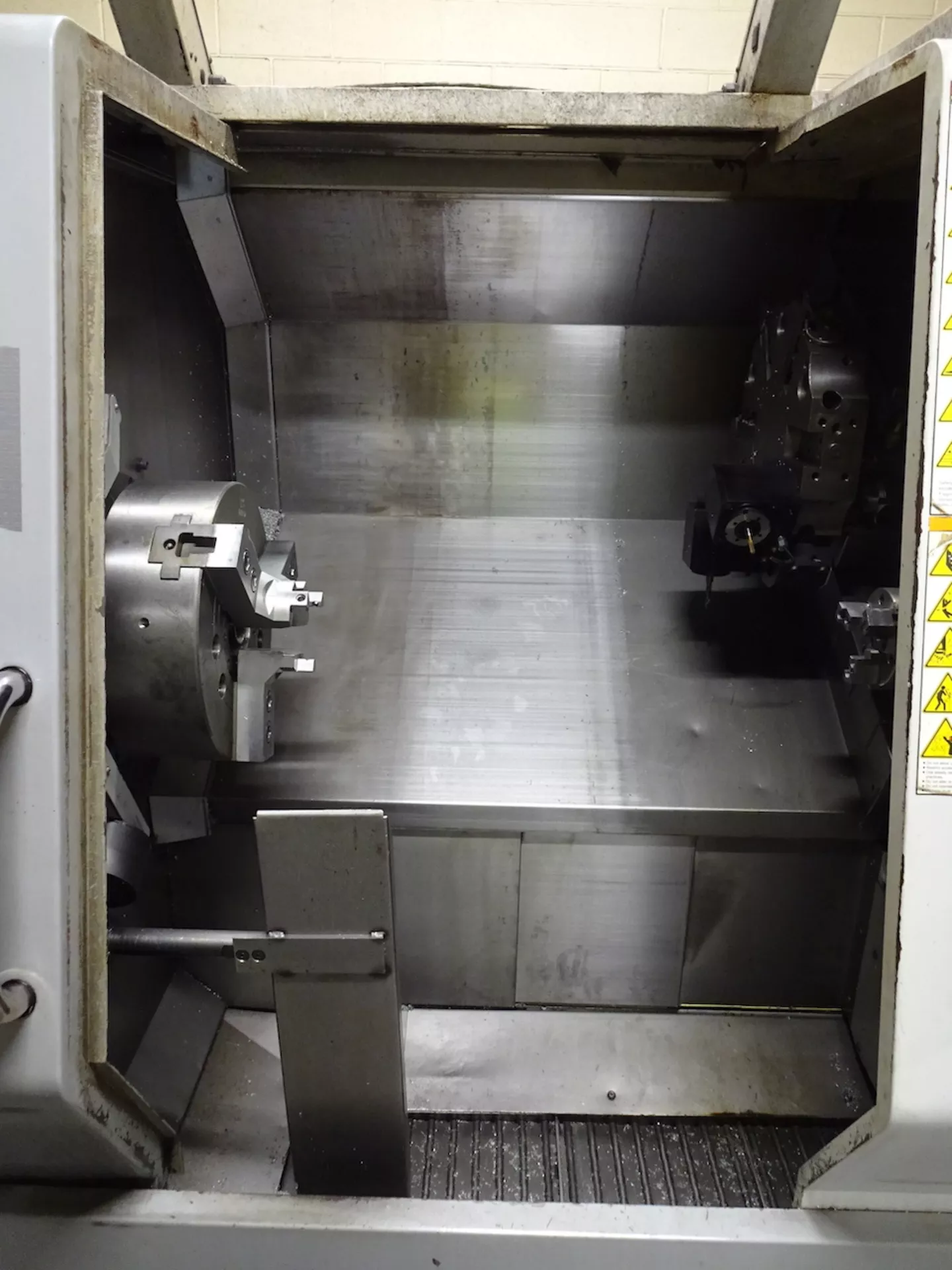

| Enclosed Splash Guard |
| Capacity: |
|---|
| Max Swing: 30″ |
| Max Turning Diameter: 16″ |
| Max Turning Length: 34″ |
| Distance Between Centers: 39″ |
| Max Bar Capacity: 4″ |
| Main Spindle Bore: 4″ |
| Sub-Spindle Bar Capacity: 1.18″ |
| Travels: |
|---|
| X-Axis Travel: 11.3″ |
| Z-Axis Travel: 34″ |
| Rapid Traverse: 710 IPM |
| Main Spindle: |
|---|
| Chuck Size: 15″ |
| Spindle Nose: A2-8 |
| Max Speed: 2,400 RPM |
| Spindle Motor: 40 HP |
| Spindle Bore: 4″ |
| Sub-Spindle: |
|---|
| Sub-Spindle: Yes |
| Max Speed: 4,000 RPM |
| Bar Capacity: 1.18″ |
| Part Transfer Capability: Yes |
| Live Tooling: |
|---|
| Live Tooling: Yes |
| Live Tool Speed: 3,000 RPM |
| Live Tool Motor: 5 HP |
| C-Axis: Yes |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Style: Hybrid VDI/BOT |
| Tool Presetter: Yes |
| General: |
|---|
| Power: 220-220v / 3-Phase / 34.31 kva |
| Machine Dimensions (Approx.): 180″ × 90″ × 95″ |
| Machine Weight (Approx.): 17,000 lbs |
