*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

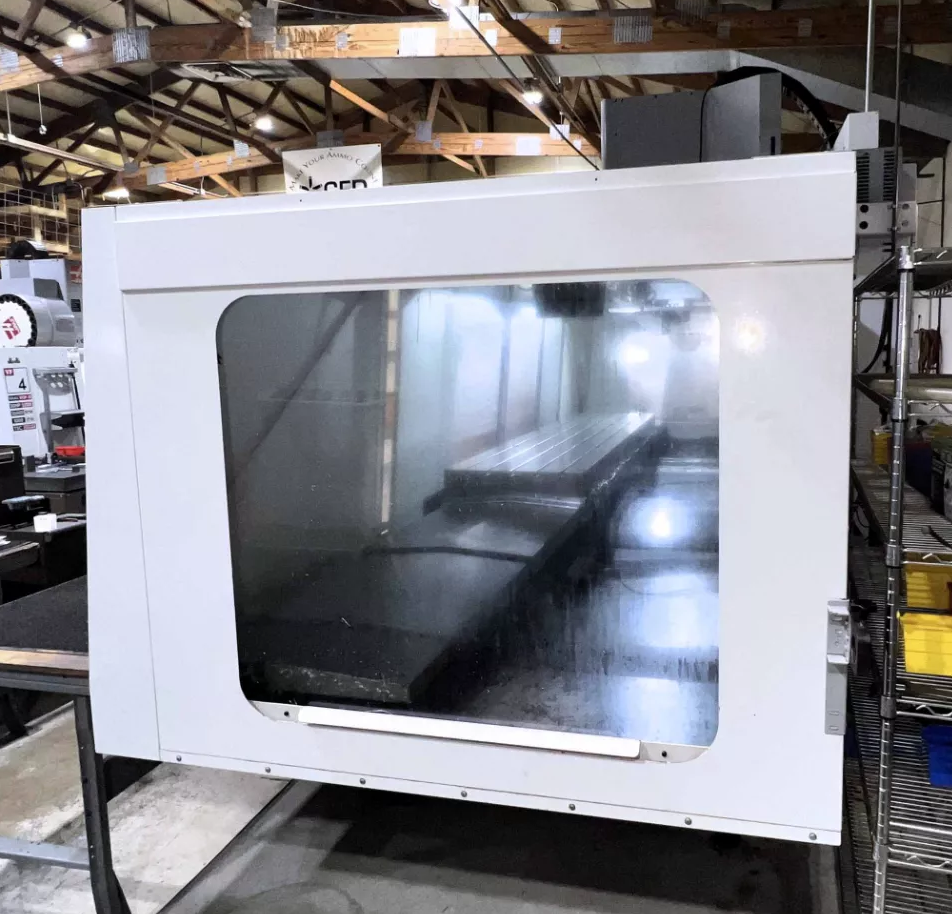

| Make: | Haas |
| Model No.: | VF-10B |
| Year of Manufacture: | 2007 |
| Machine Type: | CNC Vertical Machining Center |
| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| 24+1 Side Mount Tool Changer (SMTC) |
| Rigid Tapping |
| Programmable Coolant |
| Chip Auger / Conveyor |
| 4th Axis Ready |
| High-Speed Machining Capability |
| Full Enclosure |
| Capacity: |
|---|
| Table Size: 120″ x 28″ |
| Max Table Load: 6,000 lbs |
| T-Slots: (5) @ 5.5″ Spacing (Approx.) |
| Travels: |
|---|
| X-Axis Travel: 120″ |
| Y-Axis Travel: 32″ |
| Z-Axis Travel: 30″ |
| Spindle: |
|---|
| Spindle Speed: 7,500 RPM (10,000 RPM Optional) |
| Spindle Motor: 30 HP Vector Drive |
| Taper: CT40 |
| Drive Type: Inline Direct Drive |
| Tooling: |
|---|
| Tool Capacity: 24 + 1 Tools |
| Tool Change Time: ~4.2 sec (Tool-to-Tool) |
| Max Tool Weight: 12 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X, Y, Z): 710 IPM |
| Cutting Feed Rate: Up to 650 IPM |
| Accuracy: |
|---|
| Positioning Accuracy: ±0.0002″ |
| Repeatability: ±0.0001″ |
| General: |
|---|
| Power Source: AC 220 V, 3-Phase, 60 Hz |
| Air Requirement: 100 PSI |
| Machine Dimensions (L x W x H): 244″ x 140″ x 135″ |
| Machine Weight: 26,000 lbs. Approx. |
