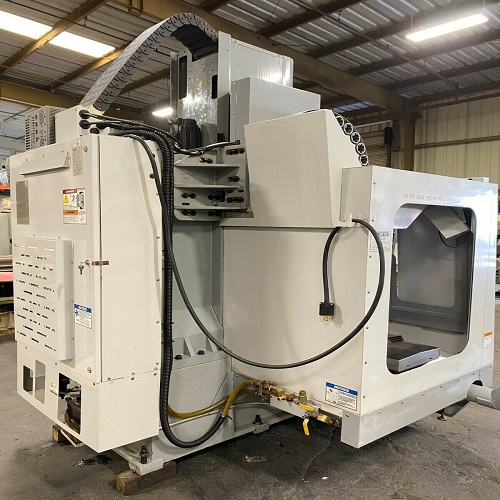

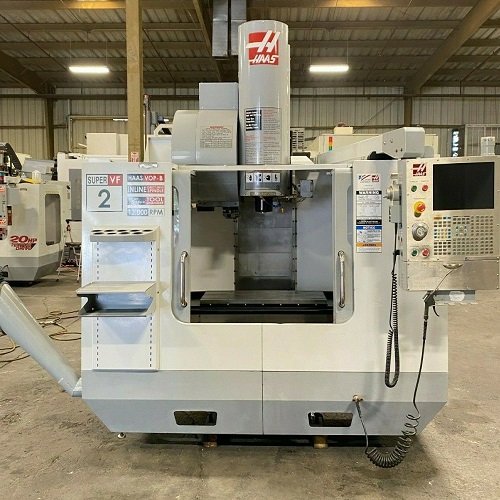

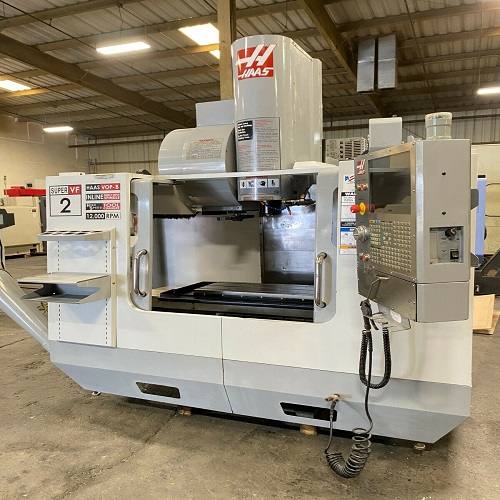

Haas VF-2SS CNC Vertical Machining Center
Out of stock
SKU: |
2243 |
Make/Model: |
Haas/VF-2SS |
Video: |
[fusion_button link=”https://www.youtube.com/watch?v=6AhymN5bC0A” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color_hover=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_top_color=”” button_gradient_bottom_color_hover=”” button_gradient_bottom_color=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_hover_color=”” accent_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_hover_color=”” border_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button] |
- Equipped With:

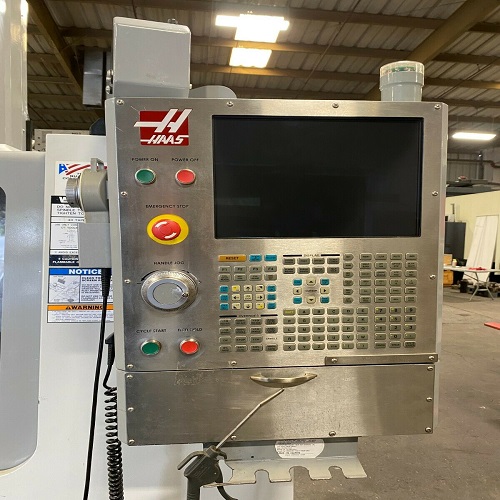

- Haas CNC Control
- 12000 RPM Inline Direct Drive Spindle

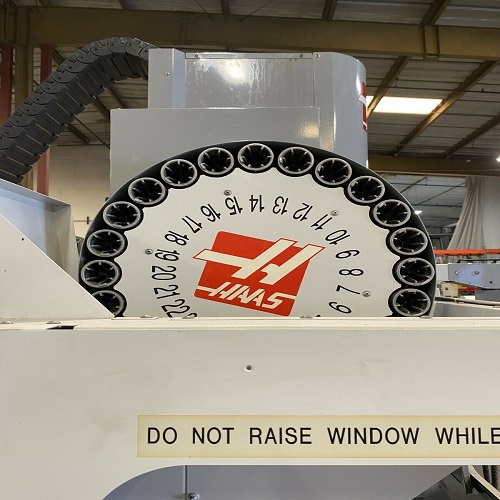

- 24 Side Mount Automatic tool changer
- Remote Jog Handle
- 4th Axis Ready
- Coordinate Scale
- Rigid Tapping
- Spindle Orientation
- Programmable Coolant
- Automatic Chip Auger
- Coolant Tank and Pump

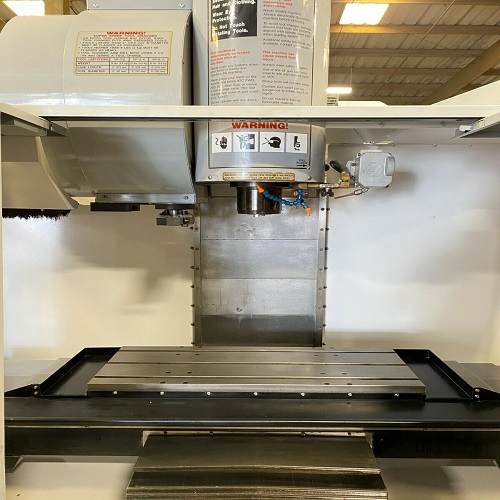

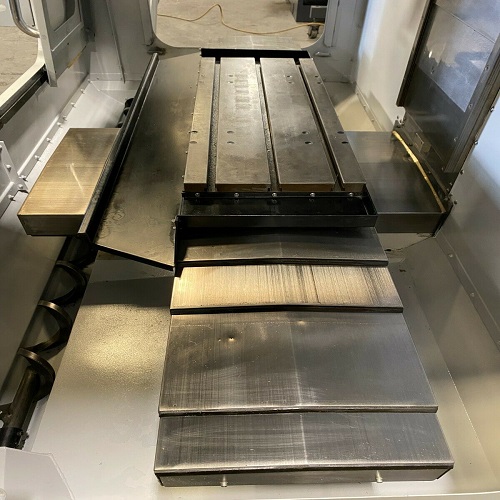

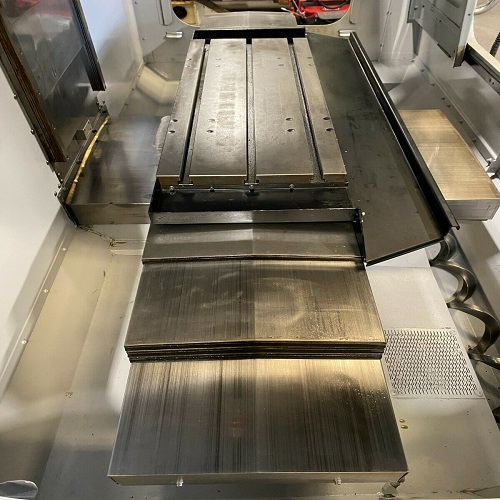

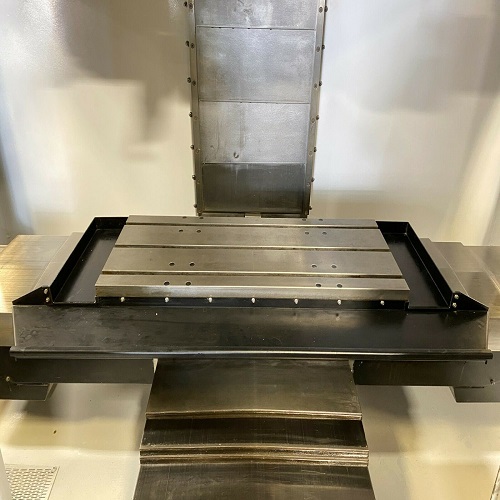

- Table:
- Length: 36.0″
- Width: 14.0″
- Number of Std T-Slots: 3
- T-Slot Width: “
- Max Weight on Table: 1500 lbs
- General:
- Air Required: 100 psi, 4 scfm

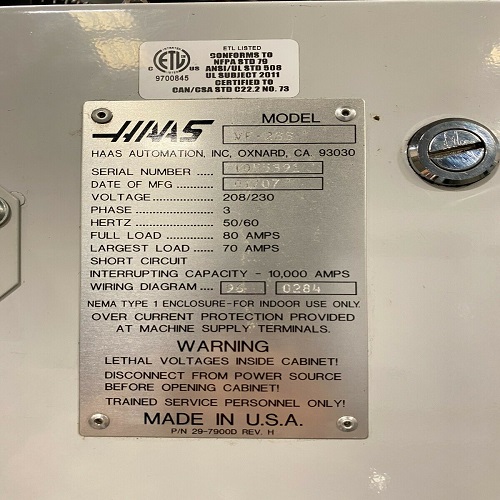

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: ” x ” x ” High
- Weight: 9200 lbs
- Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 12 lbs
- Max Tool Dia: 5″
- Max Tool Length: 11″
- Tool Changing Time: 1.6 Seconds
- Spindle:
- Taper Size: 40
- Speed Range: 12000 RPM
- Spindle Power: 30 HP
- Vector Dual Drive Max Torque: ft-lb @ RPM
- Travel:
- X-Axis: 30″
- Y-Axis: 16″
- Z-Axis: 20″
- Rapid Traverse Rates: 1400 Inch Per Minute
- Cutting Feed Rates: 833 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4″ – 24″
