Sold

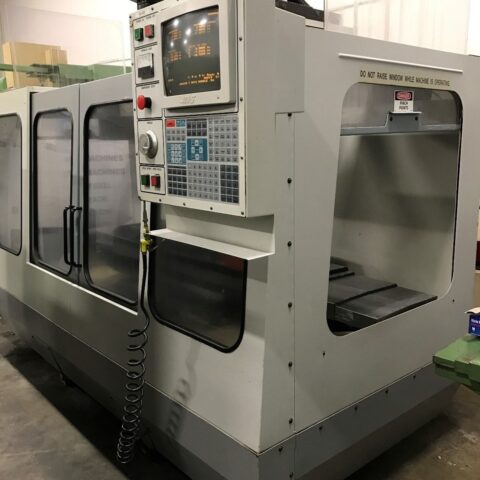

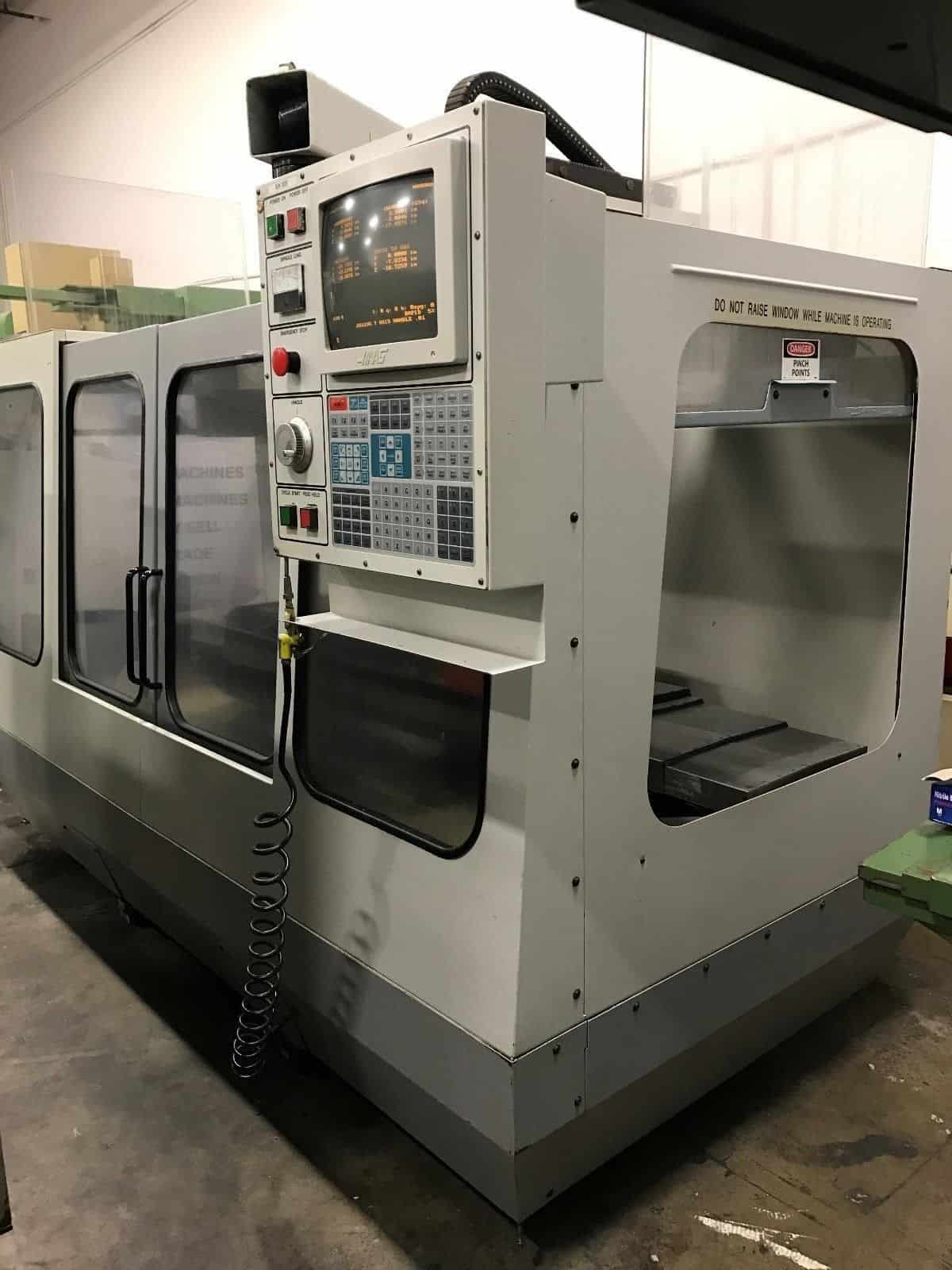

Haas VF 3 CNC Vertical Machining Center
Out of stock
| Make |
Haas |
| Model No. |
VF-3 |
| Year of Manufacture: |
07/94 |

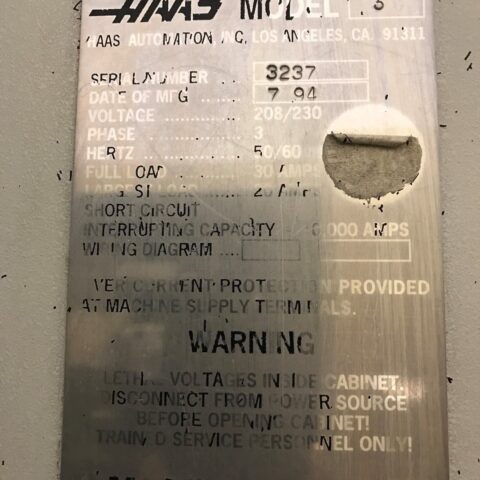

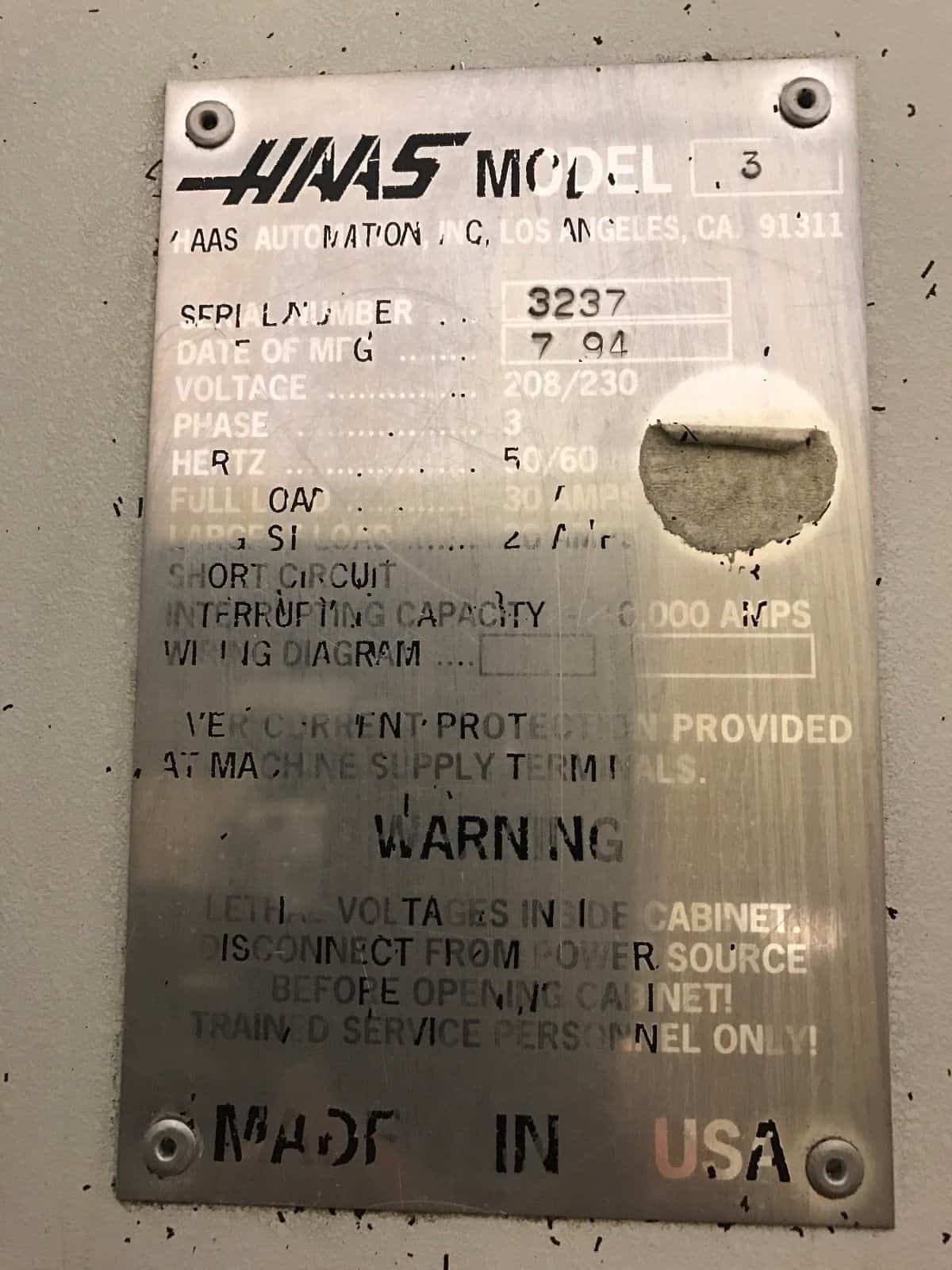

| Serial # |
3237 |
| Condition |
Very Good |
-
HAAS VF 3 Equipped With:
- 4th Axis Ready (Drive and Cables Installed)
- 7500 RPM Spindle
- 15HP High Torque Spindle
- Programmable Coolant
- RS 232
- Brushless Servo Motors
- Full Enclosure
- Rigid Tapping
- 20 Tool Automatic Tool Changer
- Quick Code Programming
- Chip Auger
-
HAAS VF 3 Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 20″
- Z-Axis: 25″
- Rapid Traverse Rates: 1000 Inch Per Minute
- Cutting Feed Rates: 650 IPM
- Spindle Nose to Table (Min.- Max.): 4″ – 29″
-

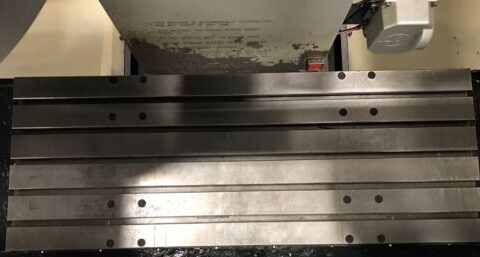

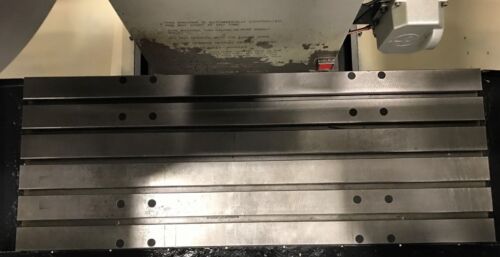

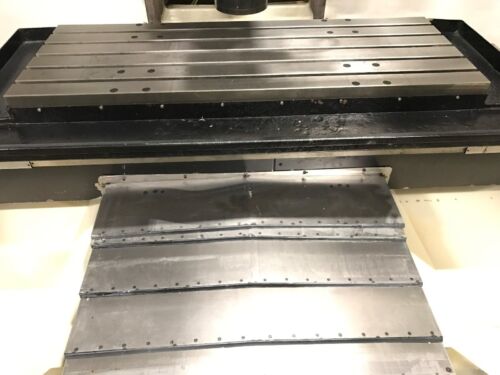

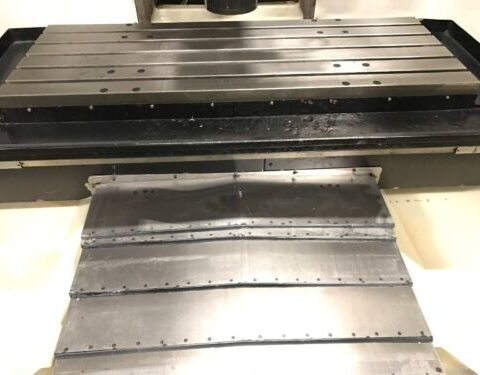

Table:
- Length: 48″
- Width: 18″
- Max Weight on Table: 3500 lbs
-
Spindle:
- Taper Size: No. 40
- Speed Range: 60 – 7500 RPM
- Spindle Power: 15 HP
-
Automatic Tool Changer:
- Capacity: 20
- Max Tool Weight: 12 lbs
- Max Tool Length: 16″
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 120″ x 110″ x 105″ High
- Weight: 12500 lbs
