Haas VF 3B Vertical Machining Center

This One Owner Original Paint Machine has 10,000rpm, 30 HP thru Coolant Spindle, 4th Axis Ready, 1MB Memory. On our Floor now, fully powered / tested & is in Great working condition. check *VIDEO*”

Out of stock

Product Description

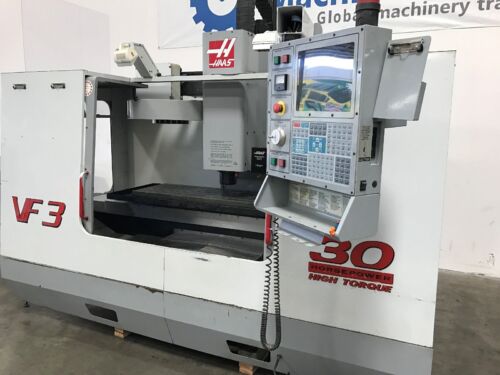

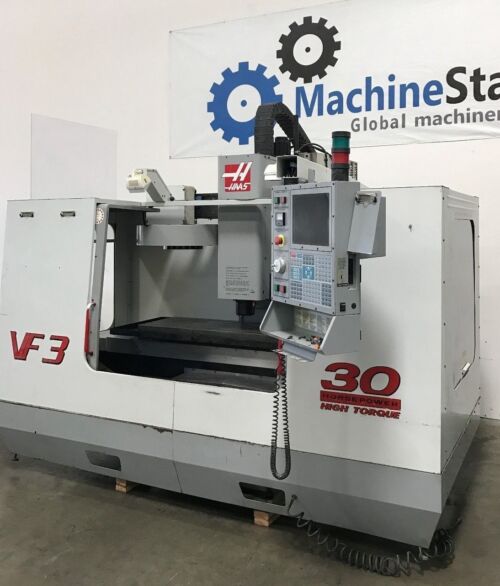

HAAS VF 3B VERTICAL MACHINING CENTER

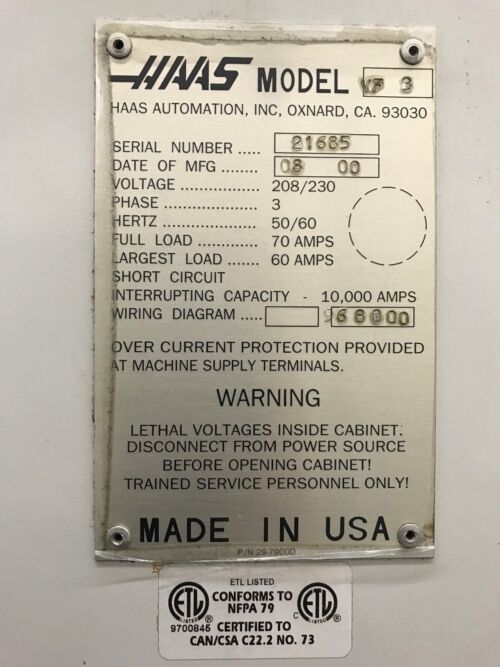

Make: Haas
Model No.: VF-3B

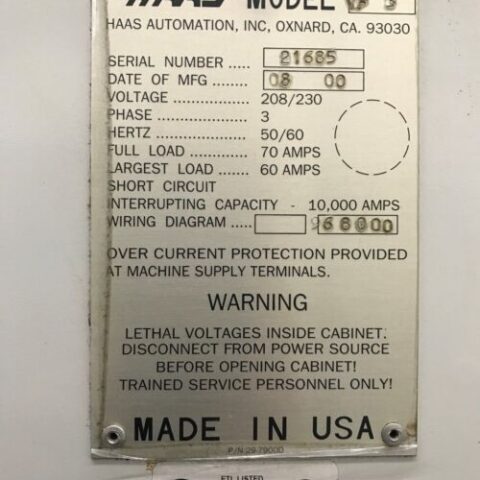

Serial No.: 21685
Year of Manufacture: 08/2000
Condition: Very Good

All specifications are approximations, and are subject to verification.

This One Owner Original Paint Machine has 10,000rpm, 30 HP thru Coolant Spindle, 4th Axis Ready, 1MB Memory. On our Floor now, fully powered / tested & is in Great working condition. check *VIDEO*”

——————————————————-

HAAS VF 3B VERTICAL MACHINING CENTER Features:

30HP High Torque Spindle Motor
Geared Head Spindle
Thru Coolant Spindle
10,000 RPM
4th Axis Ready ( drives and wiring installed )
1 MB Program Memory

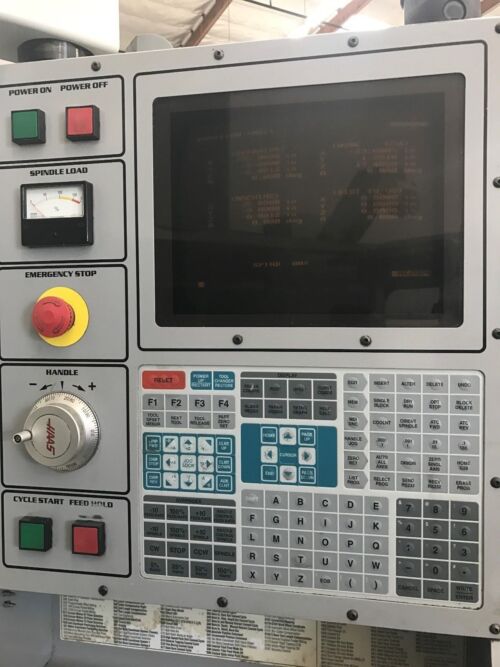

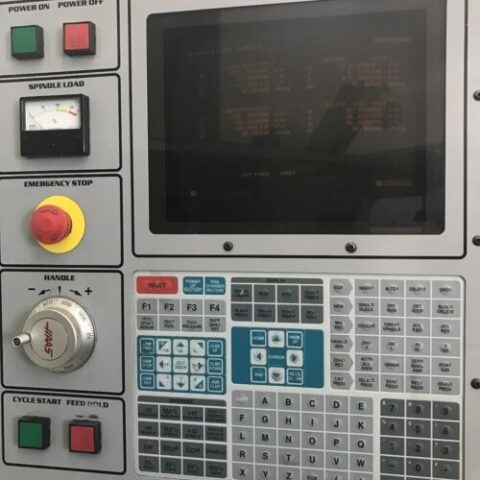

Remote Jog Handle
Rigid Tapping
Advanced Tool Management
Power Failure Detection Module
User Definable Macros, Spindle Orientation and Coordinate Rotational Scaling
Brush-type servo drive motors on all axis

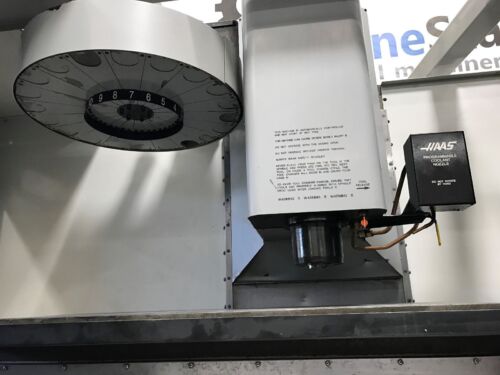

20 automatic tool changer
Programmable coolant
Telescopic way covers
Chip auger
Floppy Drive

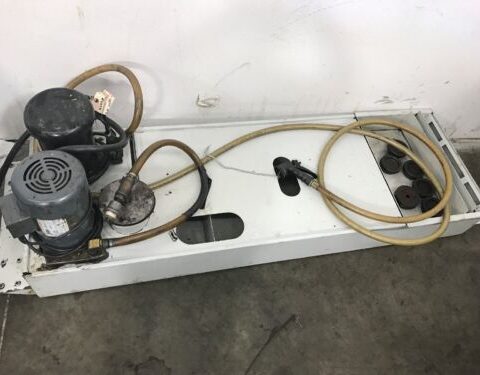

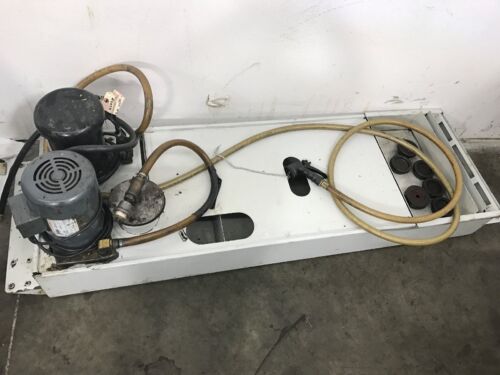

Flood Coolant system

————————————————

HAAS VF 3B VERTICAL MACHINING CENTER Specifications:

Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 710 Inch Per Minute
Cutting Feed Rates: 500 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 29″

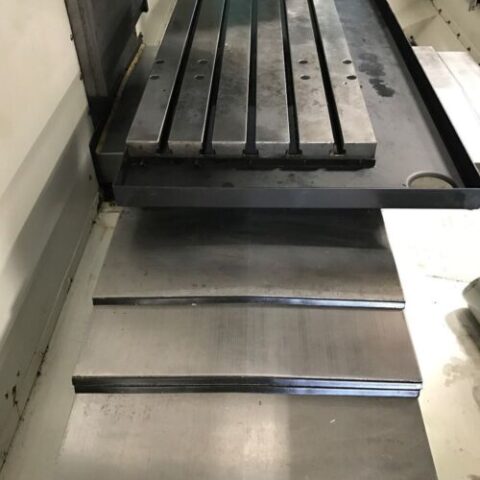

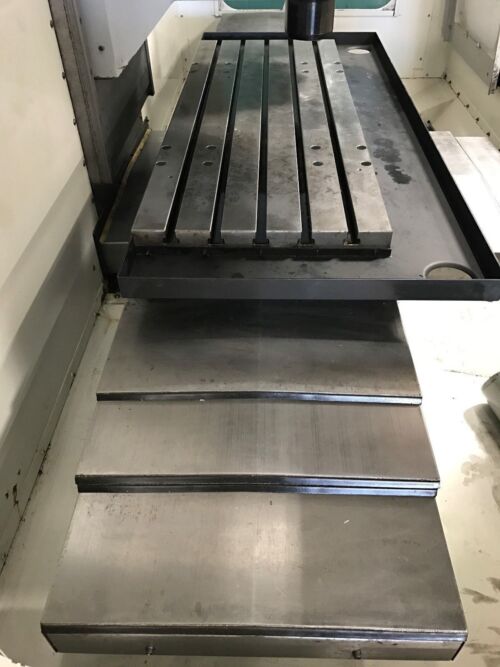

Table:
Length: 48″
Width: 18″
Number of Std T-Slots: 5
Max Weight on Table: 1500 lbs

Spindle:
Taper Size: CAT 40
Speed Range: 0 – 10,000 RPM
Spindle Power: 30 HP
Max Torque: 90ft-lb @ 2000RPM

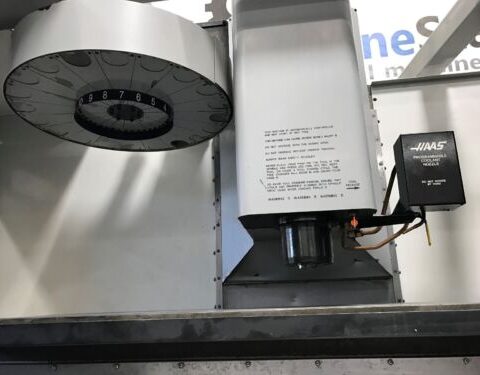

Automatic Tool Changer:
Capacity: 20
Max Tool Weight: 12 lbs
Max Tool Dia: 3.6″
Max Tool Length: 13″
Tool Changing Time: 3.2 Seconds

General:
Air Required: 100 psi, 4 scfm
Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 118″ x 98″ x 118″ High
Weight: 12500 lbs

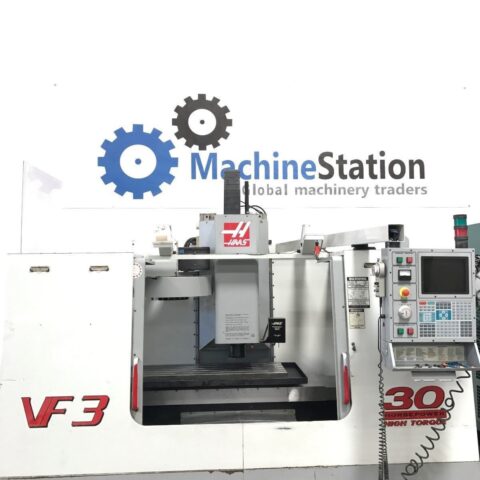

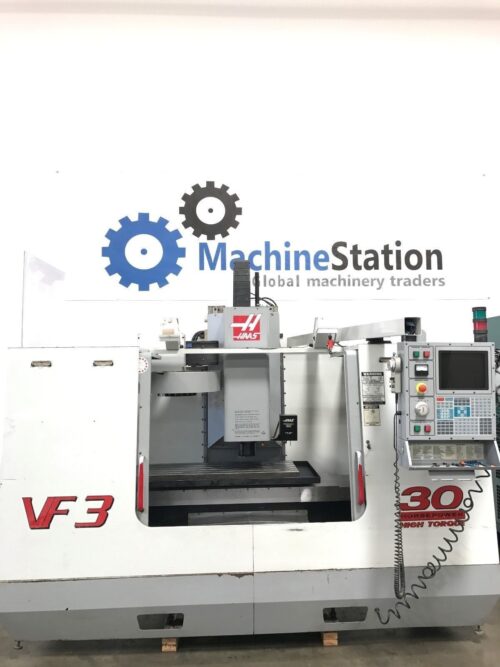

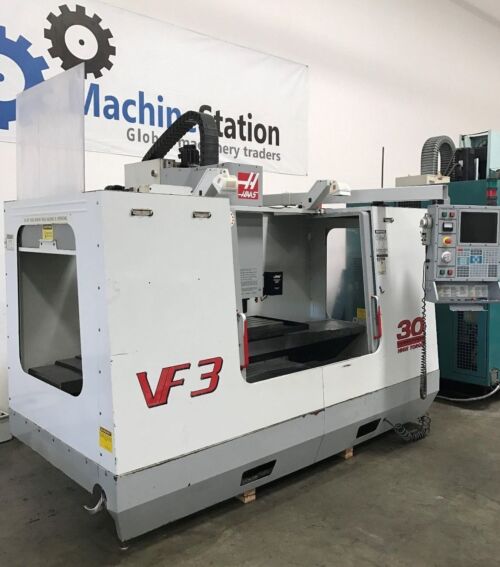

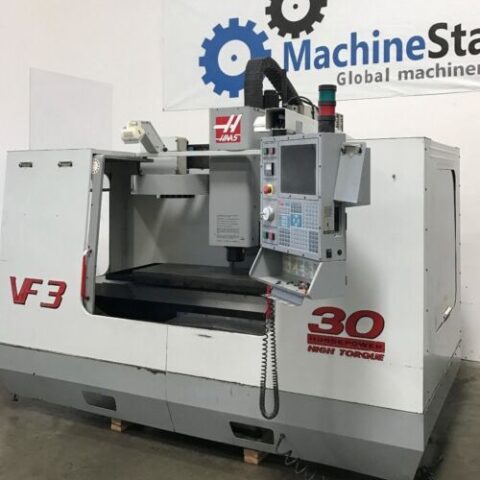

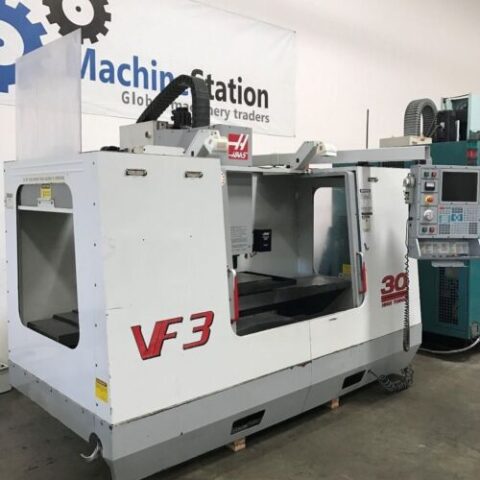

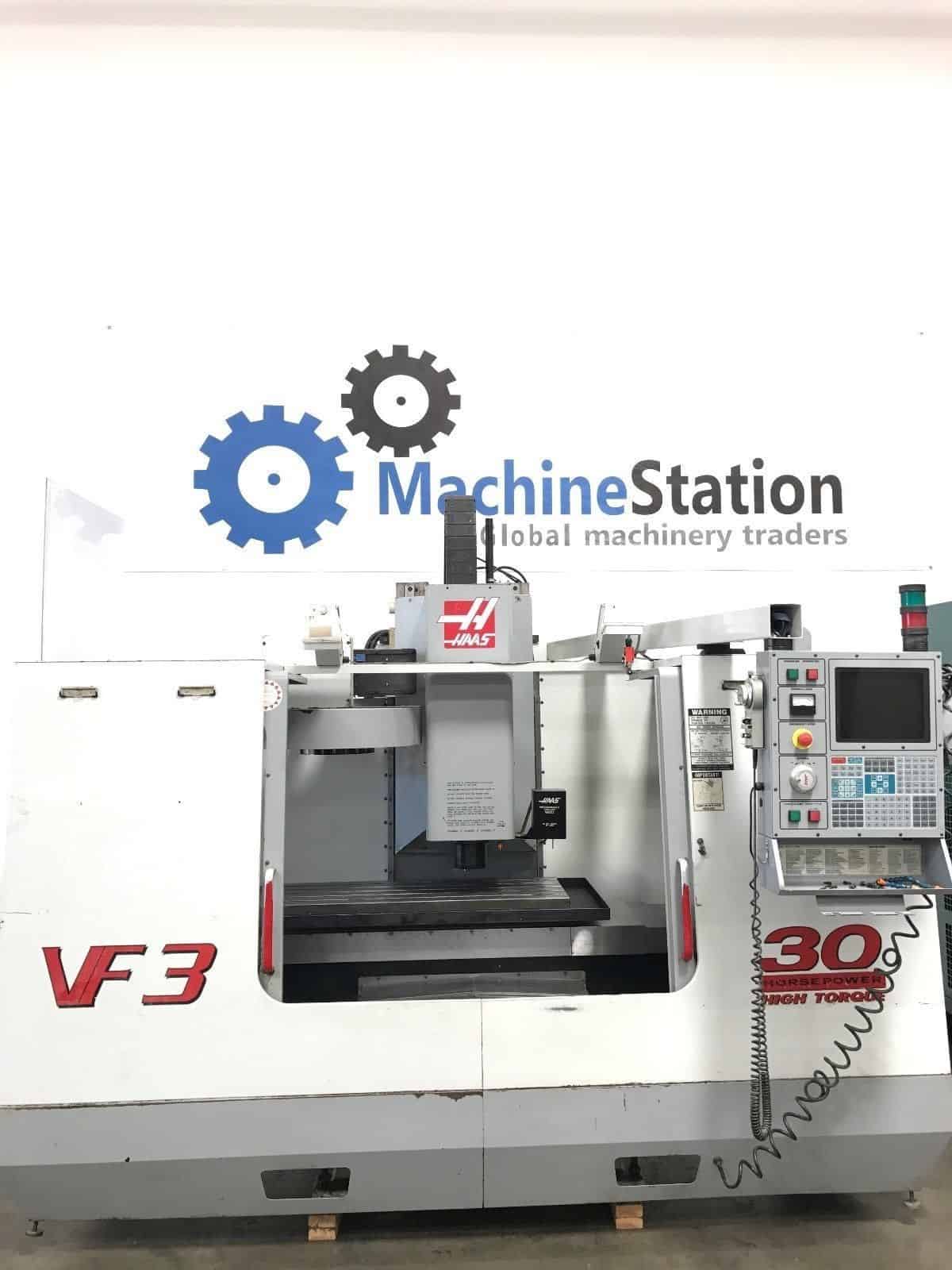

HAAS VF 3B VERTICAL MACHINING CENTER Comes as shown in pictures..
