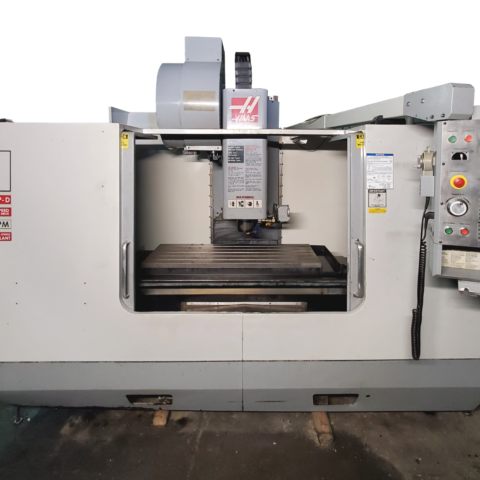

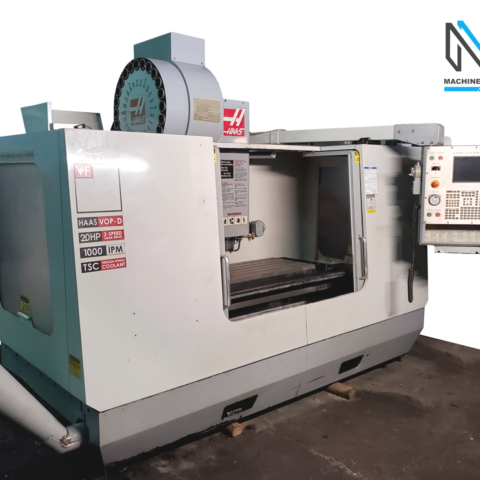

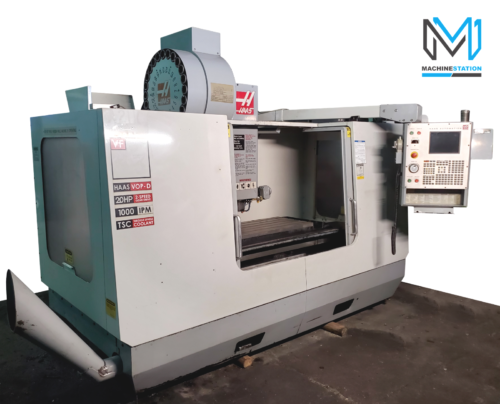

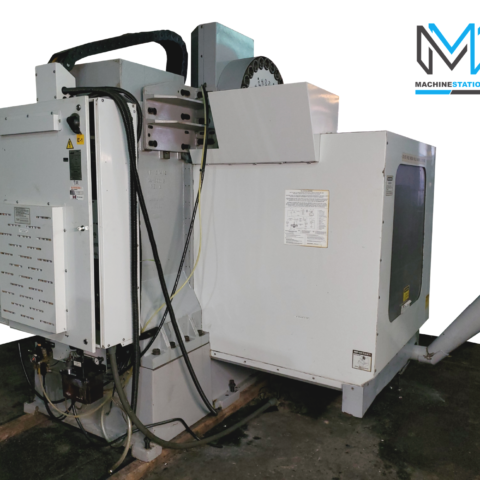

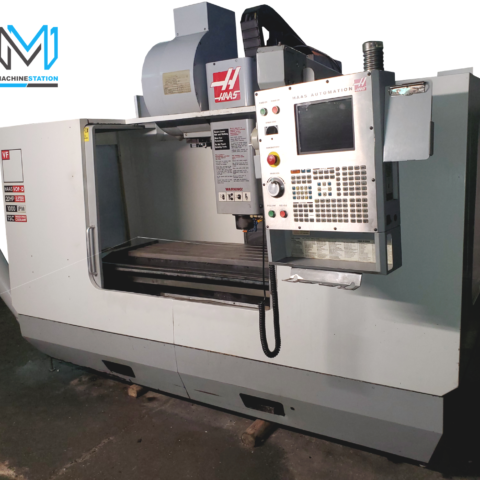

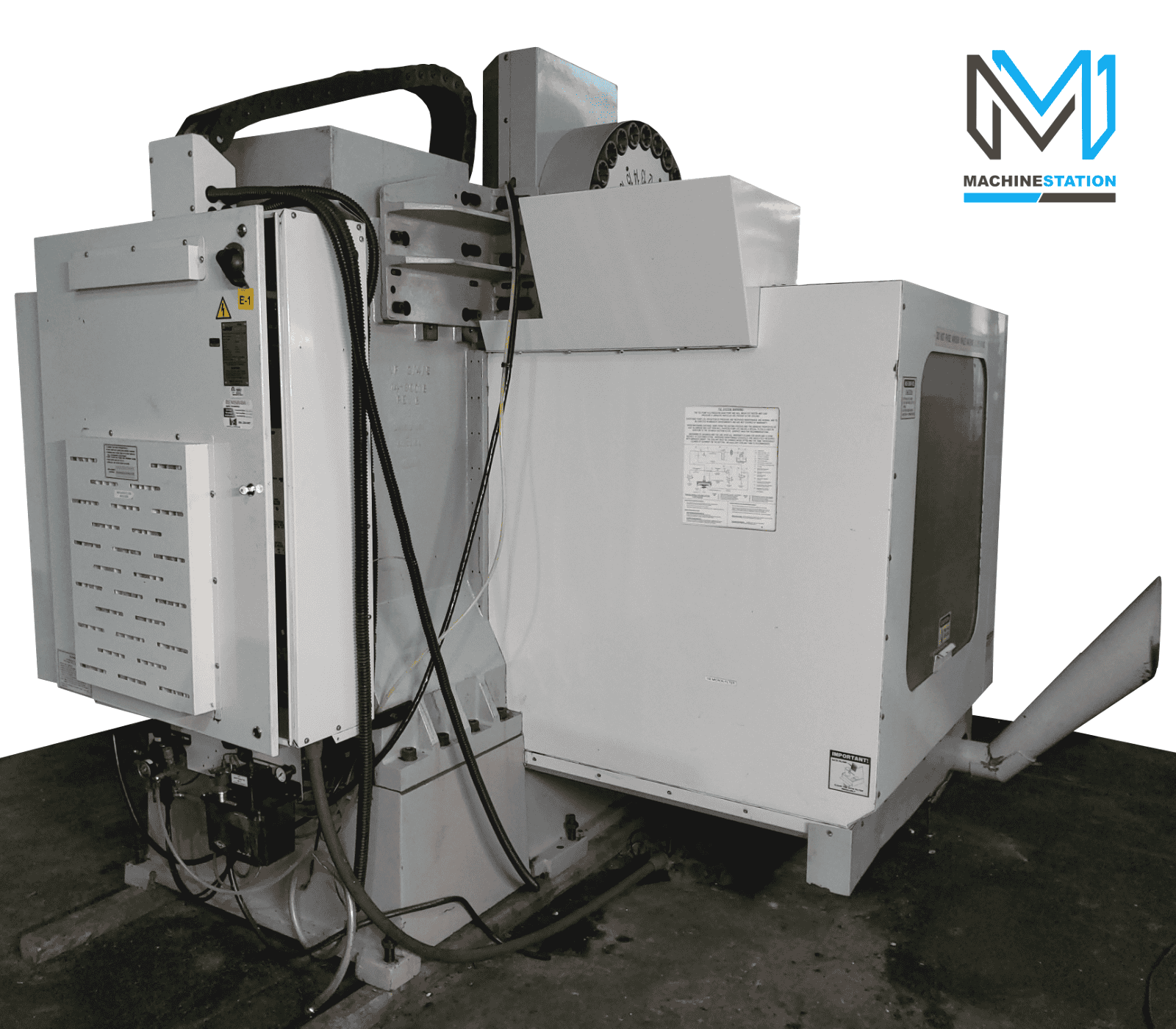

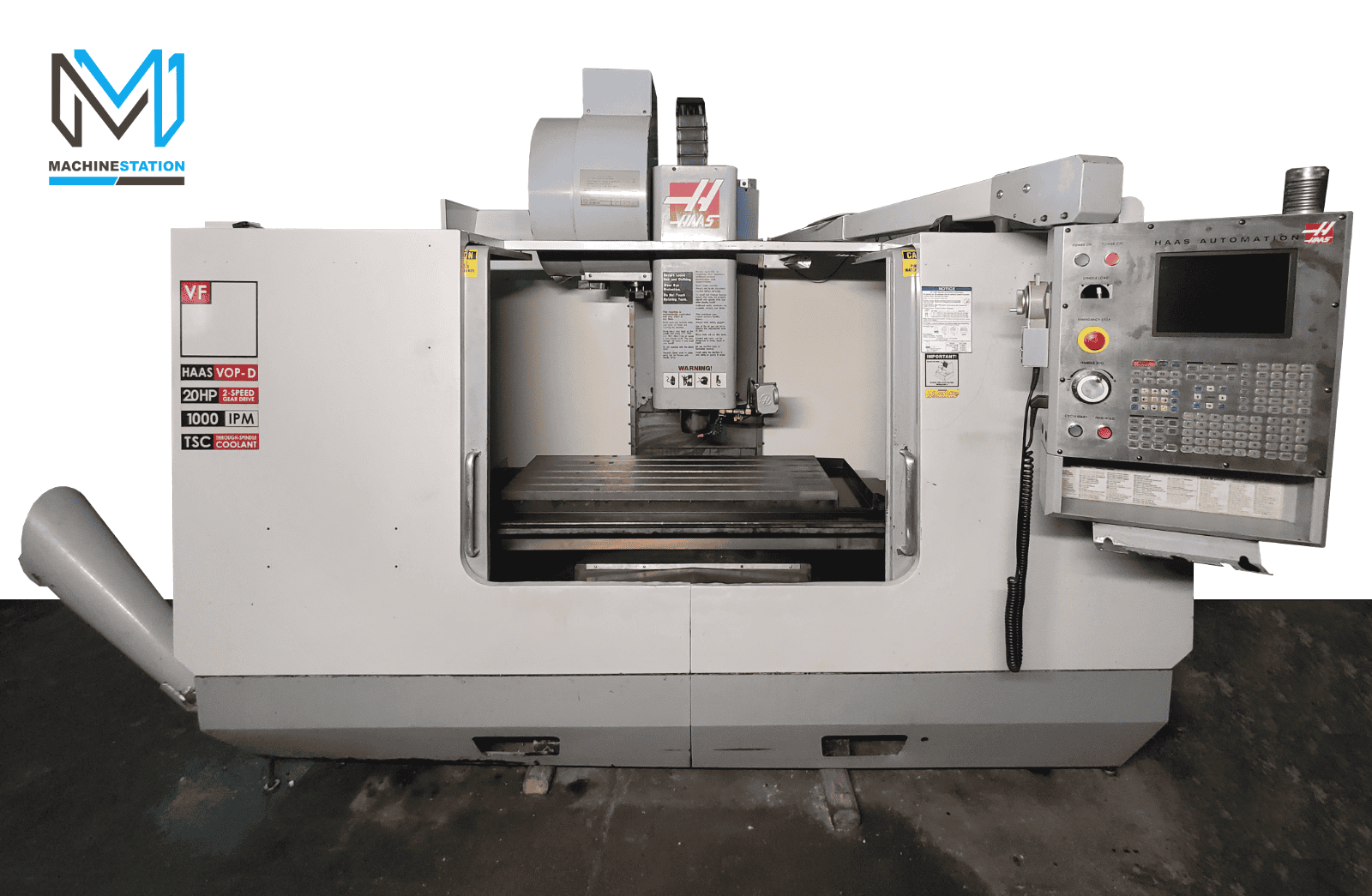

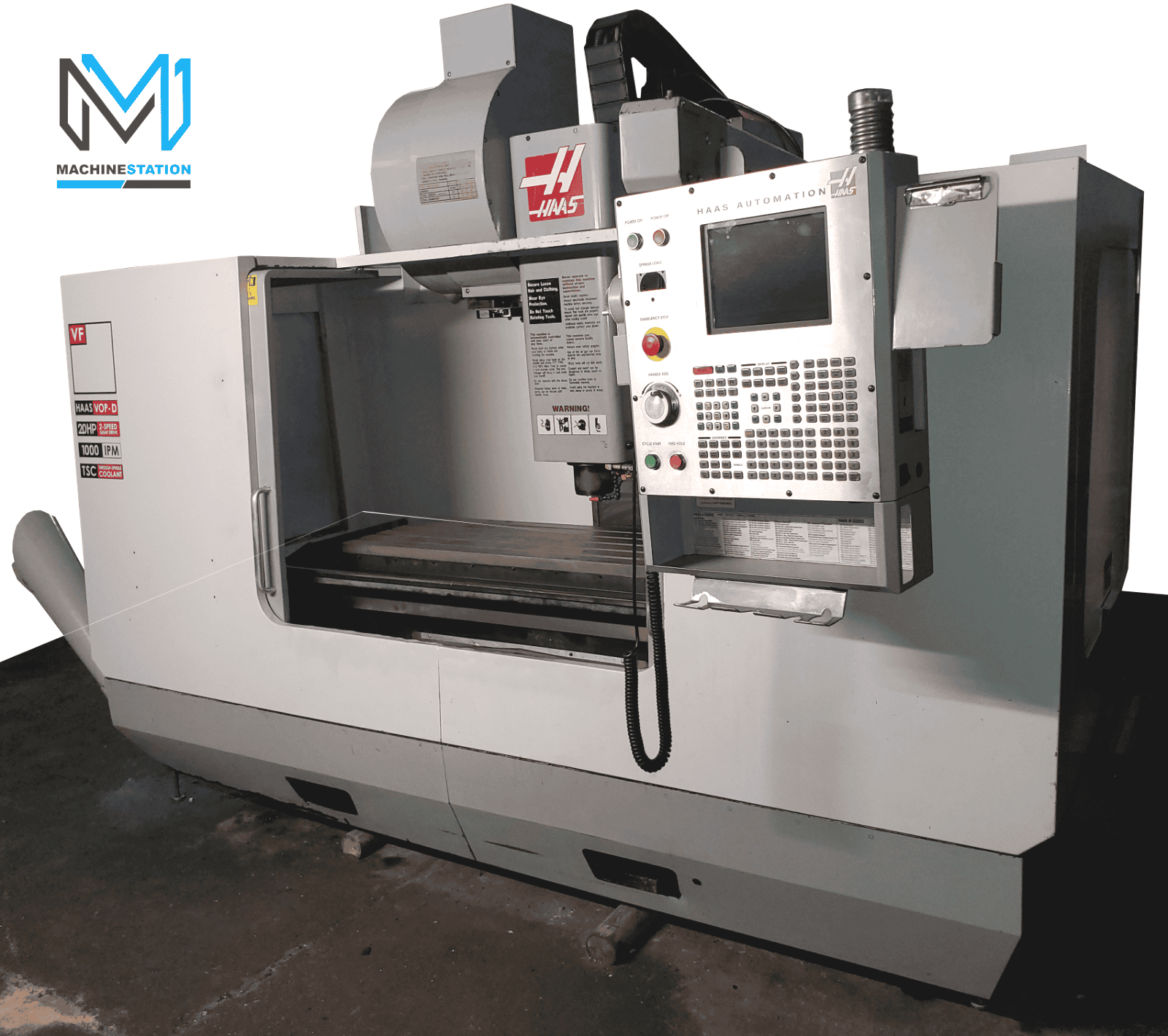

Used Haas VF-3B Vertical Machining Center

Haas VF-3B Vertical Machining Center

Location Lake Elsinore, CA

SKU 105152

Make Haas

Model No. VF-3B

Year 05/03

Condition Used-Good

Out of stock

Location	Lake Elsinore, CA
SKU	105152
Make	Haas
Model No.	VF-3B
Year	05/03
Condition	Used-Good

SKU: 105152

All specifications are approximations and are subject to verification.

Features:
Haas CNC Control
VOP-D Package
7500 RPM Gear Head Spindle
4th Axis Ready
Thru Spindle Coolant

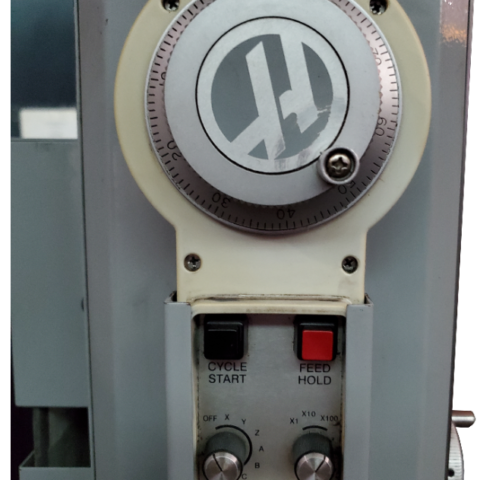

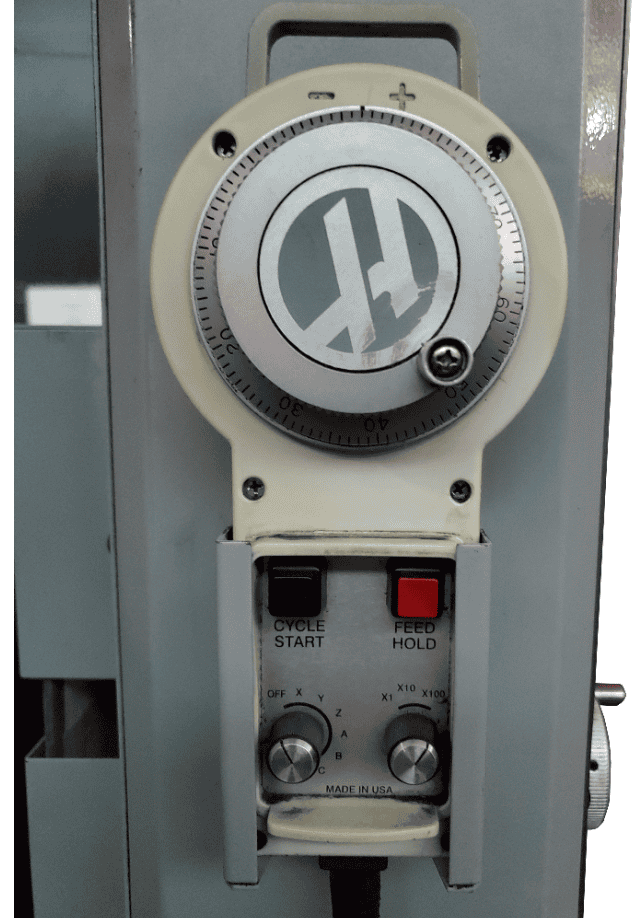

MPG Control
1MB Memory

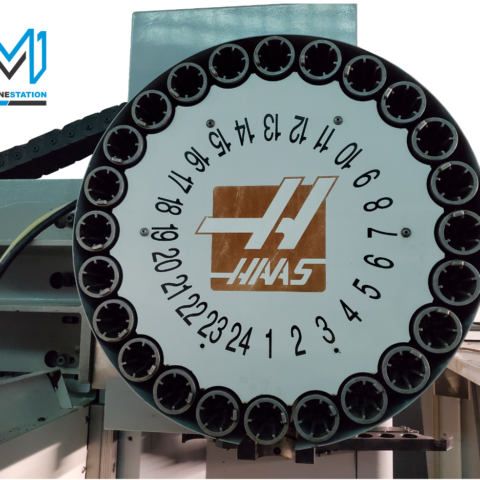

24 Side Mount Automatic tool changer
1000 inch per minute rapids
Quick Code Programming
Coordinate Scale
Rigid Tapping
Spindle Orientation
Programmable Coolant

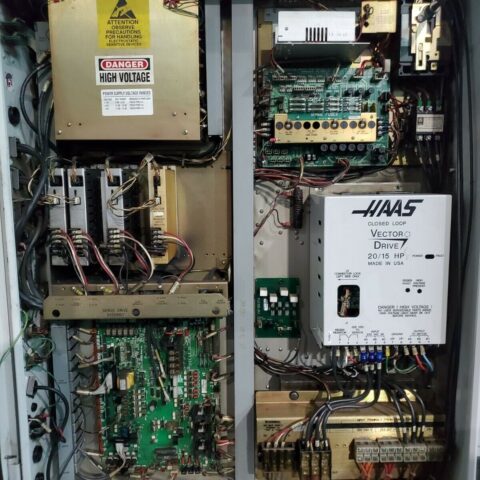

Brushless-type servo drive motors on all axis

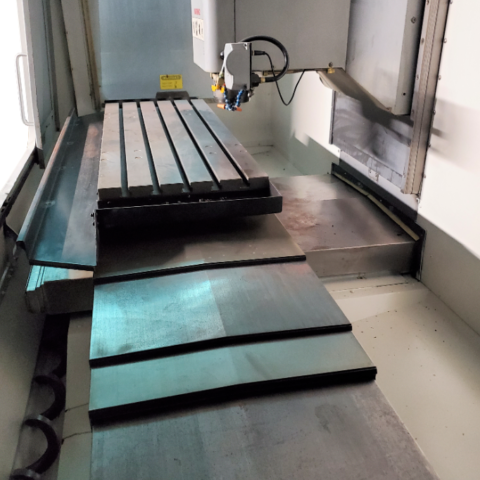

Telescopic way covers
Chip auger

Specifications:
Travels:
X-Axis: 40″
Y-Axis: 20″
Z-Axis: 25″
Rapid Traverse Rates: 1000 Inch Per Minute
Cutting Feed Rates: 630 Inch Per Minute
Spindle Nose to Table (Min.- Max.): 4″ – 29″

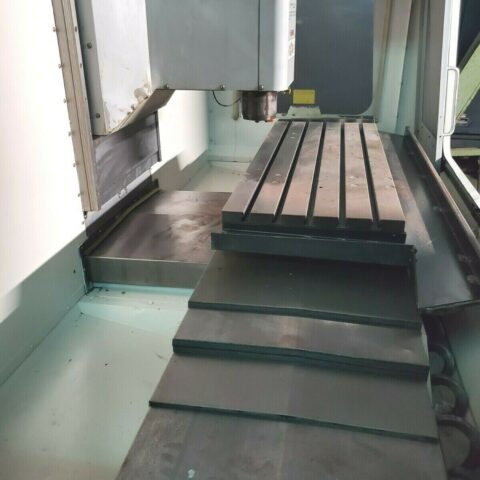

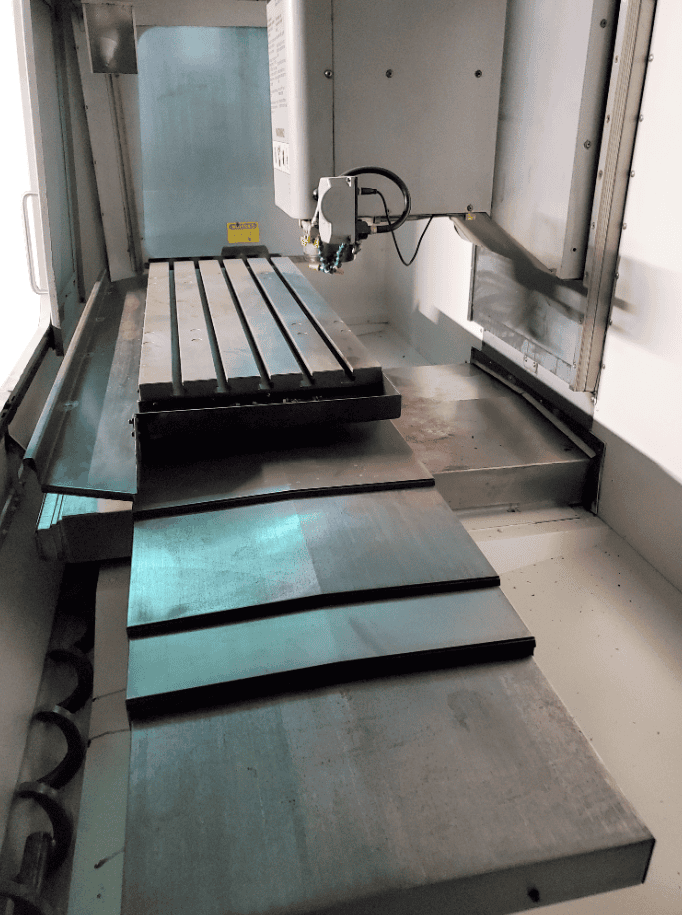

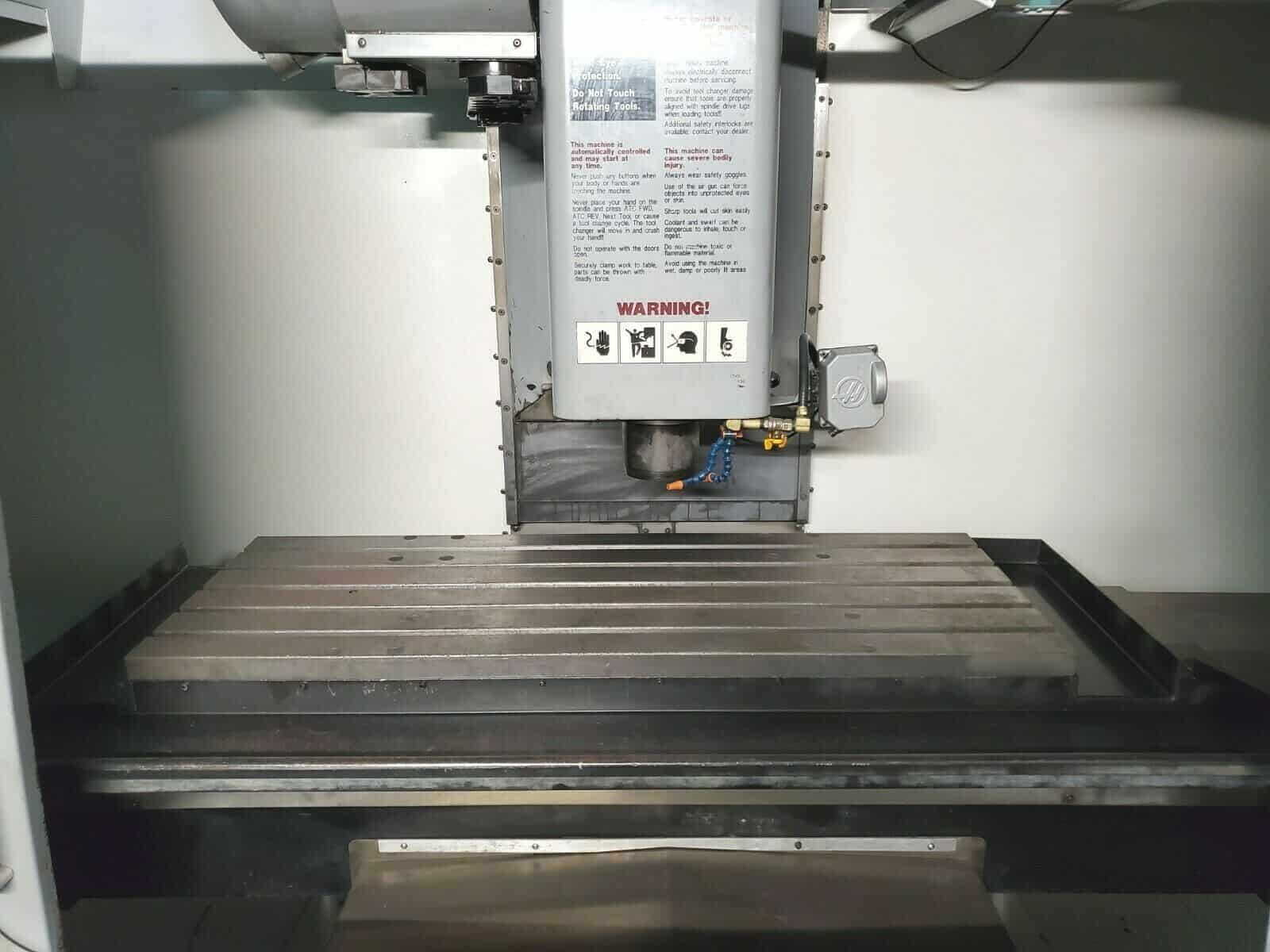

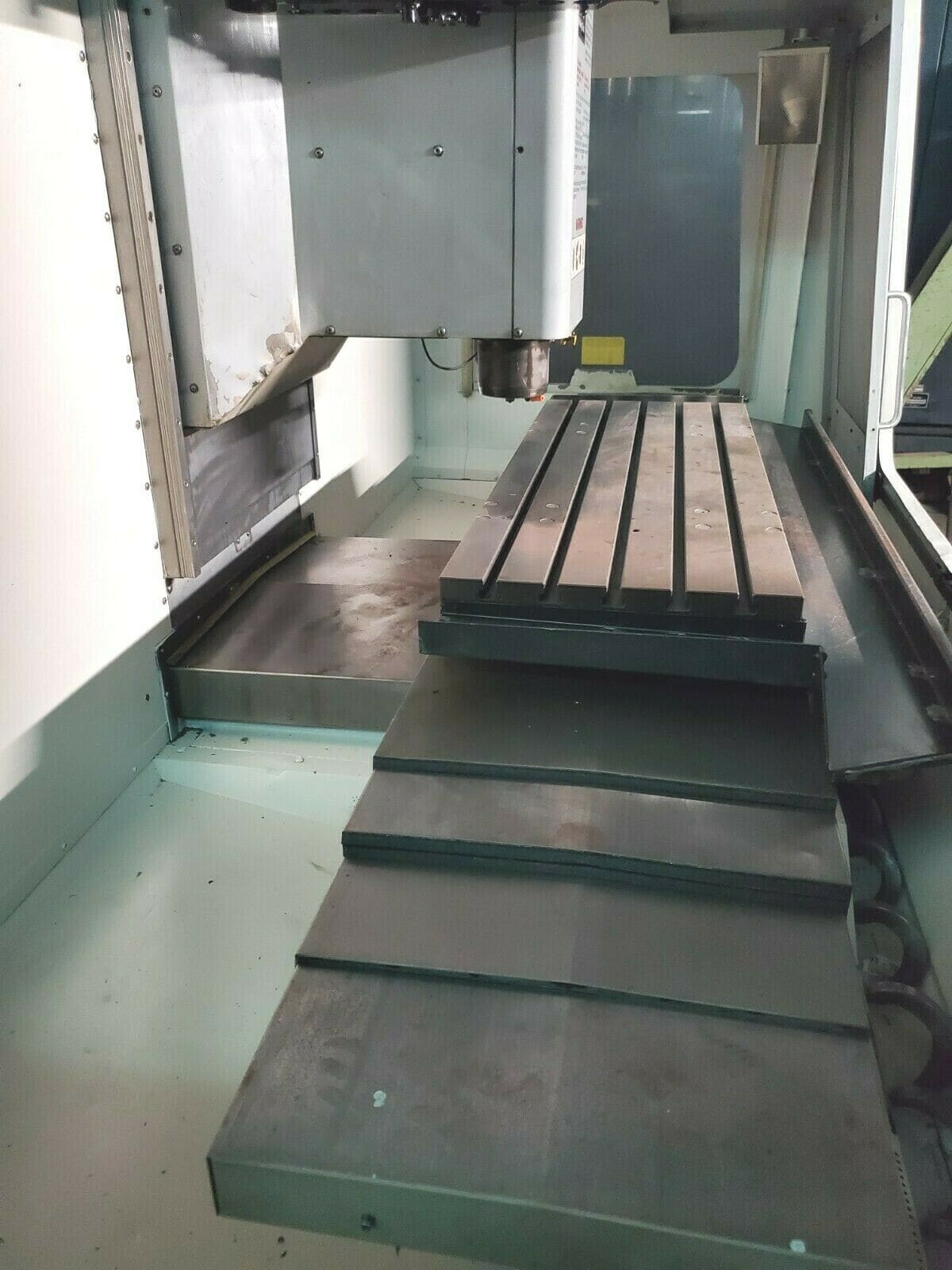

Table:
Length: 48″
Width: 18″
Number of Std T-Slots: 5
T-Slot Width: 5/8″
Max Weight on Table: 3500 lbs

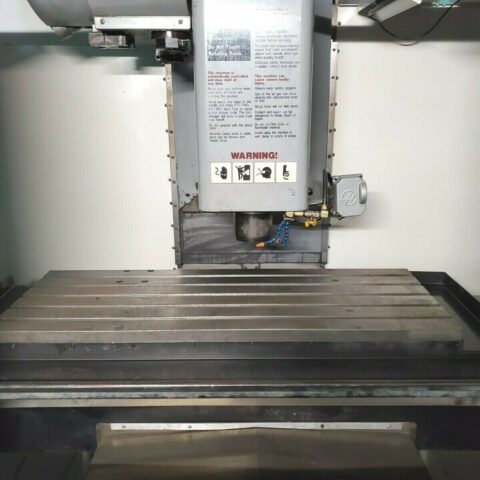

Spindle:
Taper Size: 40
Speed Range:7500 RPM
Spindle Power: 20 HP
Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM

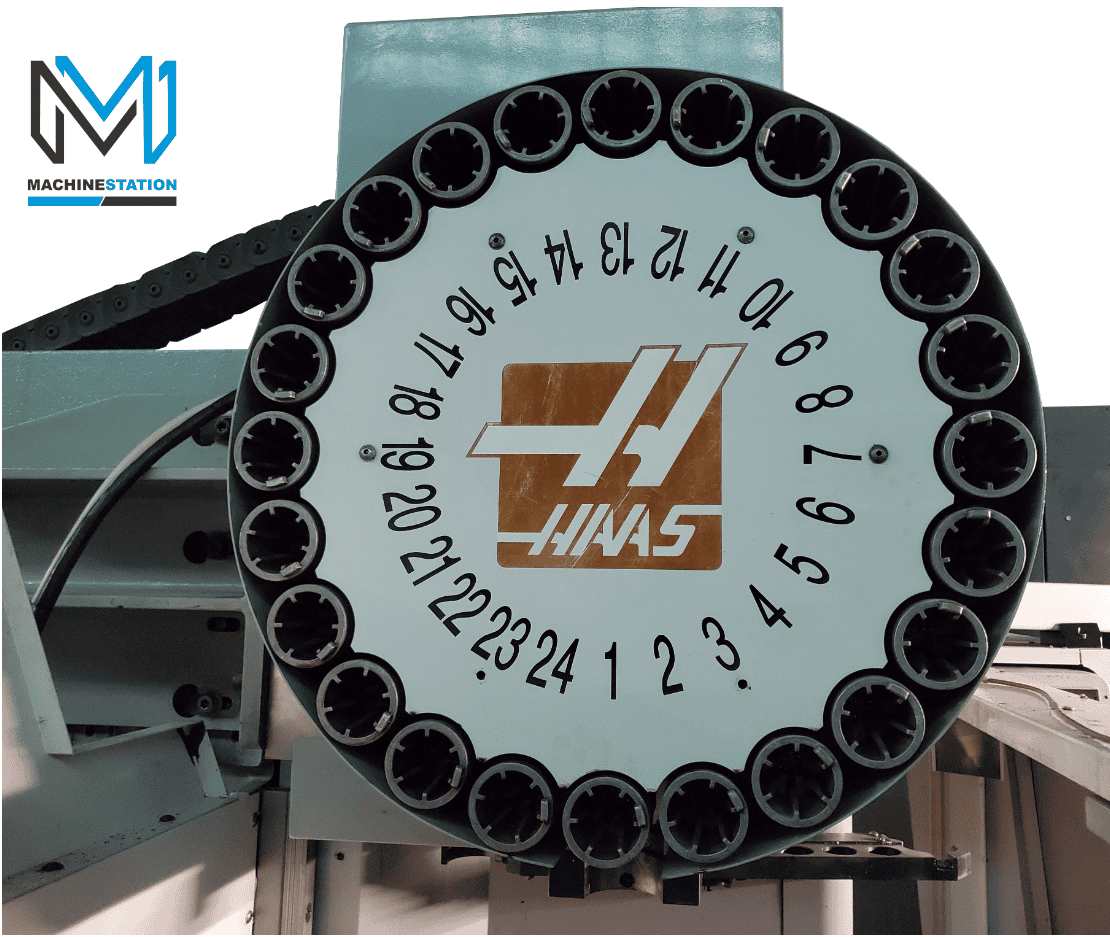

Automatic Tool Changer:
Capacity: 24
Max Tool Weight: 12 lbs
Max Tool Dia: 3.6″
Max Tool Length: 11″
Tool Changing Time: 2.2 Seconds

General:
Air Required: 100 psi, 4 scfm

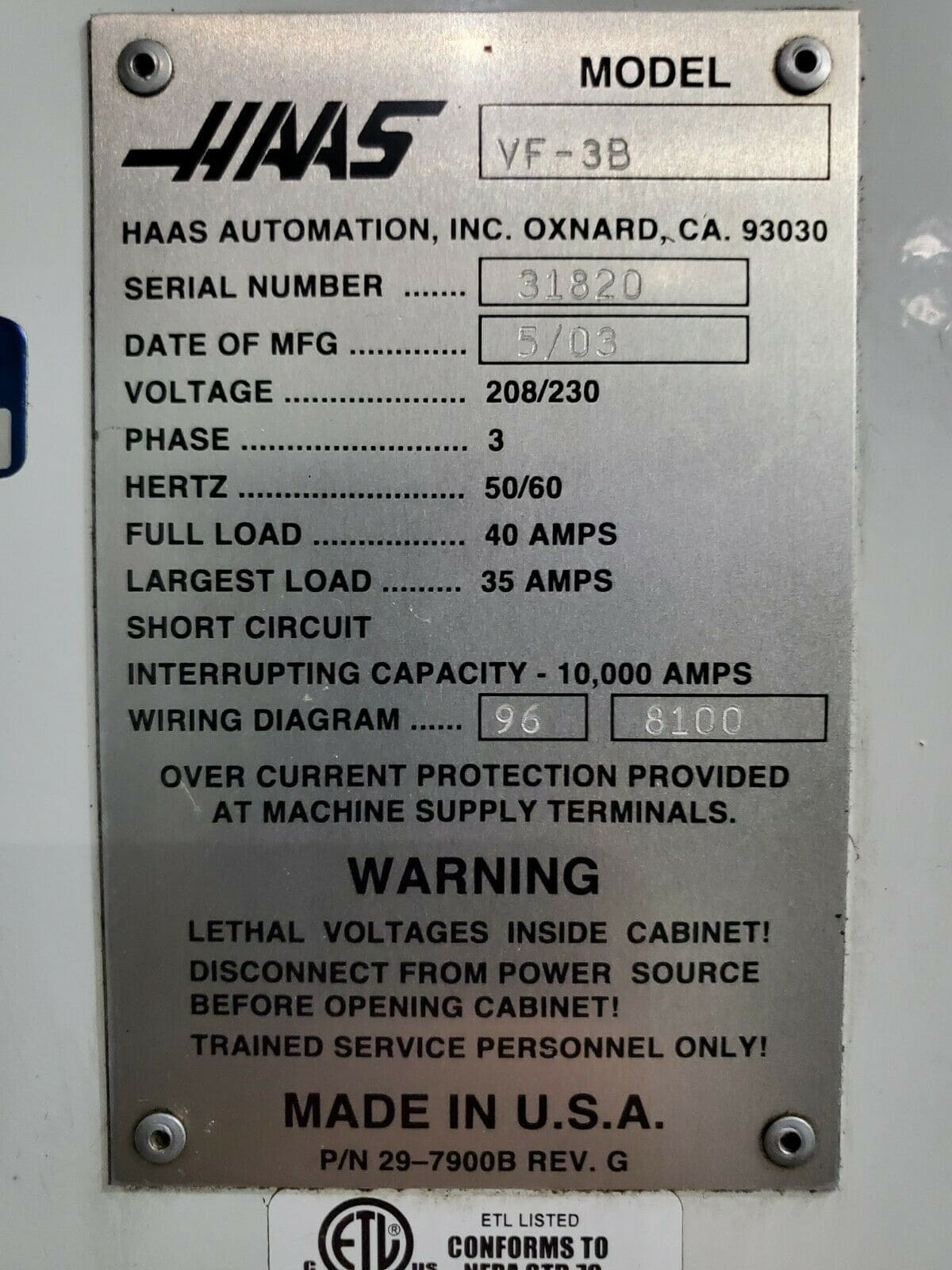

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 120″ x 96″ x 100″ High
Weight: 12500 lbs

“No Charges for loading at list Price”
