*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

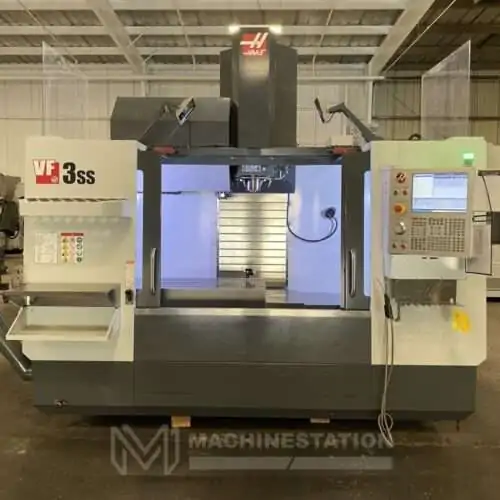

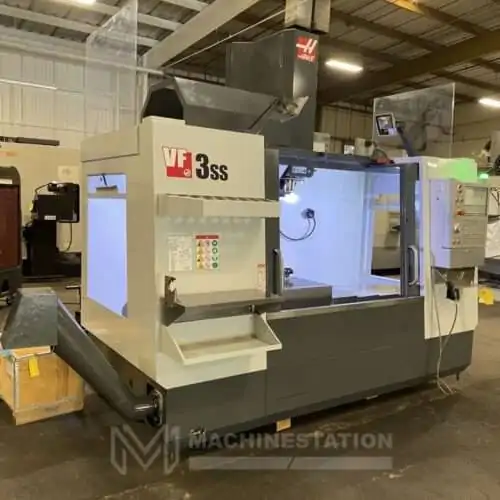

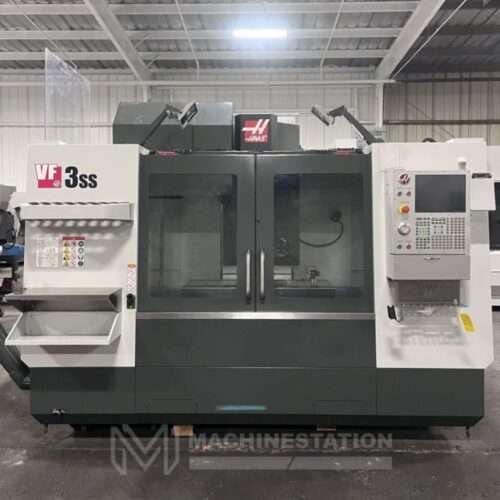

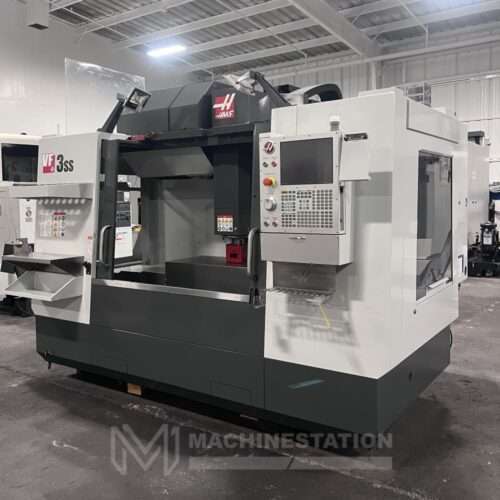

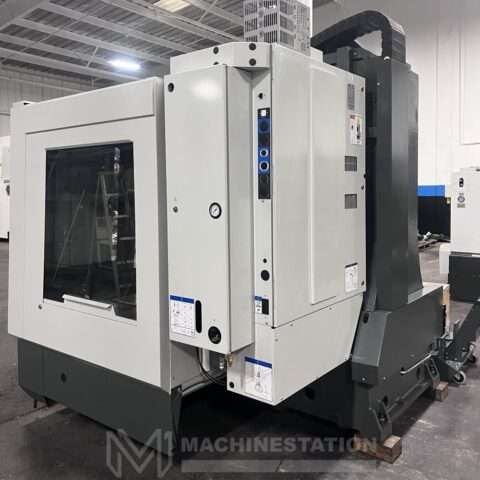

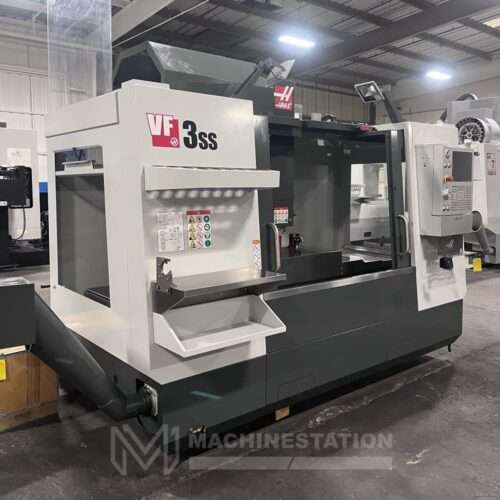

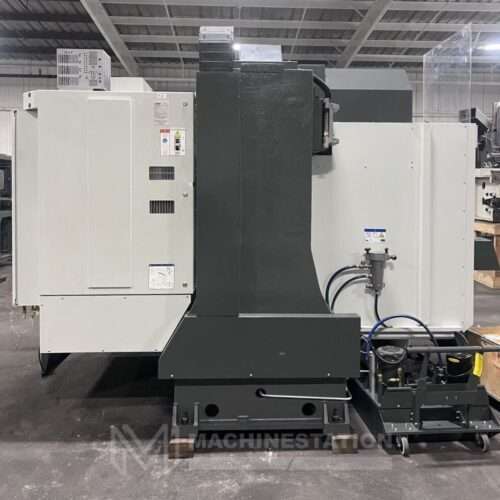

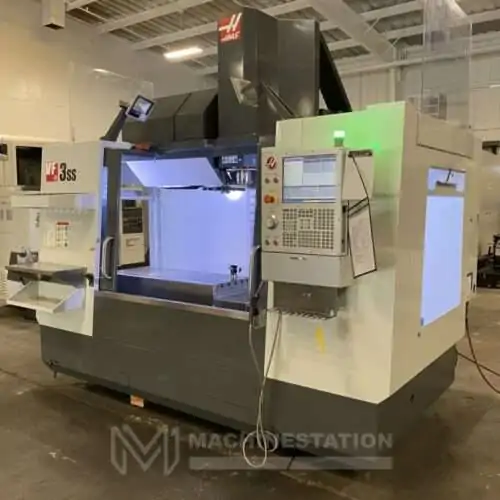

| Make: | HAAS |
| Model: | VF-3SS |
| Year: | 2018 |
| Condition: | Used-Good |
| Key Features of the Haas VF-3SS: |
|---|

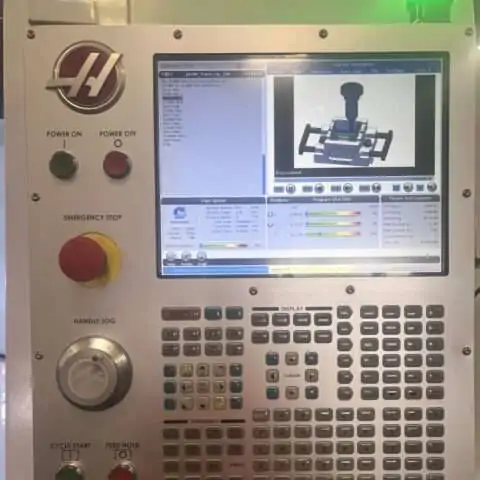

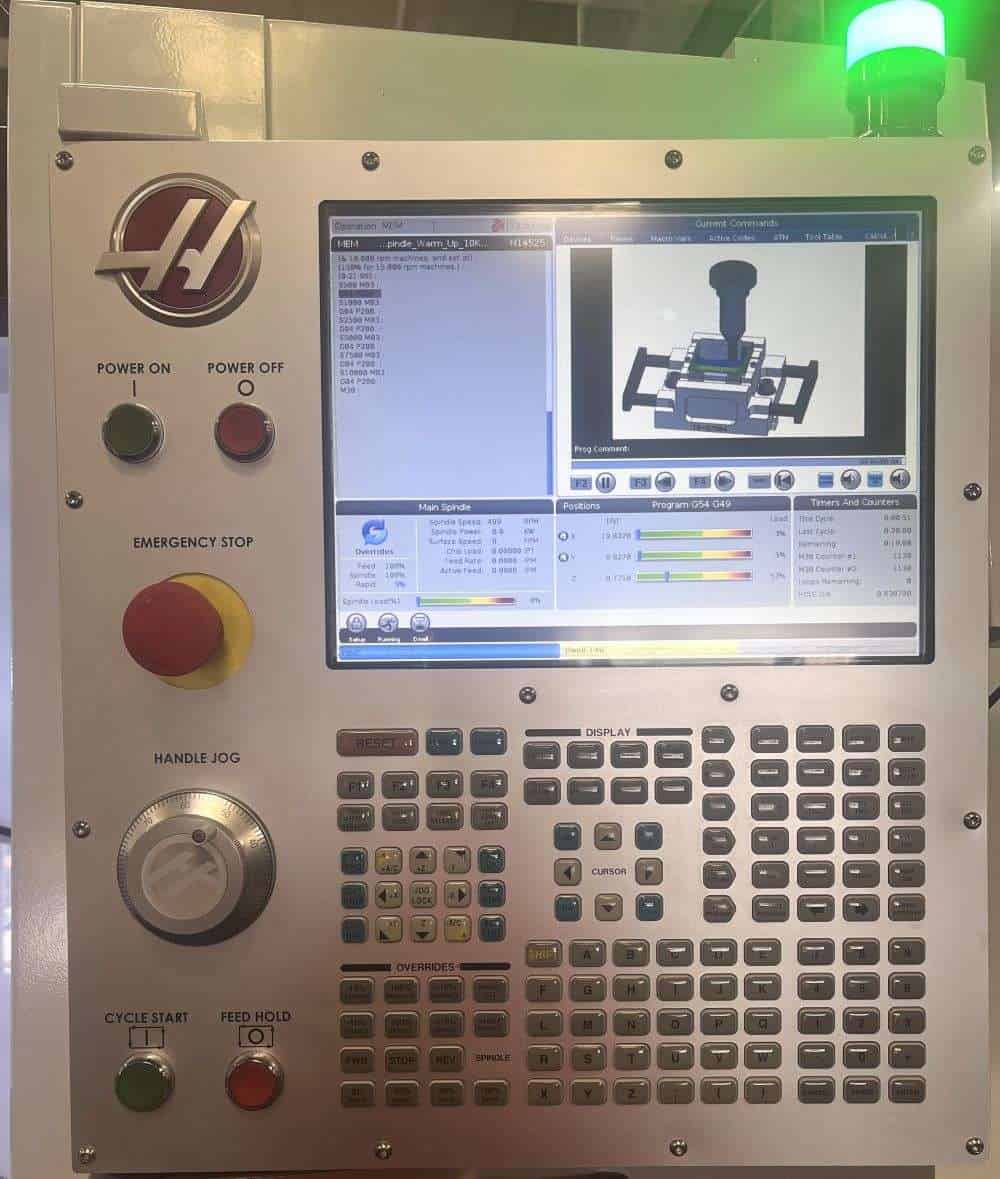

| Haas CNC Control |
| 4th Axis Ready (Upgraded $3195 value Included) |
| 12,000 RPM High-Speed Spindle |

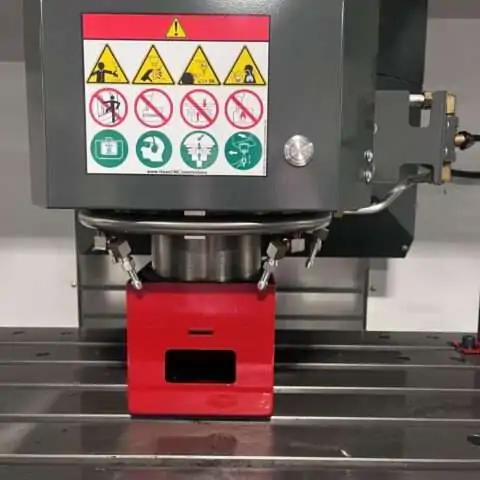

| WIPS-R Renishaw Probing System (Upgraded $5795 value Included) |

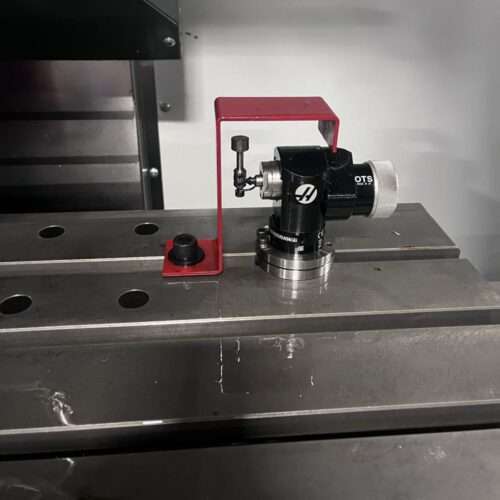

| Tool Pre-setter (Upgraded $495 value Included) |
| 30 Station High-Speed Tool Changer |
| CT Option |
| 30 HP High Torque Spindle |

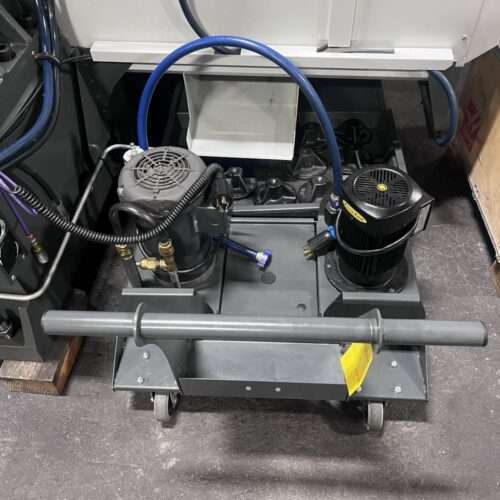

| Through Spindle Coolant – 300 psi (Upgraded $6295 value Included) |
| 1400 IPM Fast Rapid Traverse |
| High-Speed Machining (Upgraded $3495 value Included) |
| MPG Control |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |
| Coolant System |
| Chip Auger (Upgraded $3695 value Included) |

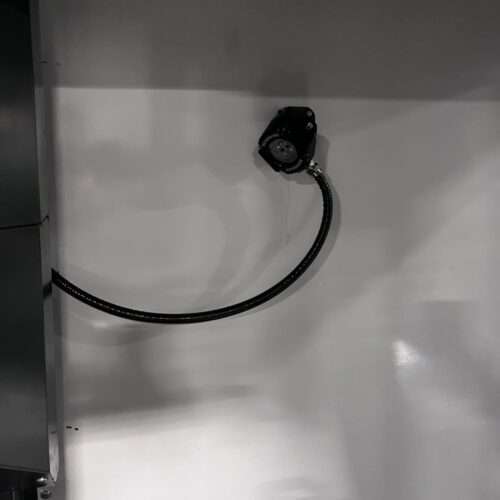

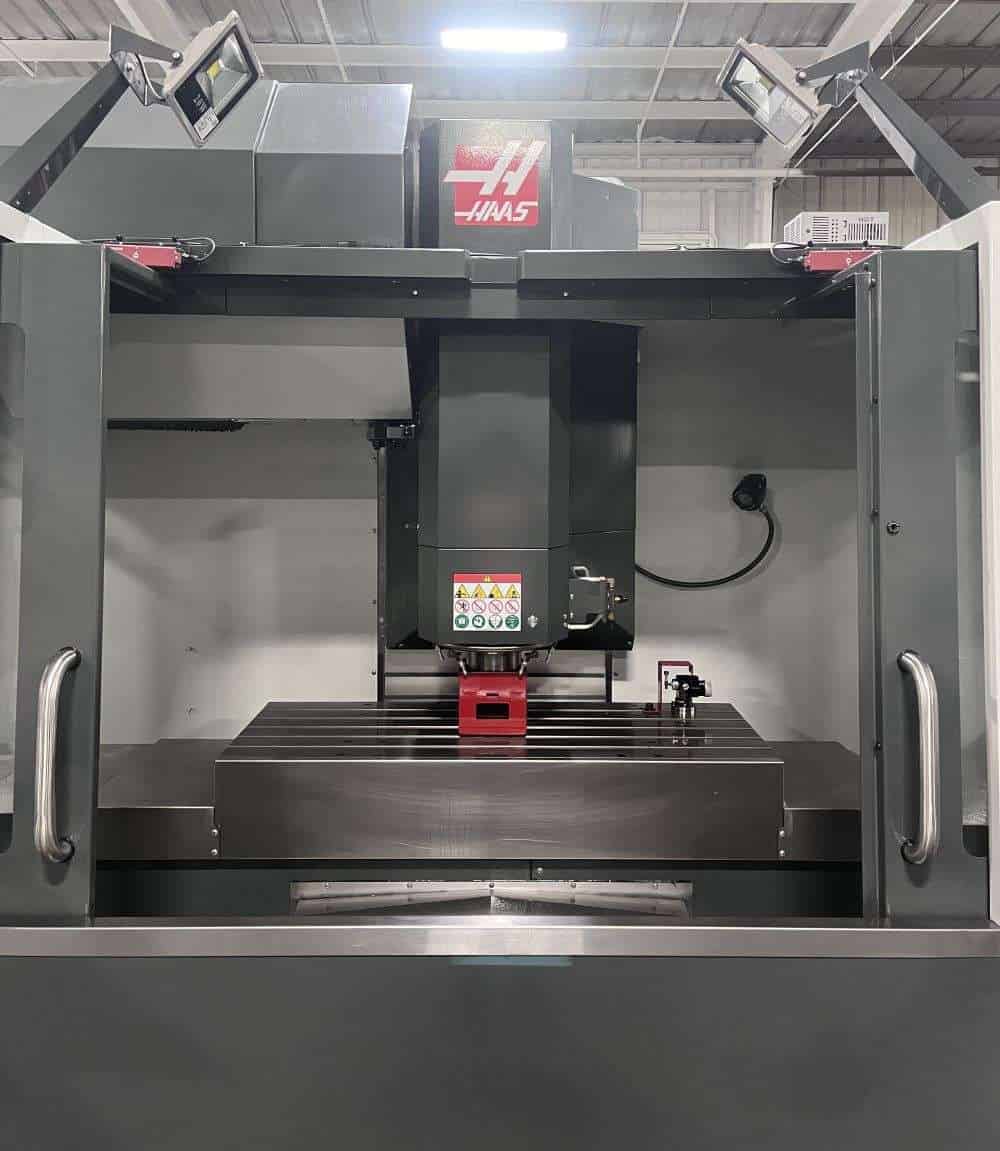

| High Intensity Lighting (Upgraded $1095 value Included) |
| Levelling Pads |
| Travel: |
|---|
| X-Axis: 40″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 1400 Inch Per Minute |
| Cutting Feed Rates: 833 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″ |

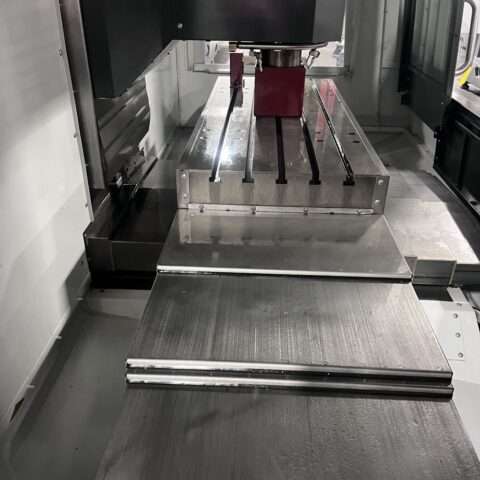

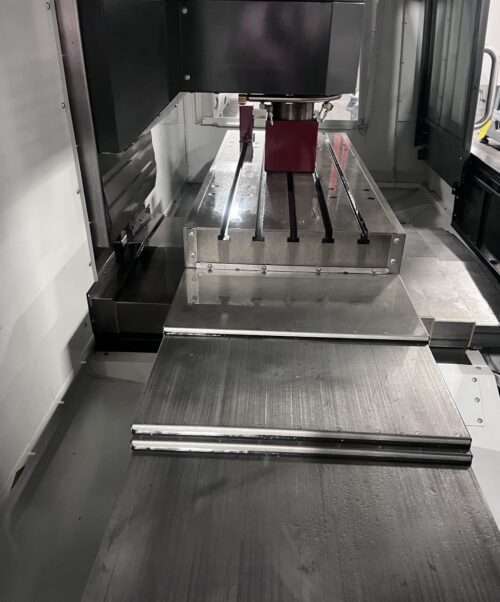

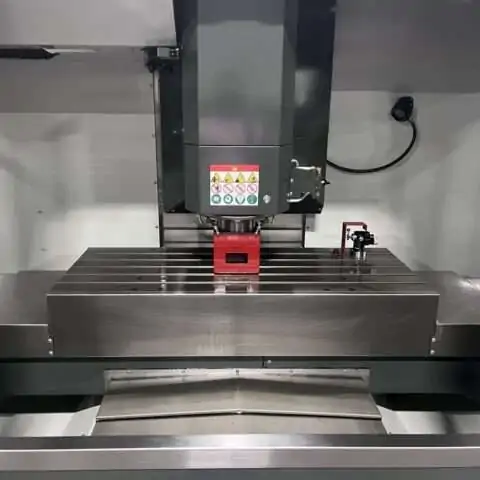

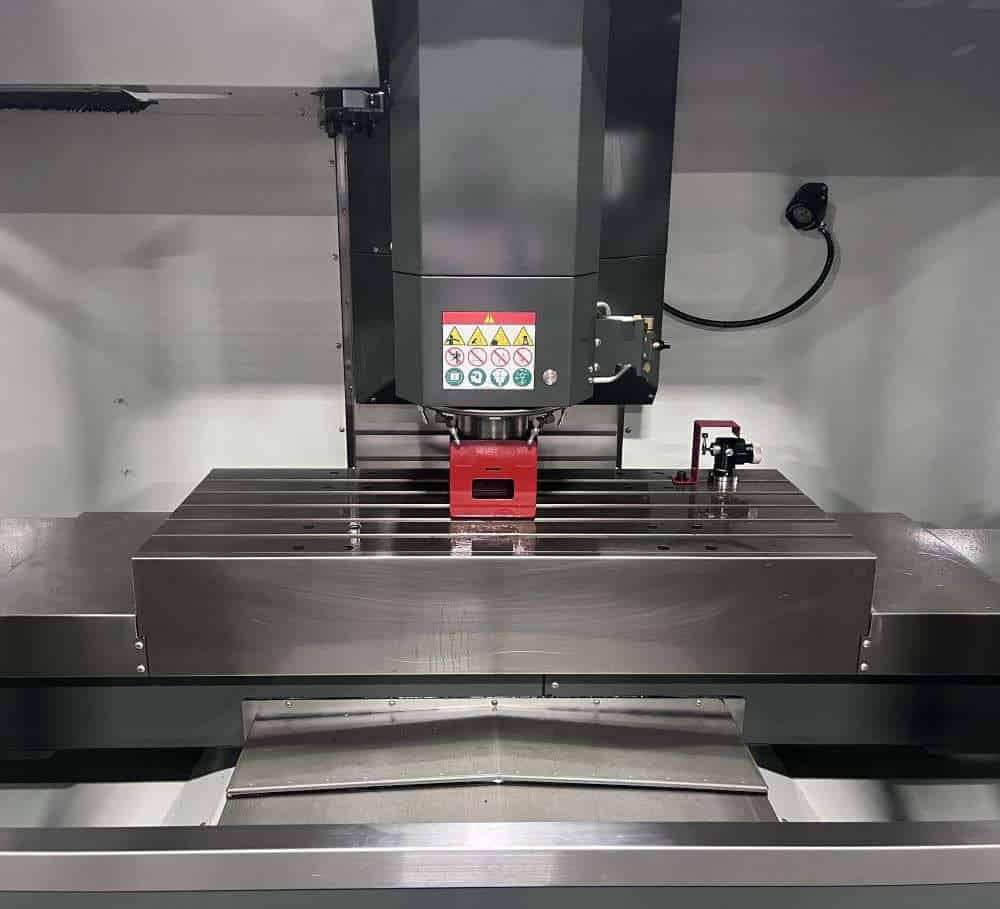

| Table: |
|---|
| Length: 48″ |
| Width: 18″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 1750 lbs |

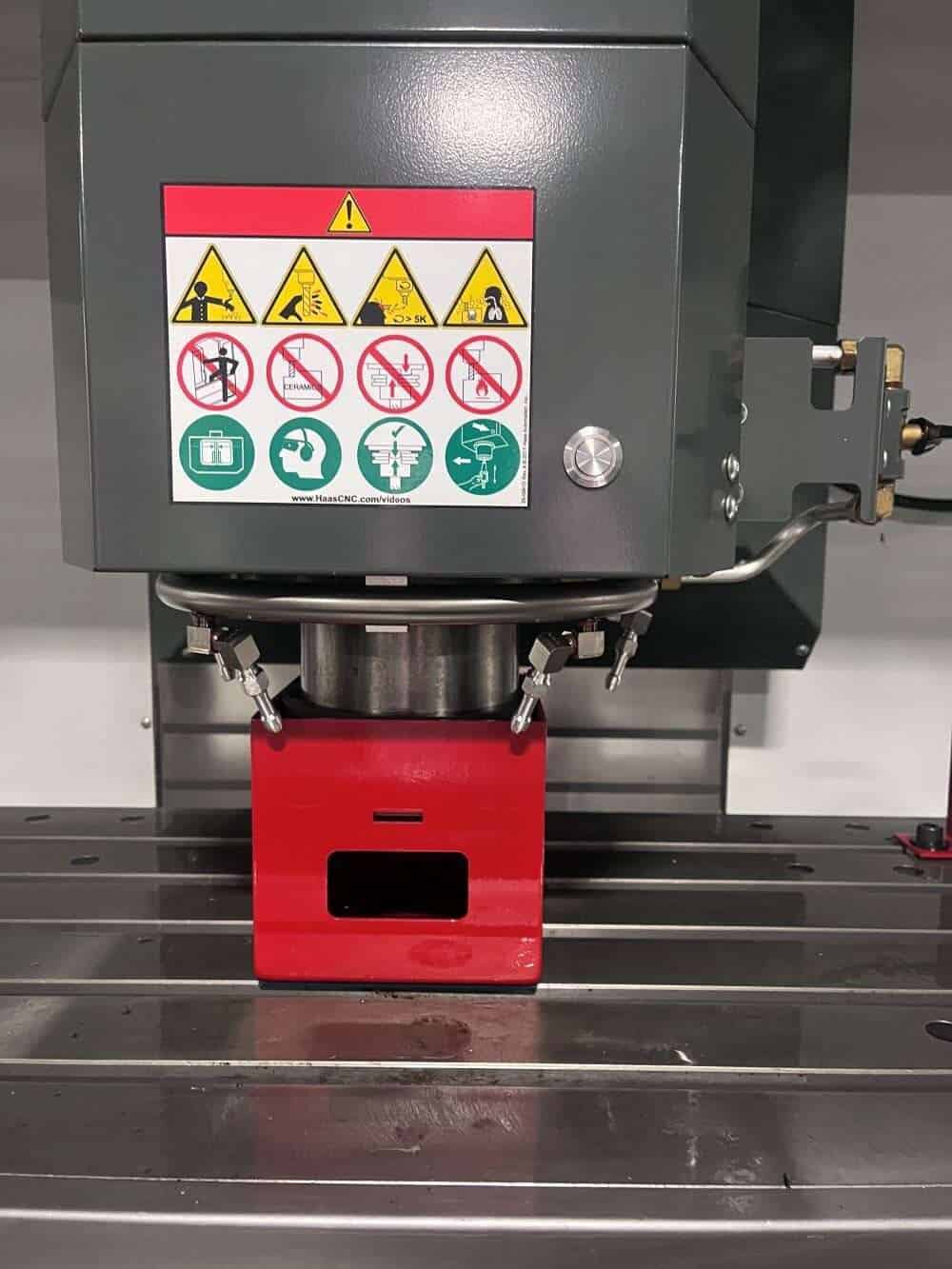

| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 12,000 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 30 Tools |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 2.5″ – 5.0″ |
| Max Tool Length: 13″ |
| Tool Changing Time: 1.80 Seconds |
| General: |
|---|
| Air Required: 100 psi 4 scfm |

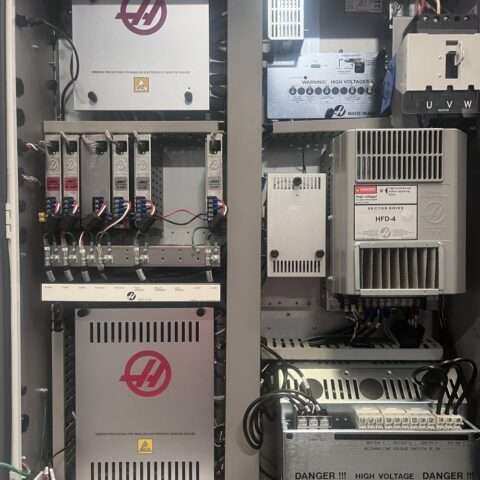

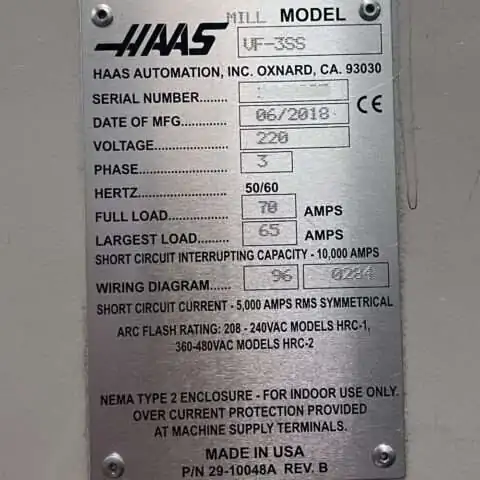

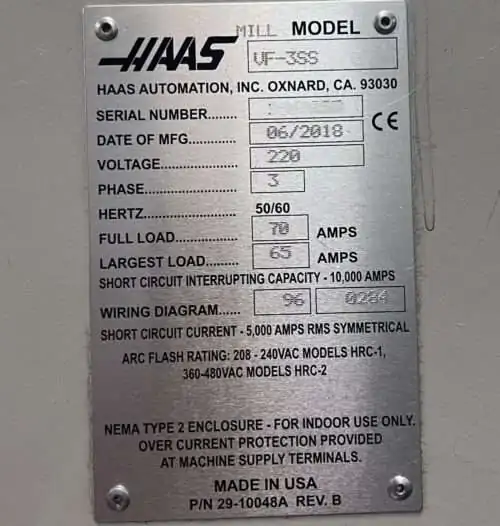

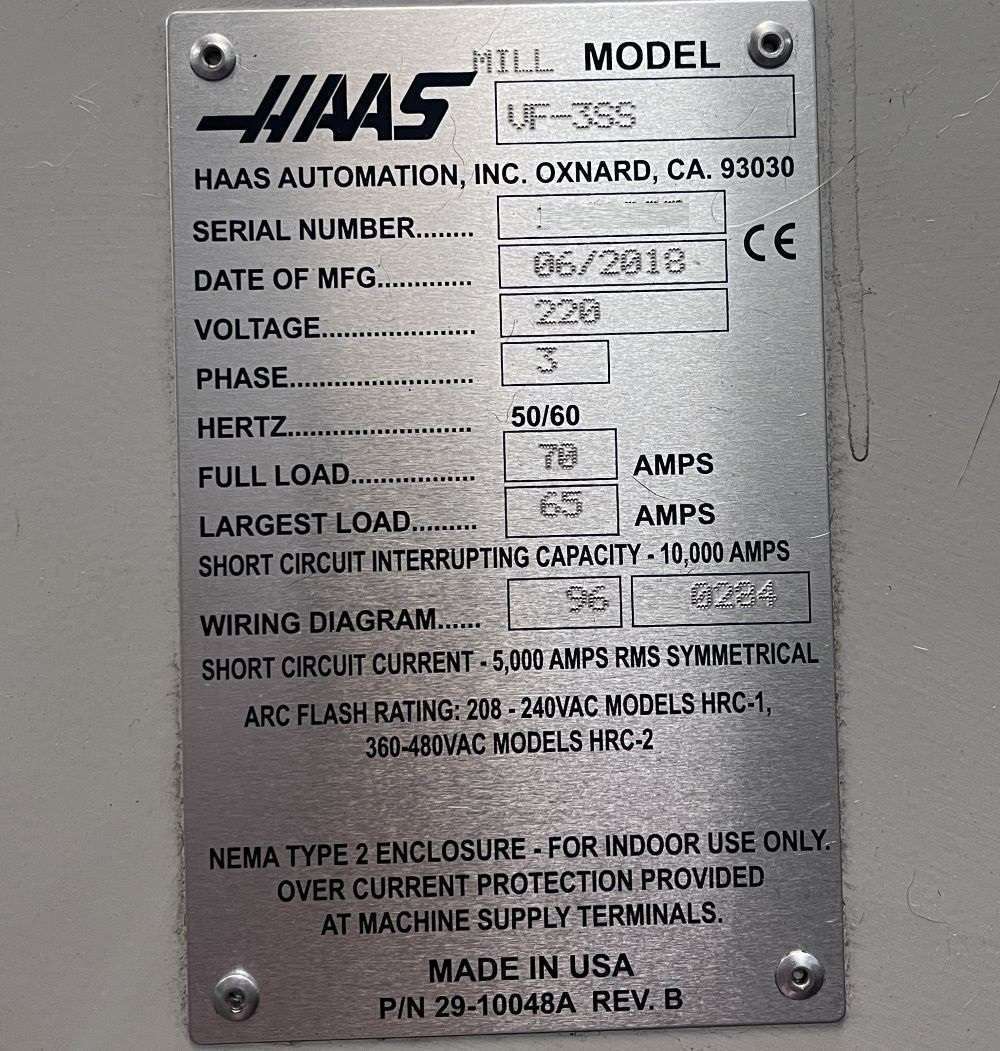

| Power: 220v / 66FLA / 3-Phase |

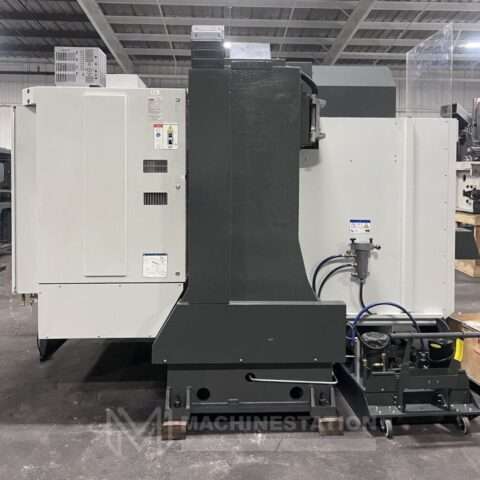

| Overall Dimensions: 152″ x 99″ x 106″ High |
| Weight: 11,720 lbs Approx. |
