All specifications are approximations and are subject to verification.
-
Features:

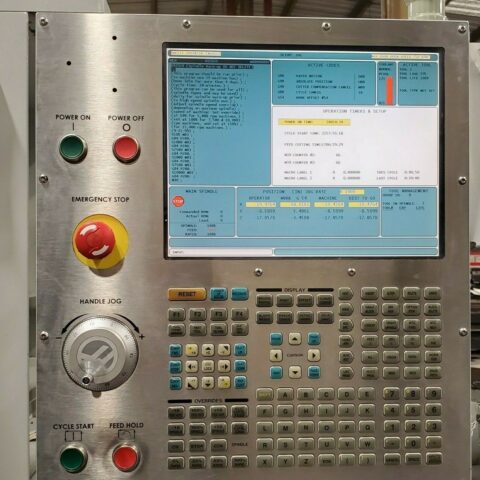

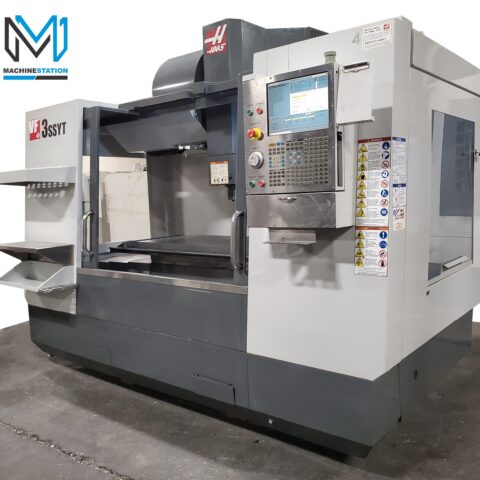

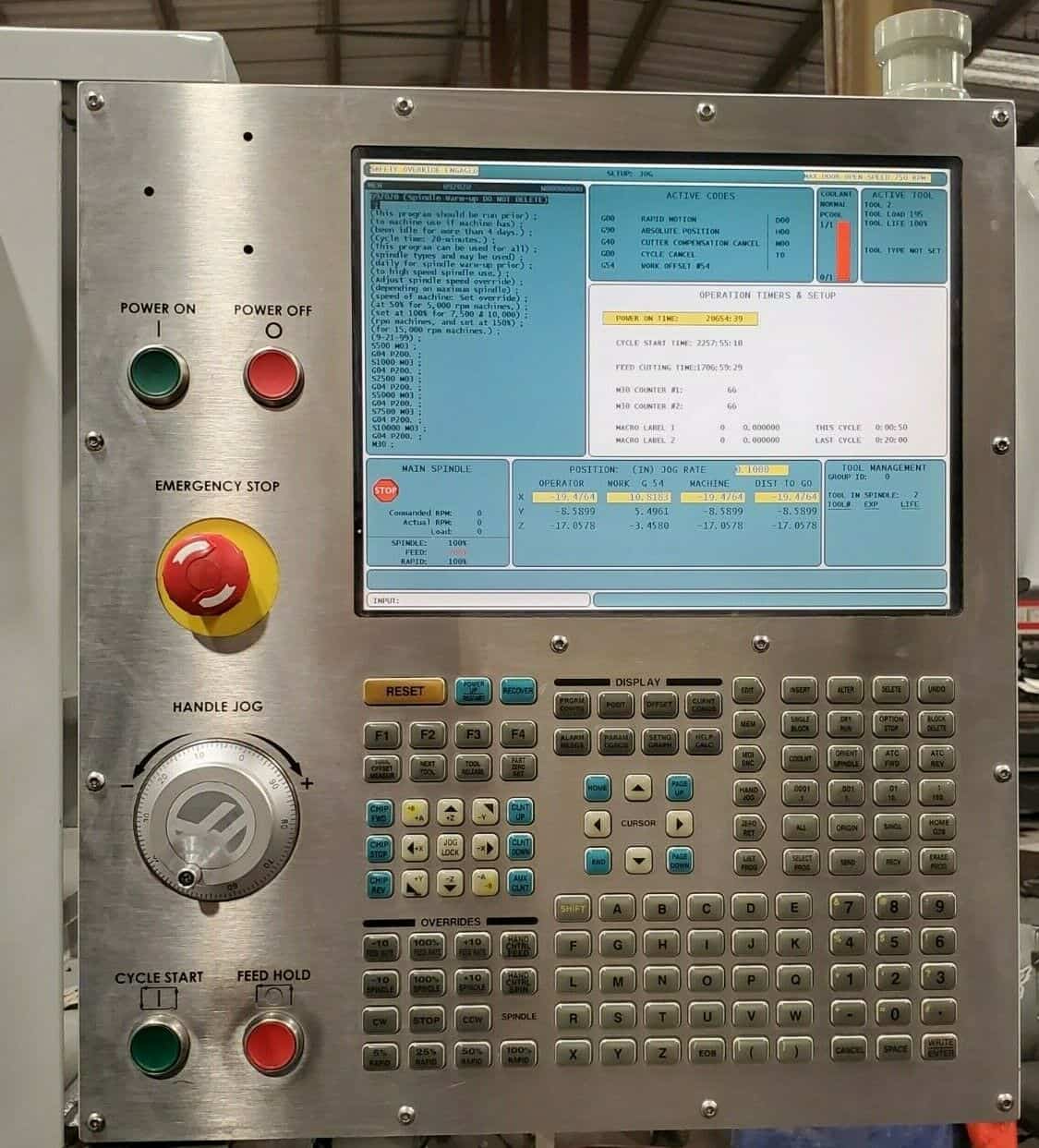

- Haas New Generation CNC Control
- 12000 RPM Inline Direct Drive
- 4th Axis Ready
- High Speed Machining
- 24 Side Mount Automatic tool changer
- 1400 inch per minute rapids
- Quick Code Porgramming
- Coordinate Scale
- Rigid Tapping
- Spindle Orientation
- Programmable Coolant
- Tooling Shelves
- 55 Gallon Coolant Tank
- Chip auger
-
Specifications:
- Travels:
- X-Axis: 40″
- Y-Axis: 26″
- Z-Axis: 25″
- Rapid Traverse Rates: 1417 Inch Per Minute
- Cutting Feed Rates: 630 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 4.2″ – 29.2″
-

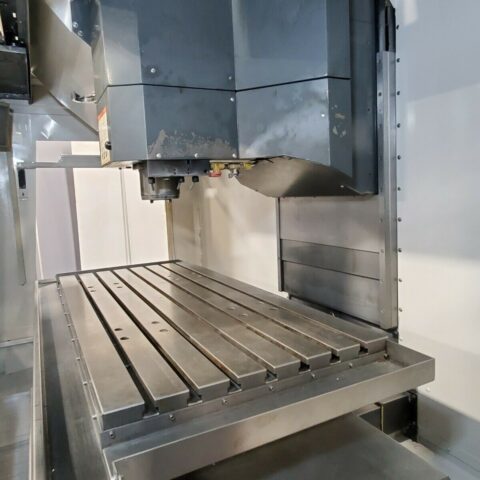

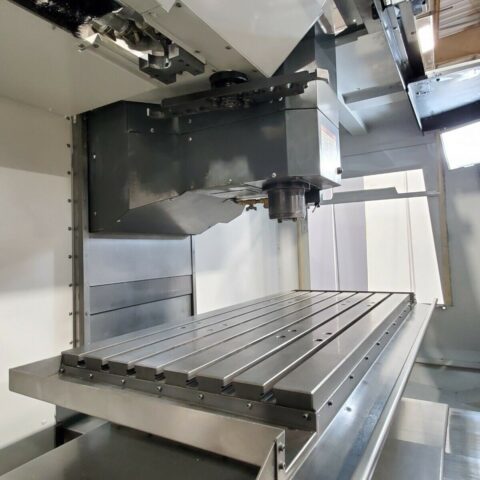

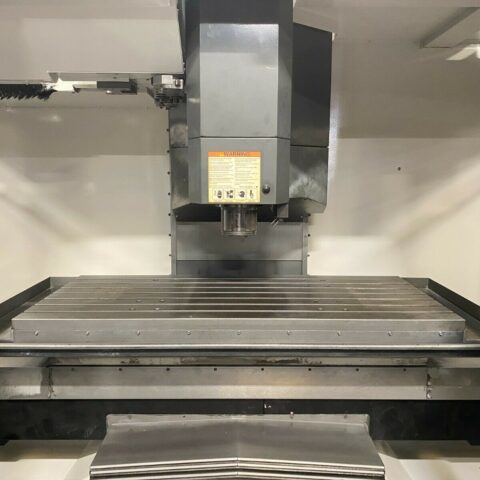

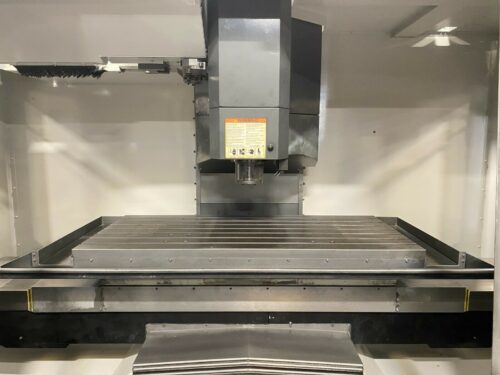

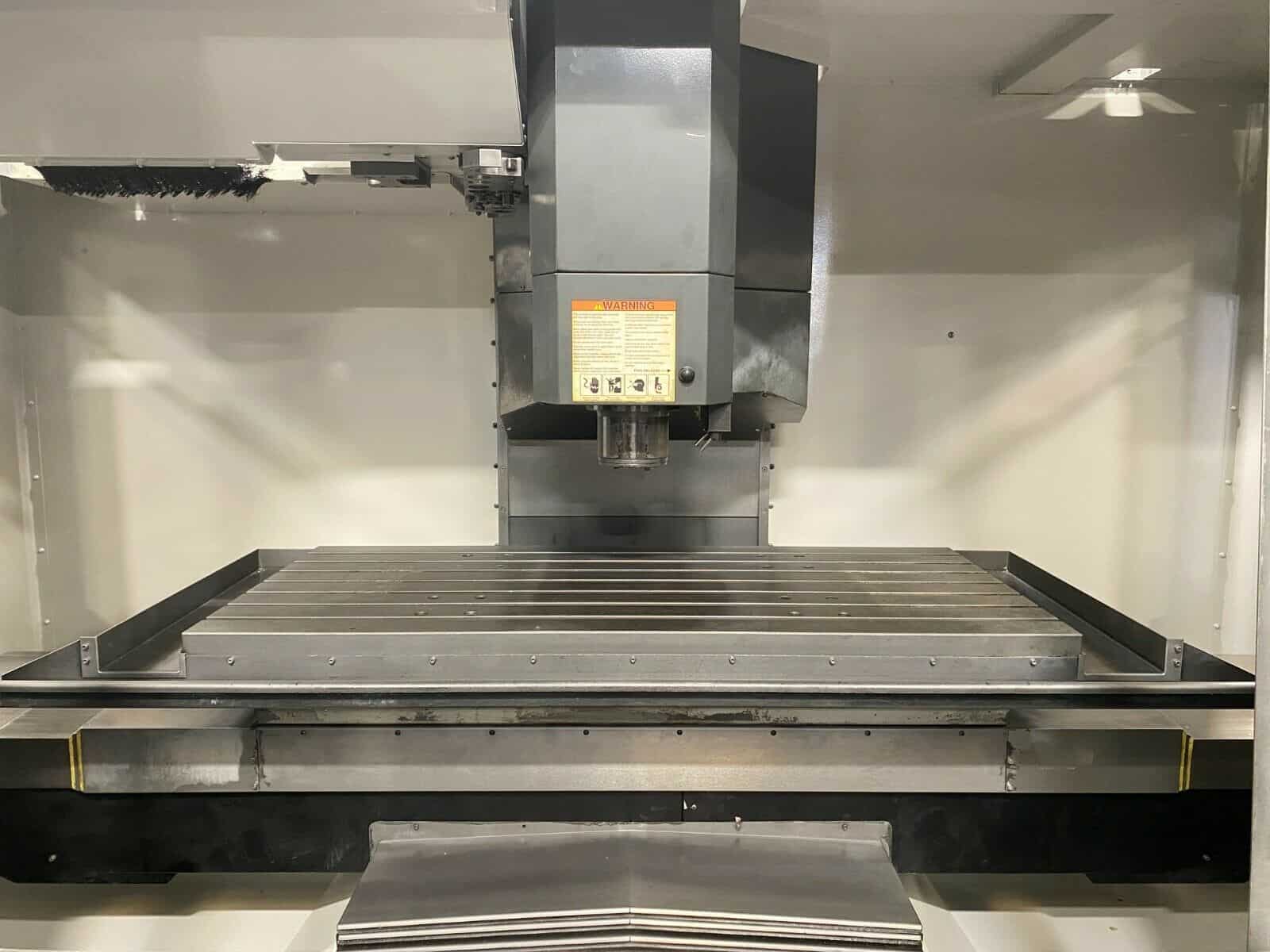

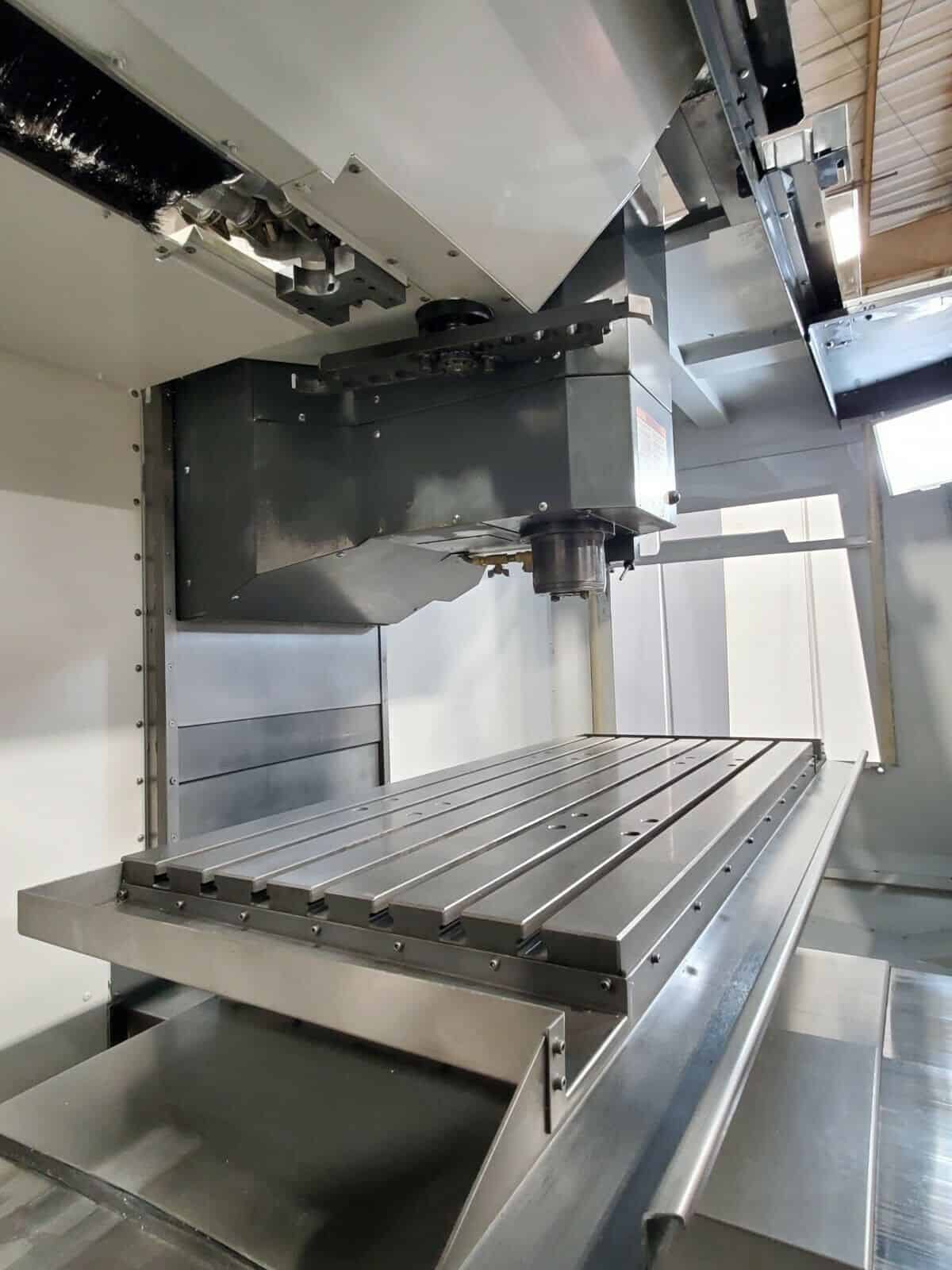

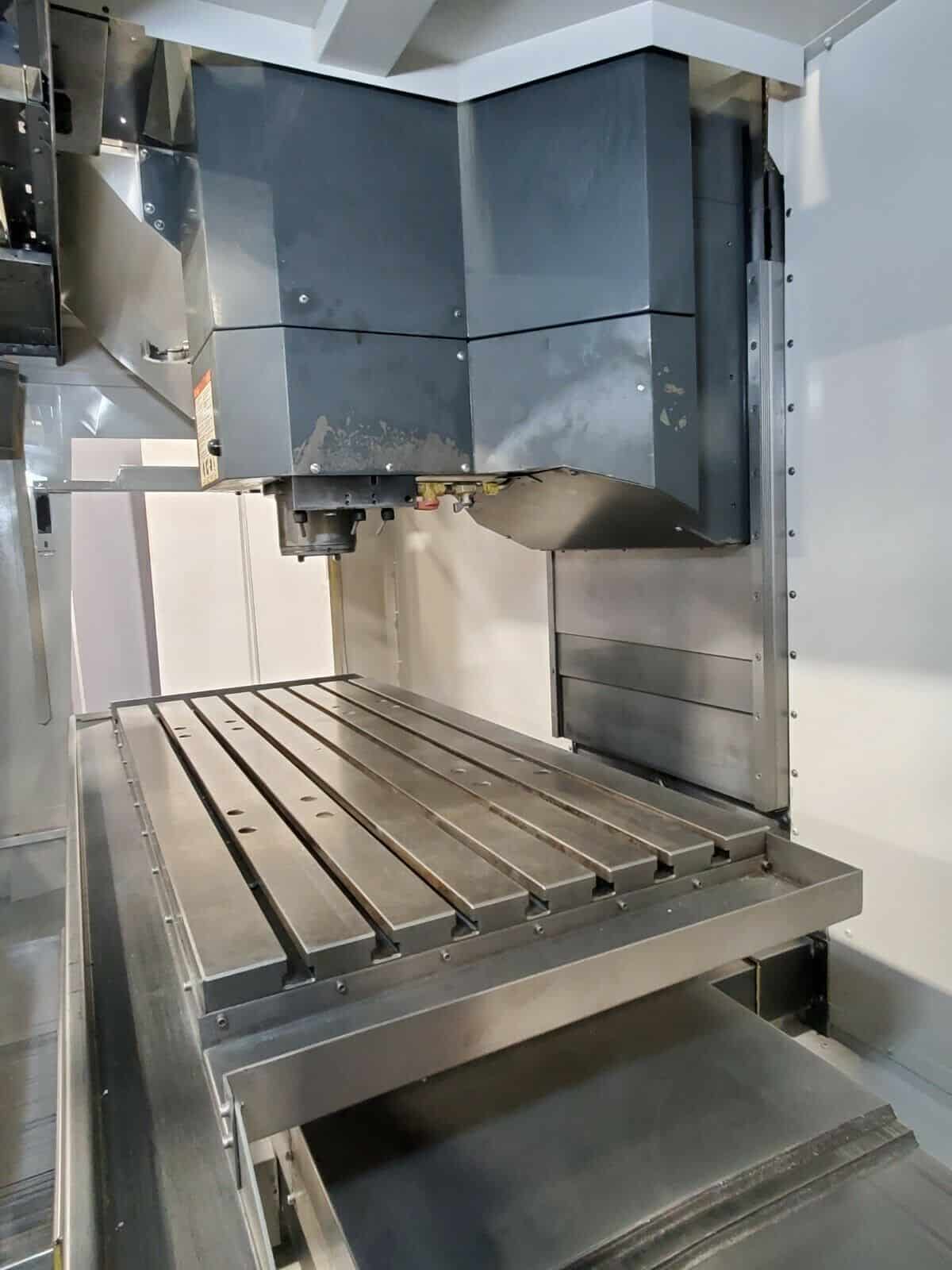

Table:
- Length: 54.0″
- Width: 24.0″
- Number of Std T-Slots: 7
- T-Slot Width: 5/8″
- Max Weight on Table: 1750 lbs
-
Spindle:
- Taper Size: 40
- Speed Range: 12,000 RPM
- Spindle Power: 30 HP
- Vector Dual Drive Max Torque: 90ft-lb @ 2000RPM
-

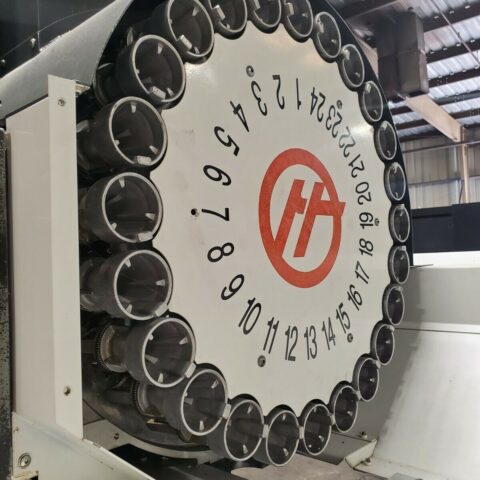

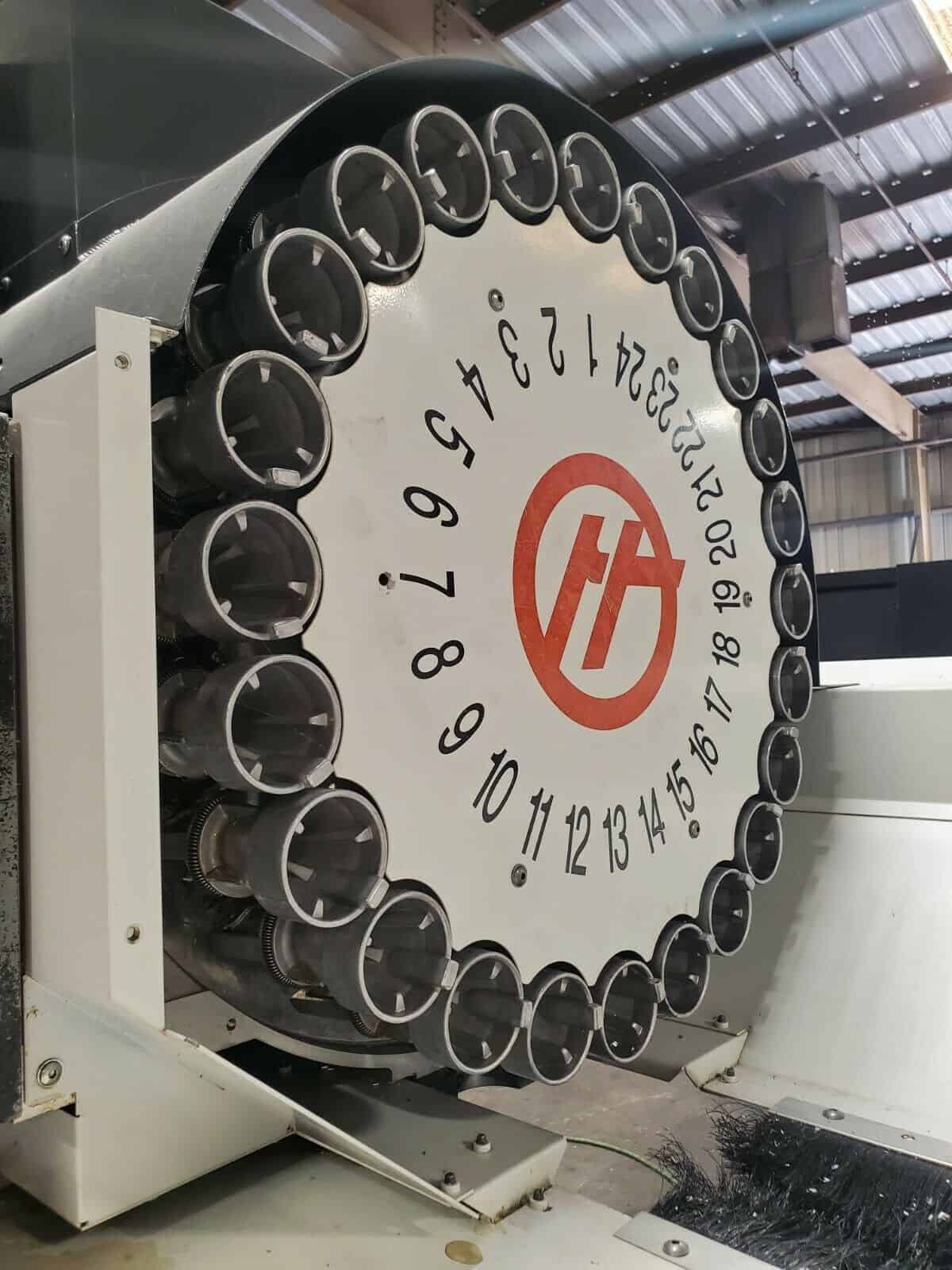

Automatic Tool Changer:
- Capacity: 24
- Max Tool Weight: 12 lbs
- Max Tool Dia: 5.0″
- Max Tool Length: 13″
- Tool Changing Time: 2.2 Seconds
-
General:
- Air Required: 100 psi, 4 scfm

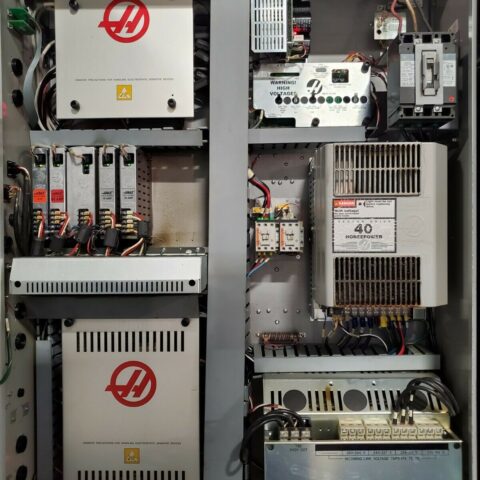

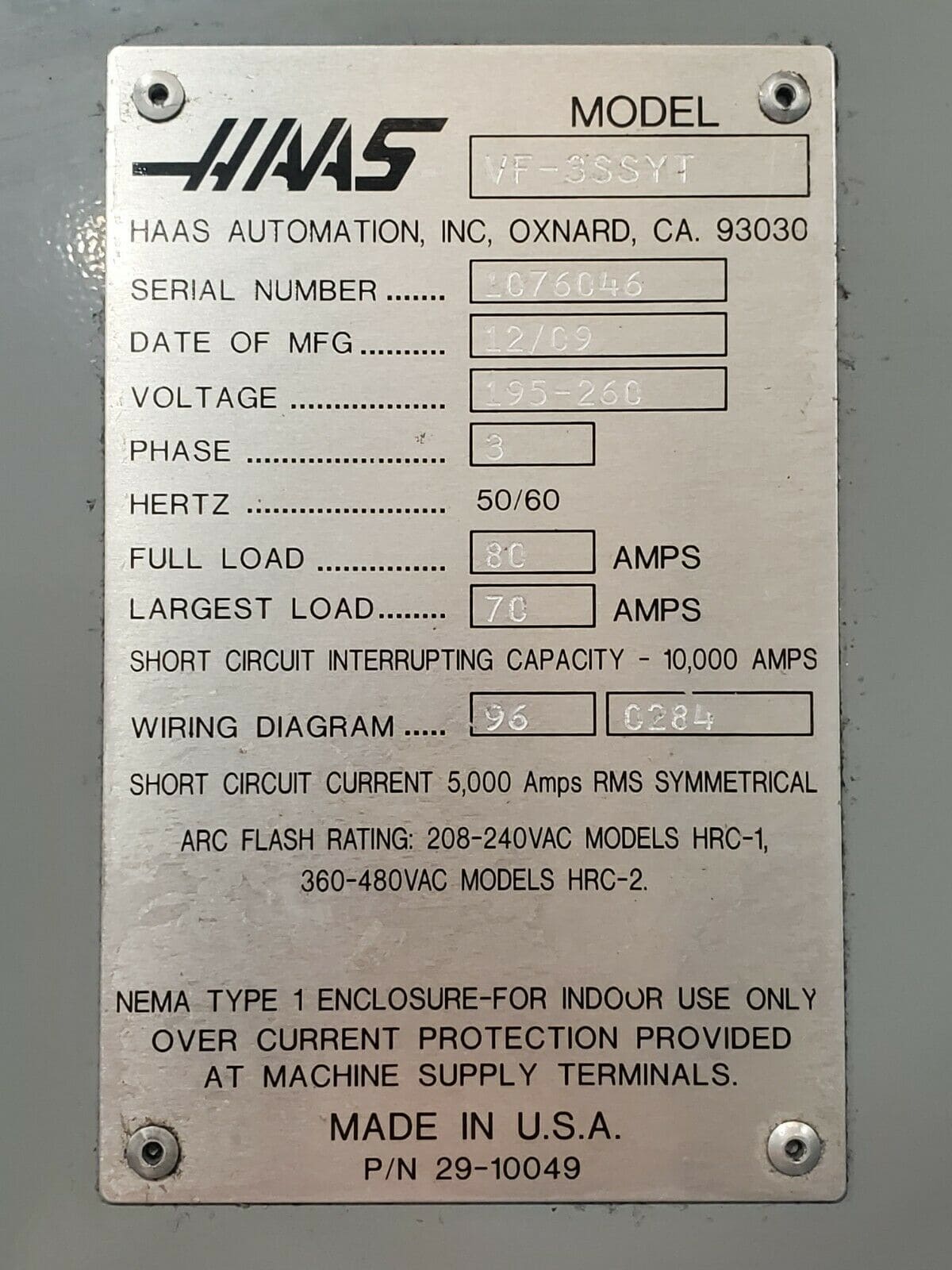

- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 120″ x 96″ x 100″ High
- Weight: 15000 lbs
“No Charges for loading at list Price”
