*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

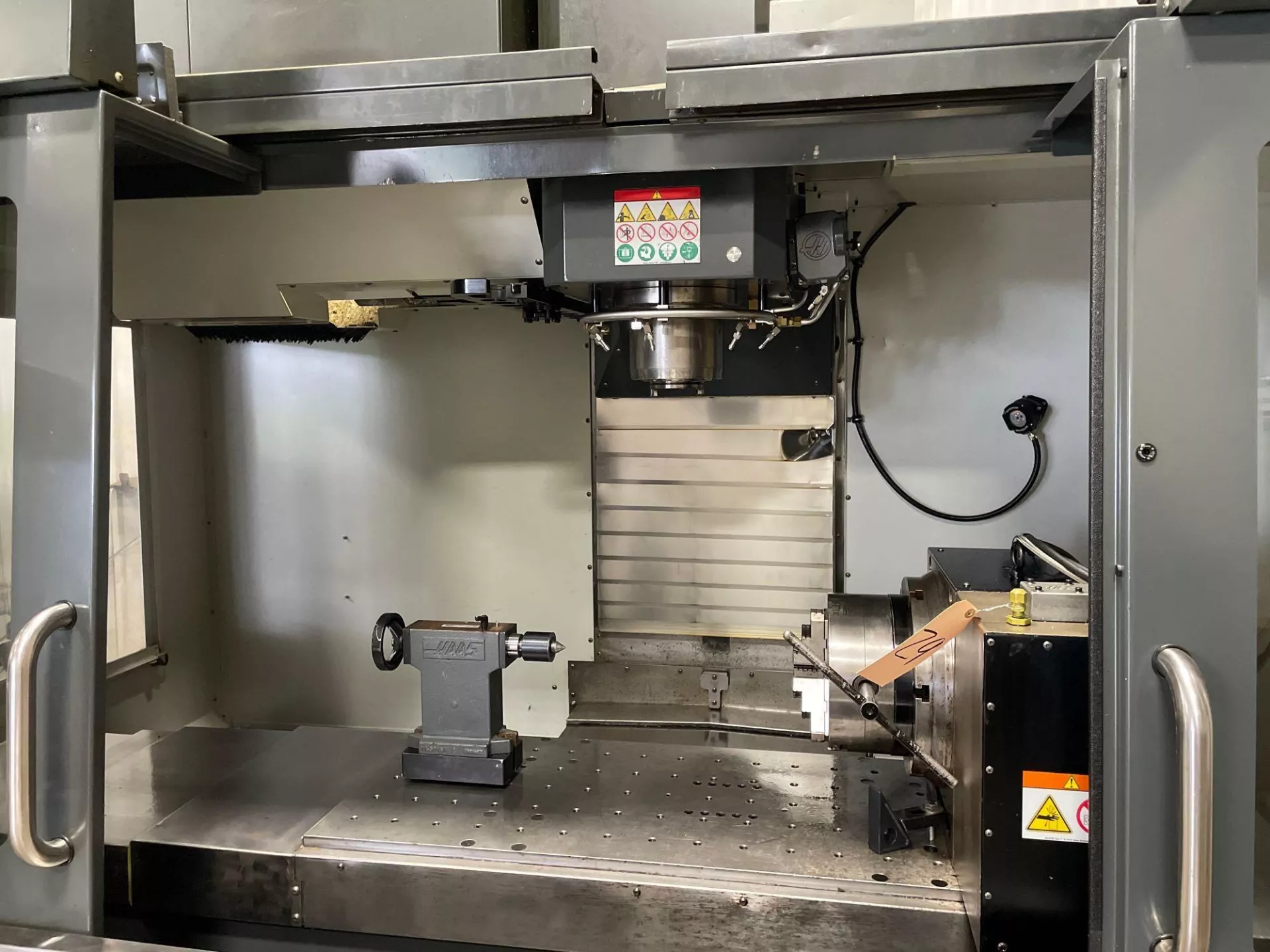

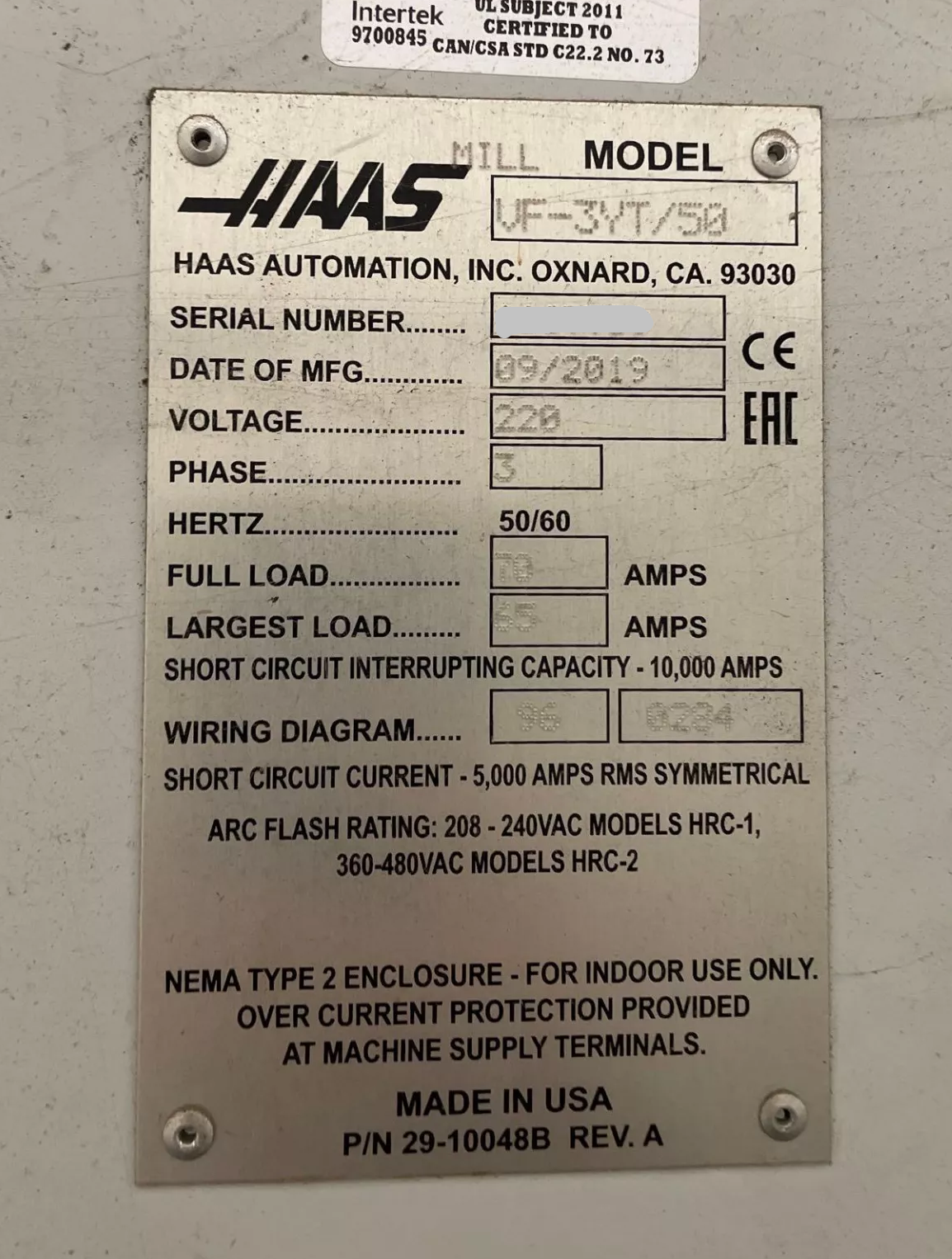

| Make: | Haas |
| Model: | VF-3YT/50 |
| Year of Manufacture: | 2019 |
| Machine Type: | CNC Vertical Machining Center |

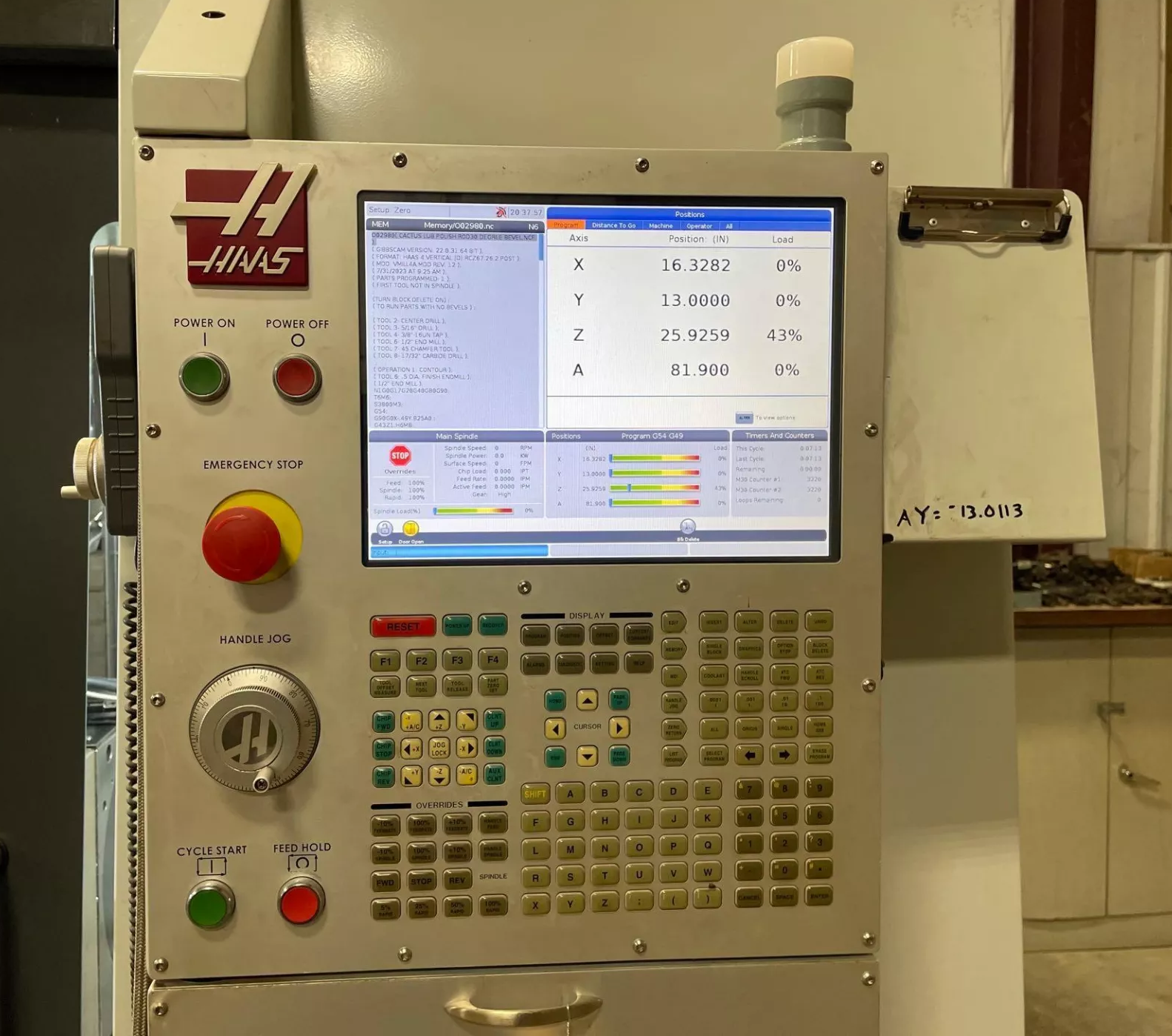

| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| 50 Taper High Torque Spindle |
| Side Mount Tool Changer |
| Rigid Tapping |
| Programmable Coolant |
| Chip Auger / Conveyor |
| Full Enclosure |
| Capacity: |
|---|
| Table Size: 48″ x 24″ |
| Max Table Load: 3,500 lbs |
| Travels: |
|---|
| X-Axis Travel: 40″ |
| Y-Axis Travel: 26″ |
| Z-Axis Travel: 25″ |
| Spindle: |
|---|
| Spindle Speed: 10,000 RPM |
| Spindle Motor: 30 HP |
| Taper: CAT 50 |
| Drive Type: Gear-Driven |
| Tooling: |
|---|
| Tool Capacity: 30+1 Tools |
| Tool Changer Type: Side Mount |
| Feed Rates: |
|---|
| Rapid Traverse (X): 710 IPM |
| Rapid Traverse (Y): 710 IPM |
| Rapid Traverse (Z): 710 IPM |
| General: |
|---|
| Power Source: AC 220/480 V, 3-Phase, 50/60 Hz |
| Machine Dimensions (L x W x H): 120″ x 105″ x 110″ |
| Machine Weight: 15,500 lbs Approx. |
