*All specifications are approximations and are subject to verification.

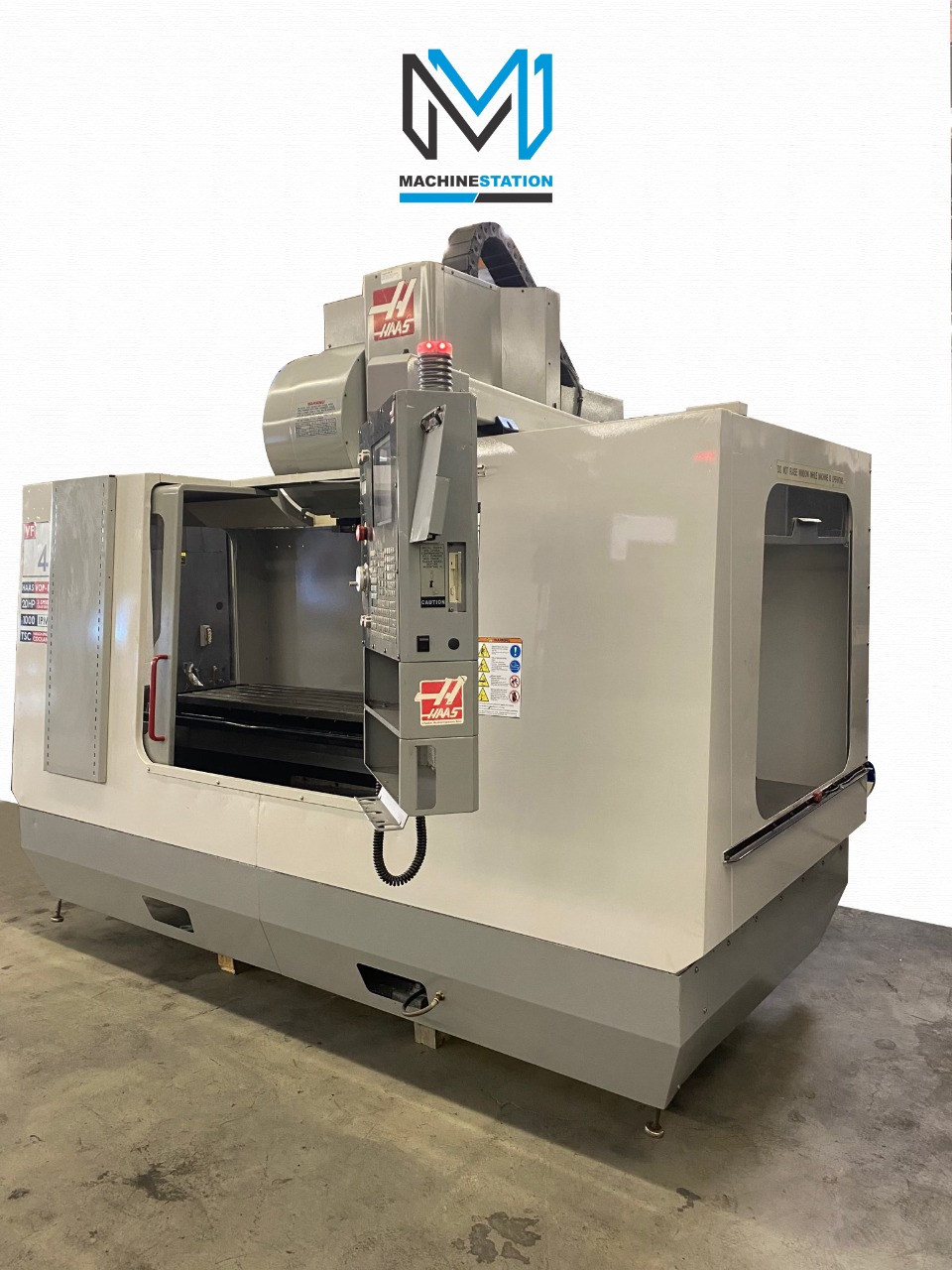

| HAAS VF4D Features: |
|---|

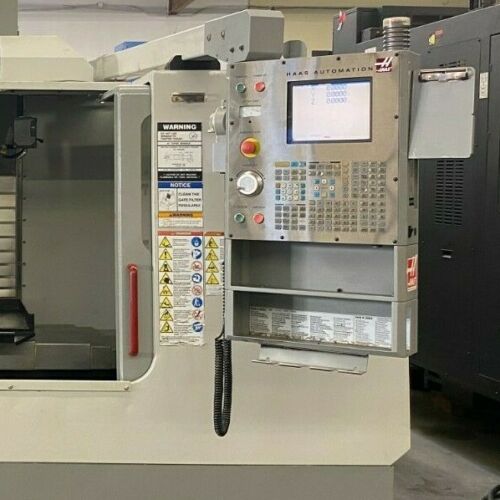

| Haas CNC Control |
| 7500 RPM Spindle |
| 4th & 5th Axis Ready |
| TRUNNION Included |
| MPG Control |
| 20 Automatic tool changer |
| MPG Control |
| Expanded Memory |
| Rigid Tapping |
| Advanced Tool Management |
| Power Failure Detection Module |
| User Definable Macros |
| Spindle Orientation |
| Programmable coolant |
| Telescopic way covers |
| Chip auger |
| Travels: |
|---|
| X-Axis: 50″ |
| Y-Axis: 20″ |
| Z-Axis: 25″ |
| Rapid Traverse Rates: 710 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 4″ – 29″ |
| Table: |
|---|
| Length: 52″ |
| Width: 18″ |
| Max Weight on Table: 3500 lbs |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 7500 RPM |
| Spindle Power: 30 HP |
| Automatic Tool Changer: |
|---|
| Capacity: 20 |
| Max Tool Weight: 12 lbs |
| Max Tool Dia: 5″ |
| Max Tool Length: 13″ |
| Tool Changing Time: 2.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |
| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 125″ x 93″ x 102″ High |
| Weight: 13500 lbs |
“No Charges for loading at list Price”

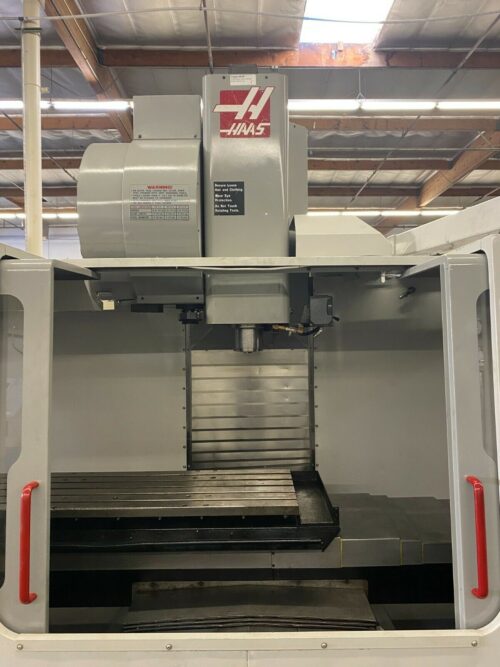

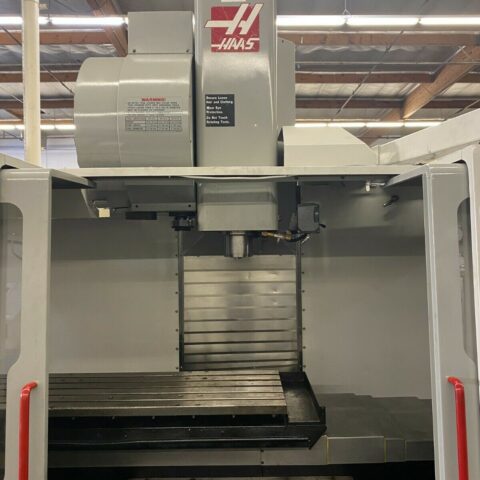

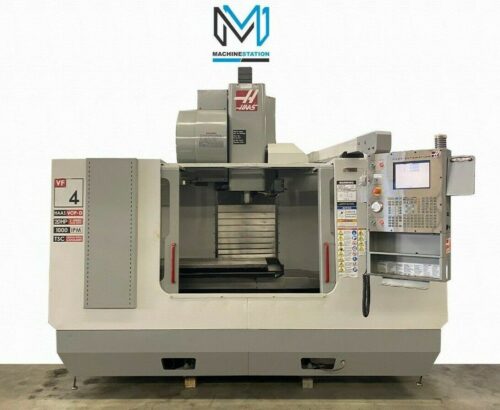

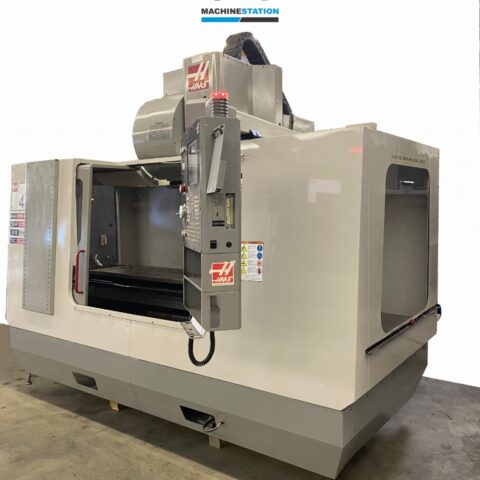

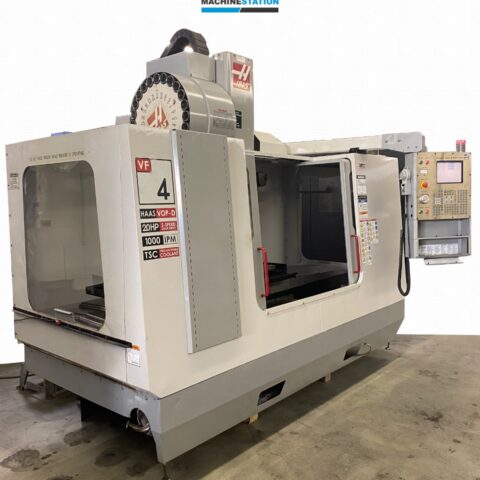

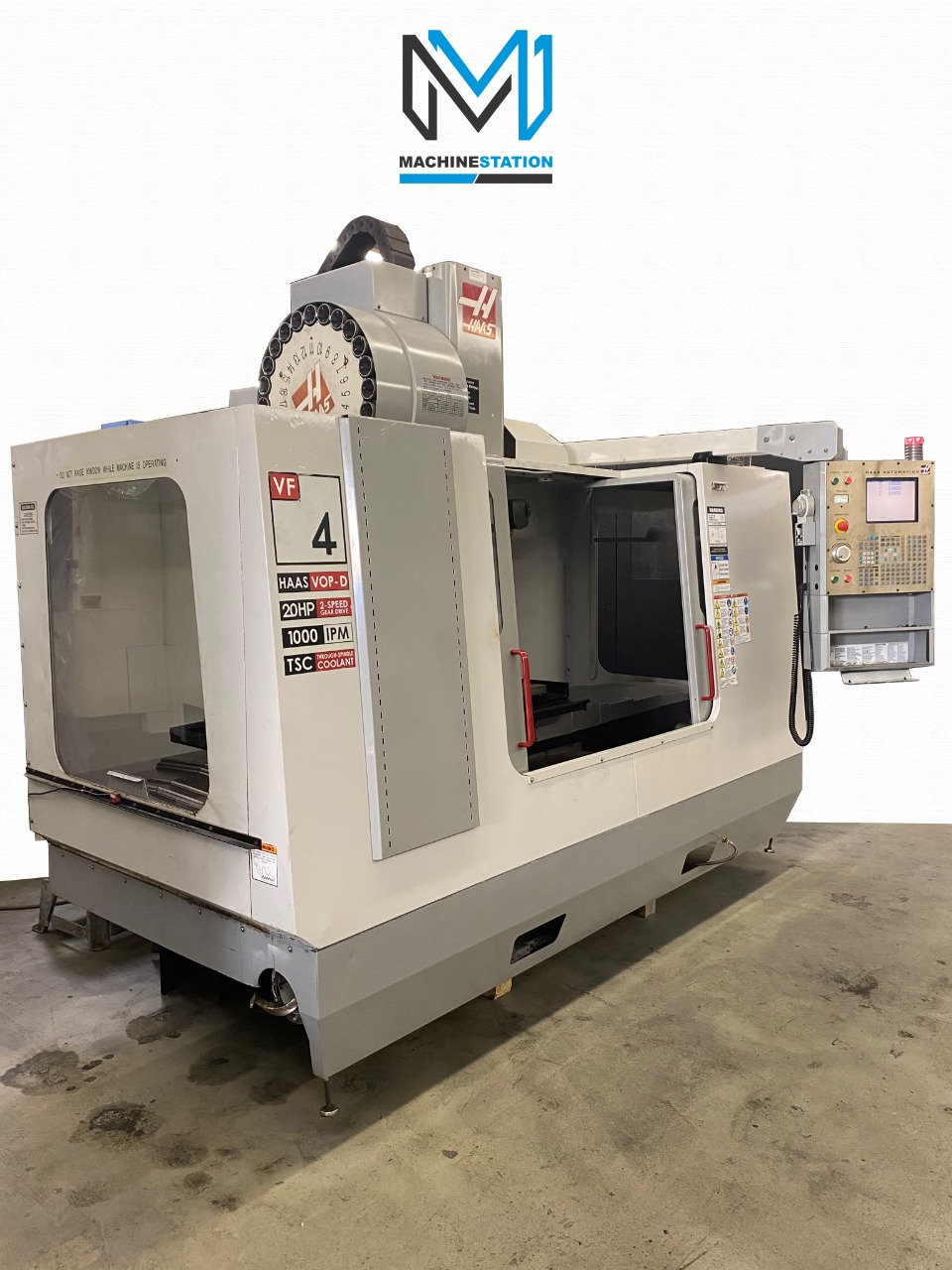

Comes as shown in pictures..
