All specifications are approximations and are subject to verification.

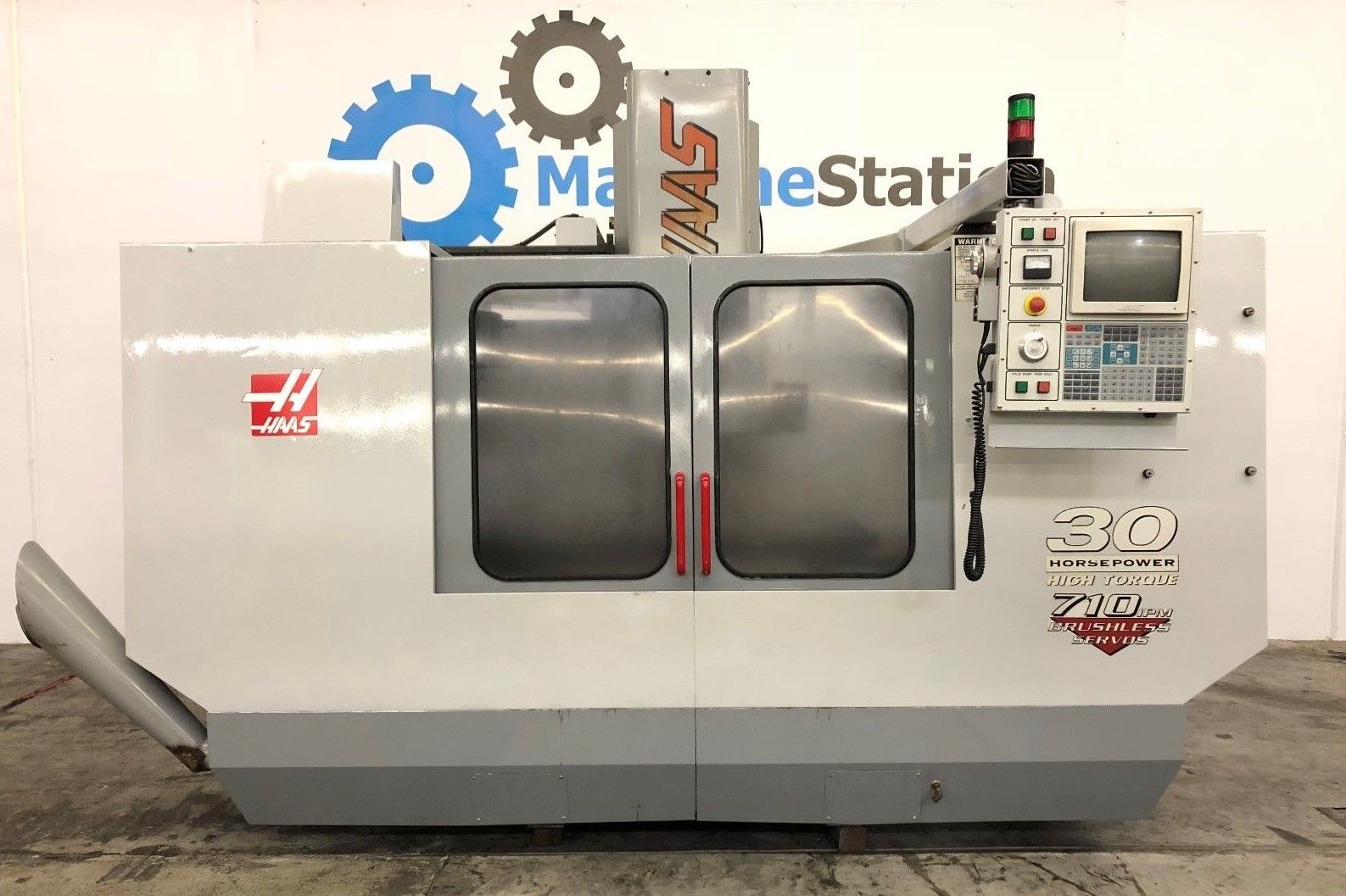

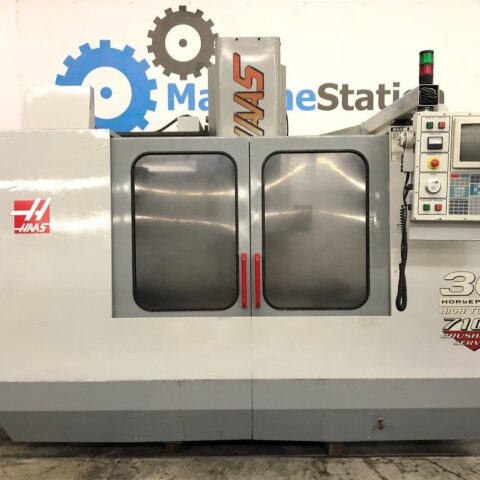

“This Rigid Machine has 50 Taper gear head spindle, CTS, 20 tools changer, 4th Axis, 1MB Memory, USB. On our Floor now, fully powered / tested & is in Great working condition.”

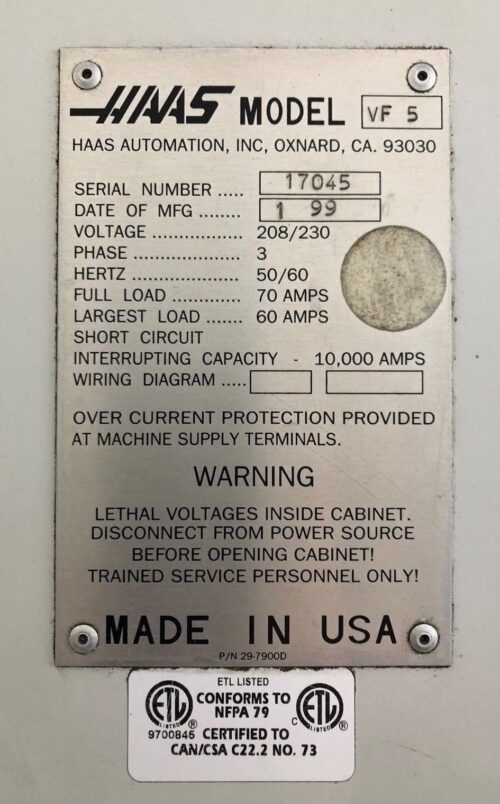

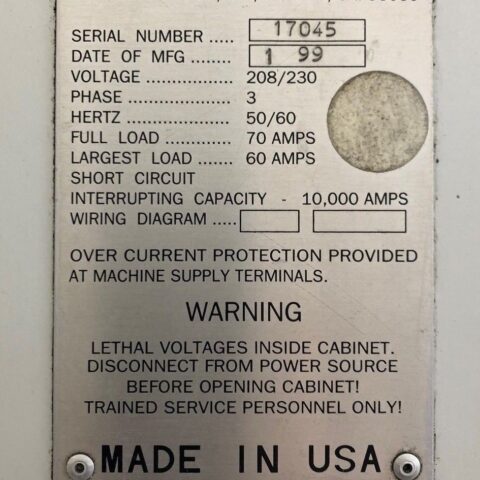

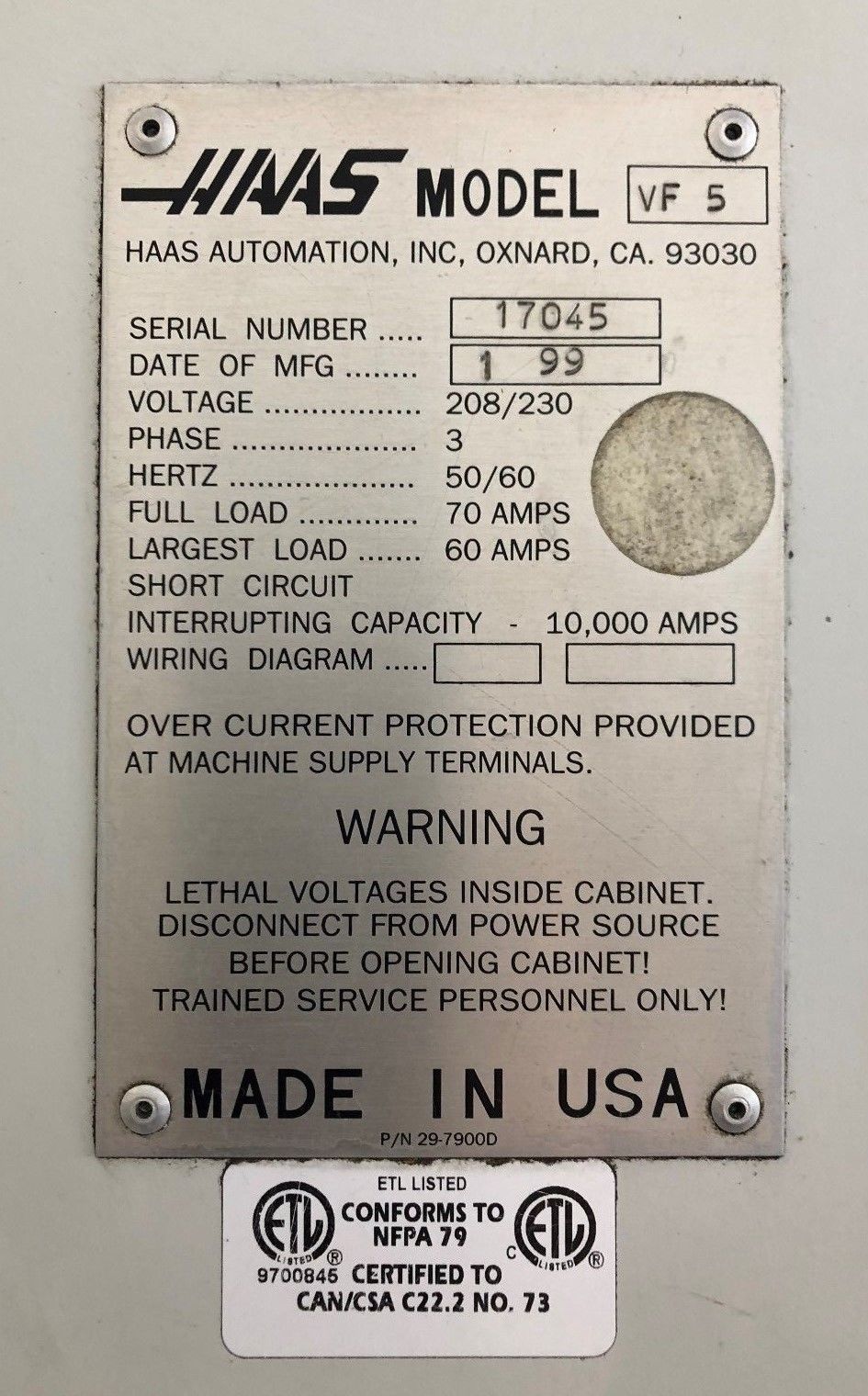

| Make | Haas |
| Model No. | VF-5 |
| Year | 1999 Installed: 2000 |
| Condition | Used-Good |
-
HAAS VF- 5 50 Features:

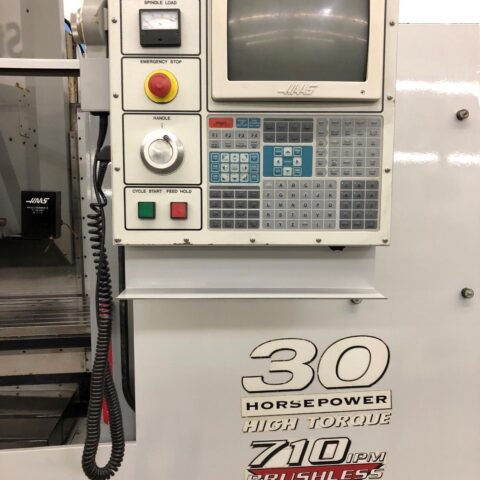

- 30HP High Torque Spindle Motor
- Coolant Through Spindle

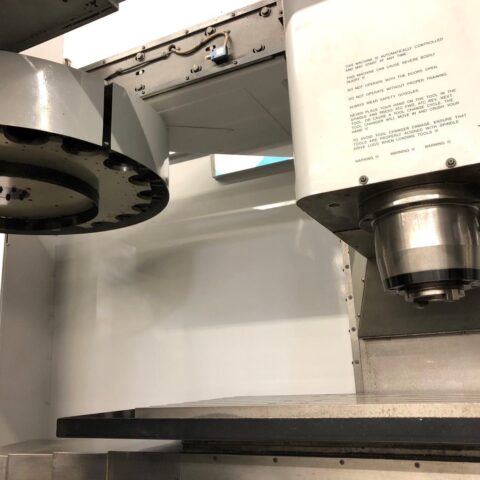

- CAT-50 Taper Gearhead Spindle
- 5000 RPM Spindle
- 4th Axis Drive & Wiring Installed
- 1 MB Memory
- 20 + 1 automatic tool changer

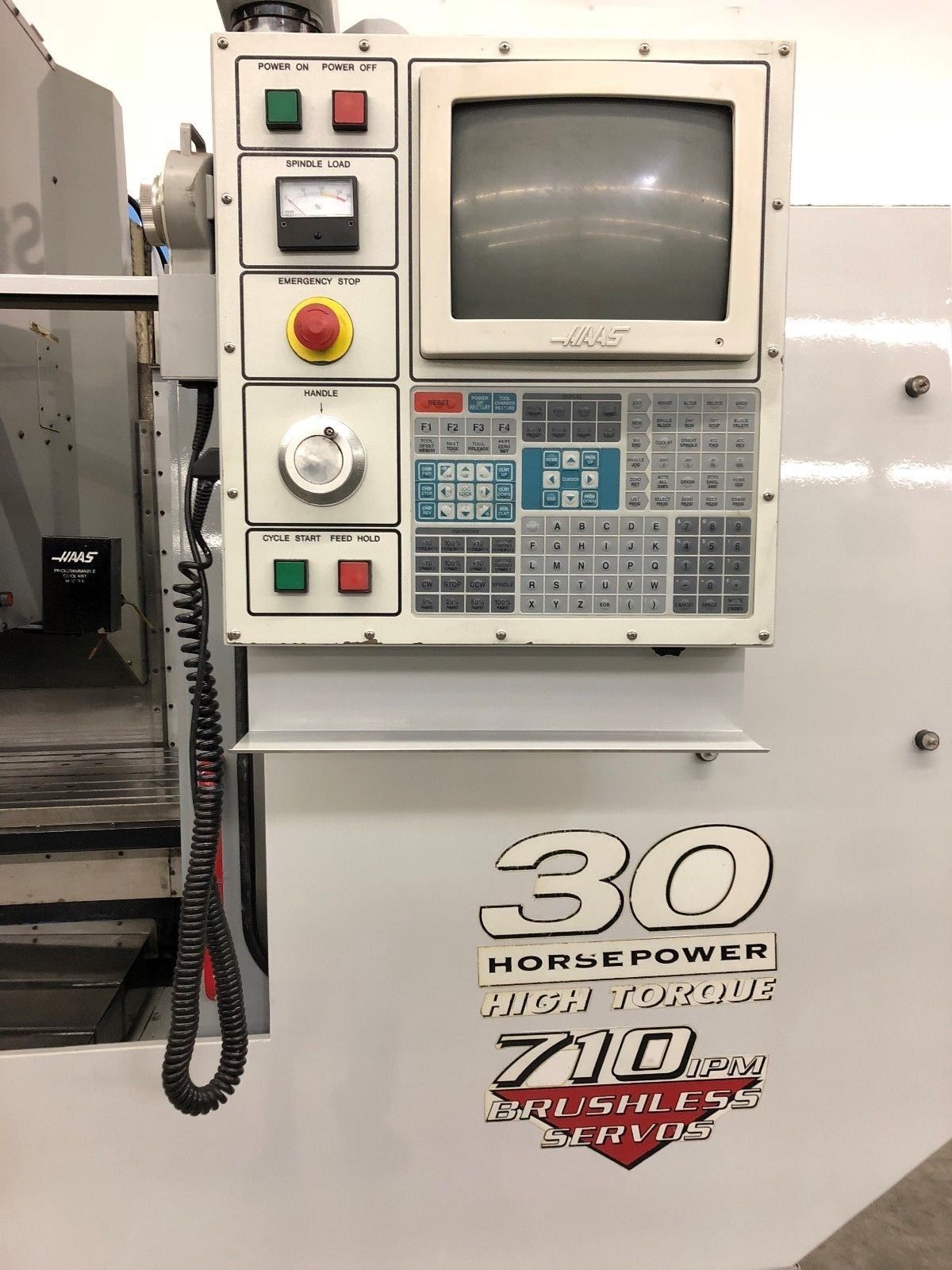

- MPG Remote Jog Handle
- Quick Code Programming
- USB Drive
- RS-232
- Brush-type servo drive motors on all axis
- Programmable coolant
- Telescopic way covers
- Chip auger
- Flood Coolant system
-
HAAS VF- 5 50 Specifications:
- Travels:
- X-Axis: 50″
- Y-Axis: 26″
- Z-Axis: 25″
- Rapid Traverse Rates: 710 Inch Per Minute
- Cutting Feed Rates: 500 Inch Per Minute
- Spindle Nose to Table (Min.- Max.): 7″ – 32″
-

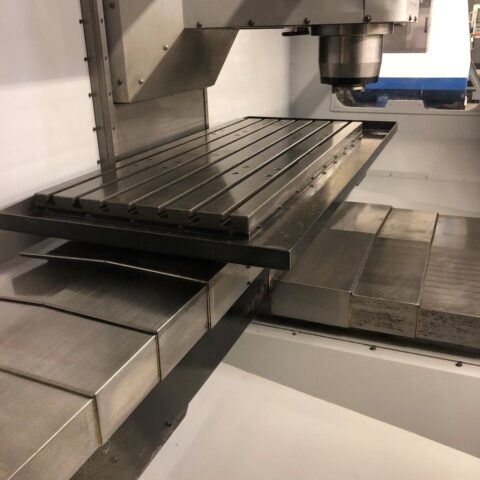

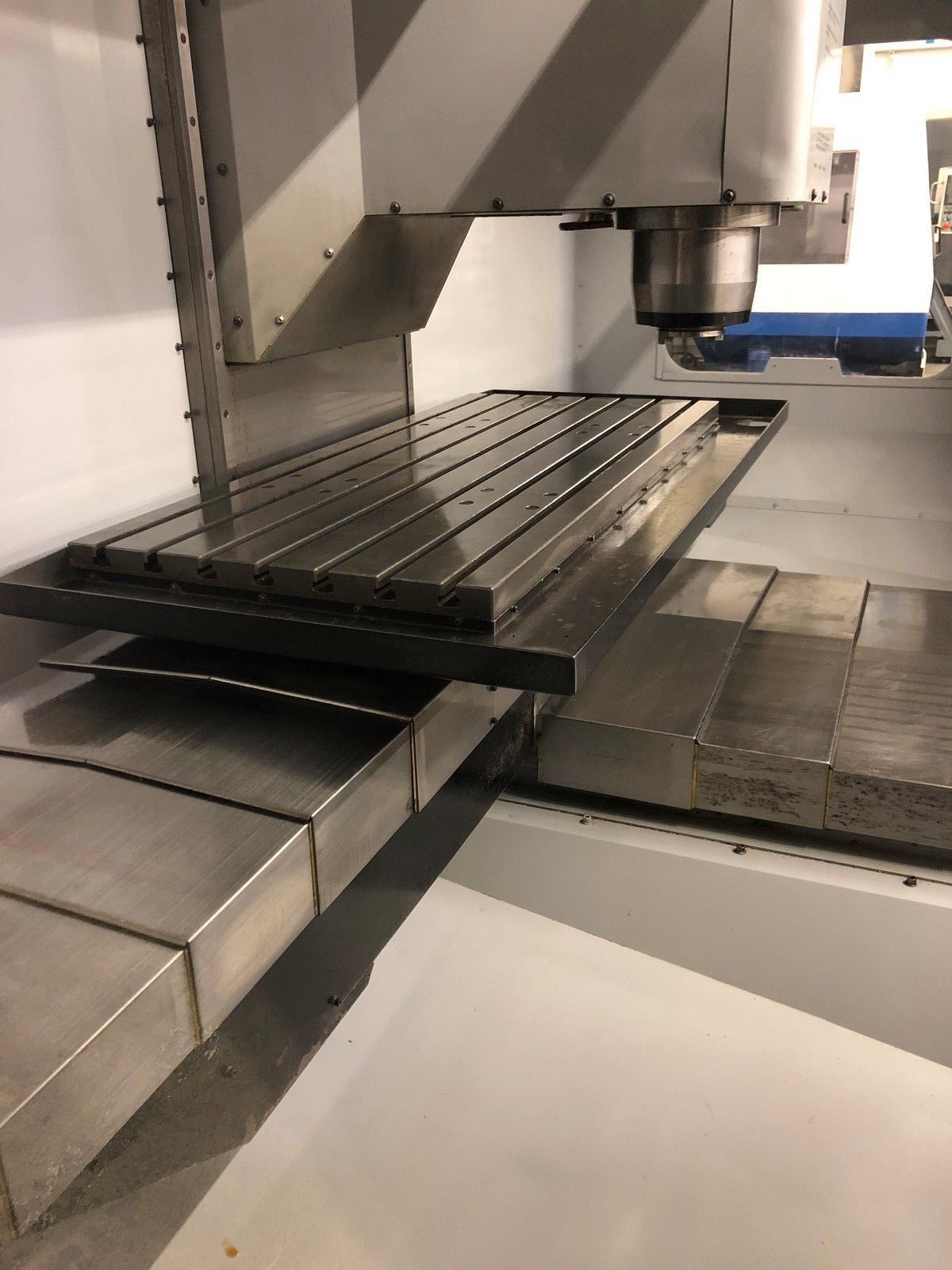

Table:
- Length: 52″
- Width: 23″
- Number of Std T-Slots: 5
- T-Slot Width: 5/8″
- Max Weight on Table: 4000 lbs
-
Spindle:
- Taper Size: CAT 50
- Speed Range: 5000 RPM
- Spindle Power: 30 HP Vector Dual Drive
- Max Torque: 90ft-lb @ 2000RPM
-

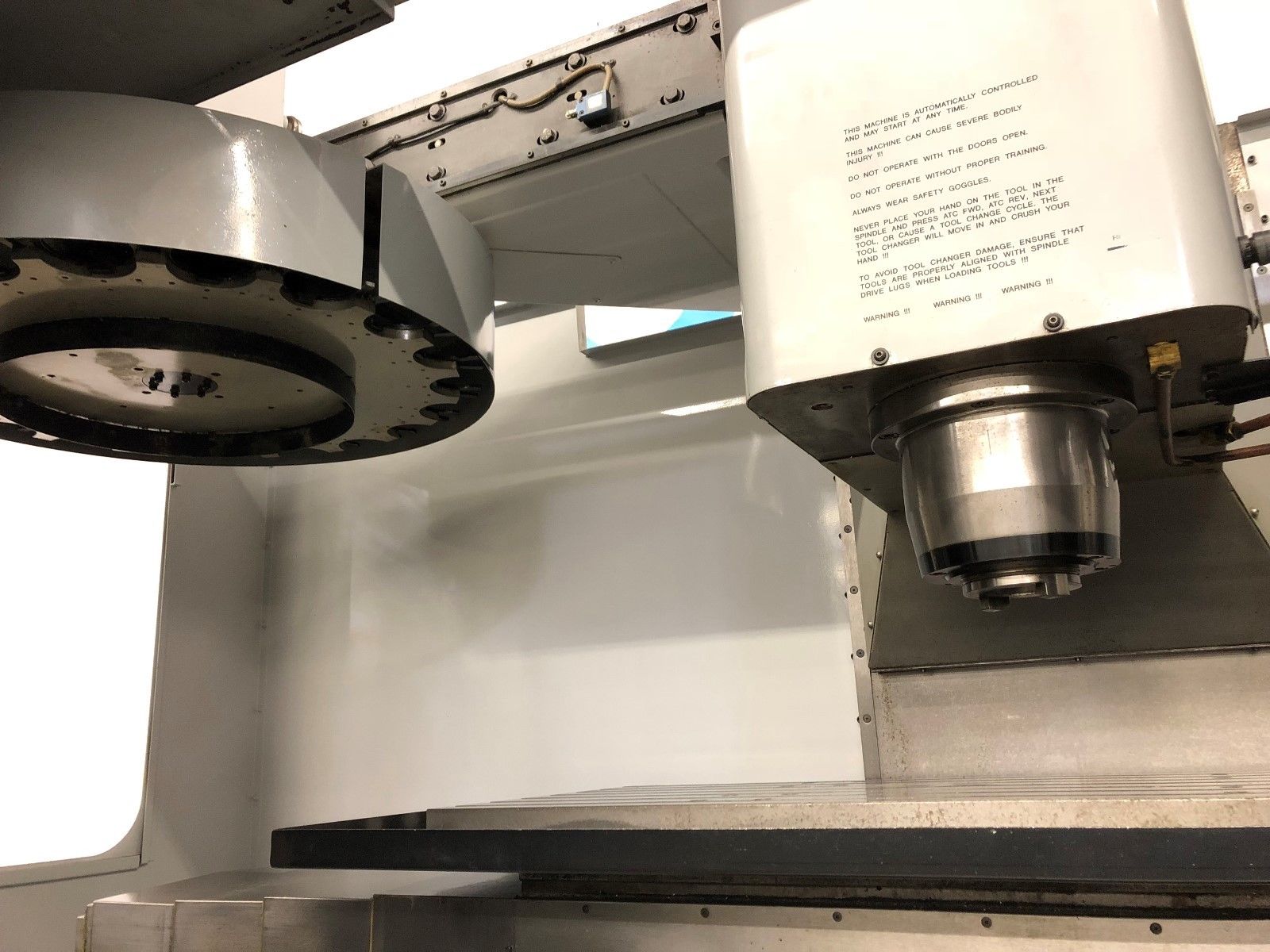

Automatic Tool Changer:
- Capacity: 20 + 1
- Max Tool Weight: 12 lbs
- Max Tool Dia: 6″
- Max Tool Length: 16″
- Tool Changing Time: 4.2 Seconds
-
General:
- Air Required: 100 psi, 4 scfm
- Power: 220v / 66FLA / 3-Phase
- Overall Dimensions: 158″ x 98″ x 118″ High
- Weight: 16500 lbs
