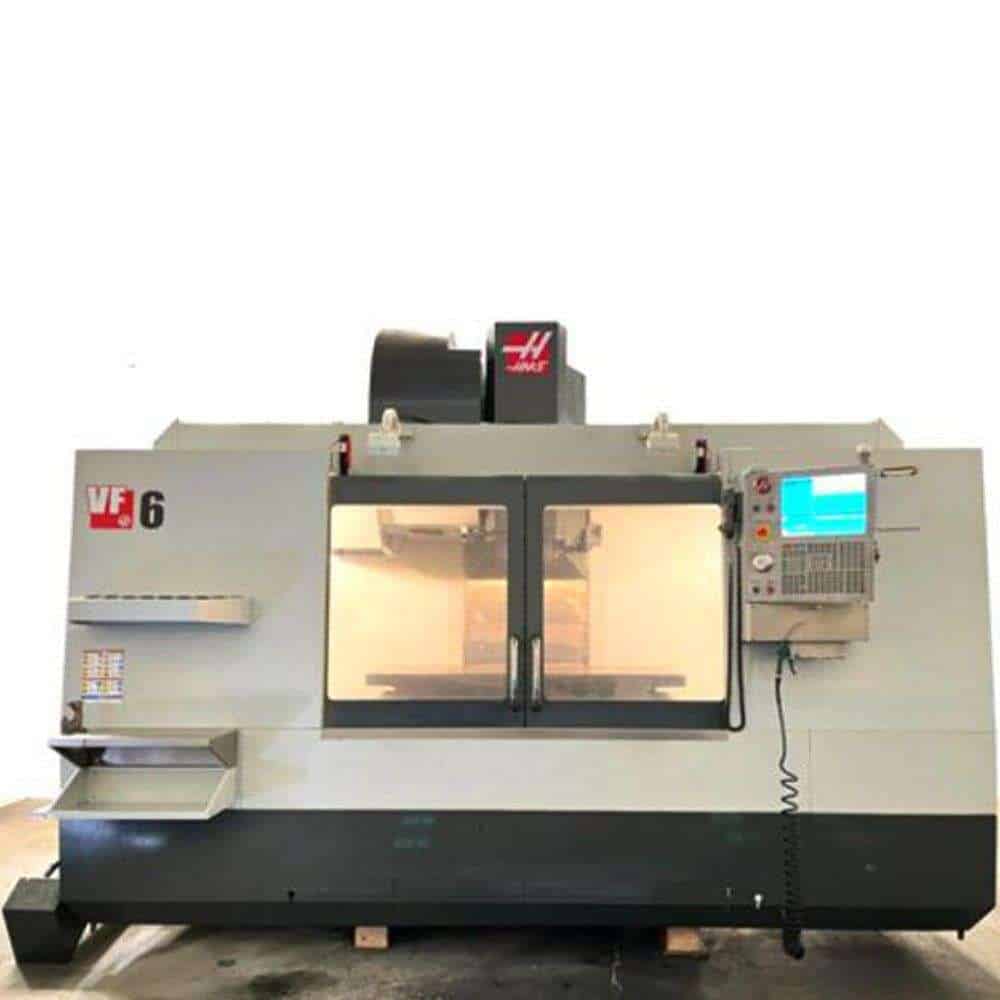

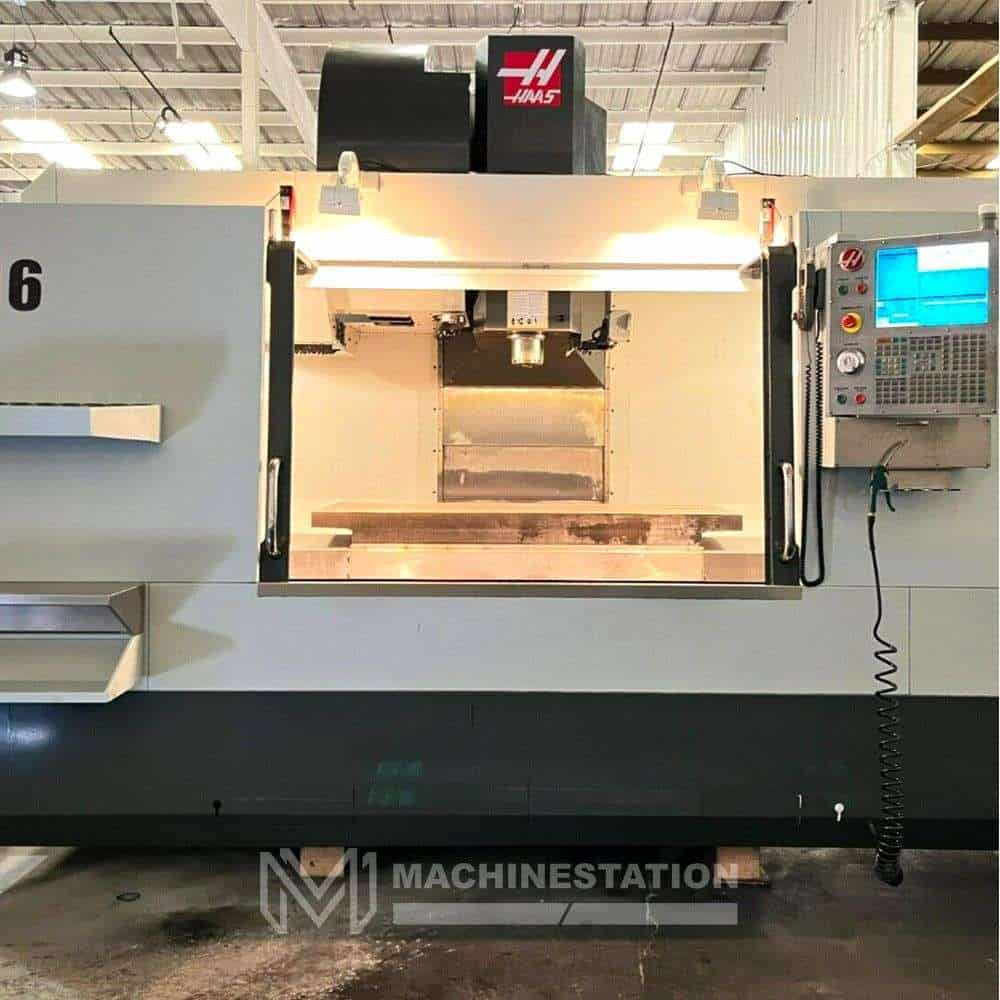

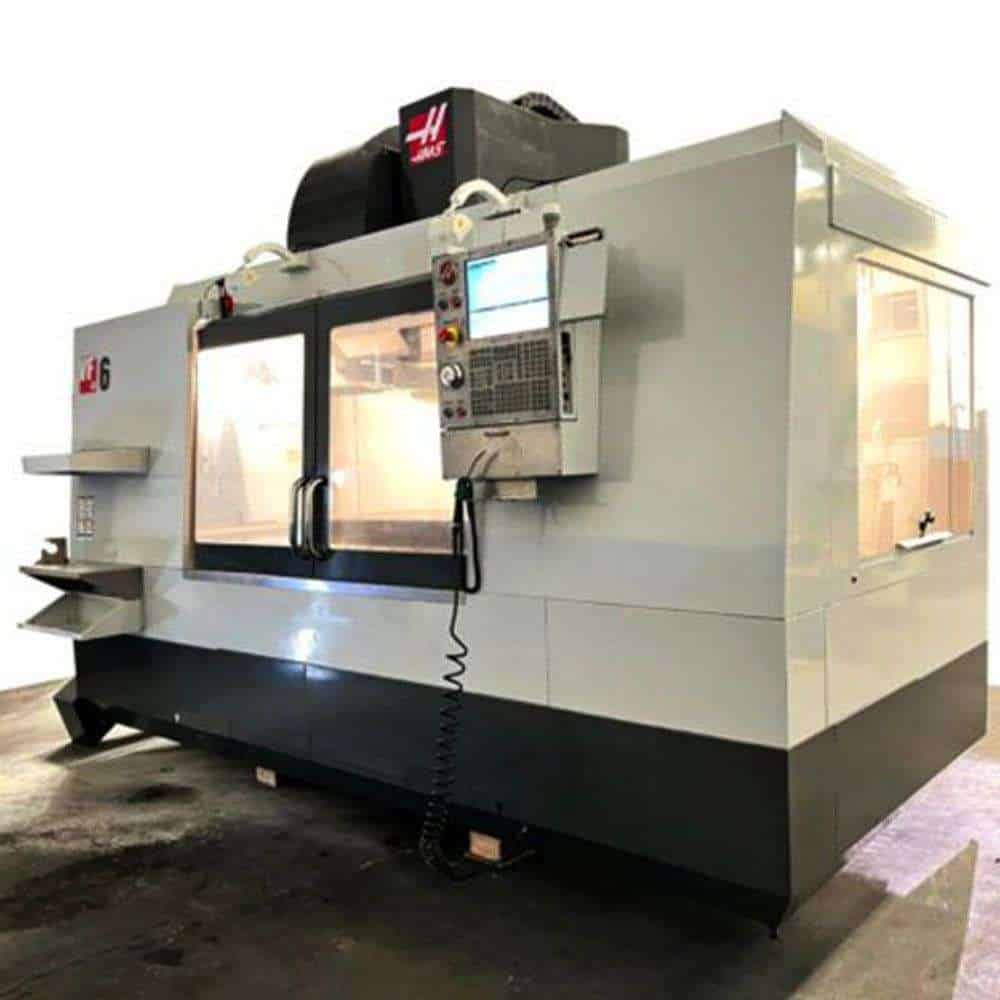

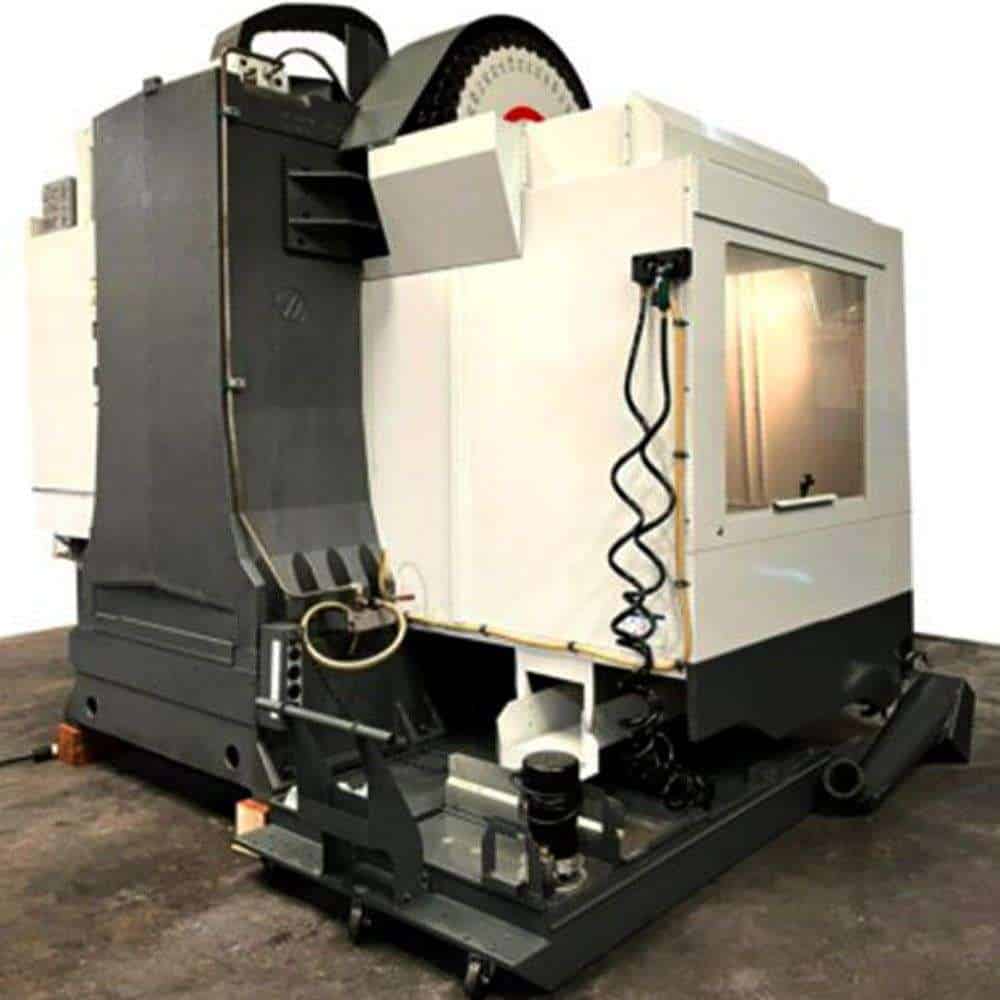

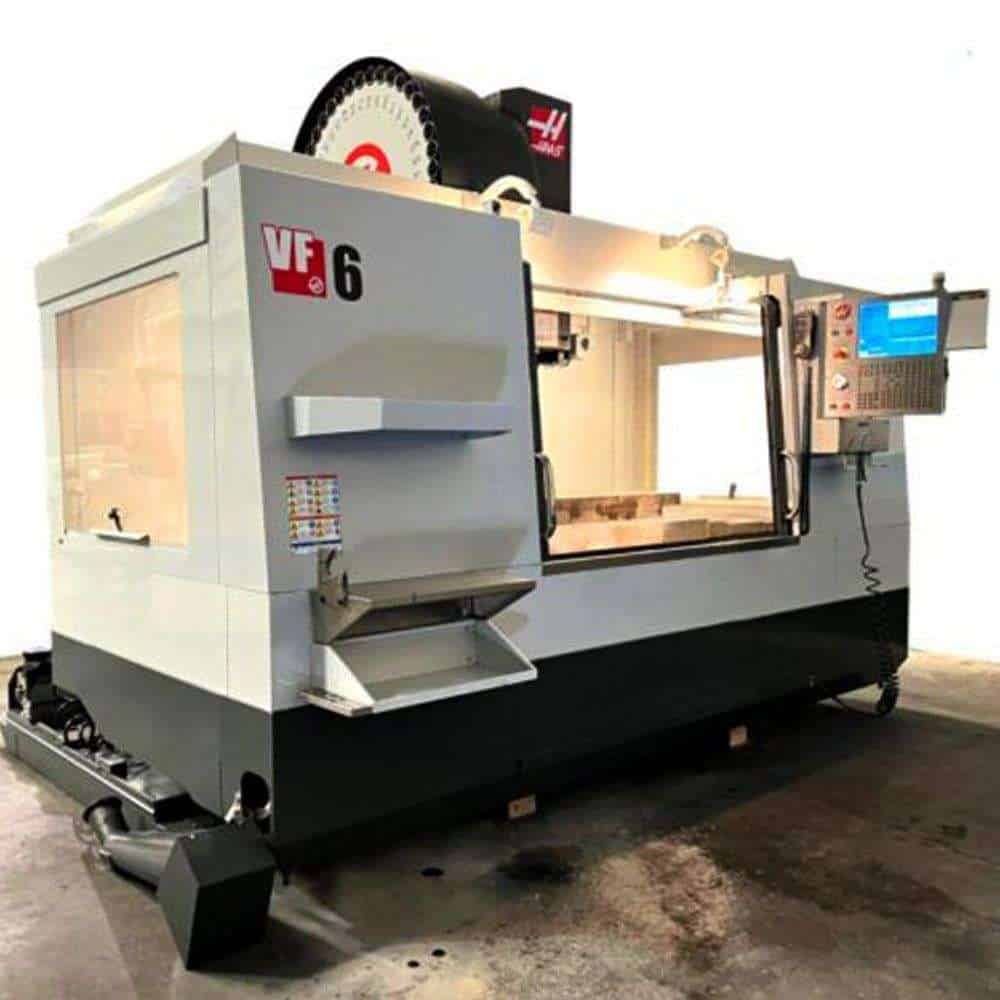

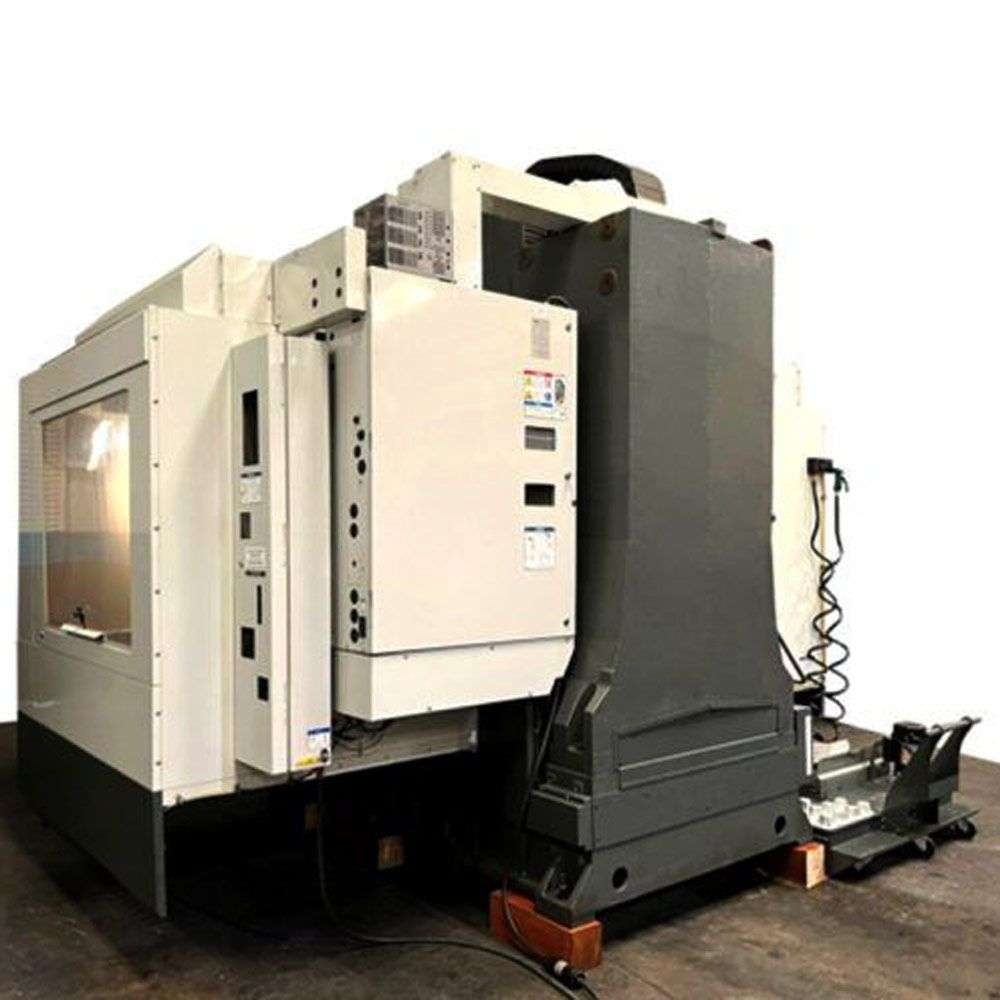

Haas VF-6/40 CNC Vertical Machining Center

Out of stock

Used Haas VF-6/40 CNC Vertical Machining Center for Sale. This Haas VF-6/40 has minimal cutting hours and is in good condition.

Location: Lake Elsinore, CA
SKU: 2422
Make/Model: Haas VF-6/40
Video: [fusion_button link=”https://www.youtube.com/watch?v=138Mq40cBsU” title=”” target=”lightbox” link_attributes=”” alignment_medium=”” alignment_small=”” alignment=”center” modal=”” hide_on_mobile=”small-visibility,medium-visibility,large-visibility” sticky_display=”normal,sticky” class=”” id=”” color=”default” button_gradient_top_color=”” hue=”” saturation=”” lightness=”” alpha=”” button_gradient_bottom_color=”” button_gradient_top_color_hover=”” button_gradient_bottom_color_hover=”” gradient_start_position=”” gradient_end_position=”” gradient_type=”” radial_direction=”” linear_angle=”180″ accent_color=”” accent_hover_color=”” type=”” bevel_color=”” bevel_color_hover=”” border_top=”” border_right=”” border_bottom=”” border_left=”” border_radius_top_left=”” border_radius_top_right=”” border_radius_bottom_right=”” border_radius_bottom_left=”” border_color=”” border_hover_color=”” size=”” padding_top=”” padding_right=”” padding_bottom=”” padding_left=”” fusion_font_family_button_font=”” fusion_font_variant_button_font=”” font_size=”” line_height=”” letter_spacing=”” text_transform=”” stretch=”yes” margin_top=”” margin_right=”” margin_bottom=”” margin_left=”” icon=”fa-play-circle fas” icon_position=”left” icon_divider=”no” hover_transition=”none” animation_type=”” animation_direction=”left” animation_color=”” animation_speed=”0.3″ animation_delay=”0″ animation_offset=””]Play Video[/fusion_button]
SKU: 2422

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Haas
Model: VF-6/40
Year: 2012/2013
Condition: Excellent
Cutting Hours: 2366



Equipped With:

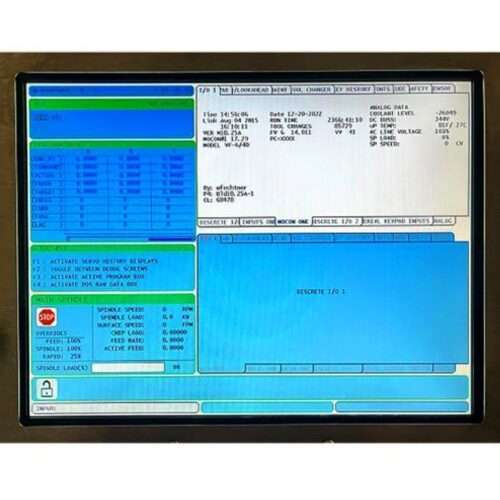

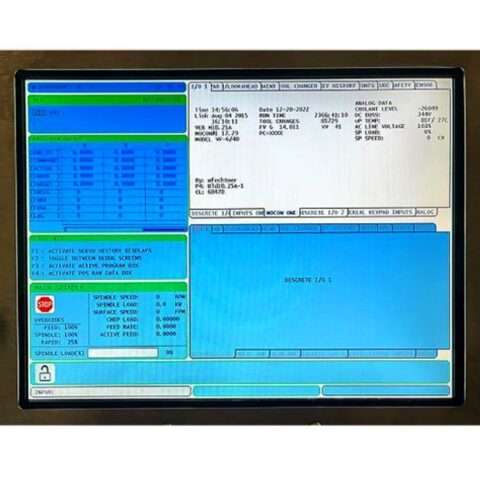

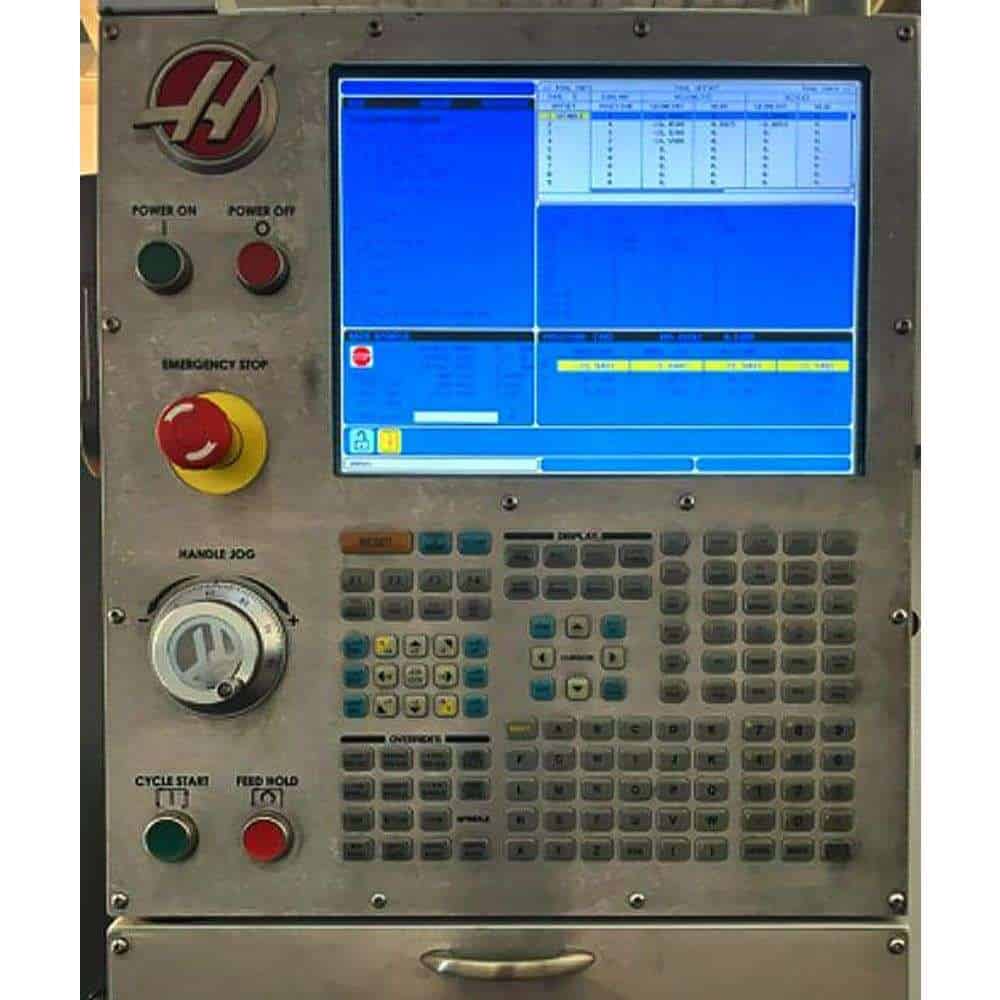

Haas CNC Control
8100 RPM High Torque Spindle
30 HP Spindle Drive
40 Station Automatic Tool Changer
4th Axis Ready
Quick Code Programming
Advance Tool Management
USB Drive
Expanded Memory

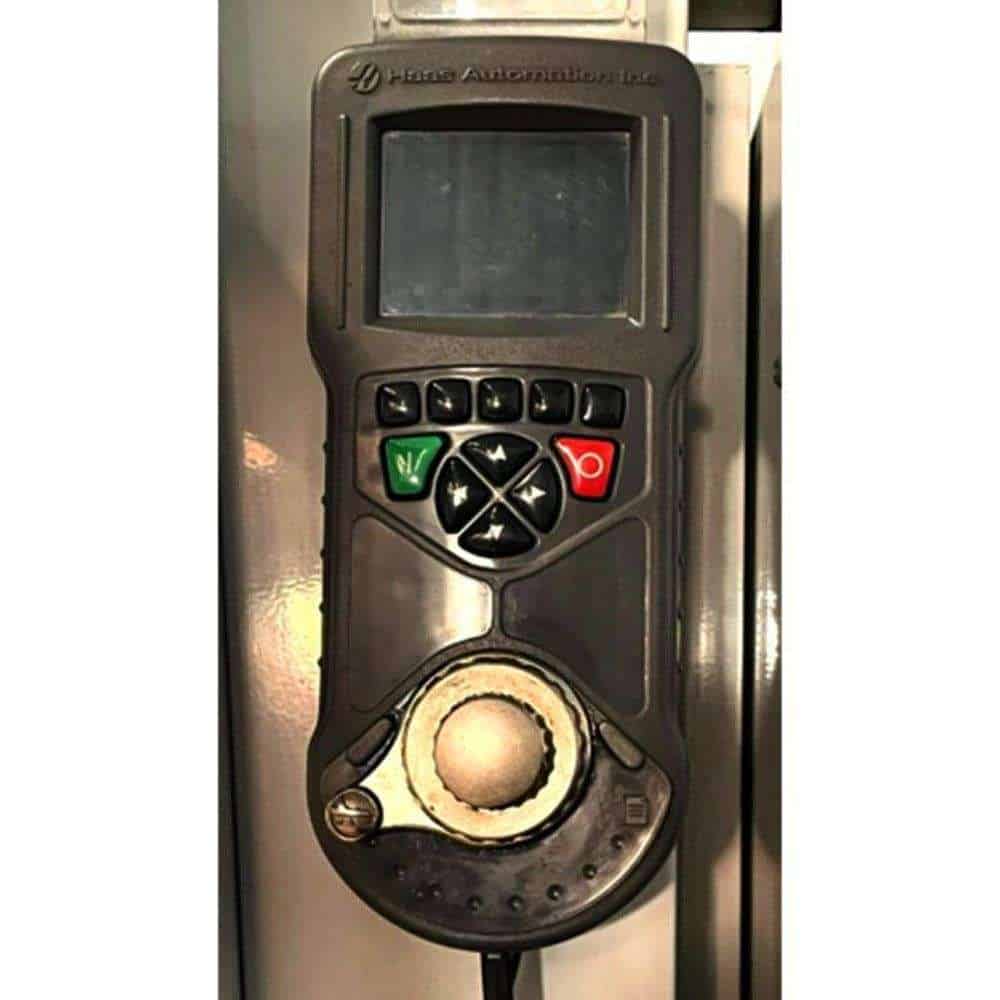

MPG Handwheel Control
Rigid Tapping
Spindle Orientation
Programmable Coolant

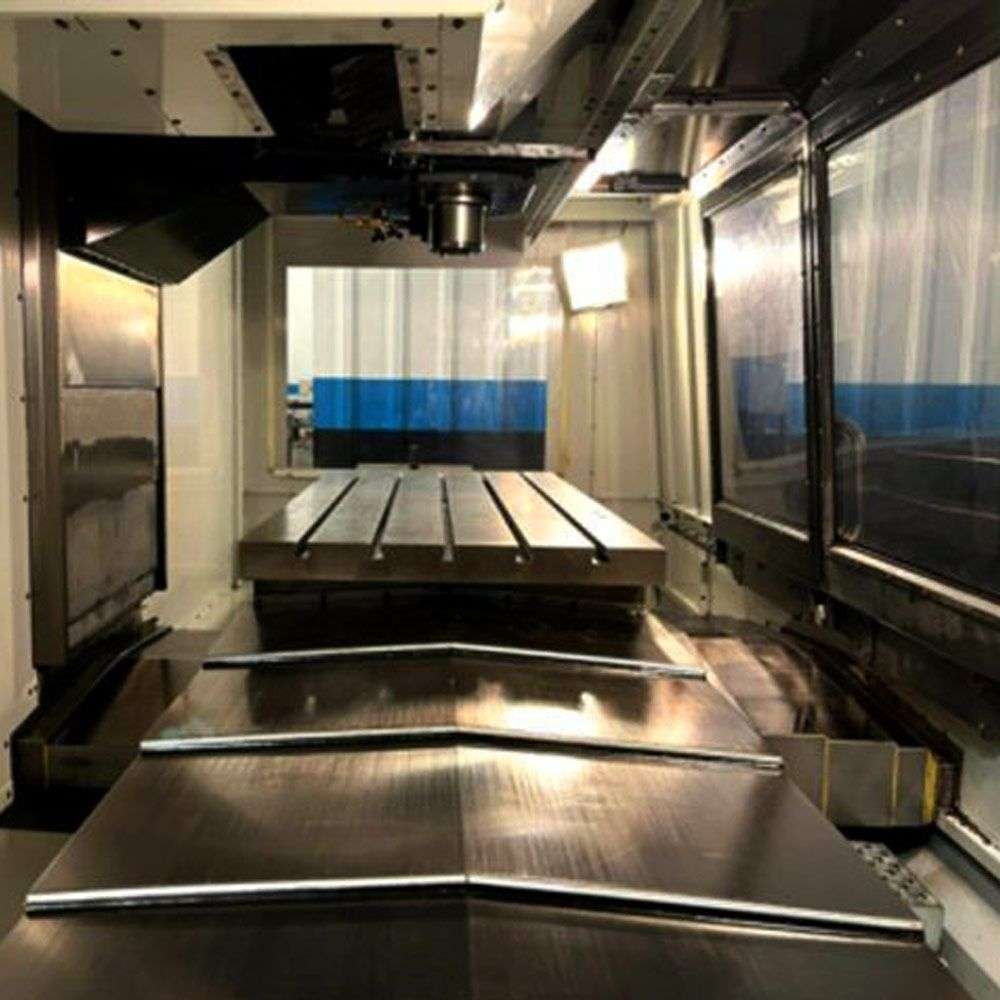

Telescopic Way Covers
Coolant System

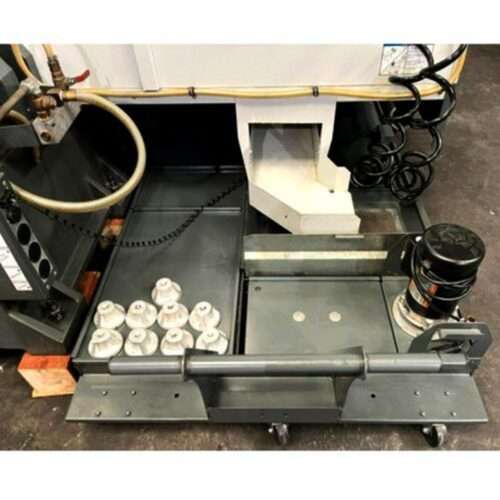

Chip Auger



Travels:
X-axis: 64″
Y-Axis: 32″
Z-Axis: 30″
Rapid Traverse Rates: 600 IPM
Cutting Feed Rates: 500 IPM
Spindle Nose To Table (Min.- Max.): 4″ – 34″

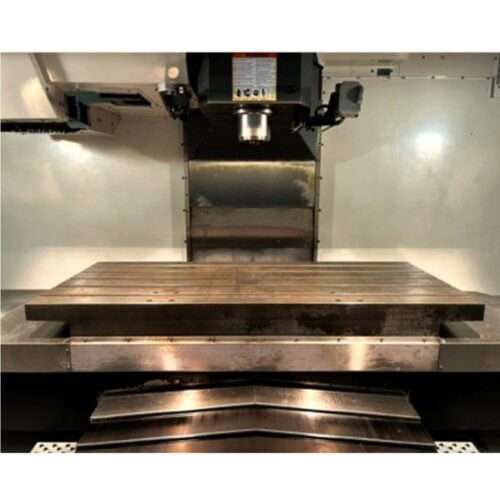

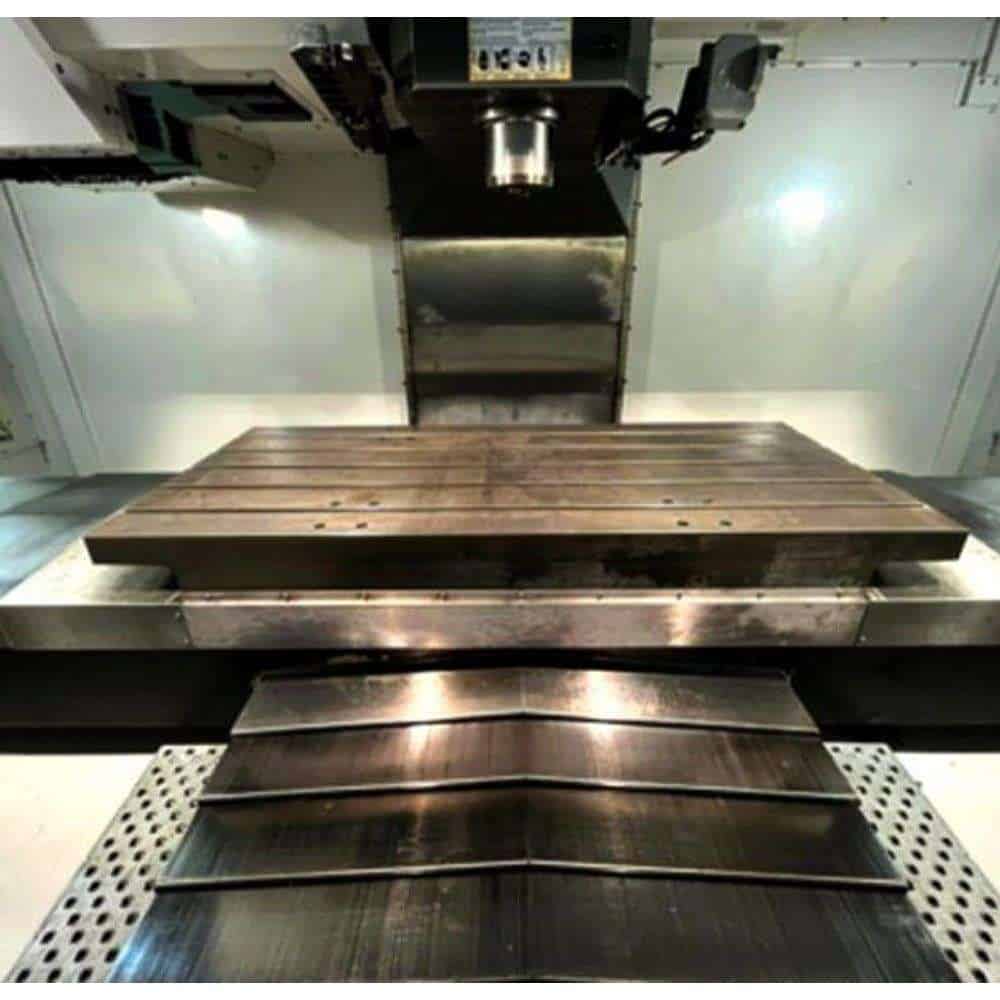

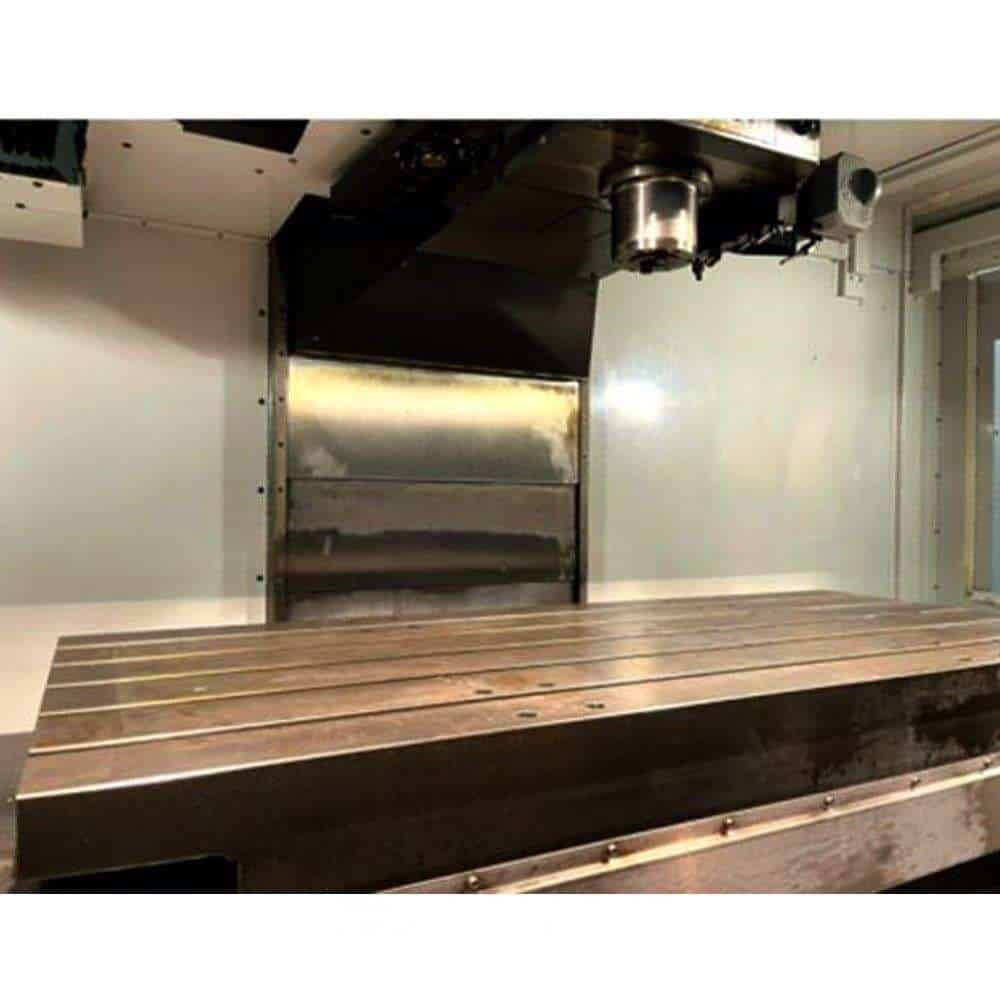

Table:
Length: 64″
Width: 28″
Number Of Std T-slots: 5
T-Slot Width: 5/8″
Max Weight On Table: 4000 Lbs



Spindle:
Taper Size: 40
Speed Range: 8100 RPM
Spindle Power: 30 HP
Vector Drive Max Torque: 90ft-lb @ 2000 RPM

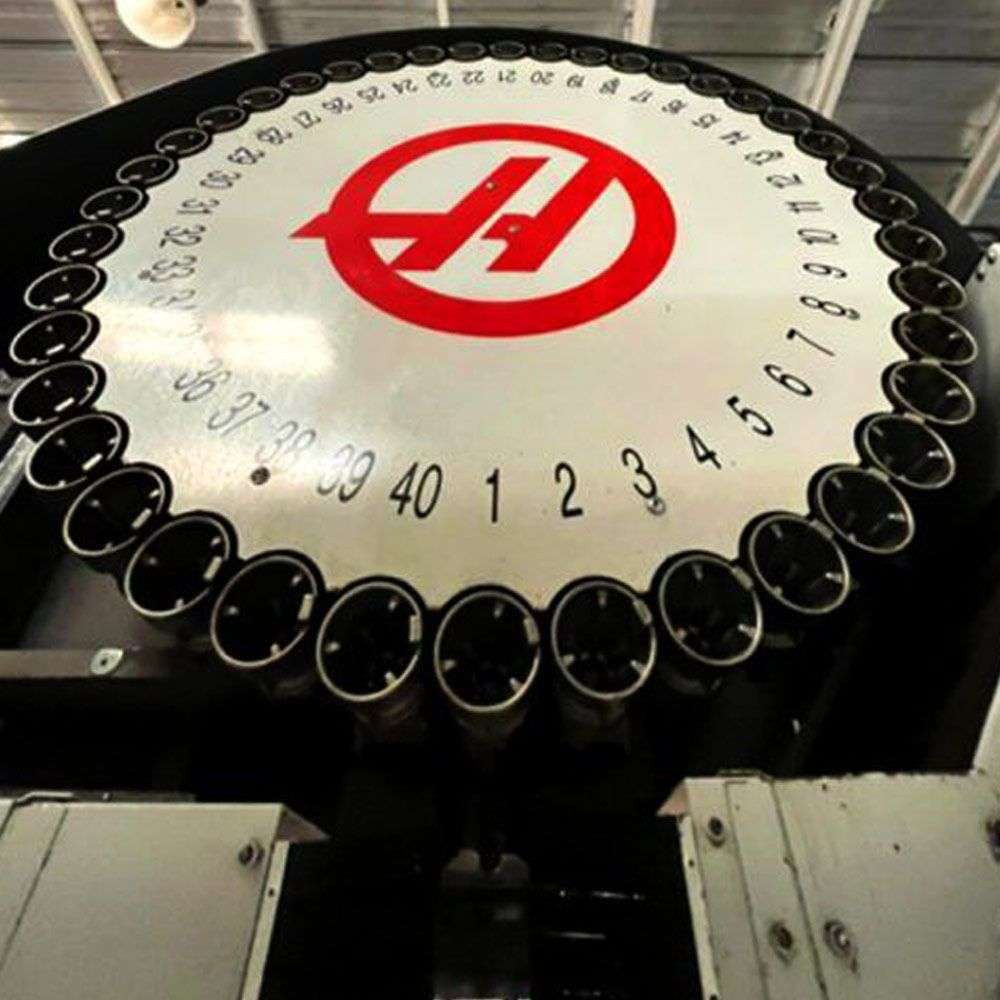

Automatic Tool Changer:
Capacity: 40 Station Side Mounted
Tool Weight: 12 Lbs
Max Tool Diameter (Full): 2.5″
Max Tool Diameter (adjacent empty): 5″
Max Tool Length: 16″
Tool Changing Time: 3.6 Seconds



General:
Air Required: 100 psi, 4 scfm

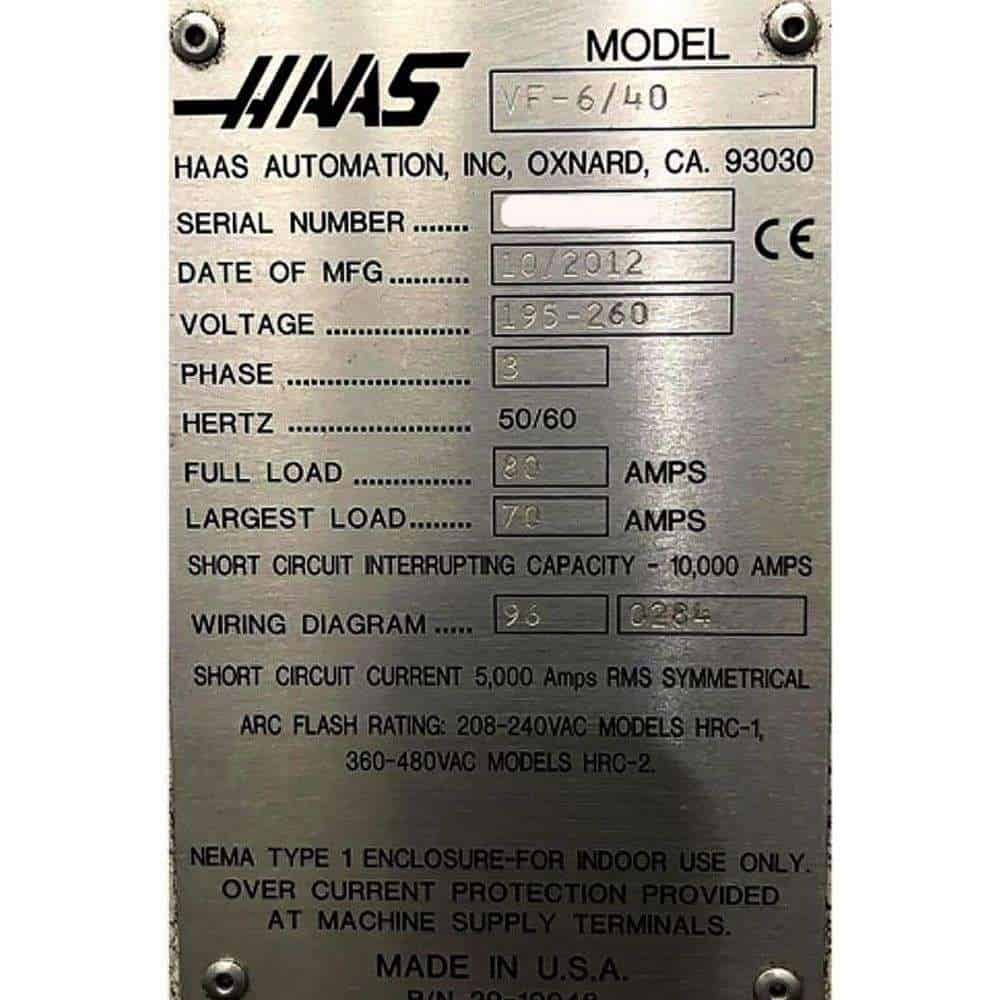

Power: 220v / 66FLA / 3-Phase
Overall Dimensions: 195″ x 102″ x 129″ High
Weight:  22,300 lbs Approx.
