*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

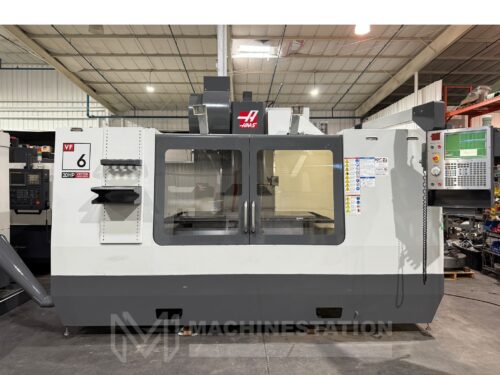

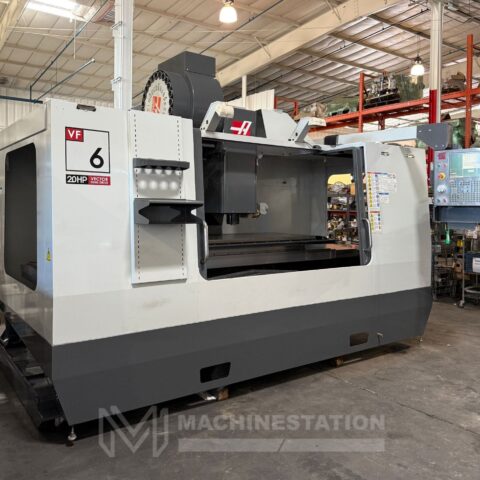

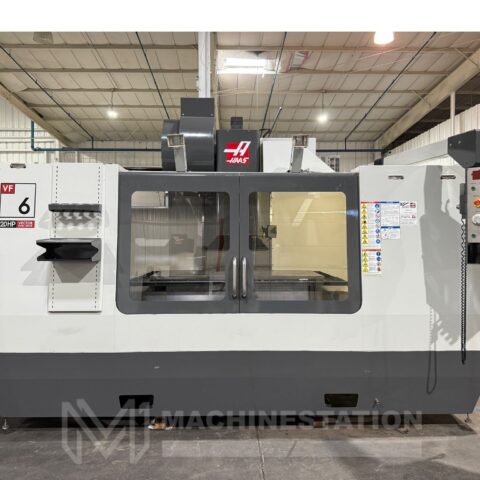

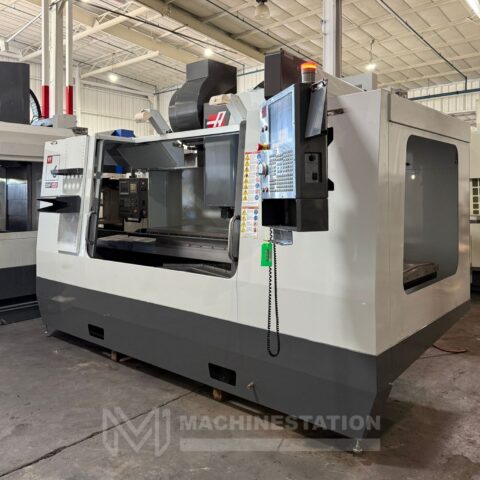

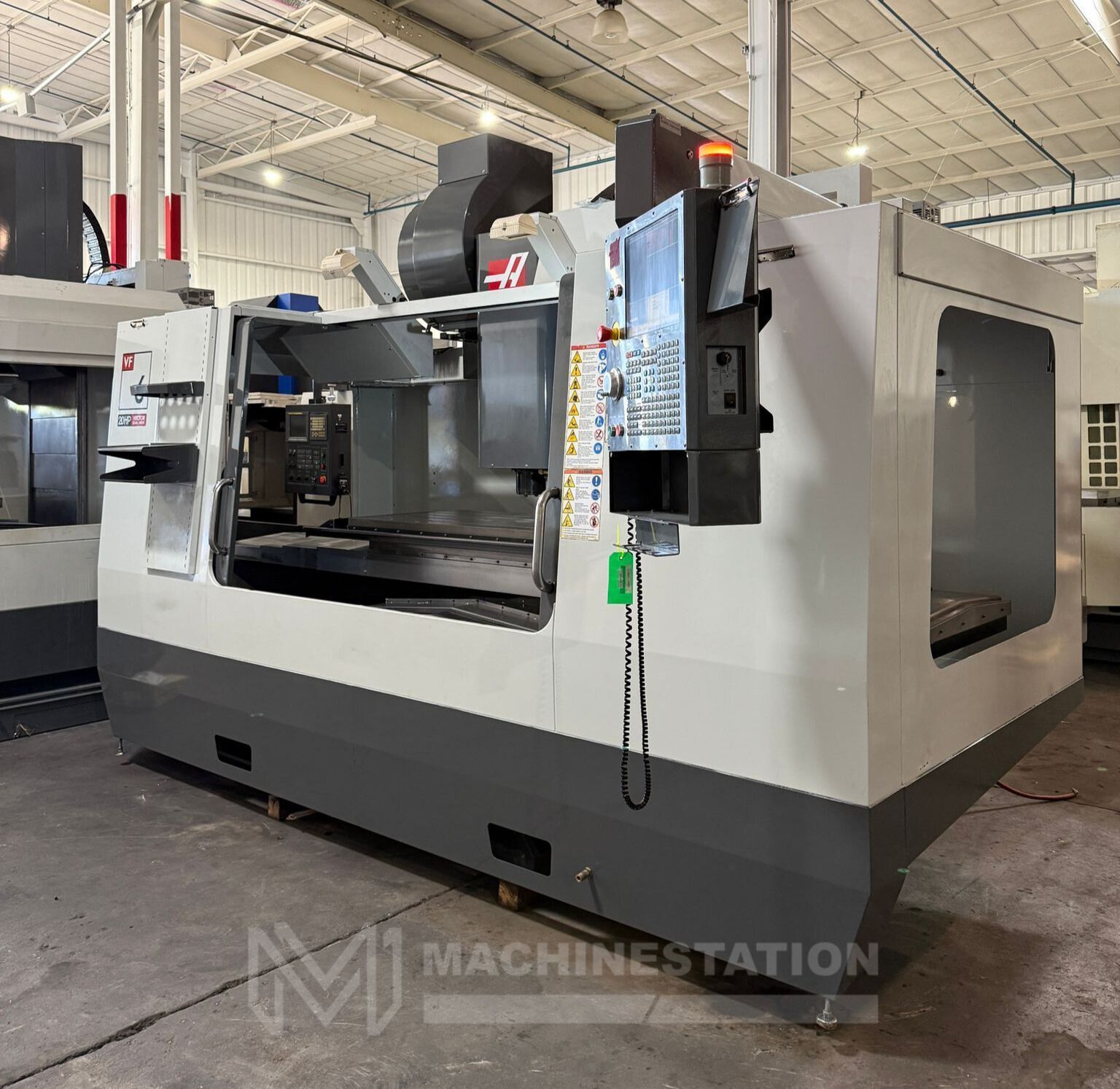

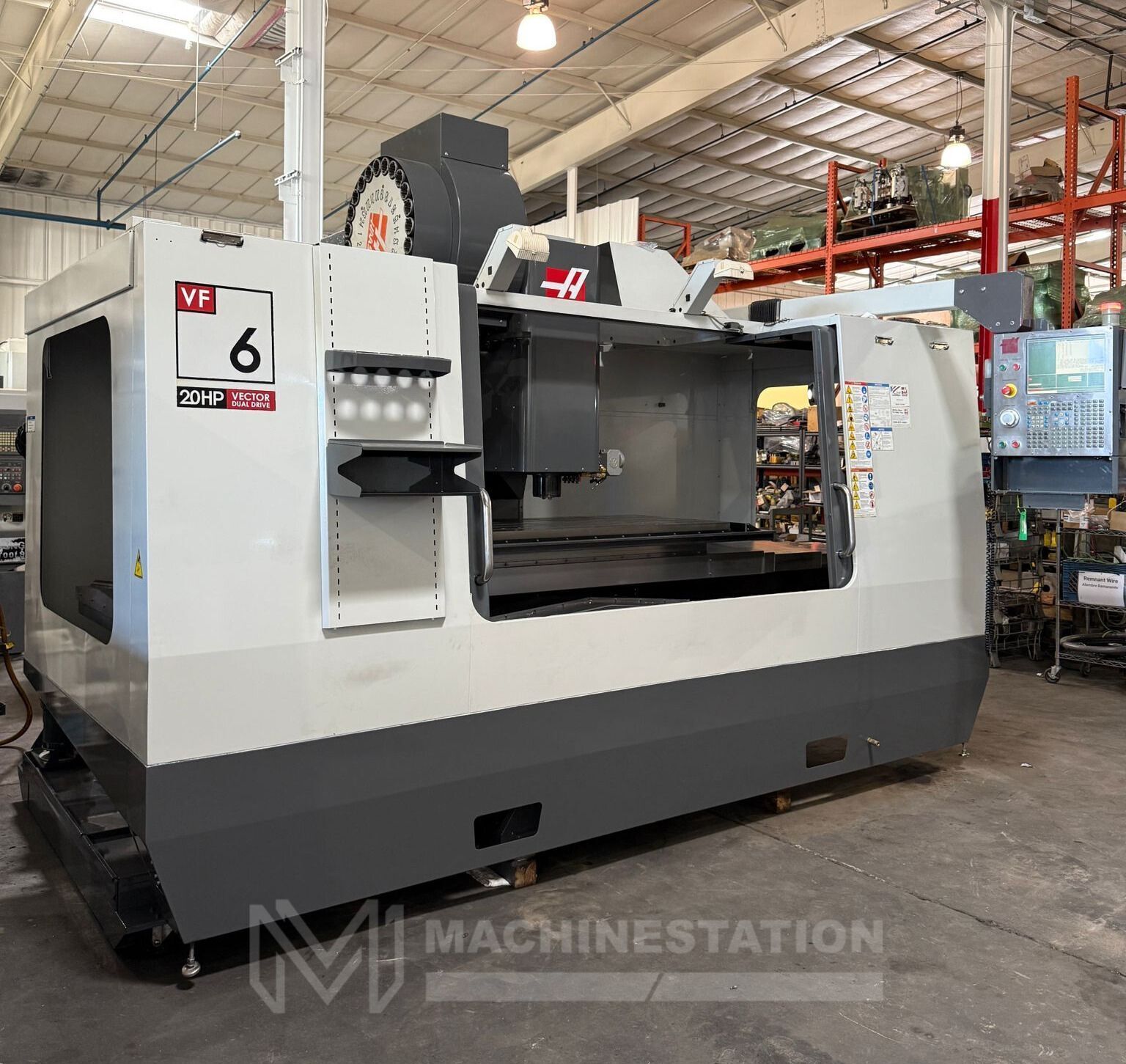

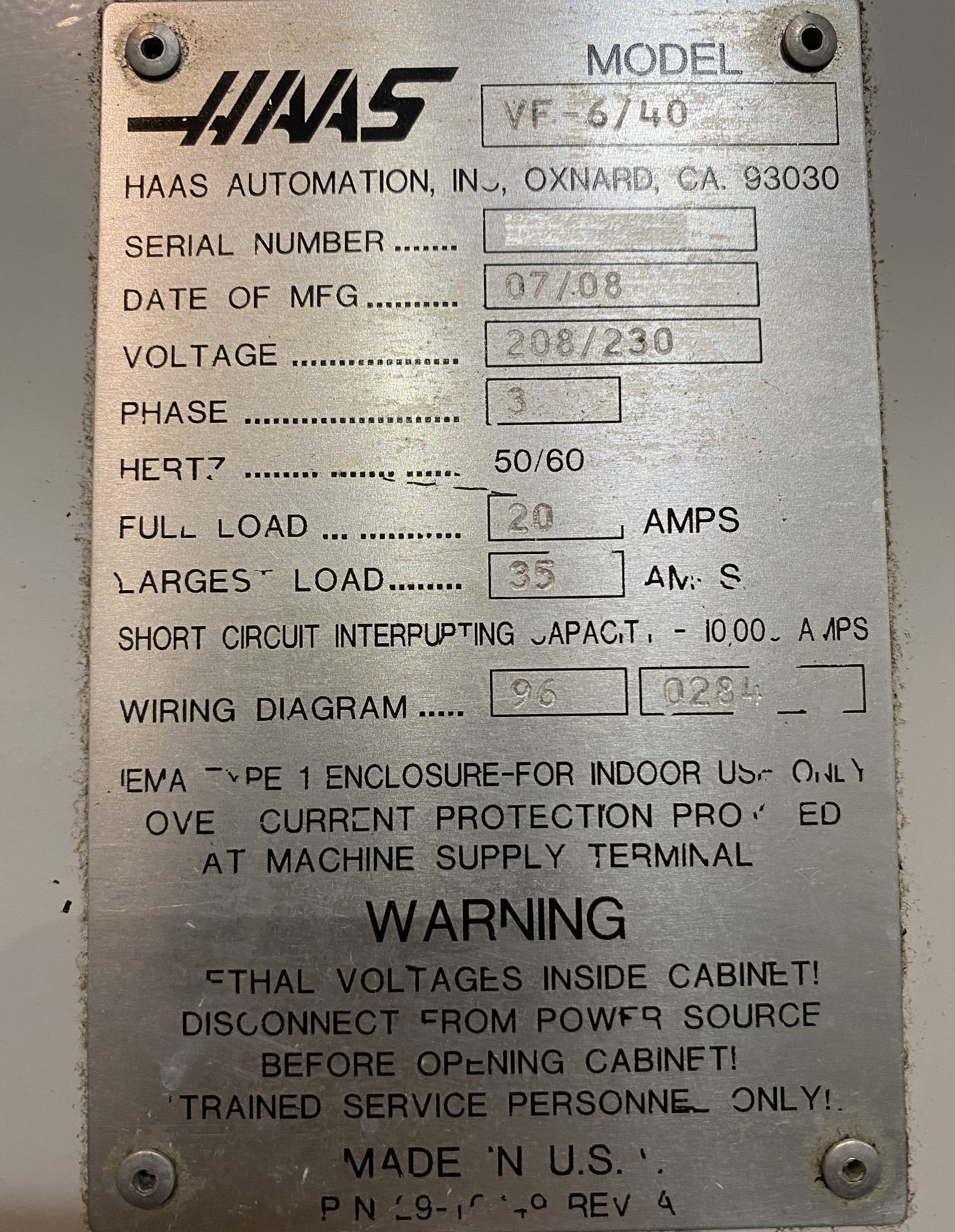

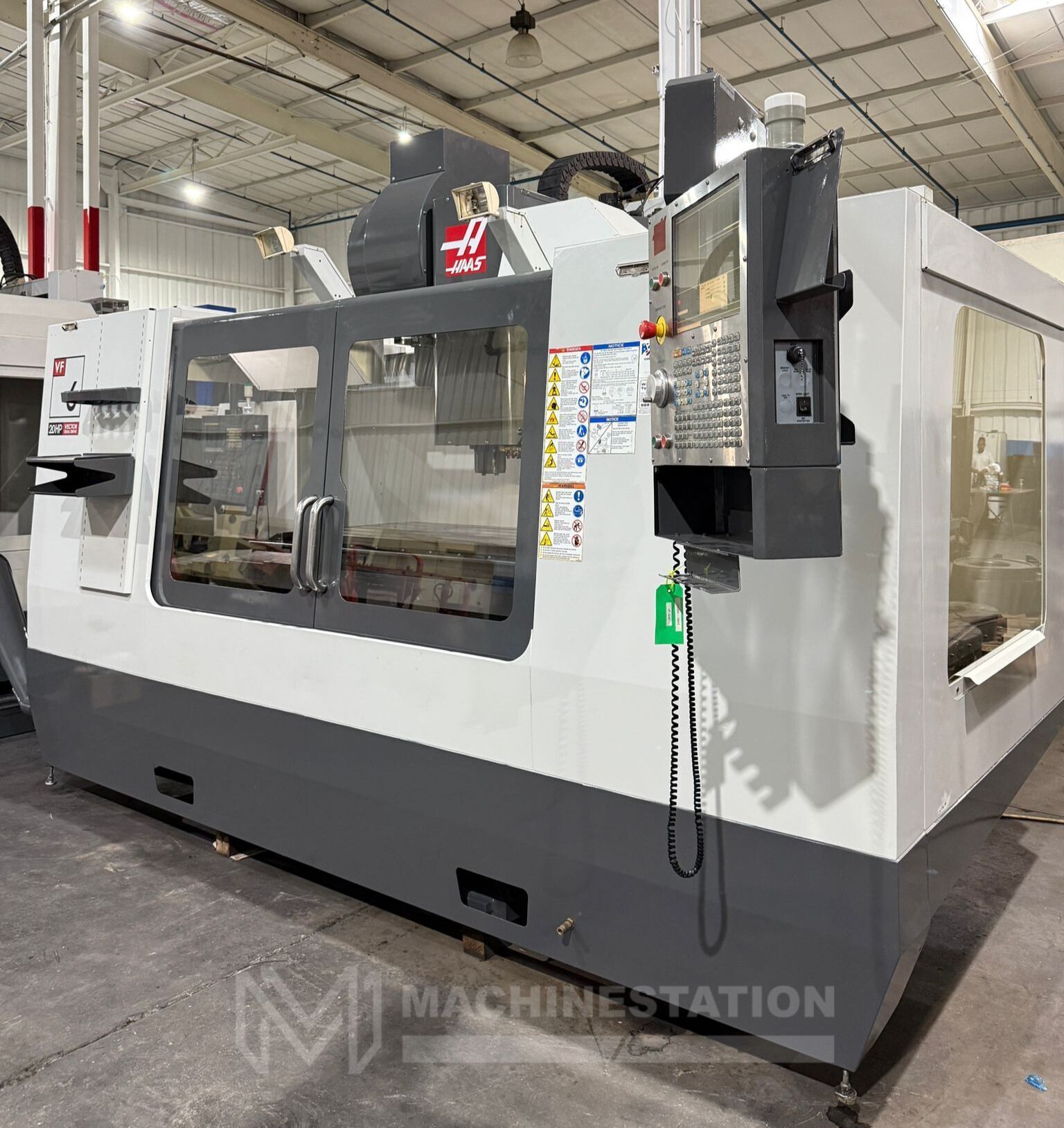

| Make: | Haas |
| Model: | VF6/40 |
| Year: | 2008 |
| Equipped With: |
|---|

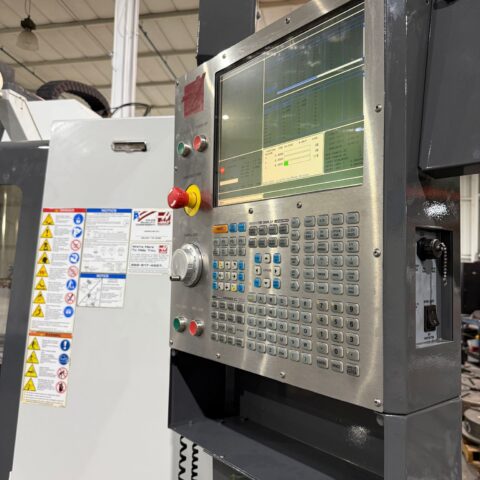

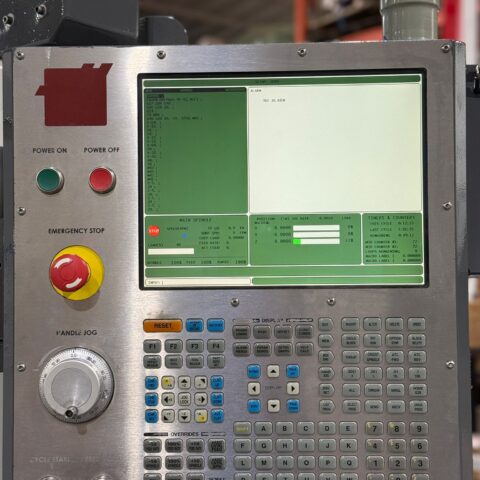

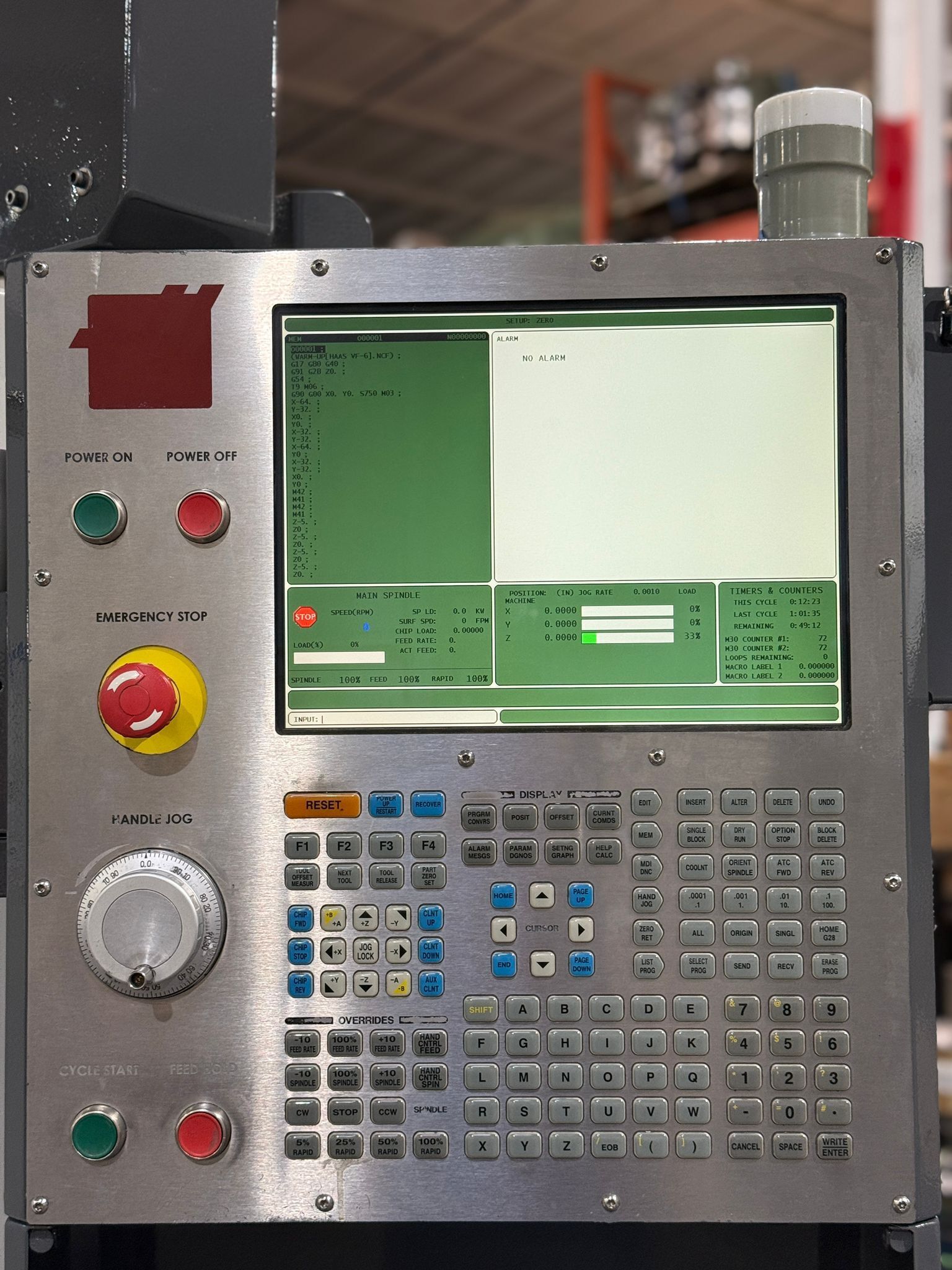

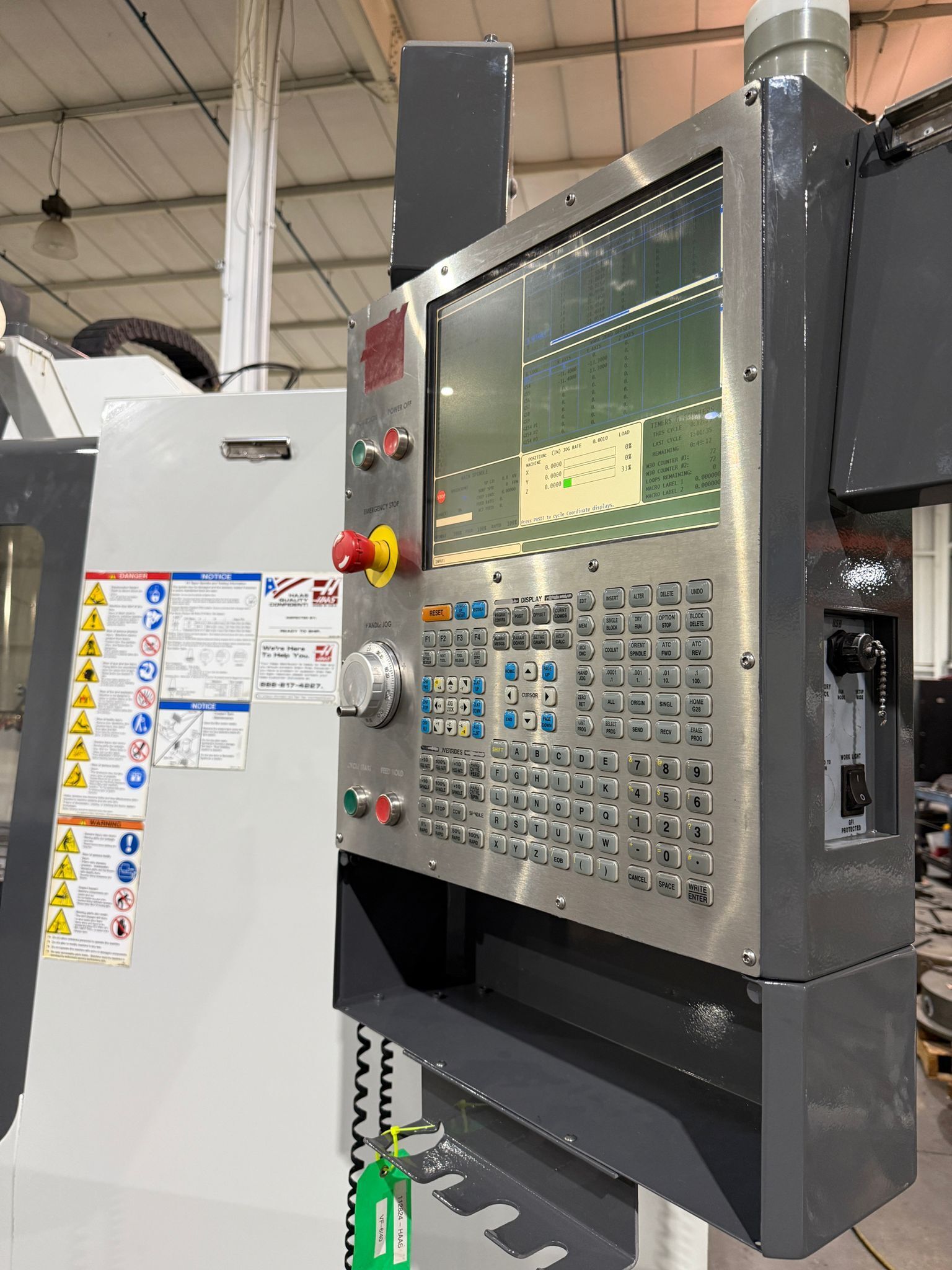

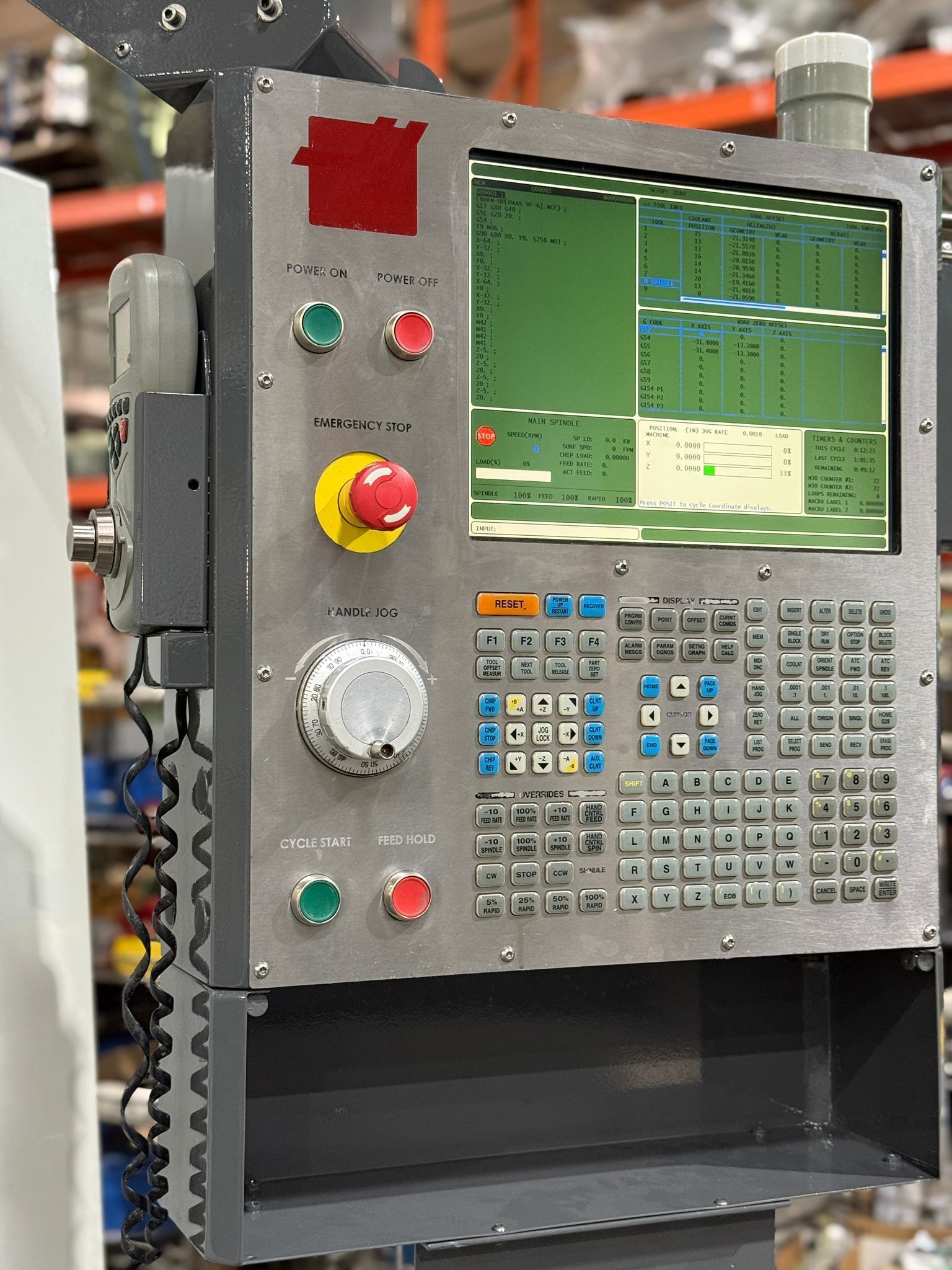

| Haas CNC Control |
| 4th Axis Drive and Wiring (Upgraded $3,595 value Included) |
| 8100 RPM High Torque Spindle |

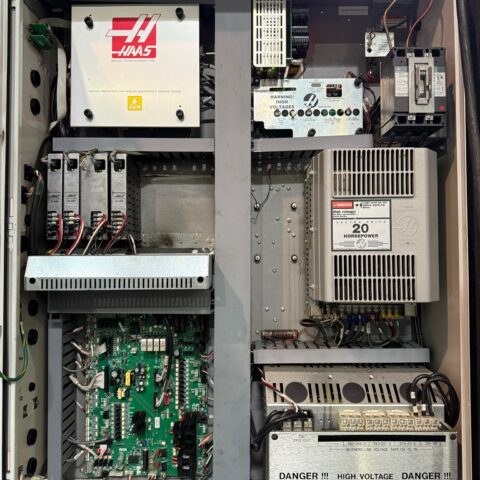

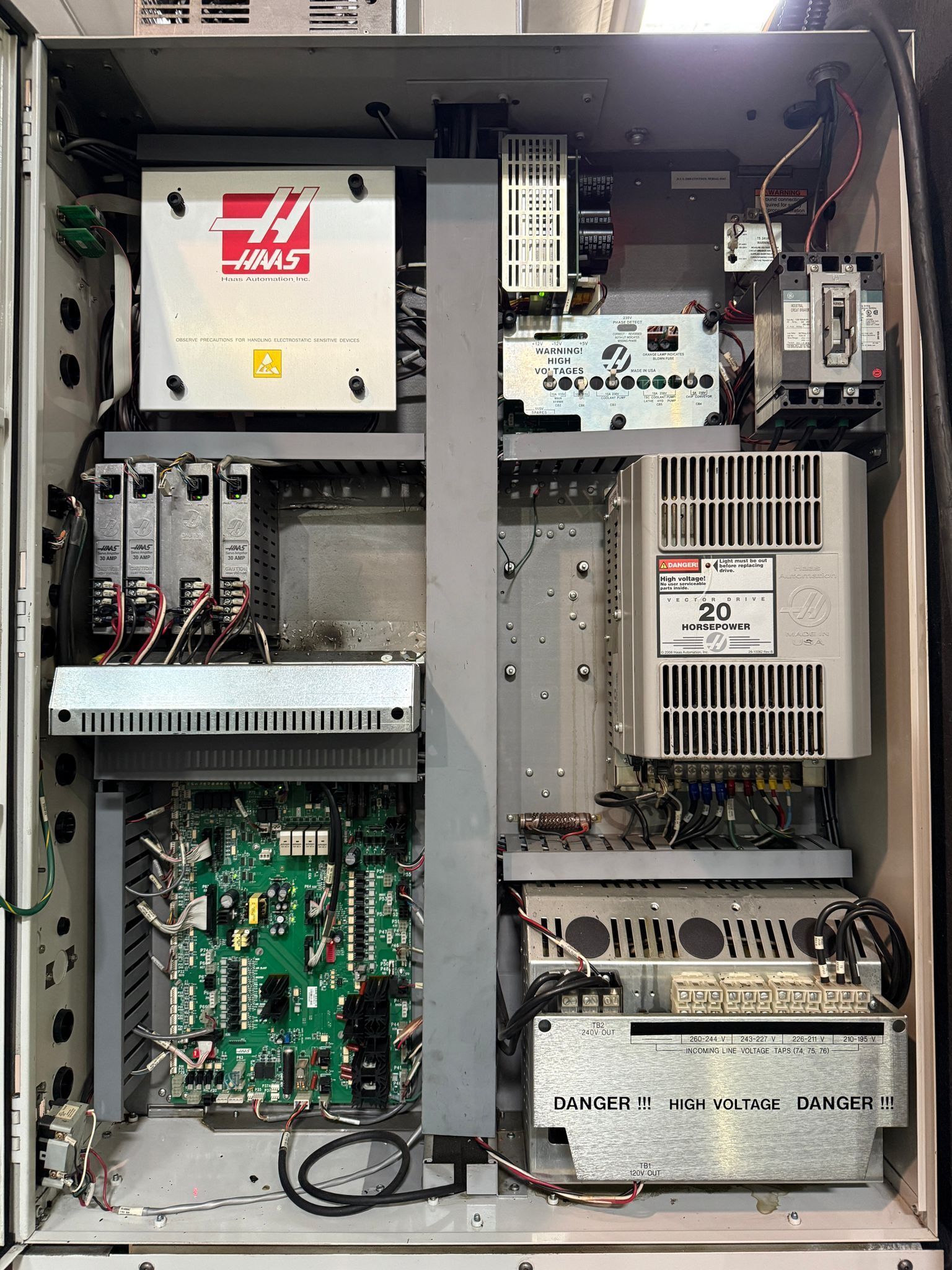

| 20 HP Vector Dual Drive |

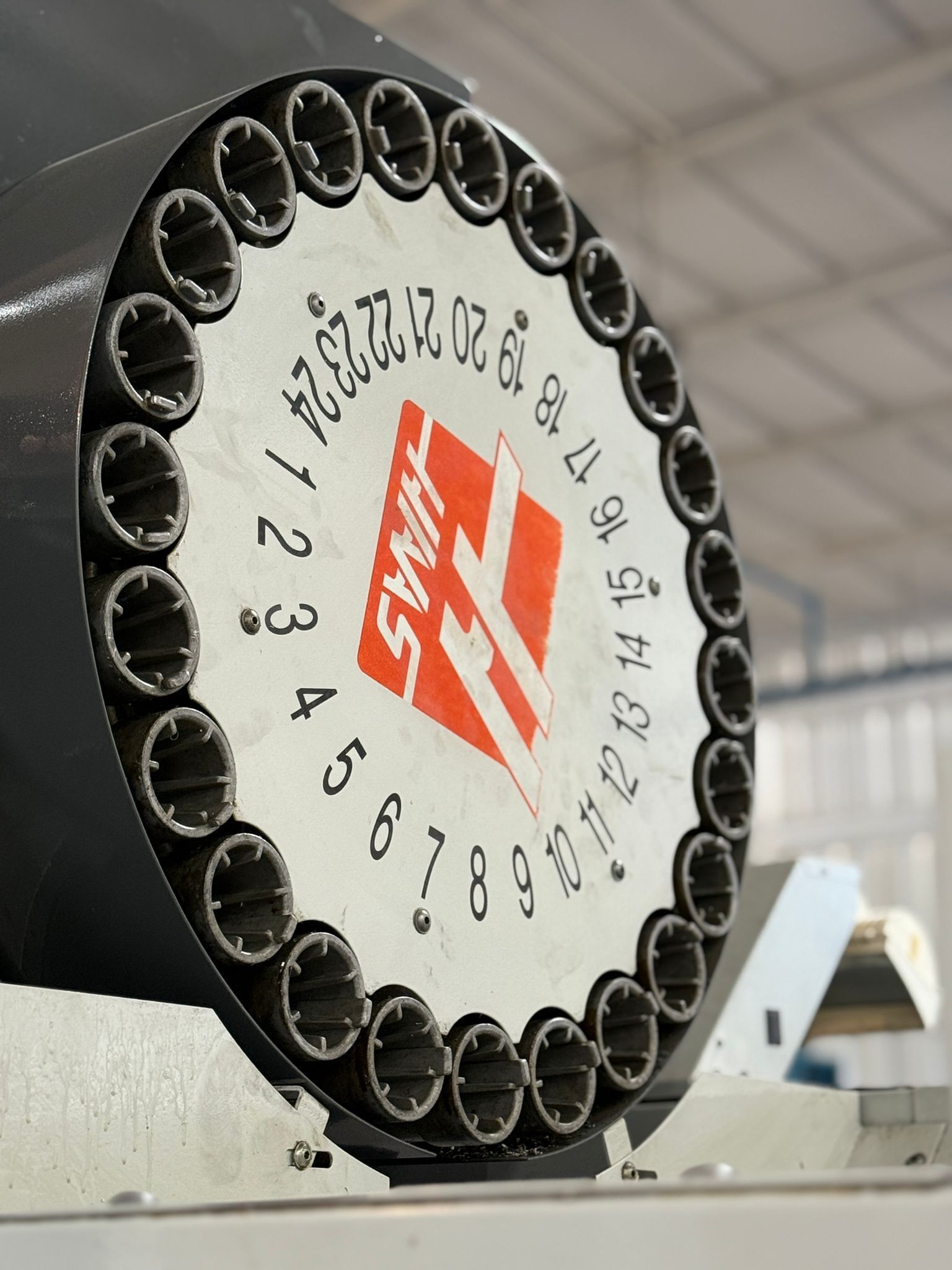

| 24 Station Automatic Tool Changer |
| Programmable Coolant Nozzle |
| High Speed Machining (Upgraded $3,895 value Included) |
| Rigid Tapping |
| Quick Code Programming |
| Advance Tool Management |
| Extended Memory |
| DNC Enabled |
| USB Drive |

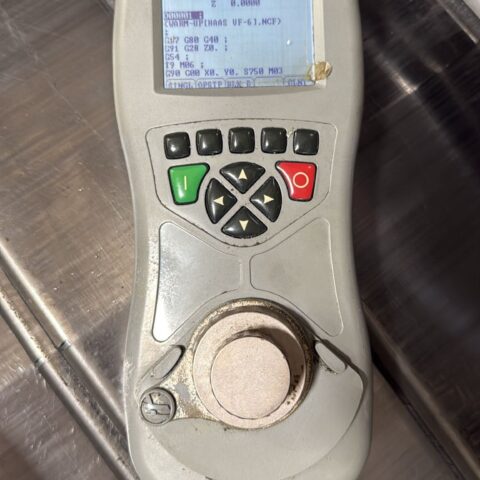

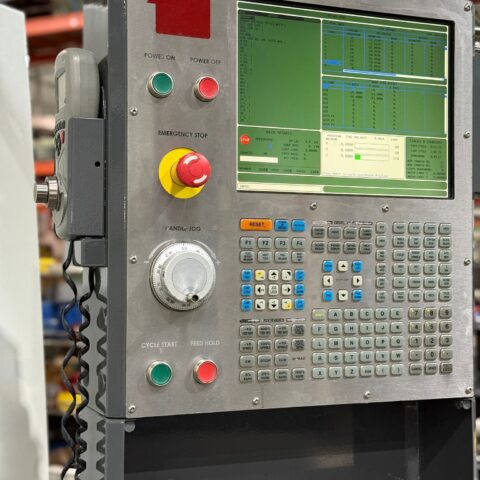

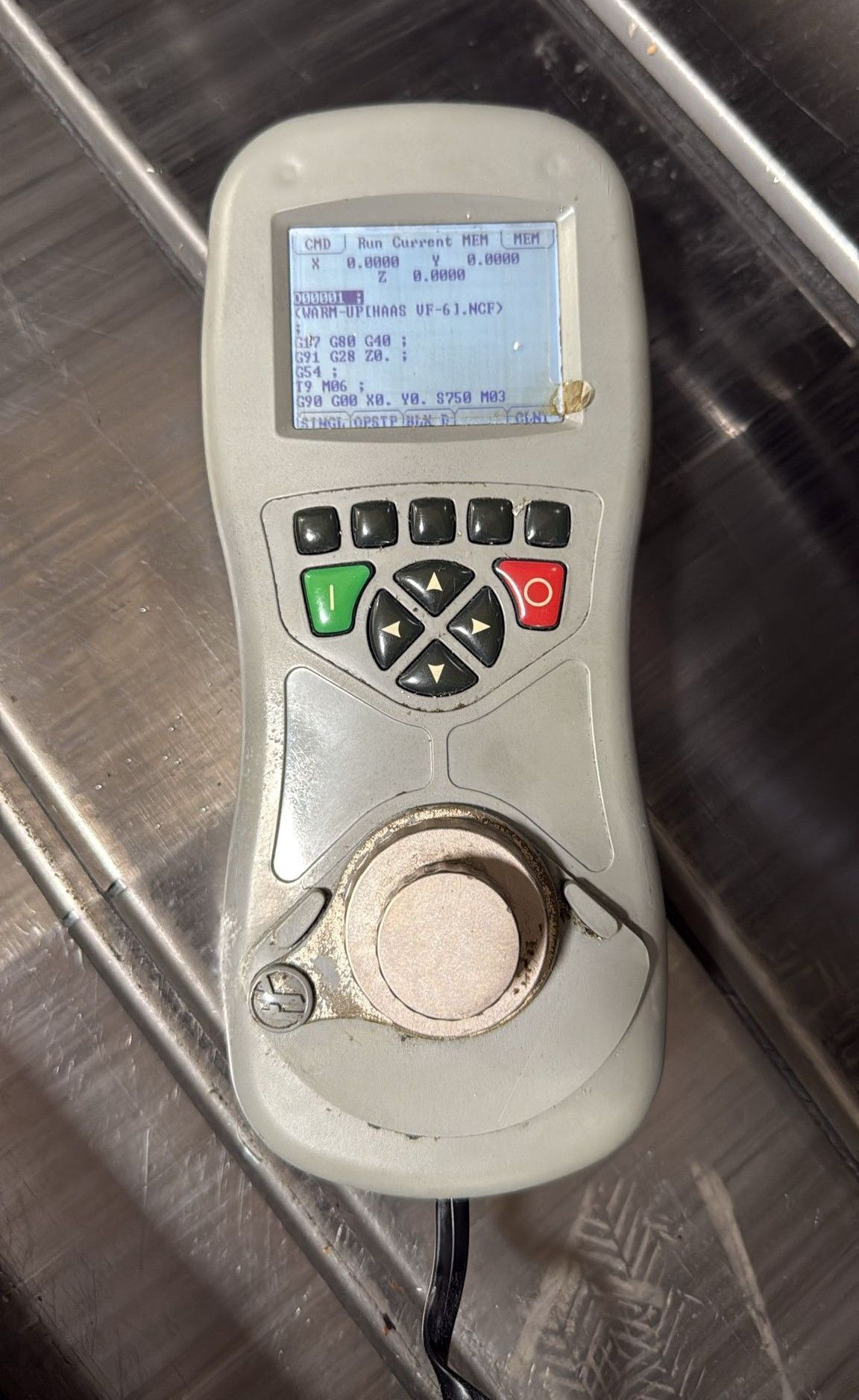

| MPG Handwheel Control |

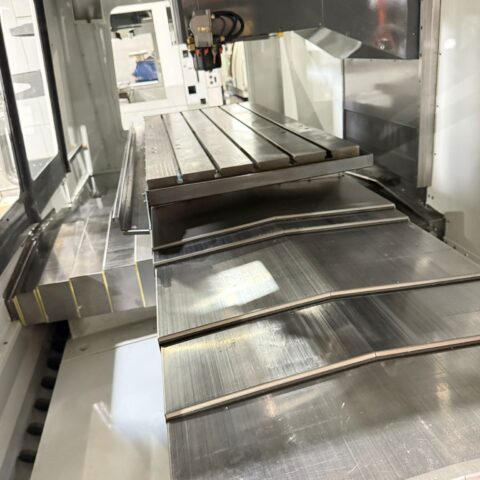

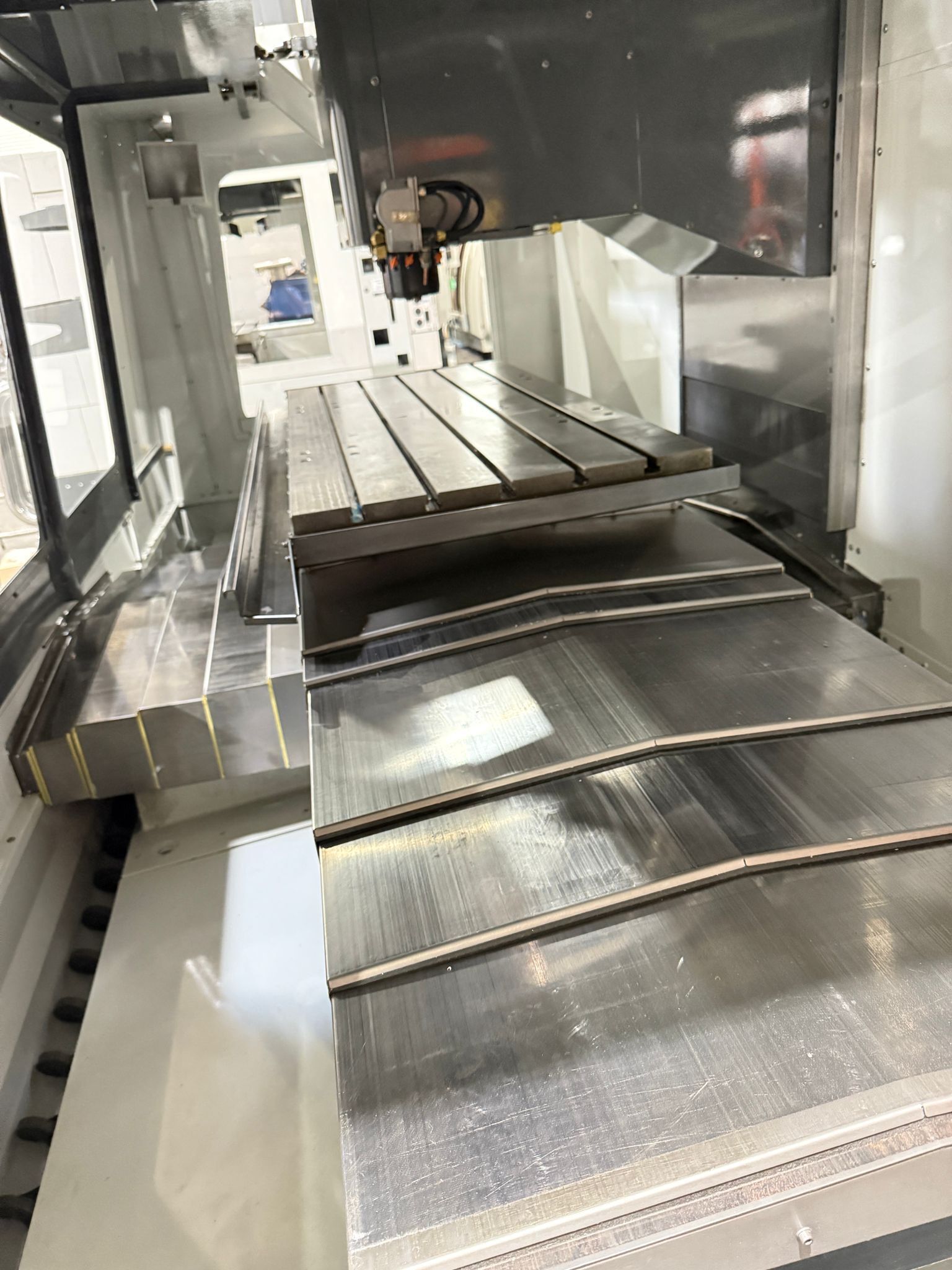

| Telescopic Way Covers |

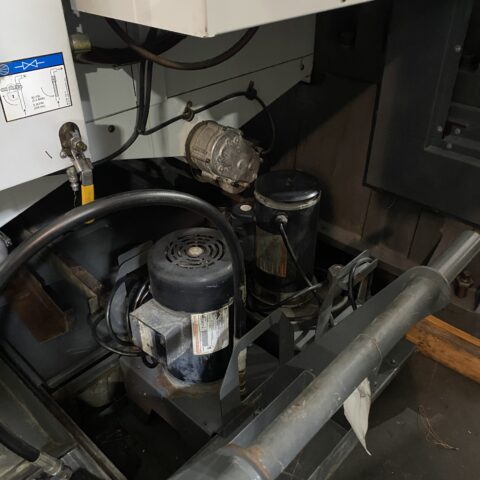

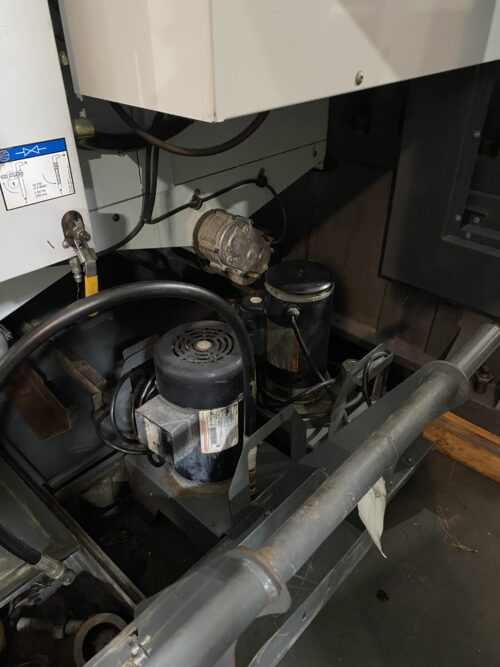

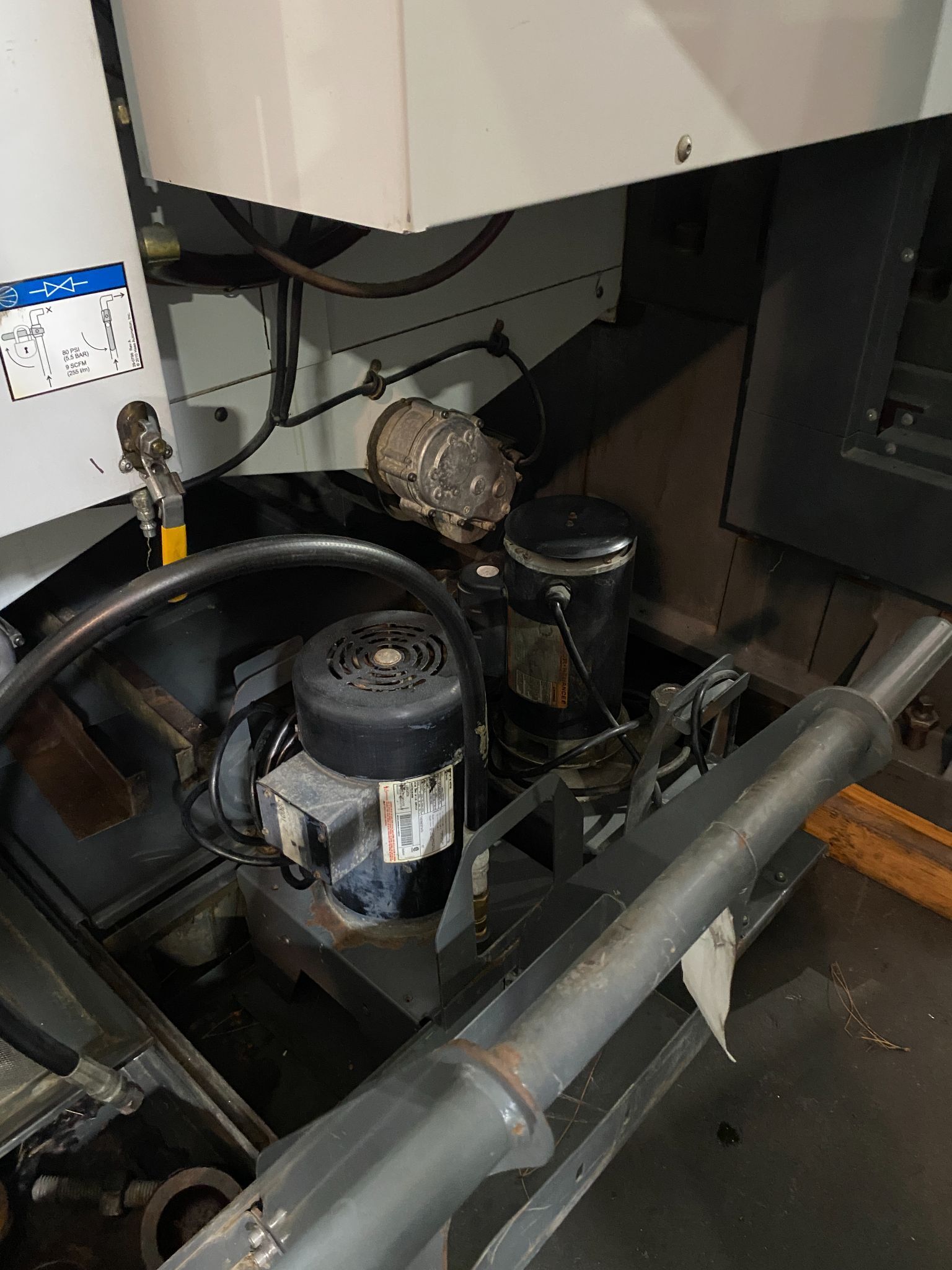

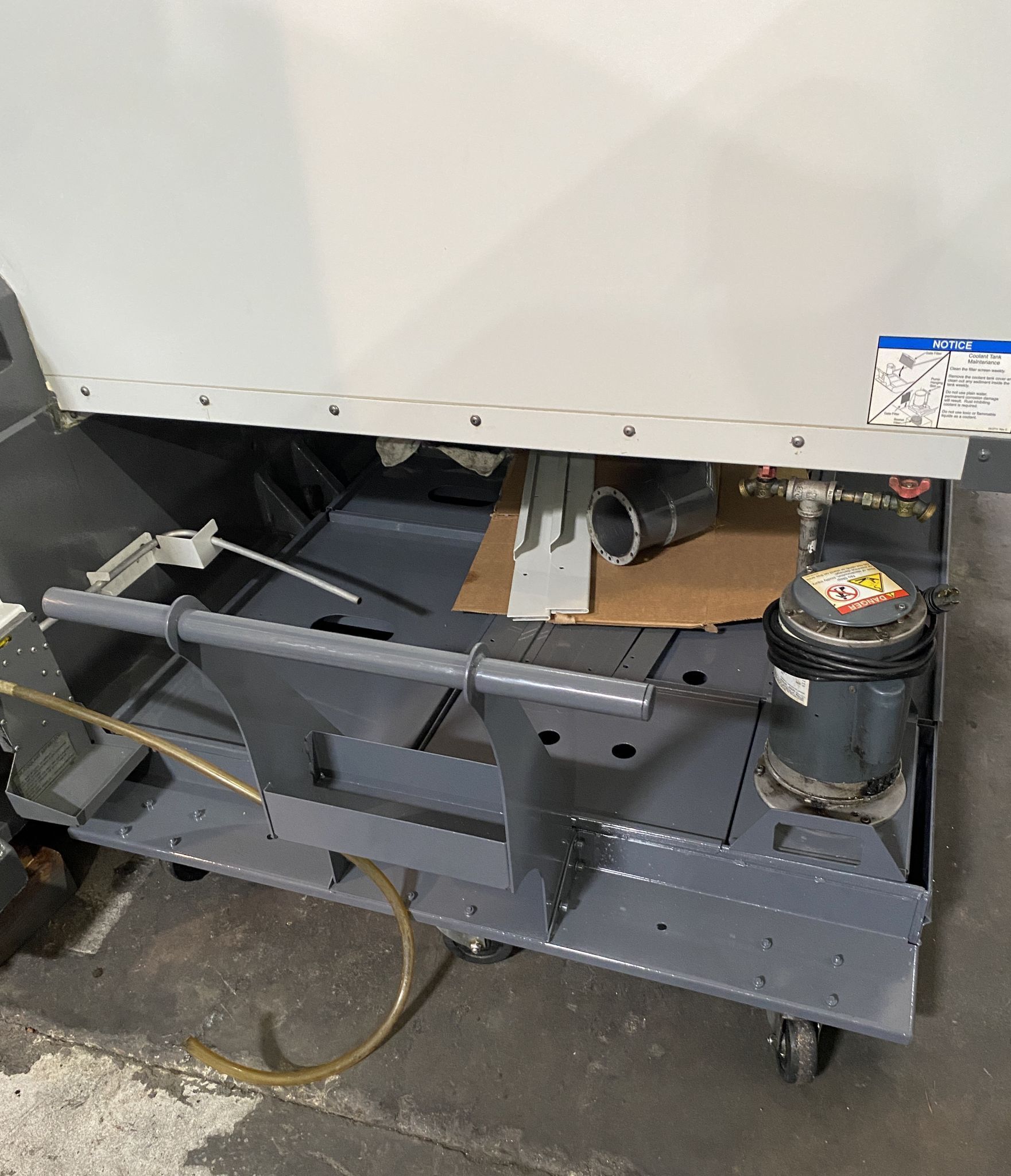

| Coolant System |
| Chip Auger |
| Travels: |
|---|
| X-axis: 64″ |
| Y-Axis: 32″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 600 IPM |
| Cutting Feed Rates: 500 IPM |
| Spindle Nose To Table (Min.- Max.): 4″ – 34″ |

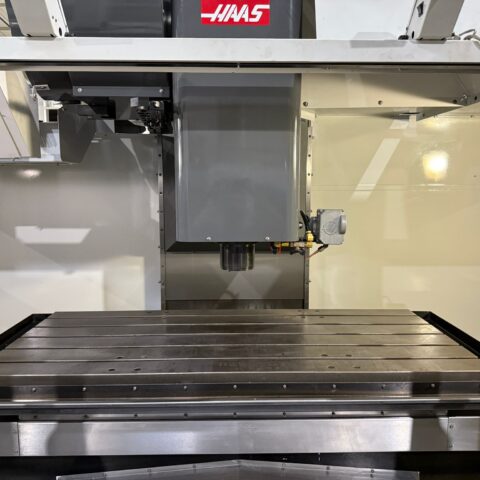

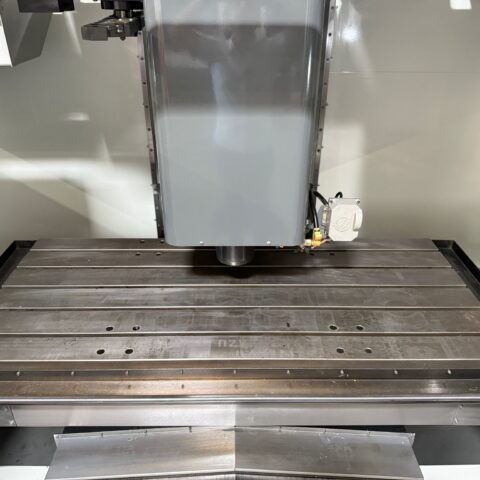

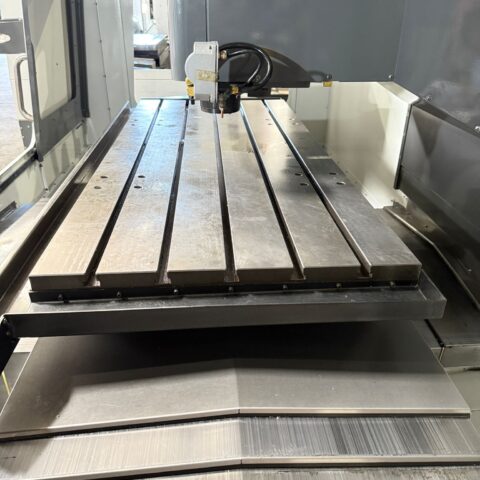

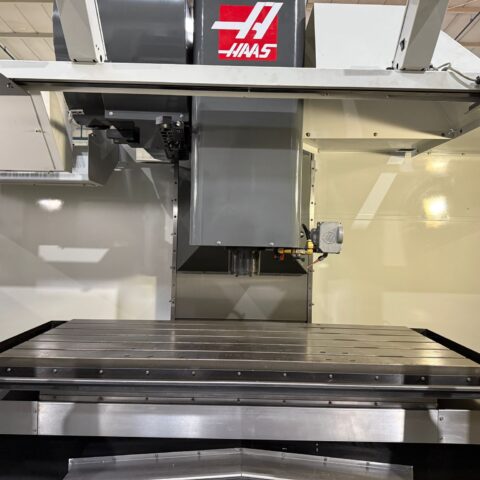

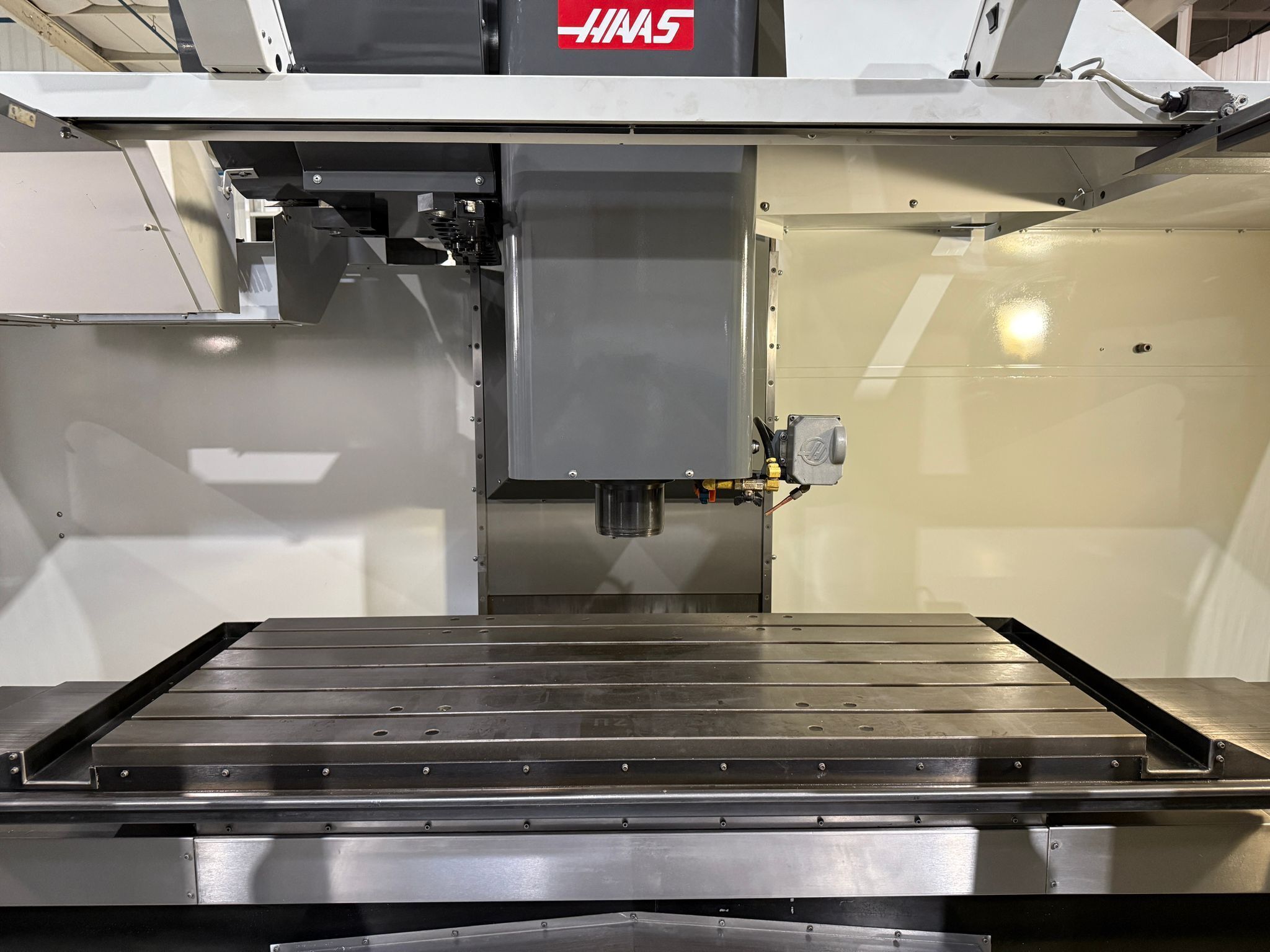

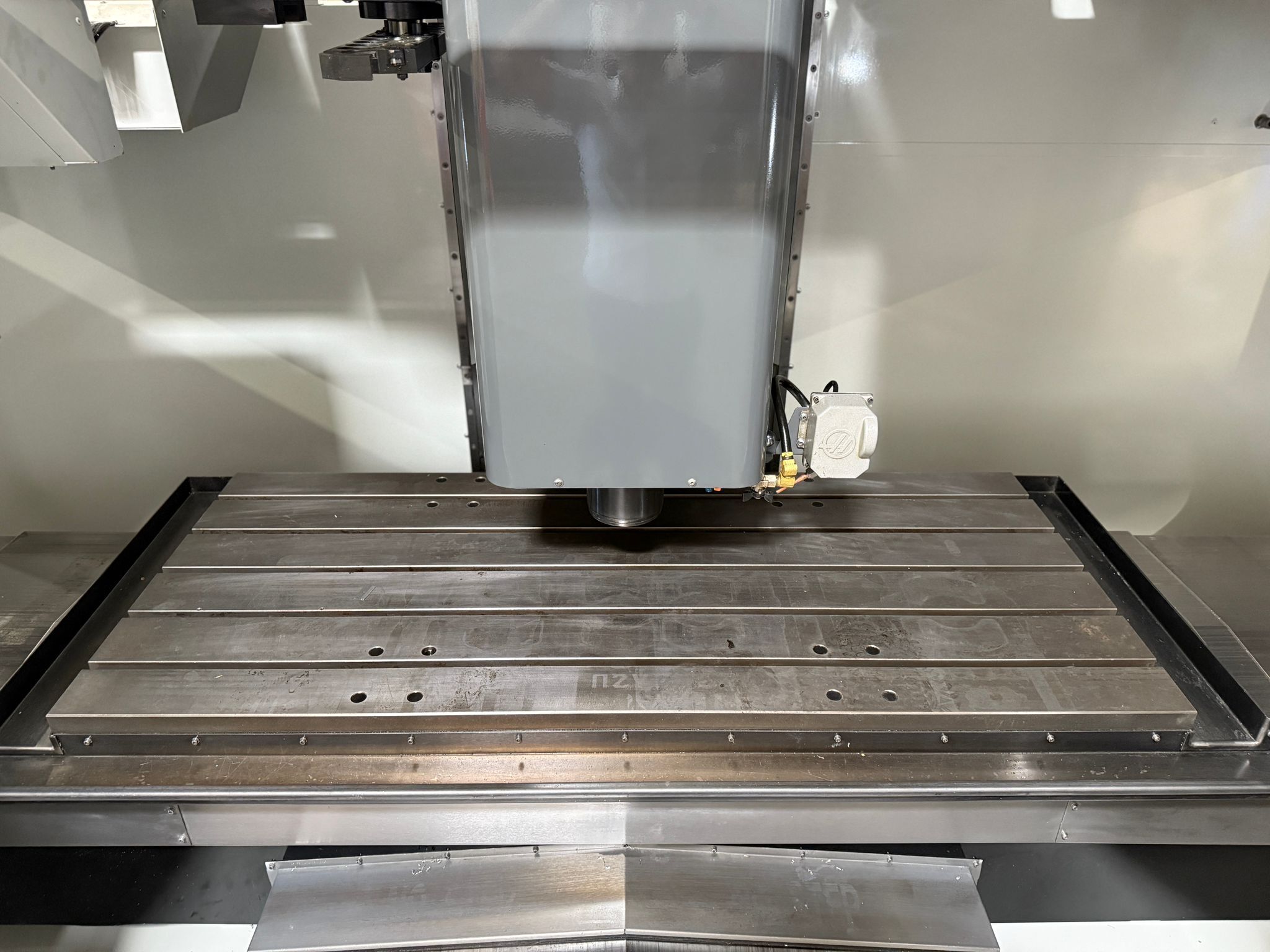

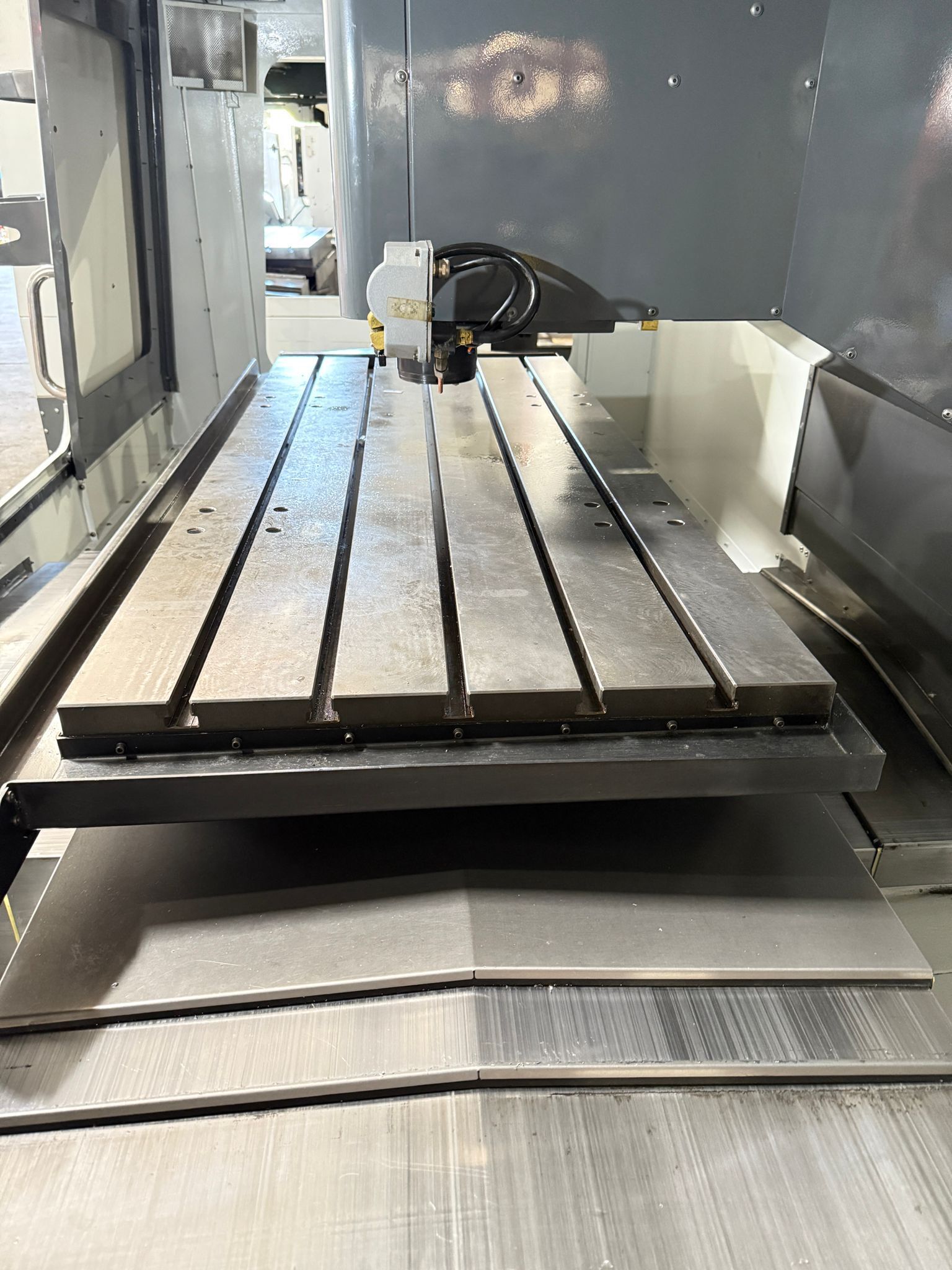

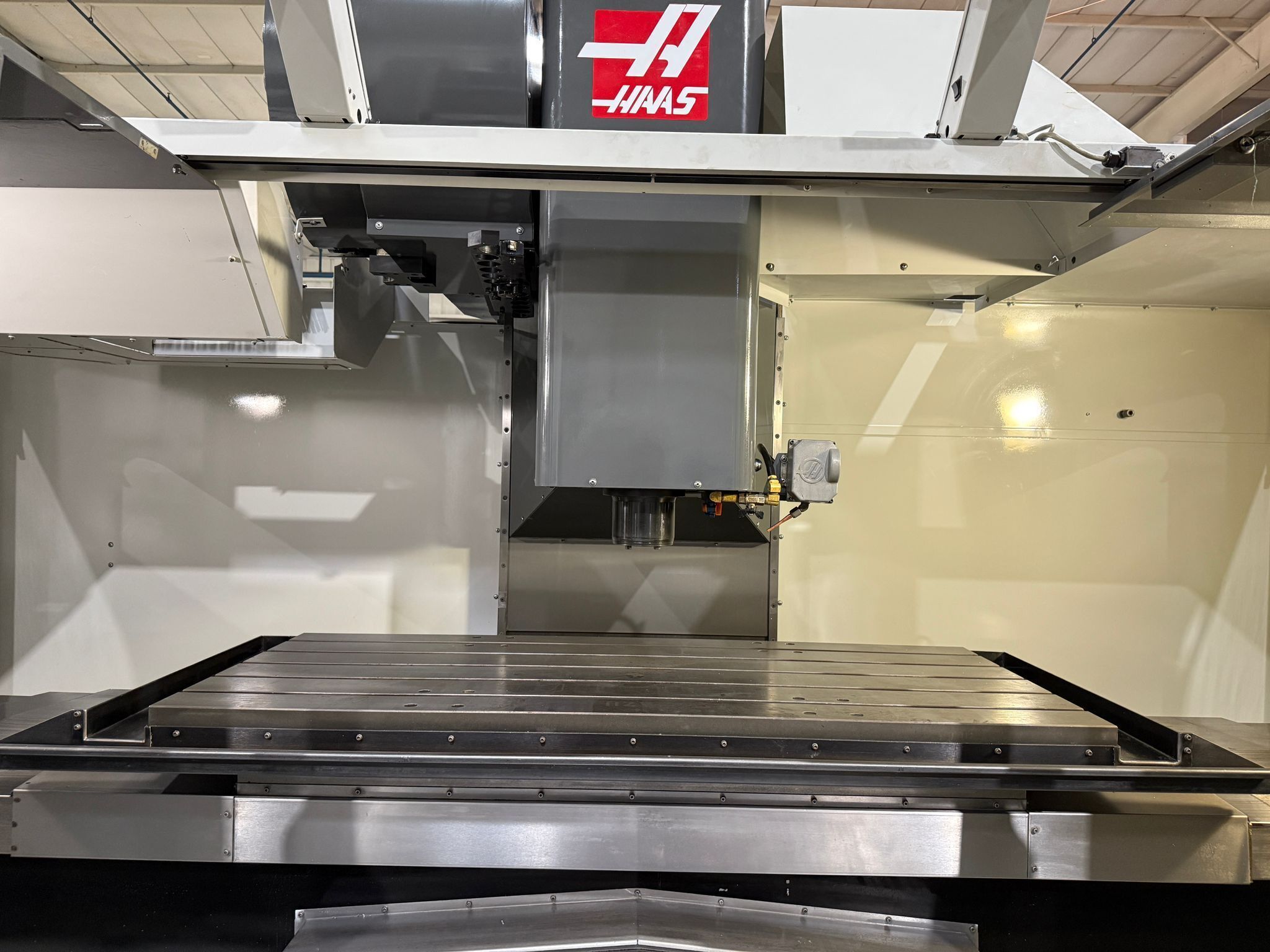

| Table: |
|---|
| Length: 64″ |
| Width: 28″ |
| Number Of Std T-slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight On Table: 4000 Lbs |
| Spindle: |
|---|
| Taper Size: CAT-40 |
| Speed Range: 8100 RPM |
| Spindle Power: 20 HP |
| Vector Drive Max Torque: 90ft-lb @ 2000 RPM |
| Automatic Tool Changer: |
|---|
| Capacity: 24 Station Side Mounted |
| Tool Weight: 12 Lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 5″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 3.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

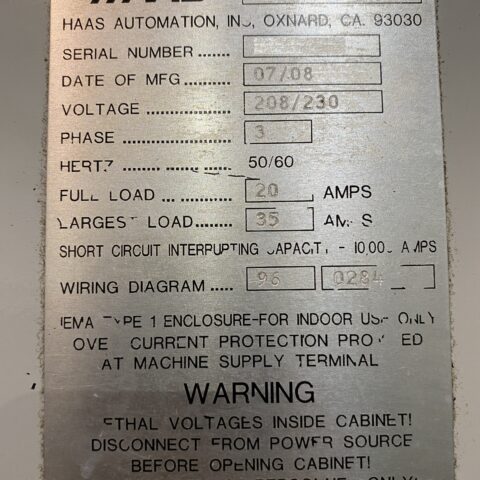

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 195″ x 102″ x 129″ High |
| Weight: 22,300 lbs Approx. |
