*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-6SS |
| Year: | 2022 |
| Condition: | Used – Good |

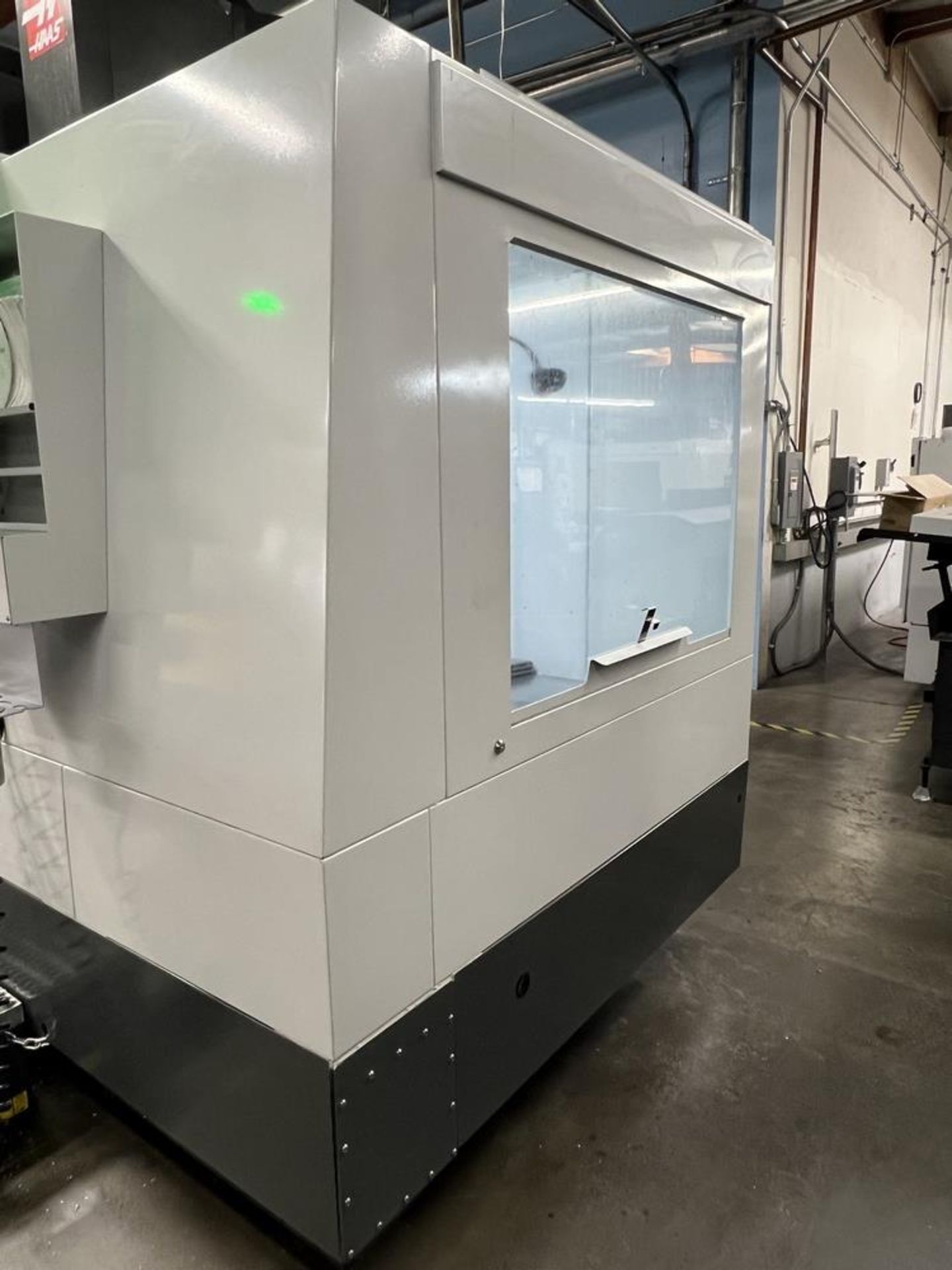

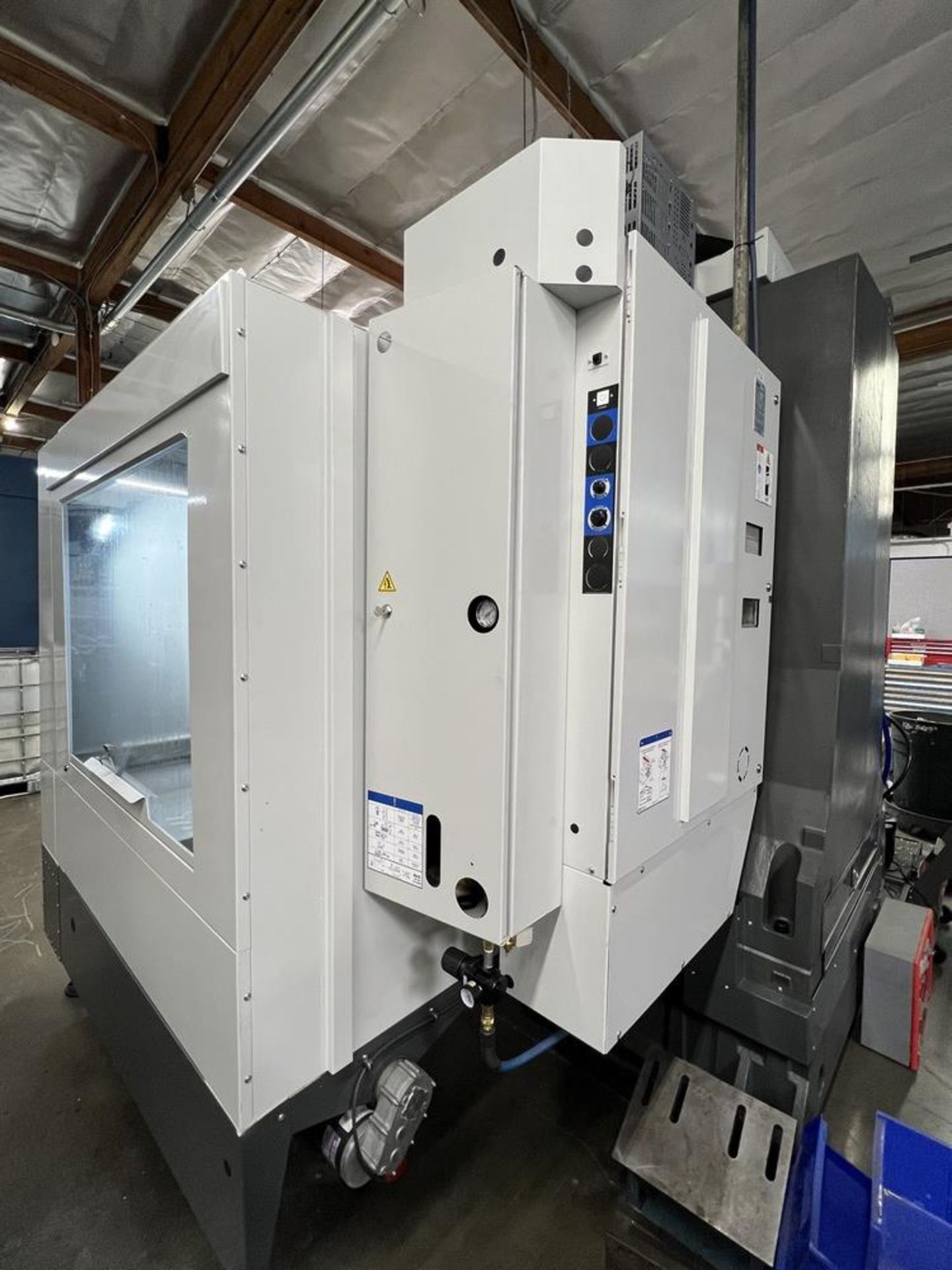

| Machine Type: | CNC Vertical Machining Center |
| Country of Origin: | USA |
-
Features:
- Super Speed (SS) High-Performance Machining
- Inline Direct-Drive Spindle
- High-Speed Side-Mount Tool Changer
- Rigid Tapping
- High-Acceleration Axis Drives
- Thermal Compensation System
- Fully Enclosed Machining Area
- Linear Guideways on All Axes
- Automatic Lubrication System
-
Travels & Axis Specifications:
- X-Axis Travel: 64.0″
- Y-Axis Travel: 32.0″
- Z-Axis Travel: 30.0″
- Spindle Nose to Table: 6.0″ – 36.0″
-
Table:
- Table Size: 64.0″ × 28.0″
- Max Table Load: 4,000 lbs
- T-Slots: 7 × 0.63″
- Table Height from Floor: 33.5″
-
Spindle:
- Spindle Taper: CT40
- Max Spindle Speed: 12,000 RPM (15,000 RPM Optional)
- Spindle Motor: 30 HP (Peak)
- Max Spindle Torque: 90 ft-lbs
- Inline Direct-Drive Spindle
- Spindle Cooling System
-
Feedrates & Dynamics:
- Rapid Traverse (X/Y/Z): 1,400 IPM
- Max Cutting Feedrate: 833 IPM
- High-Speed Axis Acceleration
- Precision Ground Ballscrews
-
Automatic Tool Changer:
- Tool Changer Type: Side-Mount
- Tool Capacity: 30 Tools
- Tool-to-Tool Time: 1.8 sec
- Chip-to-Chip Time: 2.4 sec
- Max Tool Diameter: 3.5″ (Adjacent) / 5.9″ (No Adjacent)
- Max Tool Length: 15.5″
- Max Tool Weight: 12 lbs
-
Coolant System:
- Flood Coolant System
- Through-Spindle Coolant: 300 psi / 1,000 psi (Optional)
- Coolant Tank Capacity: 95 Gallons
- Coolant Gun & Air Gun
-
Chip Management:
- Auger-Type Chip Removal System
- Hinged Belt Chip Conveyor (Optional)
- Oil Skimmer & Mist Collector (Optional)
-

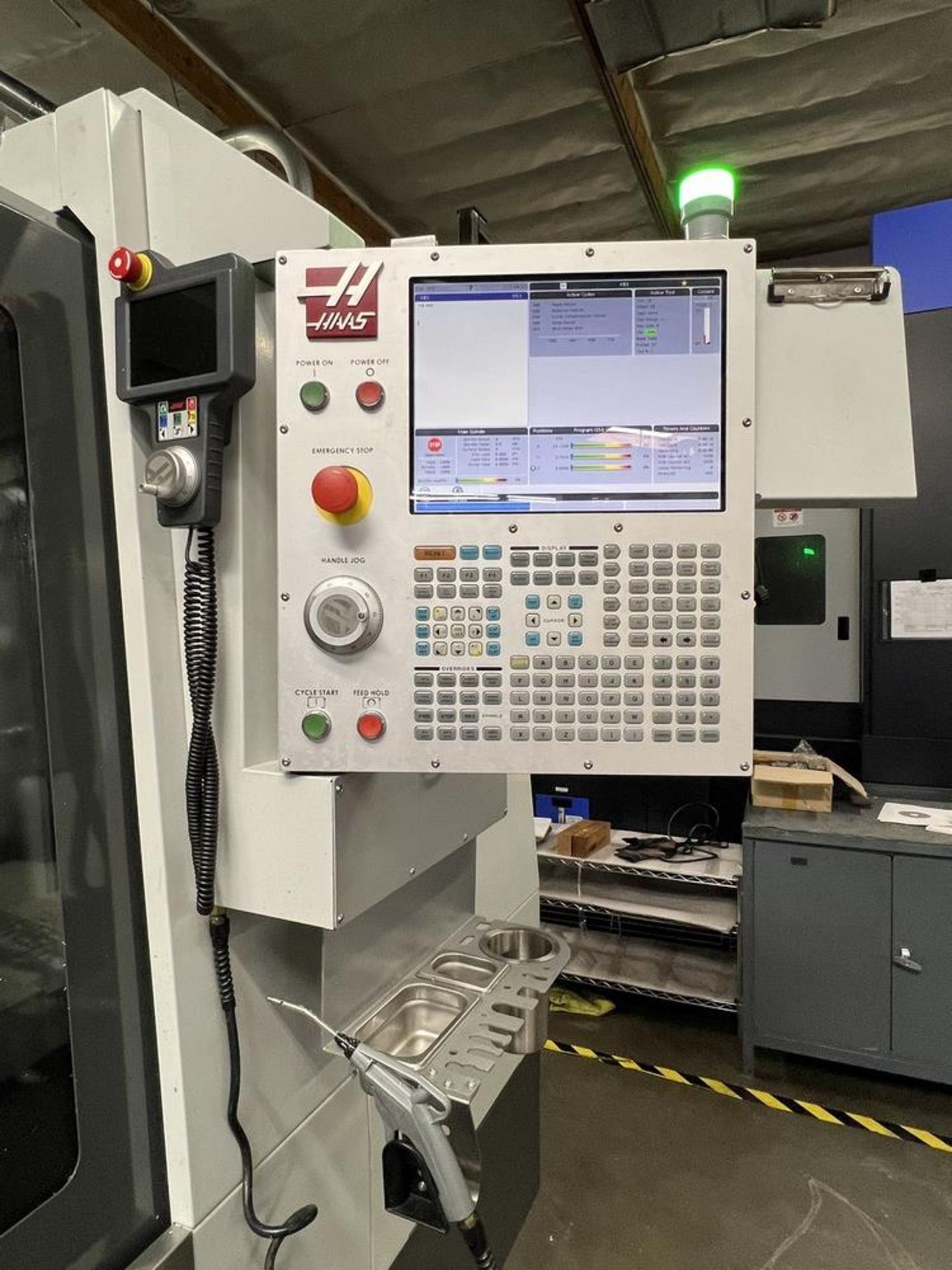

CNC Control:
- Haas Next Generation CNC Control
- 15″ Color LCD Display
- Full QWERTY Keyboard
- High-Speed Look-Ahead
- Ethernet, USB, RS-232 Connectivity
- Macros & Visual Programming System (VPS)
-

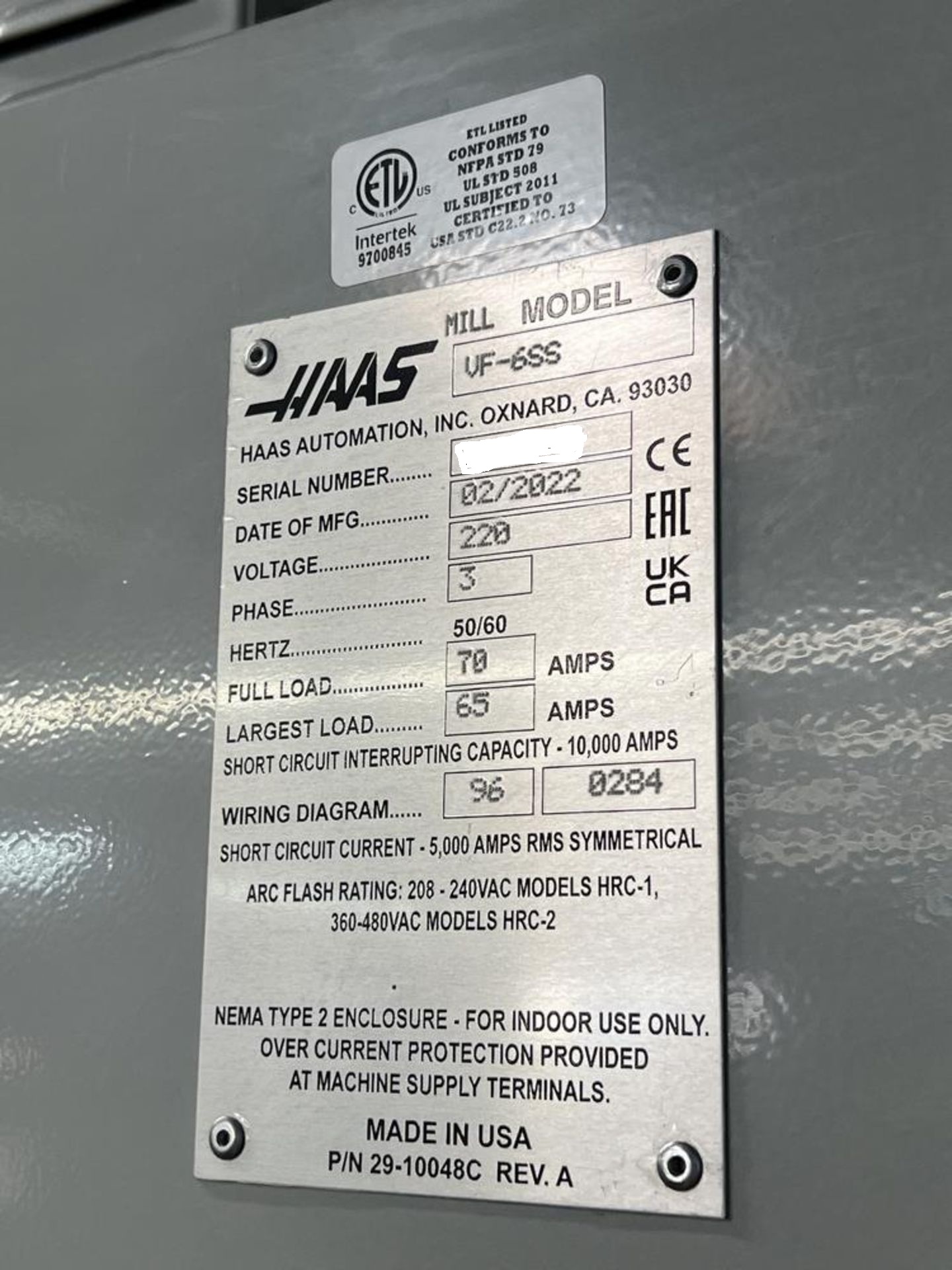

Electrical & Utilities:
- Power Supply: AC 208–240V / 3-Phase / 50–60 Hz
- Connected Load: 40 kVA
- Compressed Air Requirement: 6.9 bar
-
Machine Dimensions & Weight:
- Height: 122.0″
- Width: 150.0″
- Length: 208.0″
- Machine Weight: Approx. 22,000 lbs
