*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model: | VF-7/40 |
| Year: | 2022 |
| Features: |
|---|

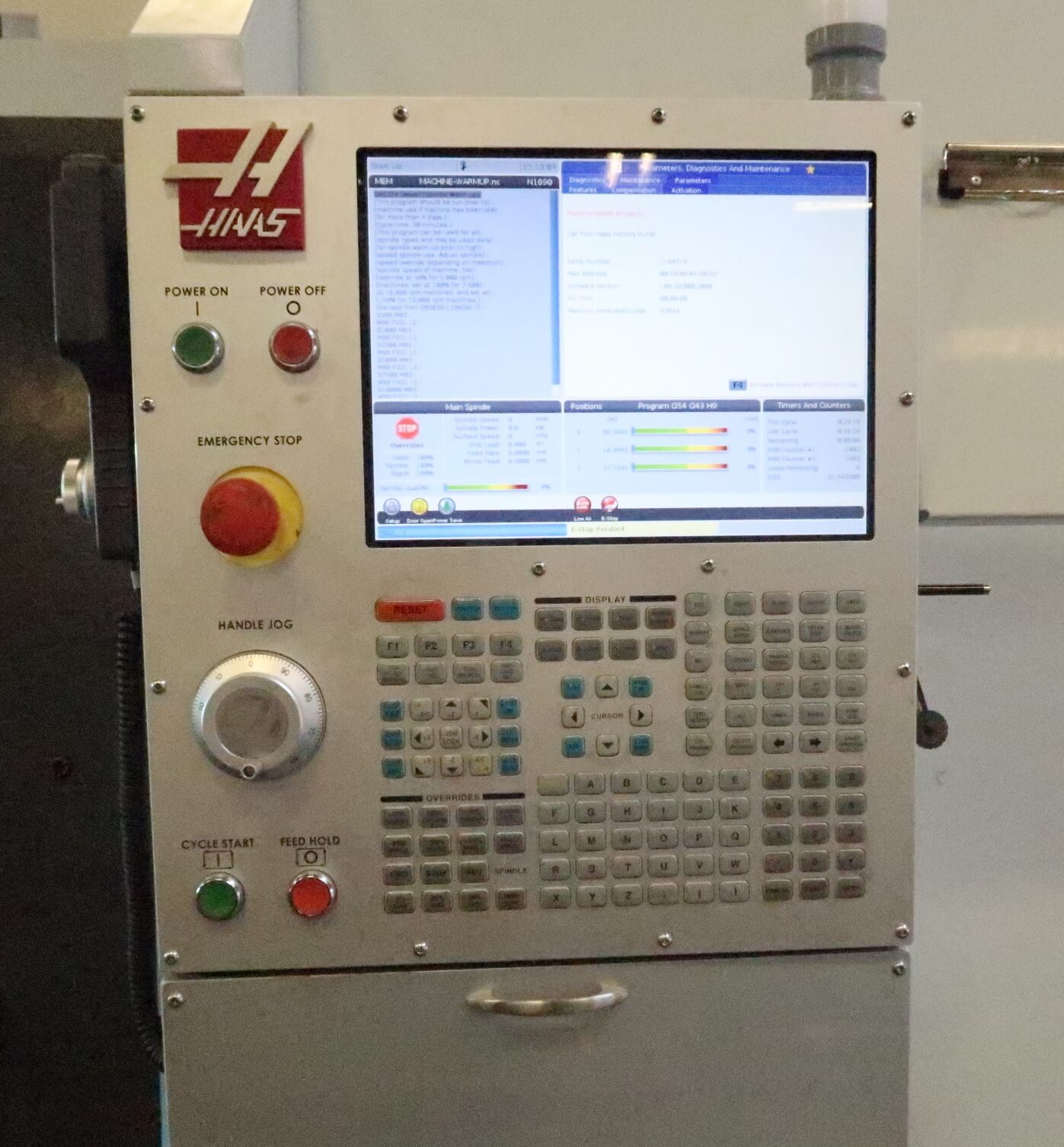

| Haas CNC Control |
| 4th-Axis Ready |
| 30-Station Side-Mount Automatic Tool Changer |
| CAT-40 Taper Spindle |
| 15,000 RPM High-Speed Spindle |
| 30 HP Vector Drive |
| Renishaw Wireless Probing System |
| CAT-40 Probe |
| Renishaw Tool Setter |
| Through-Spindle Coolant (300 PSI) |
| Programmable Coolant Nozzle (P-Cool) |
| Rigid Tapping |
| Chip Auger |
| Flood Coolant System |
| Digital Hand Wheel |
| USB Port |
| Ethernet Interface |
| Fully Enclosed Splash Guard |
| Work Light |
| Travels: |
|---|
| X-Axis Travel: 84″ |
| Y-Axis Travel: 32″ |
| Z-Axis Travel: 30″ |
| Rapid Traverse Rate: 1,000 IPM |

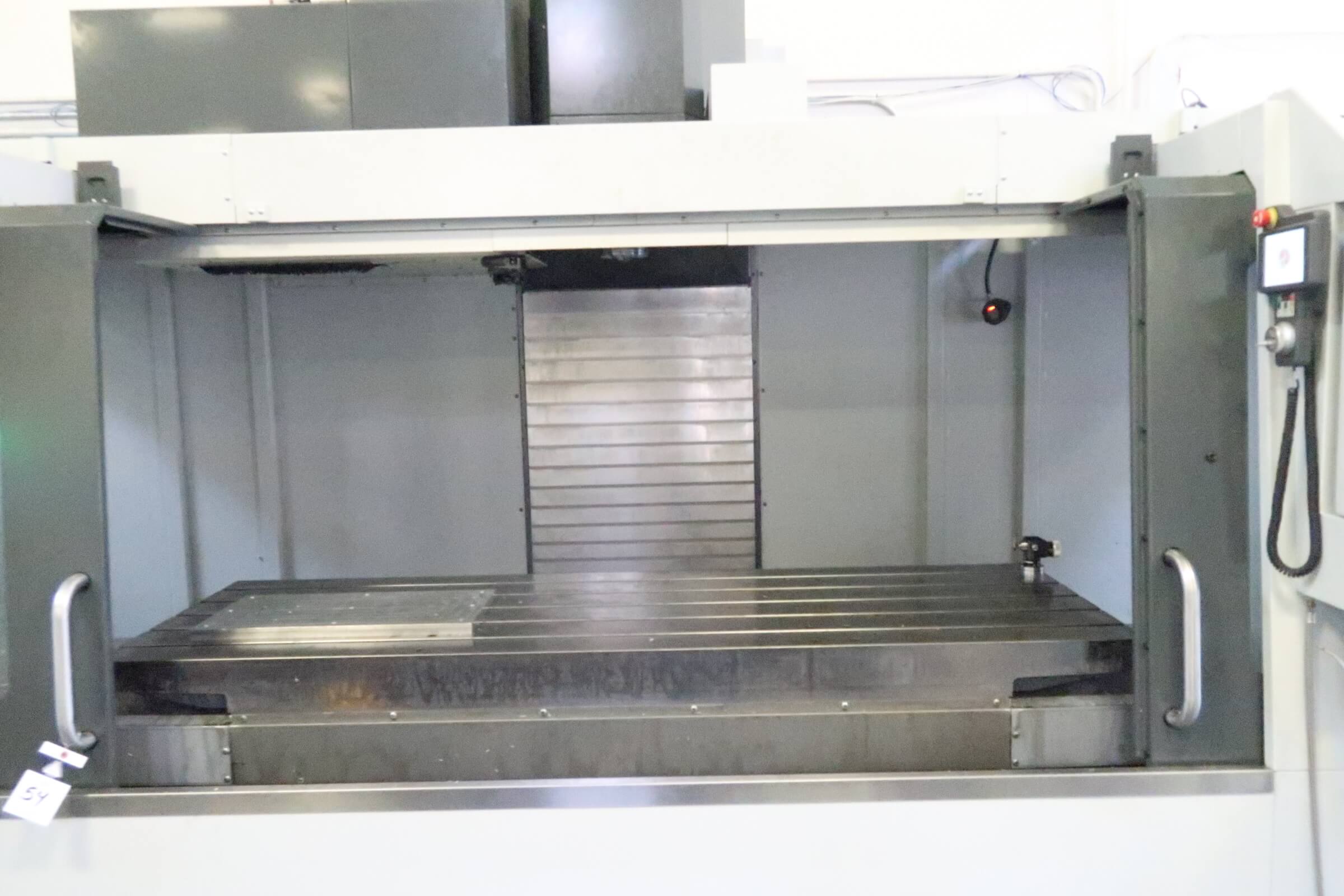

| Table: |
|---|
| Table Size: 84″ × 28″ |
| Maximum Table Load: 4,000 lbs |
| T-Slots: 5 |
| T-Slot Width: 0.625″ |
| T-Slot Centers: 5.0″ |
| Spindle: |
|---|
| Spindle Taper: CAT-40 |
| Spindle Speed: 15,000 RPM |
| Spindle Motor: 30 HP |
| Spindle Nose to Table: 4″ – 34″ |
| Automatic Tool Changer: |
|---|
| Tool Changer Type: Side-Mount |
| Tool Capacity: 30 Stations |
| Maximum Tool Diameter: 3.5″ |
| Maximum Tool Length: 13″ |
| Maximum Tool Weight: 12 lbs |
| Tool-to-Tool Time: Approx. 1.8 Seconds |
| General: |
|---|

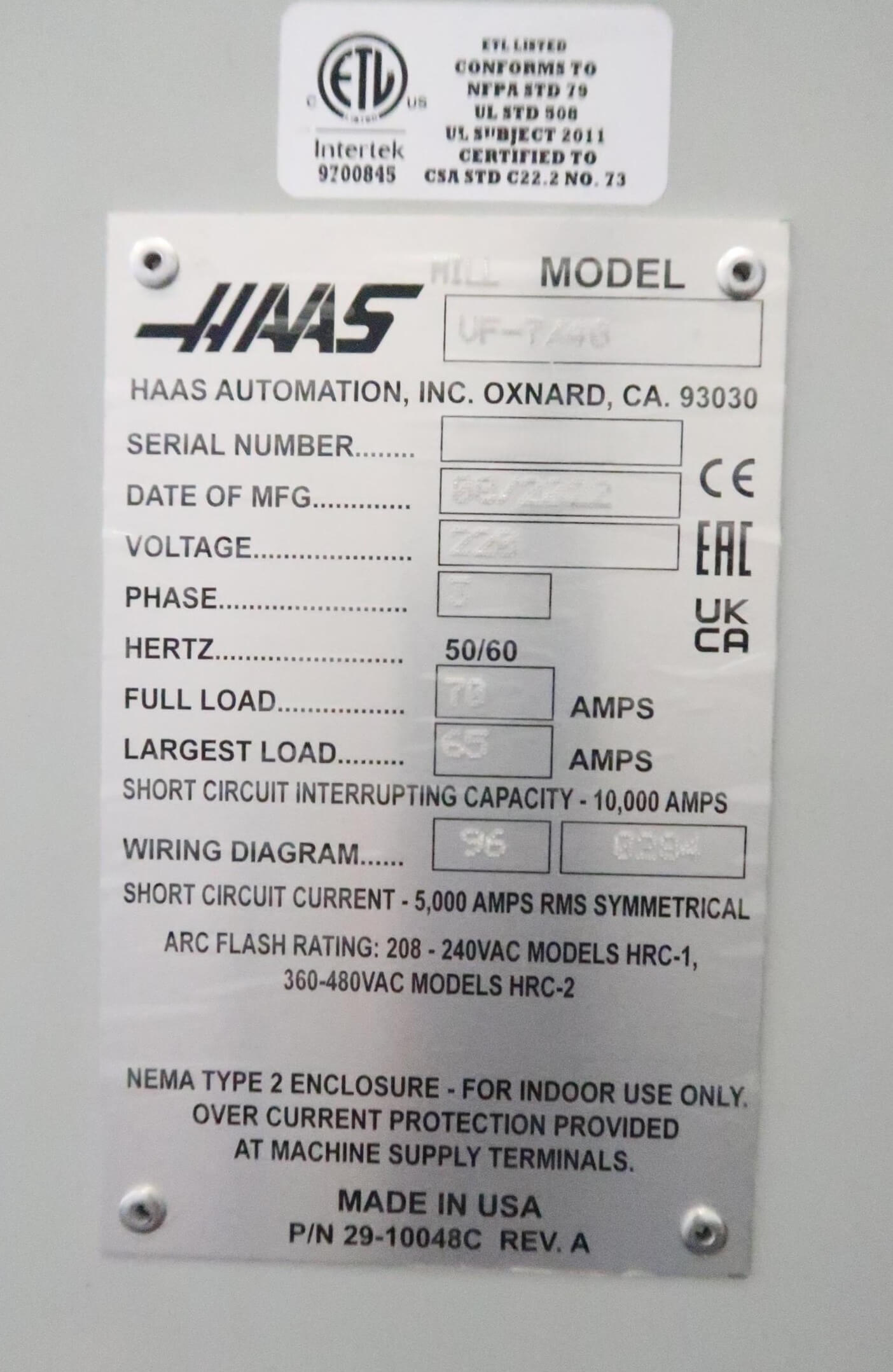

| Electrical: 220 VAC / 3 Phase / 50/60 Hz |
| Machine Dimensions (Approx.): 205″ × 130″ × 137″ |
| Machine Weight (Approx.): 29,500 lbs |
