*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 2446 |

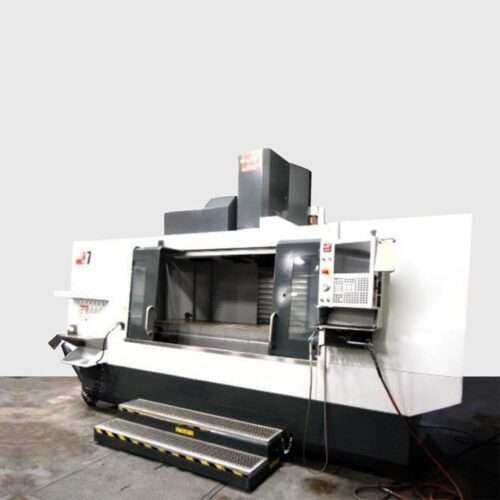

| Make: | Haas |

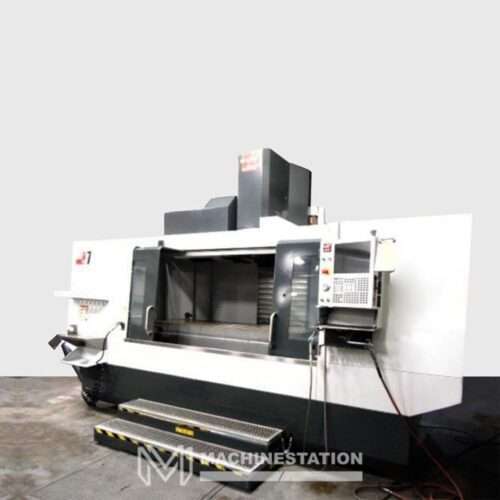

| Model: | VF-7/40 |
| Year of Manufacture: | 2019/2020 |
| Condition: | Excellent |
| Cutting Hours: | Only |
| Equipped With: |
|---|

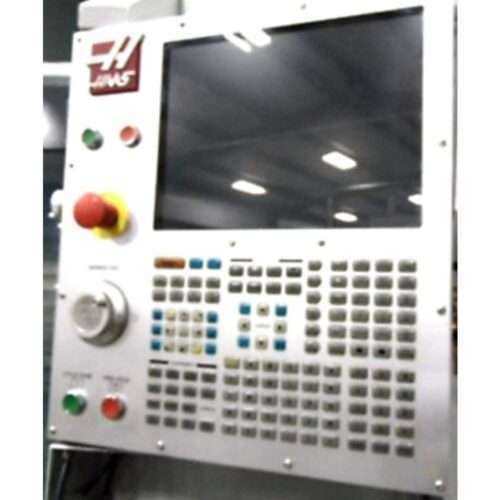

| Haas CNC Control |
| 8100 RPM High Torque Spindle |
| 30 HP Spindle Motor |
| 30 Station Automatic Tool Changer |

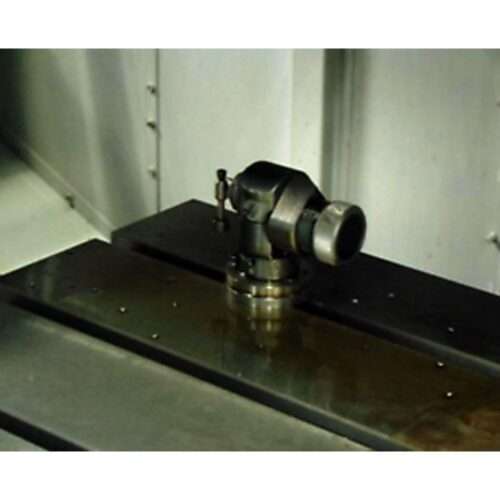

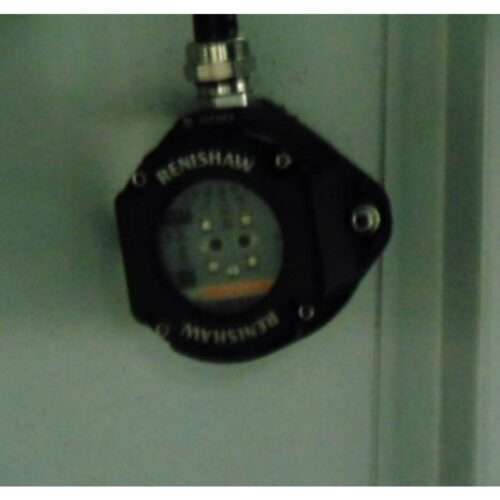

| Renishaw Probing System |
| Hand Wheel MPG Control |
| USB Drive |
| Expanded Memory |
| Rigid Tapping |
| Spindle Orientation |
| Programmable Coolant |

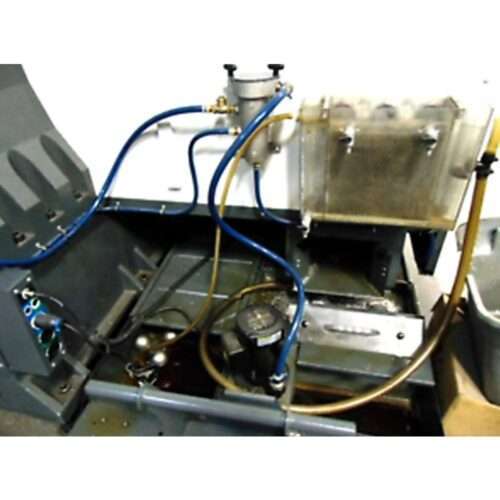

| Coolant System |
| Telescopic Way Covers |

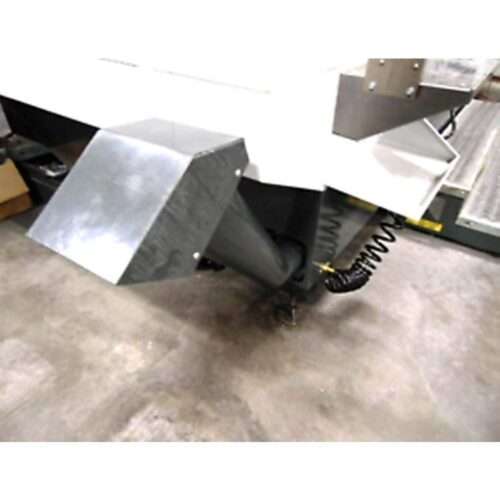

| Chip Auger |

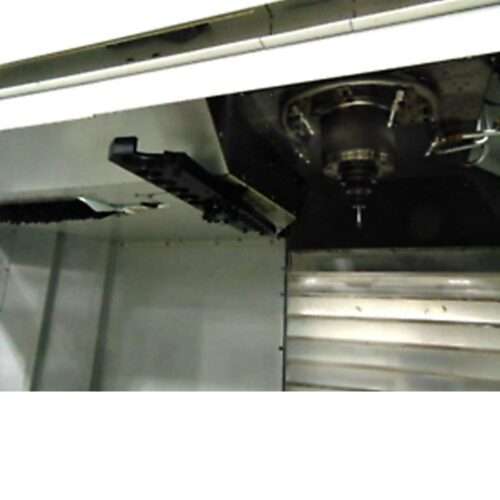

| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 8,100 RPM |
| Spindle Power: 30 HP |

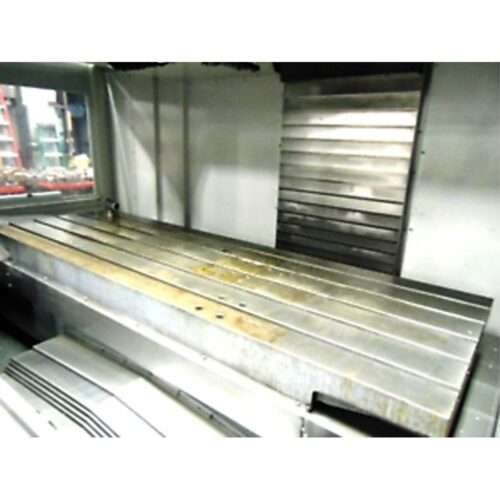

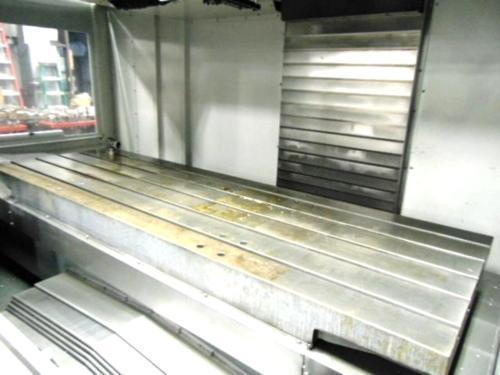

| Table: |
|---|
| Length: 84″ |
| Width: 28″ |
| Number of Std T-Slots: 5 |
| T-Slot Width: 5/8″ |
| Max Weight on Table: 4000 lbs |
| Travels: |
|---|
| X-Axis: 84″ |
| Y-Axis: 32″ |
| Z-Axis: 30″ |
| Rapid Traverse Rates: 600 Inch Per Minute |
| Cutting Feed Rates: 500 Inch Per Minute |
| Spindle Nose to Table (Min.- Max.): 5″ – 34″ |

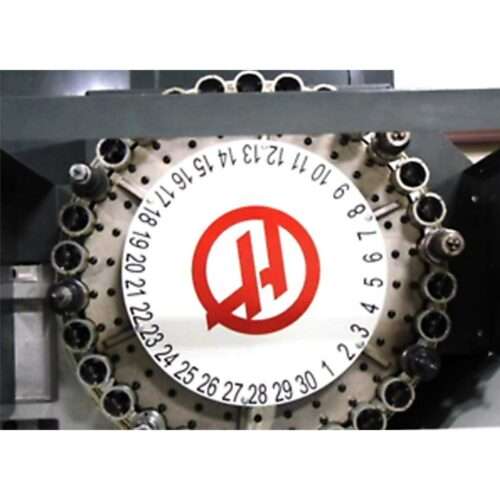

| Automatic Tool Changer: |
|---|
| Capacity: 30 Station Side Mounted |
| Max Tool Weight: 12 lbs |
| Max Tool Diameter (Full): 2.5″ |
| Max Tool Diameter (adjacent empty): 6″ |
| Max Tool Length: 16″ |
| Tool Changing Time: 3.6 Seconds |
| General: |
|---|
| Air Required: 100 psi, 4 scfm |

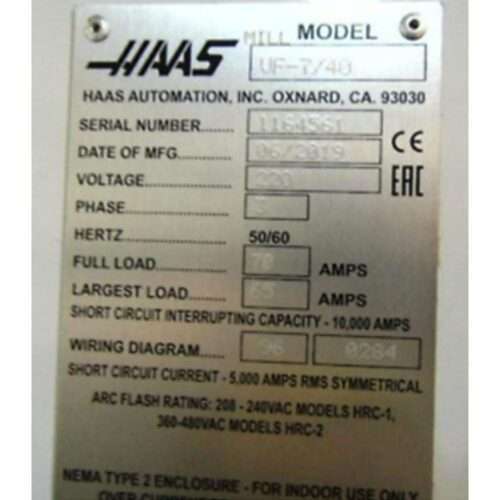

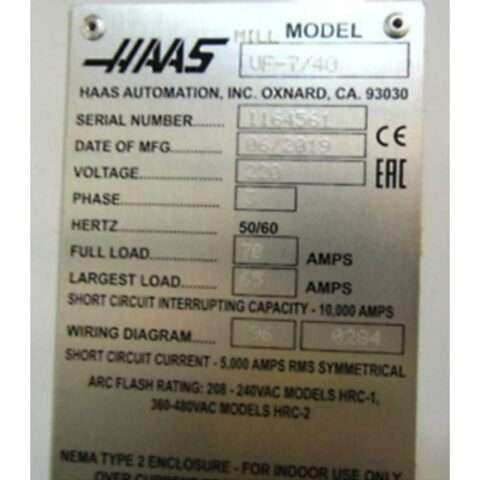

| Power: 220v / 66FLA / 3-Phase |
| Overall Dimensions: 214″ x 102″ x 129″ High |
| Weight: 25,600 lbs |
