*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: | Haas |
| Model No.: | VF-9/50 |
| Year: | 2016 |
| Machine Type: | CNC Vertical Machining Center |

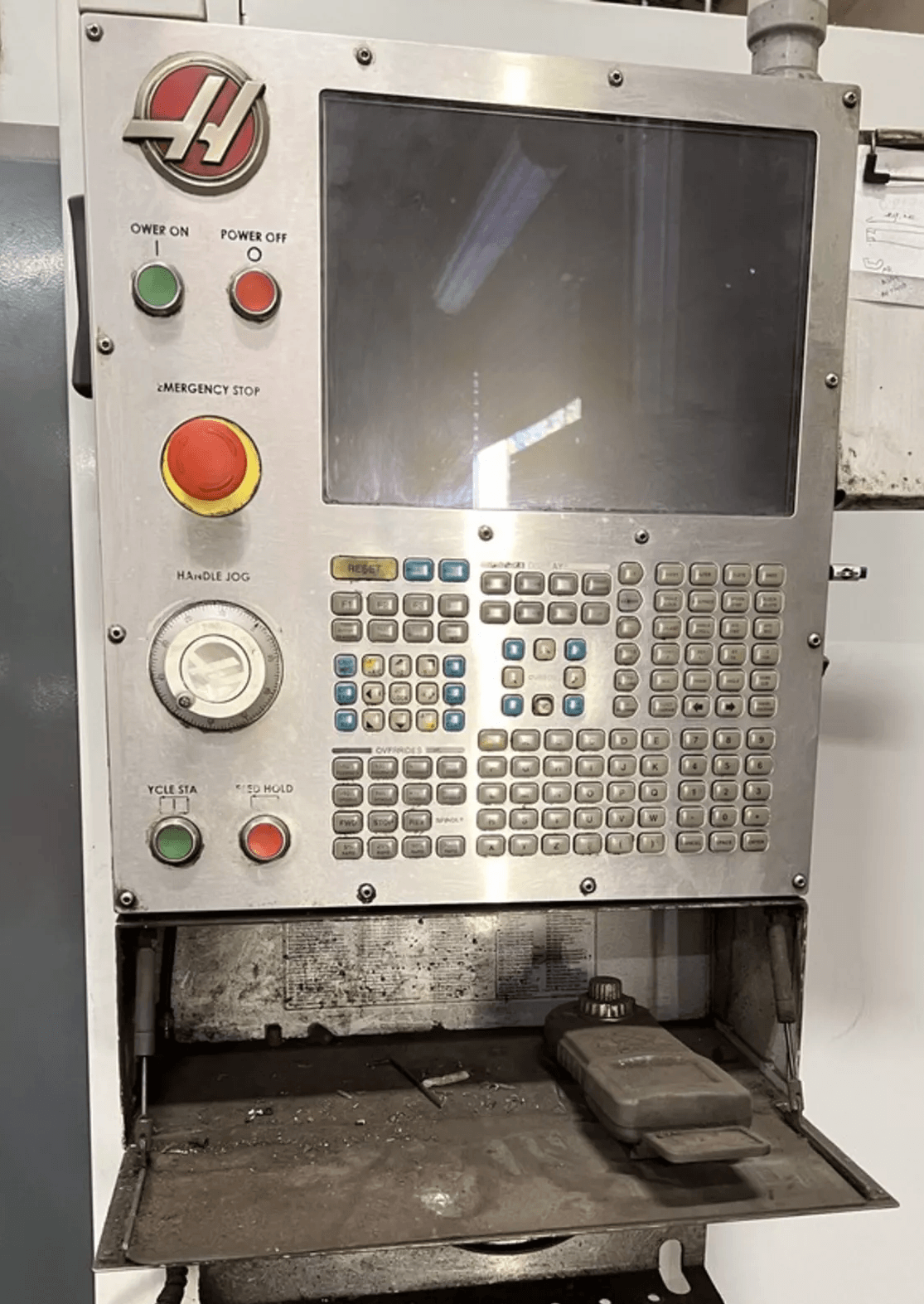

| Control: | Haas CNC Control |
| Country of Origin: | USA |
| Equipped With: |
|---|
| Haas CNC Control |
| 40-Position Automatic Tool Changer |
| 50 Taper Spindle |
| Through-Spindle Coolant (Optional) |
| Chip Auger / Conveyor |
| Rigid Tapping |
| Programmable Coolant Nozzle |
| Remote Jog Handle |
| Full Enclosure |
| Travels: |
|---|
| X-Axis Travel: 84″ |
| Y-Axis Travel: 40″ |
| Z-Axis Travel: 30″ |
| Spindle: |
|---|
| Spindle Speed: 7,500 RPM (10,000 RPM Optional) |
| Spindle Taper: CT50 |
| Spindle Motor: 30 HP |
| Table: |
|---|

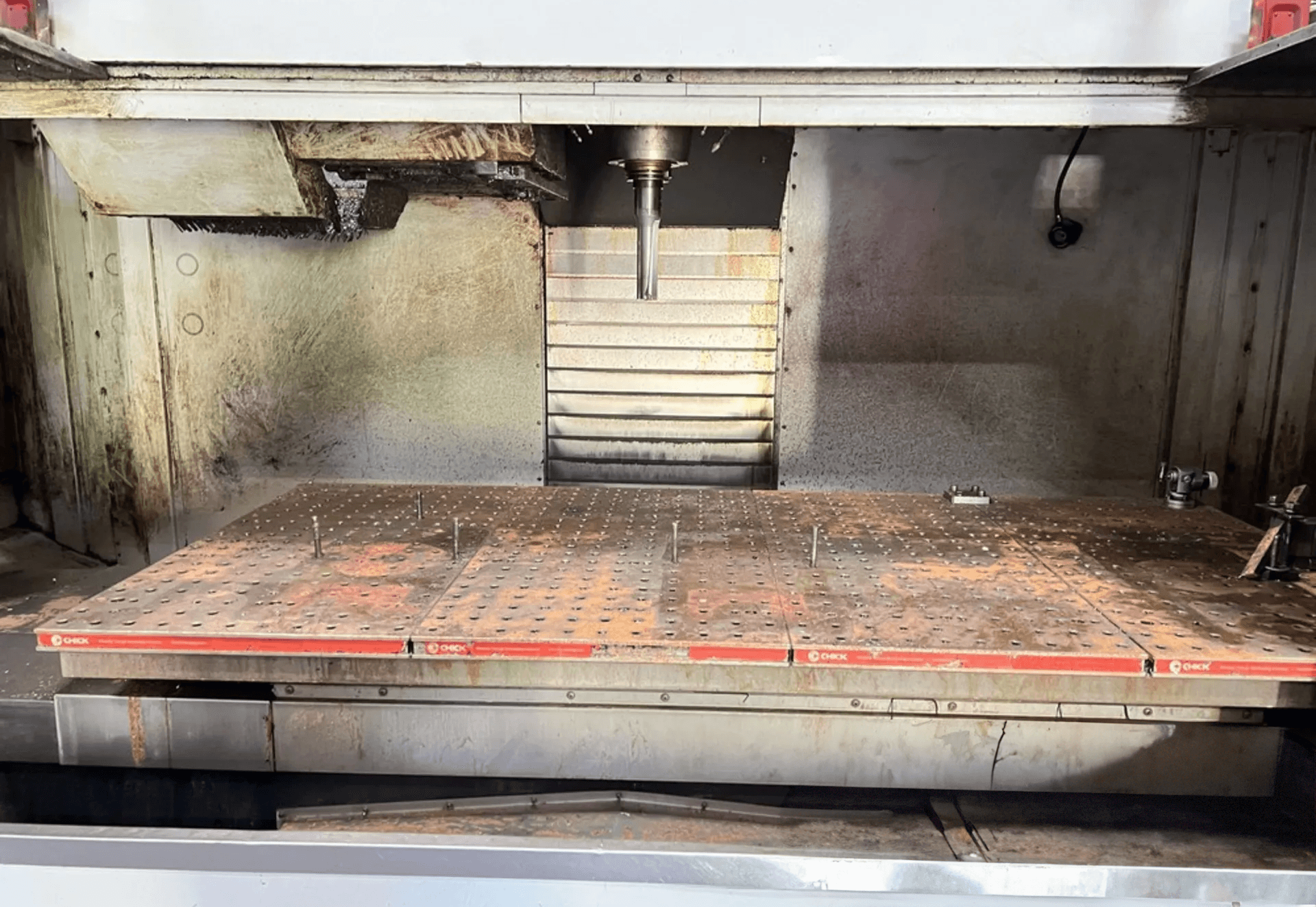

| Table Size: 84″ x 36″ |
| Max Table Load: 4,000 lbs |
| Feed Rates: |
|---|
| Rapid Traverse (X/Y/Z): 710 / 710 / 710 IPM |
| Tool Changer: |
|---|
| Tool Capacity: 40 Tools |
| Tool Change Type: Side Mount (SMTC) |

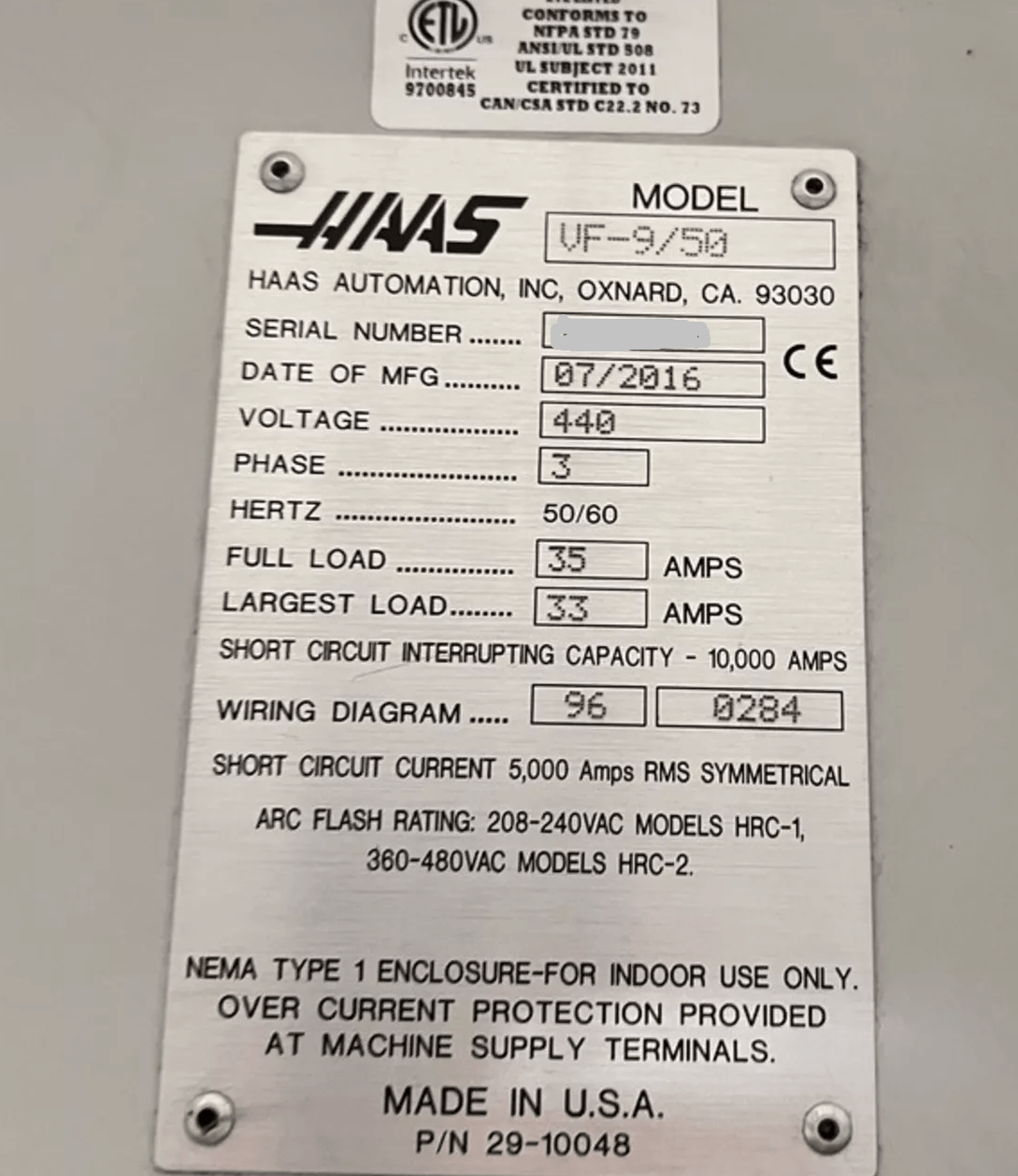

| Electrical: |
|---|
| Voltage: 220 / 480 V |
| Phase: 3 |
| Frequency: 60 Hz |
| General: |
|---|
| Air Required: 100 PSI |
| Power: 220/480V / 3-Phase |
| Overall Dimensions: 220″ x 160″ x 130″ High (Approx.) |
| Weight: 28,000 lbs (Approx.) |
