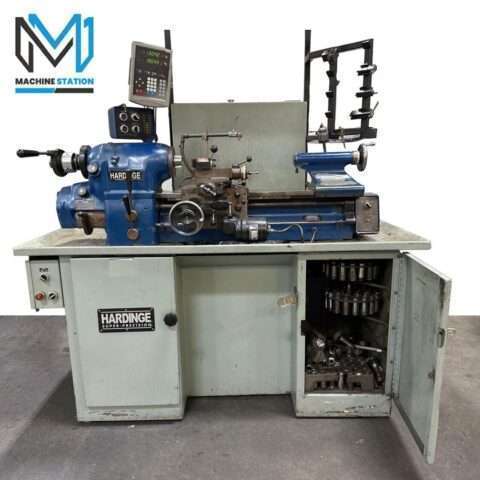

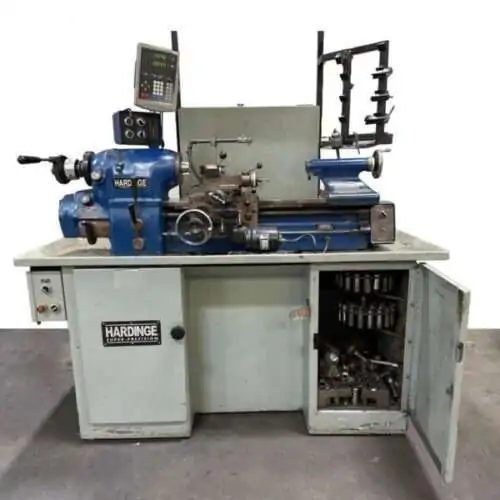

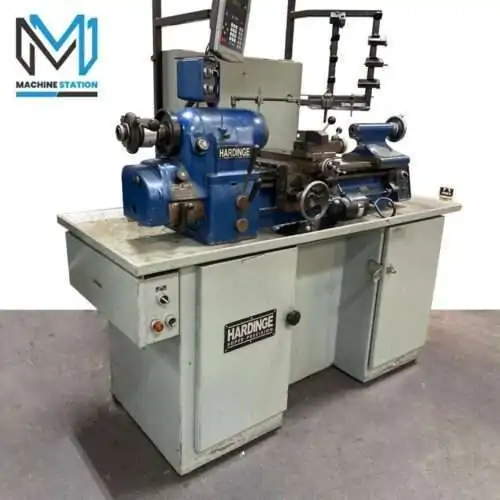

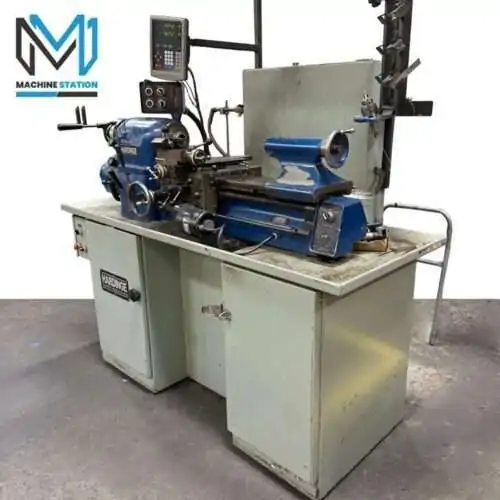

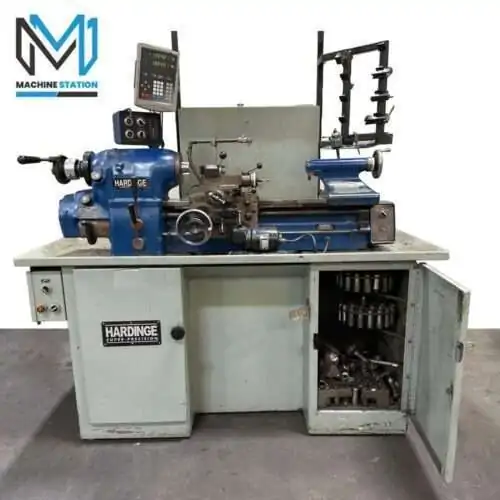

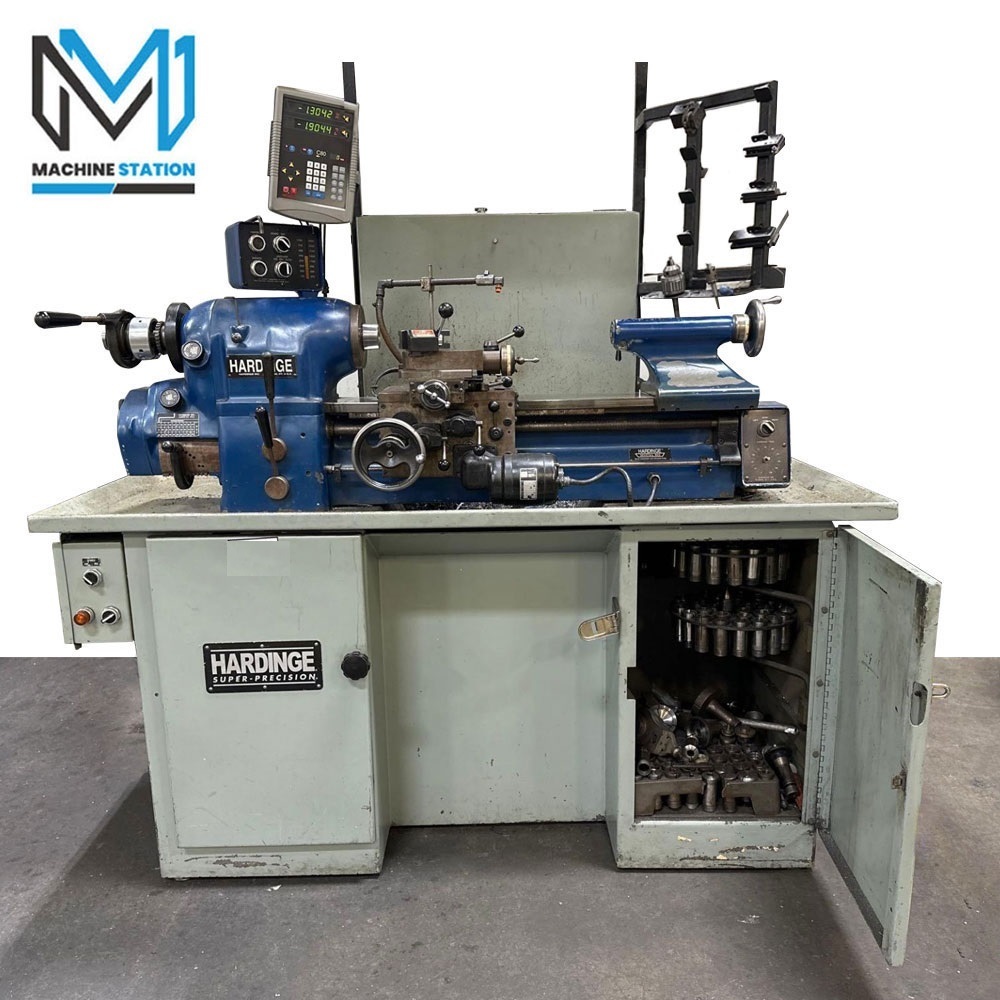

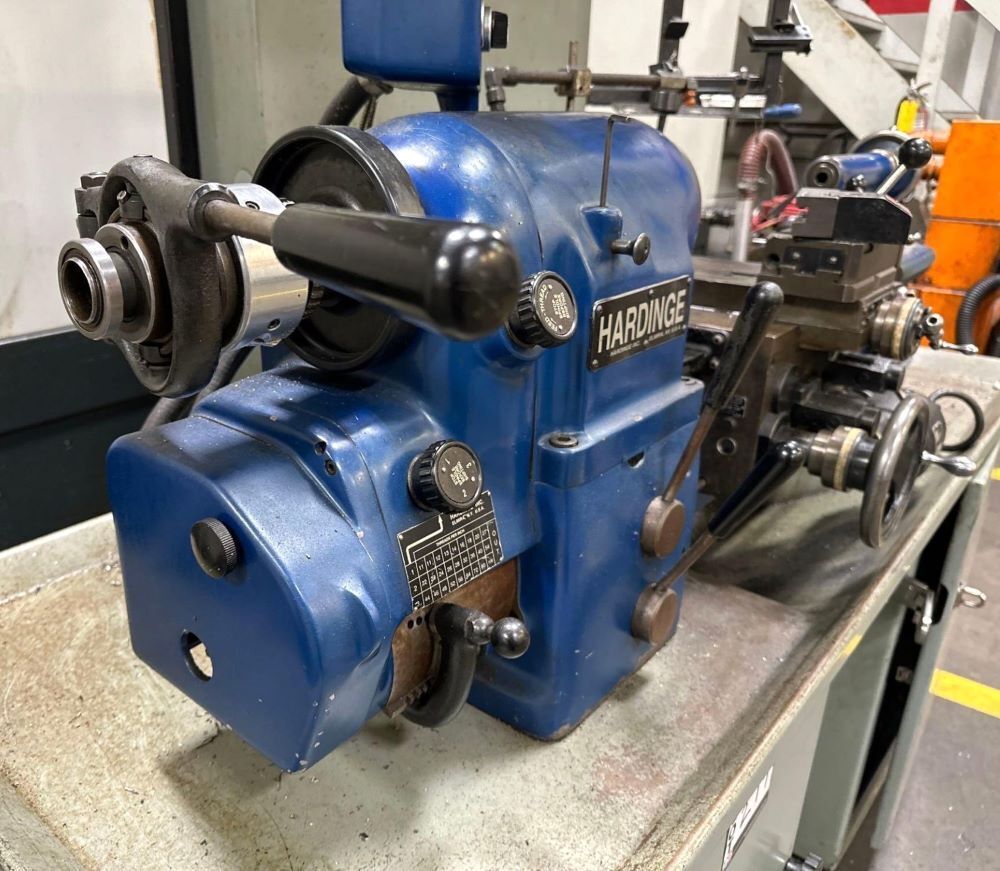

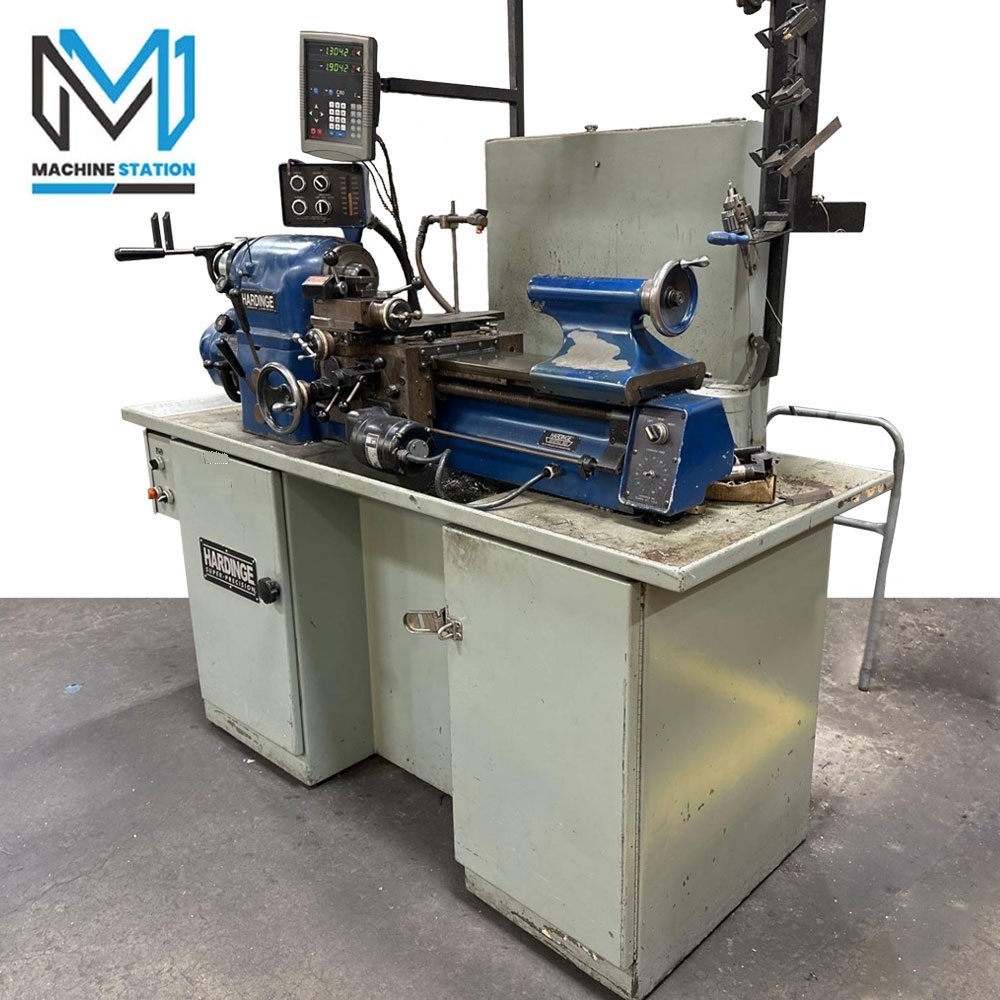

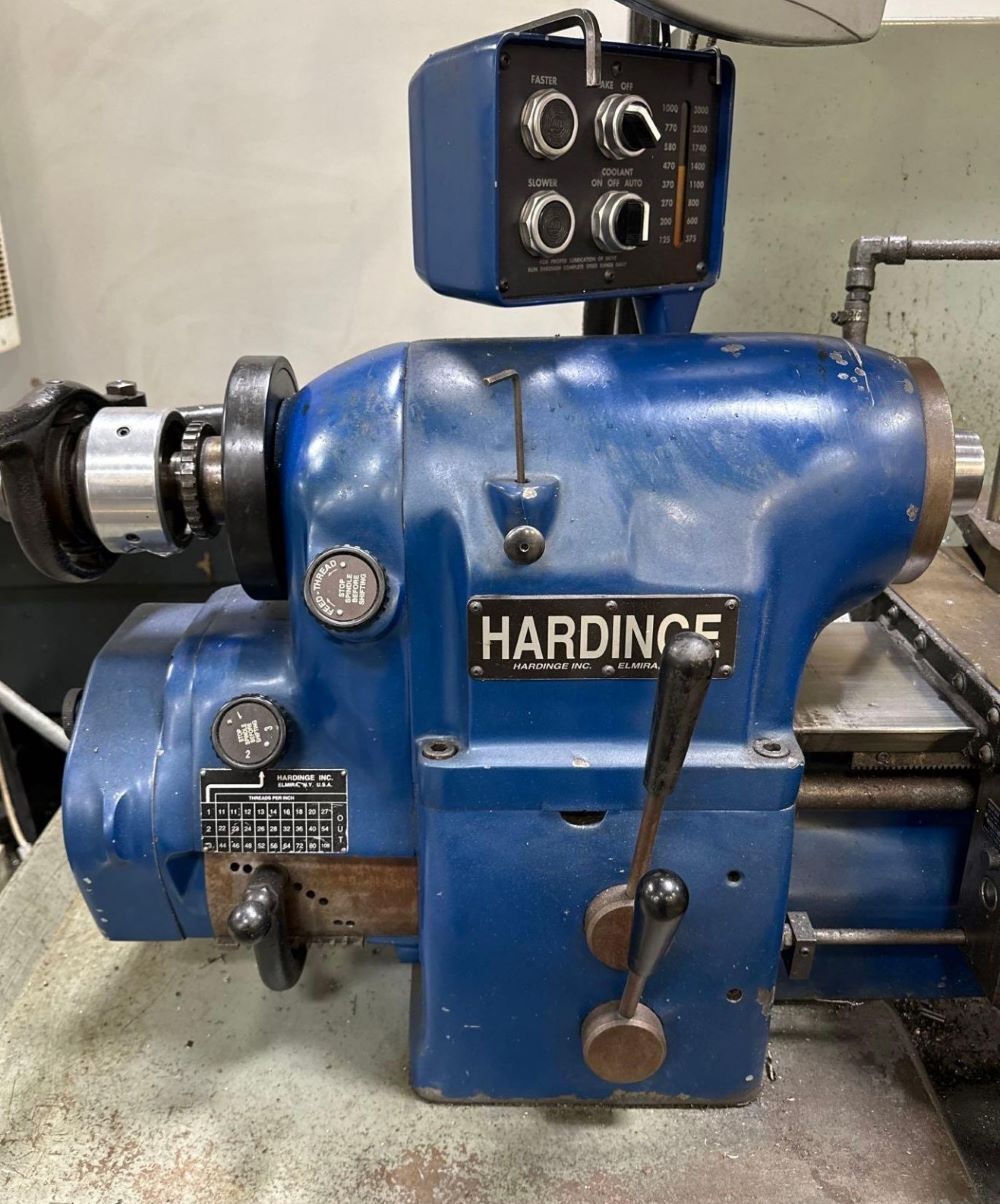

Hardinge HLV-H Super Precision Tool Room Lathe

$14,400.00

1 in stock
SKU: 2552
Location: Lake Elsinore, CA
Make: Hardinge
Model: HLV-H
Condition: Used – Good
Video: No Video
SKU: 2552

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make: Hardinge
Model: HLV-H
Condition: Used – Good



Equipped With:

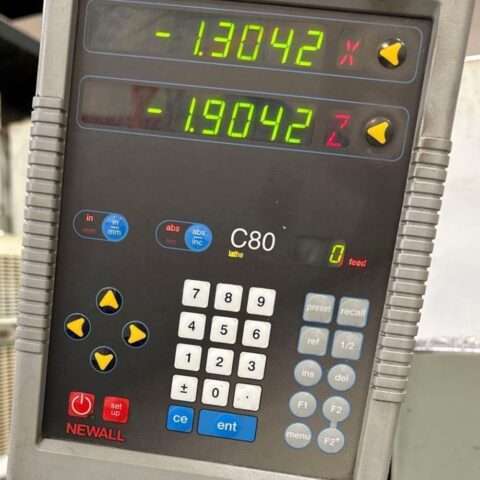

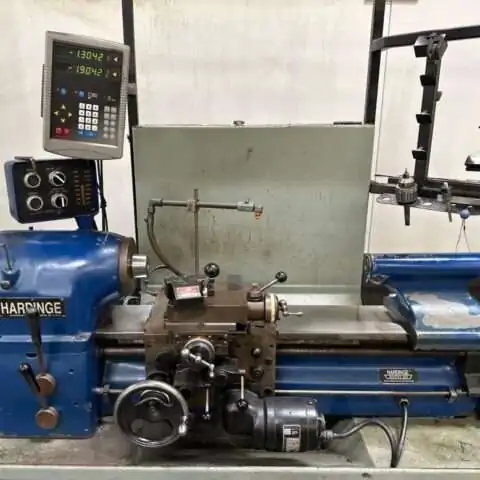

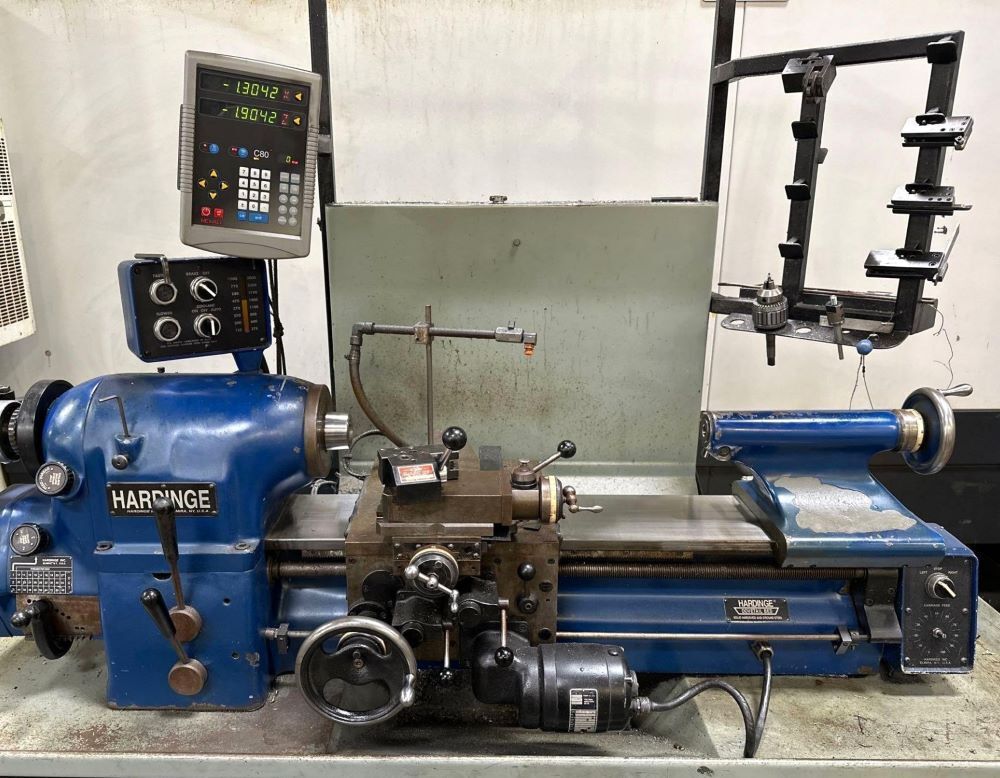

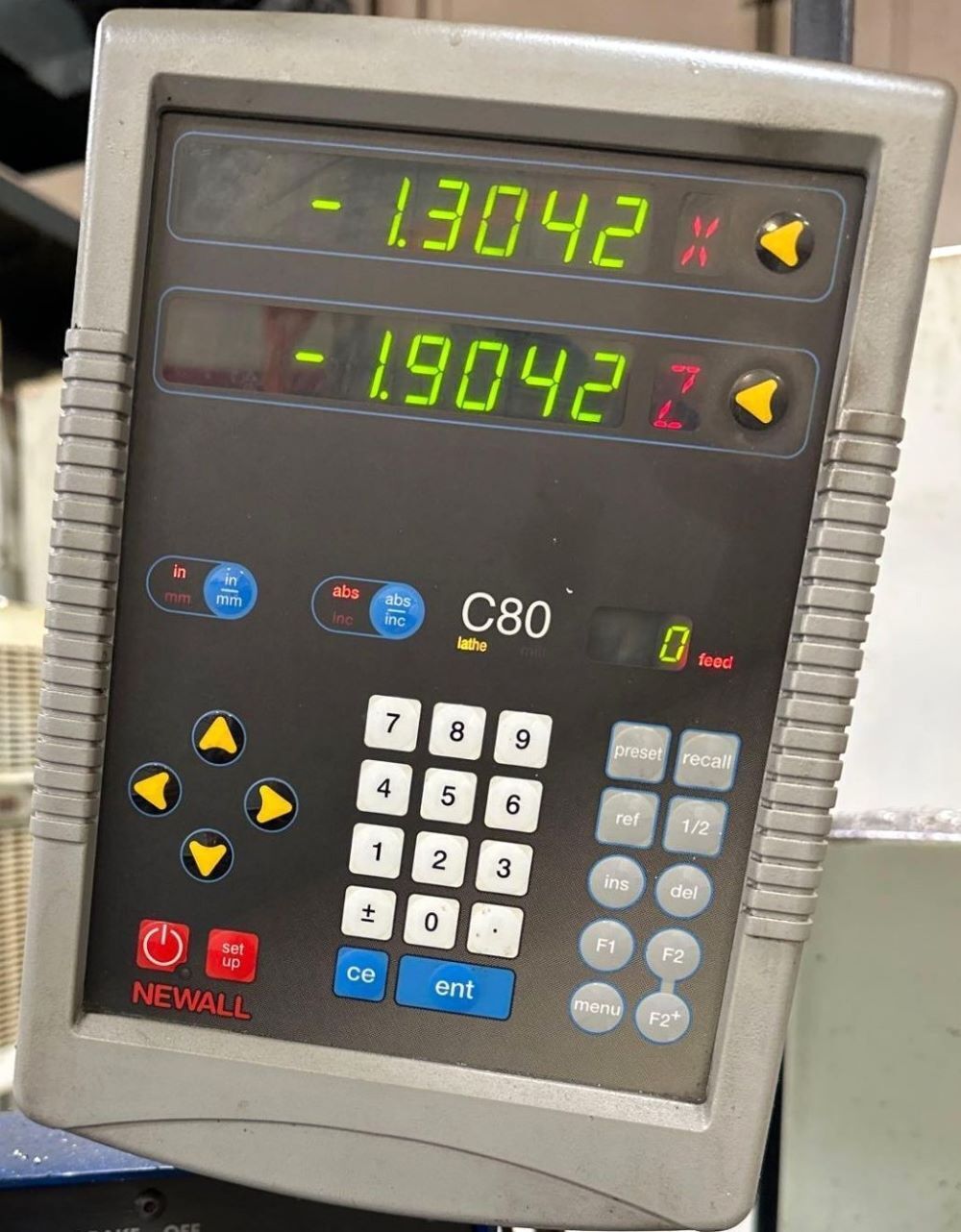

Newall Digital Readout

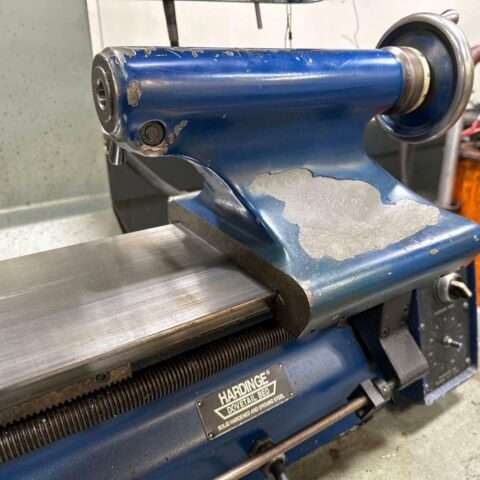

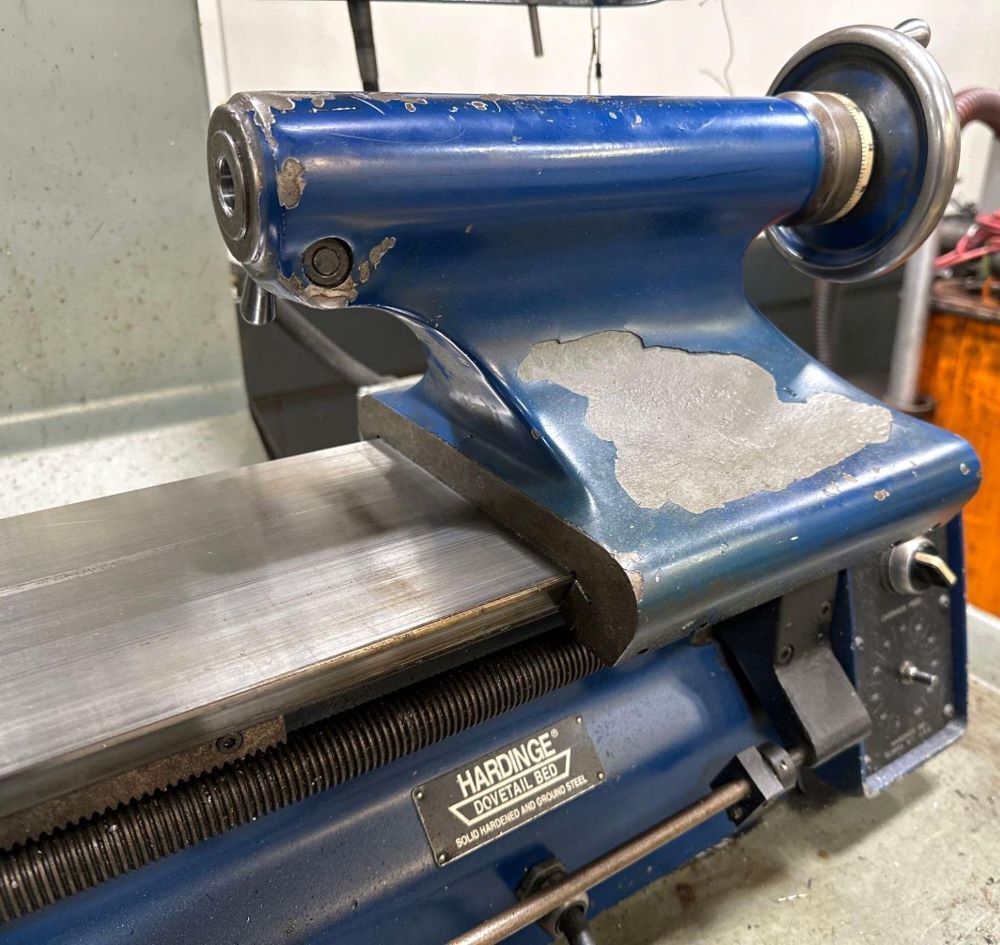

Dovetail Bed Solid Hardened and Ground Steel

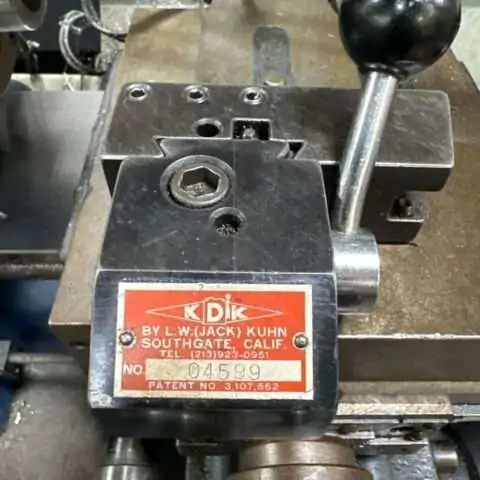

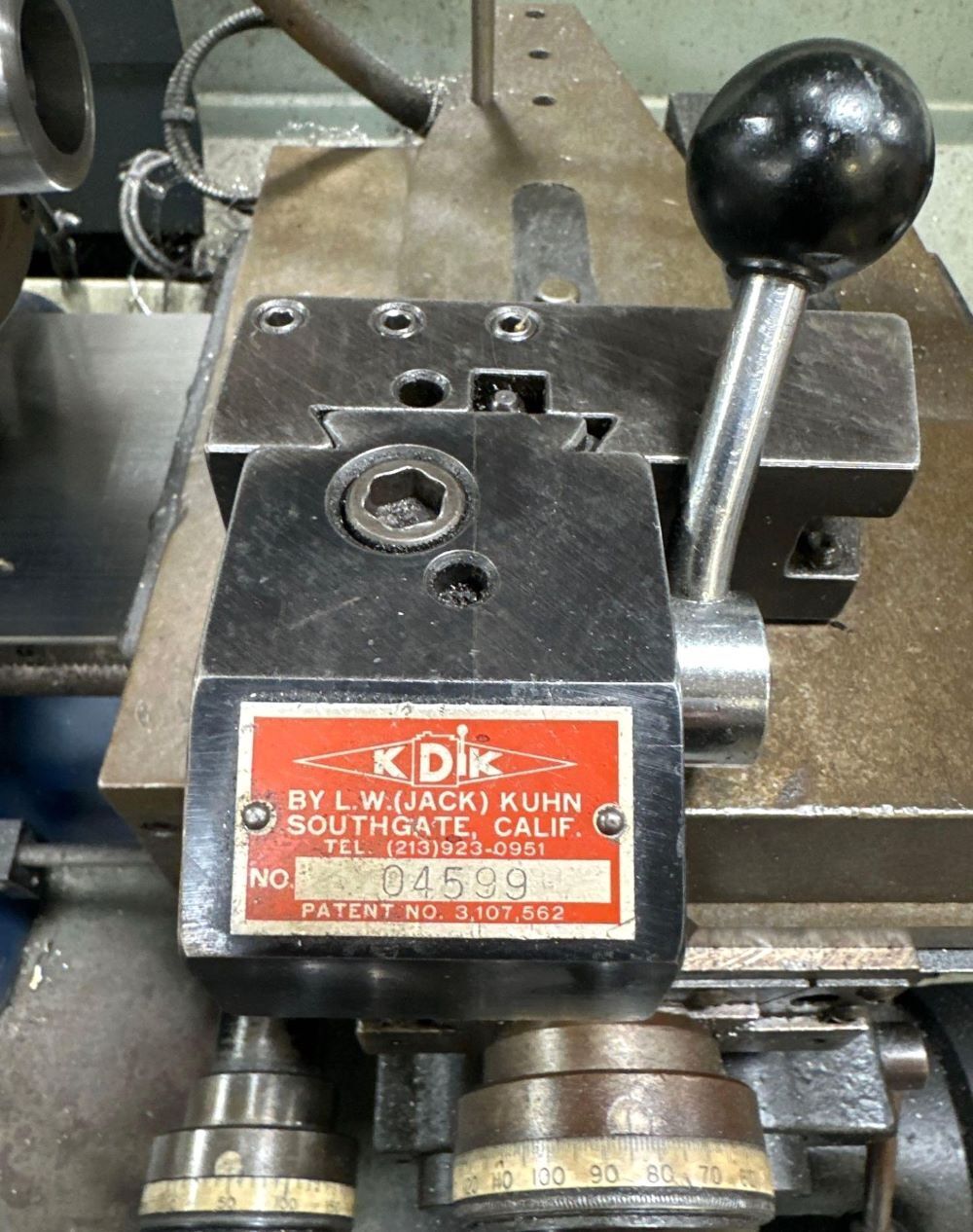

KDK Tool Post

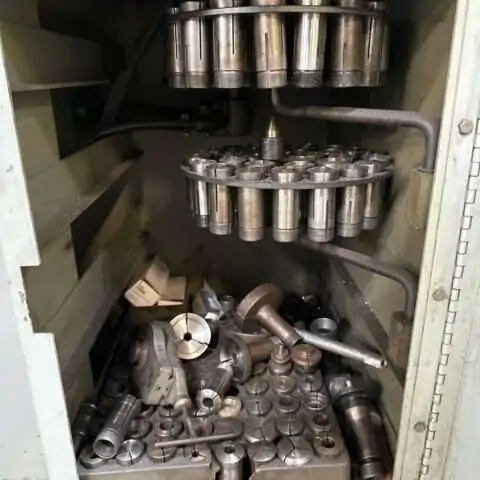

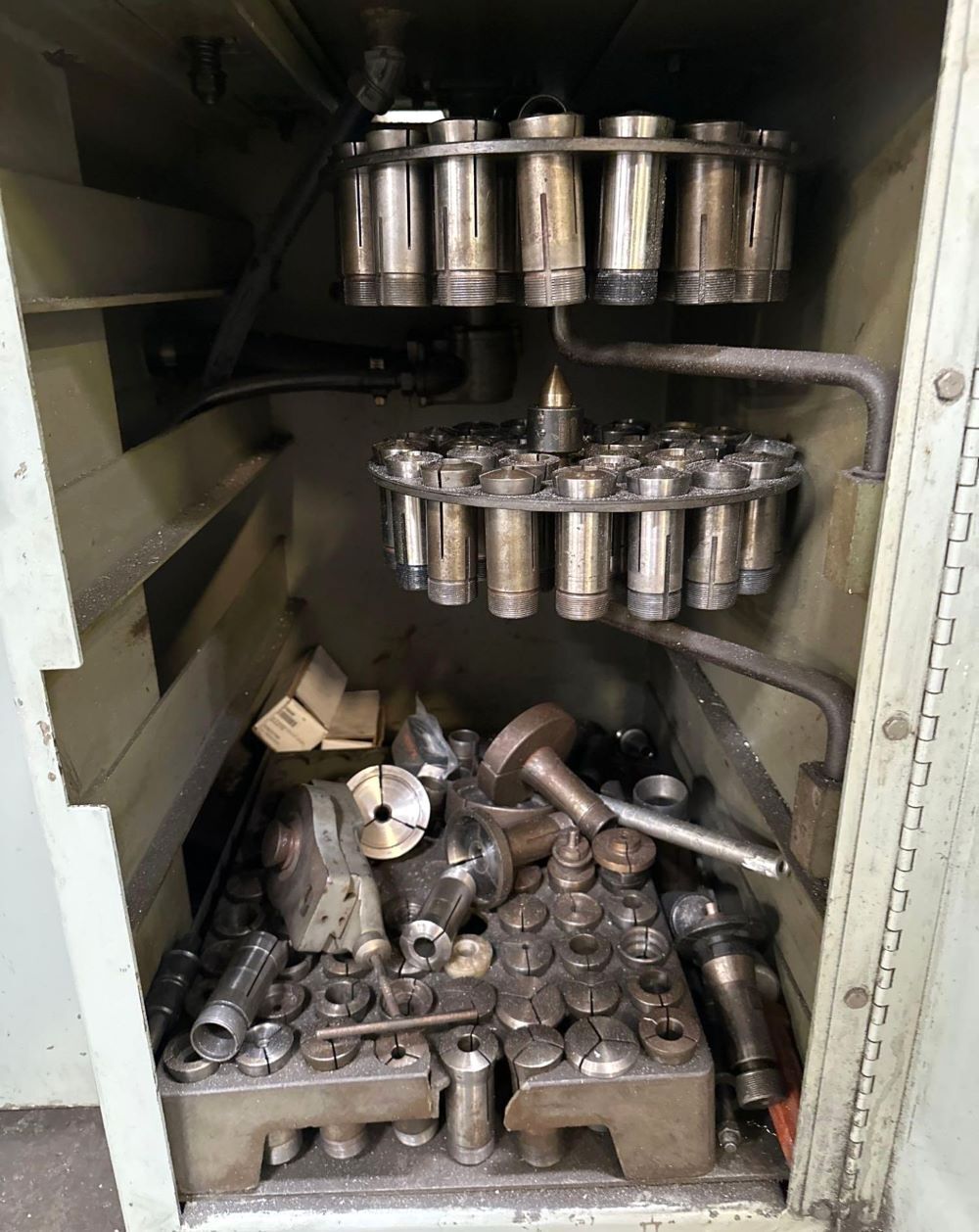

Assorted Collets
125 to 3000 RPM Variable Spindle Speed
2 Speed Reversing Motor

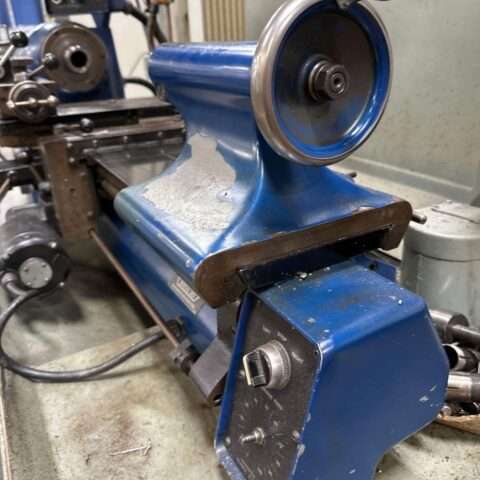

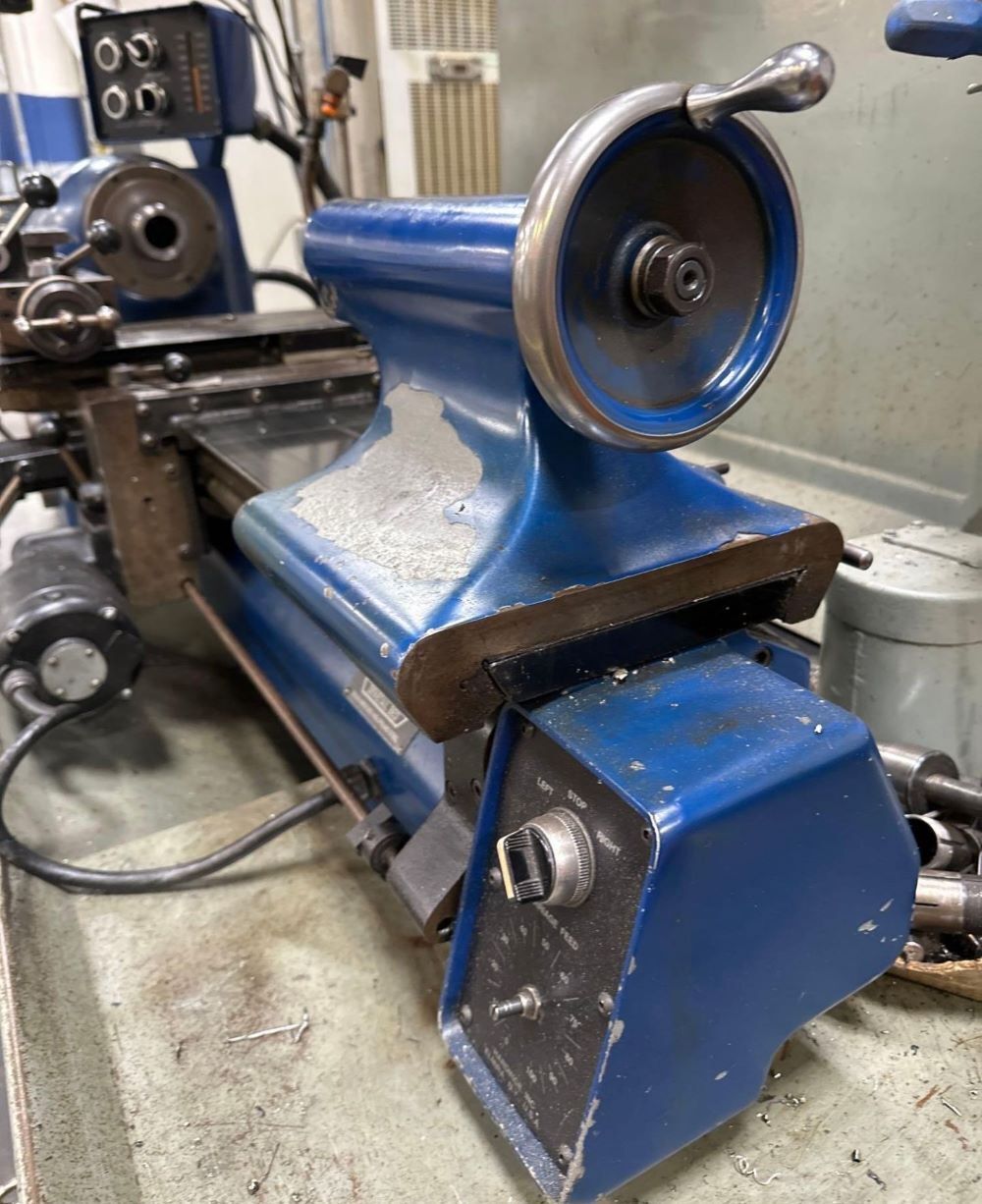

Tailstock



Capacity:
Swing Over Bed: 11″
Swing Over Carriage: 9″
Swing Over Cross Slide: 6″
Distance Between Centers: 18″
Hole Through Spindle: 1-1/4″
Compound Slide Travel: 3″

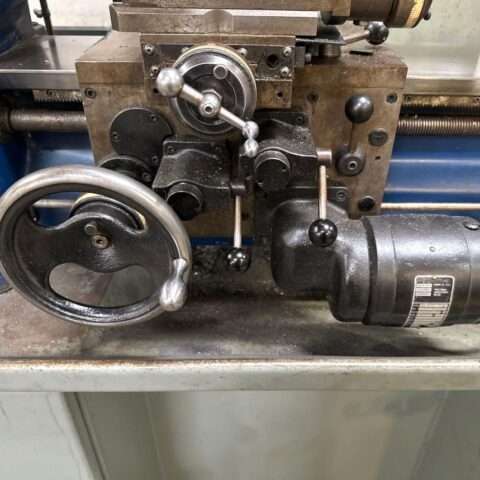

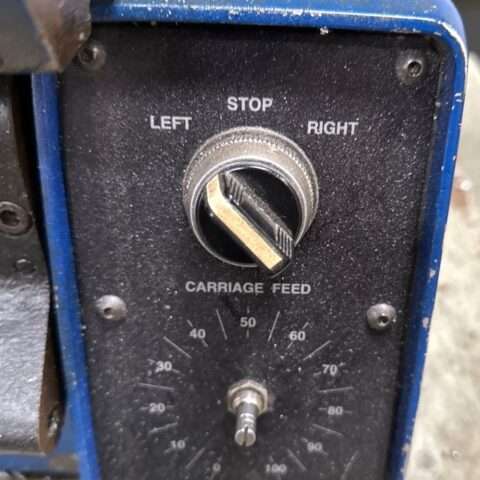

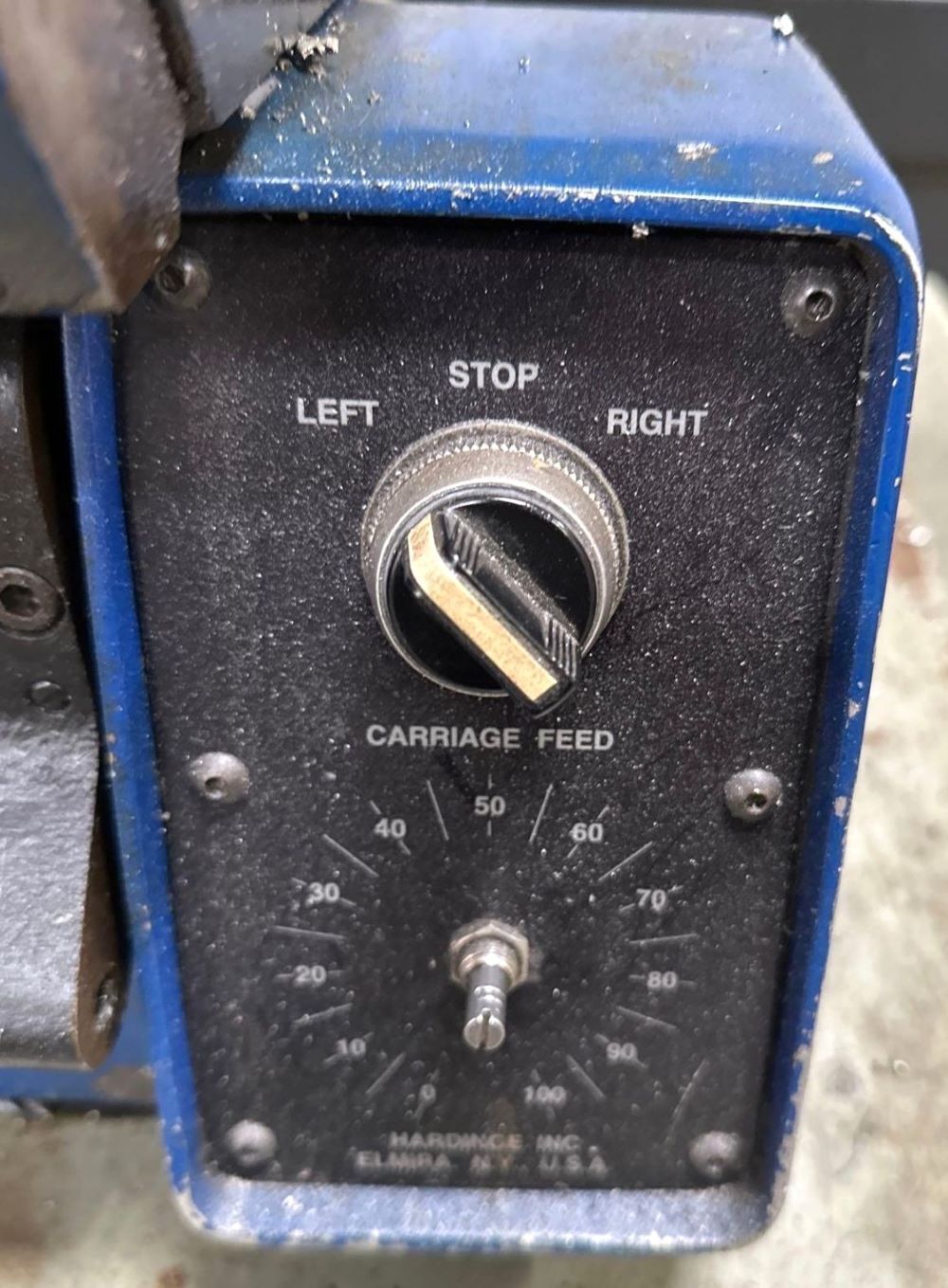

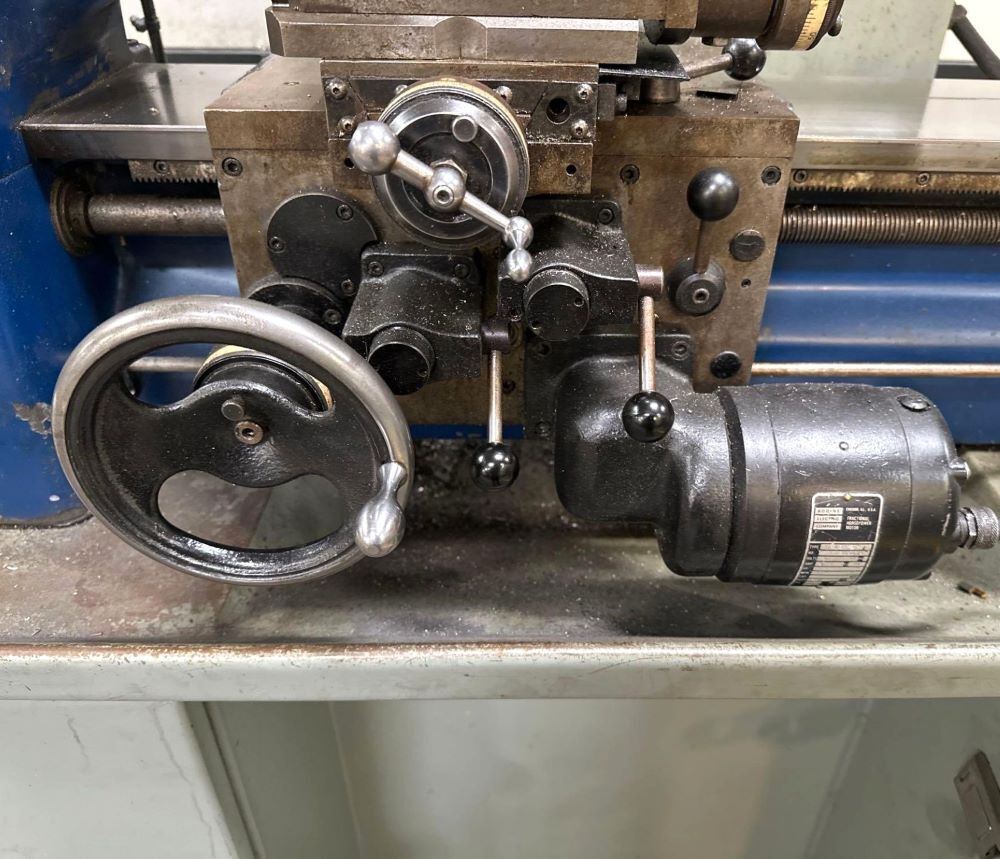

Carriage Power Feed Range: 5/16  to 8 IPM
Cross Slide Power Feed Range: 5/16  to 8 IPM

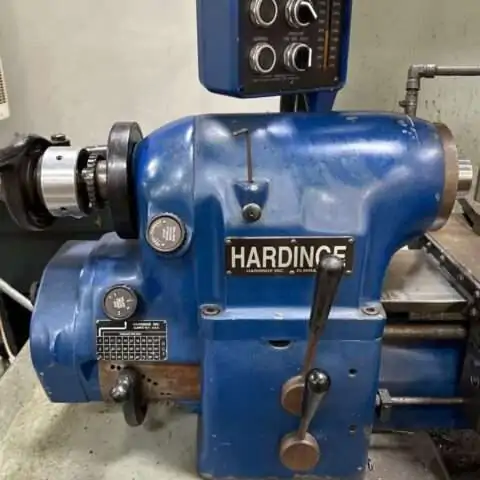

Spindle:
Spindle Capacity:
With Round 5C Collets: 1-1/16″
With Hexagon 5C Collets: 7/8″
With Squire 5C Collets: 3/4″
With Step Chucks: 1-1/16″ to 6″
With Jaw Chucks: 5″
With Expanding Collets: 3″

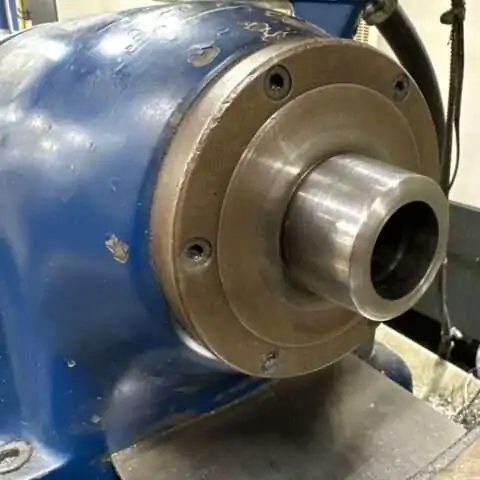

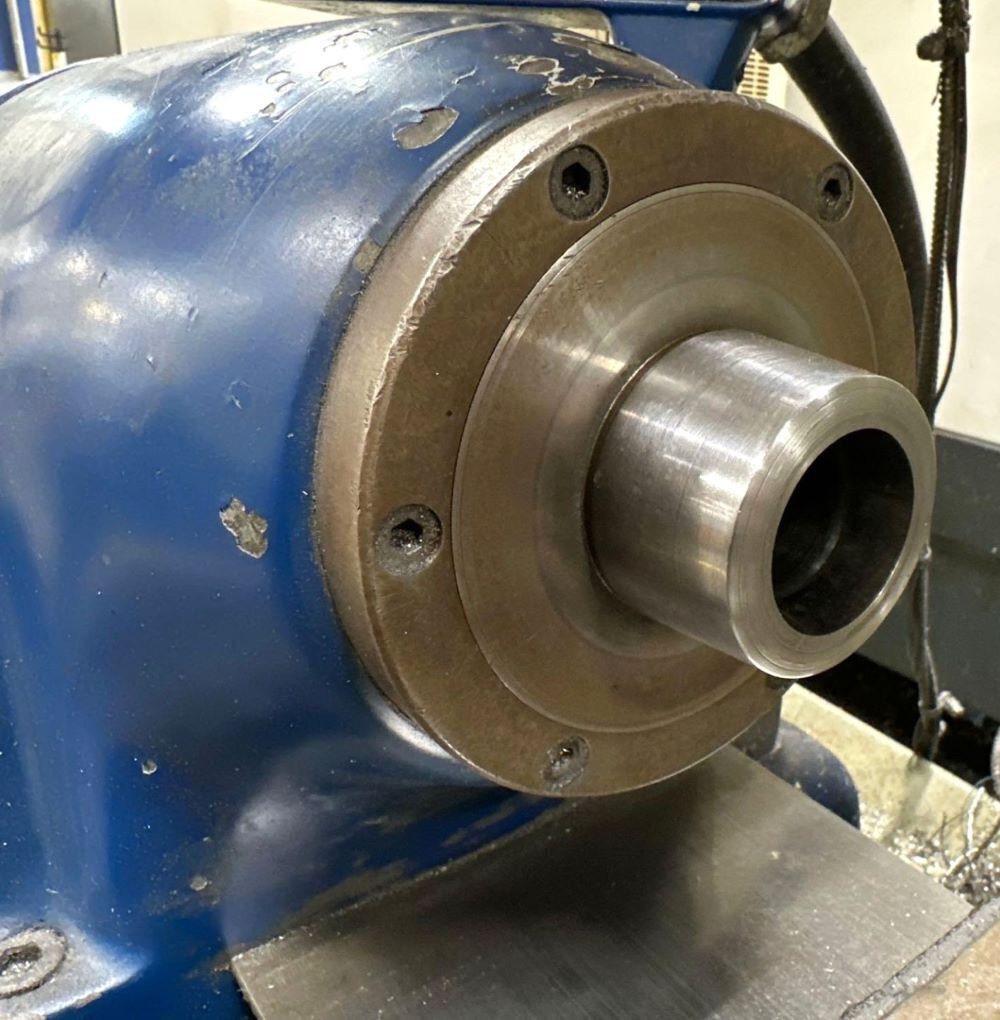

Spindle Nose: Hardinge Tapered
Hole Through Spindle: 1-1/4″
Infinitely Variable Spindle Speed: 1000 to 3000
Base Speeds: 1750 RPM
Power: 1.5 HP
Torque: 20 Nm (15-ft-lb)



Threading:
Thread Range: 0.10 to 6.50 mm (4 to 250 TPI)
Multiple Start Thread: Up to 4
Lead Screw Pitch: 8 Pitch



Tailstock:
Tailstock Taper: MT#2
Tailstock Spindle Diameter: 1-3/8″
Tailstock Spindle Travel: 3-3/4″



General:
Overall Dimensions: 71.5″ x 31″ x 72.75″ High

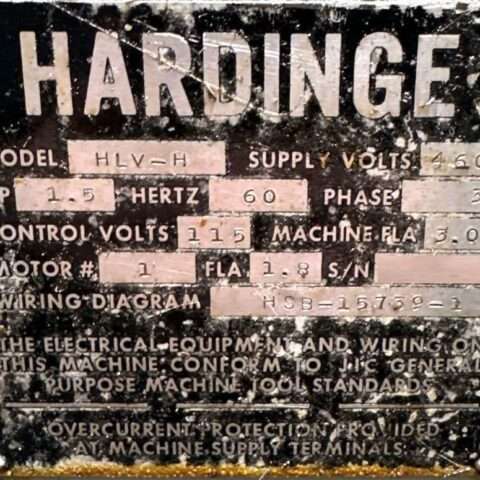

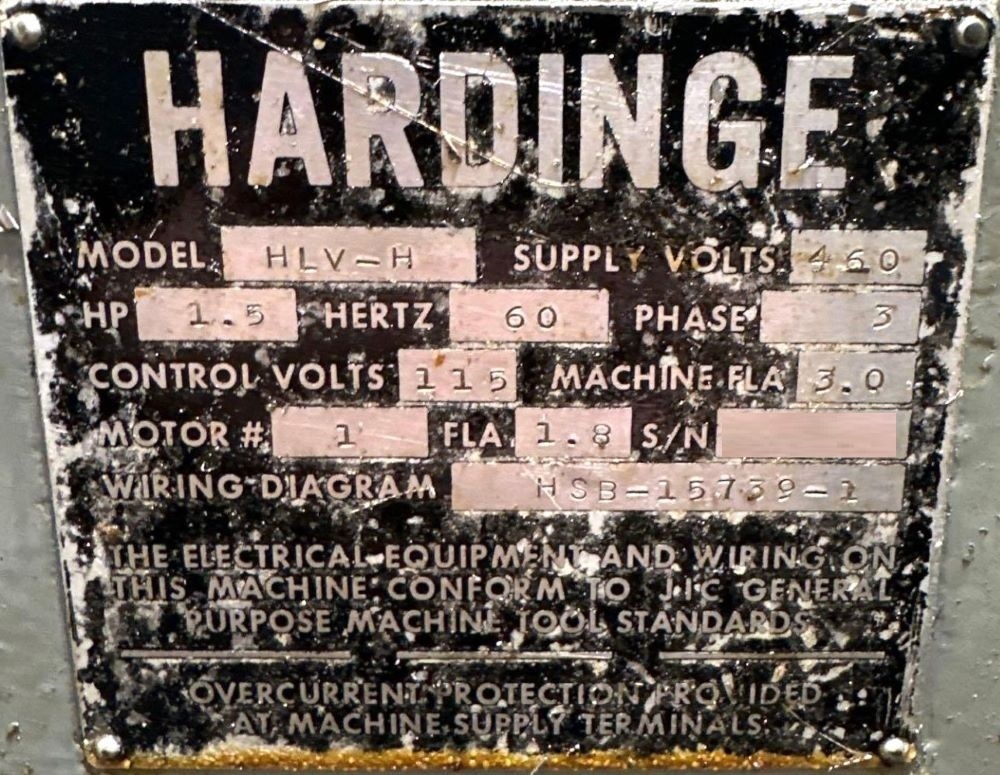

Electrical: 440 Volt, Three Phase
Weighs: 2250 Lbs
