*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

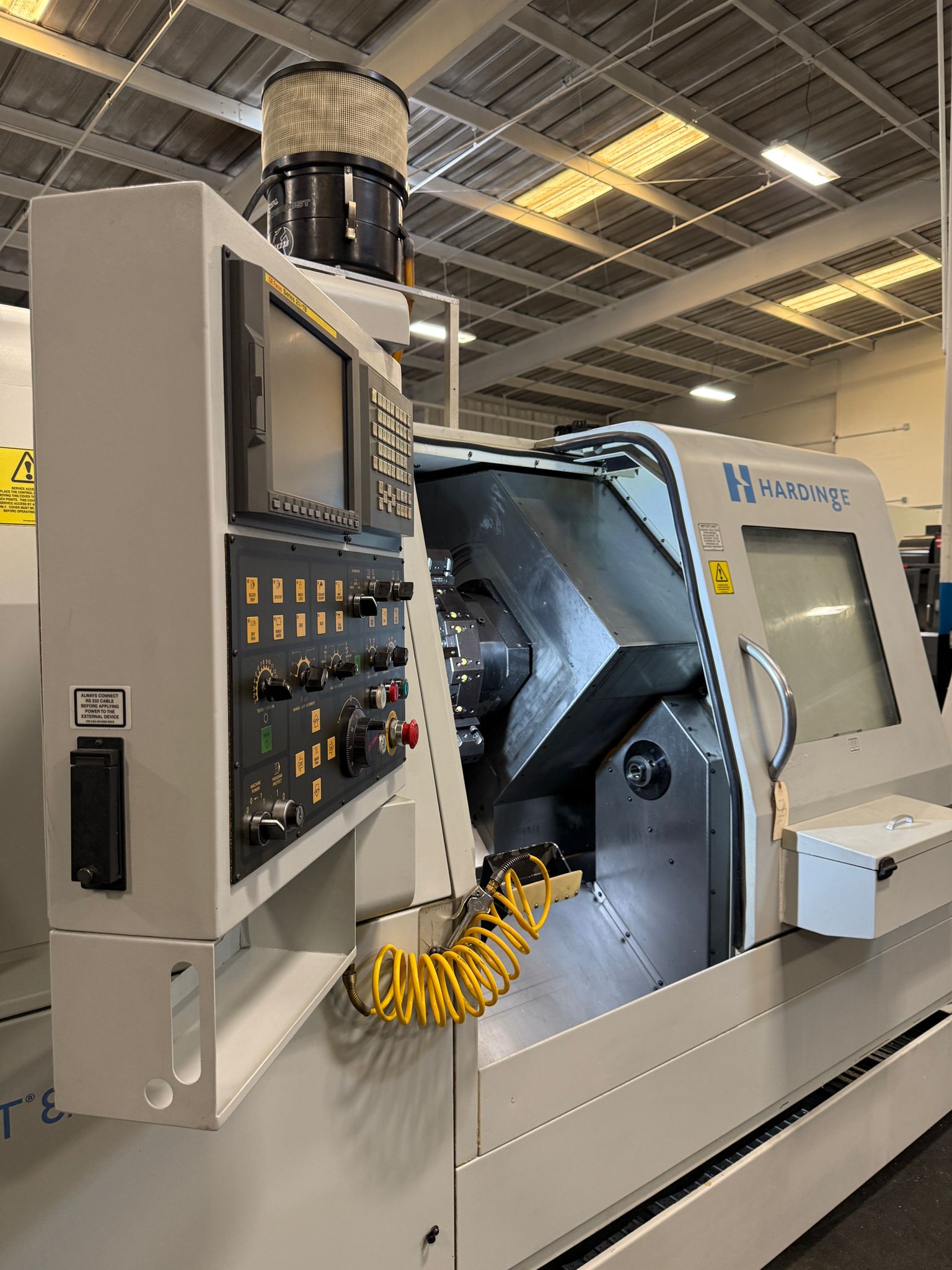

| Make: | Hardinge |
| Model: | Quest 8/51 |
| Year: | 2007 |
-
Equipped With:

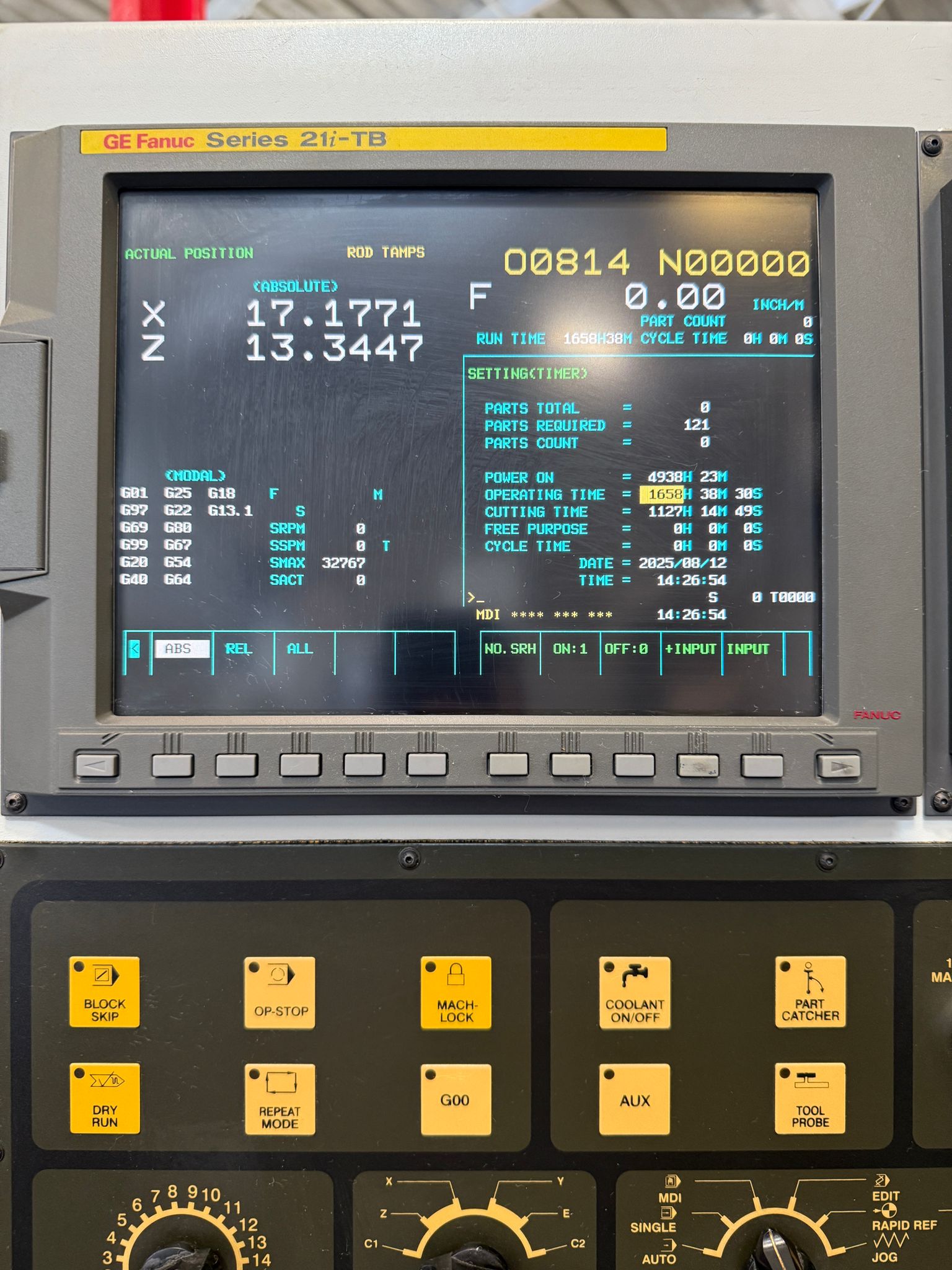

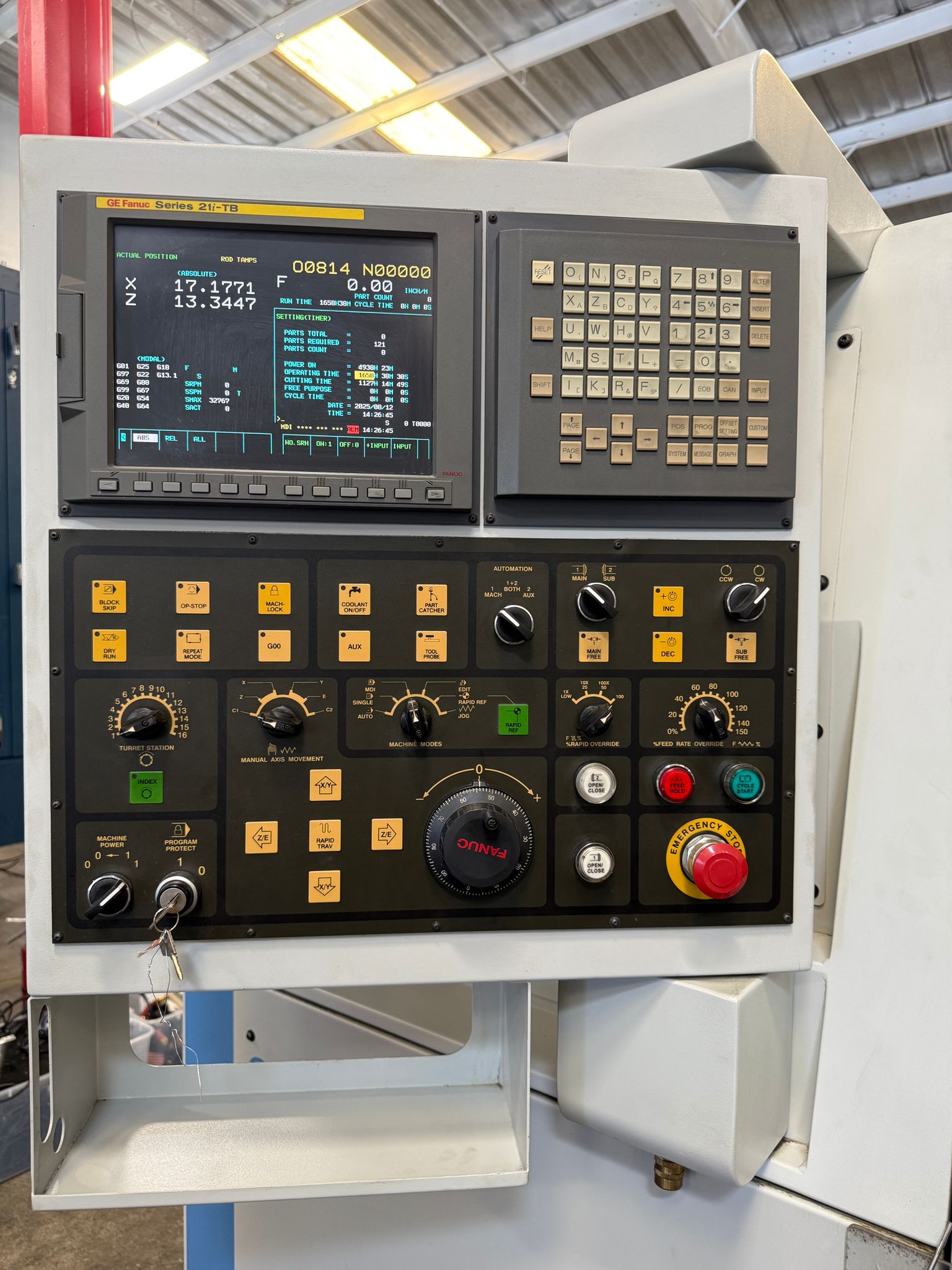

- Fanuc 21i-TB CNC Control
- Linear Ways Construction

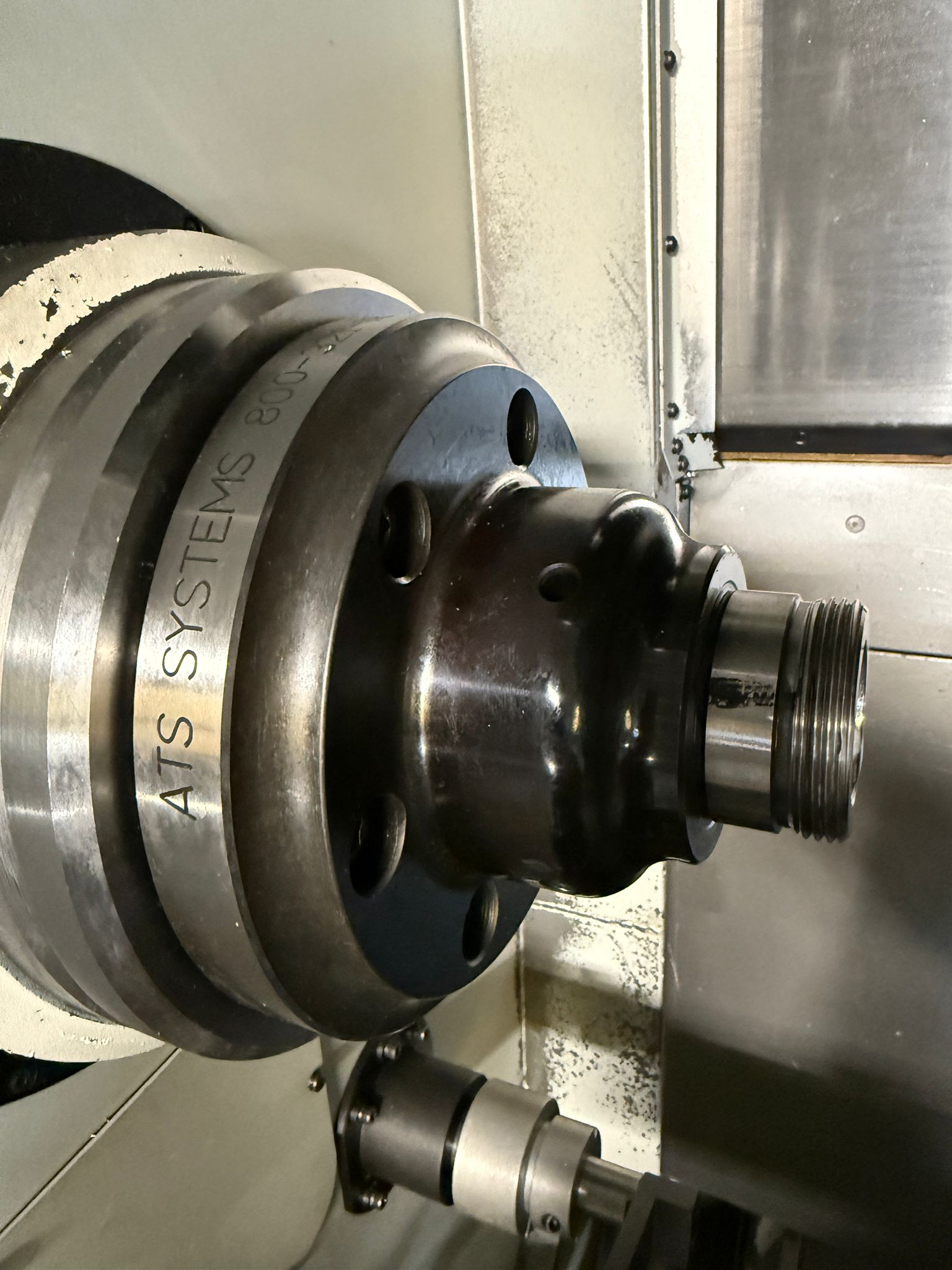

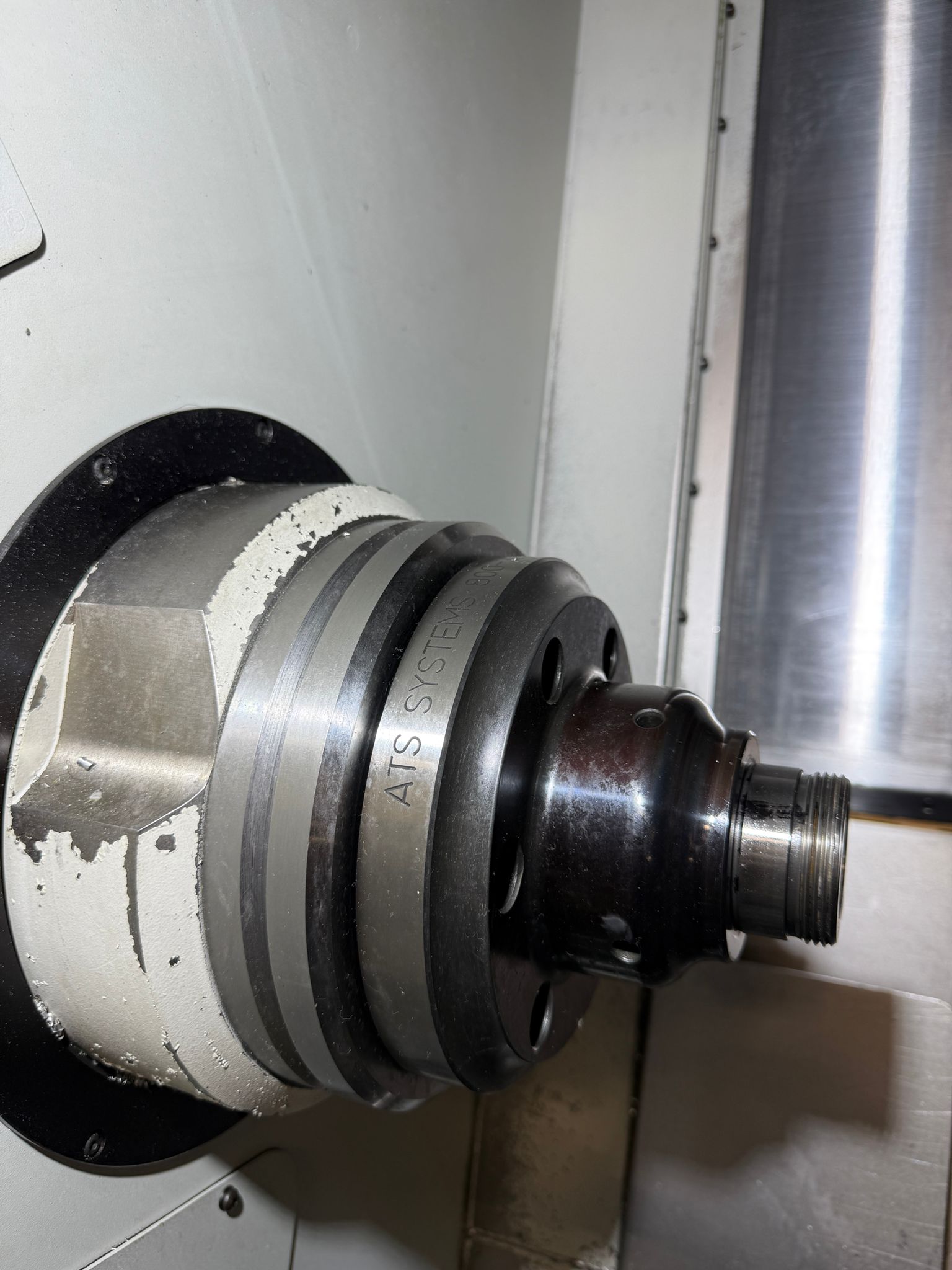

- ATS System Collet Chuck on Spindle (Capable 8″ Chuck)
- A2-6, 4200 RPM Spindle

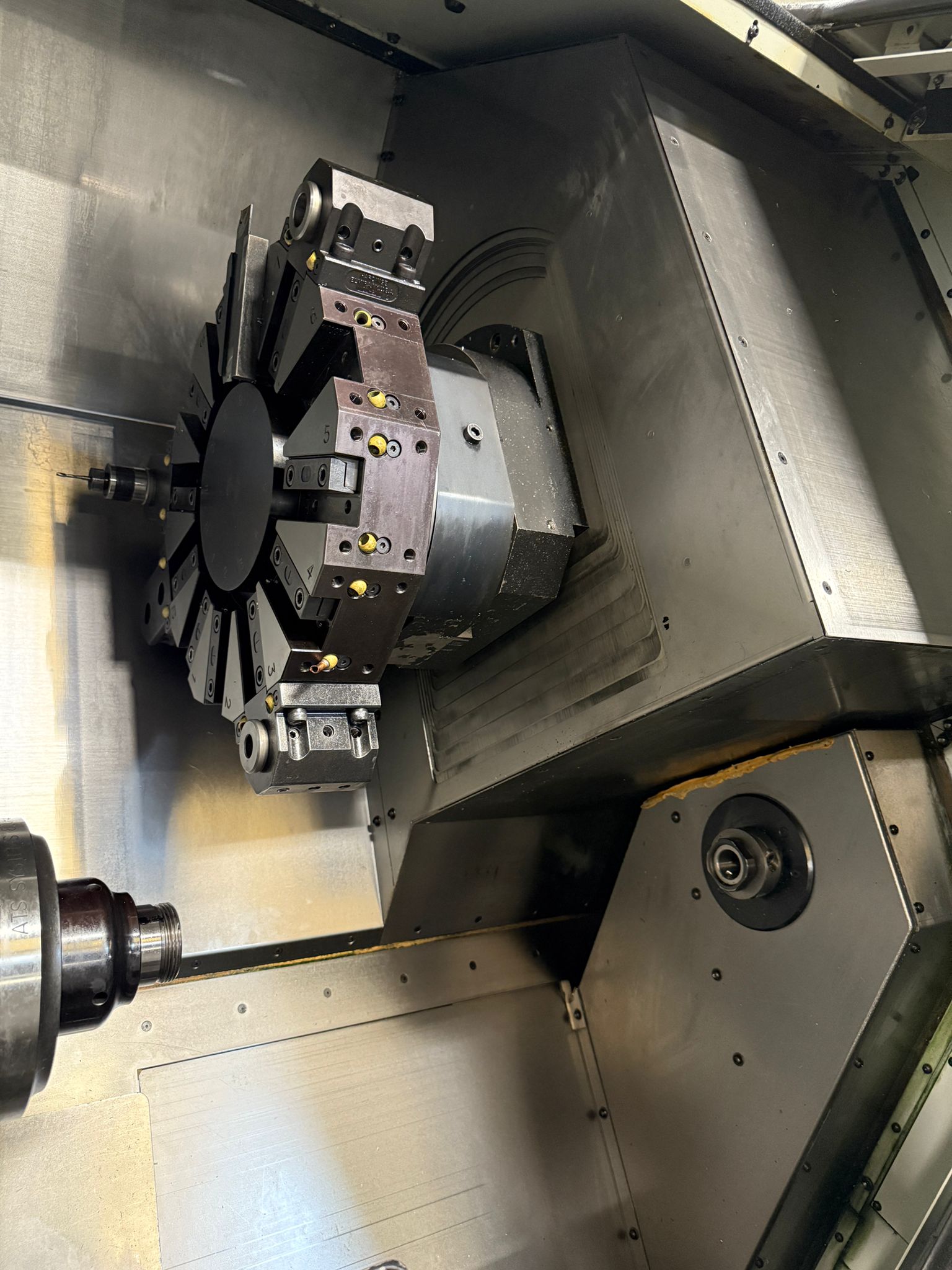

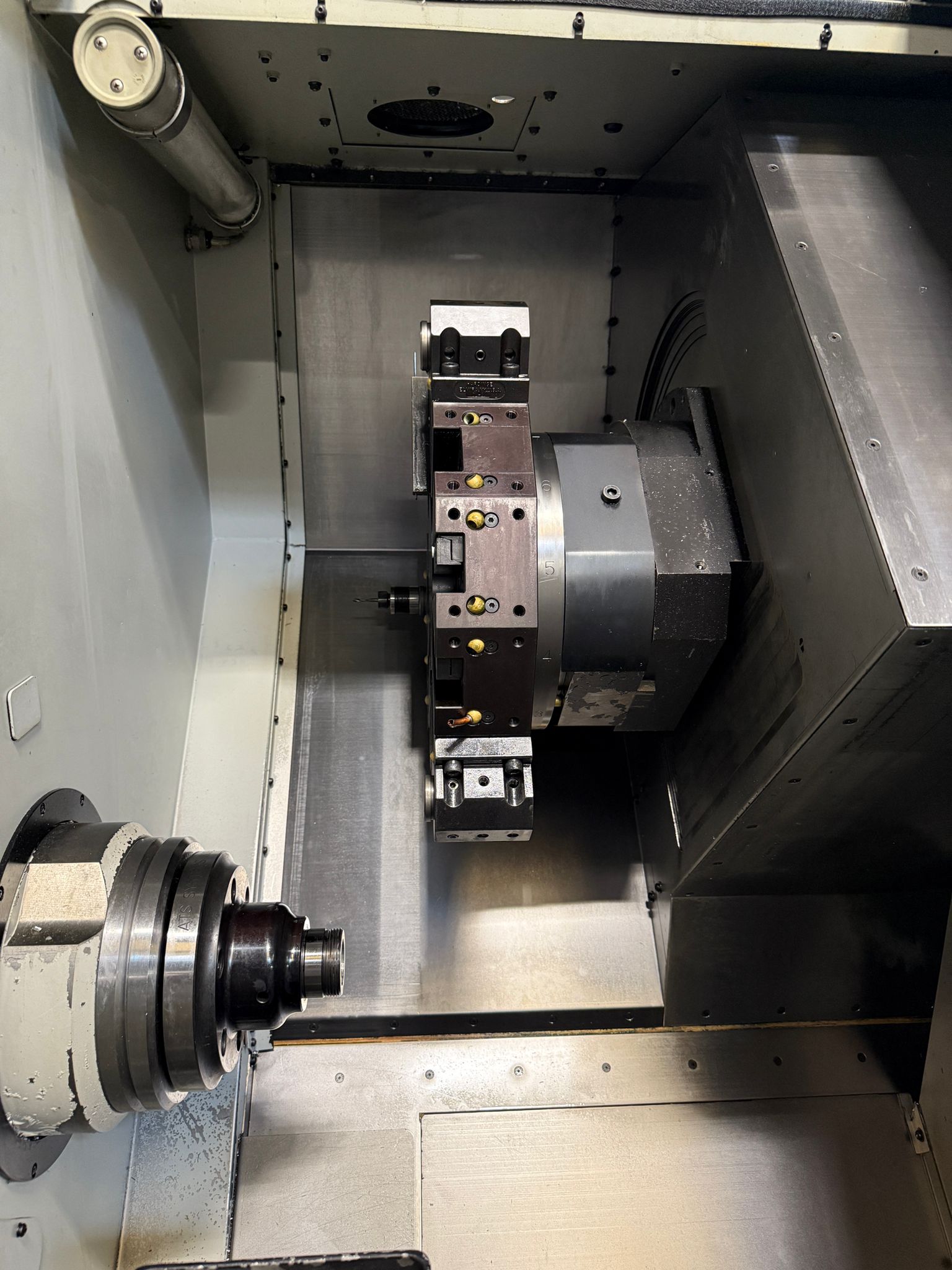

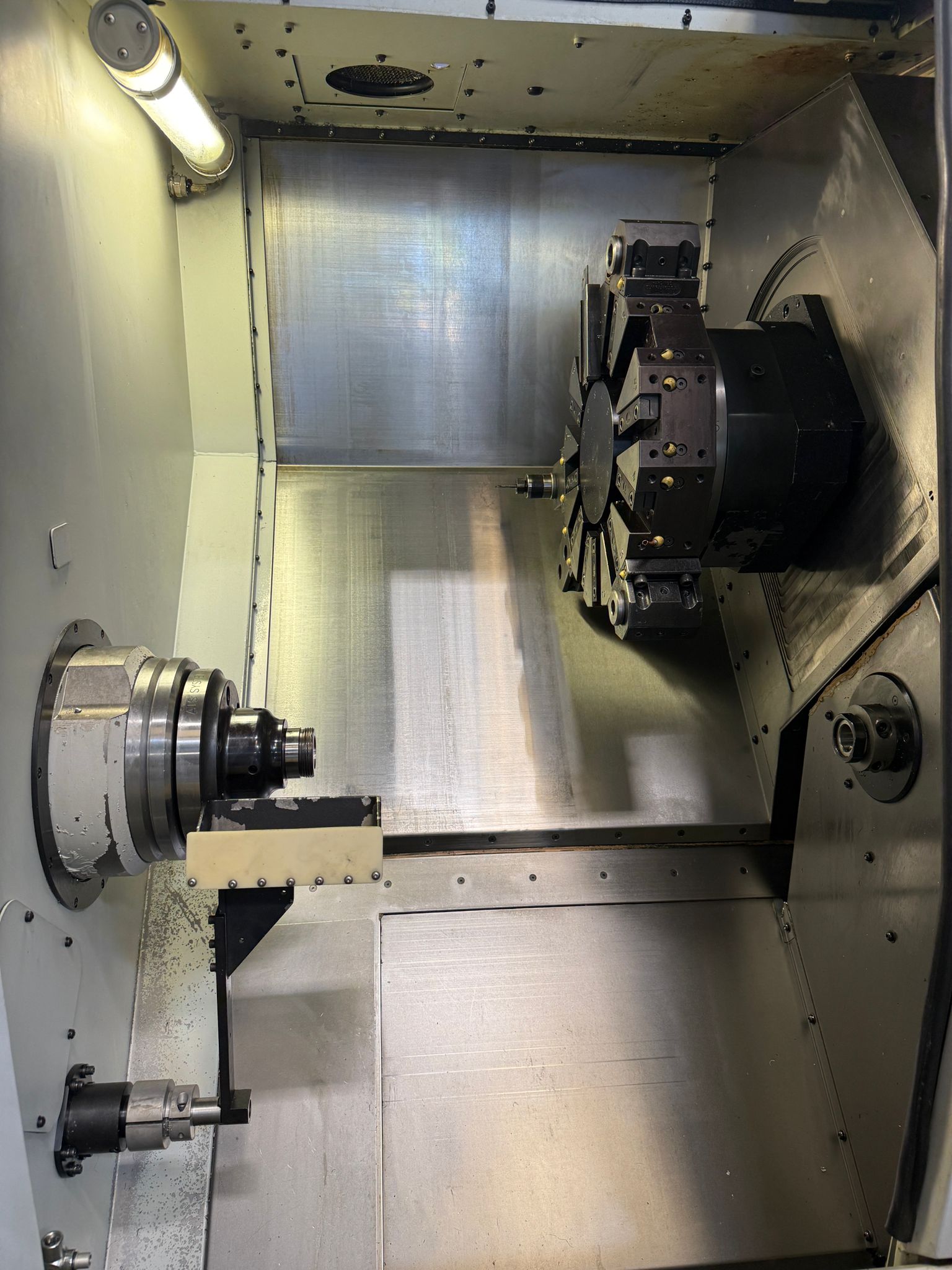

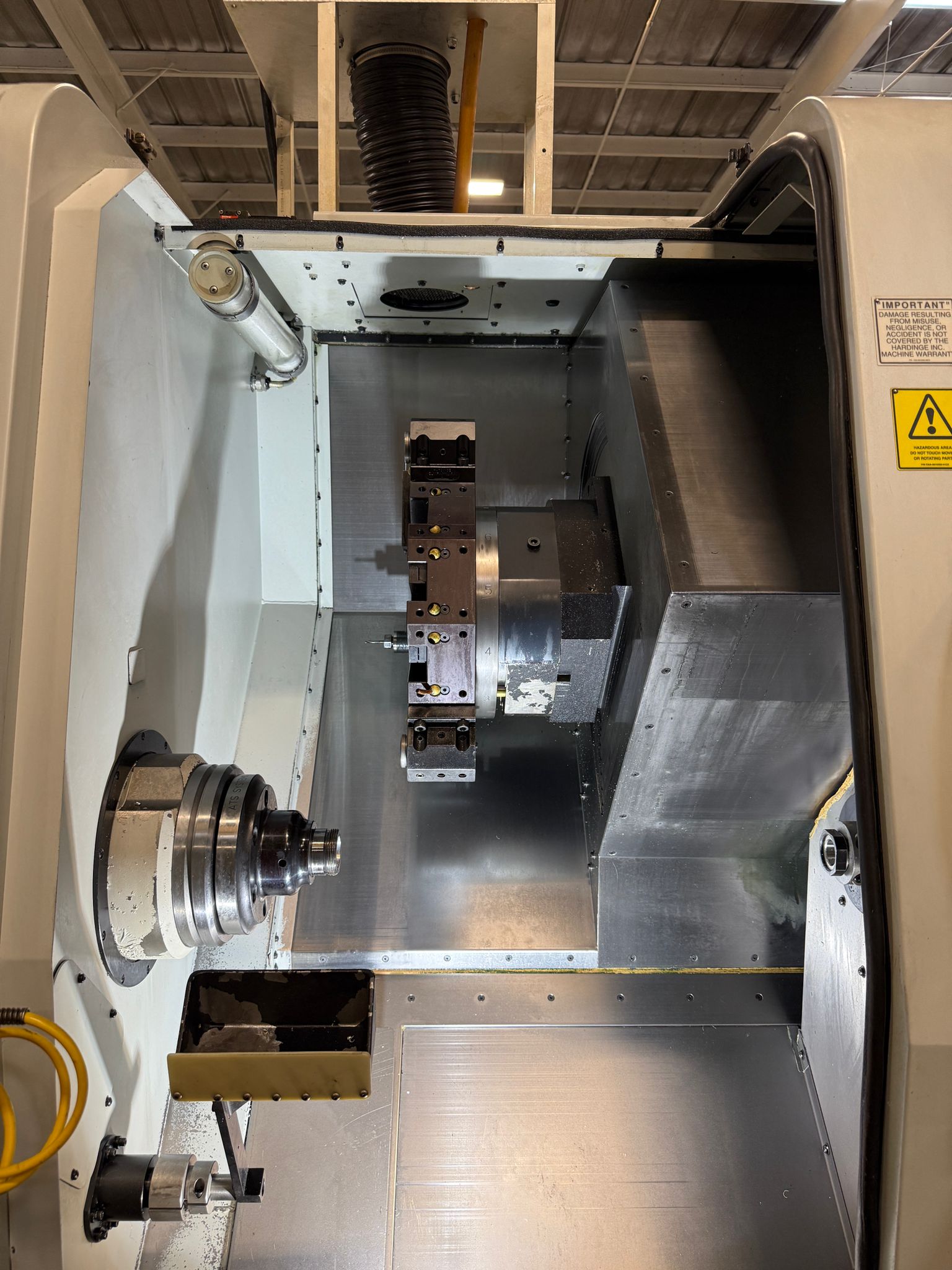

- 12 Station Automatic Turret
- Part Catcher
- Programmable Tailstock
- Rigid Tapping
- PCMCIA Card Interface
- Coolant System

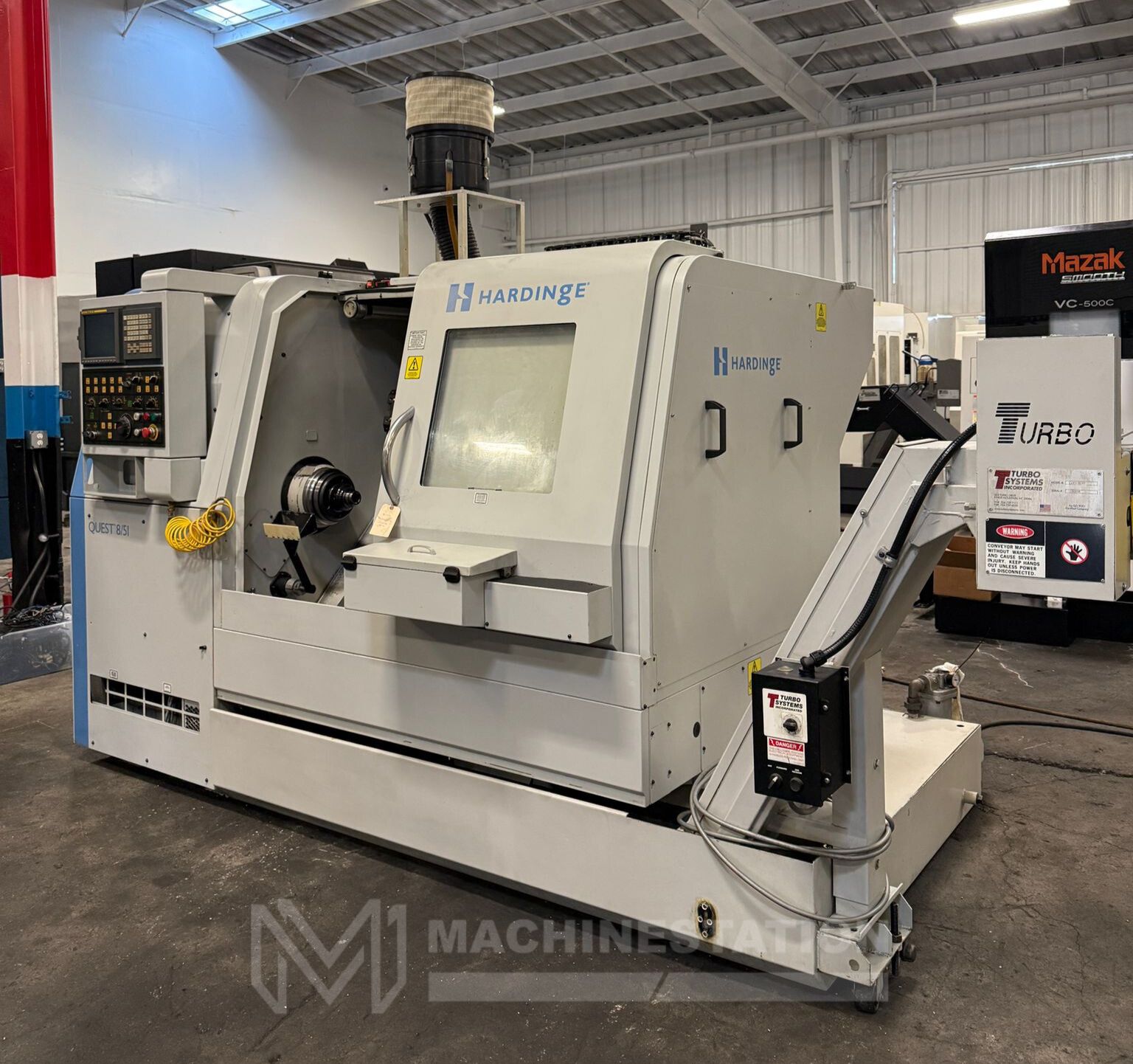

- Chip Conveyor
- Bar Feeder Interface

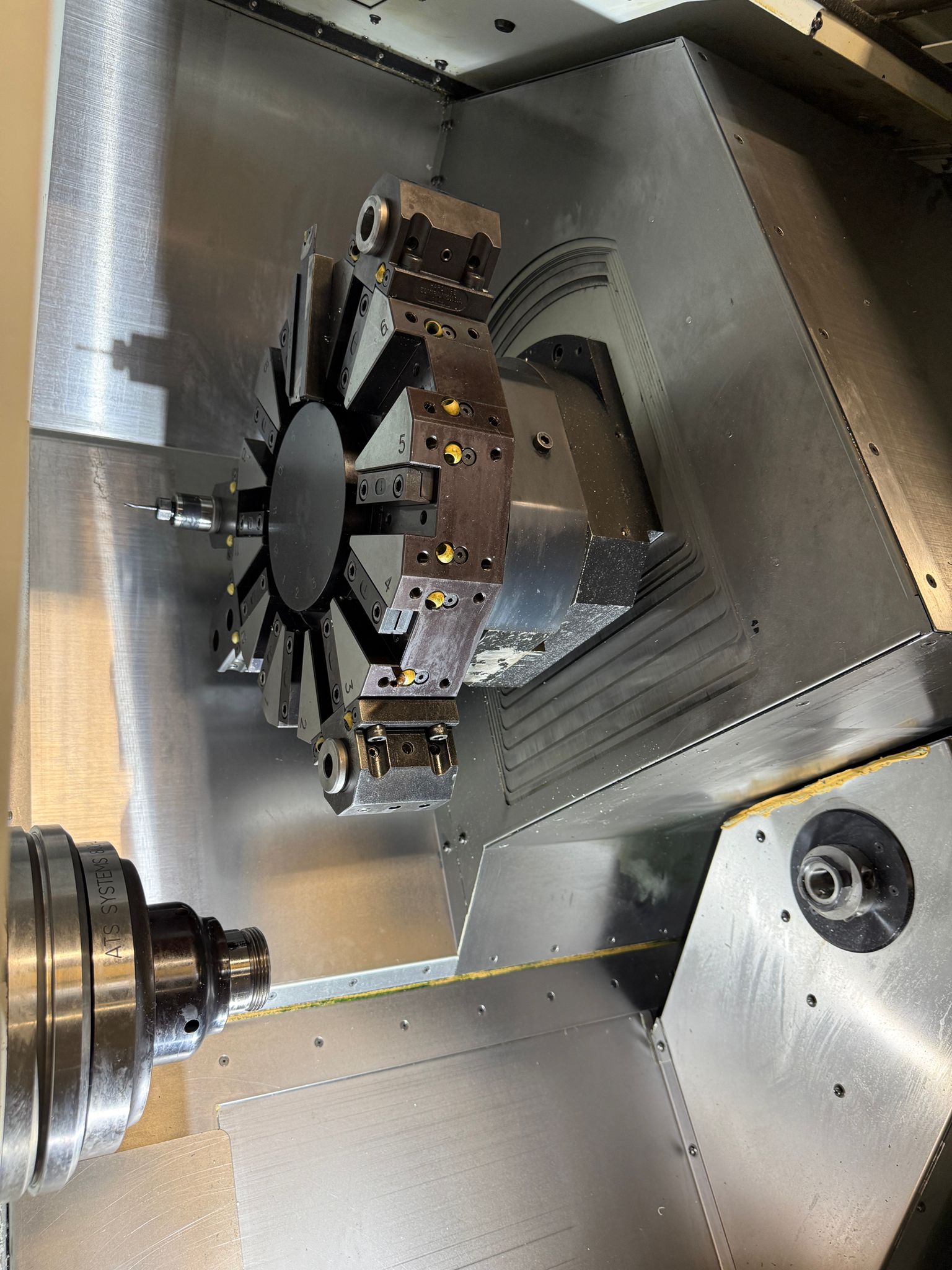

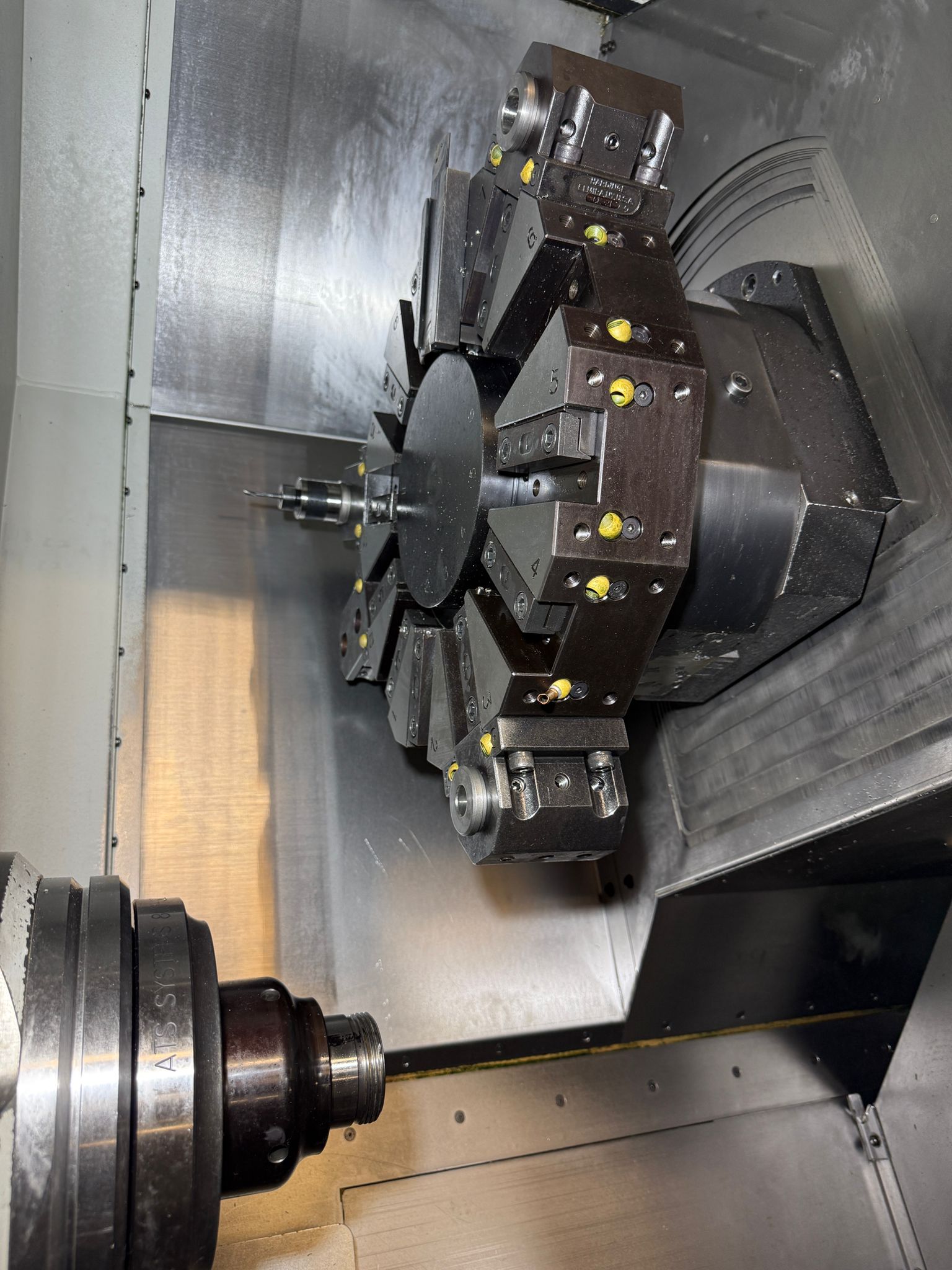

- (3) Boring Tool Holders are Mounted on Turret (As shown in the images)
-
Capacity:
- Max Turning Diameter: 12.10″
- Max Turning Length: 20.43″
- Max Swing Over Bed: 20.44″
- Max Bar Capacity: 2.05″
-
Travels:
- X Axis Travel: 7.45″
- Z Axis Travel: 24.00″
- Rapid Traverse X Axis: 1181 IPM
- Rapid Traverse Z Axis: 1181 IPM
-
Spindle:
- Spindle Nose: A2-6
- Spindle Bore: 2.37″
- Spindle Speed: 4200 RPM ?
- Spindle Motor: 20 HP
-

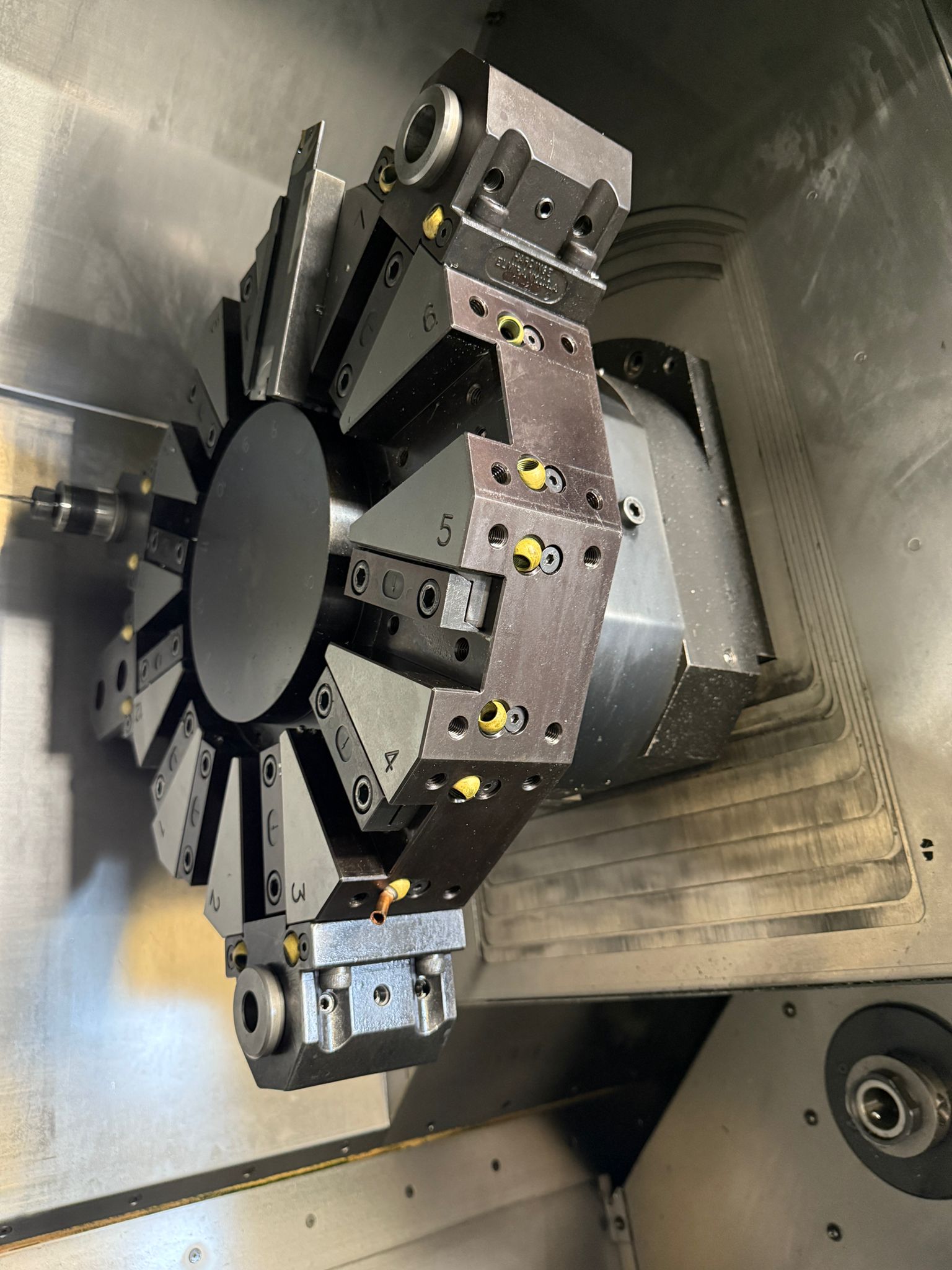

Turret:
- Turret Capacity: 12 Stations
- Turret Index Time: 0.35 Second
- Square Tool Size: 3/4″
- Round Tool Size: 1-1/4″
- Tool Holders Type: BMT
-

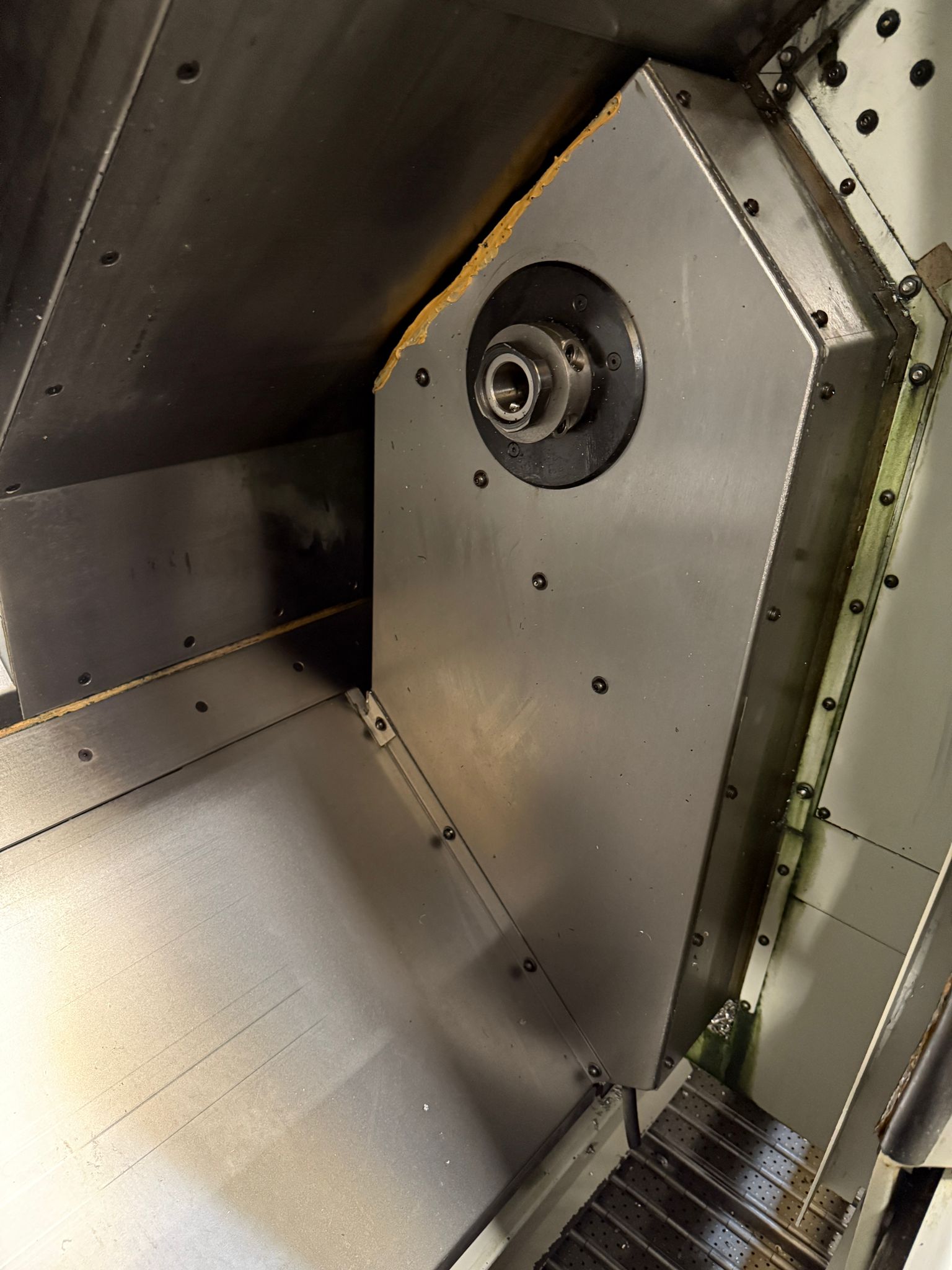

Tailstock:
- Tailstock Type: Programmable
- Taistock Taper: MT-4
- Tailstock Body Travel: 21.5″
-
General:
- Power: 50/60 HZ / 230v / 3-Phase
- Overall Dimensions: 108.60″ x 76.5″ x 75″ High Approx.
- Weight: 12,240 lbs Approx.
