*All specifications are approximations and are subject to verification. Comes as shown in the images.
Please give us a call if you have any questions before purchasing. All sales are final.*
| Make: |
Hyundai WIA |
| Model No.: |
HD2600SY |
| Year of Manufacture: |
2022 |
| Condition: |
Used |
| Machine Type: |
CNC Turning Center |
| CNC Control: |

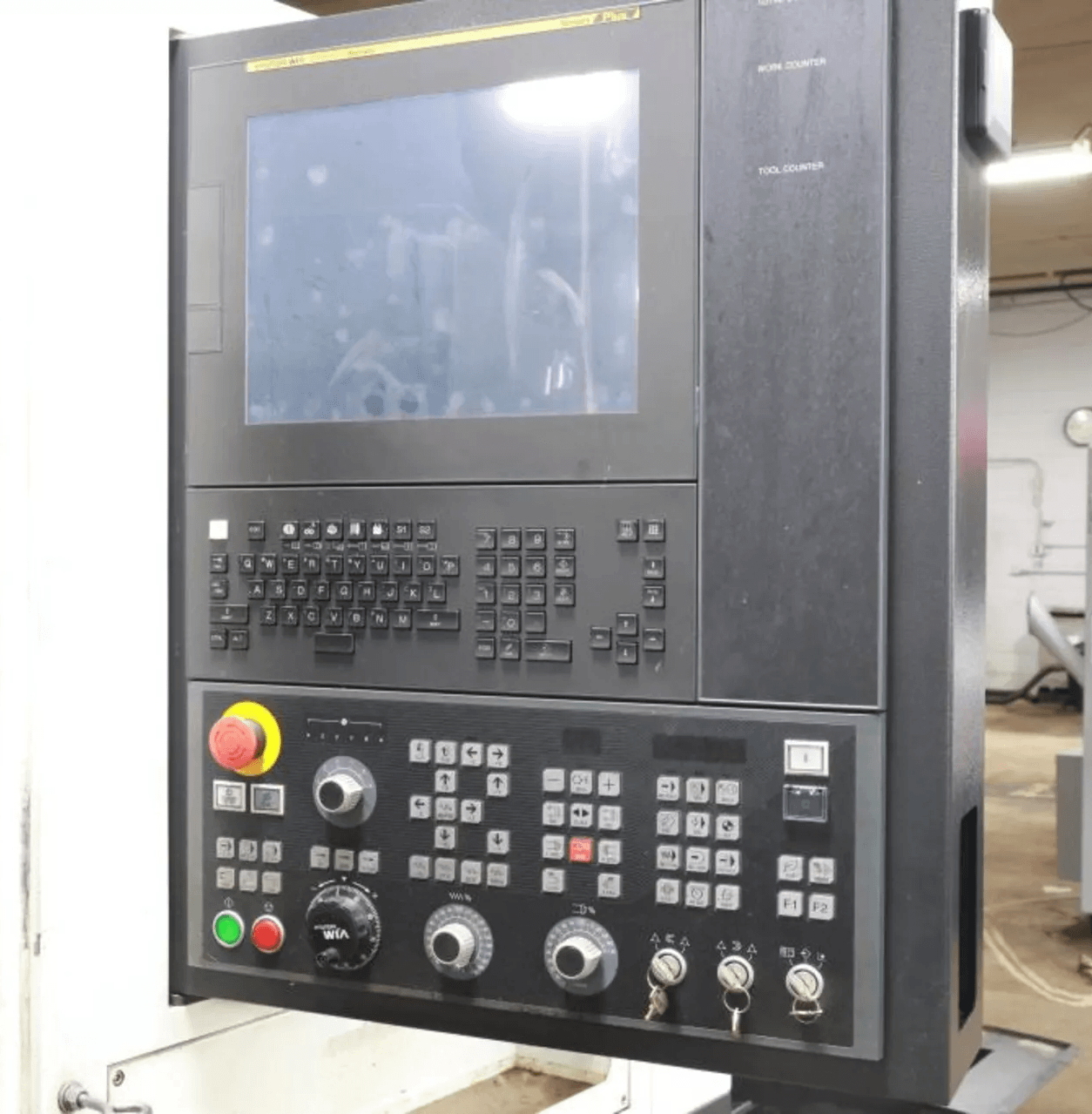

Fanuc i-Series (Smart Plus) |
| Country of Origin: |
South Korea |
| Equipped With: |
| Y-Axis Milling Capability |
| Sub-Spindle (2nd Operation) |
| Live Tooling |
| C-Axis (Main & Sub) |
| 12-Station BMT Live Tool Turret |
| Hydraulic Chuck System (Main & Sub) |
| Auto Parts Catcher |
| Chip Conveyor |
| Coolant System (200L Tank) |
| 30° Slant Bed Construction |
| Heavy Duty Box Guideways |
| Fully Enclosed Guarding |
| Capacity: |
| Swing Over Bed: Ø820 mm (32.3″) |
| Swing Over Carriage: Ø650 mm |
| Max Turning Diameter: Ø300 mm (11.8″) |
| Max Turning Length: 650 mm (25.6″) |
| Bar Capacity: 65–81 mm (~2.6″–3.0″) |
| Main Spindle: |
| Spindle Speed: 3,500 RPM |
| Spindle Motor: 25 HP (18.5 kW) |
| Max Torque: ~400 Nm |
| Chuck Size: 10″ Hydraulic |
| Spindle Type: Belt Driven |
| Sub Spindle: |
| Spindle Speed: 6,000 RPM |
| Chuck Size: 5″ Hydraulic |
| Function: Secondary Operation / Part Transfer |
| Travels: |
| X-Axis Travel: ~215 mm (8.5″) |
| Y-Axis Travel: 110 mm (±55 mm) |
| Z-Axis Travel: ~680 mm (26.8″) |
| Rapid Traverse (X/Y/Z): 24 / 10 / 30 m/min |
| Tooling System: |
| Turret Type: BMT 55P Live Tool |
| Stations: 12 |
| Live Tool Speed: 6,000 RPM |
| Tool Size: 25 mm OD / 40 mm ID |
| Workholding: |
| Main Chuck: 10″ Hydraulic |
| Sub Chuck: 5″ Hydraulic |
| C-Axis Indexing: 0.001° |

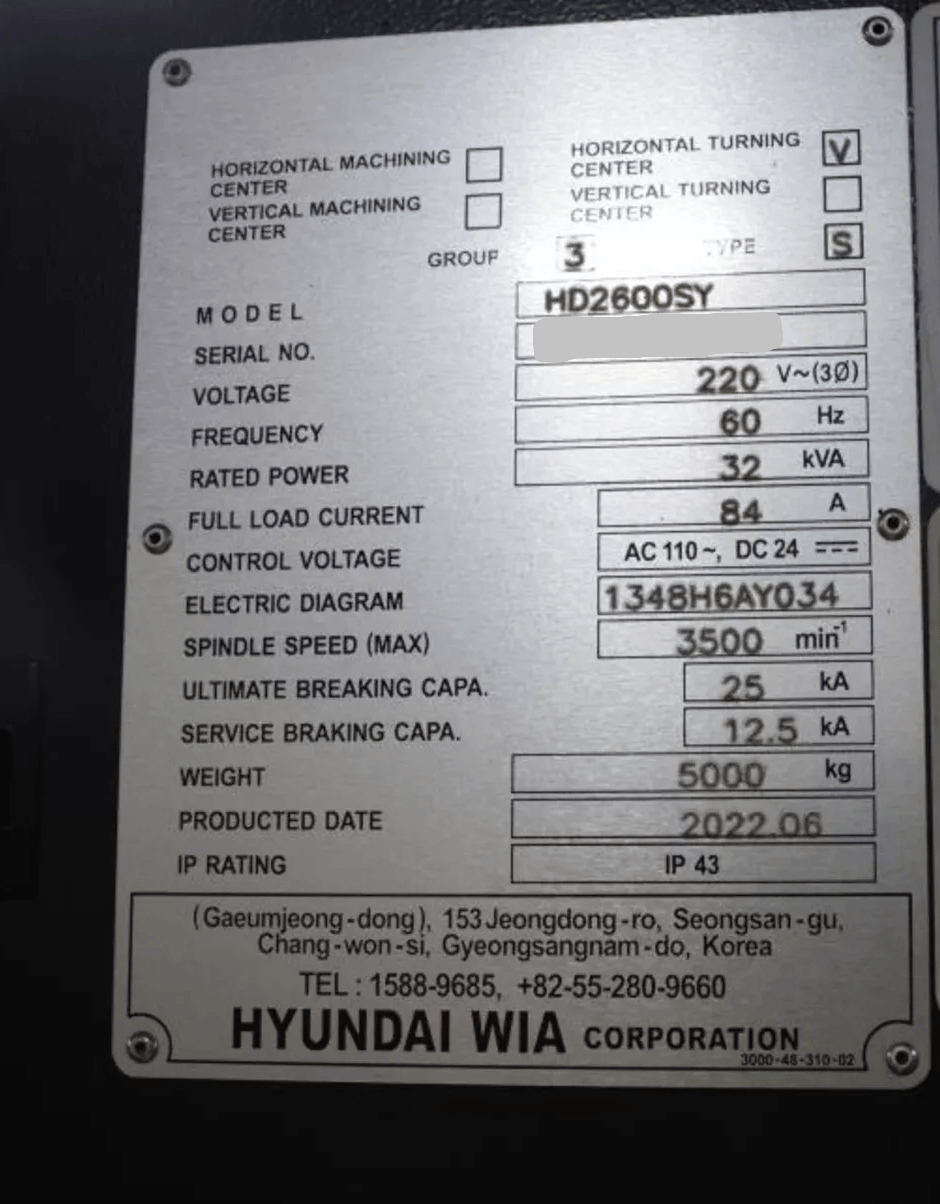

| Electrical: |
| Voltage: 220V / 3 Phase |
| Frequency: 60 Hz |
| Power Rating: 32 kVA |
| Full Load Current: 84 A |
| General: |
| Axis: X, Y, Z + C-Axis (Main & Sub) |
| Machine Weight: ~5,000 kg |
| Bed Type: 30° Slant Bed (One-piece casting) |
| Guideways: Box Ways |
