*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

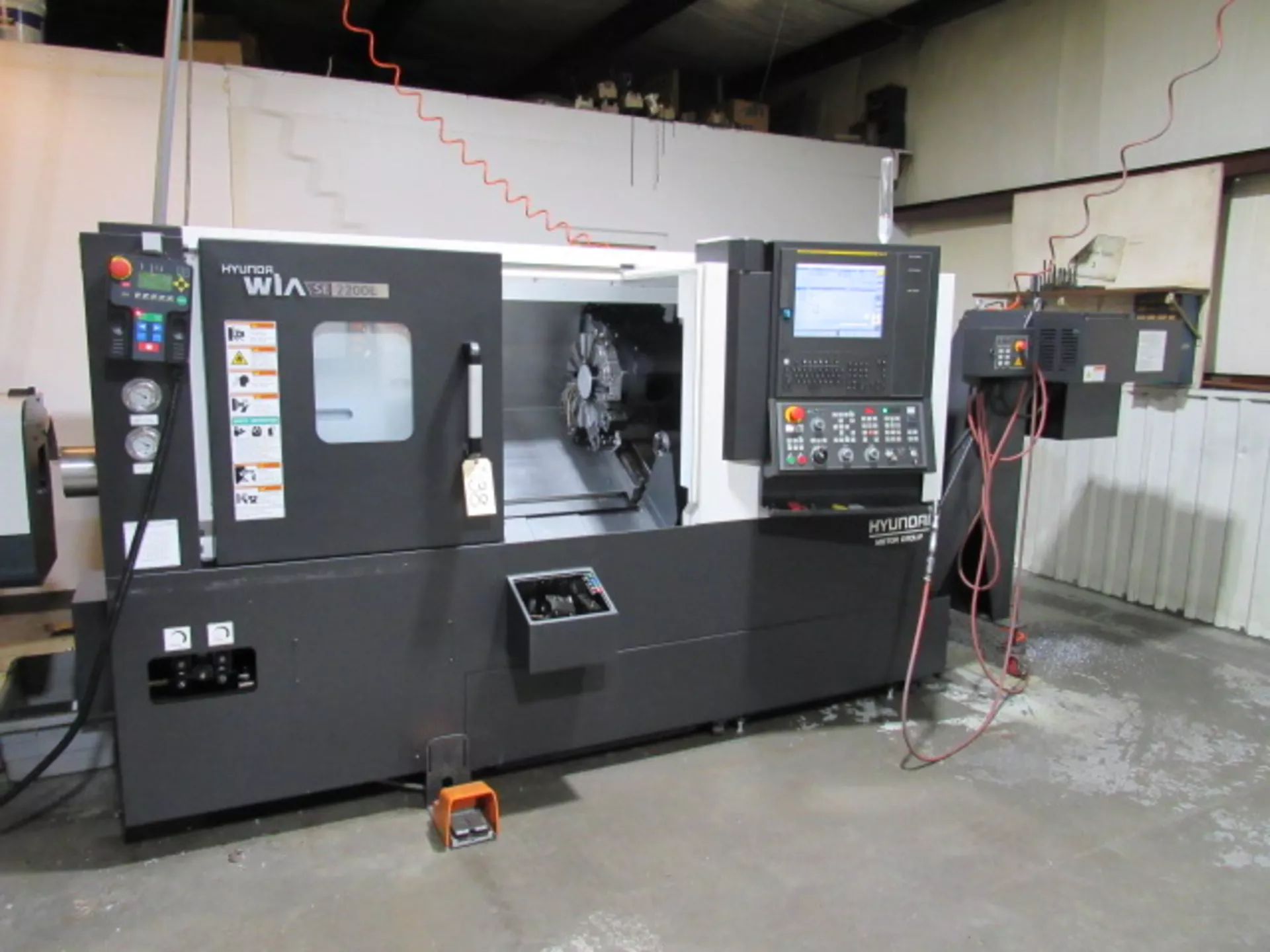

| Make: | Hyundai Wia |
| Model No.: | SE2200L |
| Machine Type: | CNC Turning Center |
| CNC Control: | Fanuc i-Series / Fanuc Smart Plus Control |
| Country of Origin: | South Korea |
| Equipped With: |
|---|
| Fanuc Smart Plus CNC Control |
| 12-Station High-Speed Servo Turret |
| 8″ Hydraulic Chuck |
| Rigid Tapping Capability |
| Flood Coolant System |
| Automatic Lubrication System |
| Full Enclosure Safety Guard |
| Chip Conveyor Interface |
| High-Speed Rapid Traverse Axes |
| Capacity: |
|---|
| Maximum Turning Diameter: 350 mm (13.8″) |
| Maximum Turning Length: 558 mm (22.0″) |
| Swing Over Bed: 600 mm (23.6″ approx.) |
| Bar Capacity: 65 mm (2.6″) |
| Chuck Size: 8″ Hydraulic Chuck |
| Travel: |
|---|
| X-Axis Travel: 210 mm (8.3″) |
| Z-Axis Travel: 560 mm (22″) |
| Rapid Traverse (X-Axis): 30 m/min |
| Rapid Traverse (Z-Axis): 36 m/min |
| Spindle: |
|---|
| Spindle Speed: Up to 4,500 RPM |
| Spindle Motor Power: 15 / 11 kW (20 HP) |
| Spindle Torque: 167 Nm |
| Spindle Nose: A2-6 |
| Drive Type: Belt-Driven Spindle |
| Turret: |
|---|
| Turret Type: Servo Turret |
| Number of Stations: 12 |
| Tool Size: 25 mm Turning / 40 mm Boring |
| High-Speed AC Servo Indexing |
| Machine Construction: |
|---|
| 30° Slant-Bed One-Piece Cast Iron Base |
| Linear Roller Guideways for High-Speed Motion |
| Thermal-Stable Machine Structure |
| Compact Design for High Productivity Cells |
| CNC Control System: |
|---|
| Fanuc i-Series Smart Plus CNC Control |
| Fanuc Beta Spindle Drive |
| Fanuc Beta X/Z Servo Motors |
| Advanced Tool Management & Diagnostics |
| Optional Features: |
|---|
| Live Tooling Turret (LM / LY Versions) |
| C-Axis Spindle Indexing |
| Y-Axis Milling Capability |
| Bar Feeder Integration |
| Parts Catcher |
| Tool Presetter |
| High-Pressure Coolant System |
| Typical Applications: |
|---|
| Automotive Components |
| Precision Shafts & Bushings |
| Hydraulic Fittings |
| Aerospace Small Parts |
| General High-Volume Turning Operations |
