*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*
| SKU: | 112275 |

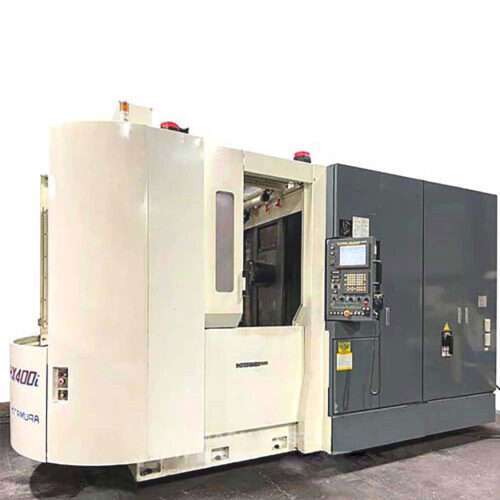

| Make: | Kitamura |
| Model: | HX400i |
| Serial: | 42525 |
| Cutting Hours: | 10809 |
| Features: |
|---|

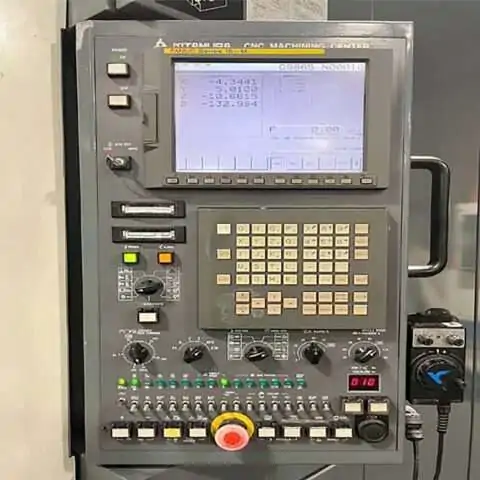

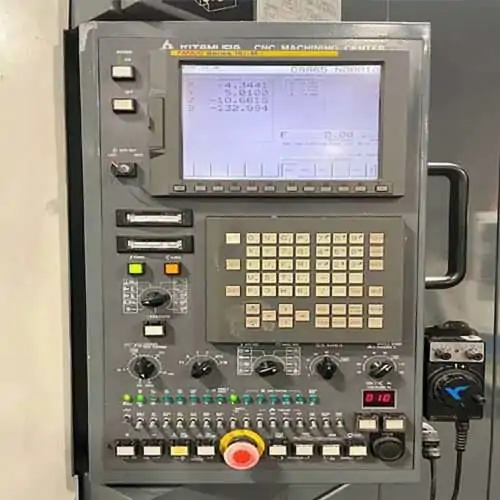

| Fanuc 16iMB CNC Control w/10.4 Color LCD |
| Full 4th Axis |
| 13,000 RPM Geared Head Spindle |
| Through Spindle Coolant |
| Twin Pallet Changer |
| 50 High Speed Tool Changer |
| Scales on the Axis |
| PCMCIA Card Slot |
| MPG Control |
| 50 MB Memory |
| Overhead Shower Coolant |
| Spindle Orientation |
| Rigid Tapping |
| Custom Macros |
| Fast Rapid Traverse Rate |
| Spindle Chiller |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Travels: |
|---|
| X Axis: 28.93″ |
| Y Axis: 24.01″ |
| Z Axis: 24.01″ |
| B Axis: 0.001° ( Full 4th ) |

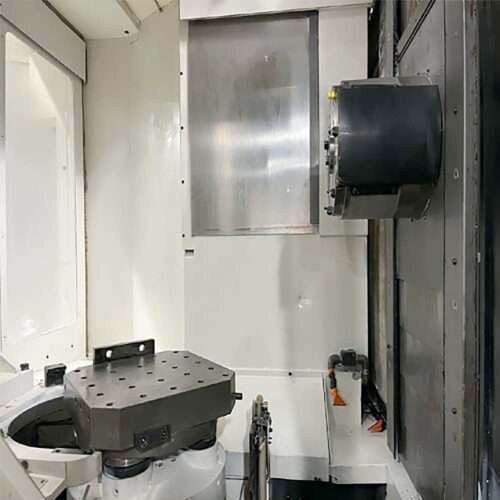

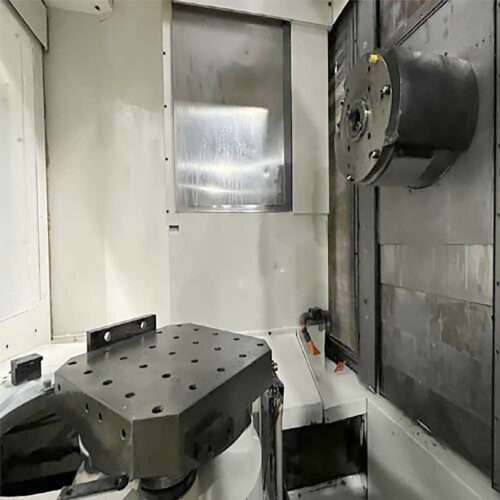

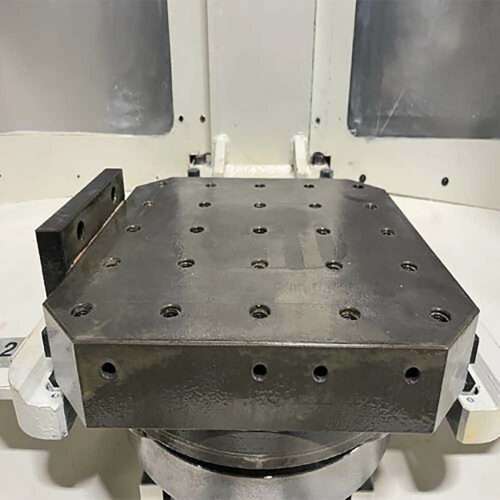

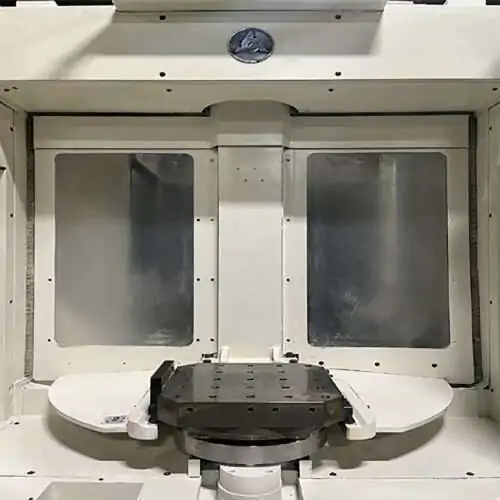

| Table: |
|---|
| Length: 15.7″ |
| Width: 15.7″ |
| Max Weight on Table: 882 lbs |
| Max Workpiece Dia: 27.5″ |
| Max Workpiece Height: 37.8″ |
| Index Time: 6 seconds |

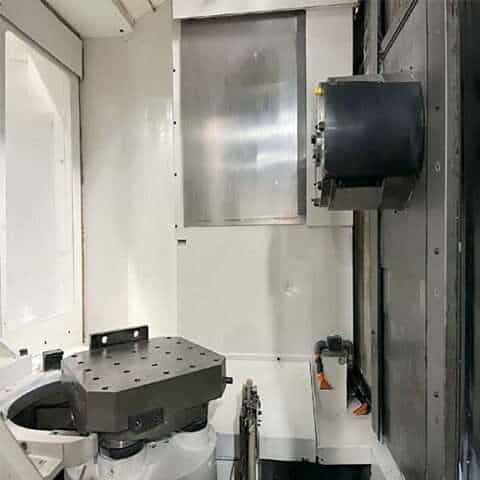

| Spindle: |
|---|
| Taper Size: CAT 40 |
| Max. Speed: 13,000 RPM |
| Power: 30 HP |
| Torque: 76.7 ft/lbs |
| Feed rates: |
|---|
| Rapid X & Y : 1968 Inch Per Minute |
| Rapid Z : 1968 Inch Per Minute |
| Cutting Feedrate: 984 Inch Per Minute |

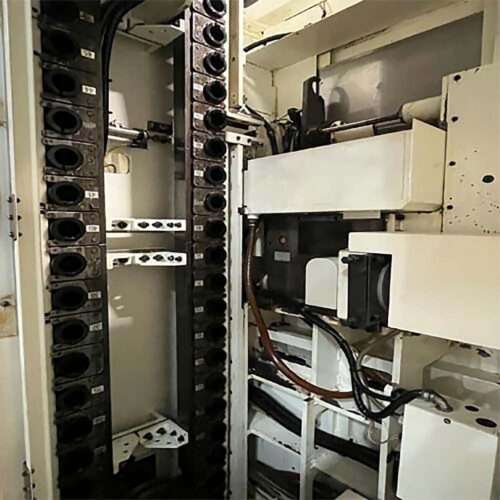

| Tool Changer: |
|---|
| Capacity: 50 Tools |
| Taper: 40 |
| Max Tool Size: 5.9″ |
| Max Tool Length: 17.7″ |
| Max Tool Weight: 22 lbs. |
| Tool Change Time: 0.9 Second |
| General: |
|---|
| Air Required: 90 psi, 4 scfm |
| Power: 45kva / 205-220v / 3-Phase |
| Overall Dimensions: 165″ X 105″ x 120″ High |
| Weight: 28,700 lbs |
