All specifications are approximations and are subject to verification.

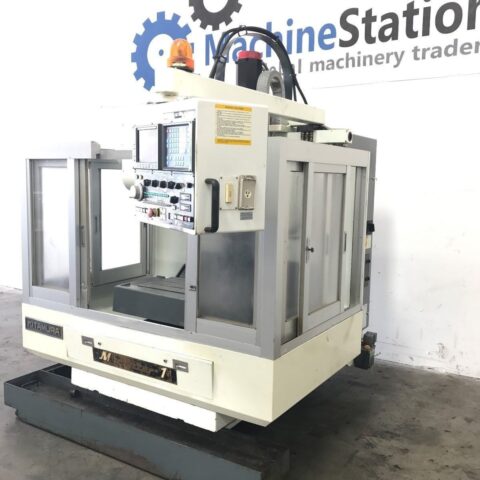

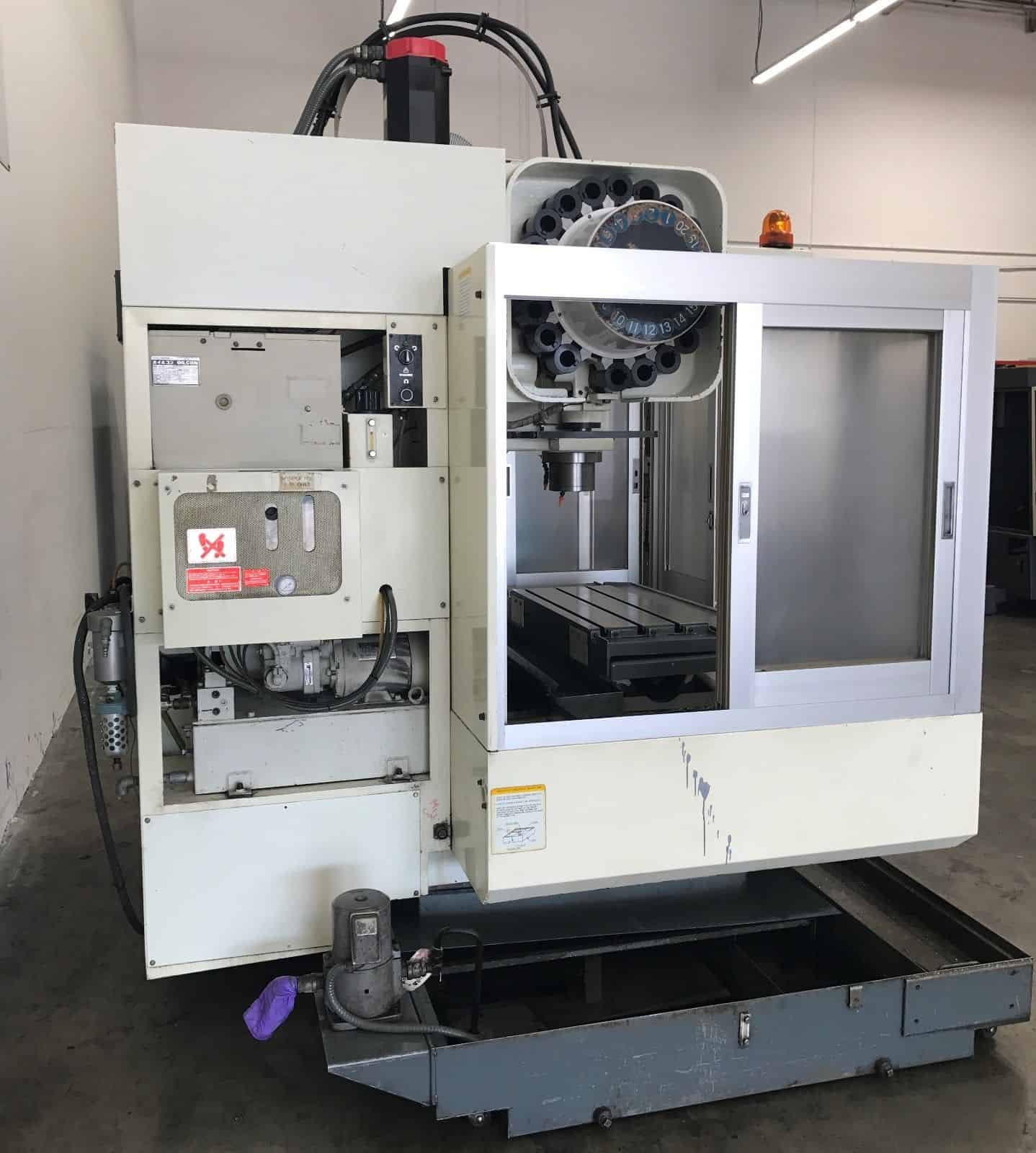

“This Japanese build machine has 10,000rpm, 20 tool side mount High speed tool changer and many more features. On our Floor now, fully powered / tested & is in Great working condition.”
-

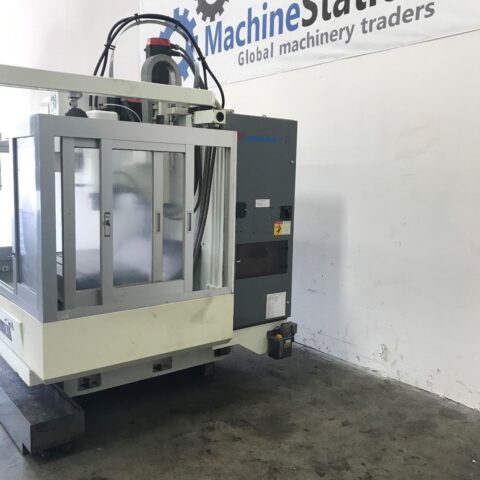

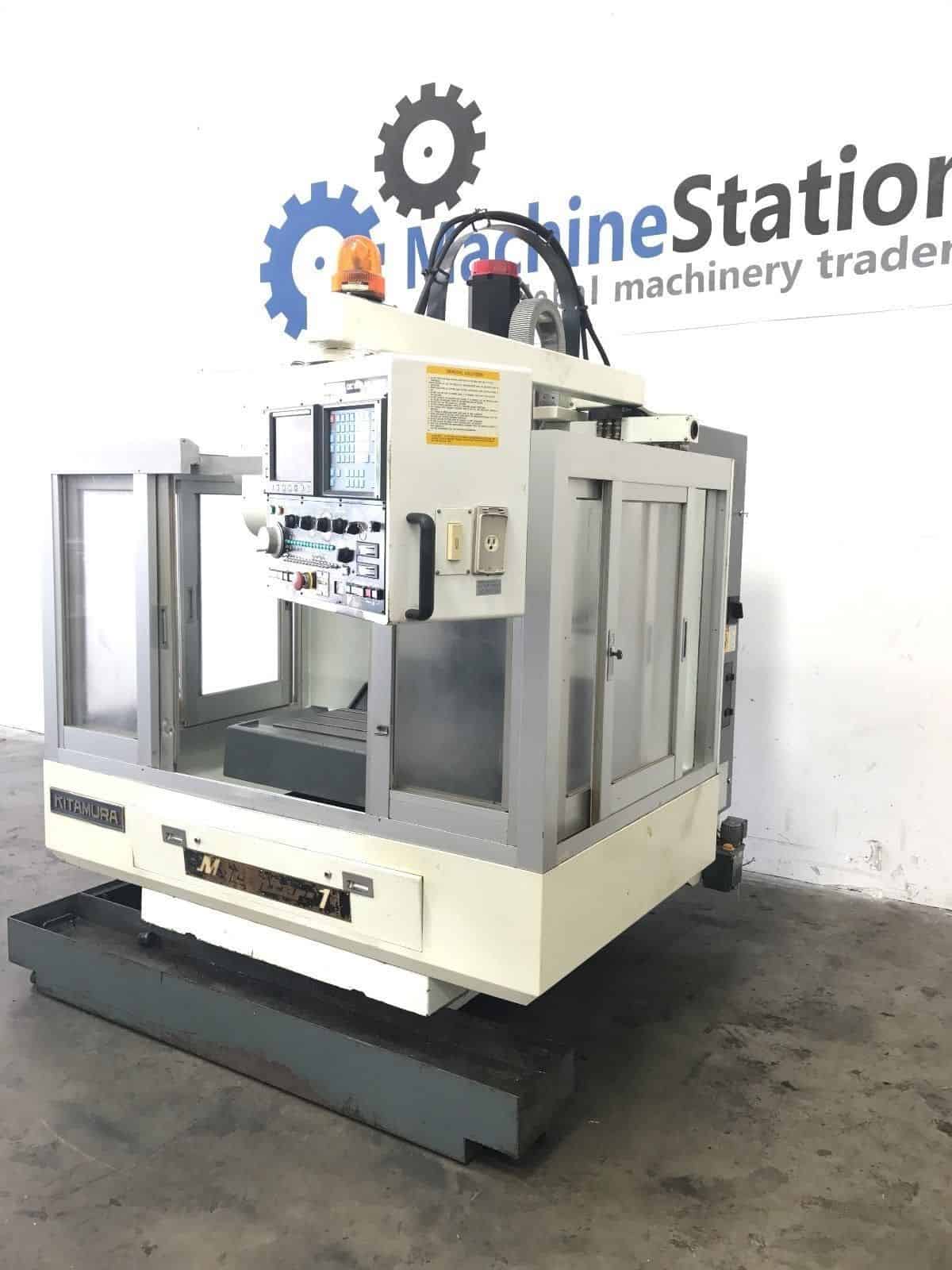

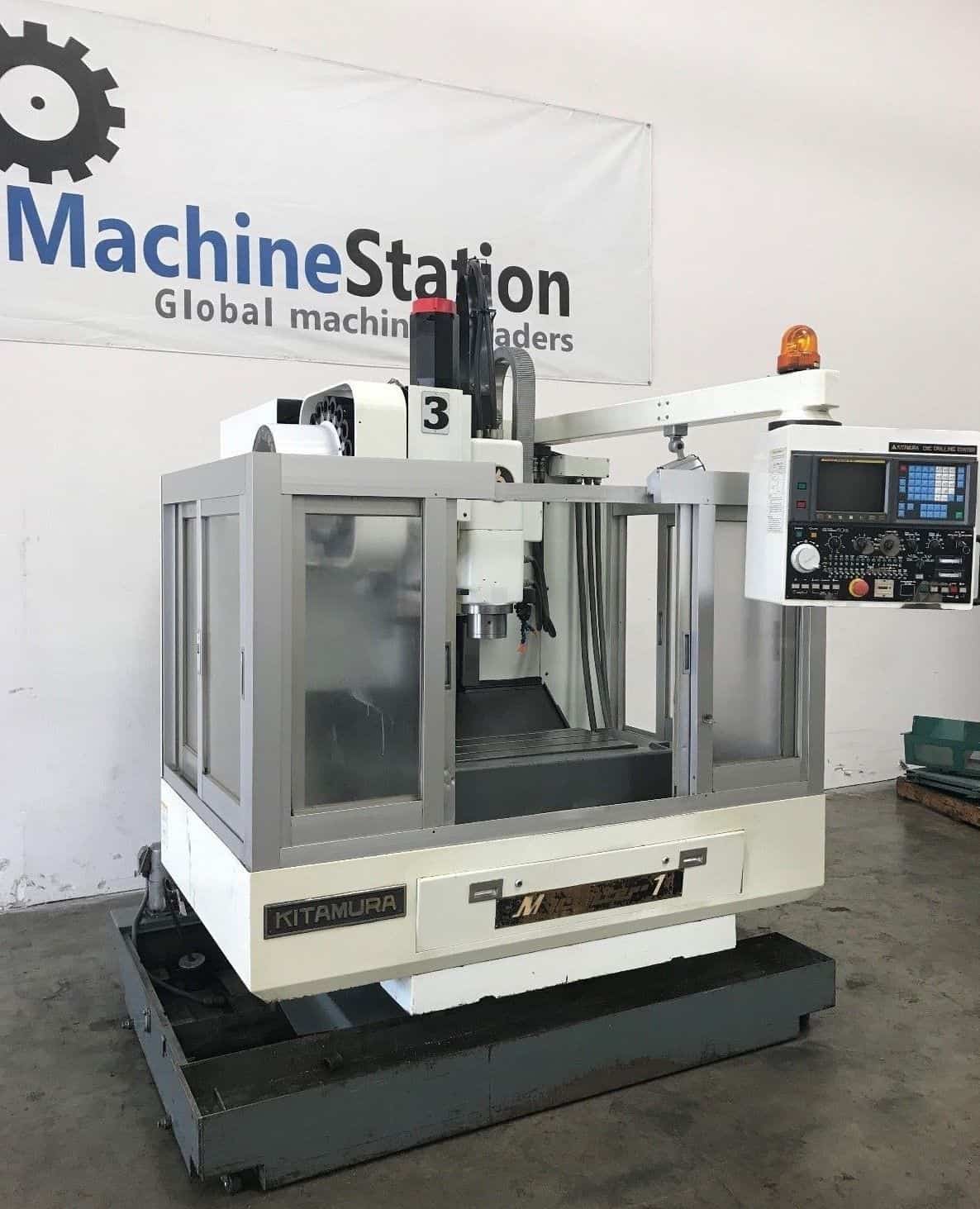

KITAMURA MYCENTER 1 CNC VMC Features:

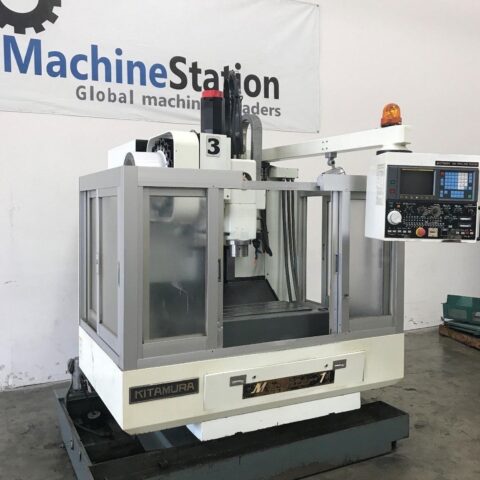

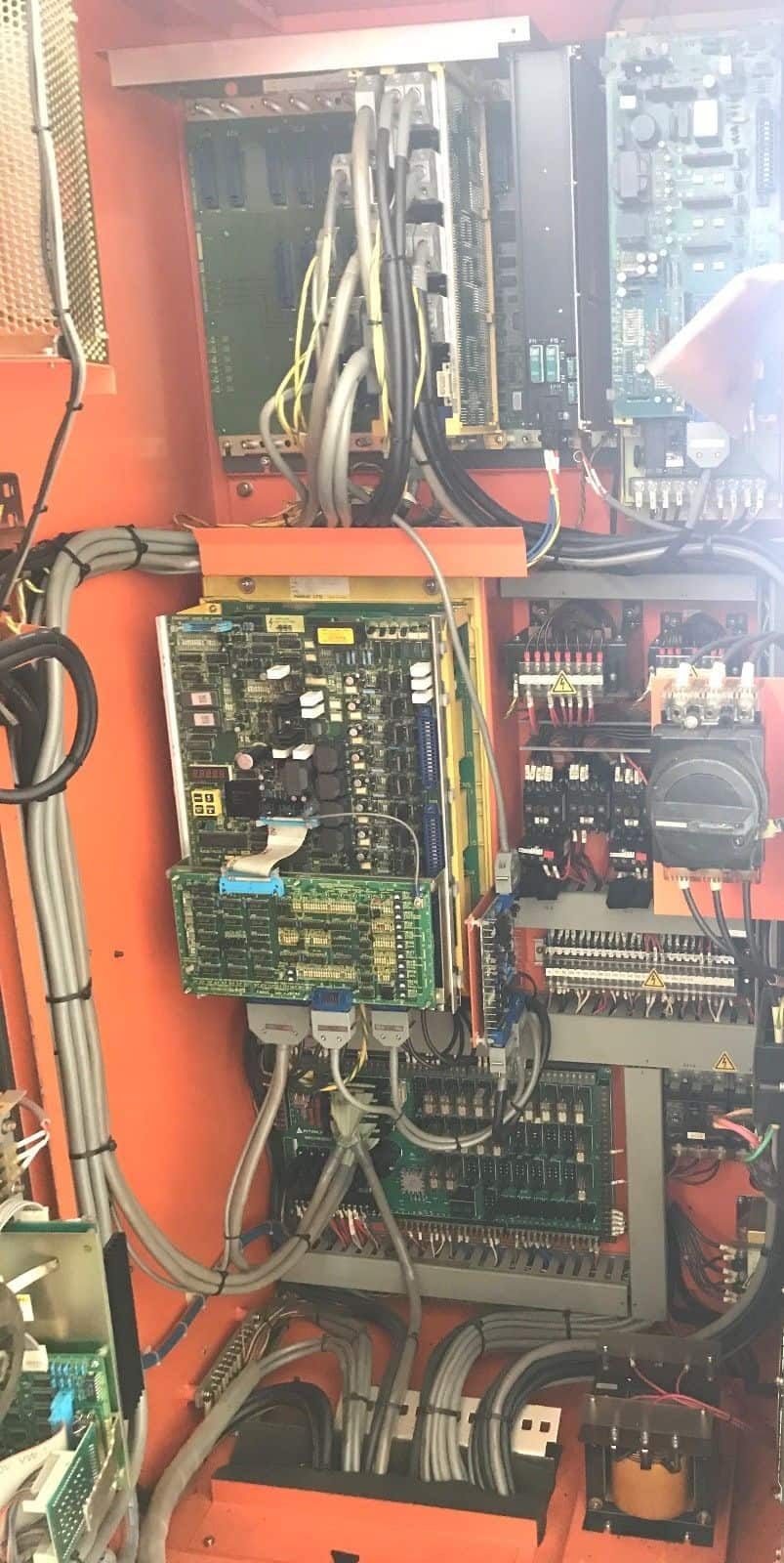

- Fanuc 0M CNC Control
- High Speed Arm Type Tool Changer
- High precision 10,000 RPM Spindle
- Powerful high torque spindle motor
- Spindle Orientation
- Rigid Tapping
- Flood coolant with large separate coolant tank
- Work light
-
KITAMURA MYCENTER 1 CNC VMC Specifications:
- Travels:
- X-Axis: 19.15″
- Y-Axis: 12.2″
- Z-Axis: 18.1″
- Spindle Nose to Table (Min.- Max.): 5.9″ – 21″
- Spindle Center to Column: 15″
-

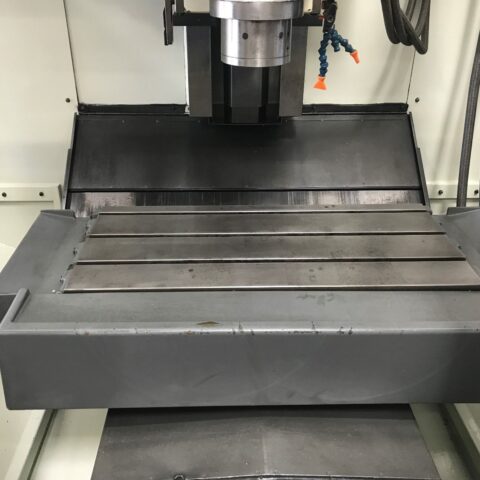

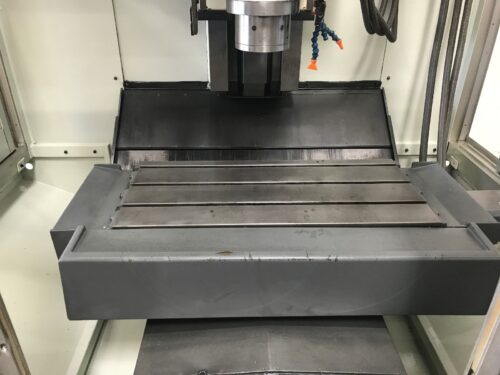

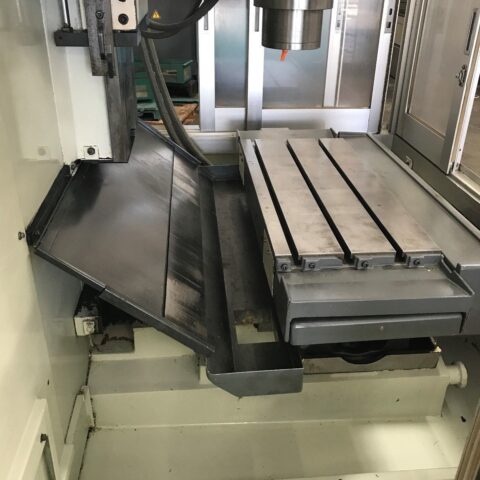

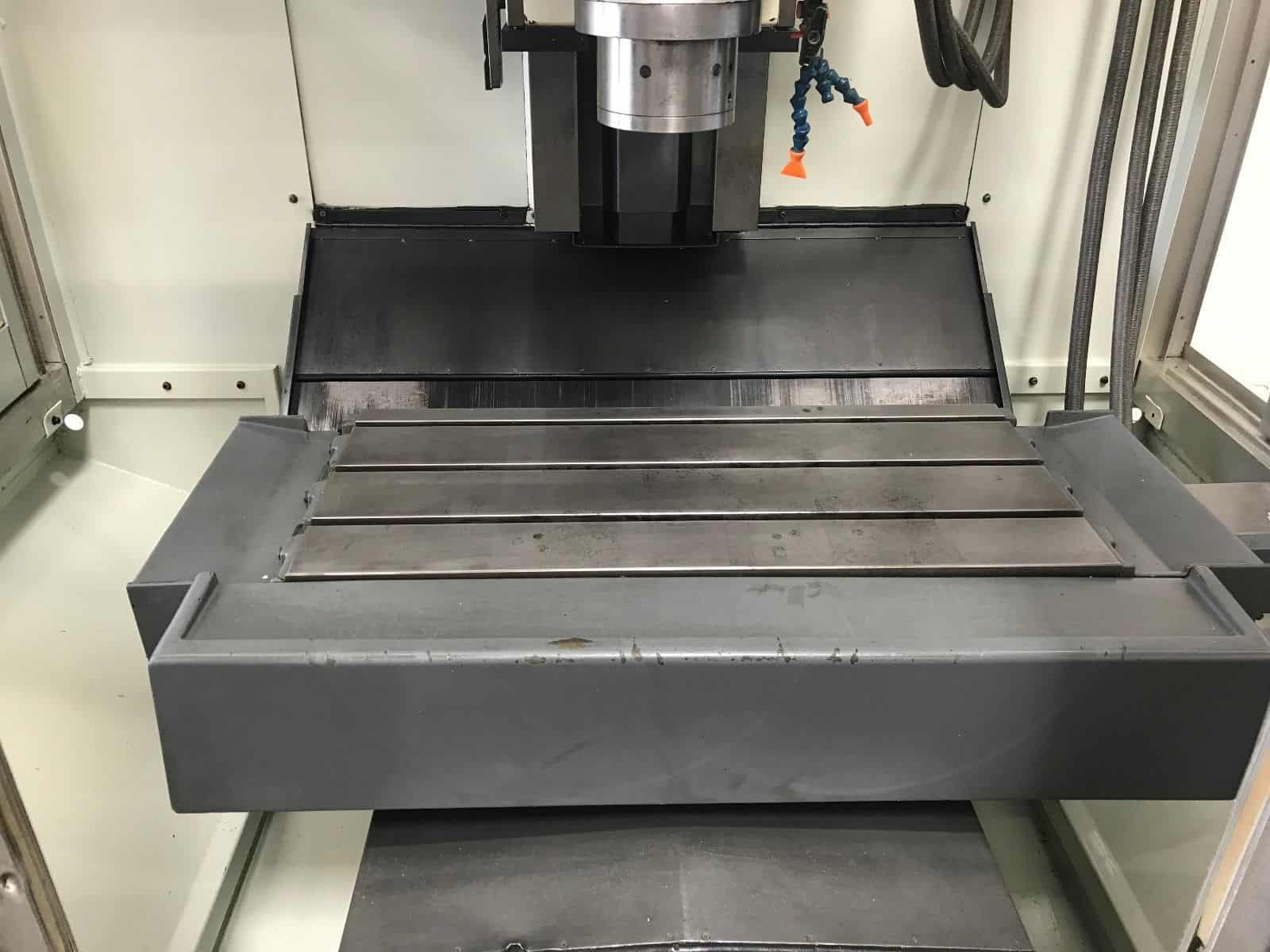

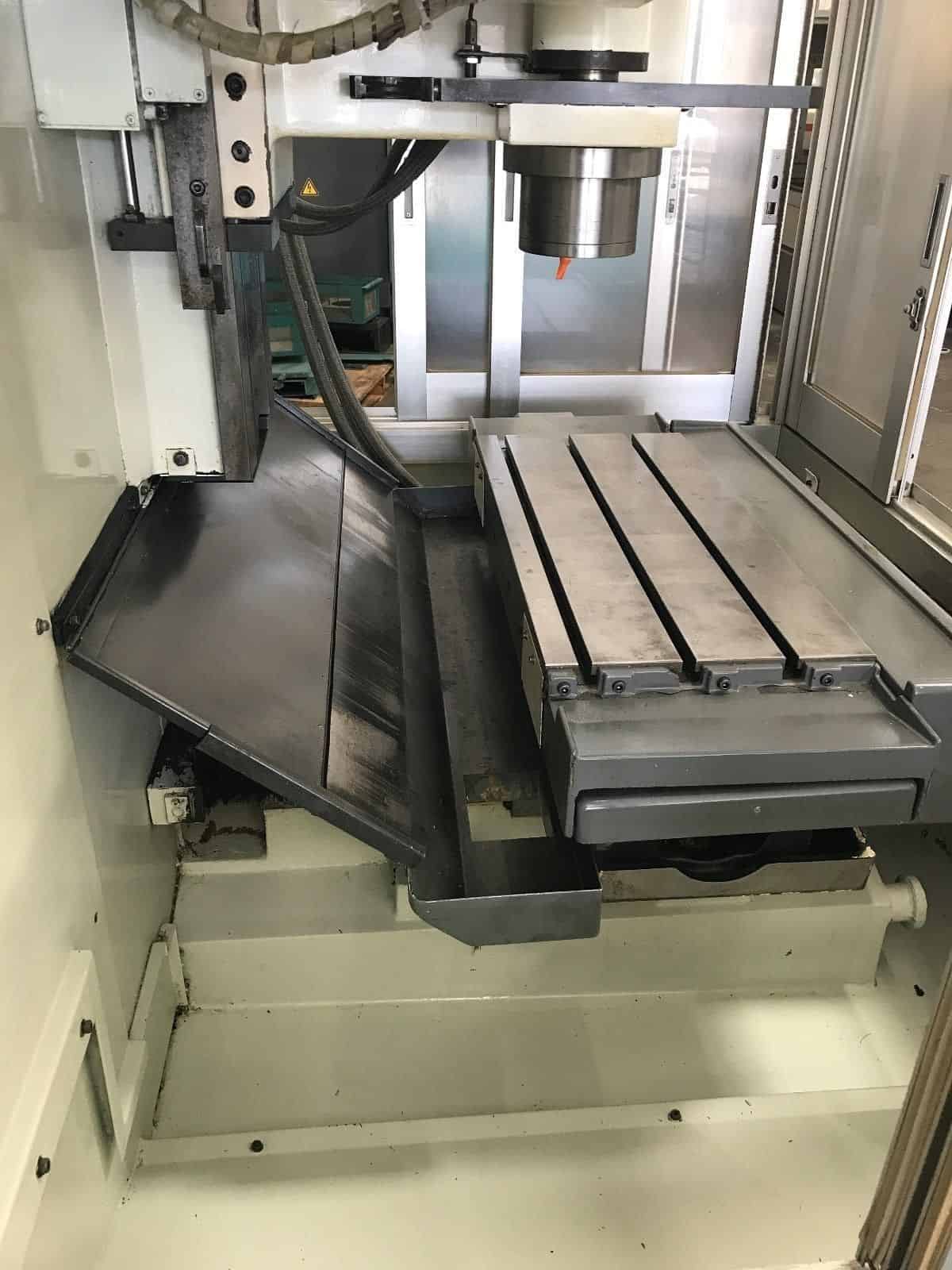

Table:
- Length: 31″
- Width: 14″
- Max Weight on Table: 661 lbs
-

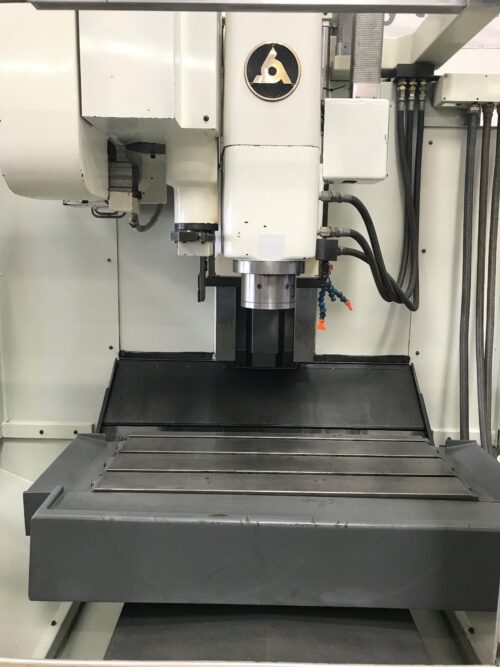

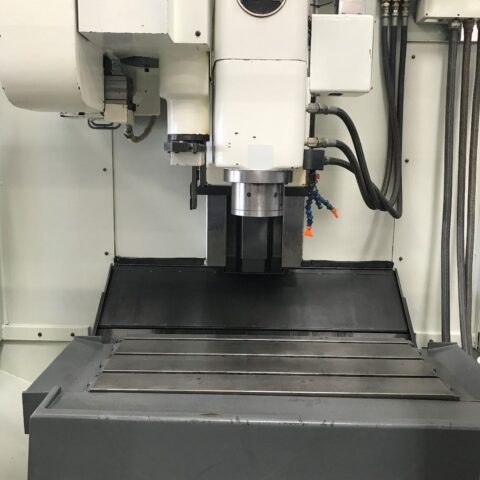

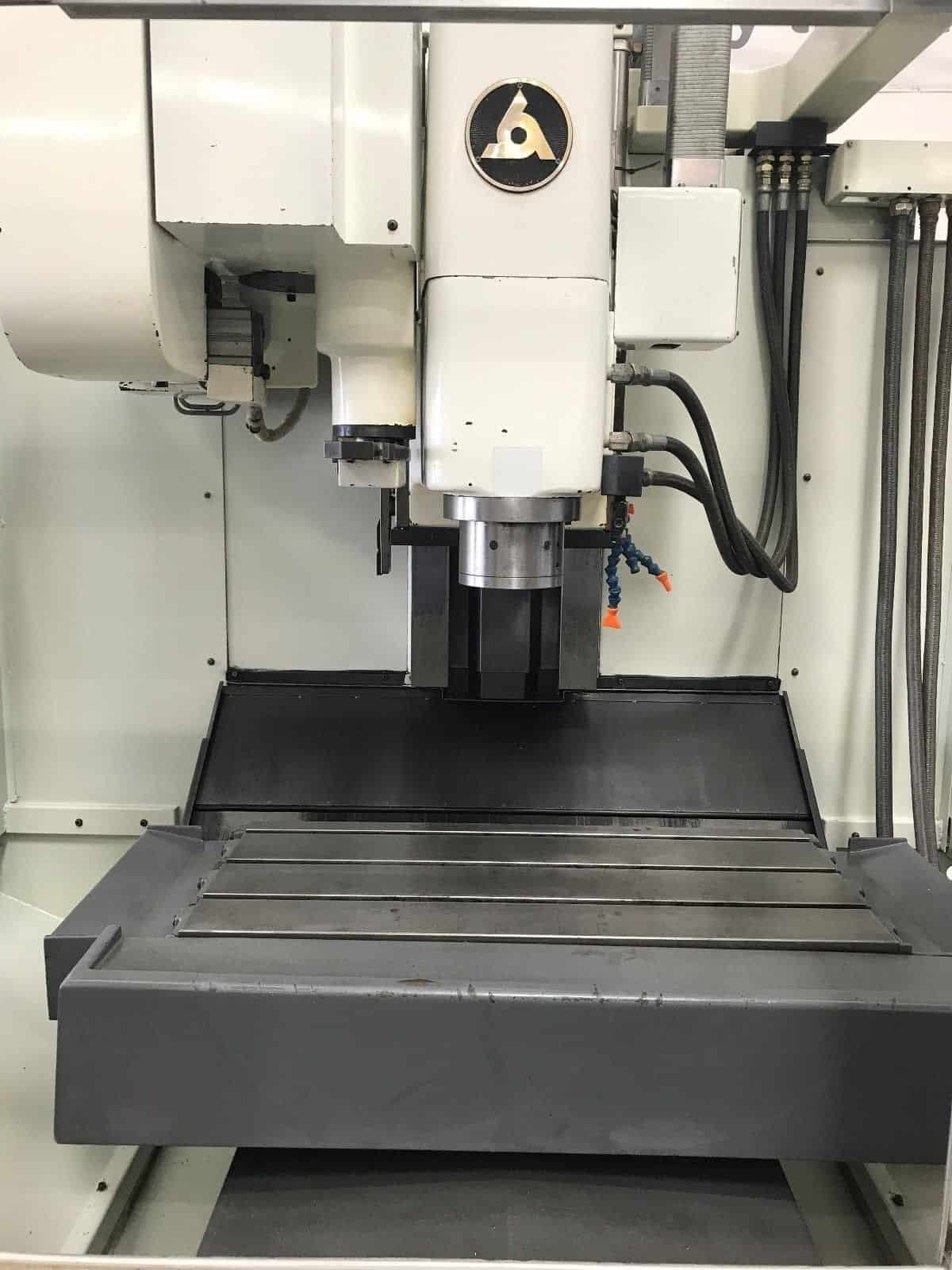

Spindle:
- Taper Size: BT 35
- Speed Range: 60 – 10,000 RPM
- Spindle Power: 7.5 HP
-
Feed rates:
- Rapid X,Y & Z: 710 /710/550 inch/P.M
- Cutting Feedrate: 180″ inch/ P.M
-

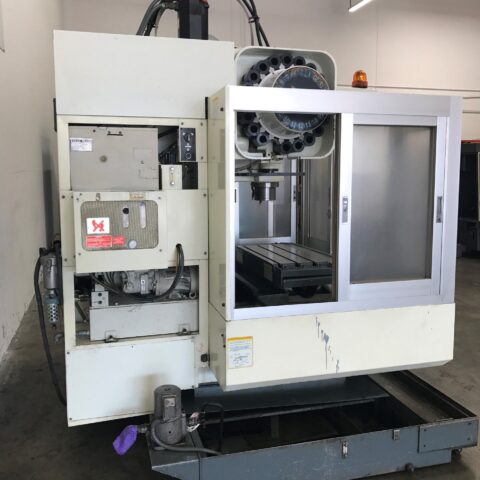

Automatic Tool Changer:
- 35 Taper
- Capacity: 20
- Max Tool Weight: 15.4 lbs
- Max Tool Length: 7.48″
- Max Tool Dia.: 3.7″
- Tool Change Time: 2.0 second
-
General:
- Air Required: 80 psi, 4 scfm
- Power: 205-220v / 66FLA / 3-Phase
- Overall Dimensions: 74″ x 78″ x 94″ High
- Weight: 6200 lbs
