All specifications are approximations and are subject to verification.
| SKU | 105916 |
| Make | Kitamura |
| Model No. | MyTrunnion |
| Year of Manufacture: | 2003 |
| Condition | Used-Good |
| Cutting Hours: | 7216 |
| Cutting Aluminium and Brass Only |

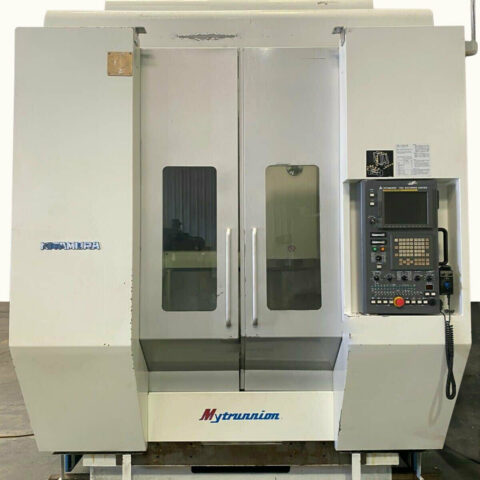

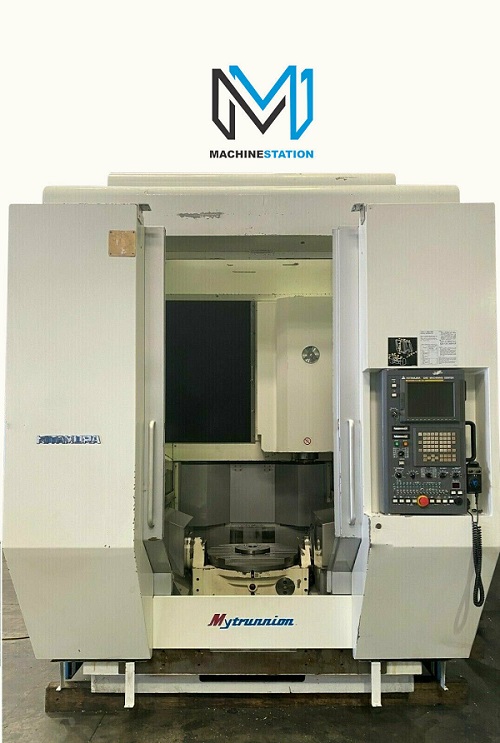

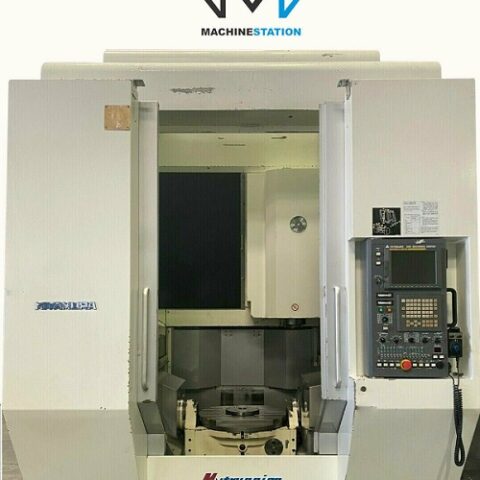

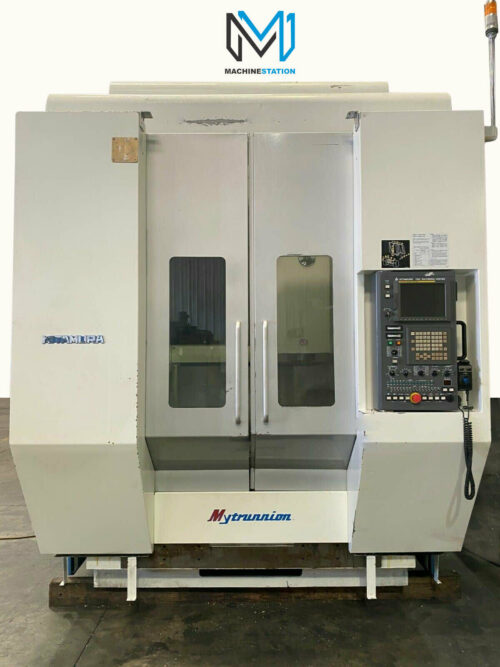

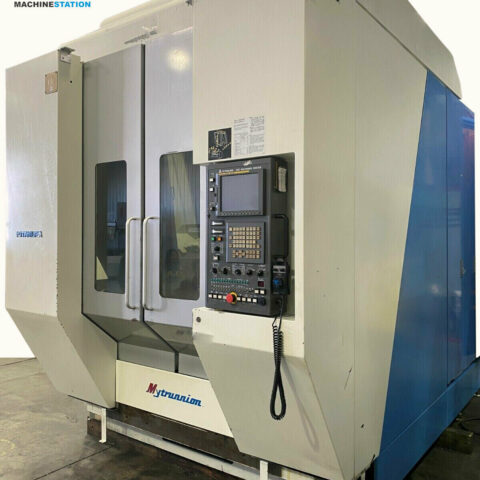

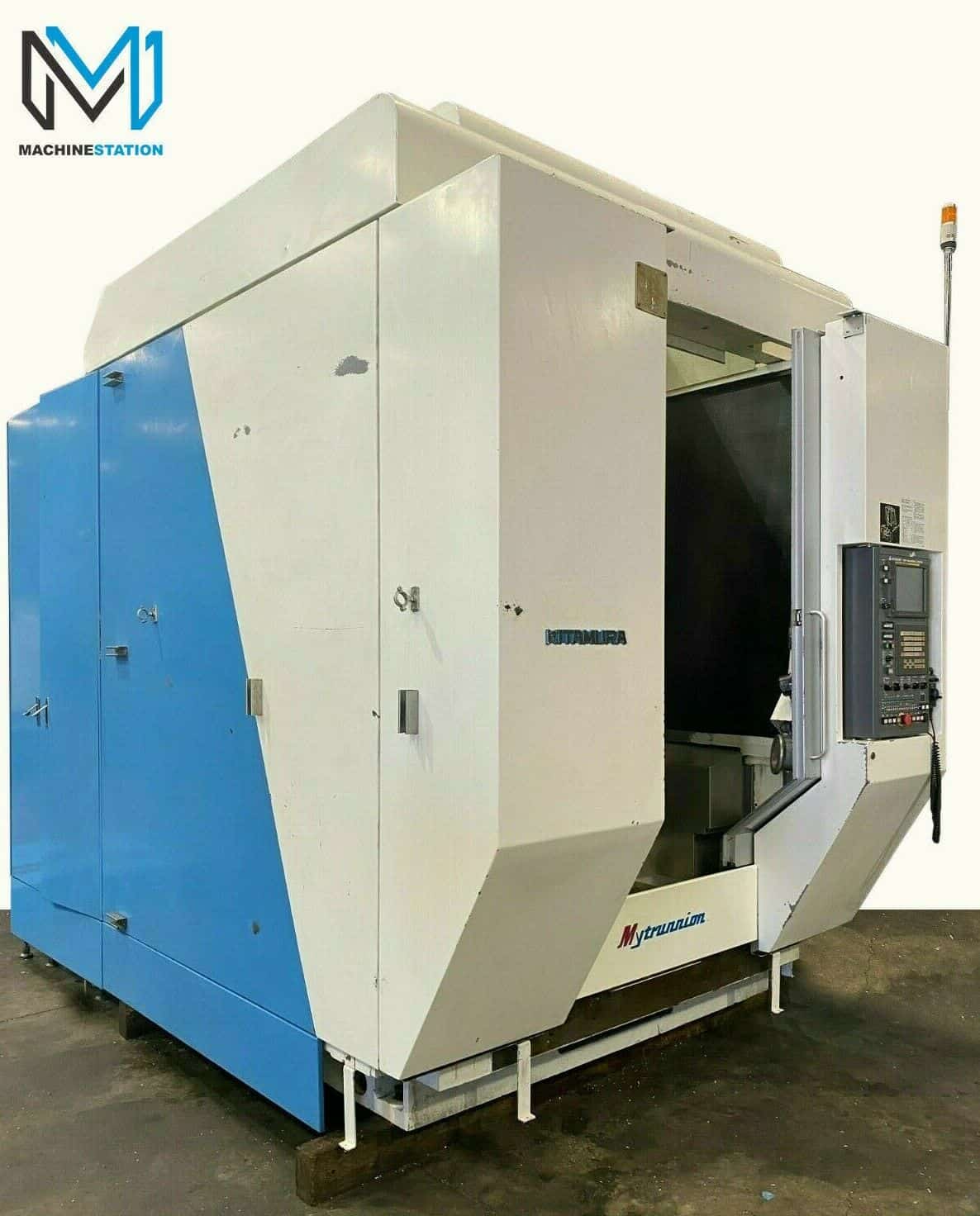

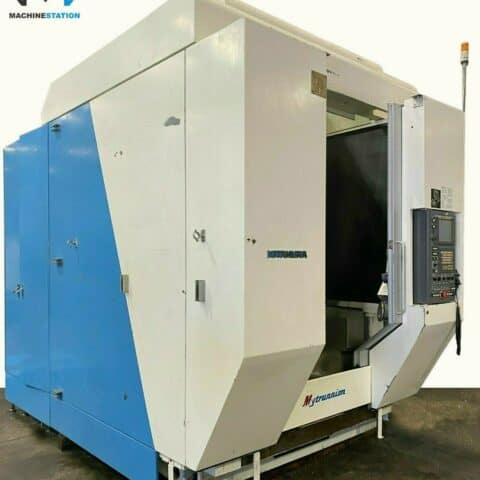

| Kitamura Mytrunnion 5 Axis CNC Mill Features: |
|---|

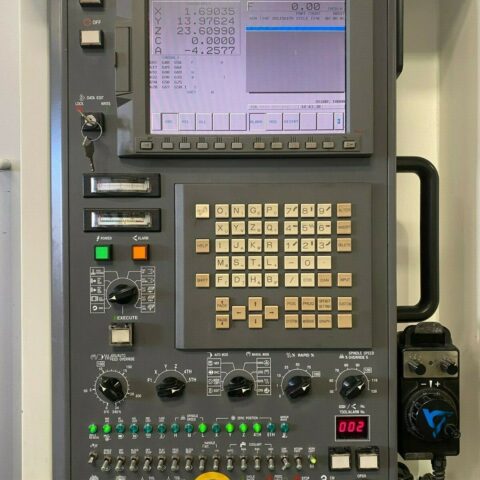

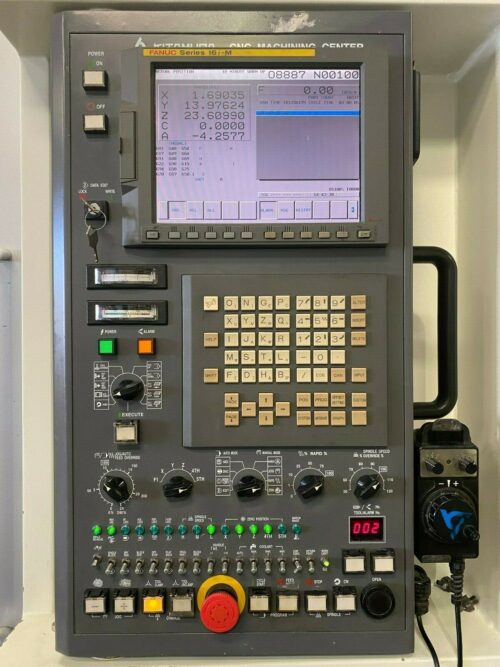

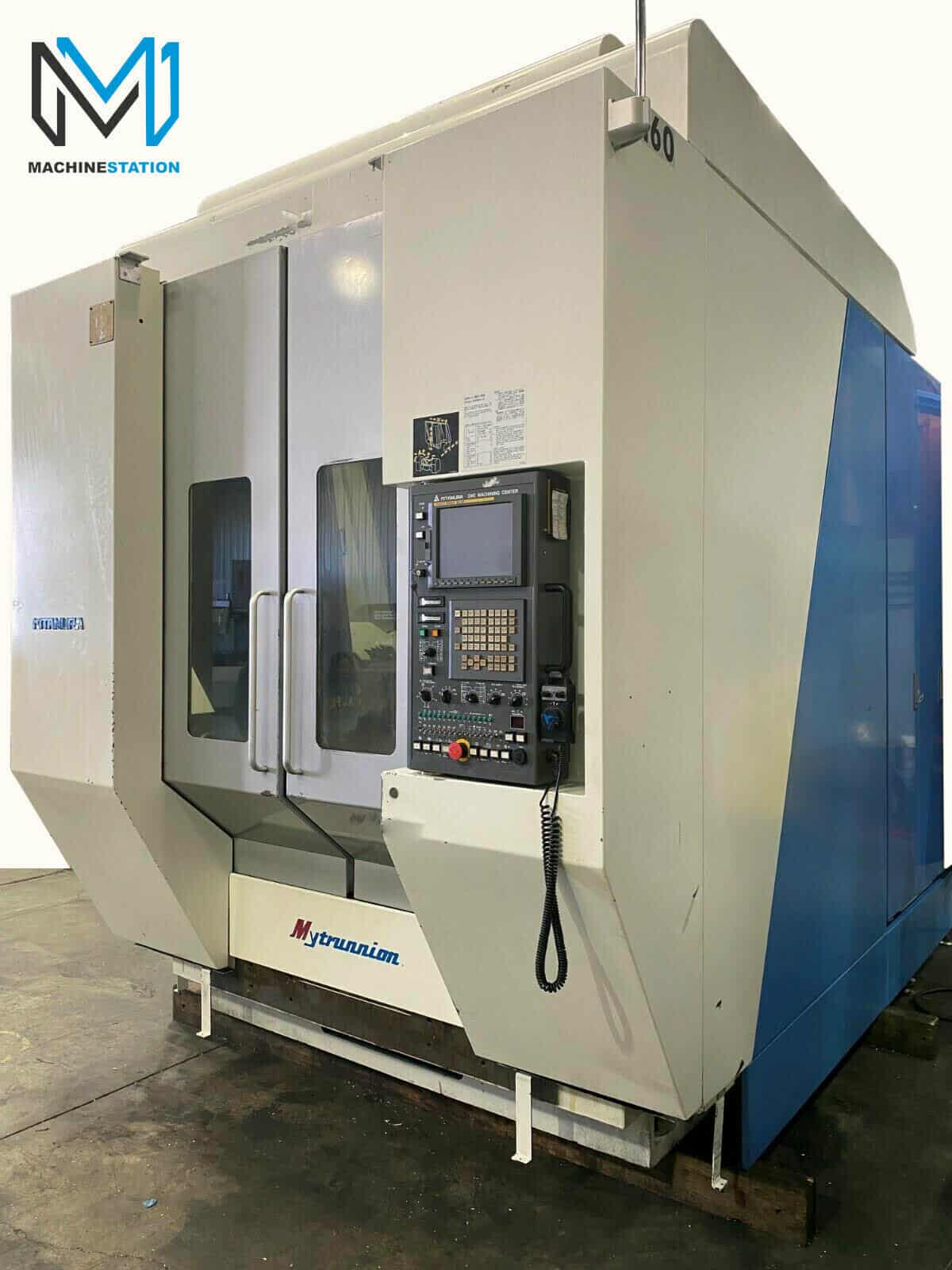

| Fanuc 16iM CNC Control |
| Simultaneous 5 Axis Cutting |
| 20,000 RPM High Precision Spindle |
| Coolant through Spindle |
| 100 Tools High Speed Tool Changer ( Optional ) |
| Glass Scales on the Axis |
| PCMCIA Card Slot |
| 128 MB Memory |
| Spindle Chiller |
| Spindle Orientation |
| Helical Interpolation |
| Rigid Tapping |
| Absolute Incremental Programming |
| Fast Rapid Traverse Rate |
| Flood coolant with large separate coolant tank |
| Chip Conveyor |
| Work light |
| Books and Manuals. |
| Kitamura Mytrunnion 5 Axis CNC Mill Specifications: |
|---|
| Travels: |
| X Axis: 32.3″ |
| Y Axis: 29.3″ |
| Z Axis: 19.6″ |

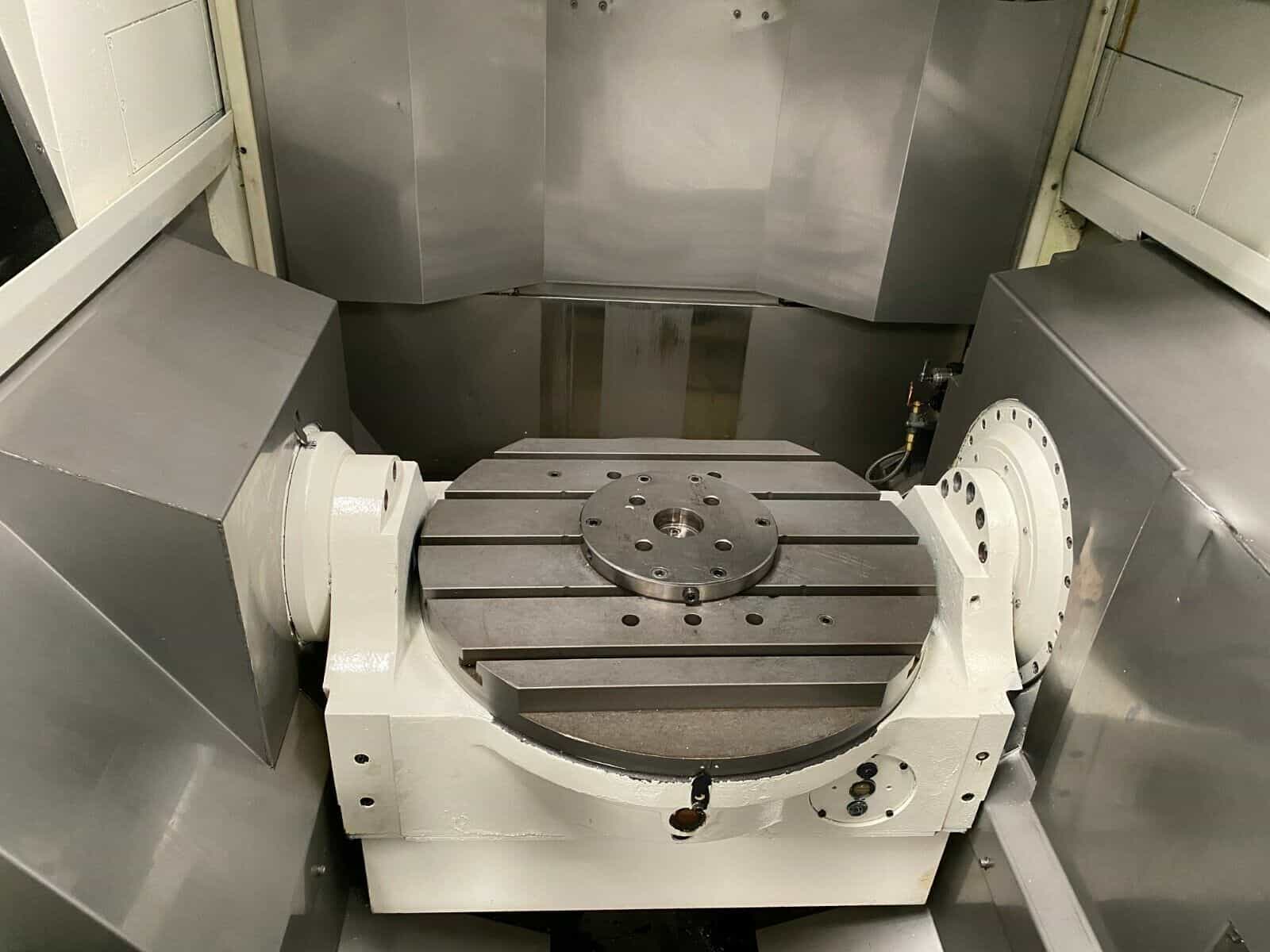

| A Axis: 150° ( Table Tilt ) |
| C Axis: 360° ( Table Rotate ) |

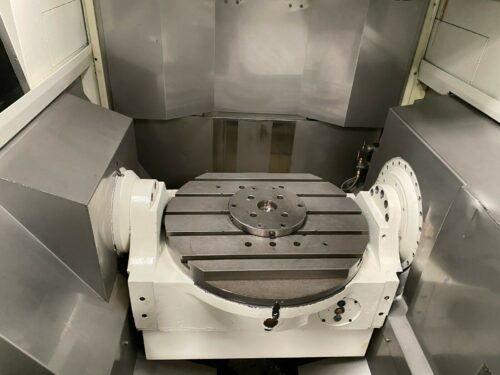

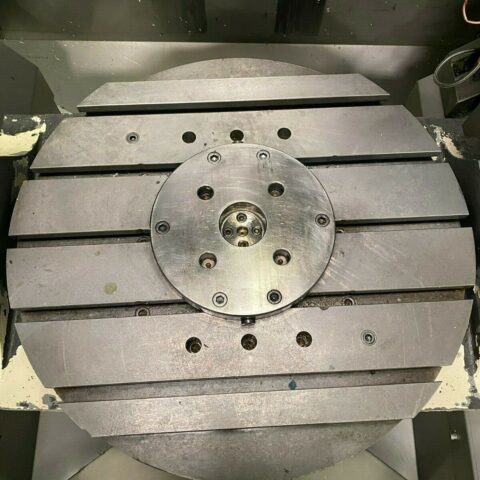

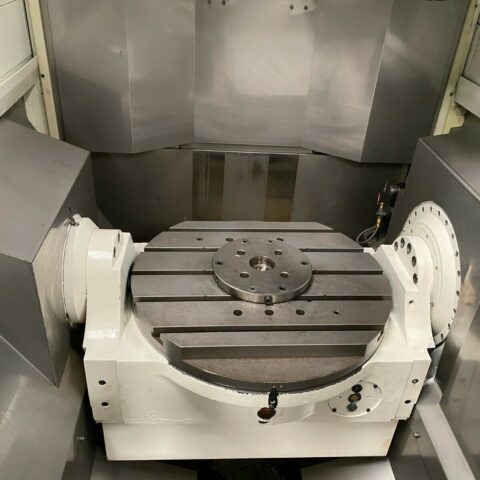

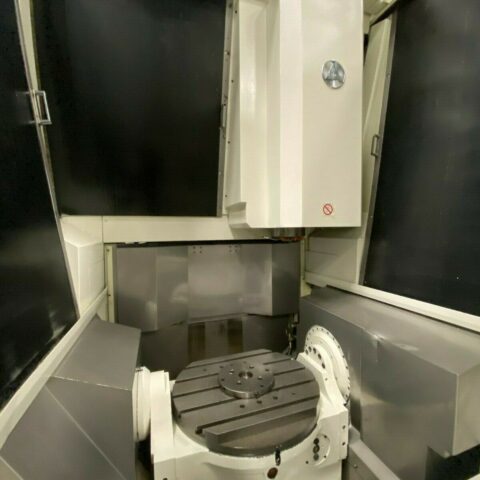

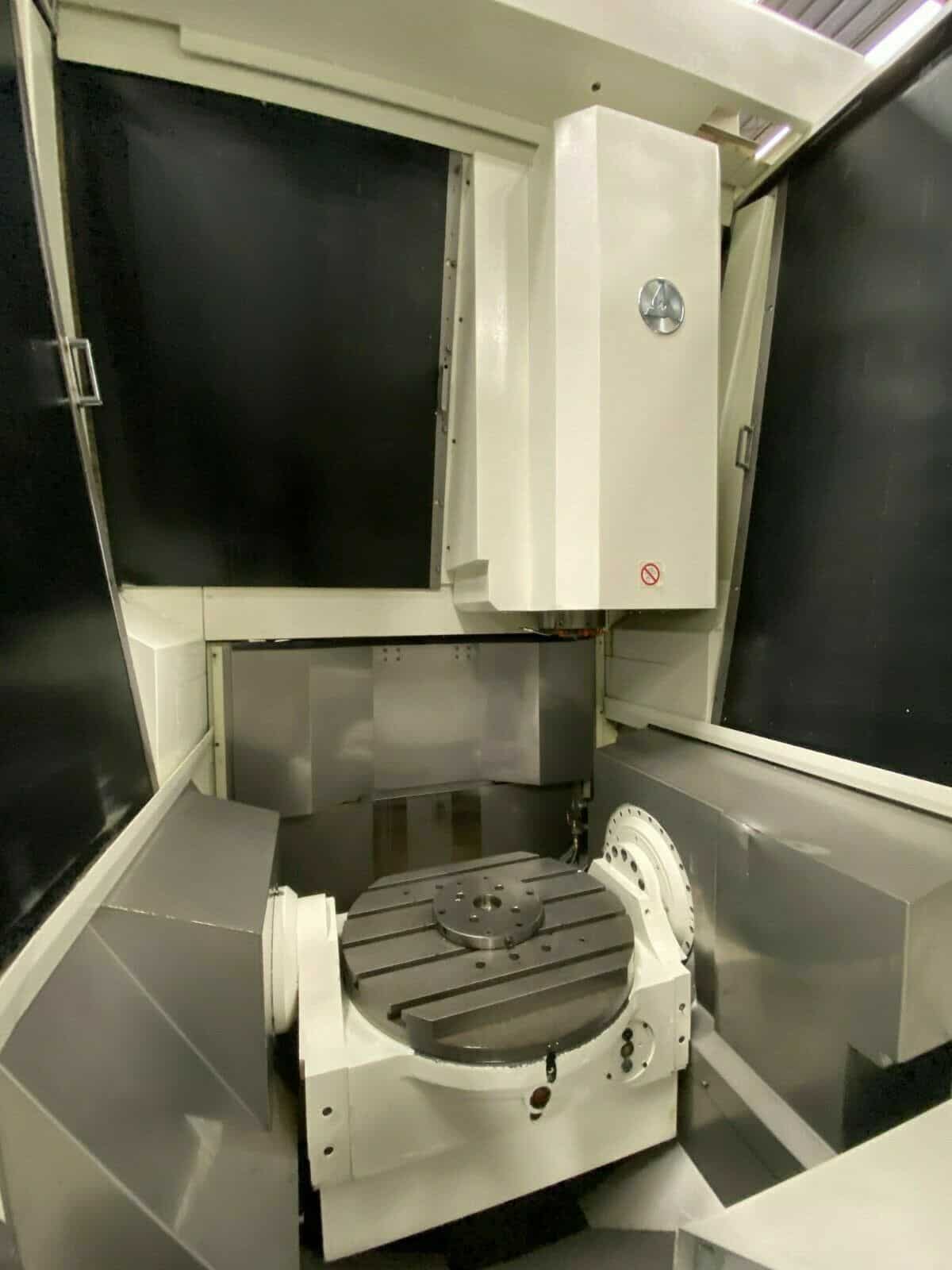

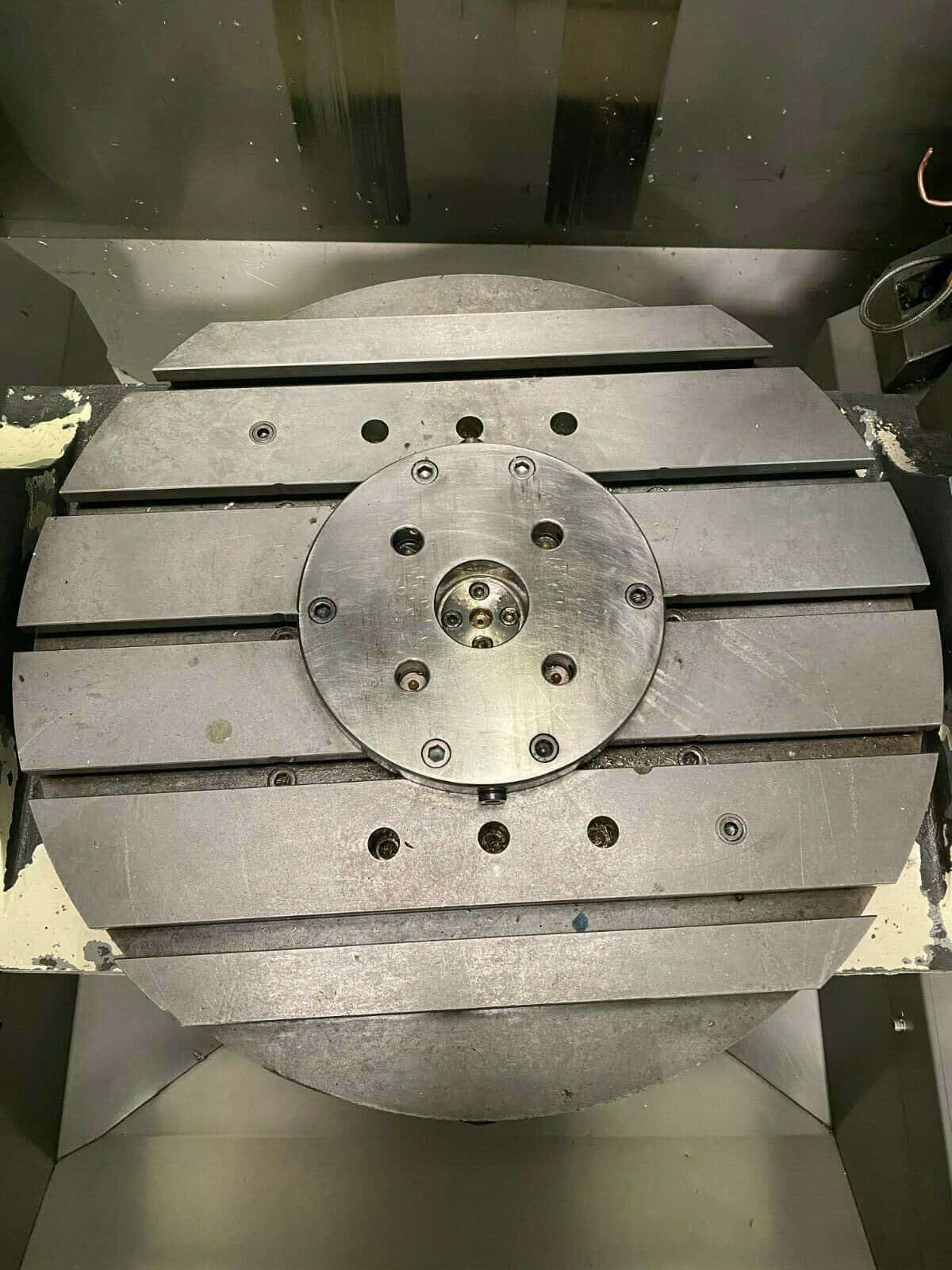

| Table: |
|---|
| Length: 24.8″ |
| Width: 19.7″ |
| Max Weight on Table: 880 lbs |
| T-Slot : 0.7″ X 3 Slots |
| Table to Spindle Nose: 3.9″ – 23.6″ |
| Spindle: |
|---|
| Taper Size: 40 |
| Speed Range: 20 – 20,000 RPM |
| Spindle Power: 20 HP |
| Feed rates: |
|---|
| Rapid X & Y : 1968 Inch Per Minute |
| Rapid Z : 984 Inch Per Minute |
| Rapid A : 2000 Degree Per Minute |
| Rapid C : 6000 Degree Per Minute |
| Cutting Feedrate: 984 Inch Per Minute |
| Tool changer: |
|---|
| Capacity: 100 Tools ( Optional ) |
| Taper: 40 |
| Max Tool Size: 5.91″ X 11.8″ |
| Max Tool Weight: 22 lbs. |
| Tool Change Time: 1.7 Second |
| General: |
|---|
| Air Required: 80 psi, 4 scfm |
| Power: 45kva / 205-220v / 3-Phase |
| Overall Dimensions: ??″ High |
| Weight: 38,000 lbs |
