Litz Hi-Tech CV-800 CNC Vertical Machining Center

SKU 11748

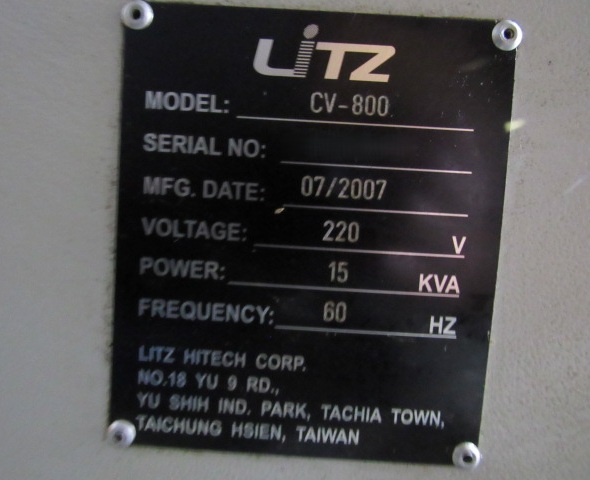

Make/Model Litz Hi-Tech CV-800

Year 2007

Condition Used - Good

Video On Request

Out of stock

SKU:	11748
Make/Model:	Litz Hi-Tech CV-800
Year:	2007
Condition:	Used – Good
Video:	On Request

SKU: 11748

*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

Make:	Litz Hi-Tech
Model:	CV-800
Year:	2007
Machine Type:	CNC Vertical Machining Center
Control:	Fanuc Oi-MC CNC Control

Features:
Fanuc Oi-MC CNC Control
Remote Pulse Generator / Hand Wheel
24-Station Automatic Tool Changer
BT-40 Taper Spindle
High-Pressure Coolant
Coolant System
Enclosed Work Area

Travels:
X-Axis Travel: 31.5″
Y-Axis Travel: 19.7″
Z-Axis Travel: 21.3″
Spindle Nose to Table: 5.9″–27.2″oo
Rapid Traverse X/Y/Z: 36 / 36 / 24 m/min

Table:
Table Size: 20″ × 36″
Maximum Table Load: 1,100 lbs
T-Slots: 0.20” x 0.70” x 3.93”
T-Slot Quantity: 5

Spindle:
Spindle Speed: 8,000 RPM
Spindle Taper: BT-40
Spindle Motor: 15 HP
Spindle Nose to Table: 5.9″–27.2″

Automatic Tool Changer:
ATC Capacity: 24 Stations
ATC Type: Arm-Type Automatic Tool Changer
Tool Taper: BT-40
Maximum Tool Diameter: 3.15″–4.92″
Maximum Tool Length: 10.6″
Maximum Tool Weight: 17.6 lbs

General:
Machine Dimensions (Approx.): 79″ L × 95″ W × 95″ H
Machine Weight (Approx.): 11,700 lbs

Travels:
X-Axis Travel: 800 mm
Y-Axis Travel: 500 mm
Z-Axis Travel: 541 mm
Spindle Nose to Table: 150 mm–691 mmoo
Rapid Traverse X/Y/Z: 36 / 36 / 24 m/min

Table:
Table Size: 508 mm × 914 mm
Maximum Table Load: 1,100 lbs
T-Slots: 5 mm x 18 mm x 100 mm
T-Slot Quantity: 5

Spindle:
Spindle Speed: 8,000 RPM
Spindle Taper: BT-40
Spindle Motor: 15 HP
Spindle Nose to Table: 150 mm–691 mm

Automatic Tool Changer:
ATC Capacity: 24 Stations
ATC Type: Arm-Type Automatic Tool Changer
Tool Taper: BT-40
Maximum Tool Diameter: 80 mm–125 mm
Maximum Tool Length: 269 mm
Maximum Tool Weight: 17.6 lbs

General:
Machine Dimensions (Approx.): 2,007 mm L × 2,413 mm W × 2,413 mm H
Machine Weight (Approx.): 11,700 lbs

Categories	CNC Vertical Machining Centers
Make	Litz
Model	Hi-Tech CV-800

Fanuc Oi-MC CNC Control
Remote Pulse Generator / Hand Wheel
24-Station Automatic Tool Changer
BT-40 Taper Spindle
High-Pressure Coolant
Coolant System
Enclosed Work Area
