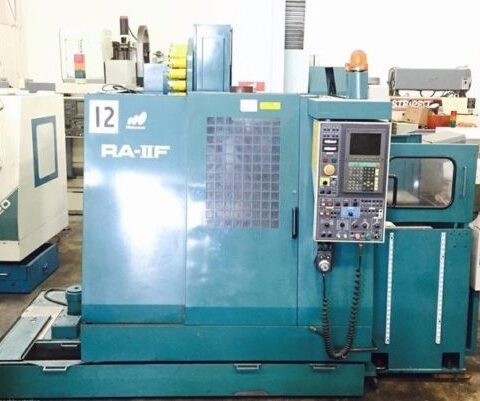

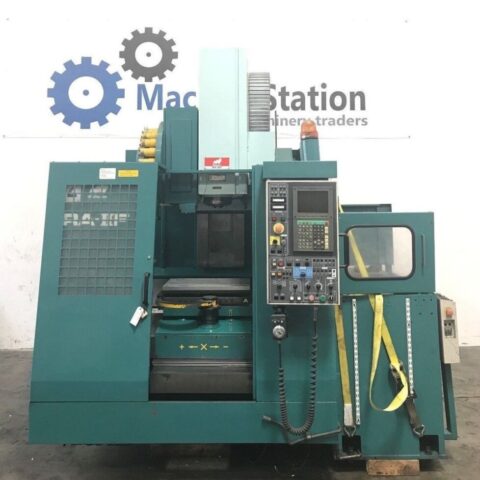

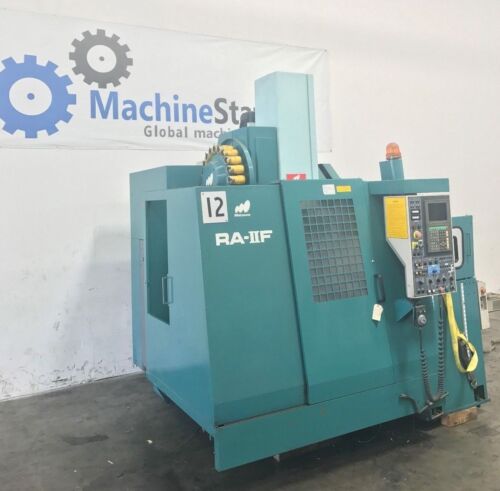

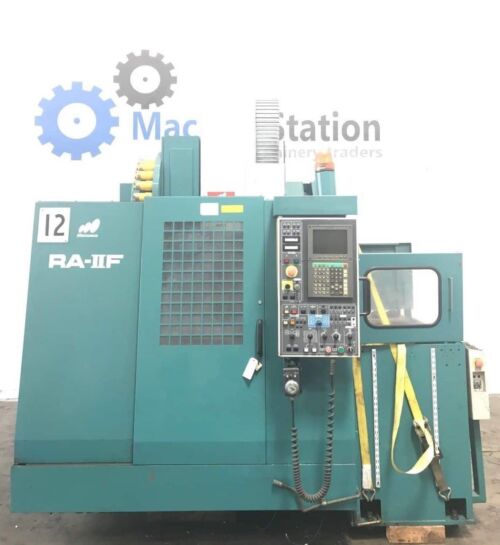

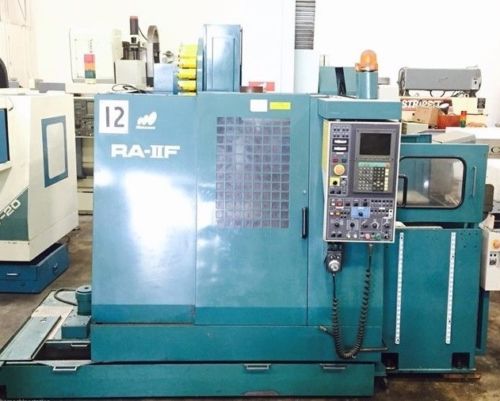

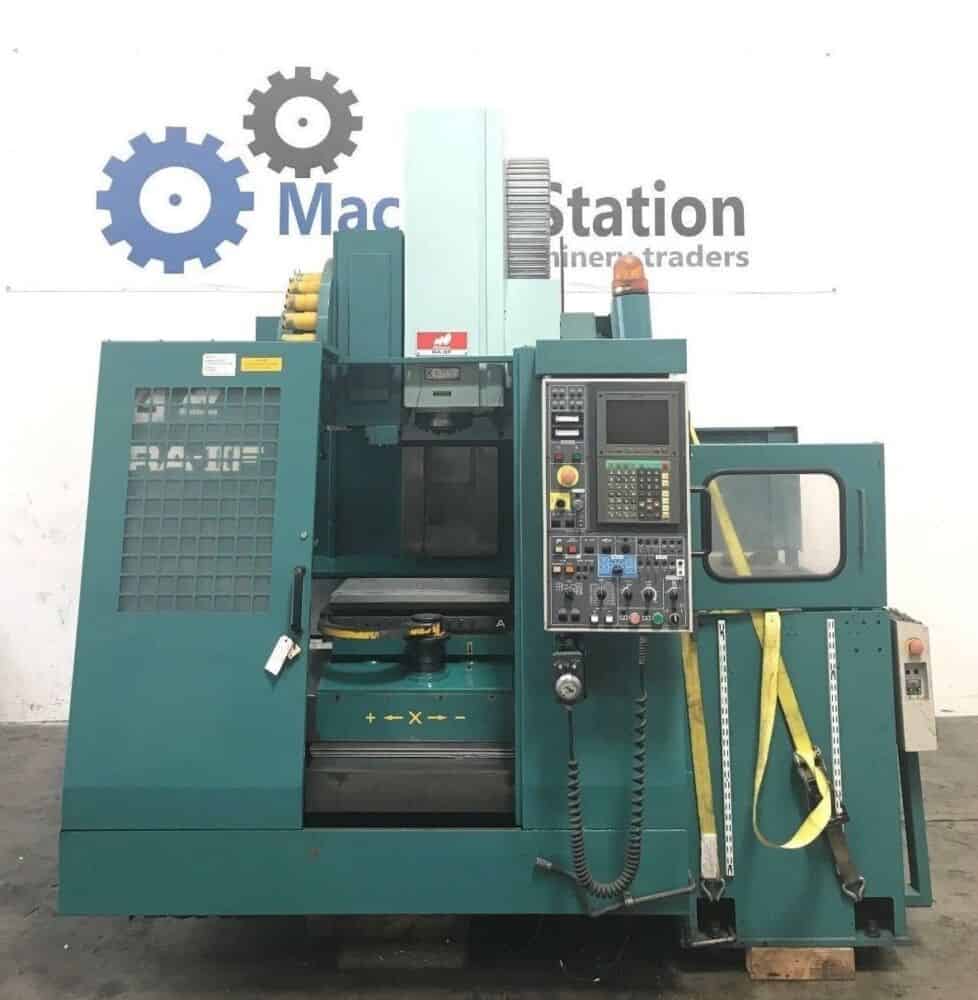

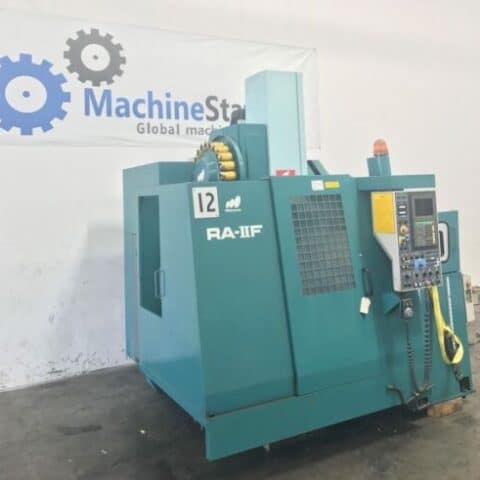

Used MATSUURA RA 2F VMC W/PALLET CHANGER

MATSUURA RA 2F VMC W/PALLET CHANGER

Make Matsuura

Model No. RA-IIF / RA-2F

Year of Manufacture 1993

Mach. 930410152

Condition Very Good

Out of stock

“This Machine has Pallet Changer, 8000rpm, 20 tool Side Mount Tool changer, Jog Handle and many more features. On our Floor now, fully powered / tested & is in Great working condition.”

Make	Matsuura
Model No.	RA-IIF / RA-2F
Year of Manufacture:	1993
Mach.:	930410152
Condition	Very Good

SKU: 1143

All specifications are approximations and are subject to verification.

“This Machine has Pallet Changer, 8000rpm, 20 tool Side Mount Tool changer, Jog Handle and many more features. On our Floor now, fully powered / tested & is in Great working condition.“

MATSUURA RA-2F VMC Features:

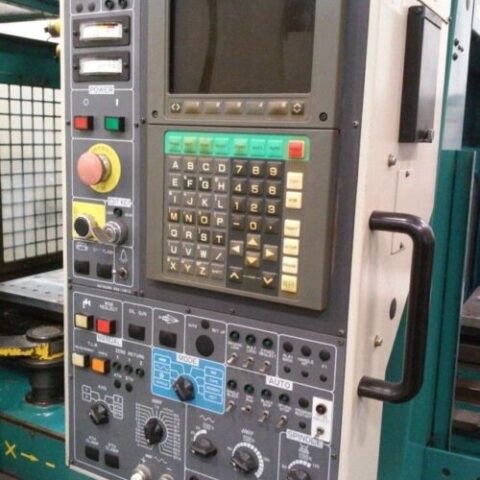

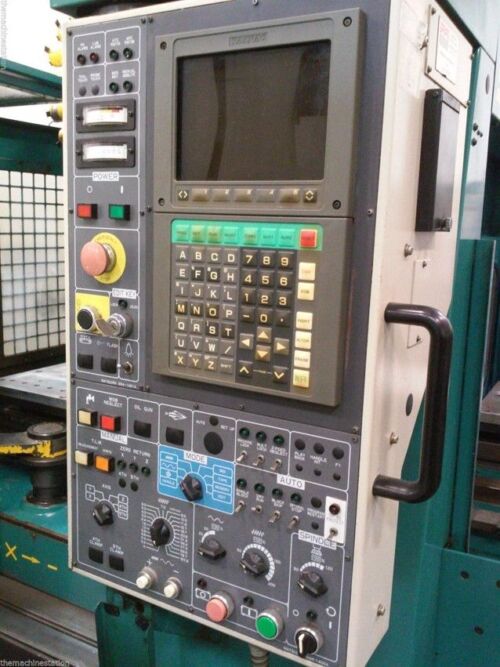

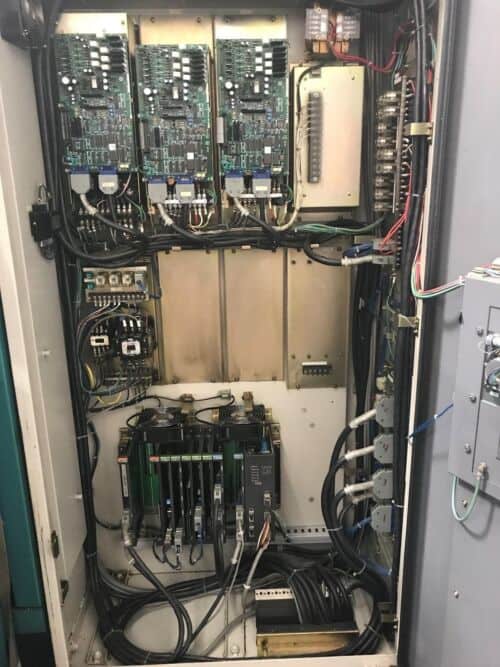

Yasnac i80 CNC Control
24 Tools Side Mount Tool Changer
High precision 8,000 RPM Spindle

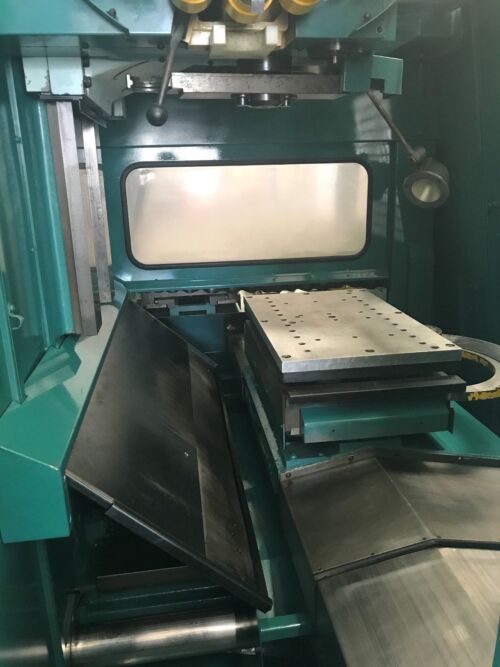

Dual Pallet Changer
Box Way Construction All Axis
Powerful 15 hp high torque spindle motor
Spindle Orientation
Rigid Tapping
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank

MATSUURA RA-2F VMC Specifications:
Travels:
X-Axis: 23.62″
Y-Axis: 16.14″
Z-Axis: 18.5″
Spindle Nose to Table (Min.- Max.): 5.9″ – 24.8″

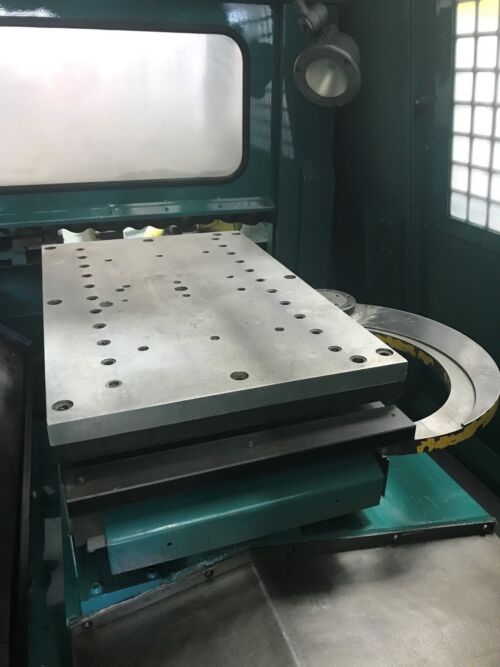

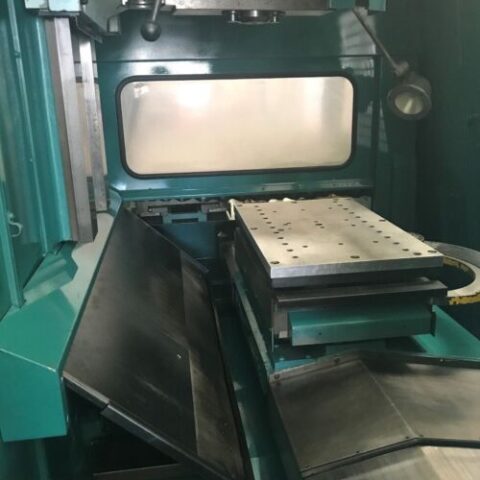

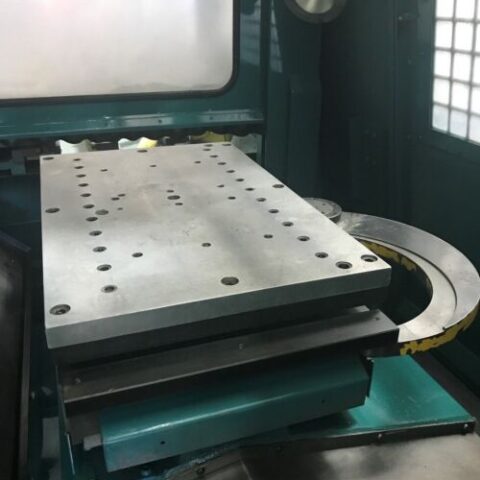

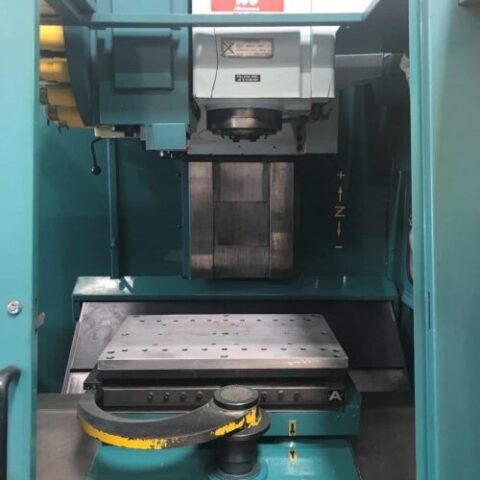

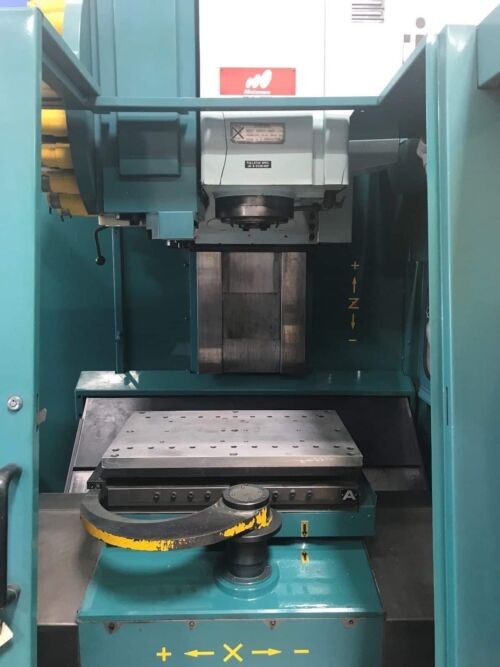

Pallet Table:
Length: 23.6″
Width: 14.9″
Max Weight on Table: 550 lbs

Spindle:
Taper Size: BT-40
Speed Range: 60 – 8,000 RPM
Spindle Power: 15HP

Rapid X,Y & Z: 590 inch/P.MCutting Feedrate: 196″ inch/ P.M

Feed rates:

Automatic Tool Changer:
40 Taper
Capacity: 20
Max Tool Weight: 17.6 lbs
Max Tool Length: 11.8″
Max Tool Dia.: 3.15″
Tool Changing Time: 1.8 Sec

General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 66FLA / 3-Phase
Overall Dimensions: 125″ x 120″ x 100″ High
Weight: 9900 lbs

MATSUURA RA-2F VMC Features:
Yasnac i80 CNC Control
24 Tools Side Mount Tool Changer
High precision 8,000 RPM Spindle
Dual Pallet Changer
Box Way Construction All Axis
Powerful 15 hp high torque spindle motor
Spindle Orientation
Rigid Tapping
Fast Rapid Traverse Rate
Flood coolant with large separate coolant tank

MATSUURA RA-2F VMC Specifications:
Travels:
X-Axis: 600 mm
Y-Axis: 410 mm
Z-Axis: 470 mm
Spindle Nose to Table (Min.- Max.): 150 mm – 630 mm

Pallet Table:
Length: 599 mm
Width: 378 mm
Max Weight on Table: 550 lbs

Spindle:
Taper Size: BT-40
Speed Range: 60 – 8,000 RPM
Spindle Power: 15HP

Automatic Tool Changer:
40 Taper
Capacity: 20
Max Tool Weight: 17.6 lbs
Max Tool Length: 300 mm
Max Tool Dia.: 80 mm
Tool Changing Time: 1.8 Sec

General:
Air Required: 80 psi, 4 scfm
Power: 205-220v / 66FLA / 3-Phase
Overall Dimensions: 3,175 mm x 3,048 mm x 2,540 mm High
Weight: 9900 lbs
