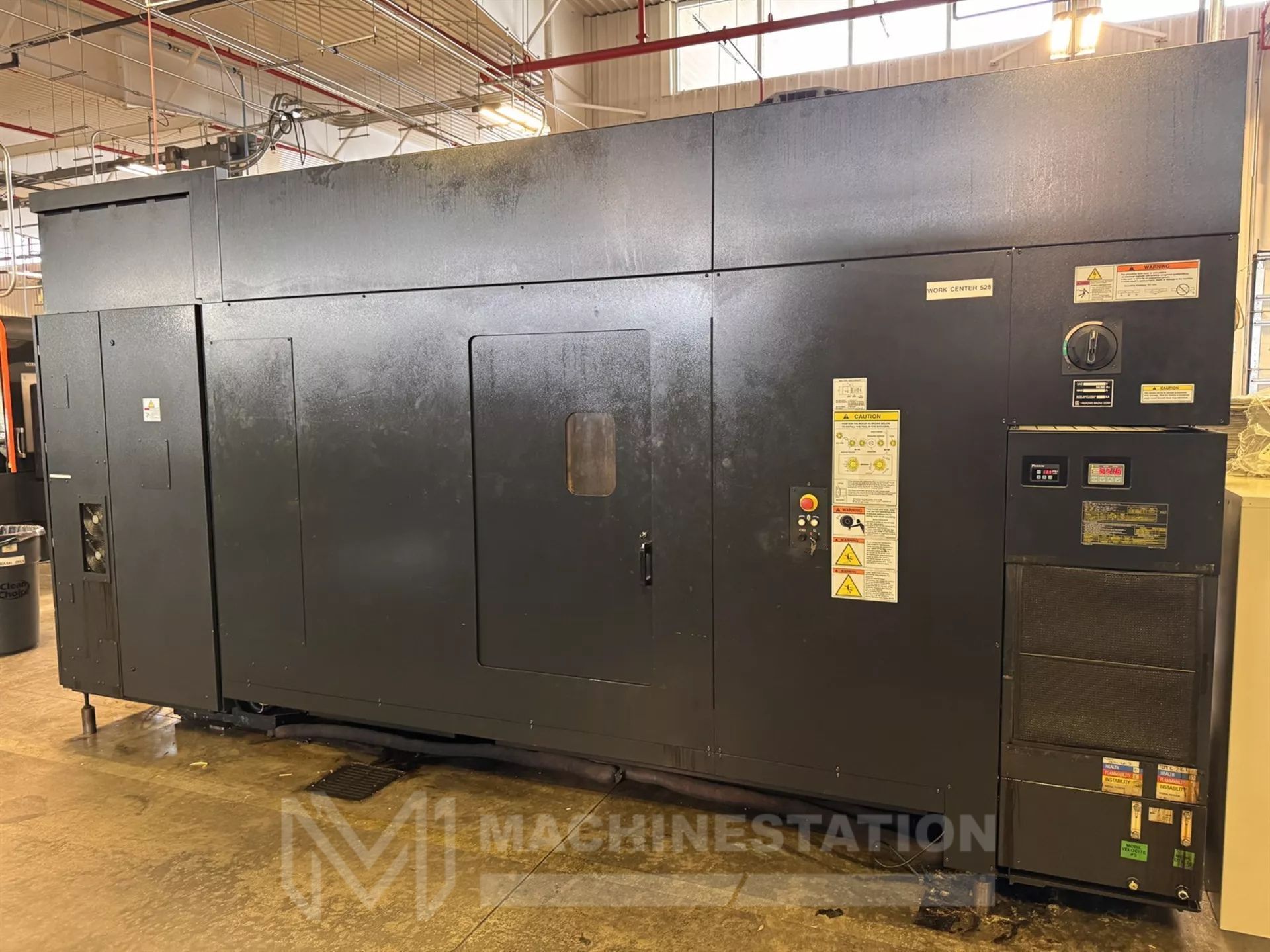

| Make: | MAZAK |
| Model No.: | INTEGREX 200-IV ST |
| Year of Manufacture: | 2011 |
| Equipped With: |
|---|

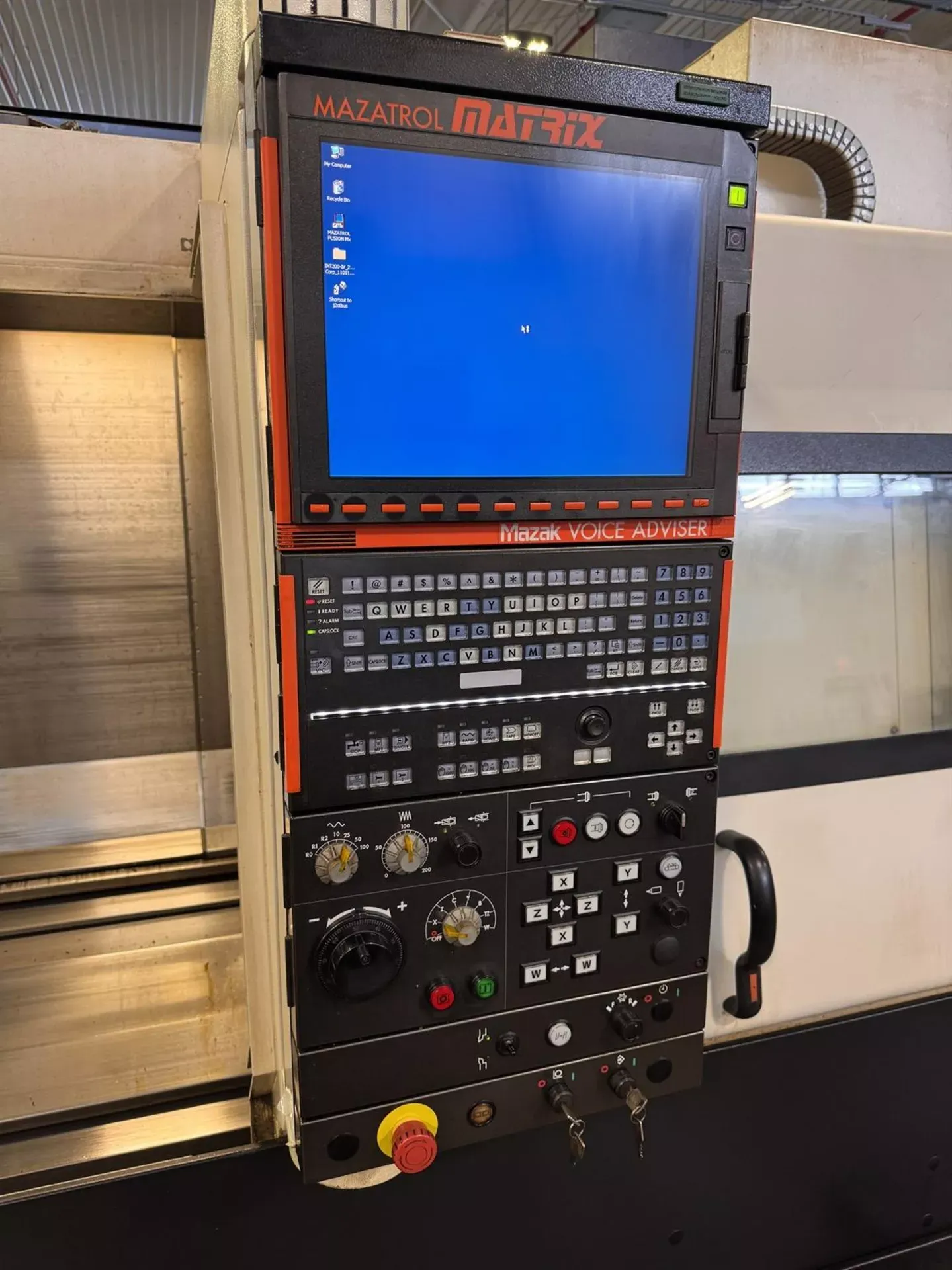

| Mazatrol Matrix CNC Control |
| Linear Ways Construction |
| 12,000 RPM Pendulum Milling Head |
| 40 Station Tool Magazine |

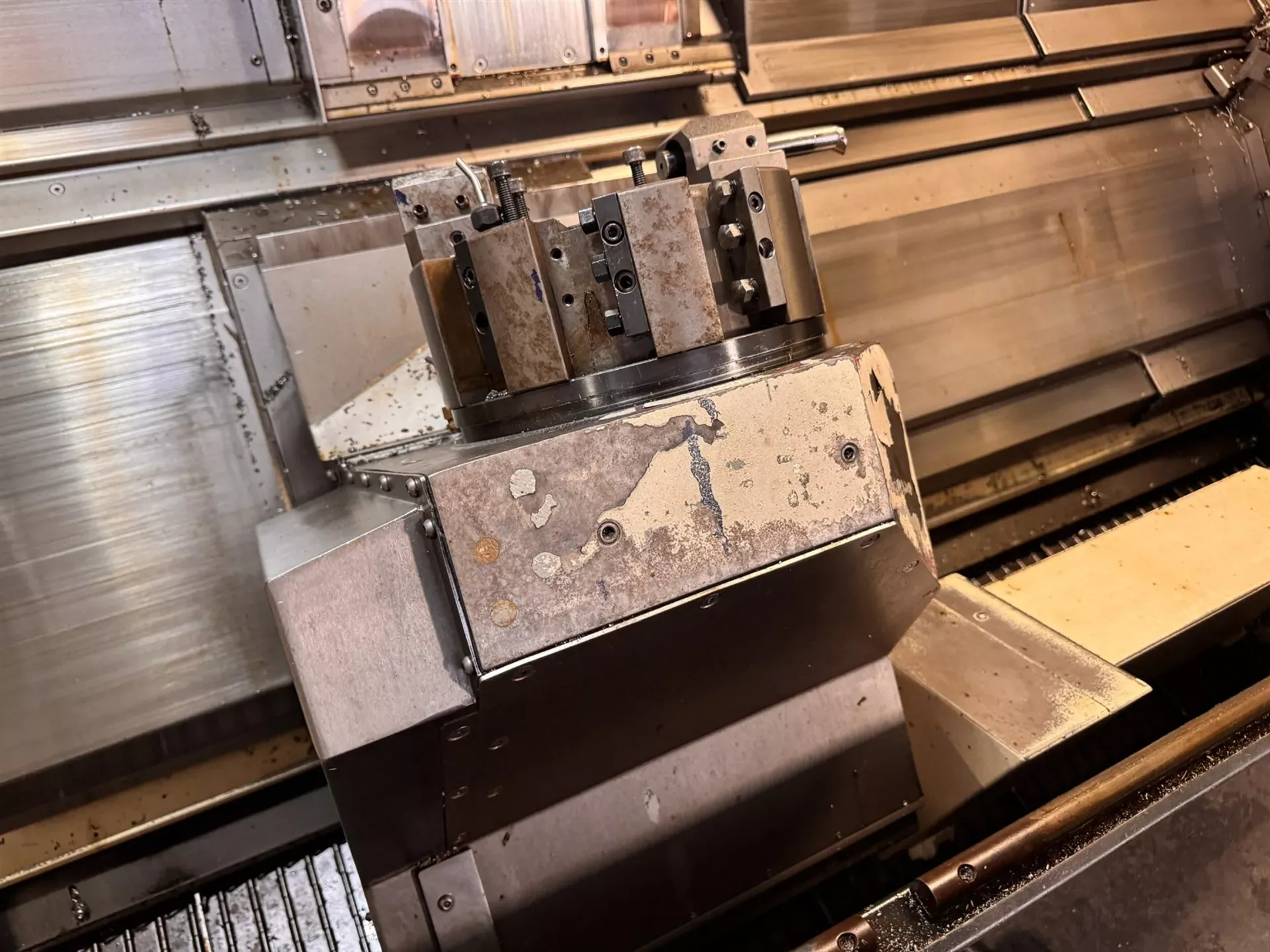

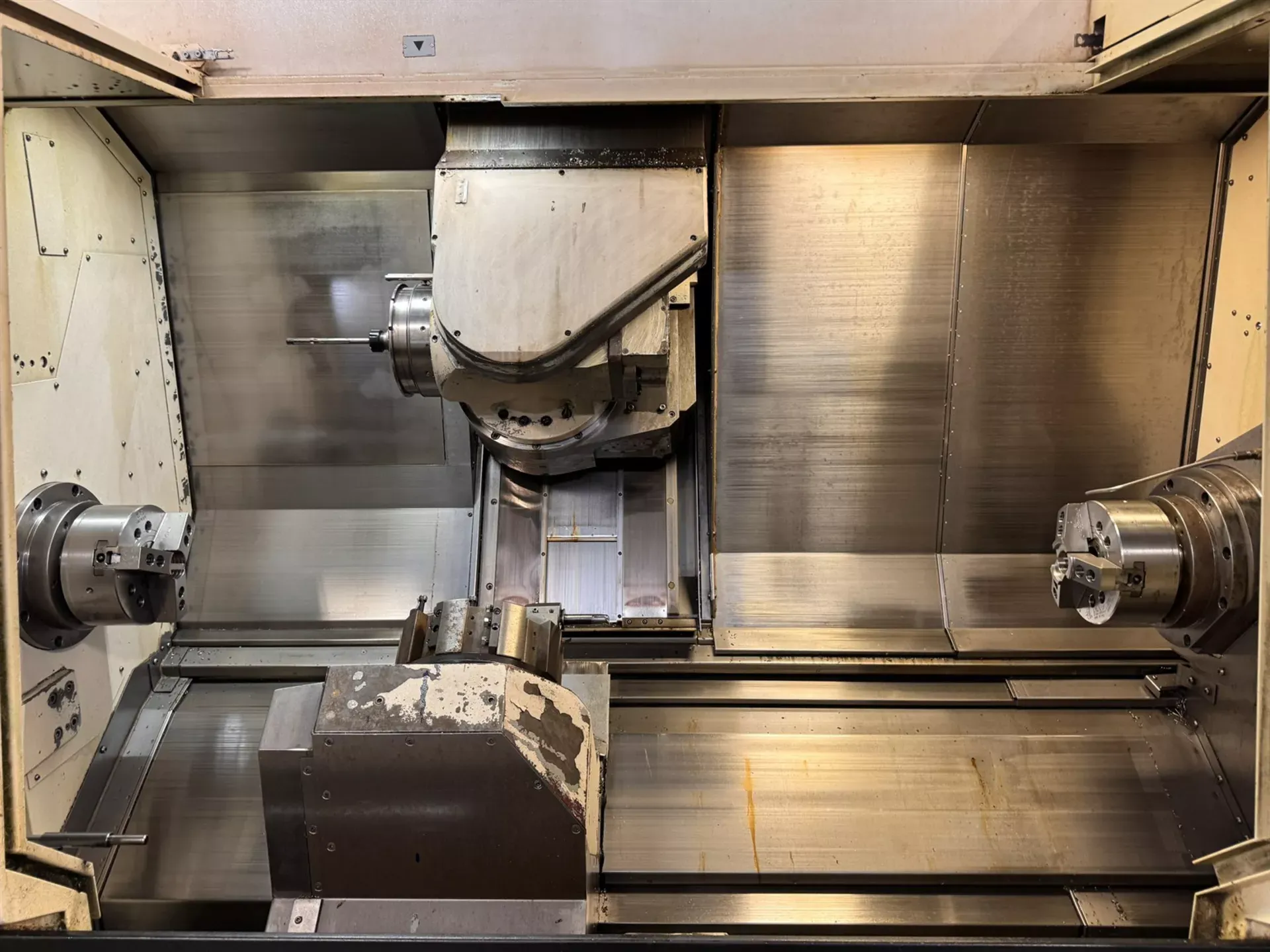

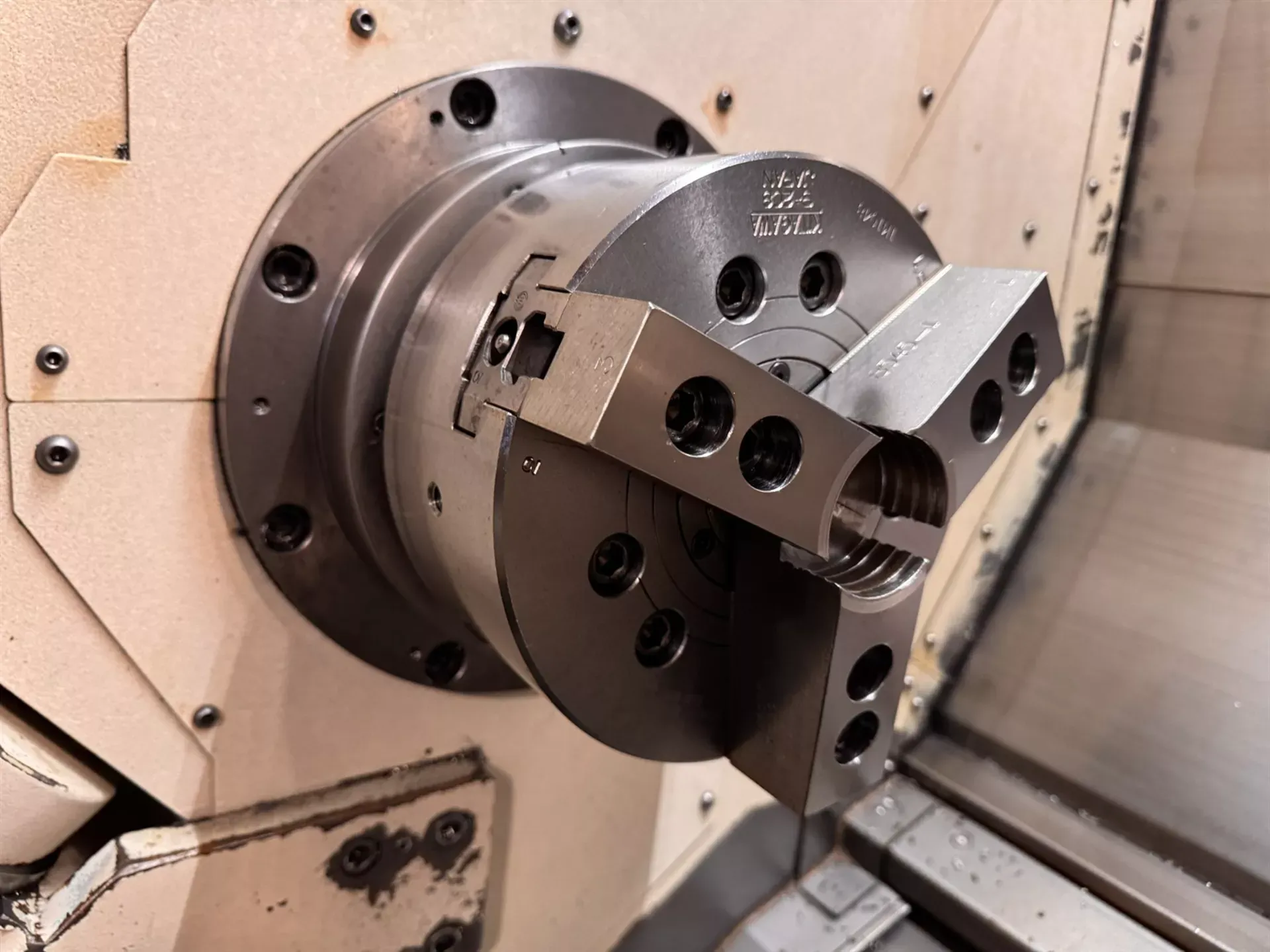

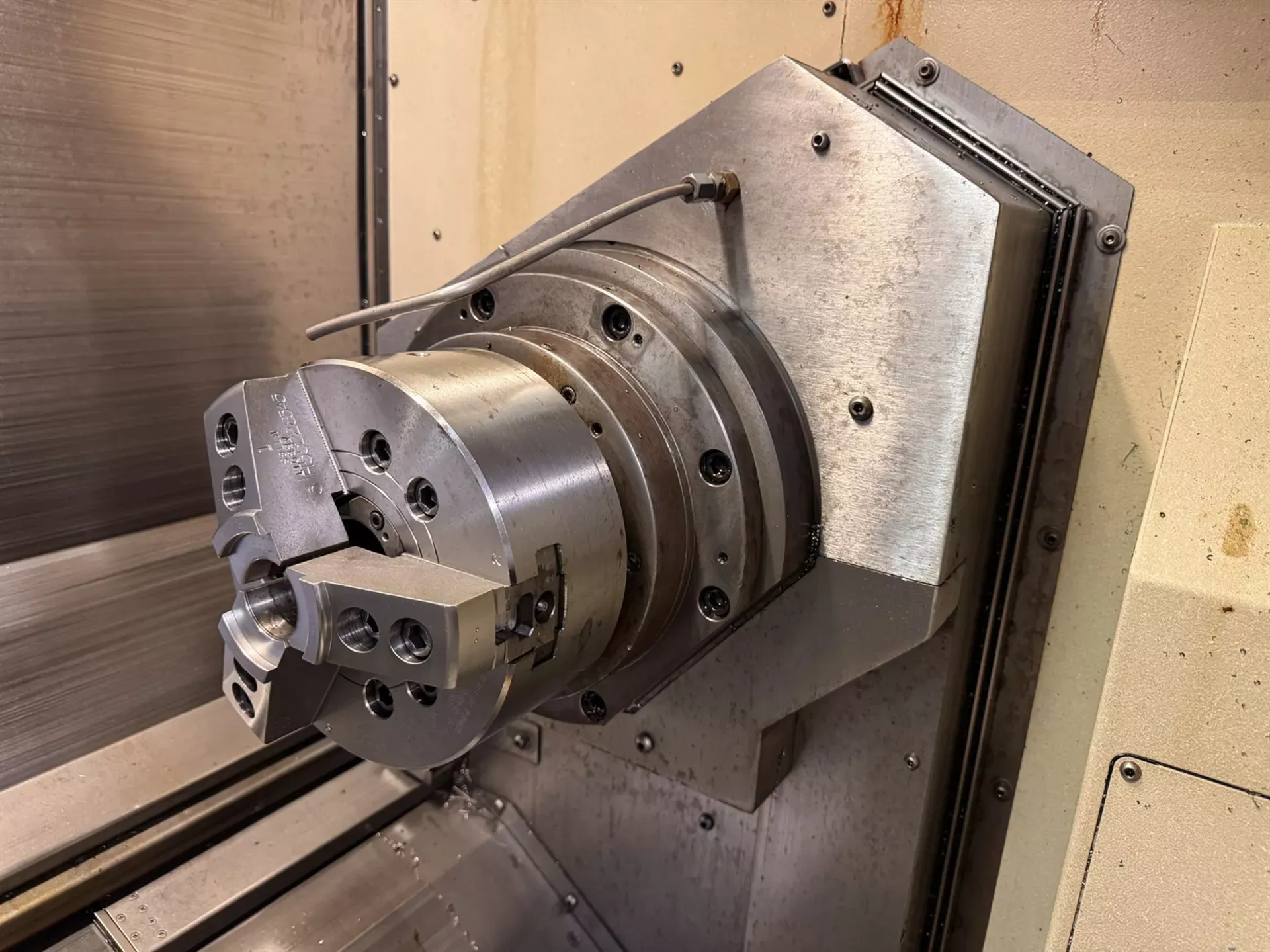

| 9 Station Lower Turret |
| Sub Spindle |
| Servo Controlled Full C-Axis on Both Spindles |
| Y Axis Capability |
| 8″ Chuck on Main Spindle |
| 8″ Chuck on Sub Spindle |
| EIA/ISO Programming |
| 3D Coordinate Conversion |
| Rigid Tapping |
| PCMCIA Card Slot |
| High Pressure Coolant |
| Coolant Tank |
| Foot Operated Control for Chuck |
| Chiller Unit |
| Chip Conveyor |
| Capacity: |
|---|
| Max Turning Diameter: 26.0″ |
| Max Turning Length: 60.0″ |
| Max Bar Capacity: 2.55″ |
| Max Swing Over Bed: 26.0″ |
| Max Swing with Y-Axis: 19.70″ |
| Max Weight on Main & Sub Spindle: 660 lbs |
| Travel: |
|---|
| X Axis Travel: 22.83″ |
| Y Axis Travel: 6.30″ ( +/- 3.15) |
| Z Axis Travel: 60.83″ |
| W Axis Travel: 58.66″ (Sub Spindle) |
| B Axis Travel: 225 Degree |
| C Axis: 360° (0.001°) Both Spindle |
| X Rapid Traverse Rate: 1496 Inch Per Minute |
| Y Rapid Traverse Rate: 1093 Inch Per Minute |
| Z Rapid Traverse Rate: 1496 Inch Per Minute |
| Spindle: |
|---|
| Main Spindle Nose: A2-6 |
| Sub Spindle Nose: A2-6 |
| Main Spindle Bore: 2.99″ |
| Sub Spindle Bore: 2.99″ |
| Main Spindle Speed: 35 – 5000 RPM |
| Sub Spindle Speed: 35 – 5000 RPM |
| Main Spindle Motor: 30 HP |
| Sub Spindle Motor: 25 HP |
| Milling Head: |
|---|
| Single Station Pendulum Head with 40 ATC |
| Tool Type: KM-63, 40 Taper |
| Max Tool Diameter: 3.54″ |
| Max Tool Length: 11.81″ |
| Spindle Speed: 15-12,000 RPM |
| Spindle Motor: 25 HP |
| Spindle 90° Index Time: 0.5 sec |
| Lower Turret: |
|---|
| Capacity: 9 Stations |
| Turret Index Time: 0.14 Second |
| OD Tool Size: 1.00″ |
| General: |
|---|

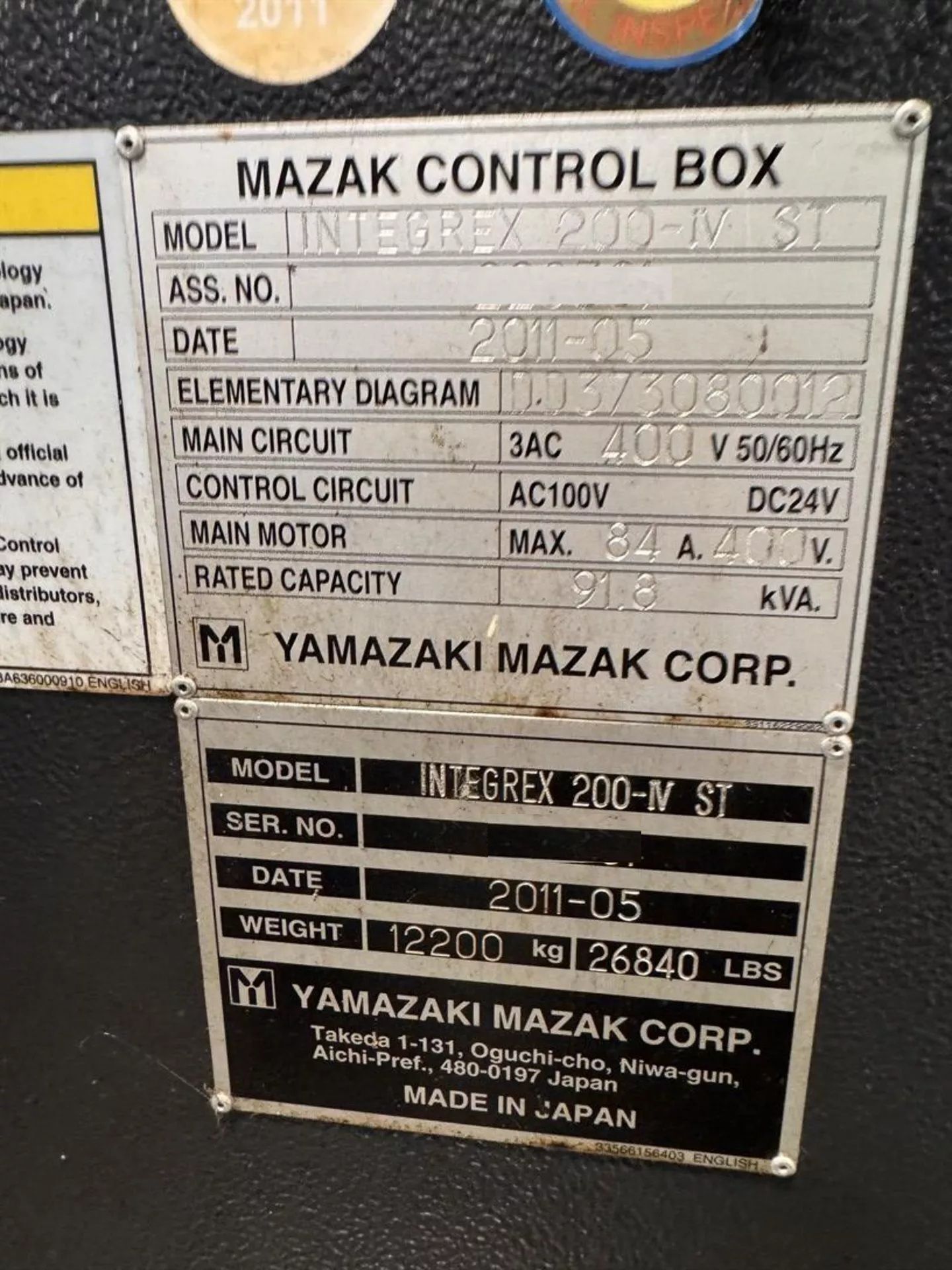

| Power Source: AC 400 V, Three Phase, 50/60 Hz |
| Power Requirement: 91.8 Kva |
| Overall Dimensions: 160″ x 93.0″ x 110.2″ High |
| Weight: 26,840 lbs Approx. |
