*All specifications are approximations and are subject to verification. Comes as shown in the images. Please give us a call if you have any questions before purchasing. All sales are final.*

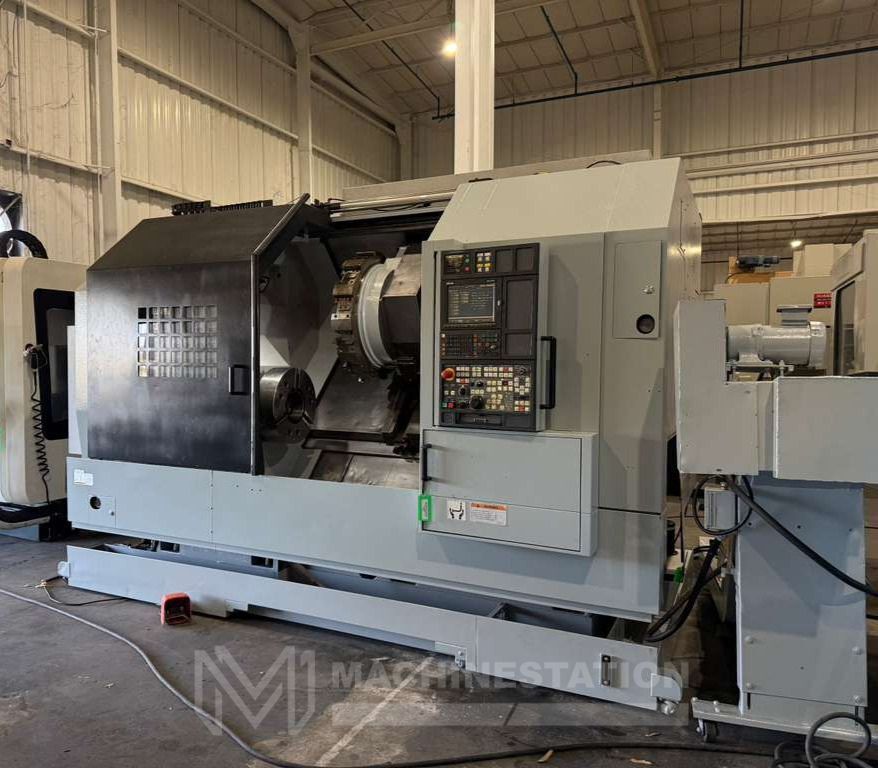

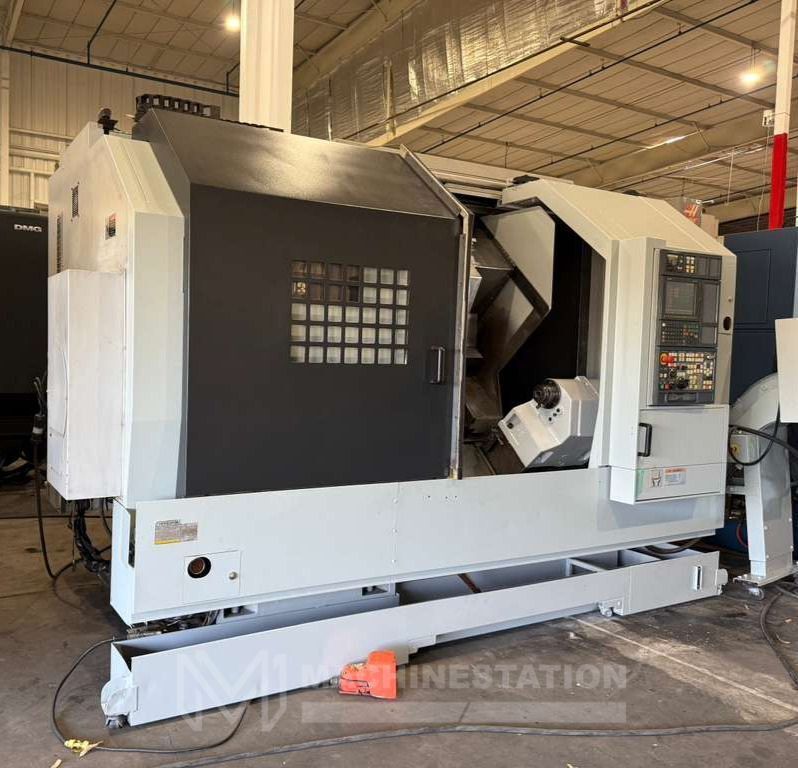

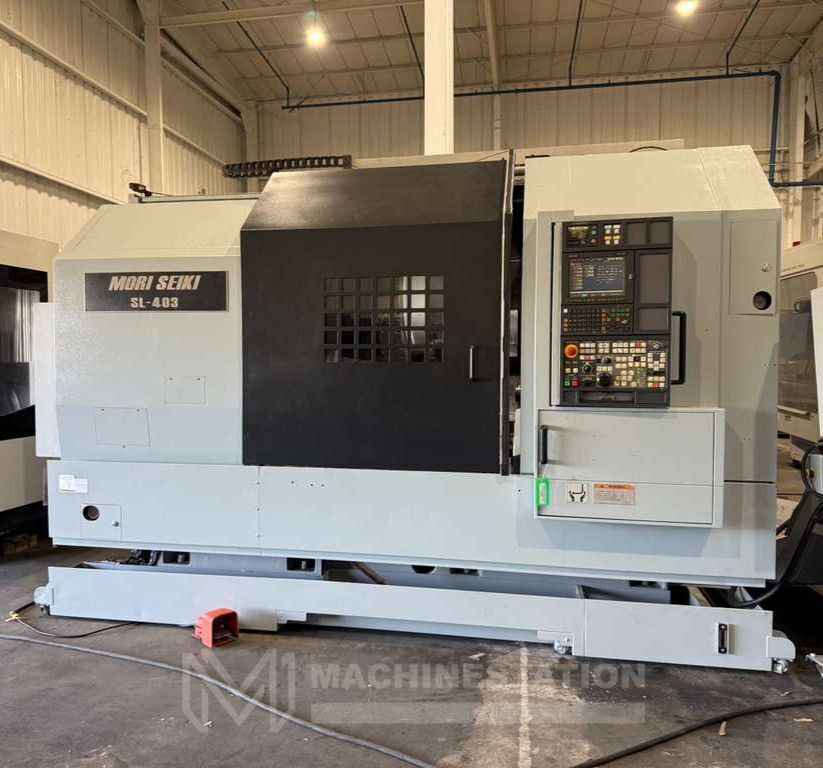

| Make: | Mori Seiki |
| Model: | SL-403B/800 |
| Year: | 2006 |
| Equipped With: |
|---|

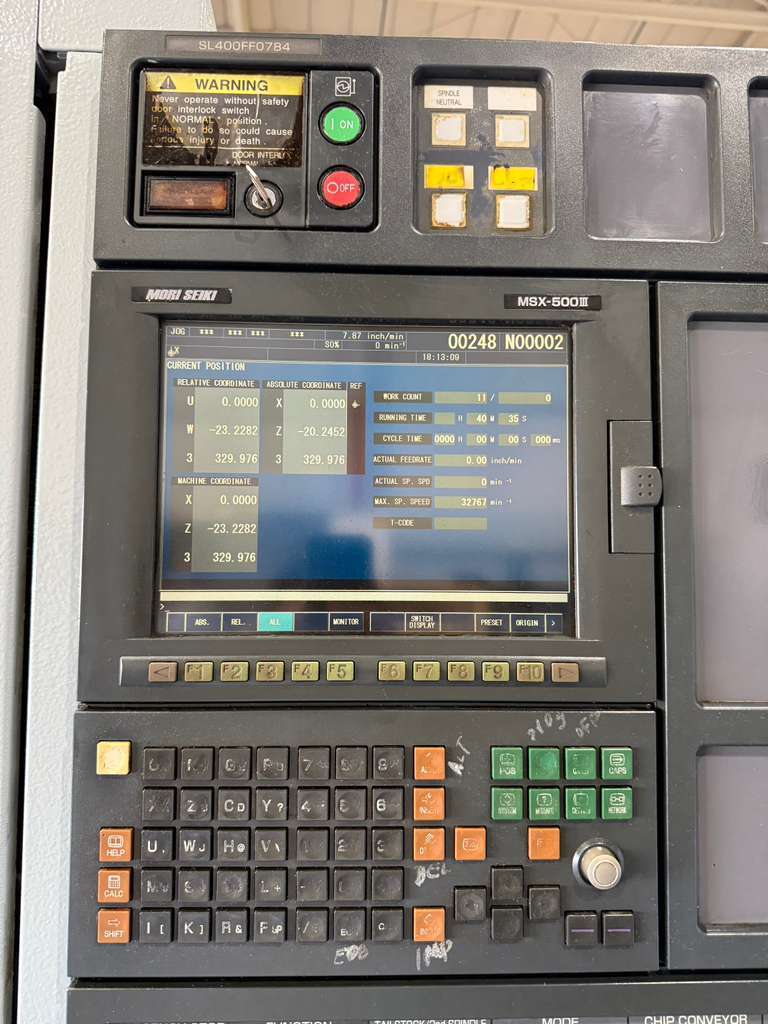

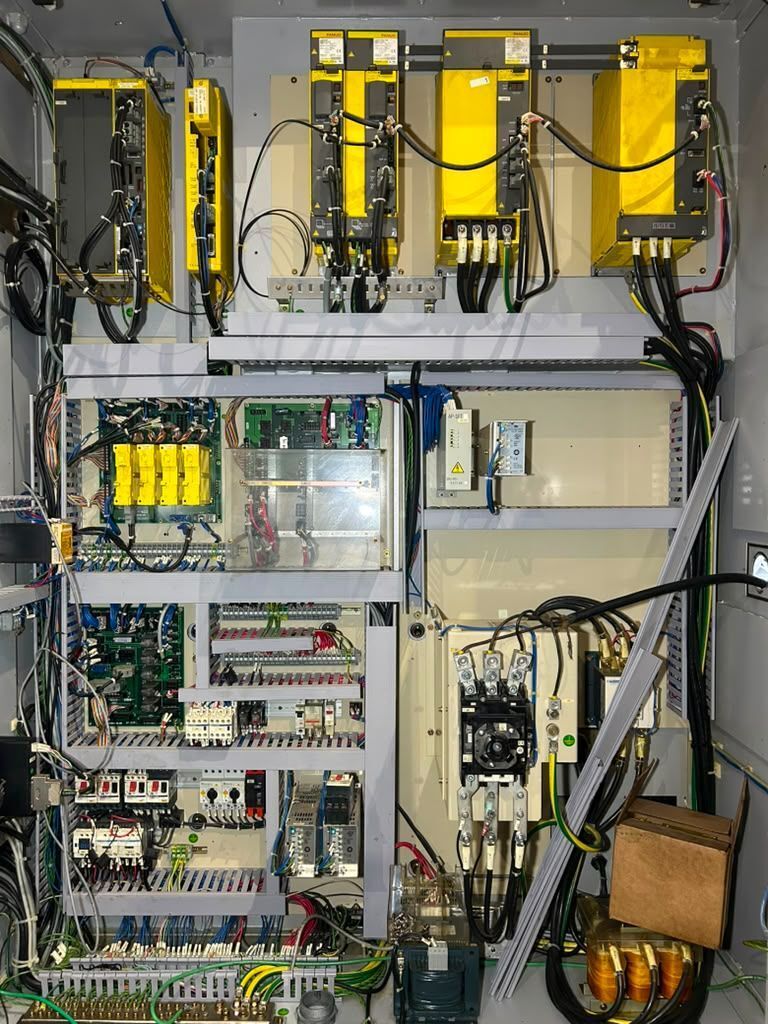

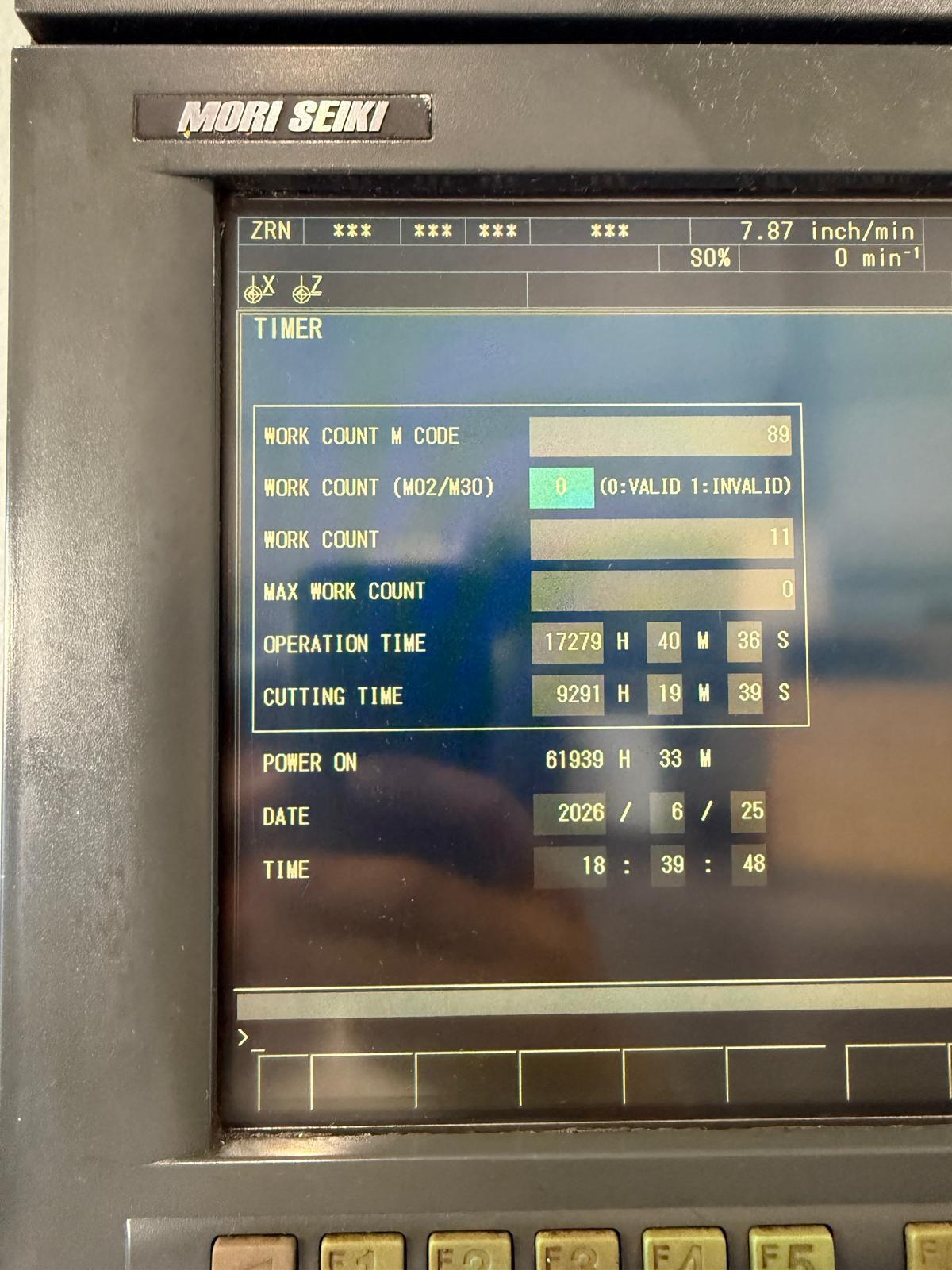

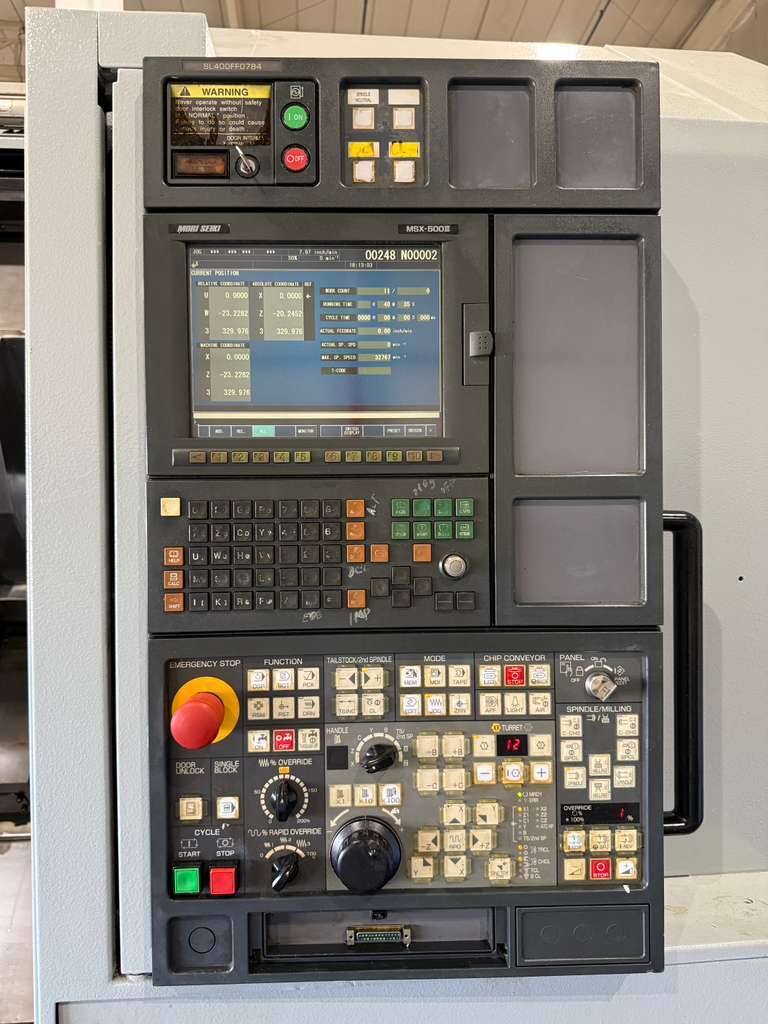

| Mori Seiki MSX-500III (Fanuc) CNC Control |

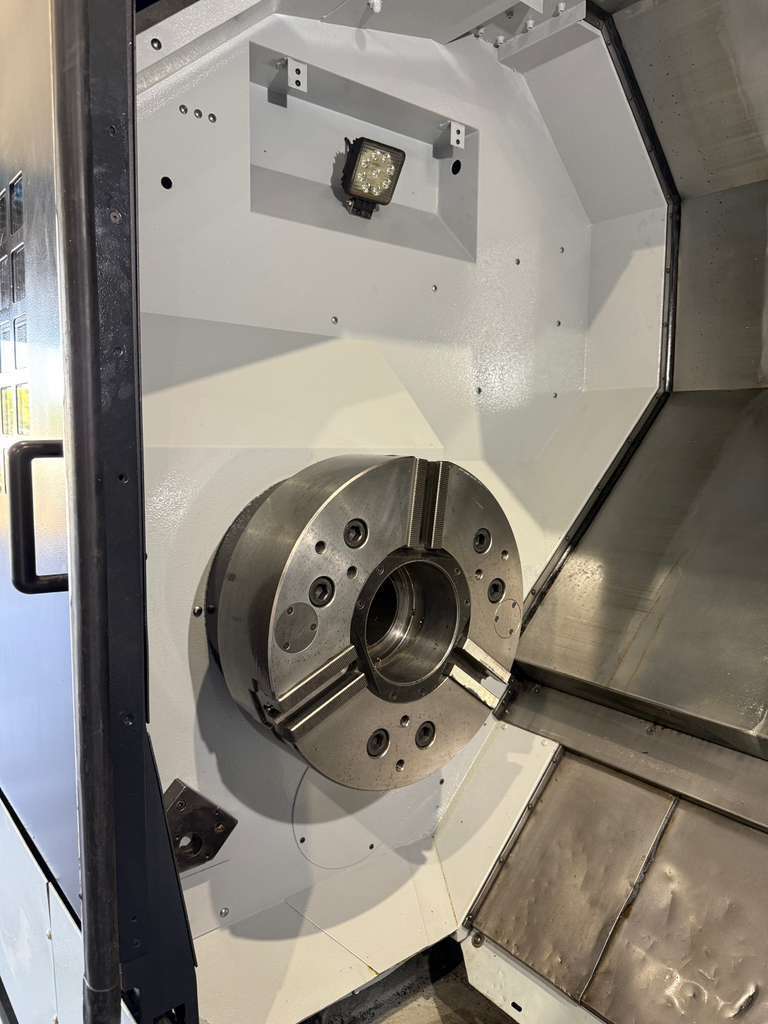

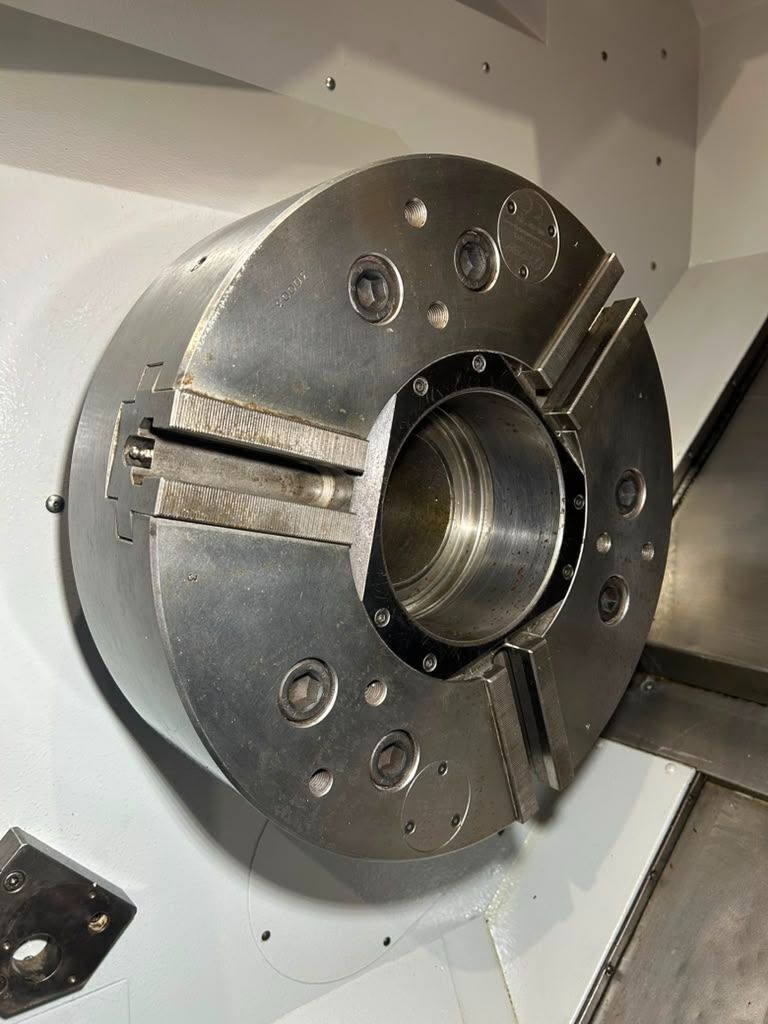

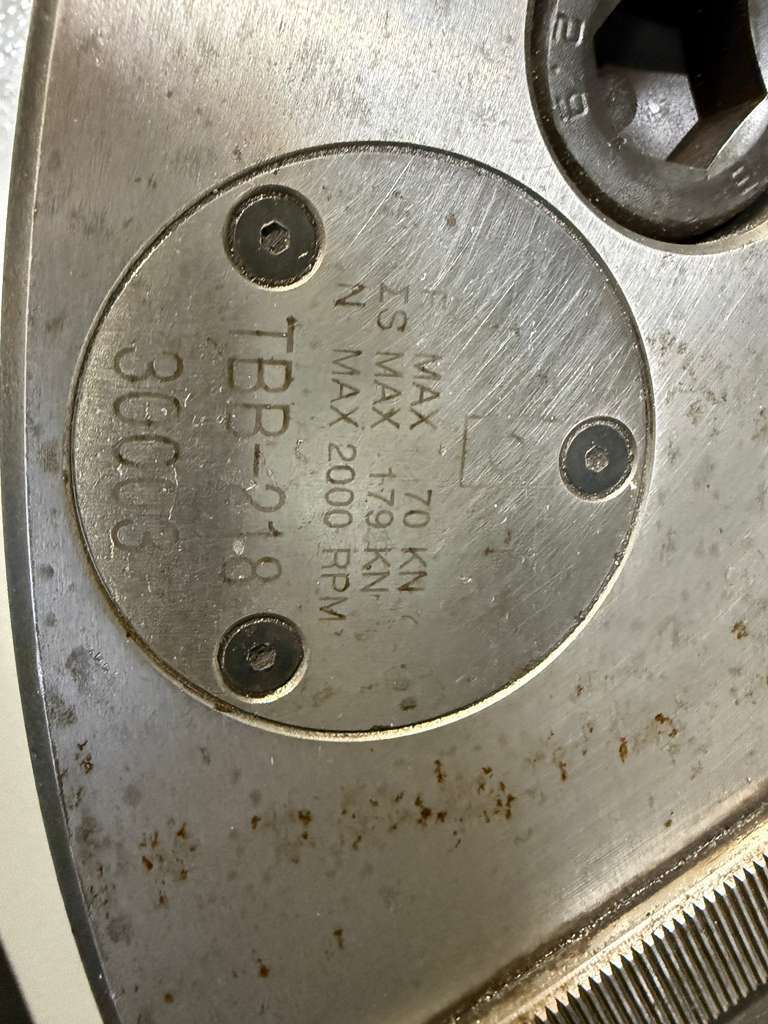

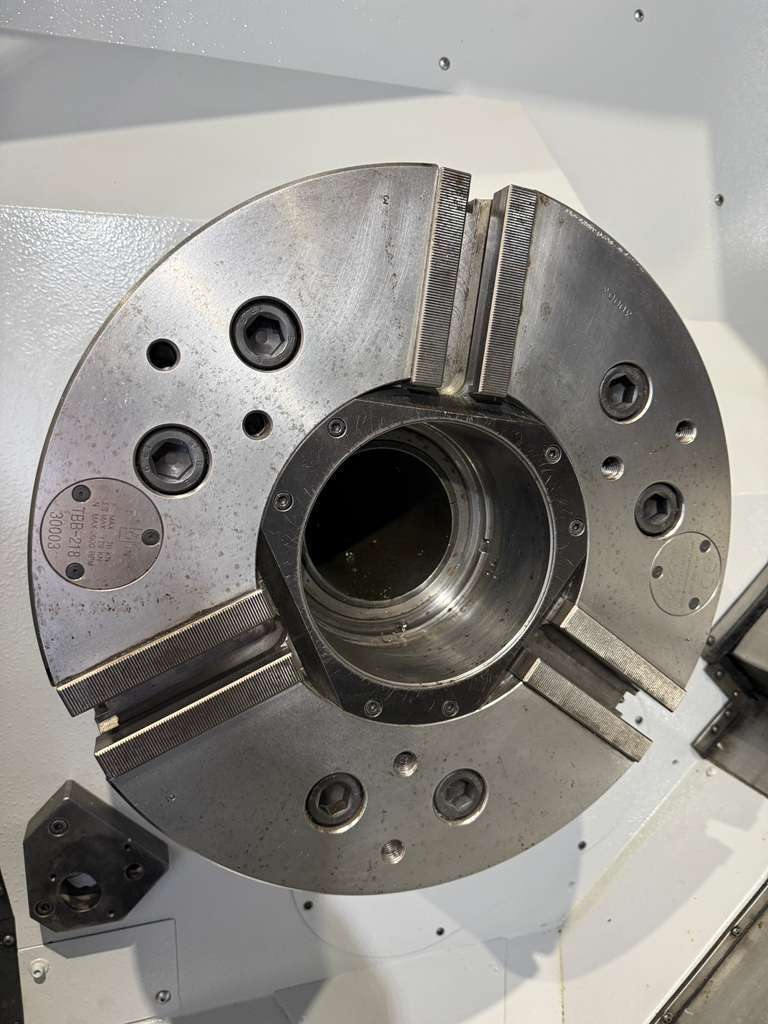

| 18″ Kitagawa BB218 3-Jaw Hydraulic Chuck with 6.5” Through Hole |
| A2-11 Spindle Nose, 2400 RPM Spindle |

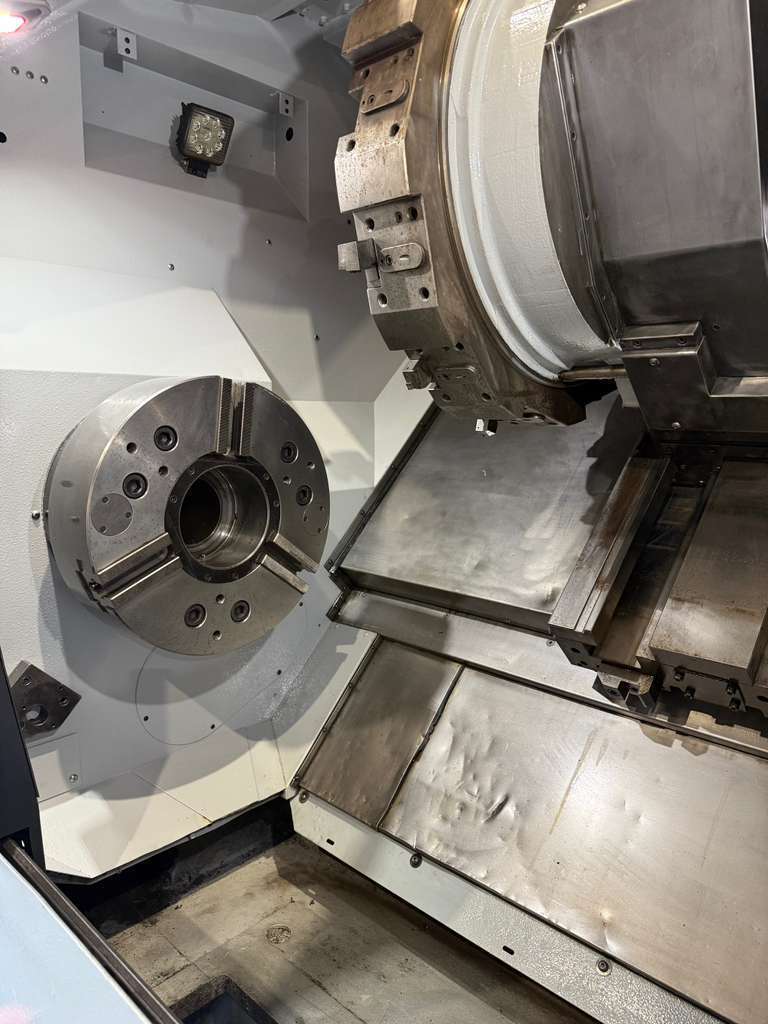

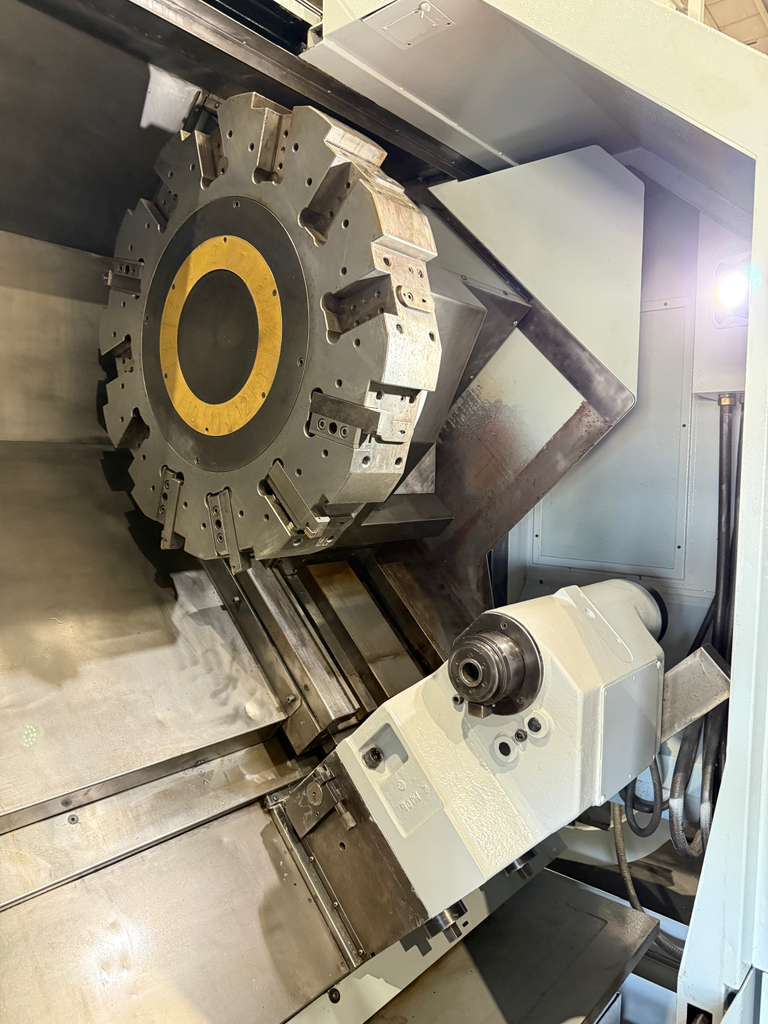

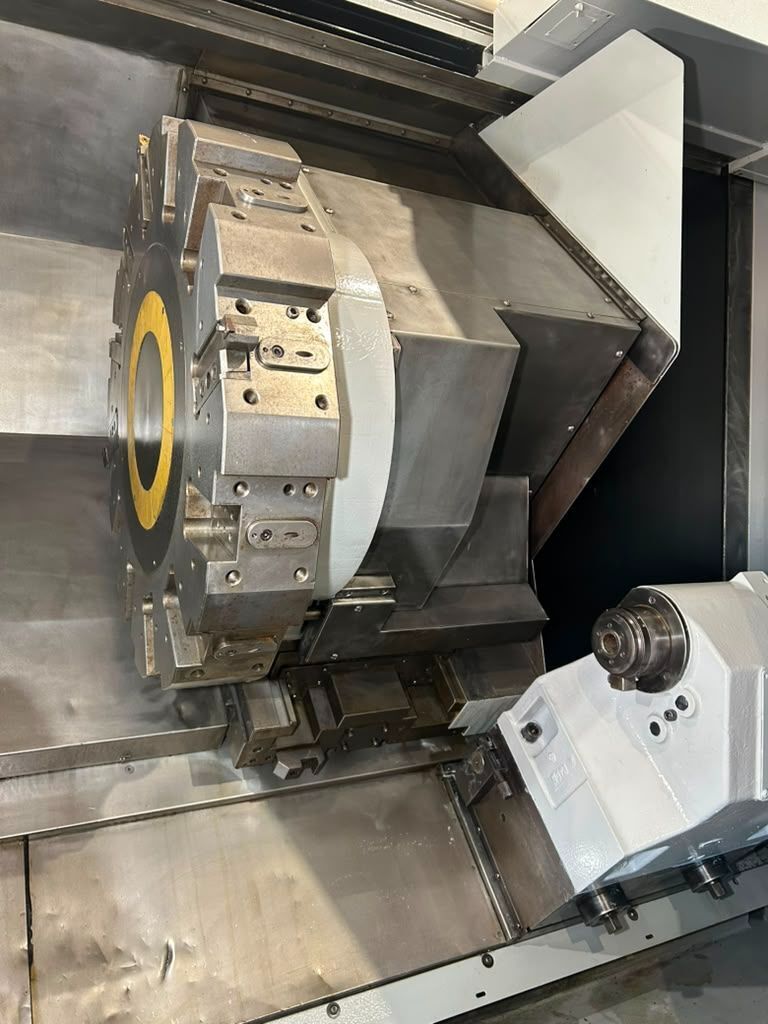

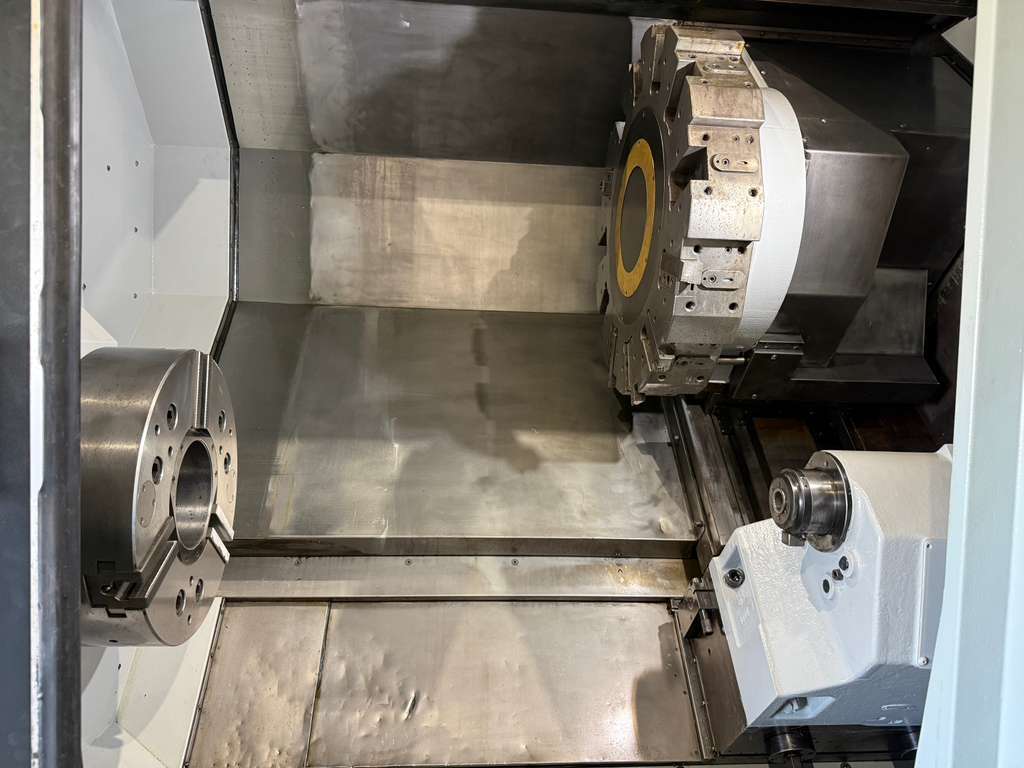

| 12-Station Automatic Turret |
| Tailstock |
| Automatic Lubrication Unit |
| Coolant Tank |

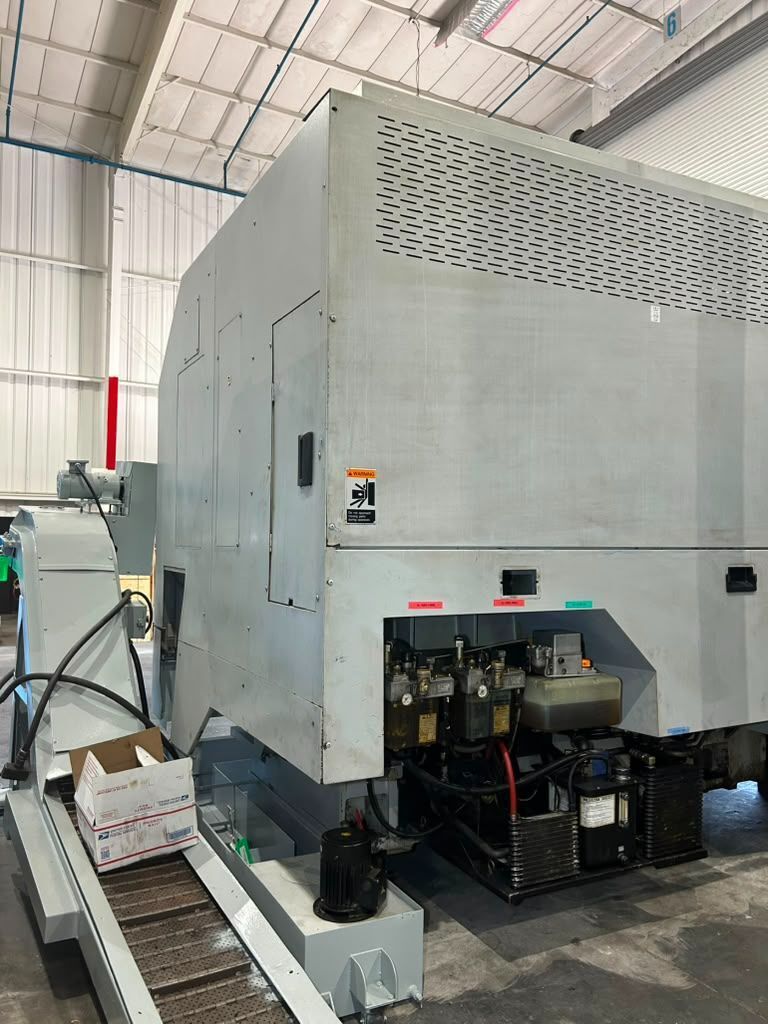

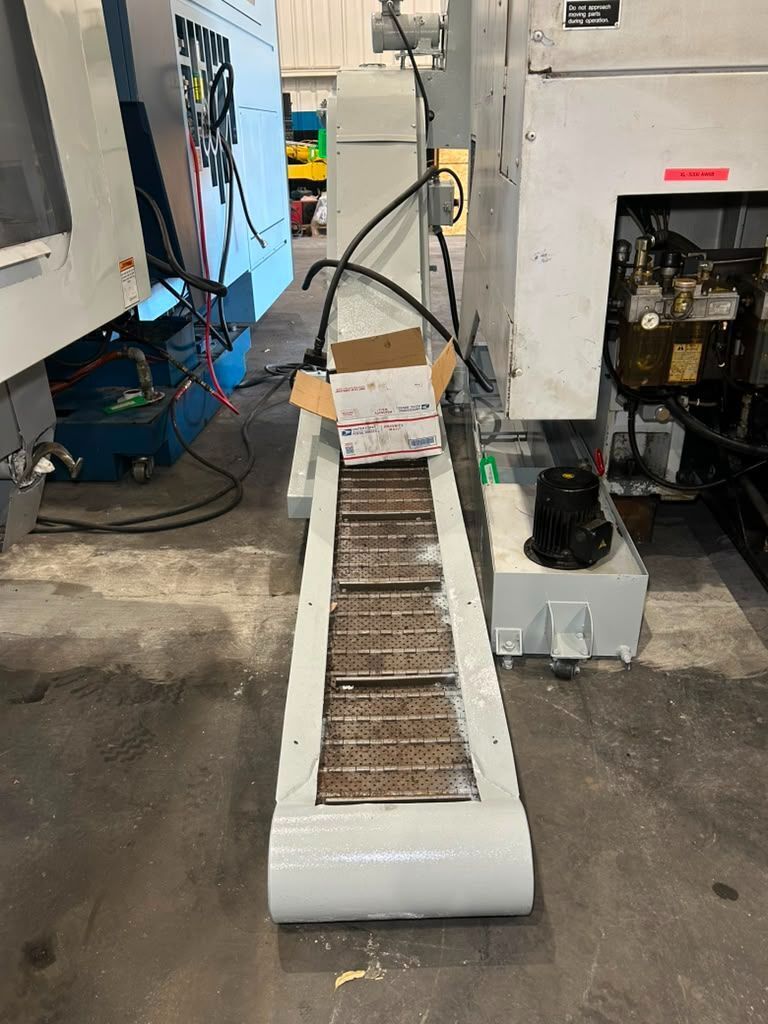

| Chip Conveyor |
| Foot Switch |

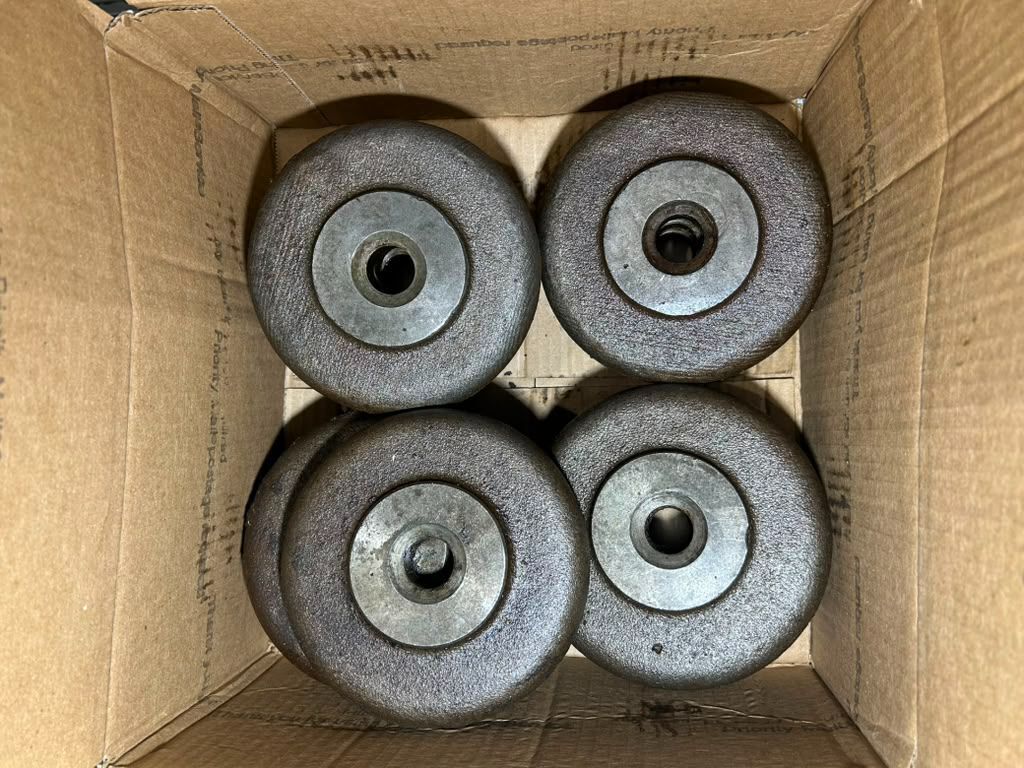

| Levelling Pads |
| Capacity: |
|---|
| Max Turning Diameter: 24.4″ |
| Max Turning Length: 37.7″ |
| Swing Over Cross Slide: 29.1″ |
| Max Bar Capacity: 4.62″ |
| Travels: |
|---|
| X Axis Travel: 13.6″ |
| Z Axis Travel: 39.2″ |
| Feed Rates: |
|---|
| Rapid Traverse X: 787.4 IPM |
| Rapid Traverse Z: 944.9 IPM |
| Spindle: |
|---|
| Spindle Nose: A2-11 |
| Spindle Bore: 5.1″ |
| Spindle Speed: 2400 RPM |
| Spindle Motor: 40 HP |
| Turret: |
|---|
| Turret Capacity: 12 Stations |
| Turret Index Time: 0.4 seconds |
| Turning Tool Size: 1.25″ |
| Boring Tool Diameter: 2.5″ |
| Tailstock: |
|---|
| Tailstock Taper: MT-4 |
| Tailstock Body Travel: 33.5″ |
| General: |
|---|

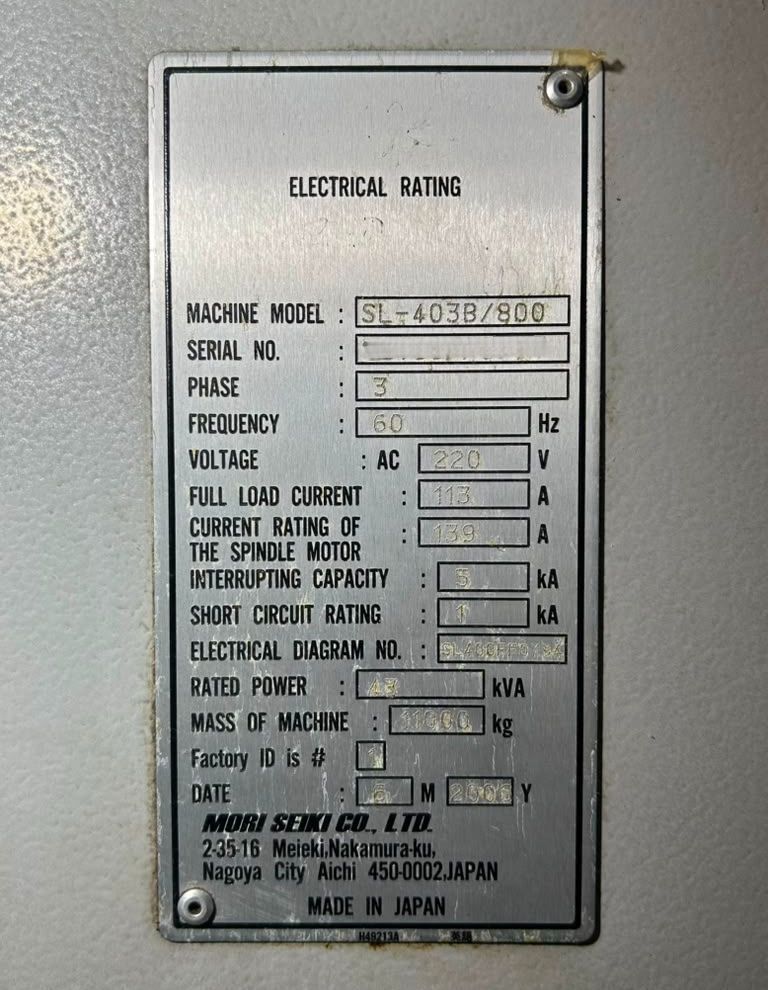

| Power Source: AC 220v/ Three Phase/ 60 Hz |
| Power Requirement: 43 kVA |
| Overall Dimensions: 149″ x 92″ x 96.7″ High Approx. |
| Machine Weight: 24,200 LBS Approx. |
