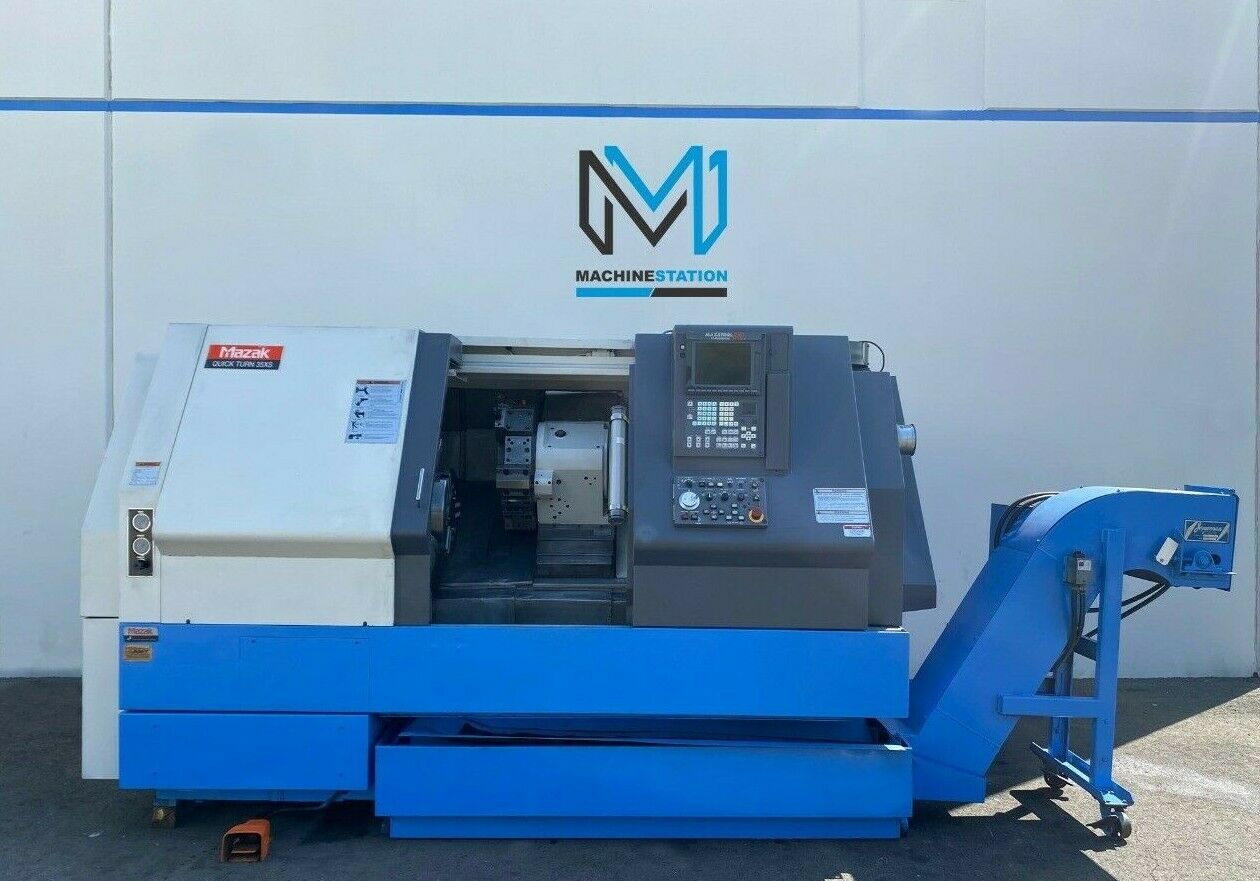

Used MAZAK QUICK TURN QT-35XS CNC Turning Center

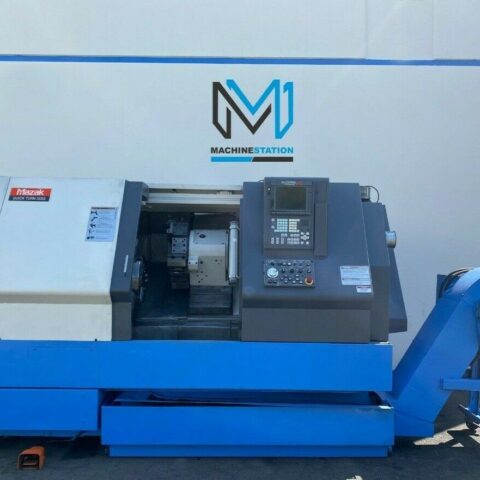

MAZAK QUICK TURN QT-35XS CNC Turning Center

Location Lake Elsinore, CA

SKU 105008

Make Model No. MAZAK QT- 35XS

Year 1998/2000

Country of Origin Japan

Condition Used-Good

Out of stock

Location	Lake Elsinore, CA
SKU	105008
Make Model No.	MAZAK QT- 35XS
Year	1998/2000
Country of Origin	Japan
Condition	Used-Good

SKU: 105008

*All specifications are approximations and are subject to verification.

Location	Lake Elsinore, CA
SKU	105008
Make Model No.	MAZAK QT- 35XS
Year	1998/2000
Country of Origin	Japan
Condition	Used-Good

MAZAK QUICK TURN QT-35XS Equipped With:

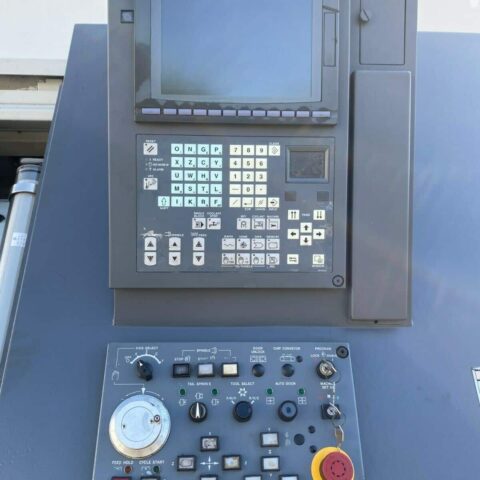

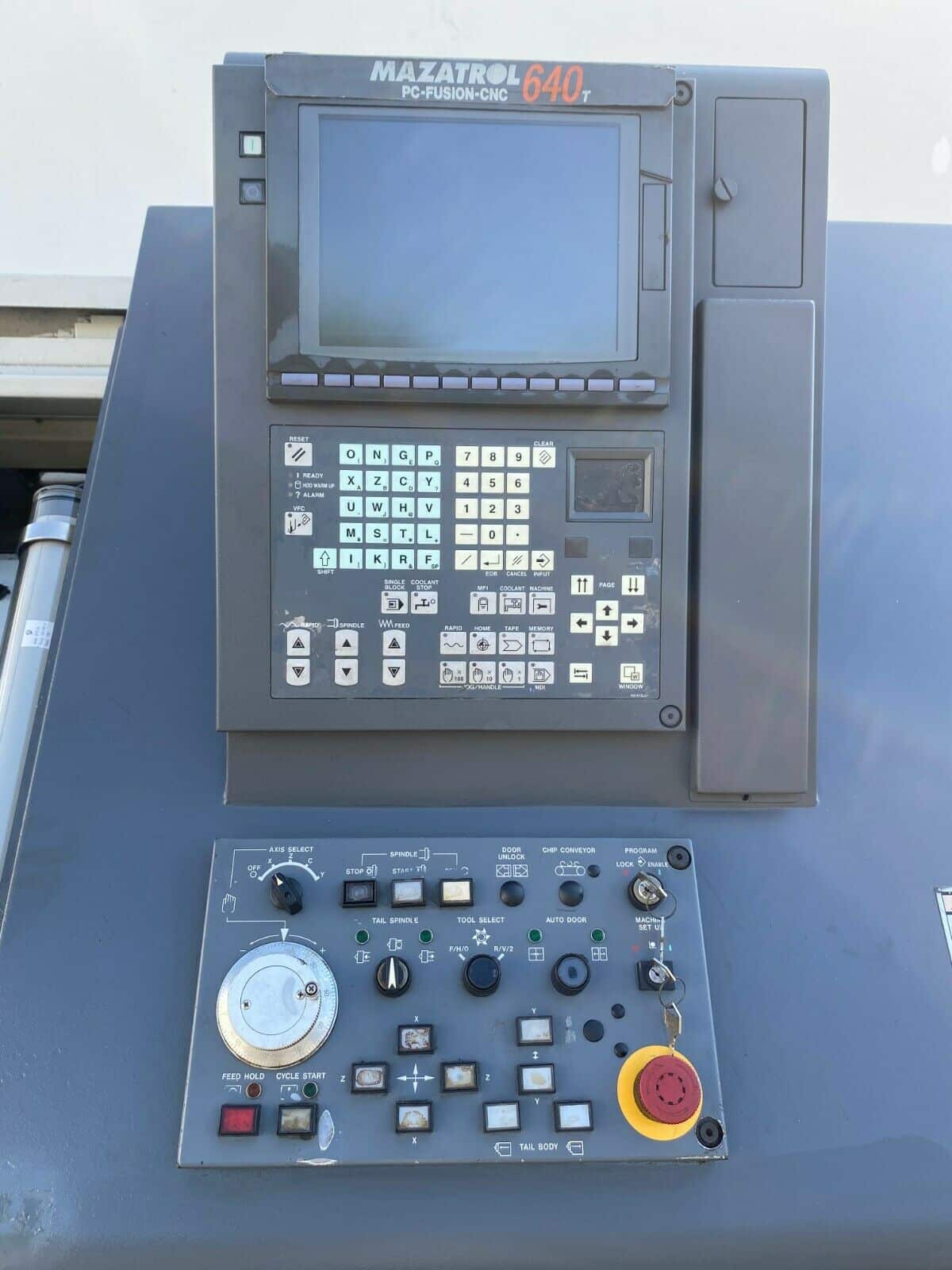

Mazak Fusion 640T Control
Tool Presetter

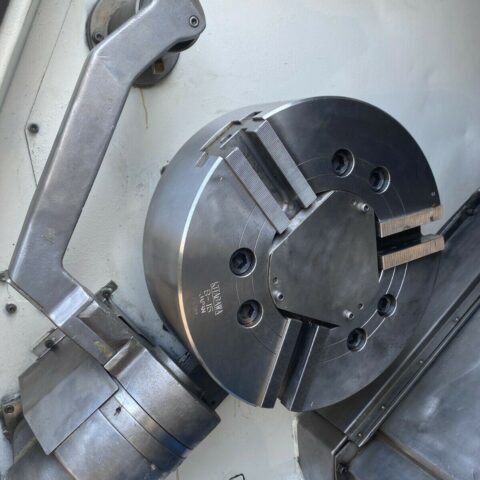

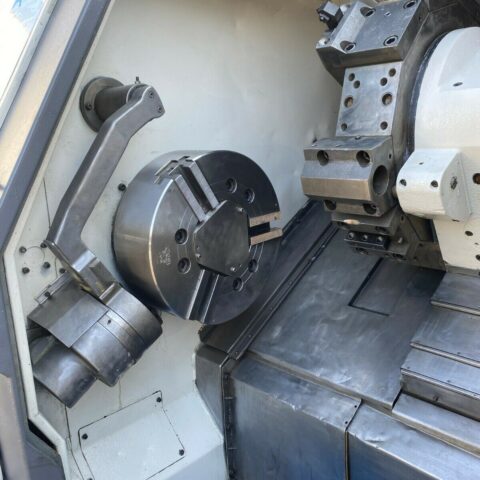

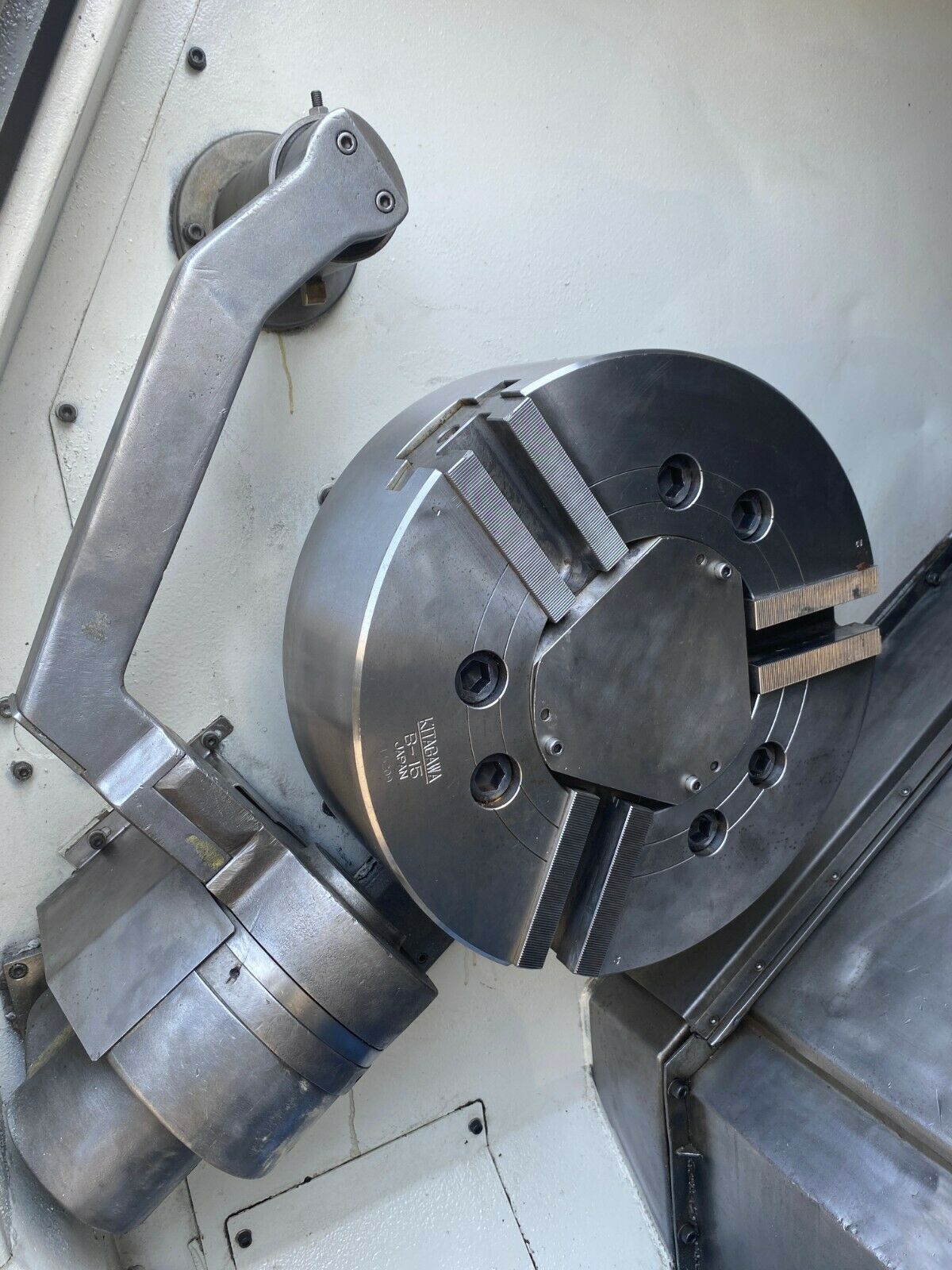

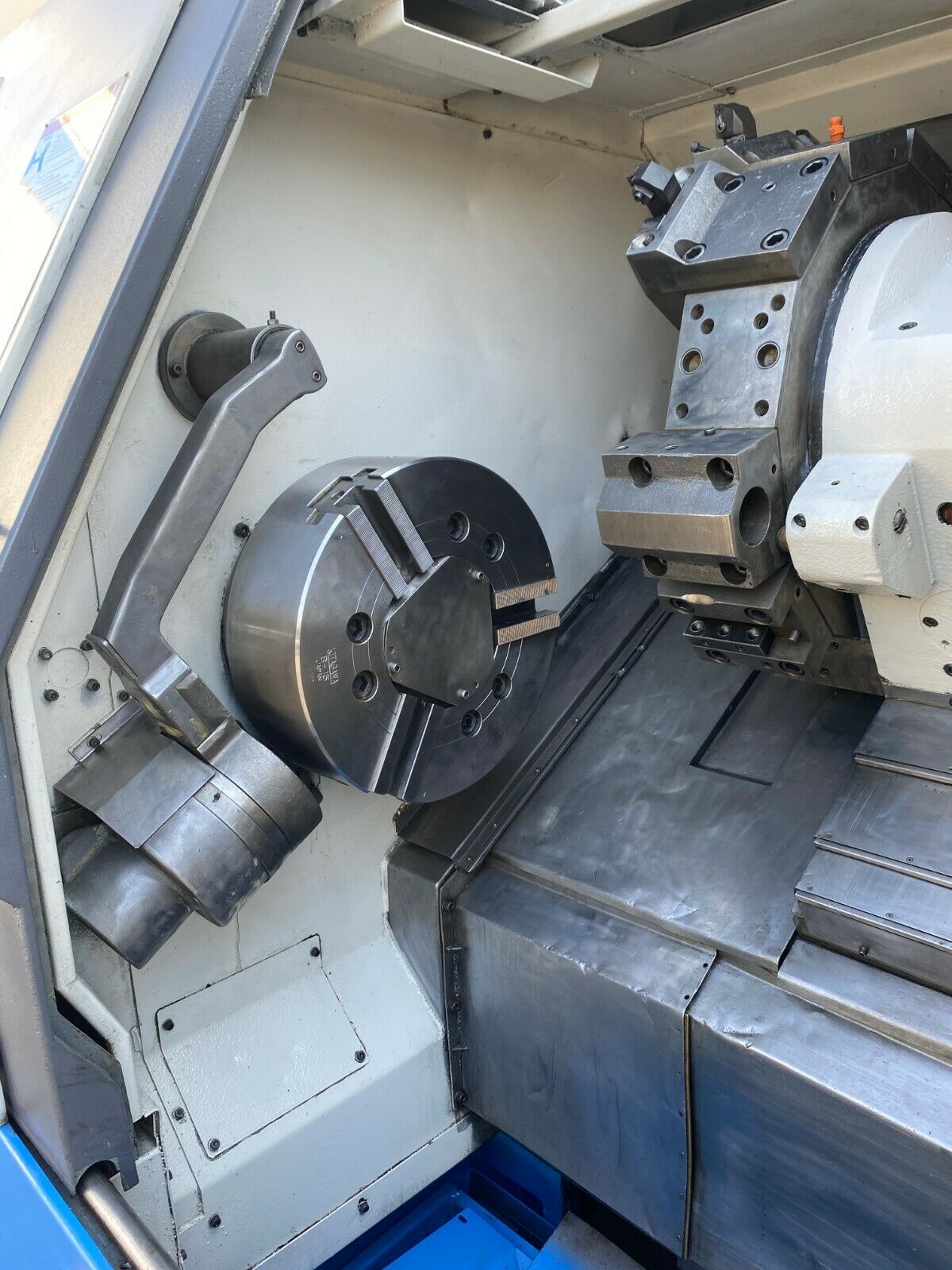

15″ 3-Jaw Kitagawa Hydraulic Chuck
PCMCIA Card Slot
2 Step gear spindle for powerful torque

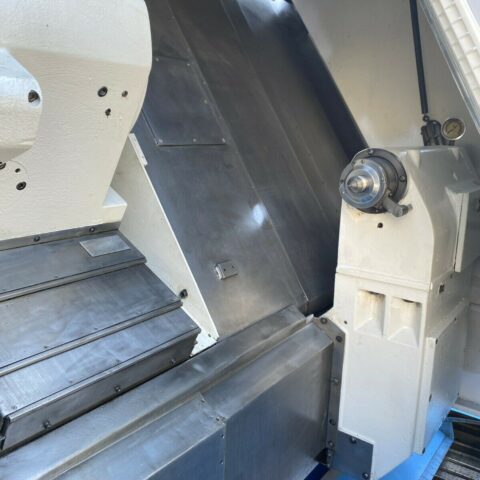

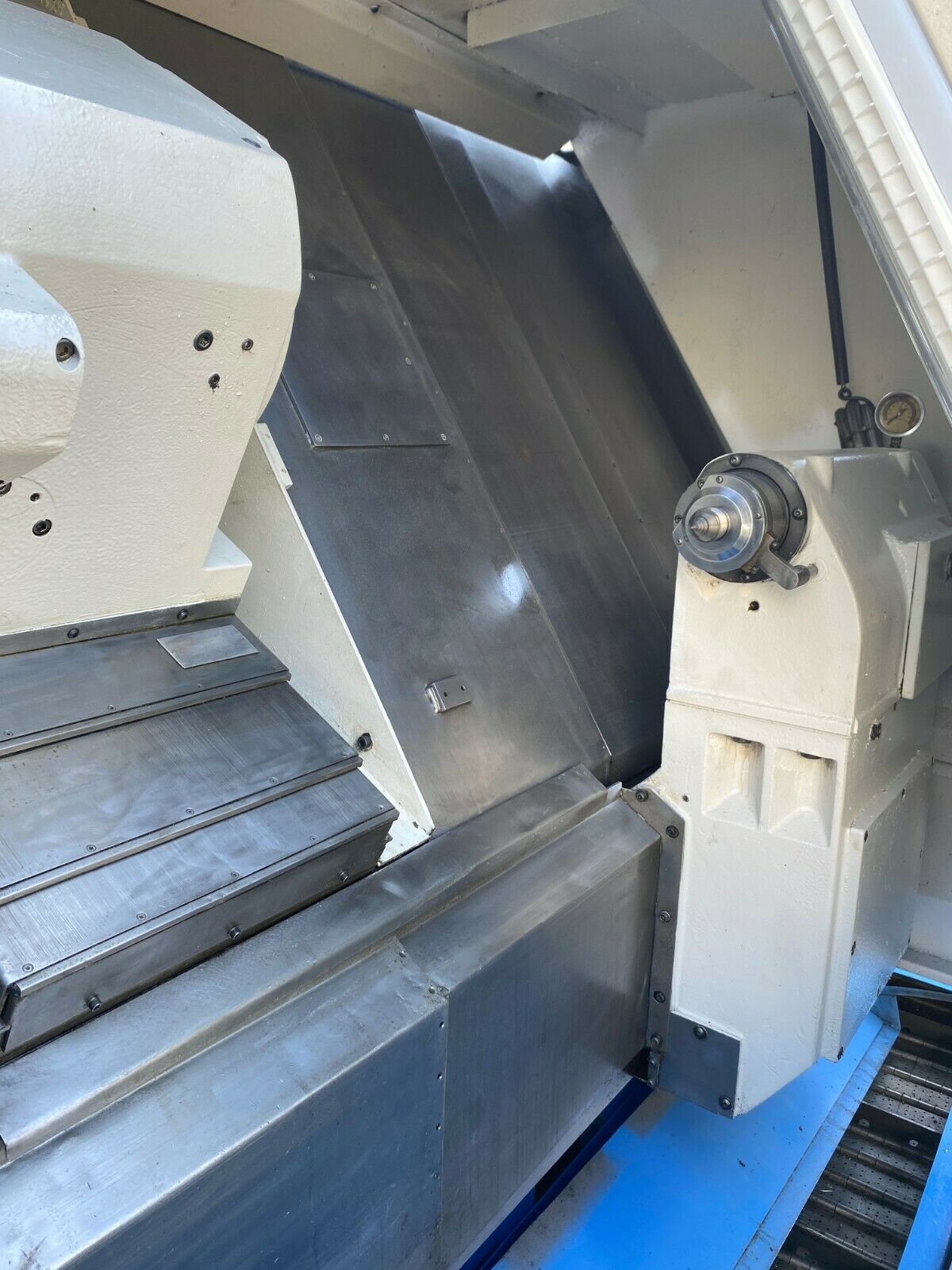

Programmable Tailstock with Power Quill

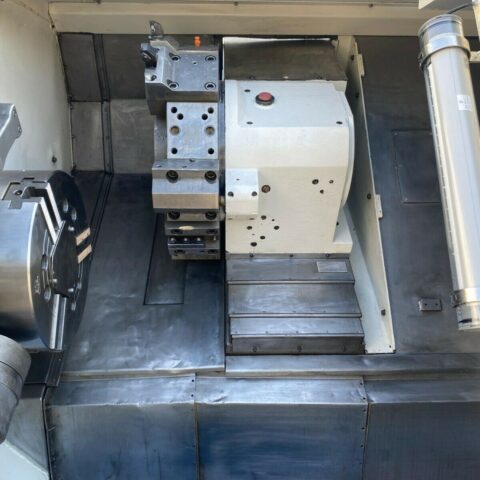

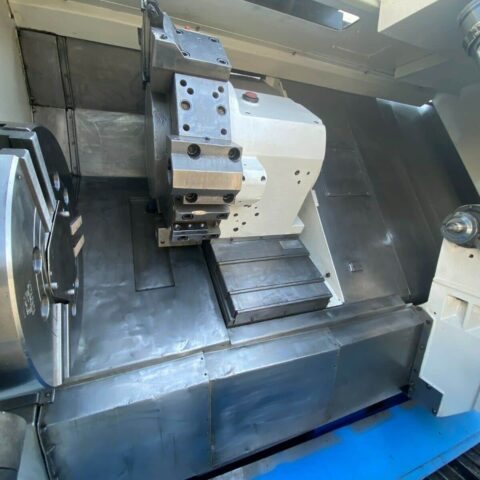

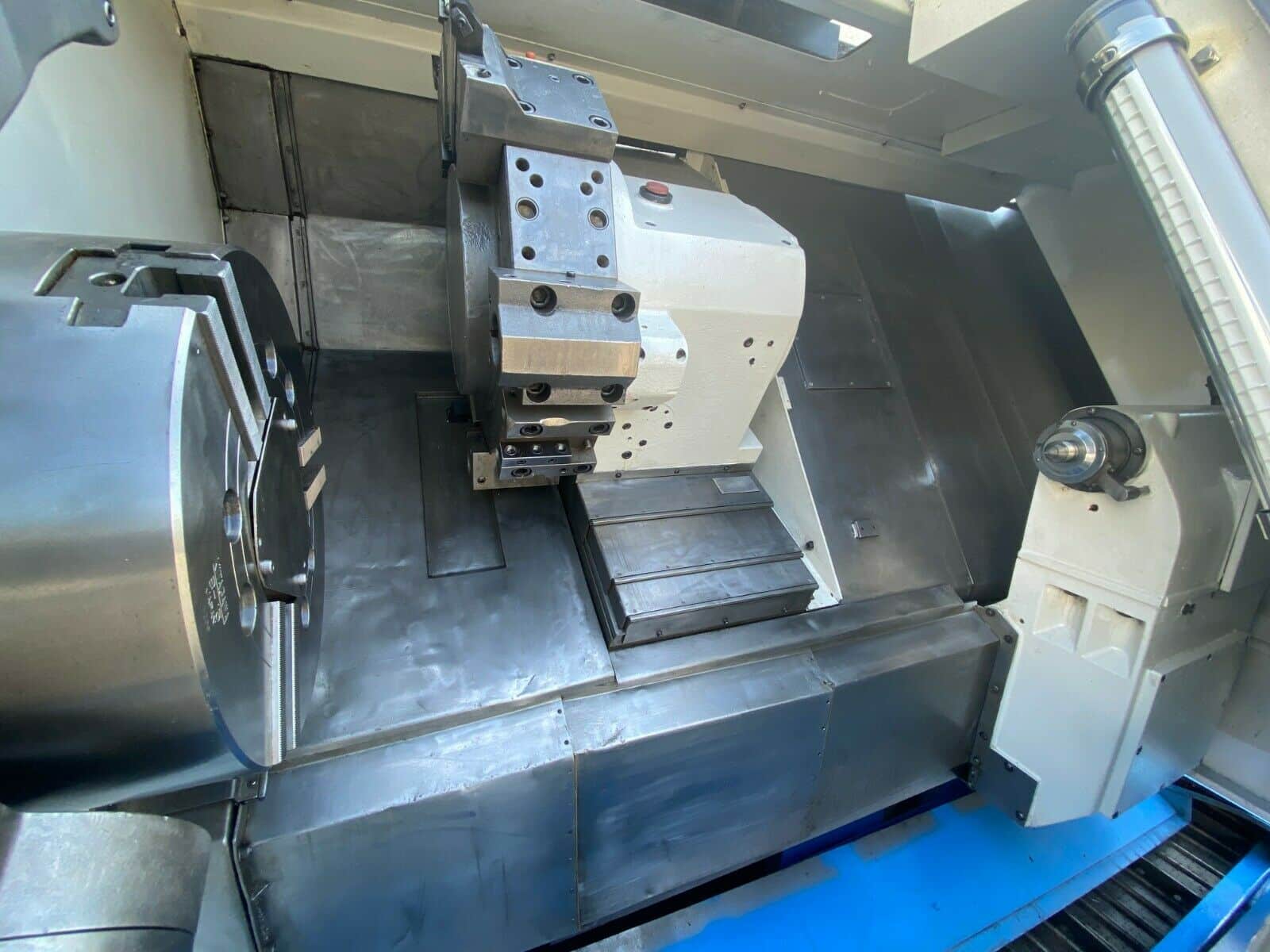

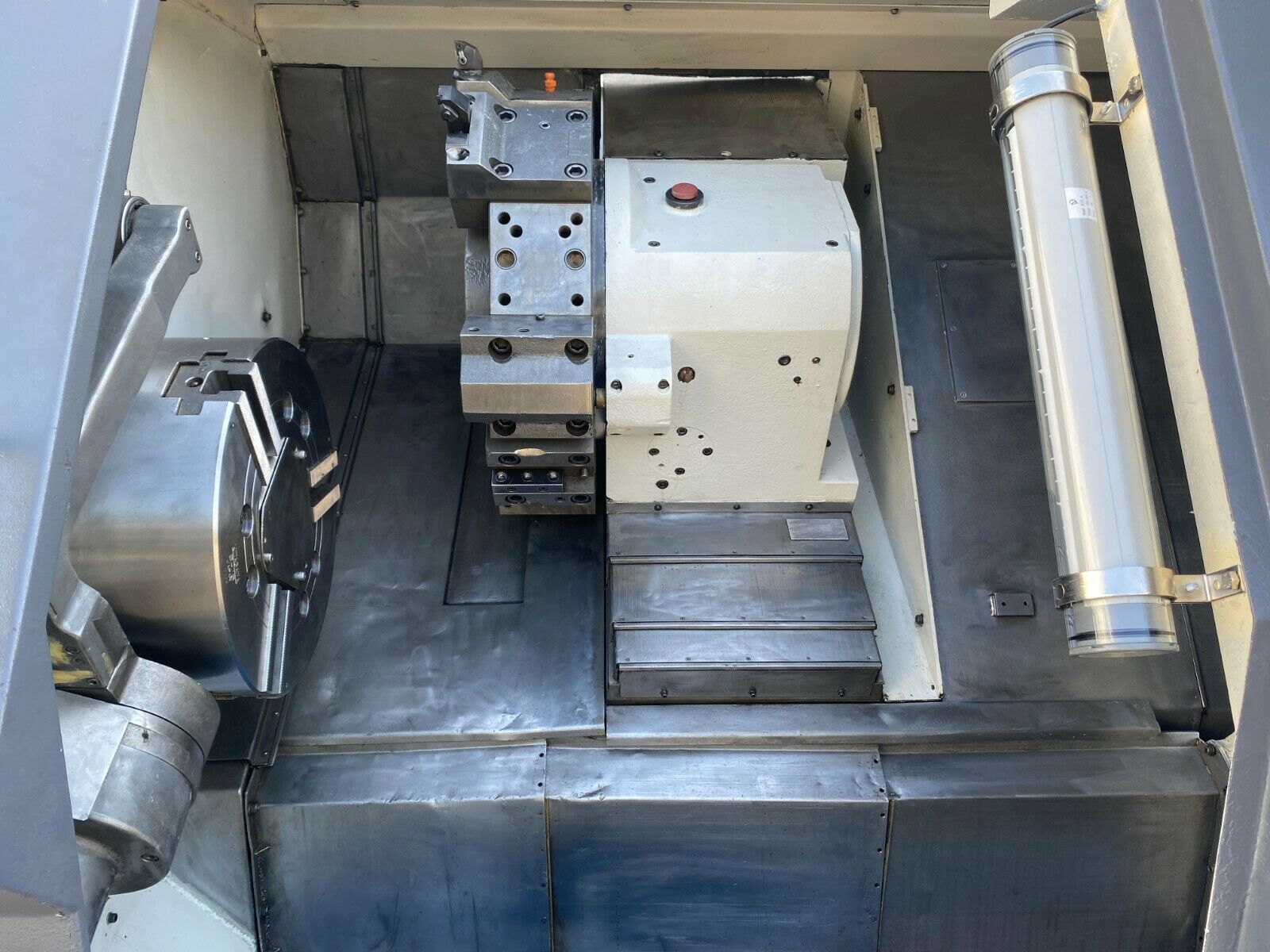

12 Station Turret with Tooling
Coolant System.
Automatic Lubrication system
Foot Operated Control for Chuck
Chip Conveyor

Specifications:
Max Turning Diameter: 18.35″
Max Turning Length: 40.75″
Max Bar Capacity: 3.55″
Swing Over Bed: 25.93″
Distance Between Centers: 44.6″
X Axis Travel: 10.63″
Z Axis Travel: 40.55″
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-8
Spindle Bore: 4.09″
Spindle Speed: 2500 RPM
Spindle Motor: 30/35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock Body Travel: 32.87″
Tailstock Quill Dia.: 3.94″
Tailstock Quill Stroke: 5.12″
Tailstock Taper: MT-4

General:

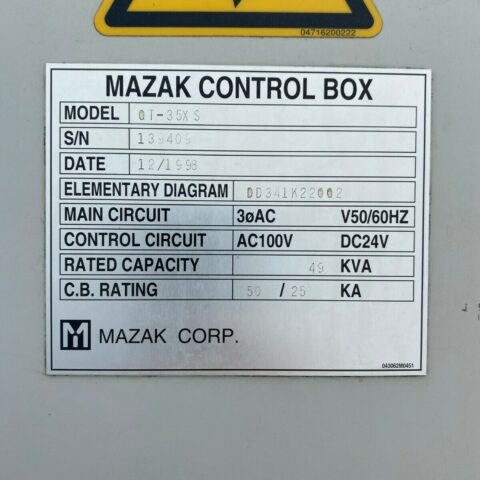

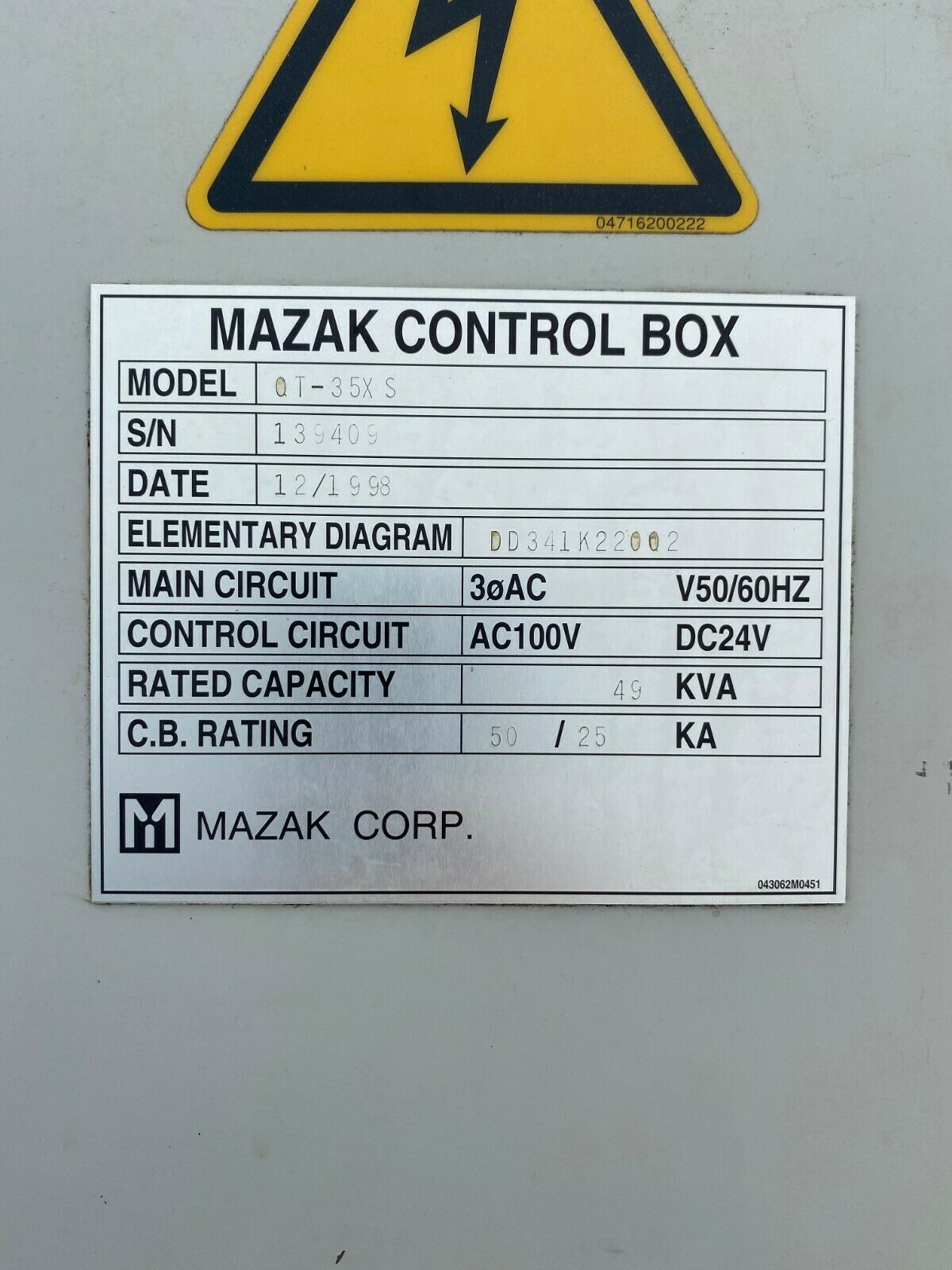

Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
Overall Dimensions: ″ High
Weight : 12000 lbs Approx.

“No Charges for loading at list Price”Machinestation buys sells trade all kinds of new and used CNC metal cutting & metal forming machines …. Used CNC Machines, CNC lathes, CNC mills, presses, gears, turning centers, horizontal machining centers, vertical machining centers, horizontal lathes, vertical lathes, surface grinders, cylindrical grinders, sheets, fabricating equipment, boring mills, lasers cutting, saws, waterjets, shears, press brakes.

MAZAK QUICK TURN QT-35XS Equipped With:
Mazak Fusion 640T Control
Tool Presetter
381 mm 3-Jaw Kitagawa Hydraulic Chuck
PCMCIA Card Slot
2 Step gear spindle for powerful torque
Programmable Tailstock with Power Quill
12 Station Turret with Tooling
Coolant System.
Automatic Lubrication system
Foot Operated Control for Chuck
Chip Conveyor

Specifications:
Max Turning Diameter: 466 mm
Max Turning Length: 1,035 mm
Max Bar Capacity: 90 mm
Swing Over Bed: 659 mm
Distance Between Centers: 1,133 mm
X Axis Travel: 270 mm
Z Axis Travel: 1,030 mm
Rapid Traverse X Axis: 945 IPM
Rapid Traverse Z Axis: 945 IPM
Spindle Nose: A2-8
Spindle Bore: 104 mm
Spindle Speed: 2500 RPM
Spindle Motor: 30/35 HP
Turret Capacity: 12 Stations
Turret Index Time: 0.5 Second
Tailstock Body Travel: 835 mm
Tailstock Quill Dia.: 100 mm
Tailstock Quill Stroke: 130 mm
Tailstock Taper: MT-4

General:
Power Source: AC 220 V, Three Phase, 60 Hz
Power Requirement: 68 Amps
Overall Dimensions: ″ High
Weight : 12000 lbs Approx.

Model	QT-35XS
Make	Mazak
